Flexible COB strip lighting for display projects

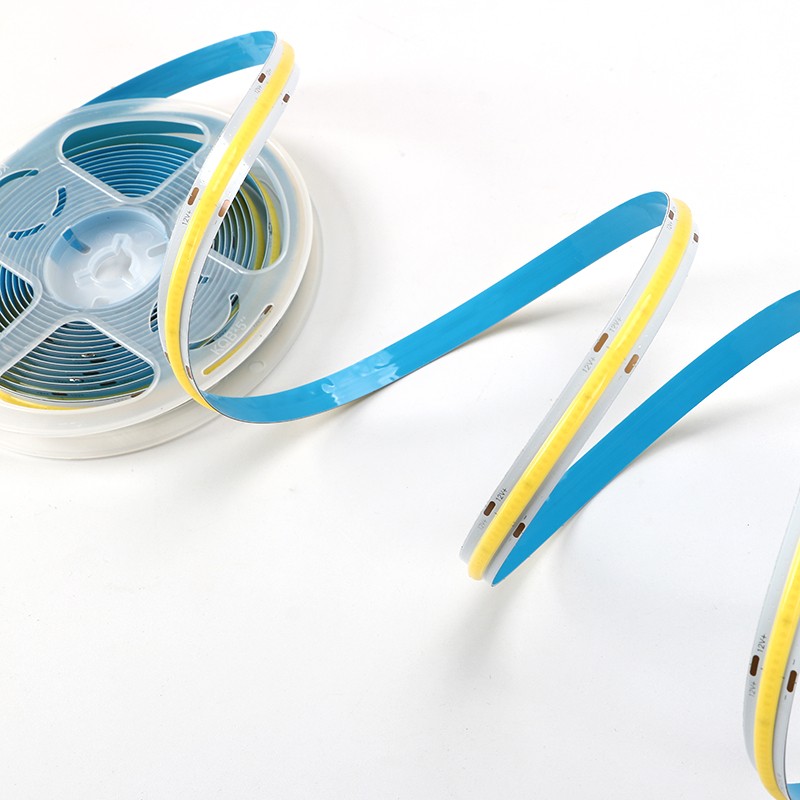

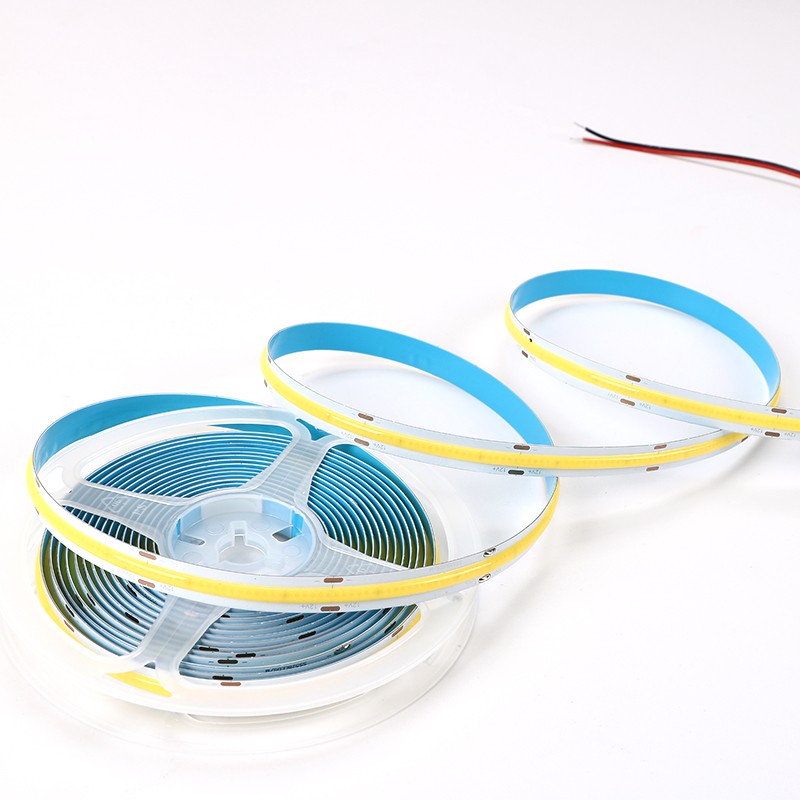

Specify a flexible lighting layout for your display, cabinet or illuminated feature. The photographs show COB LED strip on a reel, with a continuous emitter surface, exposed connection pads and red/black wire leads. The PCB carries a 12V marking.
For display manufacturers, cabinet makers and lighting distributors, include a drawing of each lighting run with the enquiry. State the required white-light colour, installation surface, cable arrangement and order quantity so the sample configuration and wholesale quotation can be prepared.
Pictured strip format and order configuration
| Specification | Pictured COB strip |
|---|
| Product format pictured | Flexible COB LED strip on a reel |
| PCB marking pictured | 12V; confirm the rated specification for the quoted version |
| Connection pictured | Red/black leads and board connection pads |
| Back of strip pictured | Blue protective backing paper |

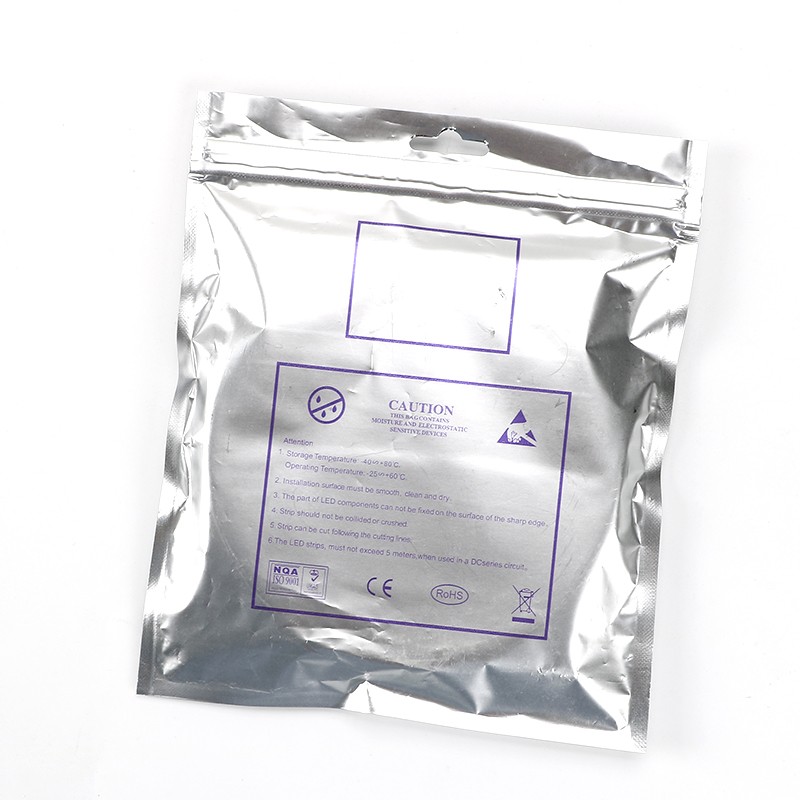

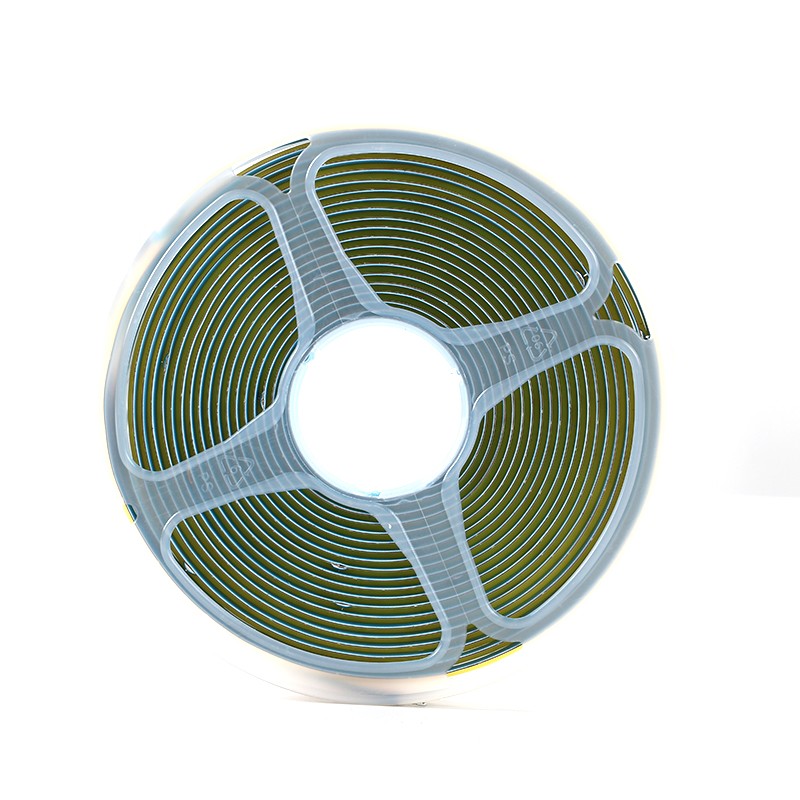

| Packing reference | Reel and silver-colour bag photographs |
| White-light selection | Required colour temperature and optical data to agree |
| CRI 90+ white-light option | Available by order enquiry; confirm configuration and technical data |
| Order configuration | Run lengths, roll length, width, electrical rating and wiring to confirm |
Plan the lighting run and connection points
Send the run drawing, installation surface and available mounting space. Mark the cable entry, connections and any required changes of direction so the strip layout can be reviewed with the sample.
The photographs show a flexible strip and accessible board pads. Agree the permitted cut positions, connection method and installation instructions for the ordered version. Protect the strip from sharp edges and crushing during handling.
Select the white-light configuration
State the required colour temperature and the appearance you want behind the actual diffuser or inside the display. Request the configuration-specific power and optical data when approving the sample.
CRI 90+ white-light versions can be discussed for an order. Confirm the selected LED configuration and technical data with the quotation. Evaluate the sample in the intended lighting assembly before production approval.
Confirm the supply and wiring together
The PCB in the photographs is marked 12V. Define the rated strip version, total run lengths, connection drawing and any dimming requirements before selecting a power supply or controller.
Confirm power per unit length, total load, feed arrangement, cable specification and connector polarity for the complete assembly. Include any power supply, controller, connector or profile you require in the enquiry so the supplied scope can be itemised.
COB LED tape samples and bulk supply
Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available. Agree the order unit, roll length, configuration, sample charges and shipping with the quotation. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include run lengths, wire leads, product marking and packing. Send drawings, target quantity and destination to confirm the custom scope and pricing. Custom schedules and transit time are agreed separately.
COB strip purchasing questions
What voltage marking is visible on this COB strip?
The pictured PCB is marked 12V. Confirm the current rated strip specification, power per unit length and wiring when agreeing the sample and quotation.
Is a cut length or roll length confirmed by these photographs?
The photographs show reel-format strip and connection pads. Request the exact roll length, permitted cut interval, width and installation drawing for the quoted configuration.
Can I request a CRI 90+ white-light version?
Yes. Include the required white-light colour and CRI 90+ requirement in the enquiry. Confirm the selected configuration and technical data with the sample quotation.
What should I send for a bulk COB LED tape quotation?
Send quantity, run drawings, colour requirements, roll length, wire and connector details, mounting space, required accessories and destination. MOQ starts at 20 pcs and volume pricing is available.
What do I need to check with a sample?
Check the physical fit, appearance through the intended diffuser, electrical specification, wiring and installation method on the actual display assembly.
Compare a rigid RGB backlight assembly
Use the flexible strip format or a rigid-bar layout according to the display structure and required colour-control arrangement.
