Silver display arm light with warm, neutral and cool white modes
The silver SL-033-04-N48L-CW2835 is a 25W ±10% LED display arm light for exhibition stands and trade show graphics. Its switch selects warm, neutral or cool white lighting to match your display requirements.
For display distributors and exhibit builders, this model combines a silver housing with three selectable CCT ranges, 2500 lm ±10% output and a 120° beam. Specify the mounting hardware, connection layout and packing arrangement when requesting samples or volume pricing.
Product features

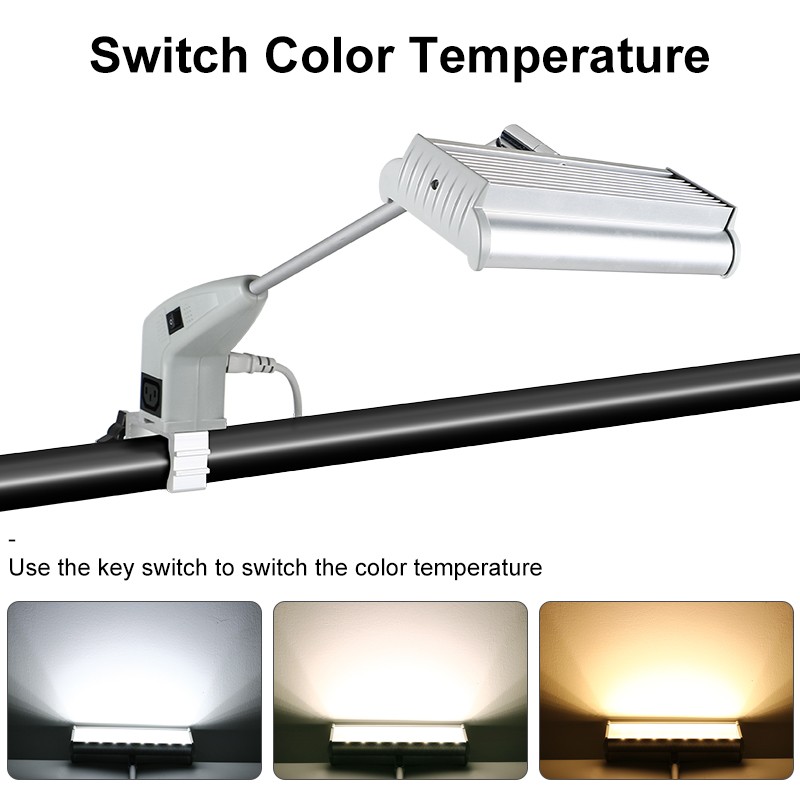

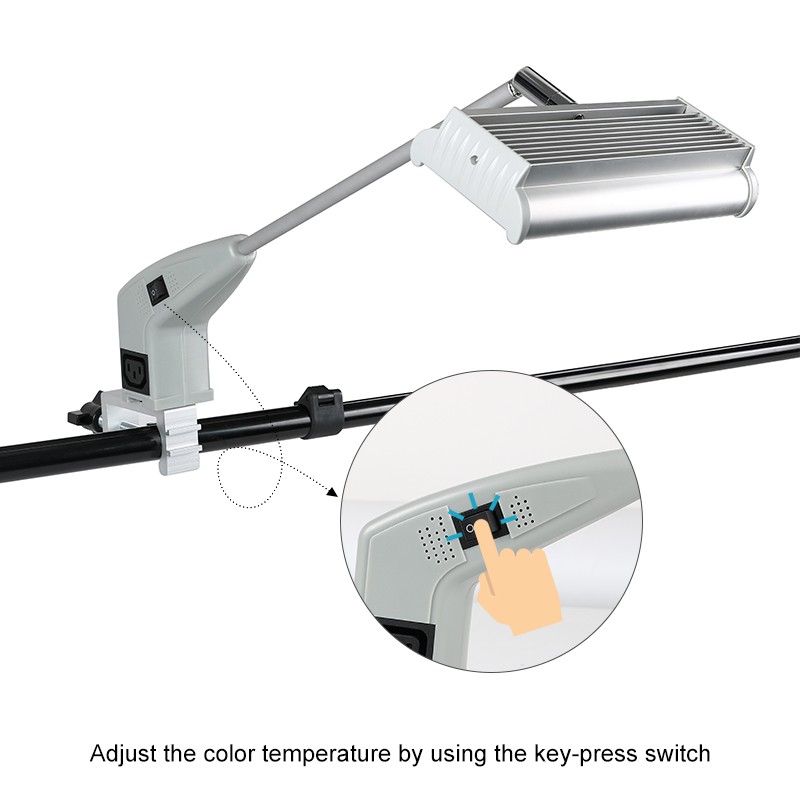

Select the white-light appearance
The original specification image shows three switchable modes: warm white 3000–3500K, neutral white 4000–5000K and cool white 6000–7000K. Ask for the required sample configuration to evaluate the appearance on your display graphics.

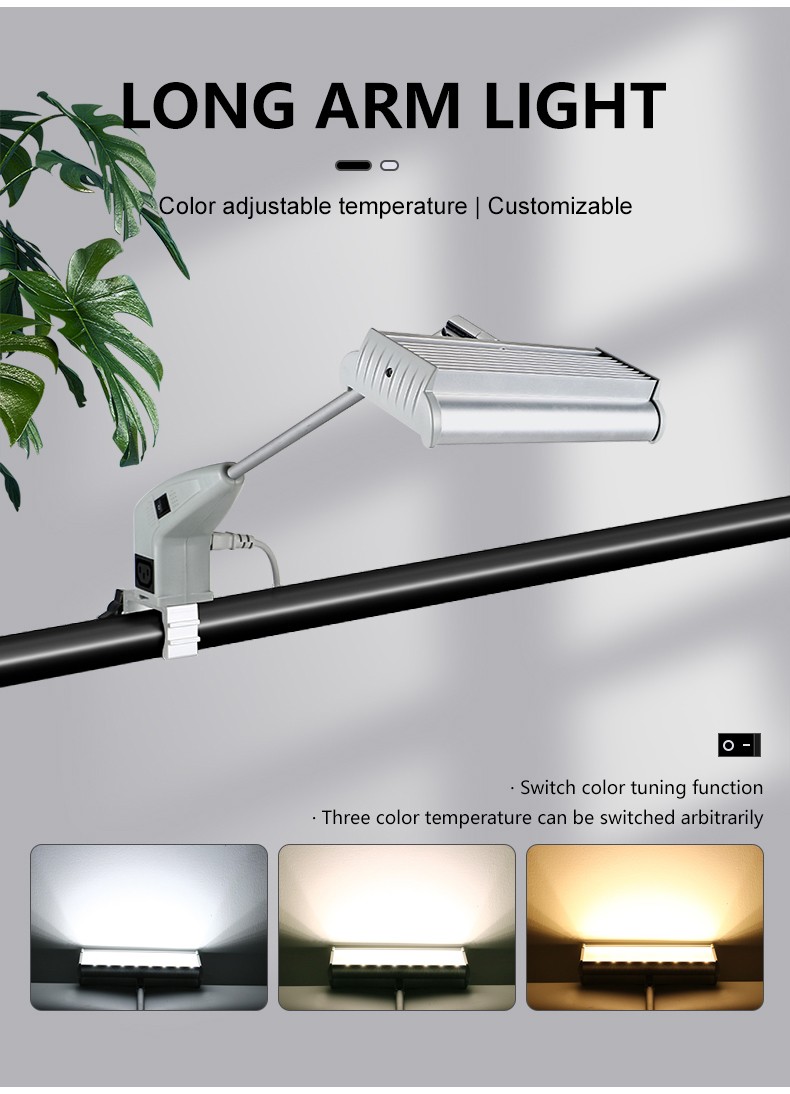

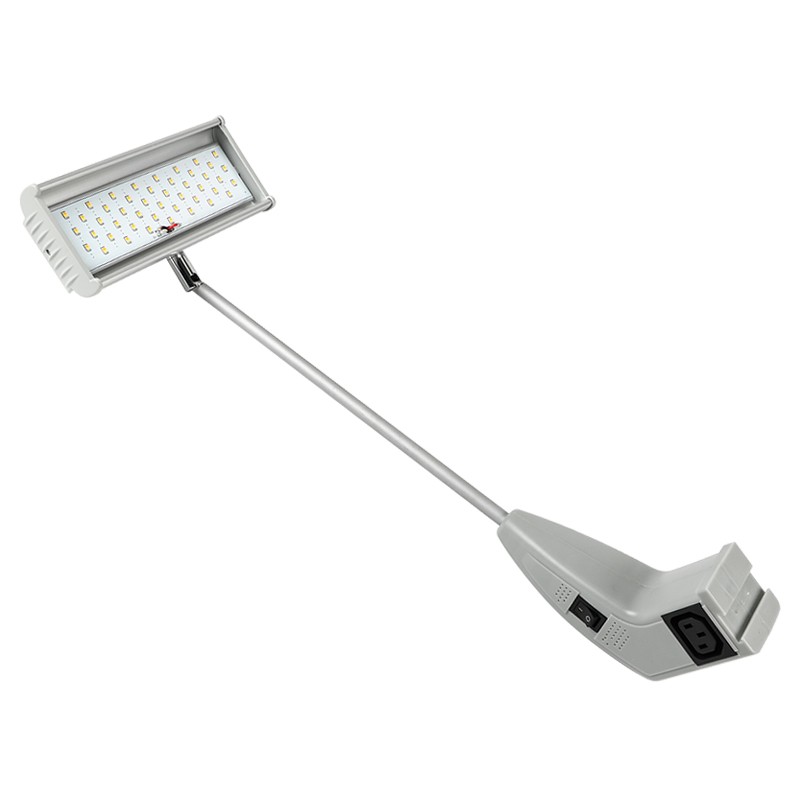

Silver long-arm construction

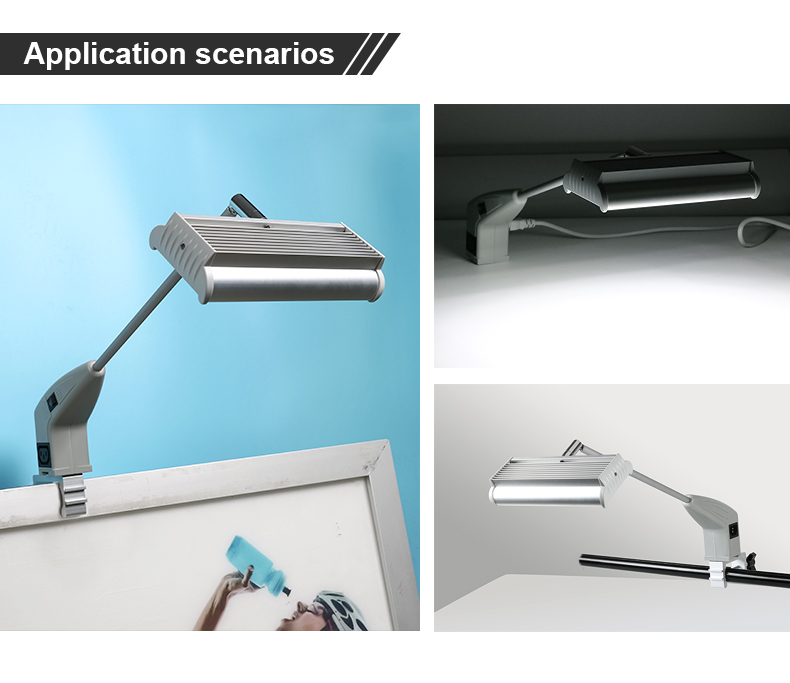

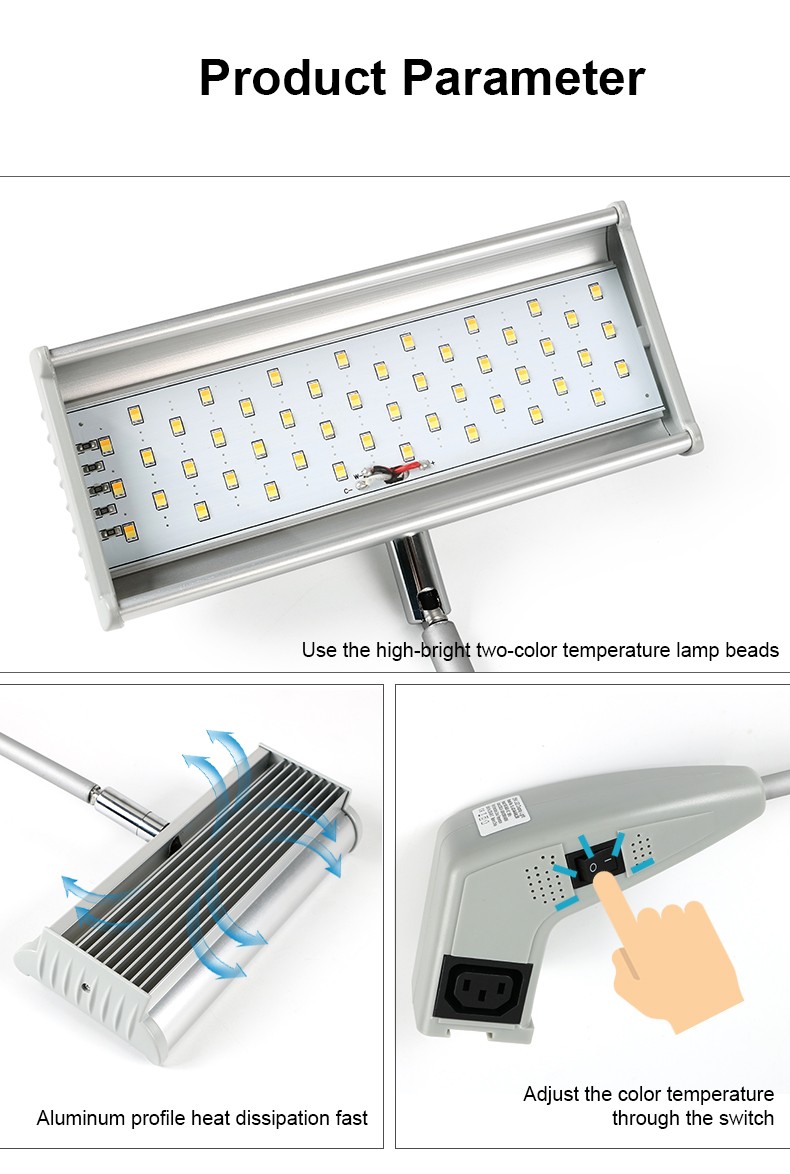

The specification gives an overall size of 528 × 176 × 50 mm. The product images show the aluminium profile and silver arm mounted above a display surface.
Plan the electrical connections

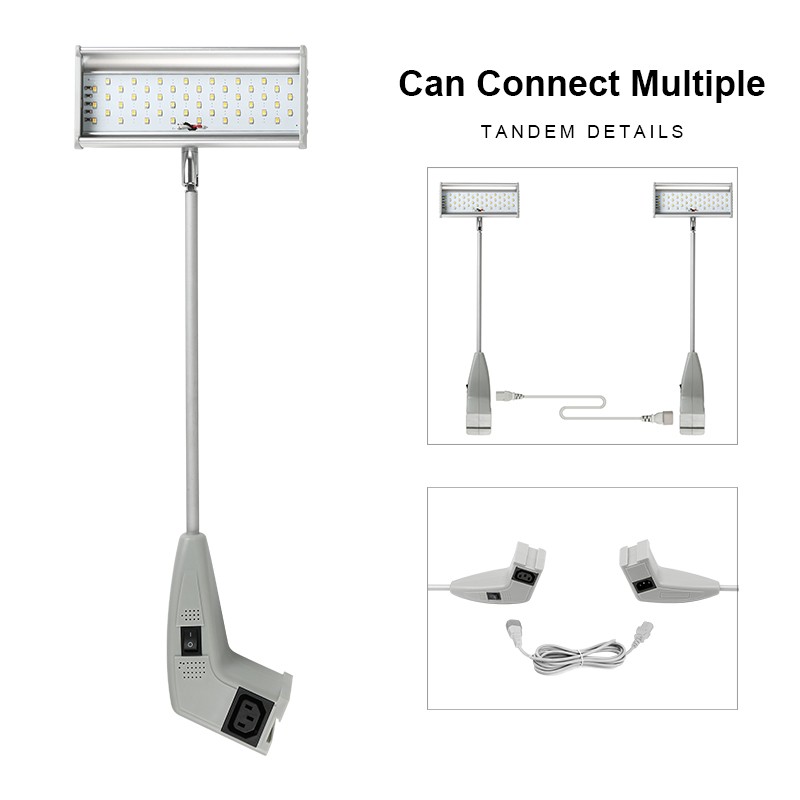

The fixture uses 3-pin input and output connections. Confirm cables, connector compatibility, destination plug and the allowed fixture count when planning a connected display-light order.

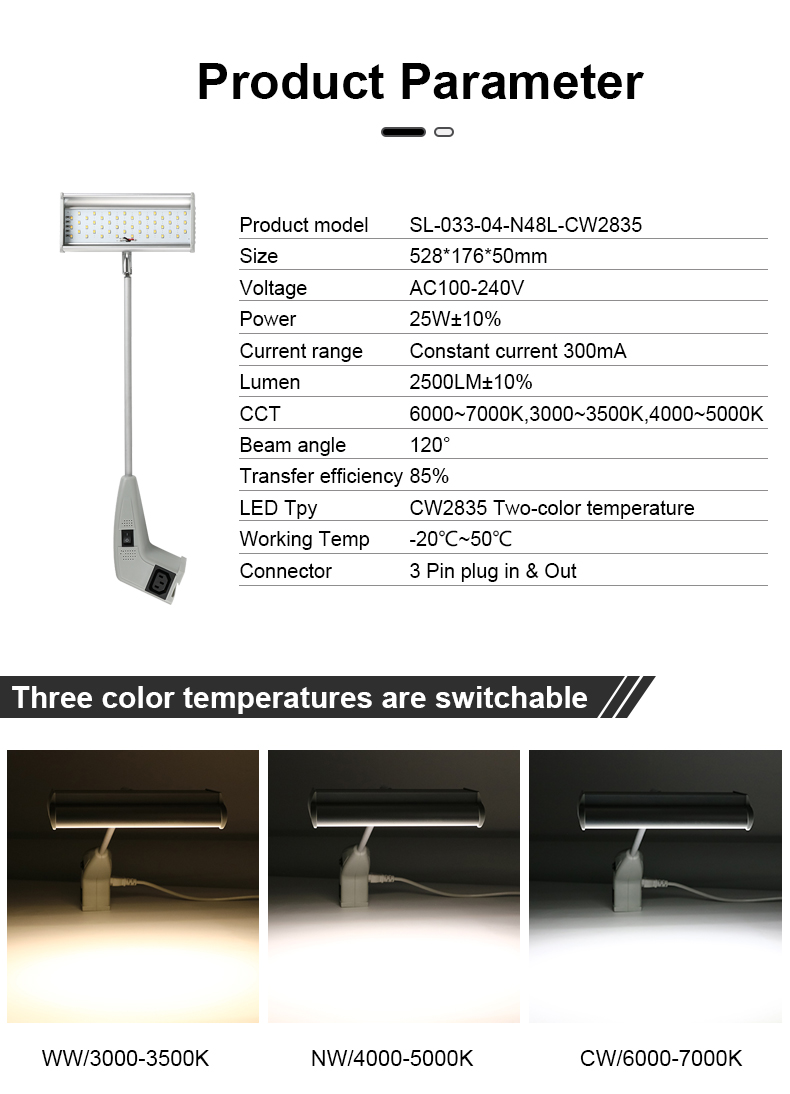

Technical specifications
| Specification | SL-033-04-N48L-CW2835 |
|---|
| Model | SL-033-04-N48L-CW2835 |
| Housing colour | Silver |
| Rated power | 25W ±10% |
| Luminous flux | 2500 lm ±10% |
| Beam angle | 120° |
| Overall dimensions | 528 × 176 × 50 mm |
| AC input | 100–240V |
| Current specification | Constant current 300 mA |
| Switch-selectable CCT ranges | Warm: 3000–3500K; neutral: 4000–5000K; cool: 6000–7000K |
| Conversion efficiency | 85% |
| LED type | CW2835 dual-colour-temperature LEDs |
| Operating temperature | -20°C to +50°C |
| Connections | 3-pin input and output |
Mounting and order configuration

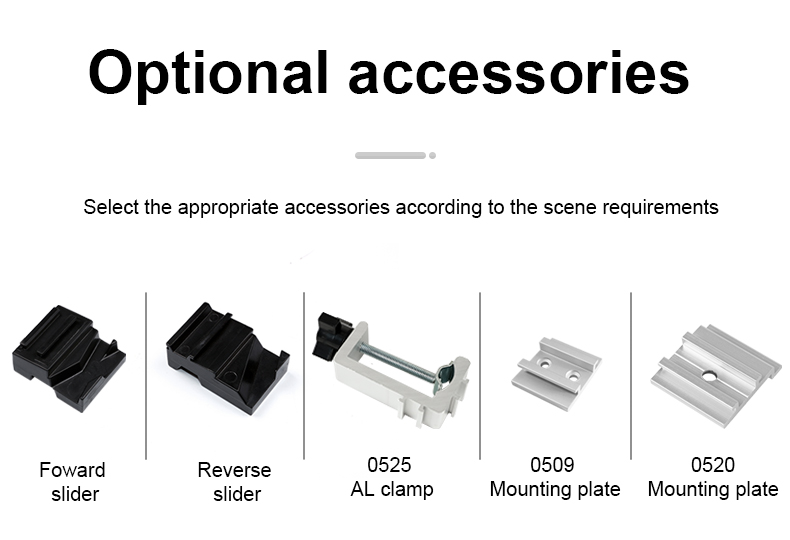

Mounting options in the accessory image include forward and reverse sliders, an aluminium clamp and mounting plates. Send your frame profile and fixing dimensions to confirm the appropriate option. Optional components and linking leads should be specified in the quotation.
Compare the black CCT-switchable exhibition arm light, or browse the display arm light range to select a configuration for your project.

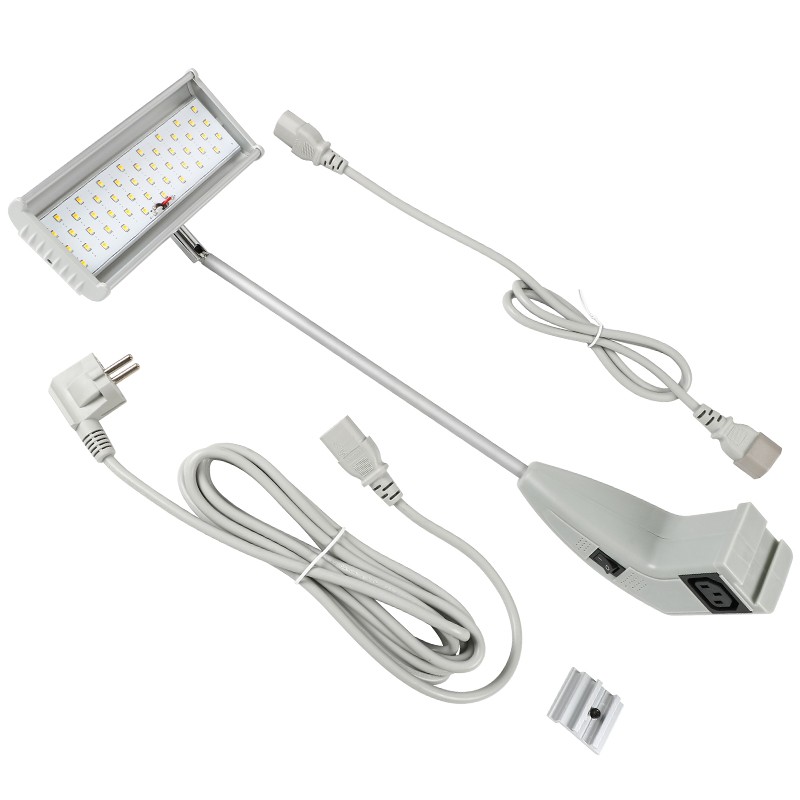

Packing and supplied components

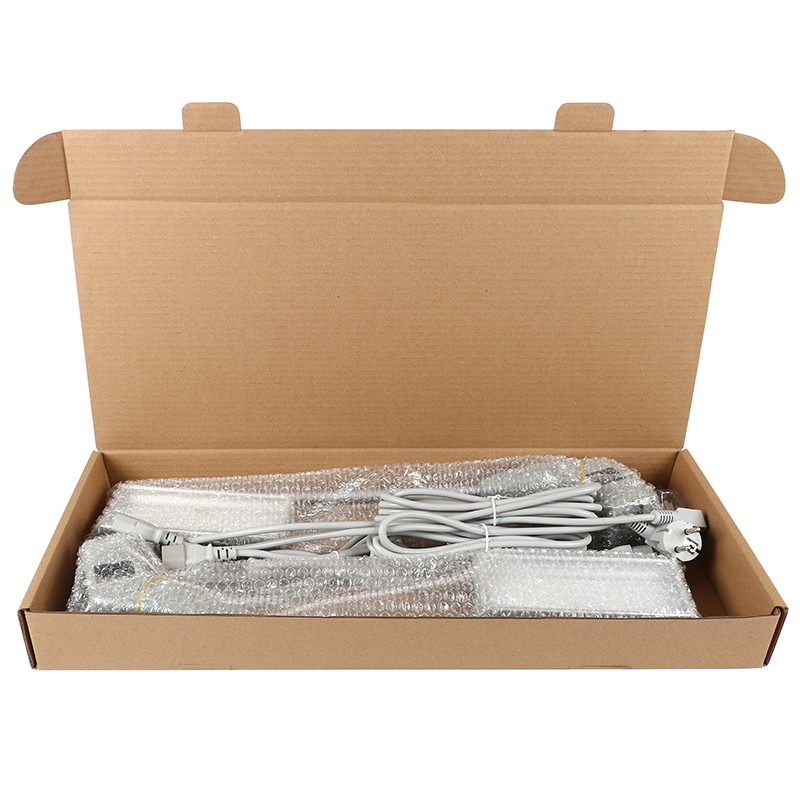

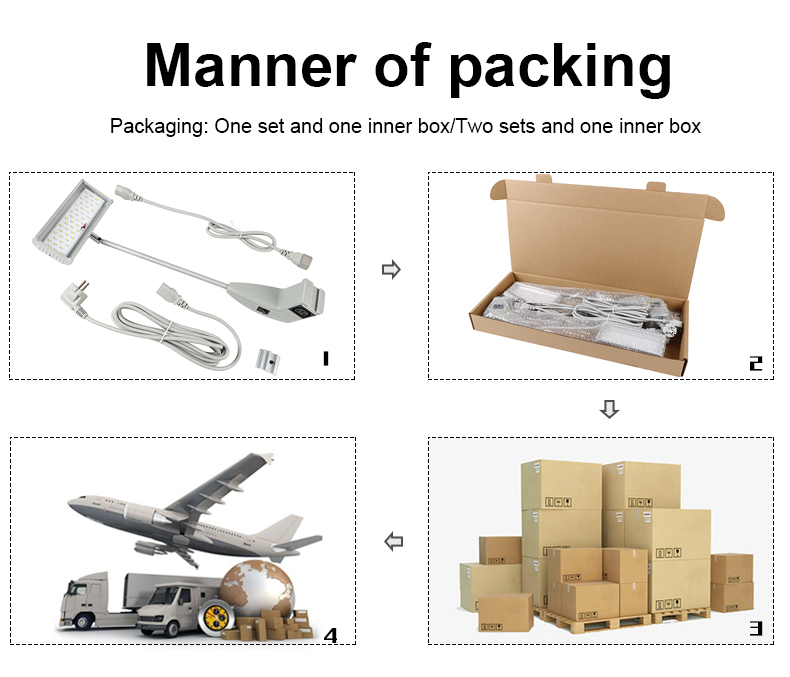

The packing reference shows one-set and two-set inner-box options. Specify your order quantity and required set contents so the inner-box arrangement and outer packing can be confirmed for shipment.
Purchasing and configuration questions
Which white-light modes can I select on this silver arm light?
The switchable modes shown in the image are warm white 3000–3500K, neutral white 4000–5000K and cool white 6000–7000K. Confirm the operating sequence when reviewing your sample.
How does this model differ from the black CCT-switchable light?
The two specification images list the same model and electrical/optical data. This page is for the silver housing; the related page shows the black option. Confirm colour and mounts when ordering.
Are the mounting accessories included with every light?
The accessory image describes them as optional. The quotation should identify the selected sliders, clamp or mounting plates, as well as the required cables and packing configuration.
What is the minimum order and can I request a sample?
Wholesale orders for this silver CCT switchable display arm light start from 20 pcs. Higher quantities qualify for lower unit prices. Samples are available; confirm sample quantity, configuration, cost and shipping with your enquiry.
What is the lead time for a bulk display lighting order?
The standard lead time is 12–18 days. Confirm the schedule for the order quantity, selected configuration and any custom requirements. Transit time is confirmed separately.
Can this light be supplied for OEM or private-label projects?
OEM, ODM and private-label enquiries are welcome. Share your specifications, branding requirements and target quantity so we can confirm the scope, quotation and schedule. Request model-specific technical and compliance documents for your destination market.
Information for your quotation
Please include model SL-033-04-N48L-CW2835, silver housing, quantity, colour-temperature requirements, mounting profile, cable and plug requirements, and destination country. Add your branding and specifications for an OEM or private-label enquiry.
