360mm LED Lightbox Bar - 10W, Parallel Connection Options

360mm LED lightbox bars for parallel wiring layouts

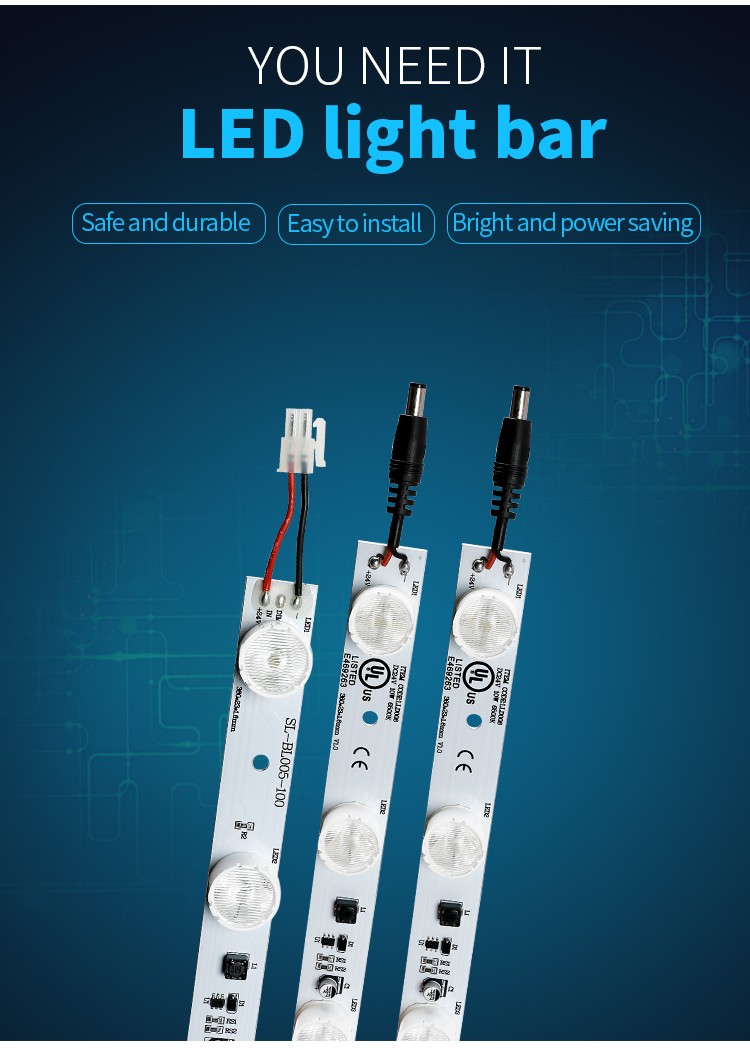

Build a lens-bar lighting layout around the enclosure and its cable route. SL-BL005-100 is a 360mm LED lightbox bar specified at 10W, 1000 lm and 24V DC ±0.5V, with 15 × 45° optics and a 23 × 16mm cross section. The original pictures show white plug and DC connector versions for parallel connection arrangements.

For sign makers, illuminated-display manufacturers and component wholesalers, agree the bar quantity, connector version and supply layout before sampling. Send the frame dimensions, display-face material and wiring route to define the light-source and accessory specification for the project.

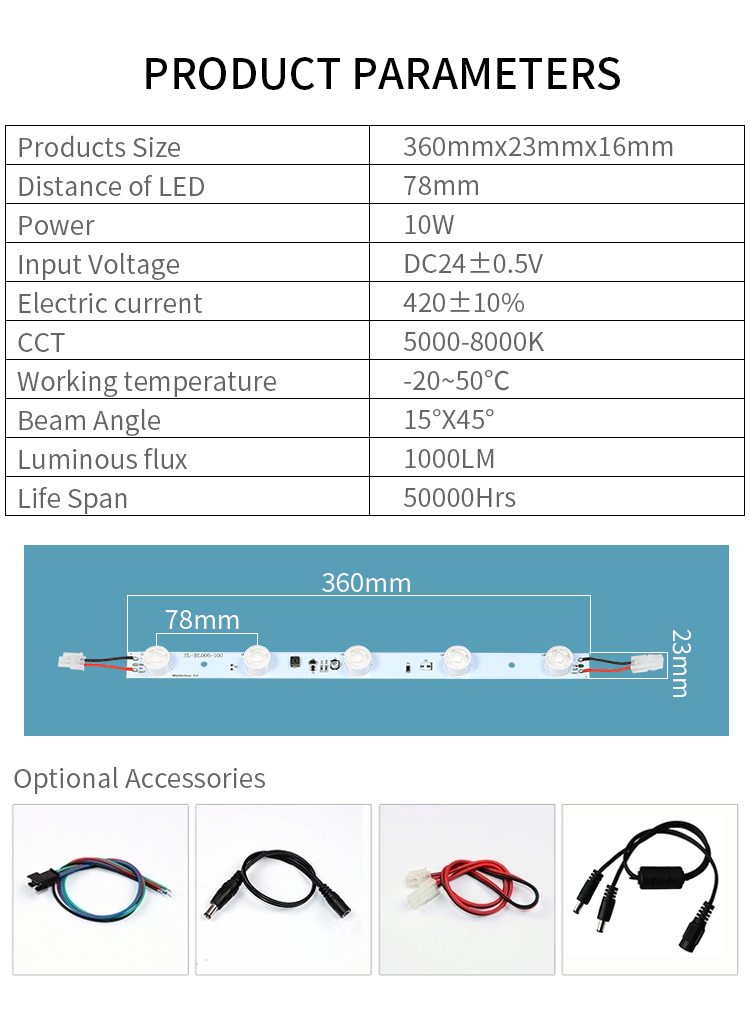

10W lightbox bar technical specification

Specify the parallel connection and accessory layout

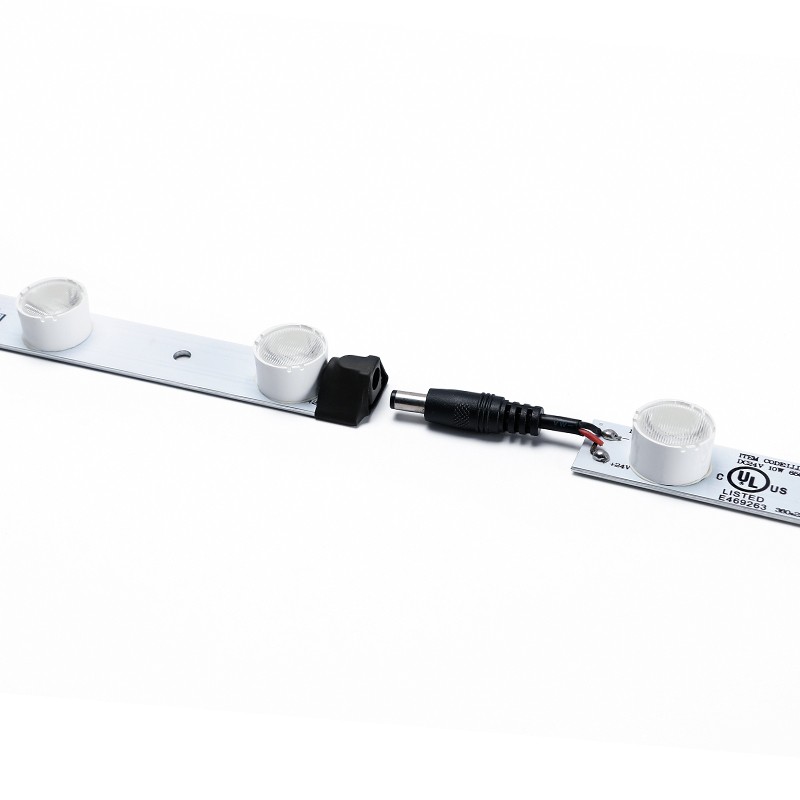

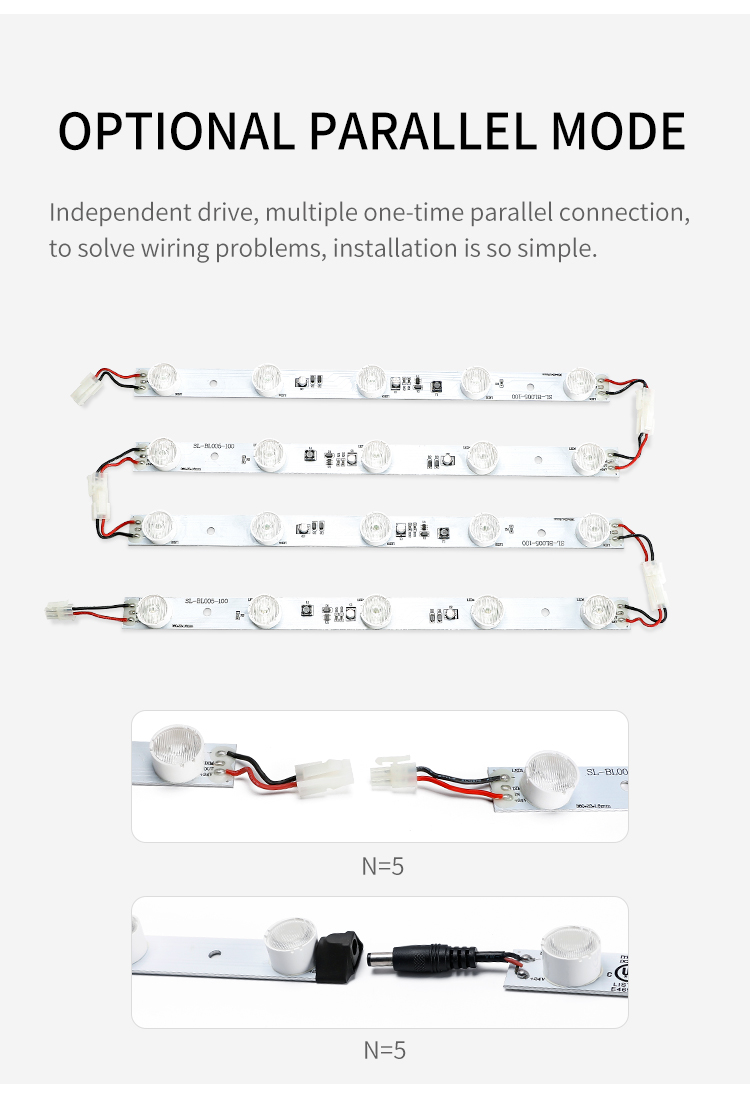

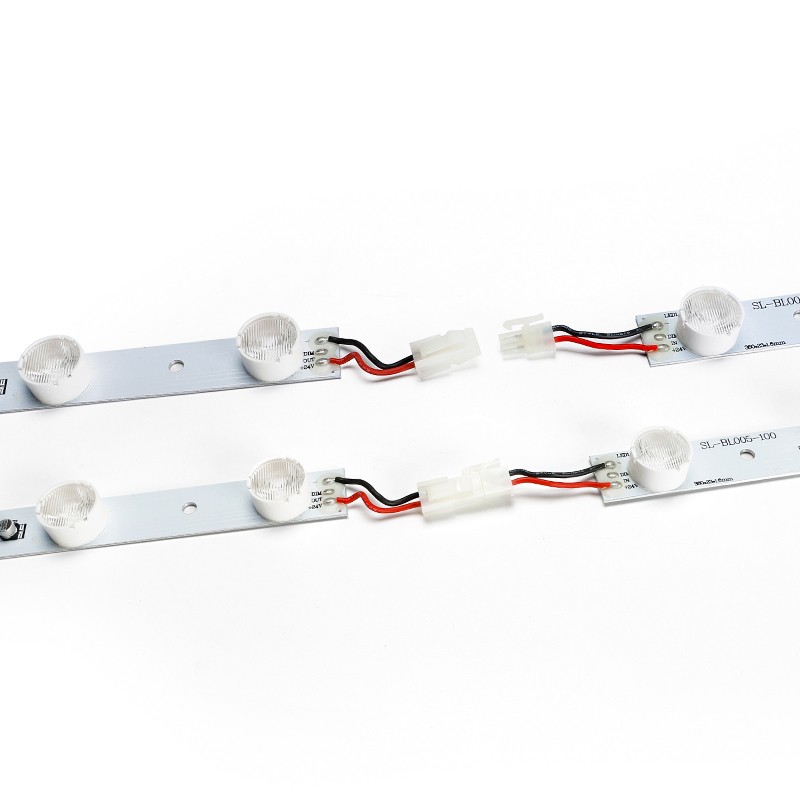

The connection artwork illustrates linked lens bars using white plugs, plus a separate DC coupling example. Select one connection version and agree its mating leads, feed arrangement and accessory quantities in the quotation.

Define the number of bars and the cable route with a suitable power-supply specification. Obtain the approved wiring layout and connection limits for the ordered version before assembling the display. The accessory picture is an option reference; supply scope is itemised for each order.

Lightbox frame assembly and project sampling

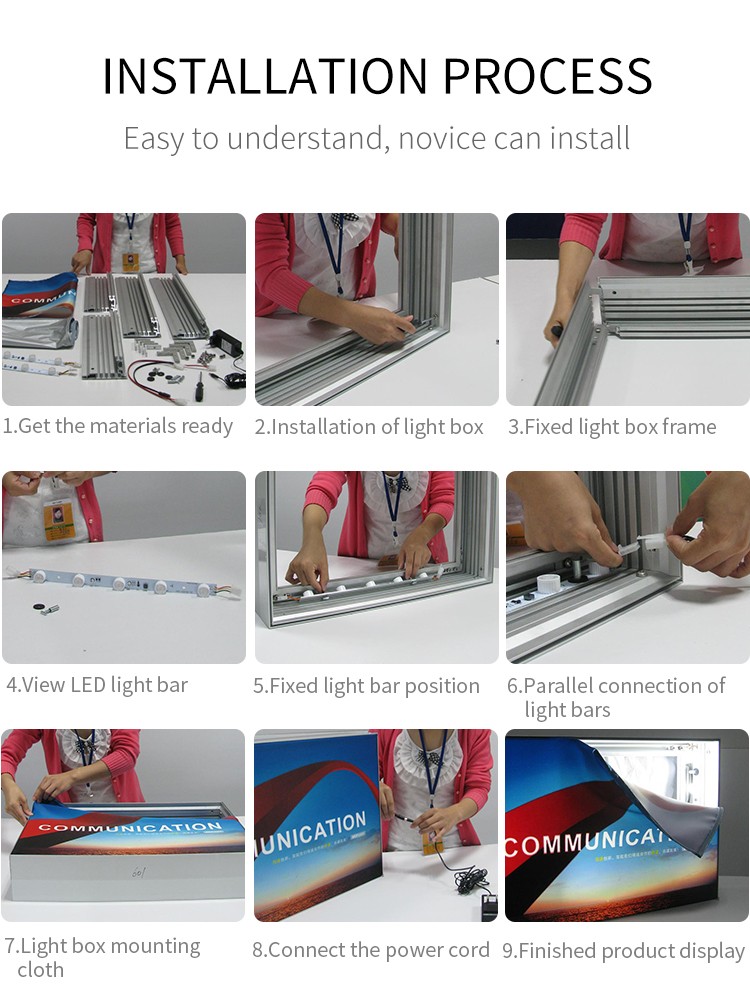

The assembly sequence shows a frame being built, bars fixed, parallel connections completed and the graphic face fitted before the display is powered. Match the fixing positions and cable clearances to the frame drawing.

For a replacement project, provide the existing light-source dimensions, fixing points and power-unit label. A sample in the intended enclosure lets the buyer assess the lighting layout and connector arrangement. The pictured replacement applications require a project-specific configuration.

White-light and wholesale order configuration

The product sheet lists a 5000–8000K white-light range. State the required white-light selection and whether CRI 90+ LEDs are required, then approve the sample specification for bulk supply.

Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; sample cost and destination shipping are confirmed separately. Standard lead time is 12–18 days, with custom work and transit agreed separately. OEM, ODM and private-label requirements can be included with the frame and wiring drawings.

Parallel-wiring lightbox bar purchasing questions

Can I choose white plugs or DC connectors for the 360mm bar?

Both connection appearances are illustrated. Identify the required version and provide the mating-part details so the sample, extension leads and power connection can be specified together.

How many 10W bars should a lightbox use?

Share the enclosure dimensions, face material and proposed mounting positions to agree a sample layout. Confirm the power unit, cable arrangement and permitted connection quantity for the ordered version.

Is the 50,000-hour figure a warranty period?

It is the rated-life figure printed in the product sheet. Confirm the operating conditions, version-specific technical data and warranty coverage with the quotation.

What should I include in a bulk lighting-component enquiry?

Include SL-BL005-100, quantity, white-light requirement, CRI selection, connector version, frame drawing and delivery country. Add any OEM marking or packing requirements to define the supply scope.

Compare white-light selection or higher-output modules

360mm 10W rigid LED strip with three white-light order ranges

470mm 20W lens module with 3P leads and mounting options
