Arm lighting with three-pin input and output
The SL-2083-04-N24L is a 21W LED display arm light for exhibition panels and trade show graphics. It delivers a specified 2300 lm output with a 60° beam and uses three-pin input and output connections. The built-in power supply and base on/off switch support a complete arm-mounted lighting configuration.

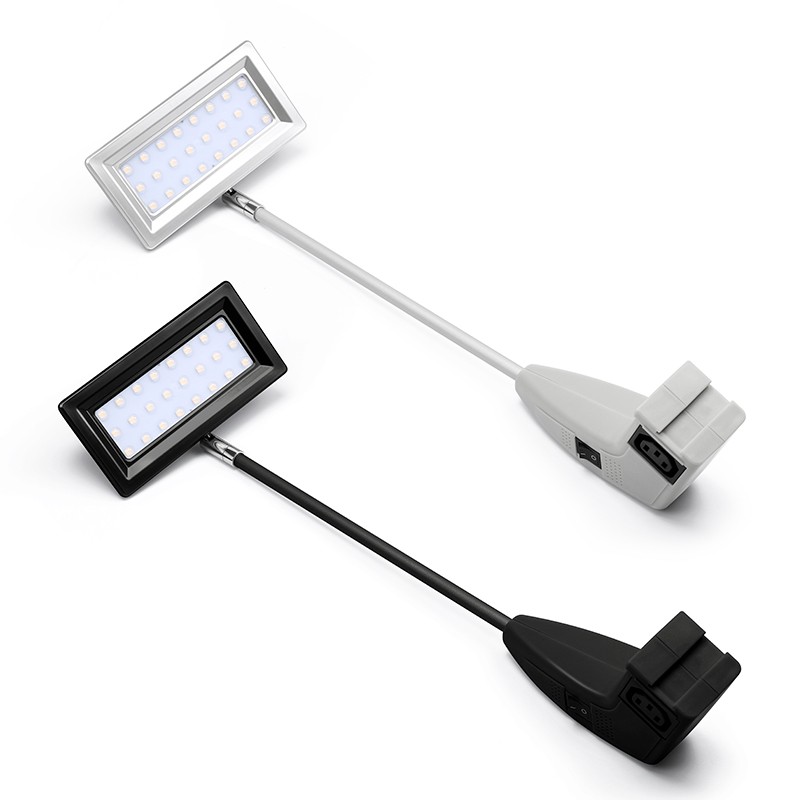

Choose the black or silvery-white body version to suit the display structure. For a multi-lamp stand, provide the lamp quantity, frame profile, mounting positions and required lead layout so the fixing and electrical configuration can be confirmed together.
21W three-pin arm-light technical data
| Specification | SL-2083-04-N24L |
|---|
| Model | SL-2083-04-N24L |
| Power | 21W |
| Light output | 2300 lm |
| Input voltage | AC 100–240V |
| Beam angle | 60° |
| Dimensions | 536 × 160 × 87 mm |
| LED package | 2835 |
| Colour-temperature range | 3000–7000K; specify the order version |
| Body options | Black / silvery white |
| Connections | Three-pin input and output |
| Power and control | Built-in power supply; base on/off switch |
| Head and fixing | Adjustable head; universal shoe base examples shown |
Plan trade show lighting leads and frame fixings

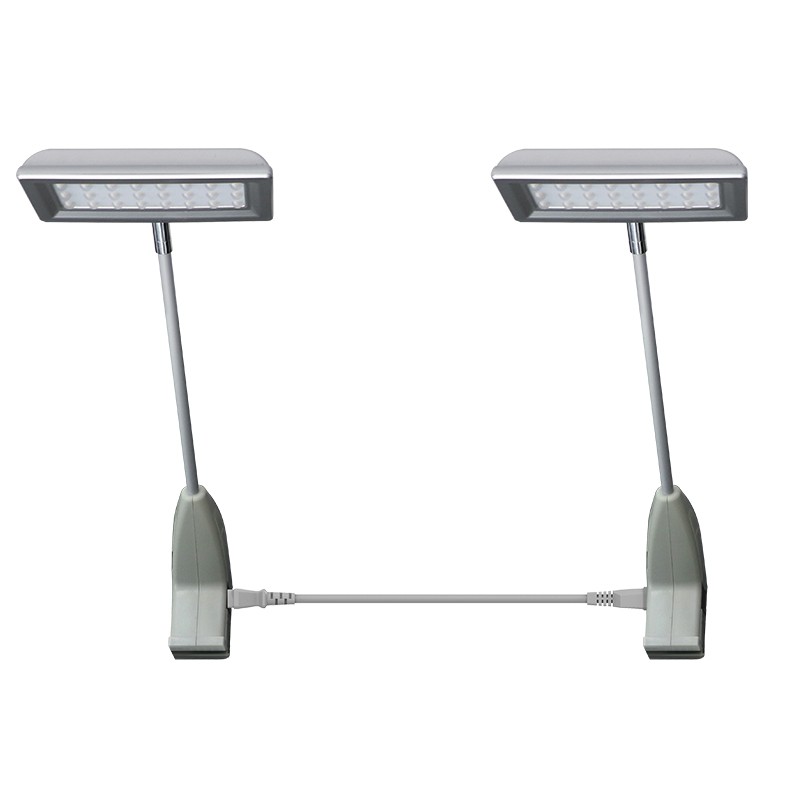

The connection illustration shows a multi-lamp arrangement and two universal shoe base examples. Choose the fixing against the actual frame profile. Send the lamp count, intended connection layout and cable lengths to confirm the matching leads and permitted arrangement for the complete installation.

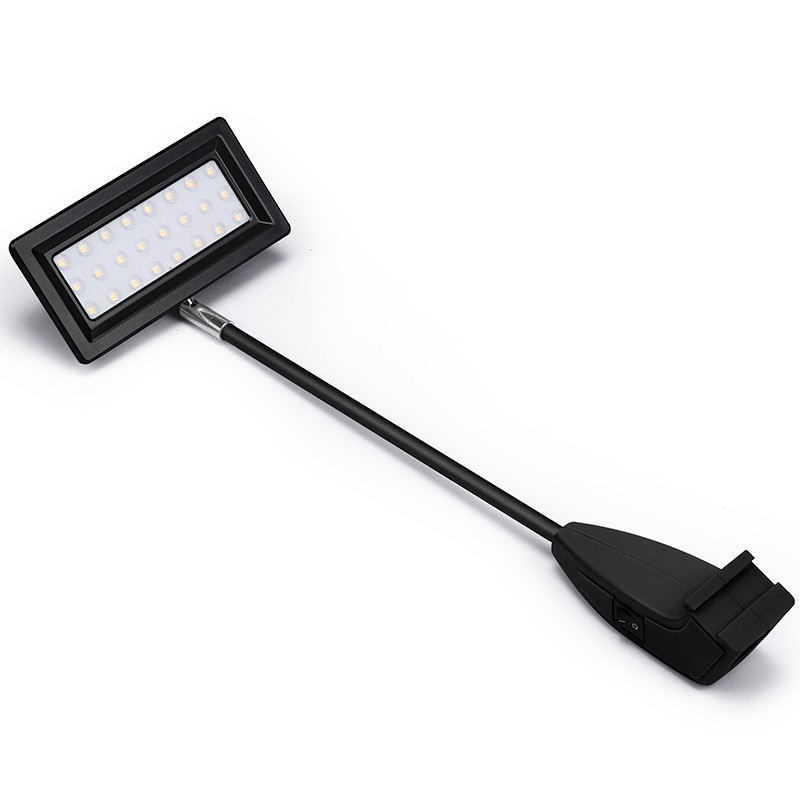

Adjustable head with integrated power supply

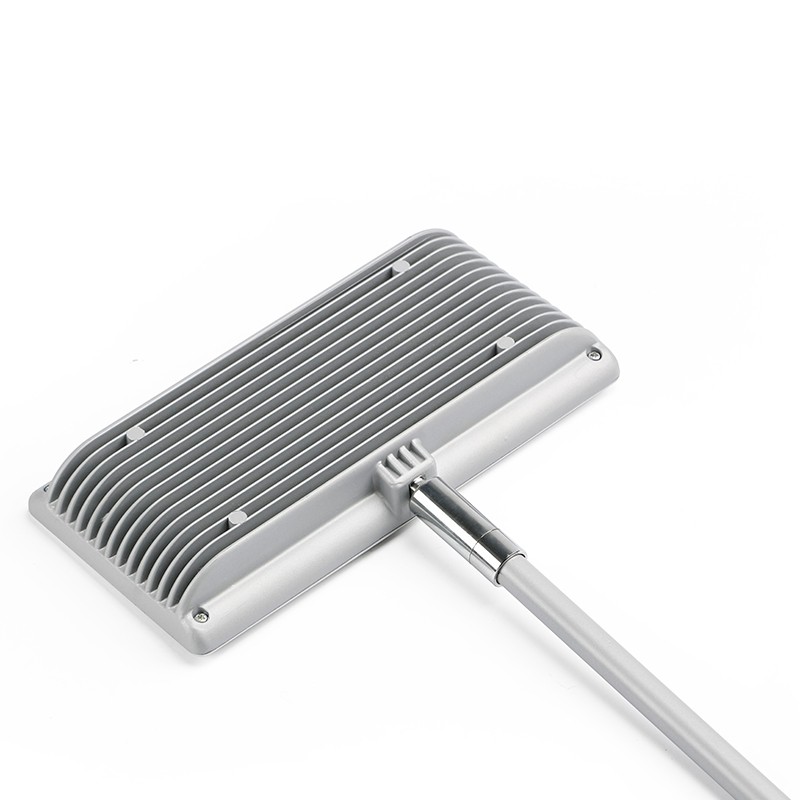

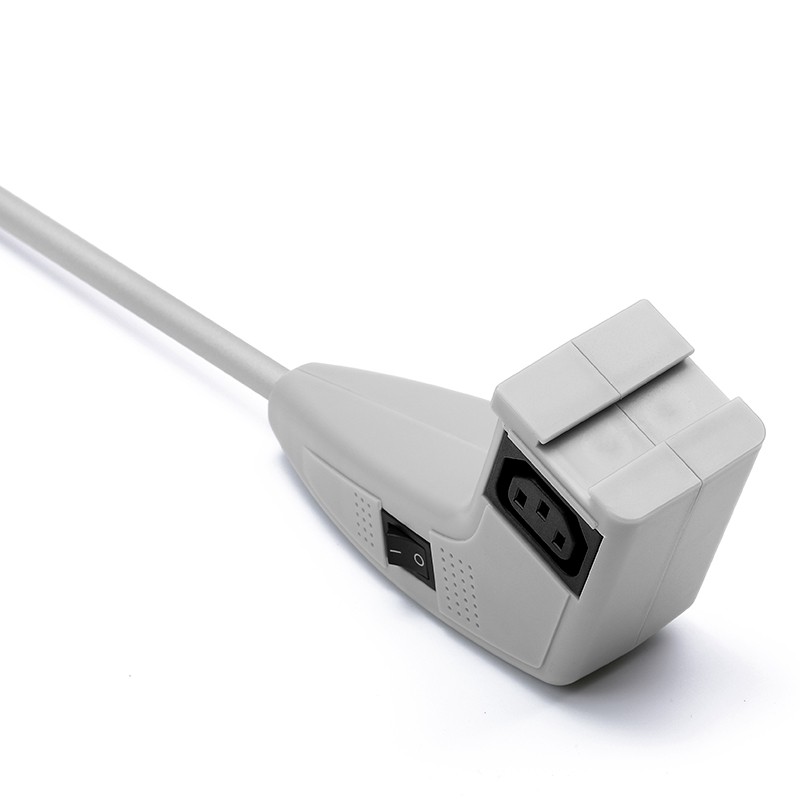

Aim the rectangular head toward the display graphic. Rear ribs, the integrated supply and a base on/off switch are shown in the product close-ups. Include the destination mains plug in your requirements so the power lead can be matched to the order.
White-light versions and display applications
The specification covers a 3000–7000K colour-temperature range, with warm, neutral and cool lighting appearances illustrated. Select the order version to match the graphics and surrounding stand lighting. Check beam coverage using the intended mounting position on a sample panel.
Configure lamps, connection leads and packing

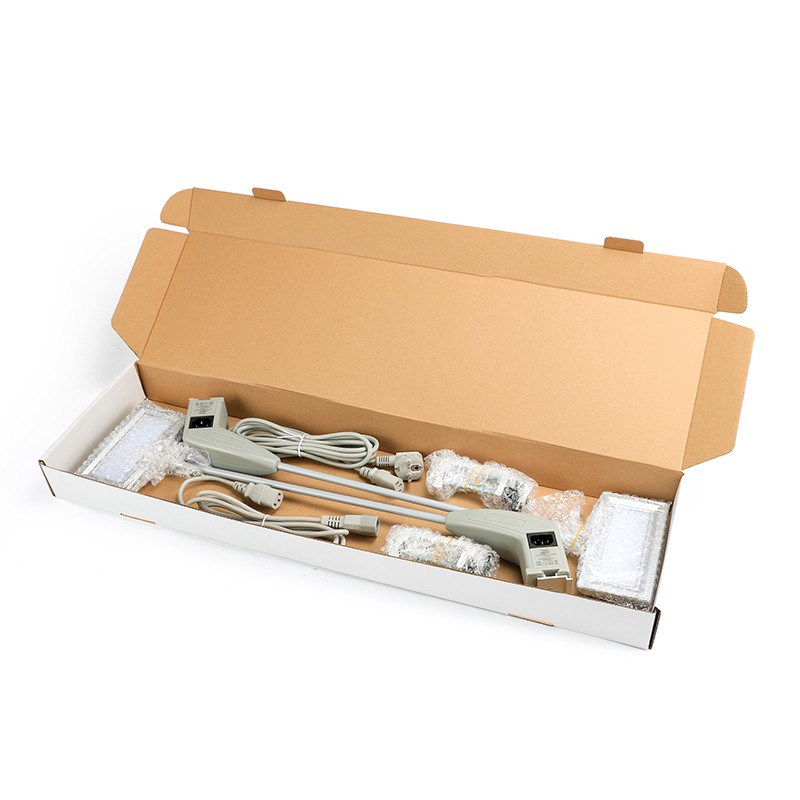

The packing example shows the arm lamp with mains and connection leads in a protective carton. Confirm the lead lengths, components per kit, lamps per carton and any branding requirements with the quotation. The illustration does not define a fixed kit quantity for every order.
Questions for three-pin display-light buyers
How many lamps can be connected in one layout?
Send the required lamp quantity and cable arrangement so the permitted configuration and matching leads can be confirmed. The input/output connectors support the illustrated arrangement, but the maximum lamp count must be specified for the complete kit.
Can I order black or silvery-white arm lights?
Both body options are listed for this model. State the finish, white-light version and fixing in the enquiry, and confirm the selected configuration and schedule with the quotation.
What information helps price a wholesale lighting kit?
Include SL-2083-04-N24L, quantity, frame profile, white-light version, body finish, destination plug, connection layout and packing requirements. Orders start from 20 pcs, with lower unit prices at higher quantities.
Samples and custom factory production
Samples are available to assess the fixing, finish and lighting appearance. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit are confirmed separately.
Compare connector and output configurations
21W long-arm spotlight with a three-pin connector
18W silver arm spotlight with a B-shape connector
