517mm lens modules for illuminated advertising displays
Specify the SL-BL029-120 for a 517mm lightbox lighting assembly. Five LEDs with 15 × 45° optical lenses are mounted on an aluminium substrate, with 12W power, DC 24V input and 900–1000 lm specified output. The technical sheet lists a 6000–7000K white-light version.
For sign fabricators and display integrators, the bar geometry, lens orientation and connection arrangement should be selected together. Include the enclosure drawing, face material, fixing method and total bar quantity so the module layout, mounting pieces and power unit can be quoted for your assembly.

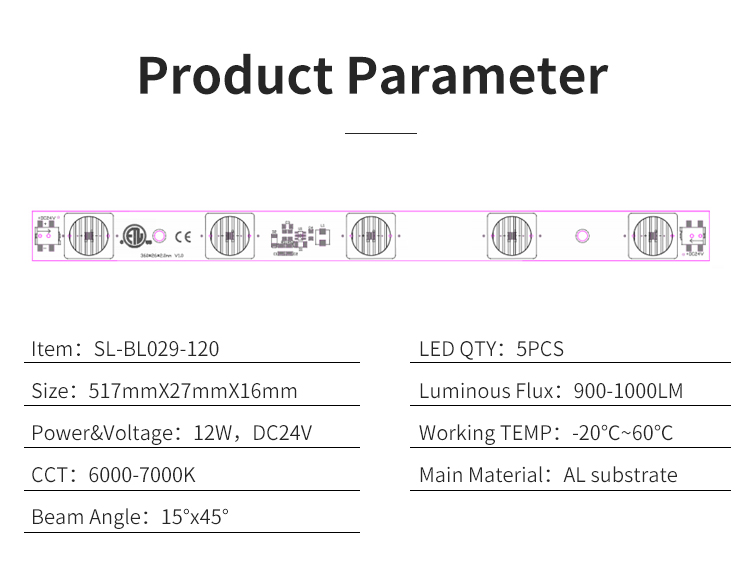

Five-LED module technical specifications
| Specification | SL-BL029-120 |
|---|
| Model | SL-BL029-120 |
| Bar dimensions | 517 × 27 × 16 mm |
| Power | 12W |
| Input voltage | DC 24V |
| LED quantity | 5 |
| Specified luminous flux | 900–1000 lm |
| Optical lens angle | 15 × 45° |
| Colour temperature specified | 6000–7000K |
| Main material listed | Aluminium substrate |
| Working temperature listed | −20 to +60°C |

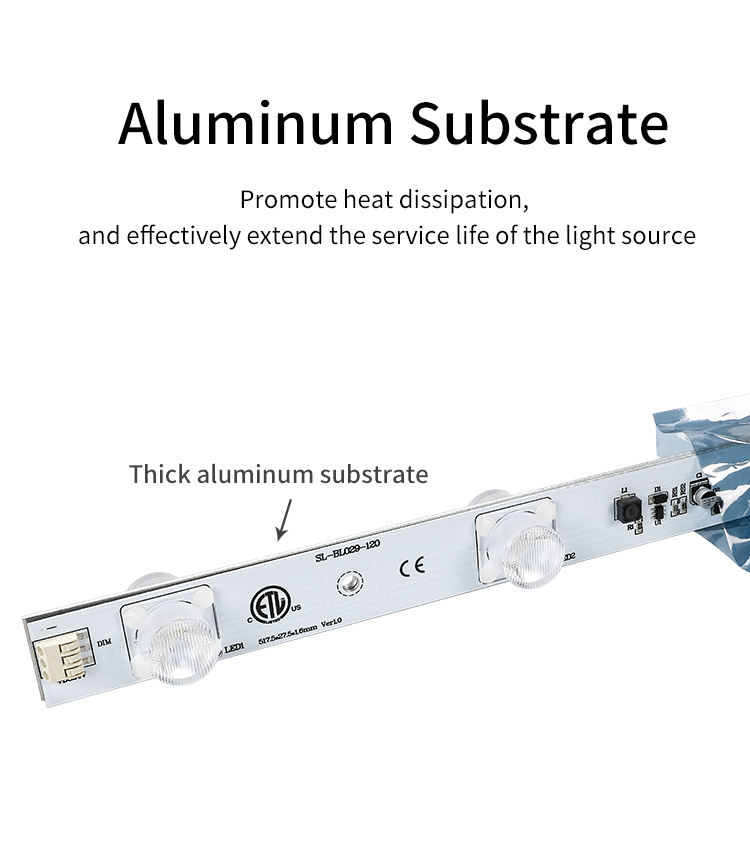

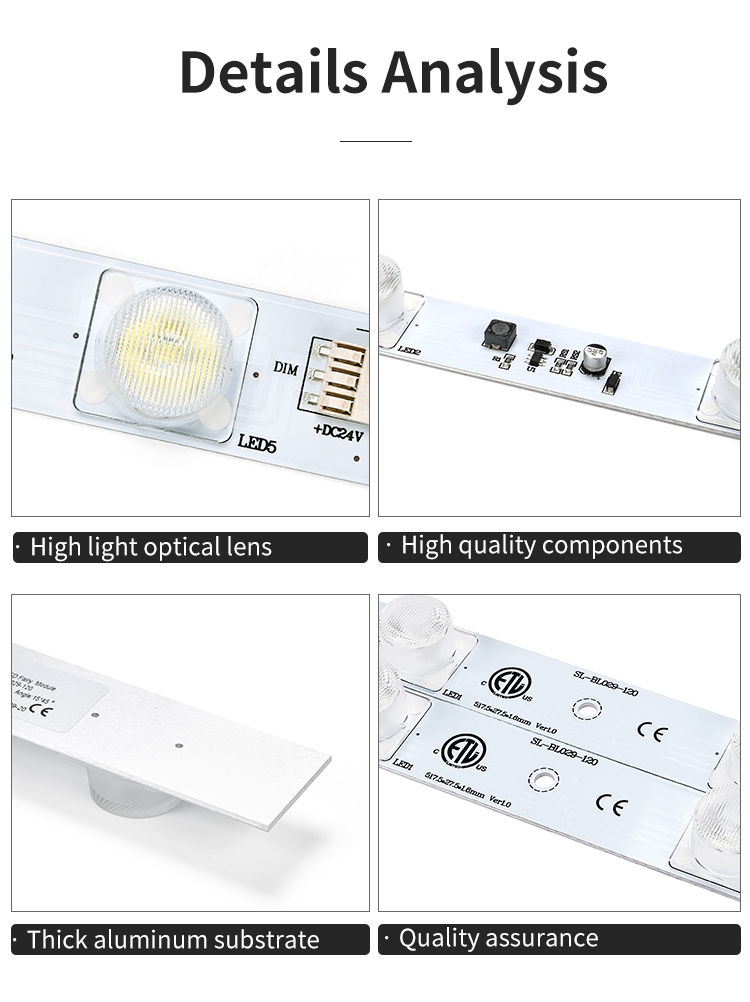

Aluminium substrate and individual optical lenses

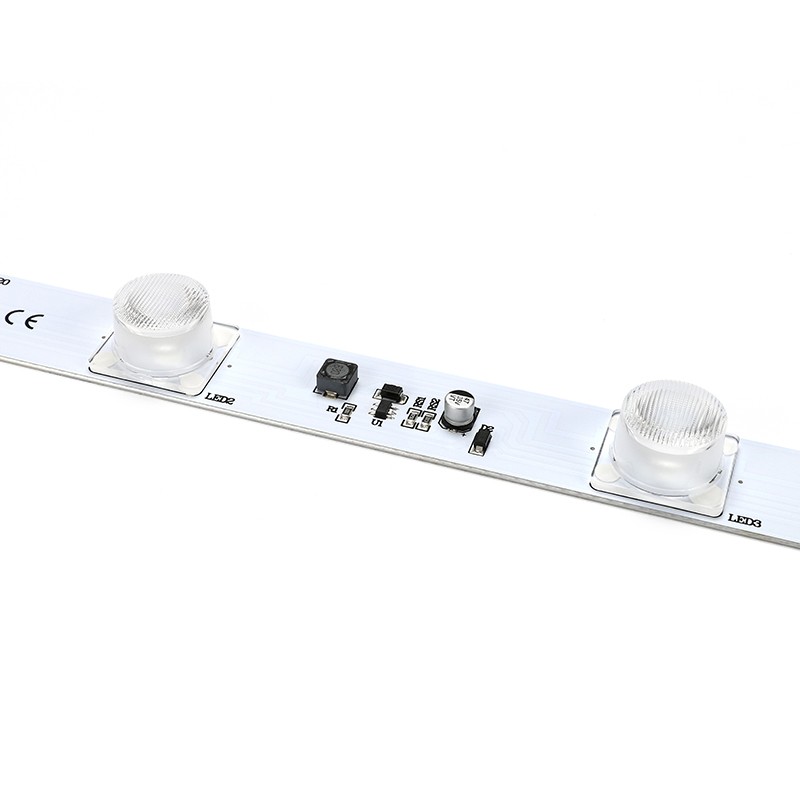

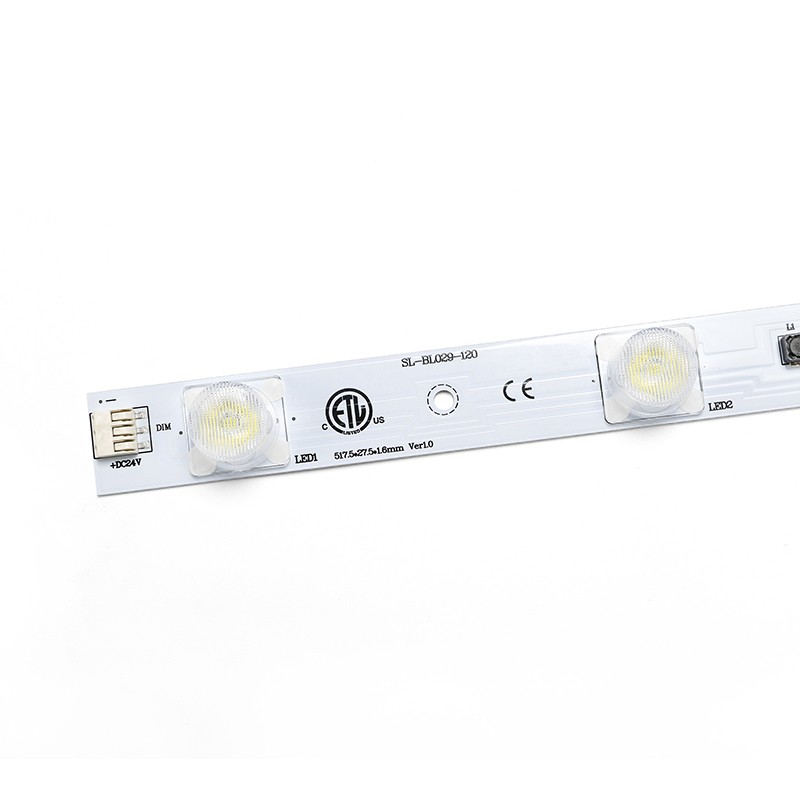

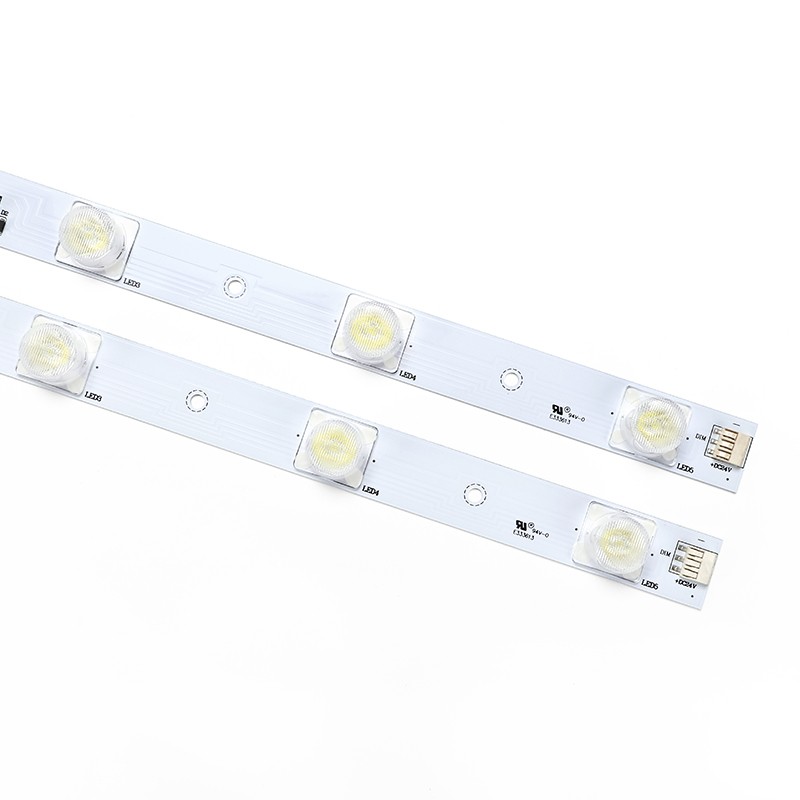

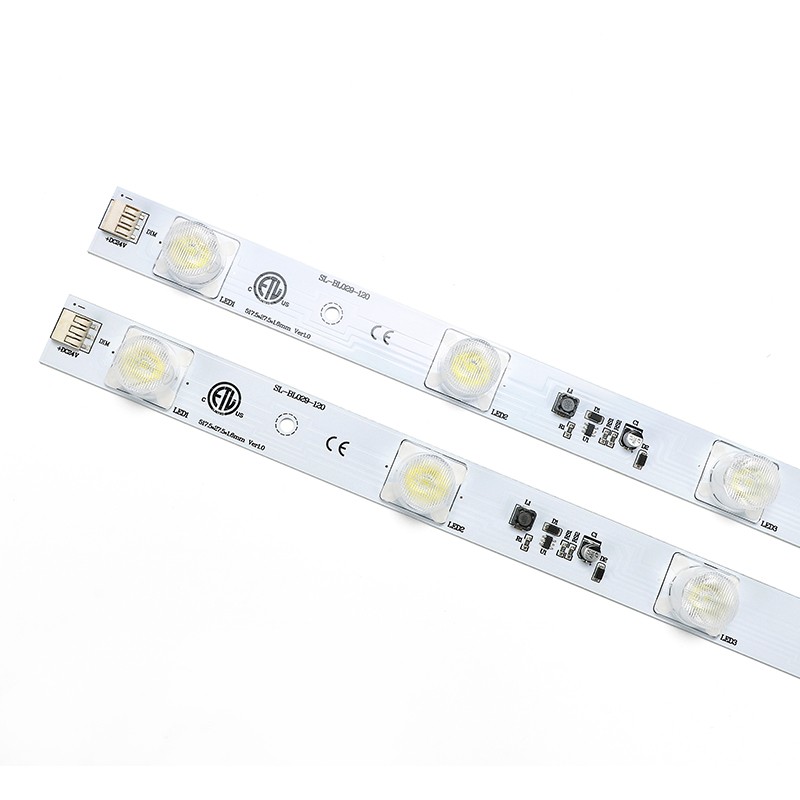

The bar uses an aluminium substrate beneath the five lens-equipped LEDs. The construction photographs show the optical lenses, board components and end contacts. Align the lens orientation with the proposed lightbox layout, then assess a sample behind the selected display face.
Specify mounting and connection parts together

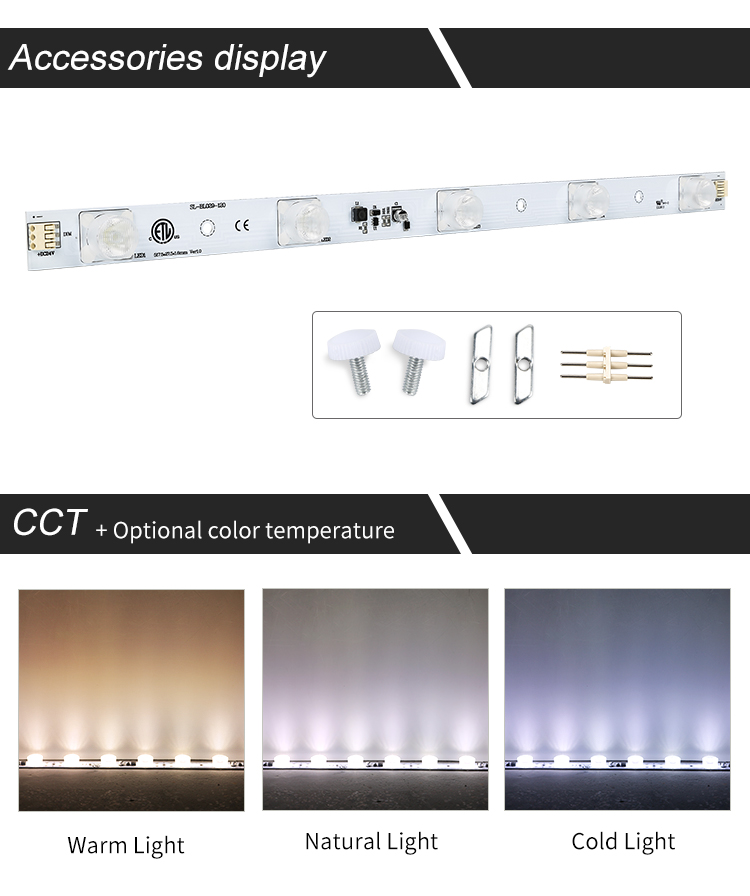

The accessory image shows hand-tightened screws, metal fixing pieces and pin-type connection parts. Provide the profile drawing, fixing positions and required connection arrangement so corresponding components can be selected and itemised on the quotation.
Warm, natural and cold-light appearances are illustrated. The numerical technical specification is 6000–7000K; specify any alternative white-light requirement so the available version can be confirmed for the order.

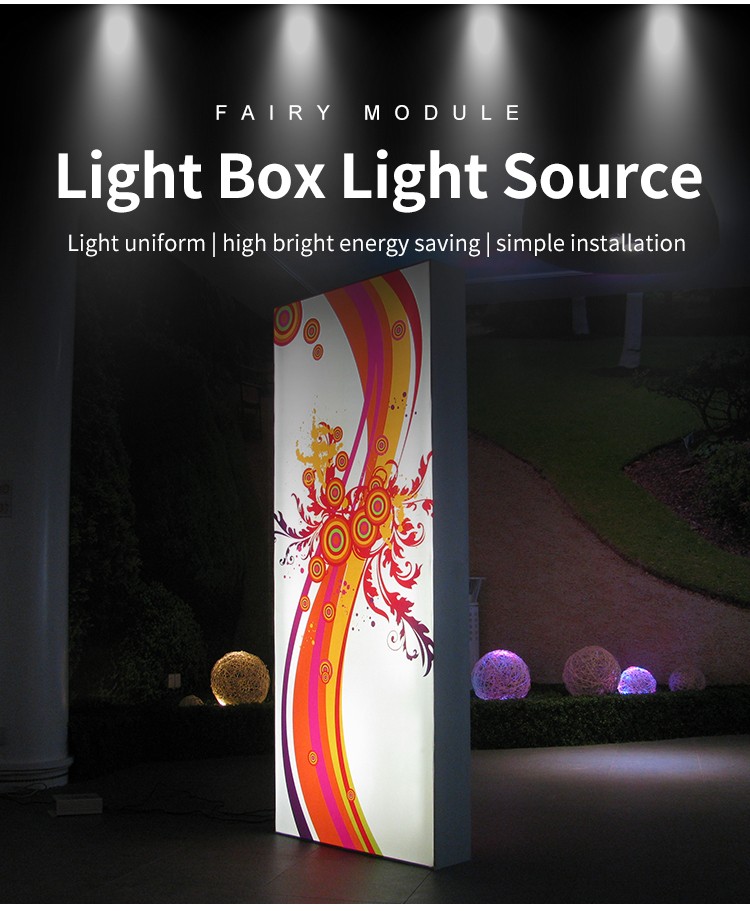

Lightbox layouts and sample evaluation

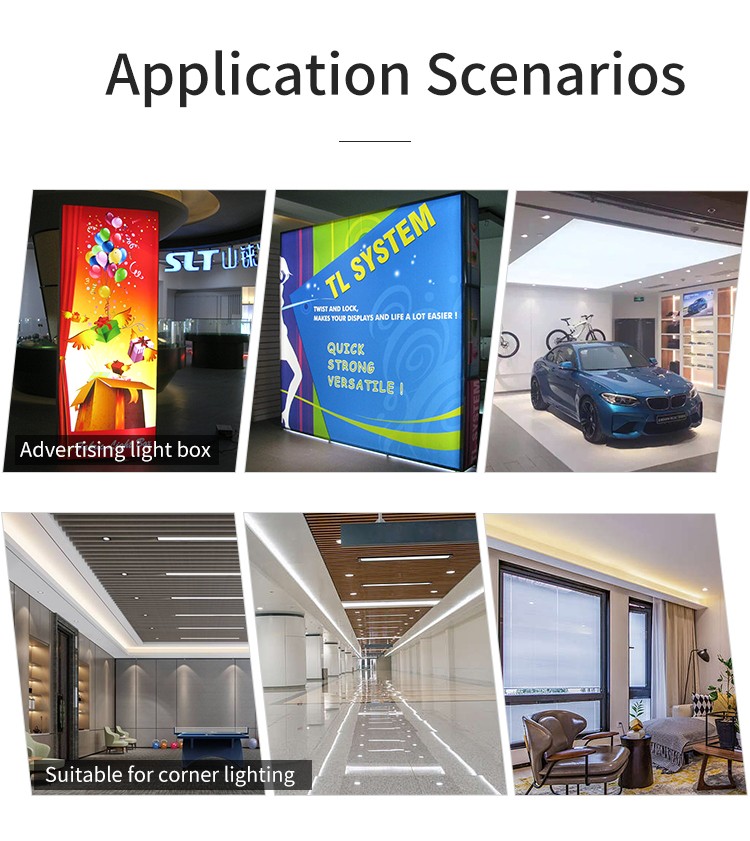

Advertising lightboxes and interior-lighting applications are pictured. Send the usable enclosure width, height and depth, printed face or diffuser material, proposed bar positions and DC power arrangement. A representative sample assembly helps assess the illuminated graphic before a production rollout.
Packing and project procurement questions

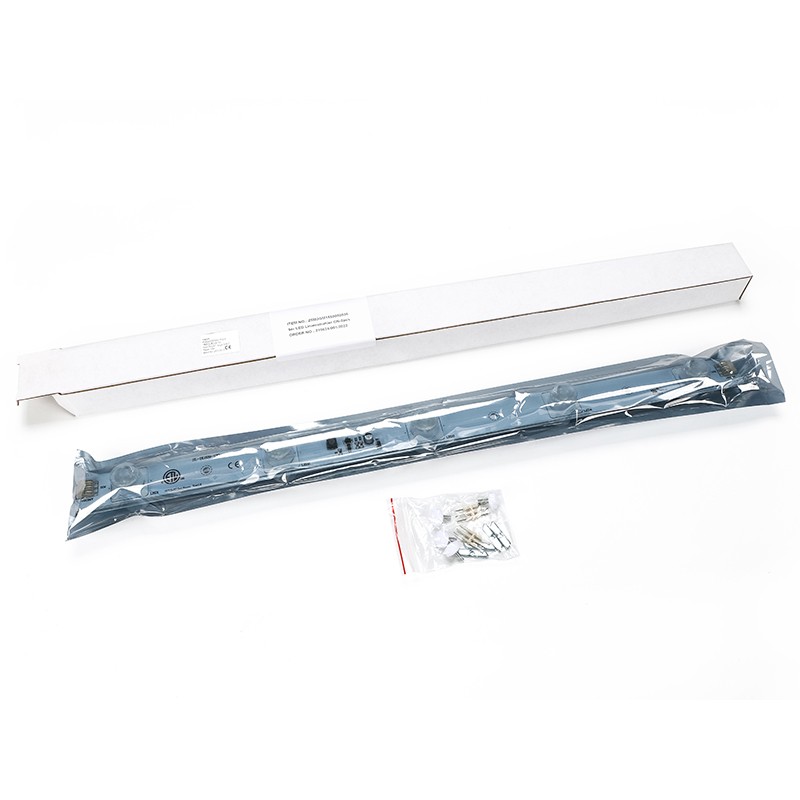

The packing illustration shows individual protective packs and outer cartons. Confirm module quantity, the accessory list, packing and destination with the order so production and shipment can be planned together.
What is the size and optical angle of this module?
SL-BL029-120 is listed at 517 × 27 × 16mm with five LEDs and 15 × 45° lenses. Check the available space and lens orientation against the assembly drawing.
Which power supply should be quoted?
The module input is DC 24V and the listed power is 12W per bar. Provide the total module count, wiring layout and feed positions so the complete power and connection configuration can be confirmed.
Are fixing and link components supplied with every bar?
State the required fixing and connection arrangement in the enquiry. The module, mounting pieces, connectors, leads and power unit should be itemised in the quotation.
Can I check an illuminated sample before ordering?
Samples are available. Include the desired white-light version, enclosure details, face material and destination; sample cost and shipping are confirmed separately.
What are the MOQ and production terms?
Wholesale orders start at 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; custom schedules and transit time are confirmed separately.
