964mm aluminum-channel LED bars for sign projects
Build a project specification around a 964mm LED sign light bar with an aluminum support channel. SL-BLA088-16L is listed at 48W ±10% and 4800 lm ±10%, with 16 LEDs, 14 × 47° lenses and a 24V DC input.
For sign-box builders and wholesale lighting buyers, this page brings together the dimensions, light output, channel construction and power-lead details needed for a bill of materials. Send your enclosure drawing, planned bar quantity and required white-light appearance to confirm the order configuration and supporting components.

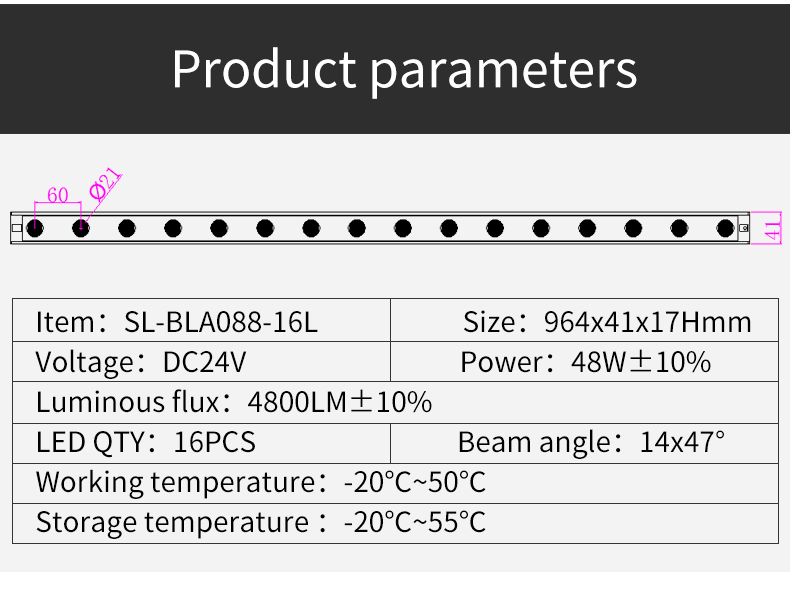

48W sign light bar technical data
| Specification | SL-BLA088-16L |
|---|
| Model | SL-BLA088-16L |
| Dimensions | 964 × 41 × 17mm |
| Power | 48W ±10% |
| Input voltage | 24V DC |
| Specified luminous flux | 4800 lm ±10% |
| LED quantity | 16 LEDs |
| Lens angle | 14 × 47° |
| Support construction | Aluminium channel, as pictured |
| Working temperature | −20 to +50°C |
| Storage temperature | −20 to +55°C |
A rigid channel assembly for the project bill of materials

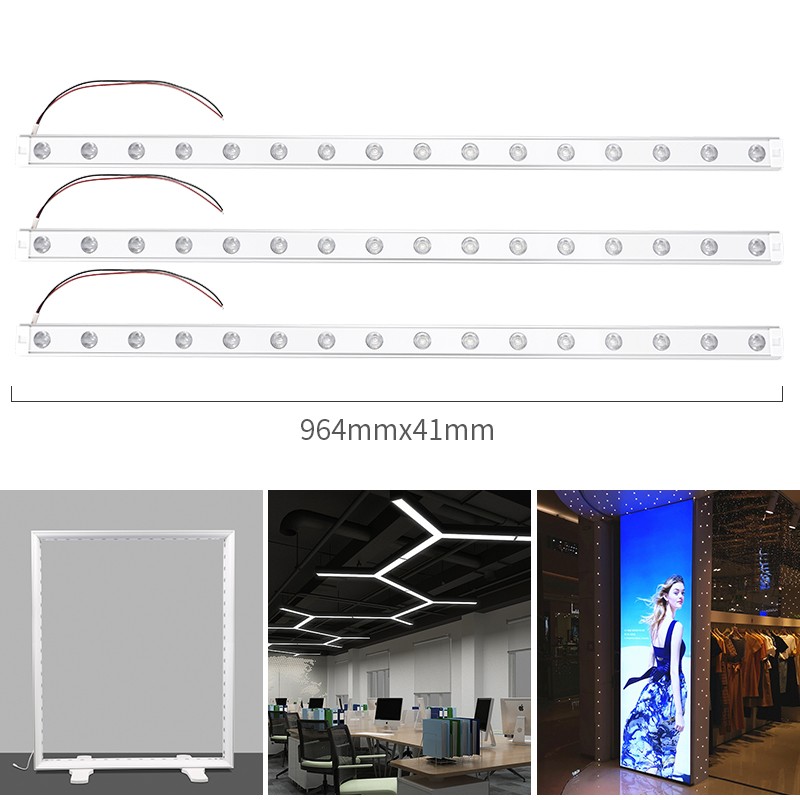

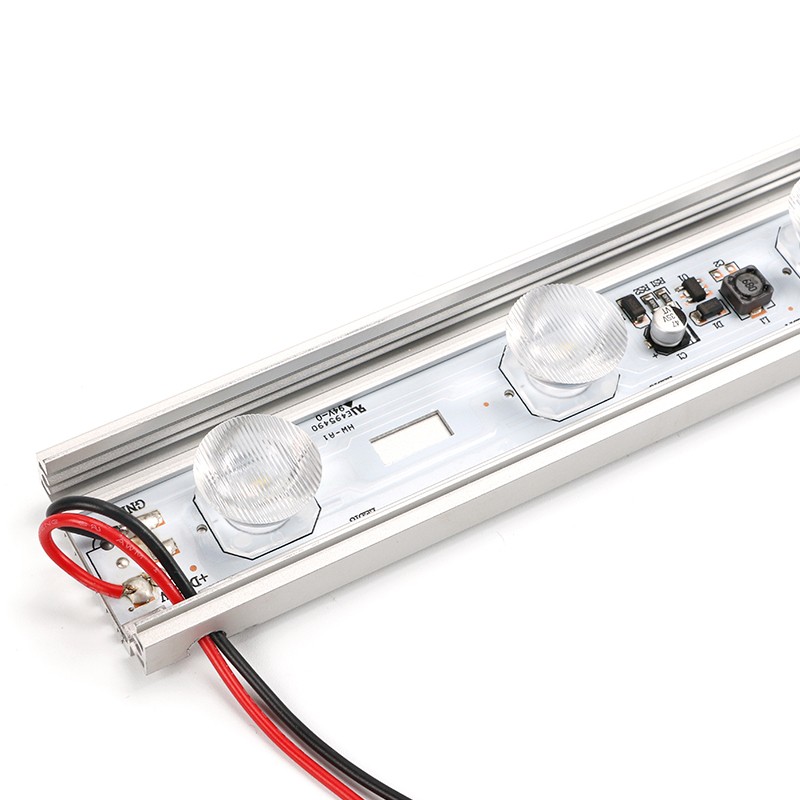

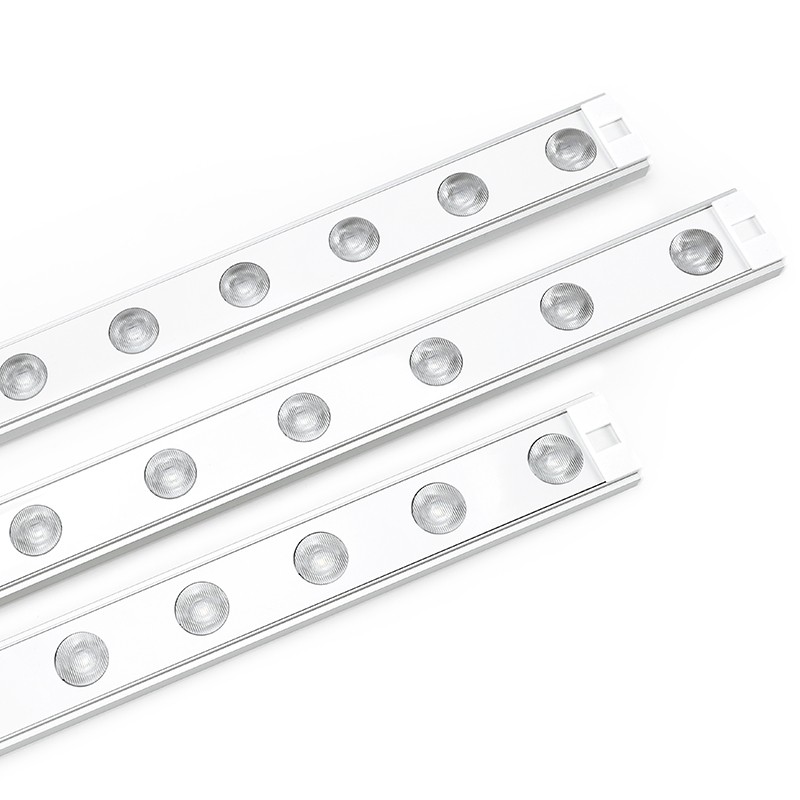

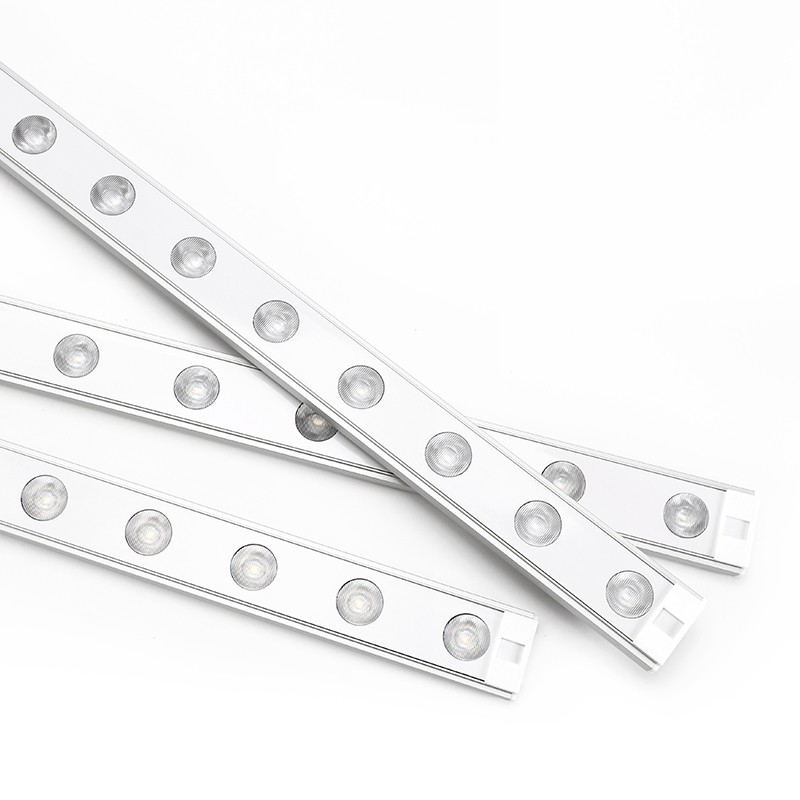

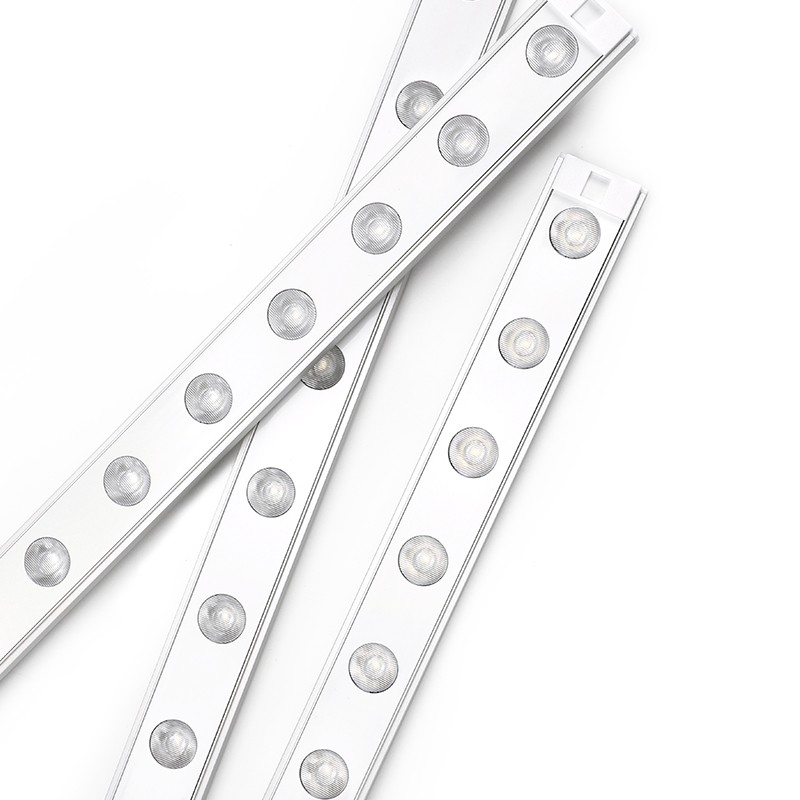

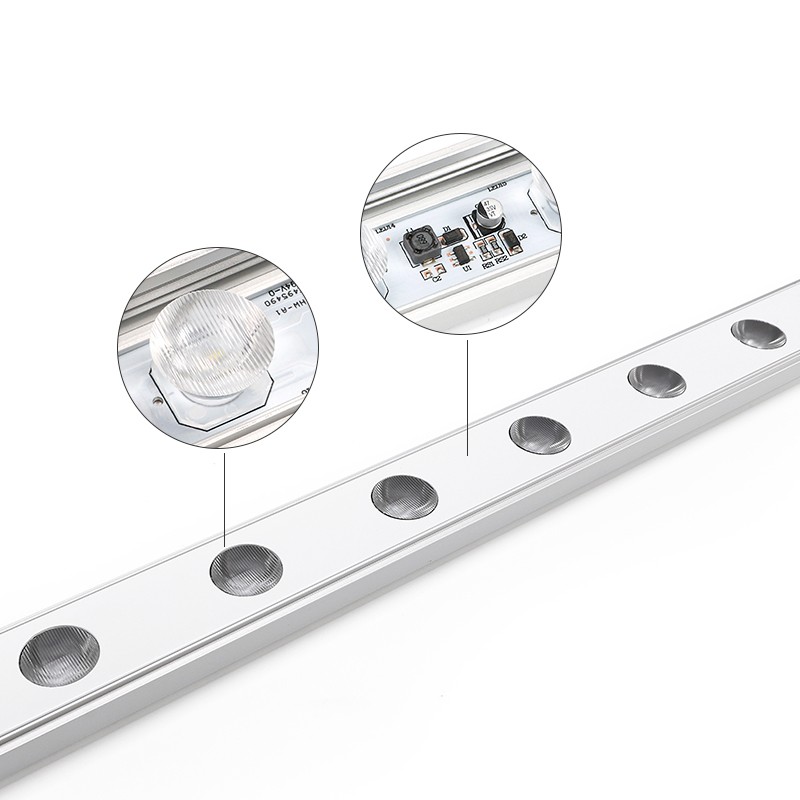

The product photographs show an aluminium channel, individual lenses, end caps and red-black leads. Use the 964 × 41 × 17mm envelope to check the installation space and fixing arrangement against the enclosure drawing.
List the bars, fixing components, leads and power units as separate quotation items so the supplied scope is clear for assembly and repeat ordering.

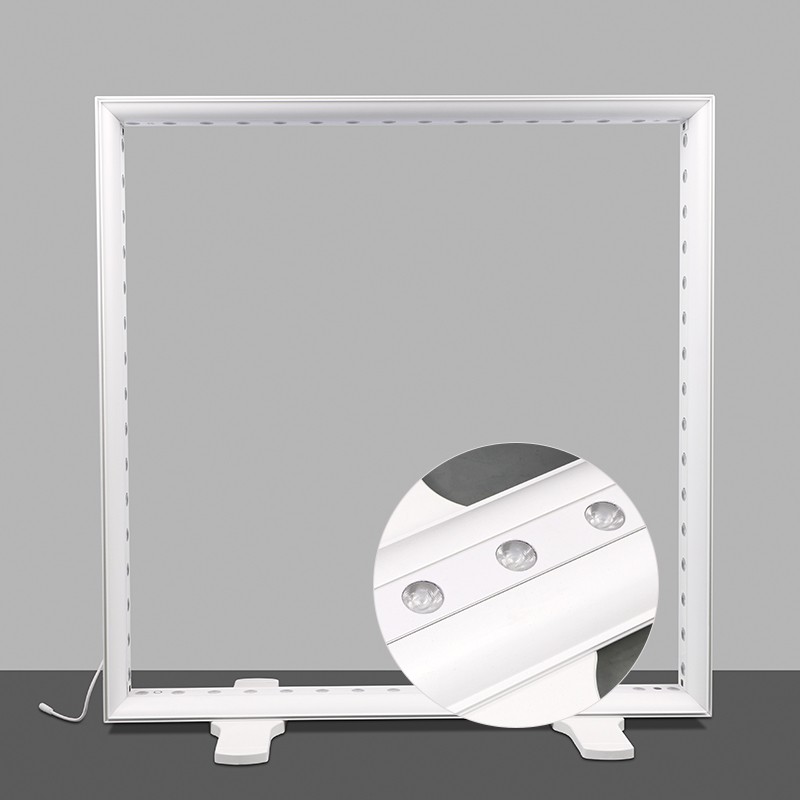

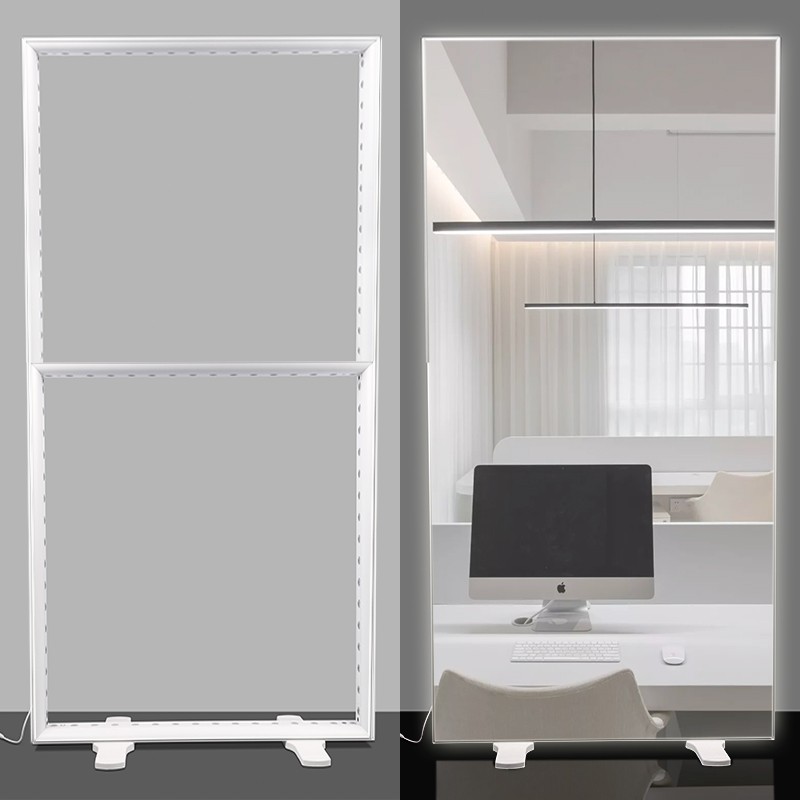

Optical selection and a sample sign-box assembly

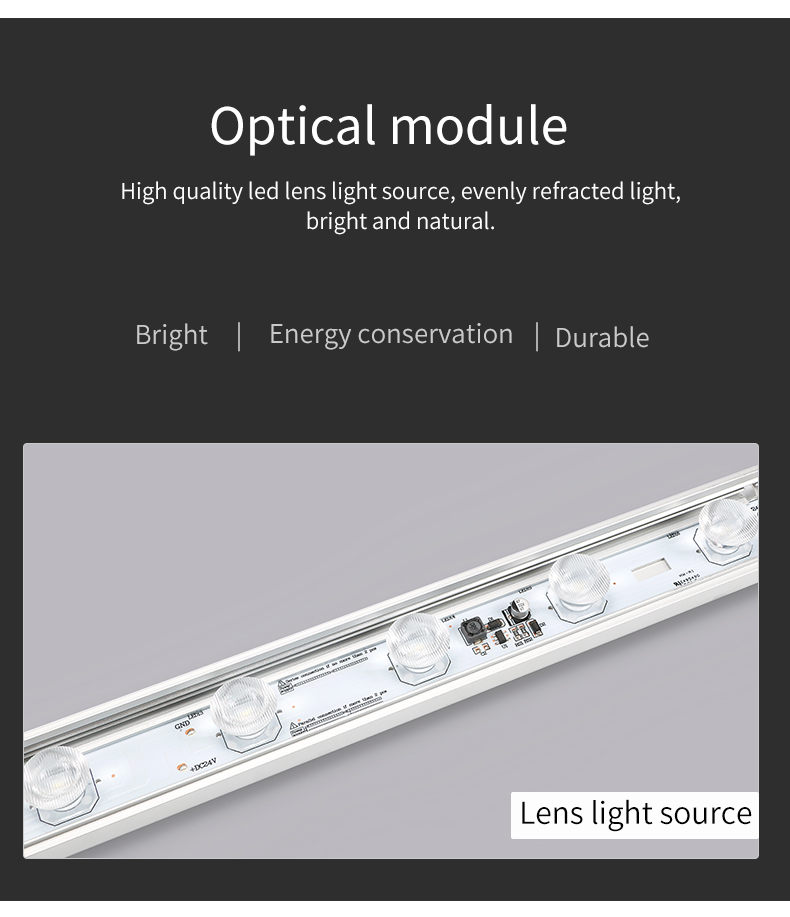

The specified lens angle is 14 × 47°. Assess the bar positions with the actual sign face, diffuser and enclosure depth to review the completed display.
State the required white-light appearance with your enquiry. A sample of the confirmed order configuration allows the sign manufacturer to evaluate the visual result before approving production quantities.
24V supply planning and wholesale sourcing

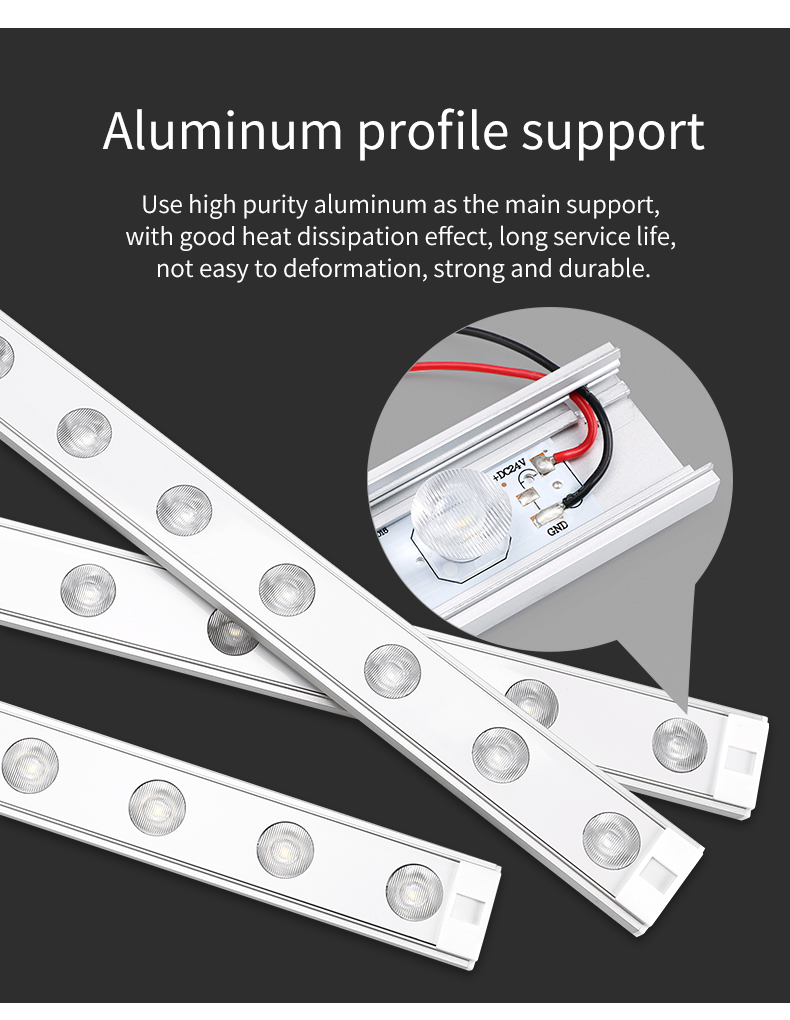

The power-terminal illustration identifies +DC24V and GND. Provide the wiring route, total number of bars and preferred power-unit arrangement to confirm the electrical bill of materials.
Orders start from 20 pcs and higher quantities receive lower unit prices. Samples are available, with cost and shipping confirmed separately. Standard lead time is 12–18 days; OEM, ODM and private-label requirements are supported, with the custom scope and delivery schedule agreed in the quotation.
Questions for sourcing 964mm sign light bars
What dimensions should the sign-box drawing allow for?
This model is listed at 964mm long, 41mm wide and 17mm high. Include usable enclosure space and fixing positions so the mounting arrangement and bar layout can be checked before ordering.
Is the 4800 lm output specified for this model?
Yes. The product parameter table lists 4800 lm ±10% for SL-BLA088-16L. Send the face material and layout details and assess a sample in the intended enclosure.
How do I specify the white-light appearance?
Include your required white-light appearance or target colour temperature with the model and quantity. The quoted configuration is confirmed before production.
What should a volume-price enquiry include?
Provide the model, target quantity, project drawing, power-unit needs and delivery country. Wholesale quantities start from 20 pcs; higher volumes qualify for lower unit prices.
Can the supply scope include OEM or private-label requirements?
Yes. Share your technical drawing and branding requirements to confirm the manufacturing scope, packaging, quotation and schedule. Standard lead time is 12–18 days, with custom work and transit confirmed separately.
