28W rigid LED bars with aluminium-channel support

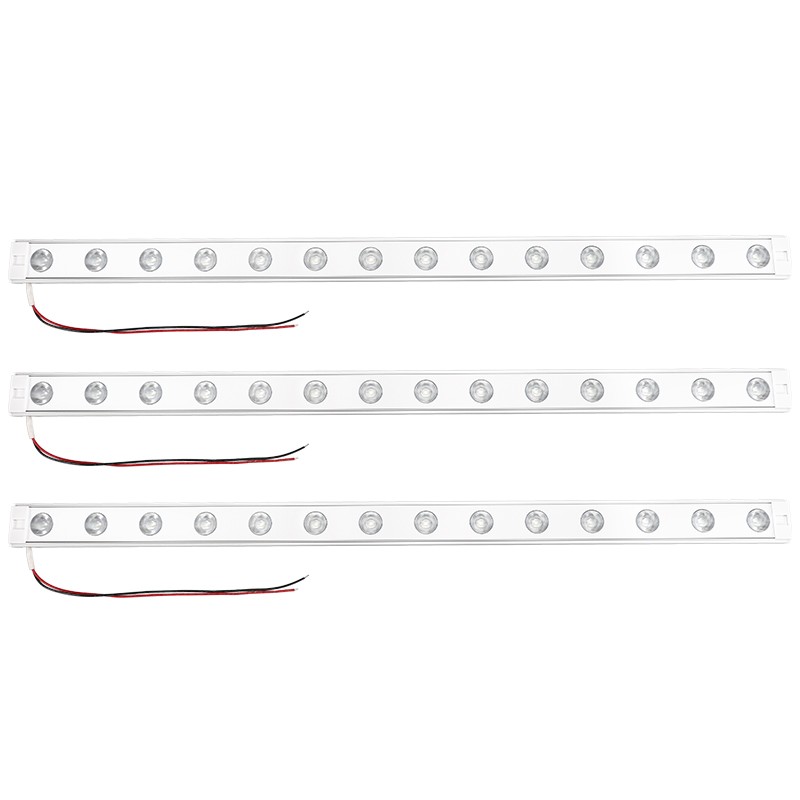

Select the SL-BLA098-14L for display-lighting assemblies requiring a rigid, channel-supported LED source. The 729mm bar has 14 LEDs with 14 × 47° optical lenses, DC 24V input and 28W ±10% power. Specified light output is 2800 lm ±10%.
For lightbox fabricators and display-component buyers, start with the available mounting space and the proposed bar layout. Send the enclosure or assembly drawing, fixing requirements, total quantity and DC power arrangement so the bars and necessary installation components can be quoted as one project bill of materials.

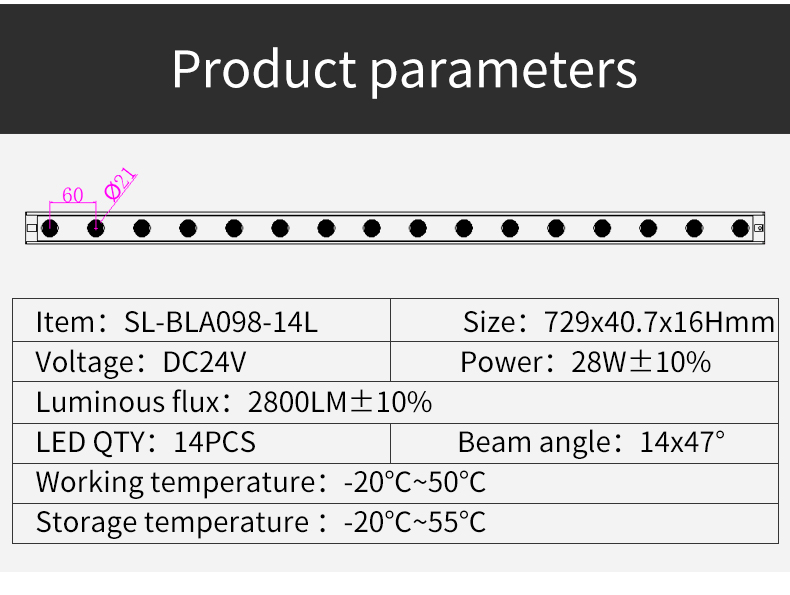

729mm aluminium-channel bar specifications
| Specification | SL-BLA098-14L |
|---|
| Model | SL-BLA098-14L |
| Overall dimensions listed | 729 × 40.7 × 16 mm |
| Power | 28W ±10% |
| Input voltage | DC 24V |
| Specified luminous flux | 2800 lm ±10% |
| LED quantity | 14 |
| Optical lens angle | 14 × 47° |
| Support construction | Aluminium channel / profile |
| Working temperature listed | −20 to +50°C |
| Storage temperature listed | −20 to +55°C |

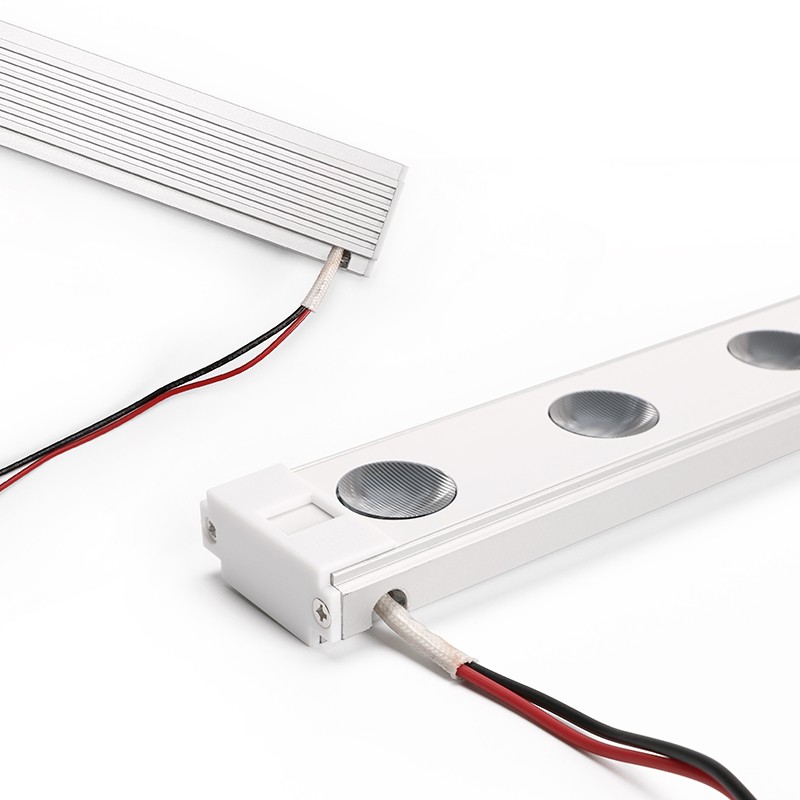

Aluminum channel and DC connection detail

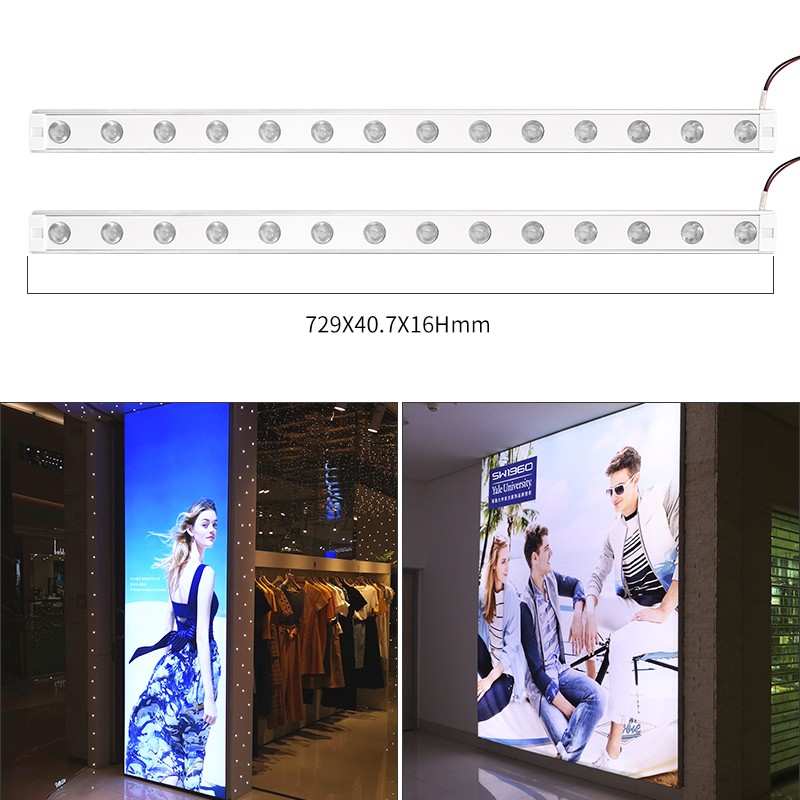

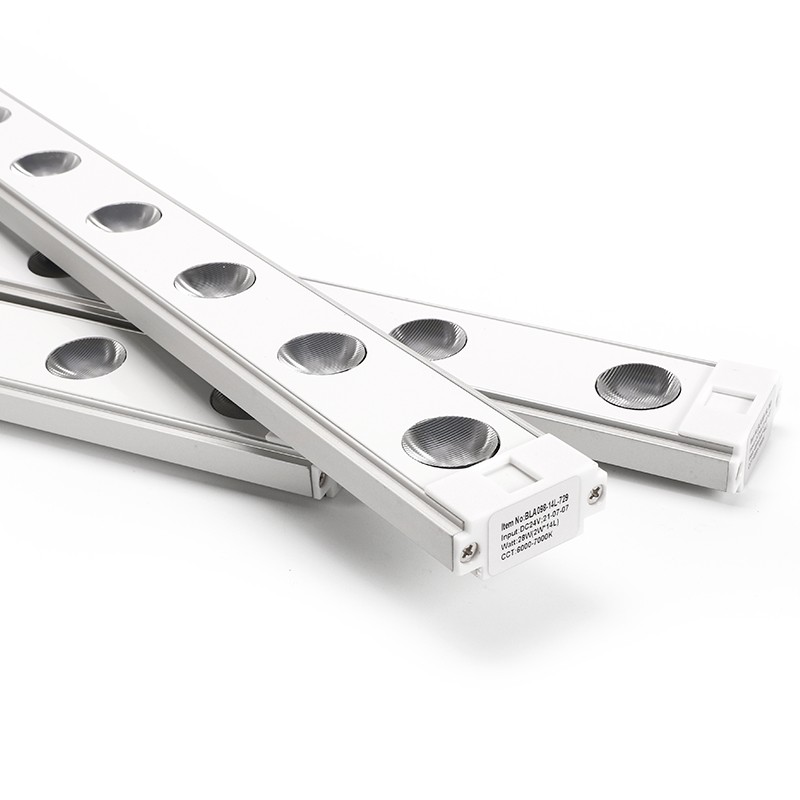

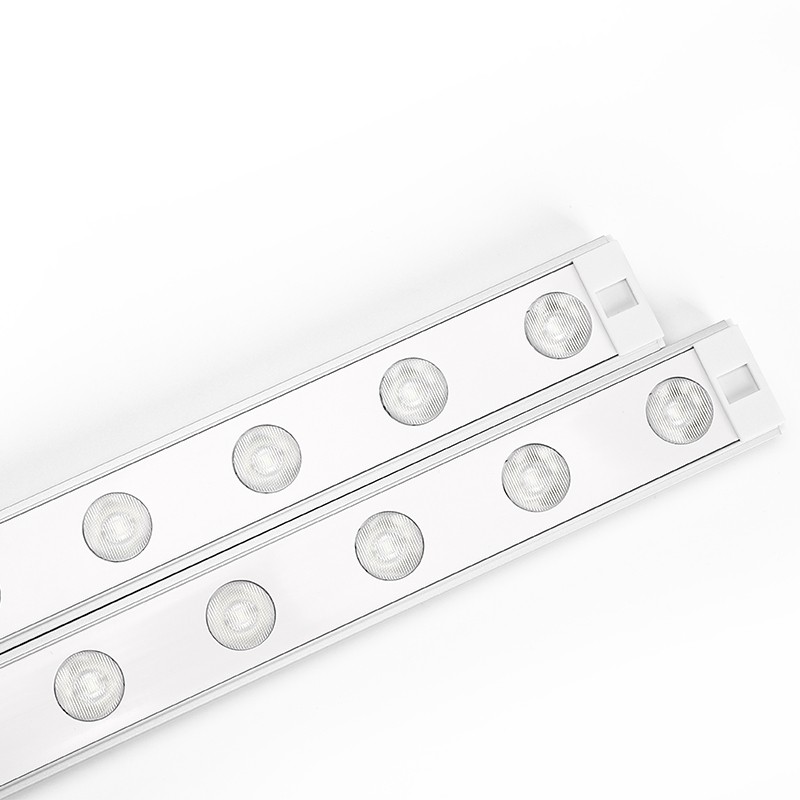

The photographs show an aluminium profile surrounding the LED board, with end caps at the bar ends. Check the complete 729 × 40.7 × 16mm dimensions against the available installation space and specify the fixing arrangement for the assembly.

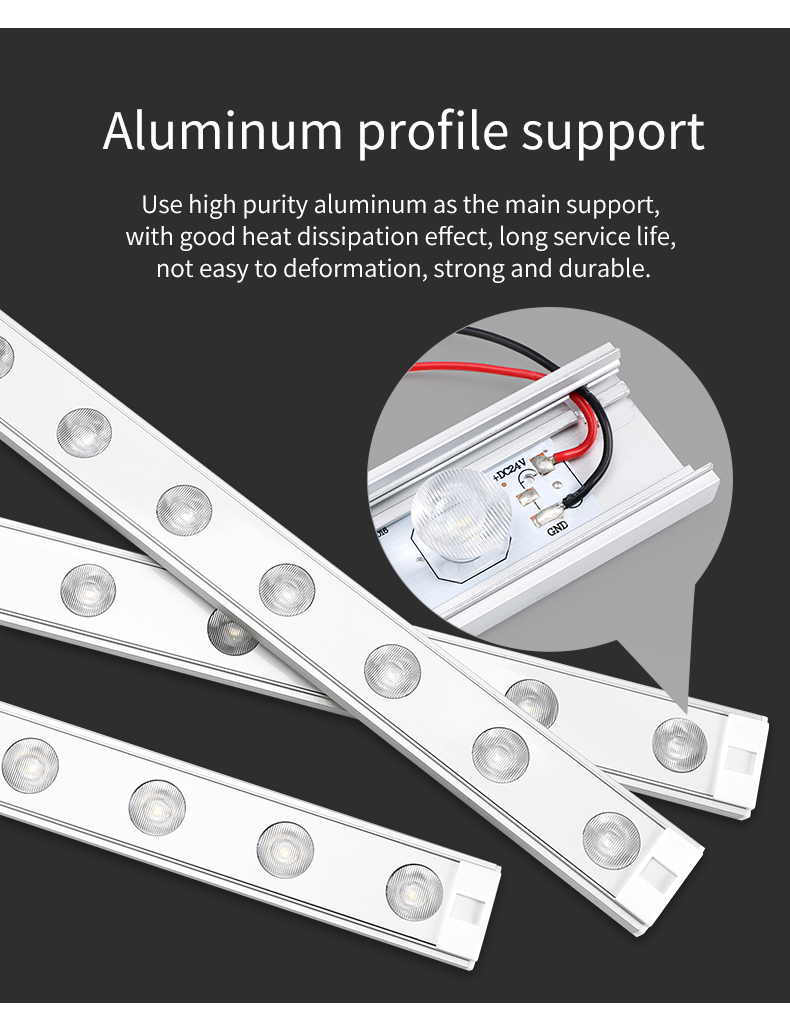

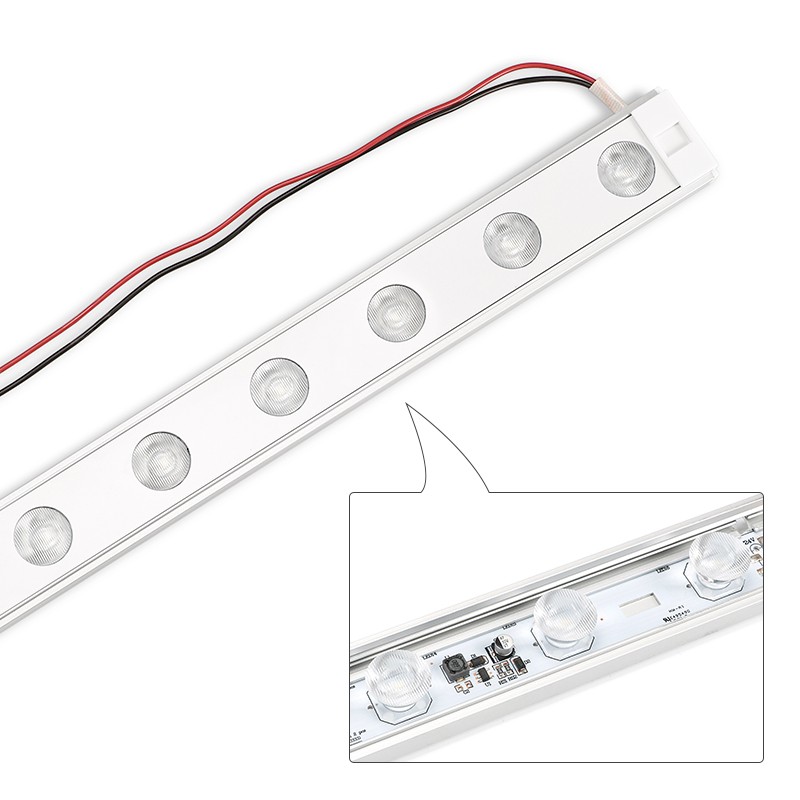

The connection close-up identifies the positive DC 24V and ground points with red and black leads. Provide the feed layout, power-unit requirements and lead-routing plan so the complete electrical arrangement can be confirmed for the quoted kit.

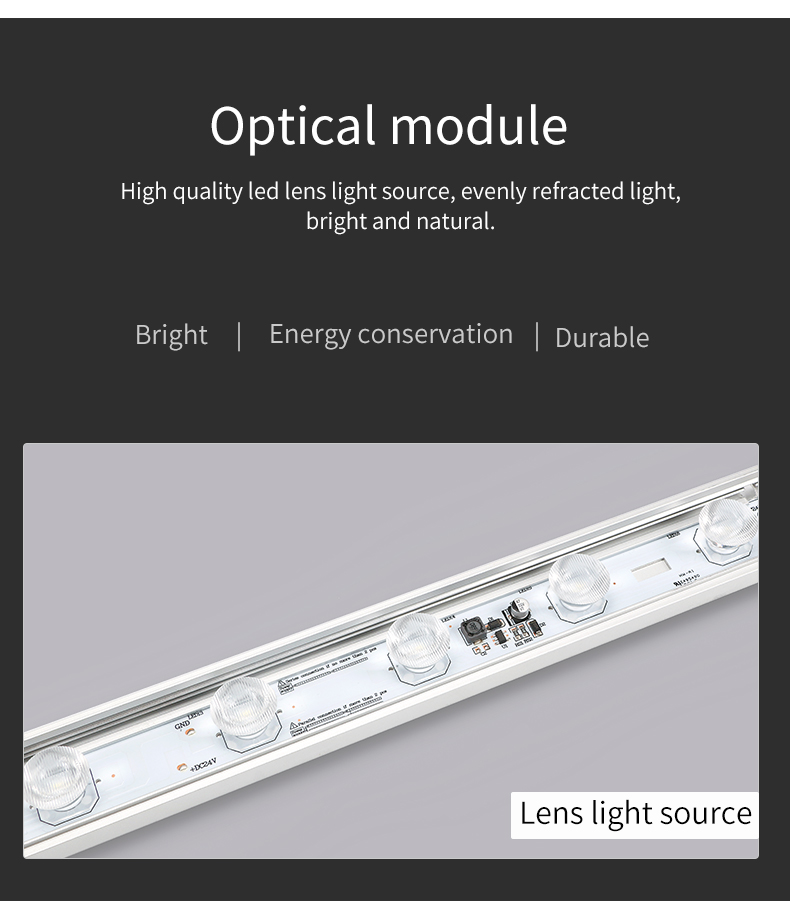

Optical lenses and illuminated-display layout

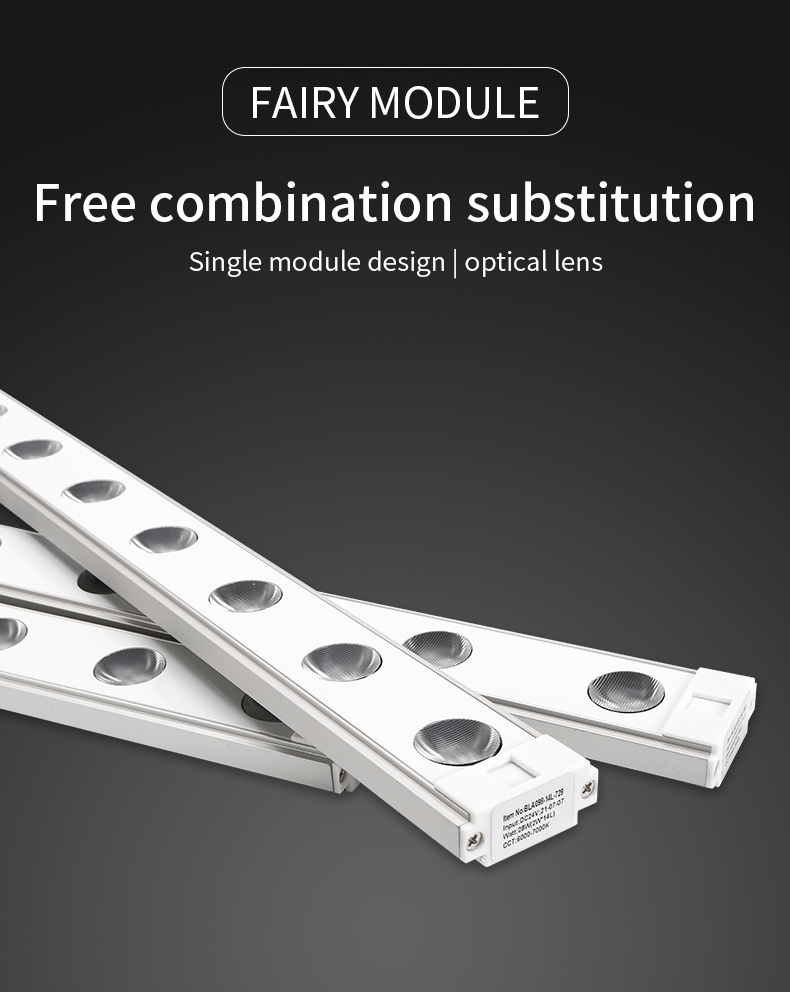

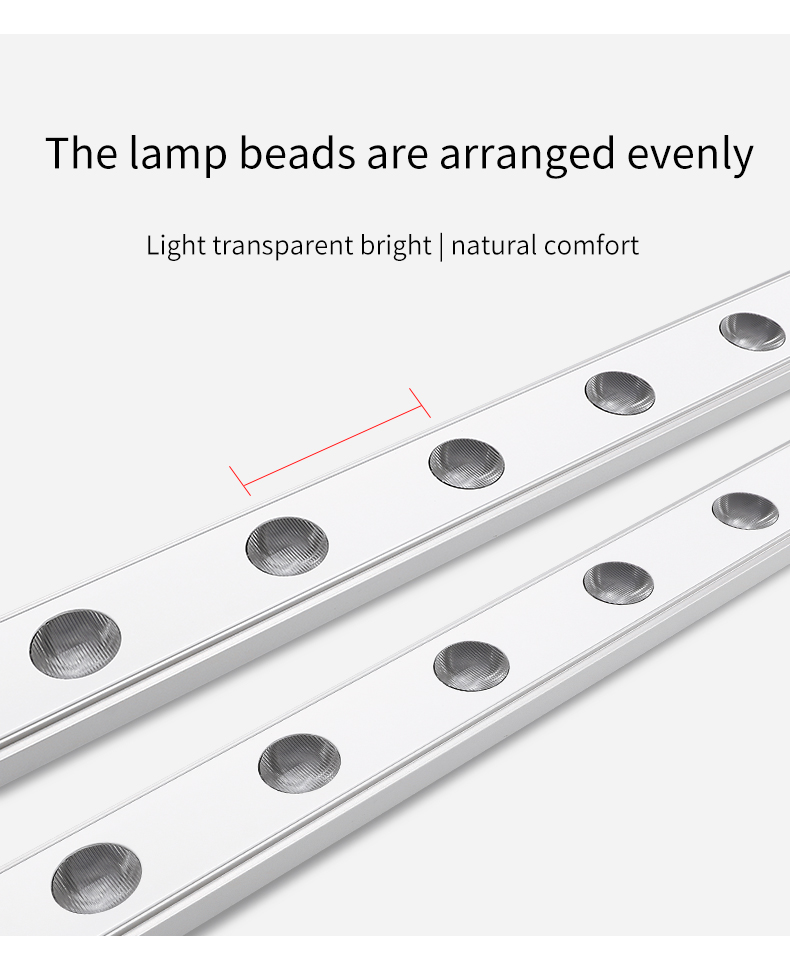

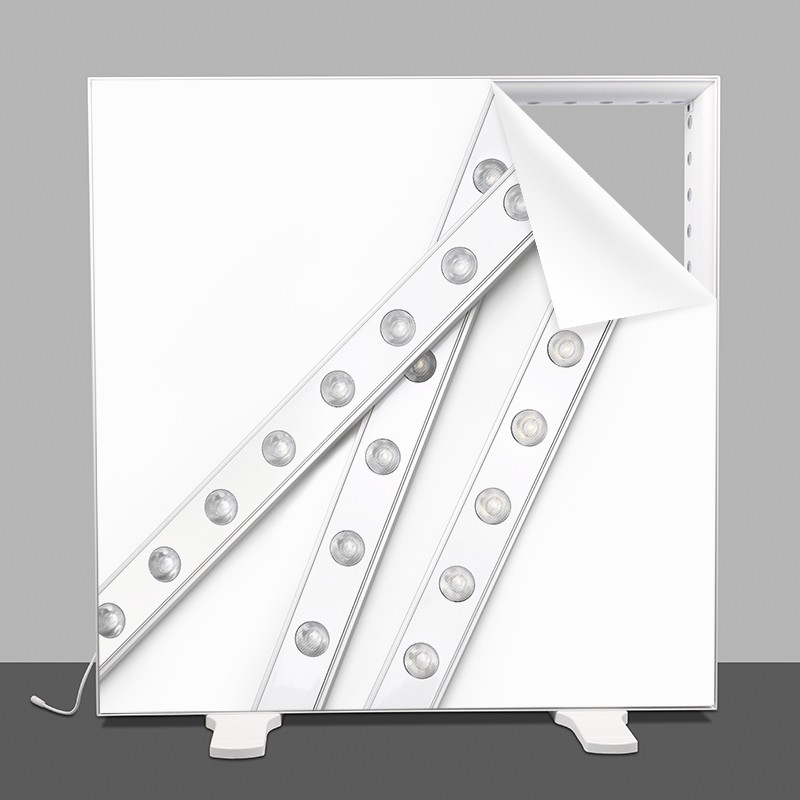

Individual lenses are positioned along the rigid bar. The technical table specifies a 14 × 47° optical angle; select bar orientation and placement against the enclosure drawing and display face. A representative sample layout helps assess the light distribution before finalising the production quantity.
Aluminium LED-bar procurement questions
Which model reference should be used on the quotation?
Use SL-BLA098-14L, as printed in the product parameter table. Include the 729mm length, 28W power and required quantity to identify the requested bar.
What dimensions should I allow for the bar?
The listed overall dimensions are 729 × 40.7 × 16mm. Include fixing clearance and cable routing in the assembly drawing so the installation arrangement can be checked.
Can the power and mounting parts be quoted with the bars?
Yes. Share the bar count, DC24V feed arrangement, mounting drawing and accessory requirements so the necessary components can be itemised with the modules.
Can I evaluate a sample layout first?
Samples are available. Specify the intended display assembly, light-colour requirement and destination; the sample configuration, cost and shipping are confirmed separately.
What are the wholesale, lead-time and custom-branding terms?
Orders start at 20 pcs, with lower unit prices at higher quantities. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; custom scope, production schedule and transit time are confirmed with the order.
