Linear LED heads for display-panel illumination
The SL-1100-78L is a 7W linear LED display arm light with 78 LEDs and specified 450 lm output. The source sheet lists a 60° beam, DC 12V input, a B-shaped connector and dimensions of 435 × 266 × 30 mm. The product close-up shows an adjustable head joint and a base on/off switch.
For portable-display suppliers and stand contractors, choose the lamp position, base fixing and matching DC connection kit together. Share the panel dimensions, mounting profile, desired white-light appearance and cable route so the configuration can be checked for the display.

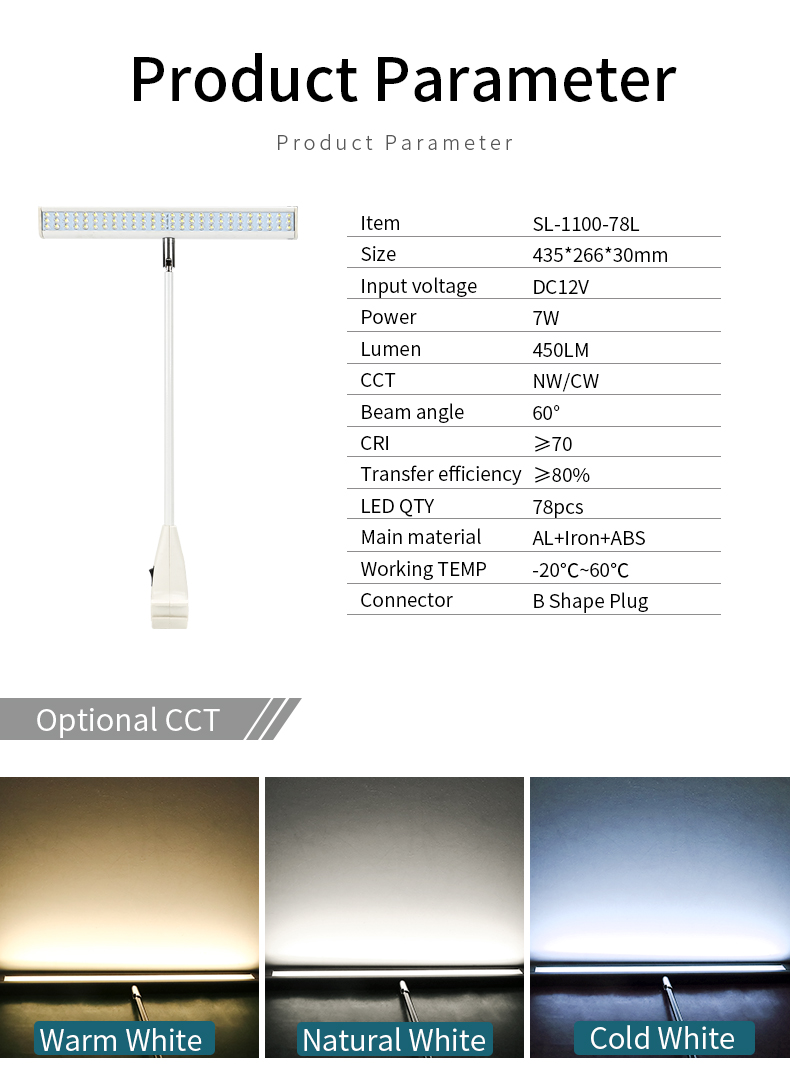

7W linear-head technical specifications
| Specification | SL-1100-78L |
|---|
| Model | SL-1100-78L |
| Power | 7W |
| Light output | 450 lm |
| LED quantity | 78 |
| Beam angle | 60° |
| Input voltage | DC 12V |

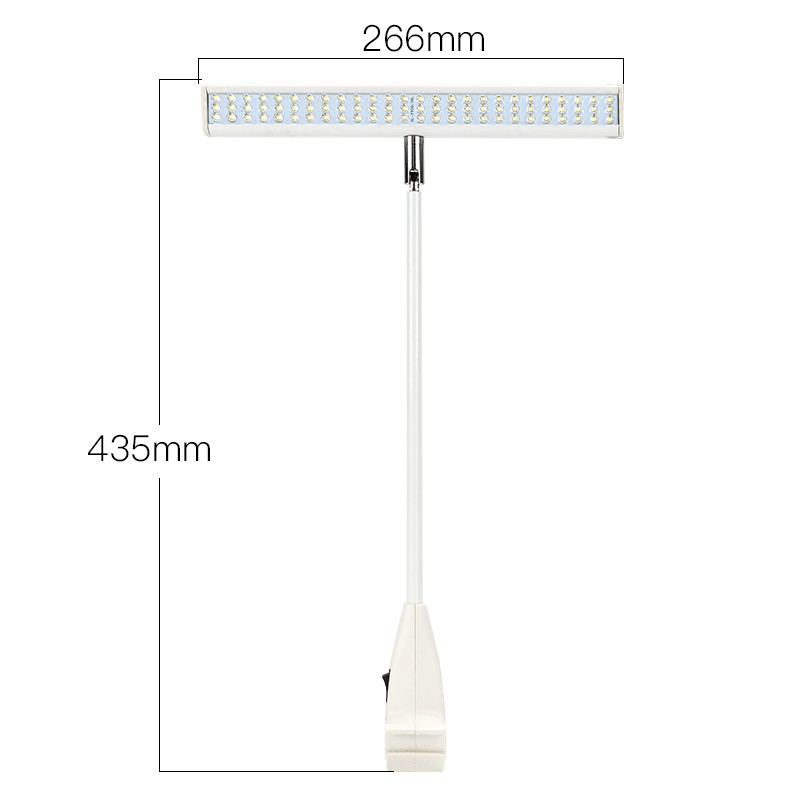

| Dimensions | 435 × 266 × 30 mm |
| Connector | B-shape plug |
| White-light options listed | NW / CW (neutral white / cool white) |
| Colour rendering | CRI ≥70 |
| Main materials listed | Aluminium + Iron + ABS |
| Control | Base on/off switch pictured |
| Head adjustment | Adjustable joint pictured |
| Operating-temperature range | -20°C to +60°C |
Aim the linear head and confirm the base fixing

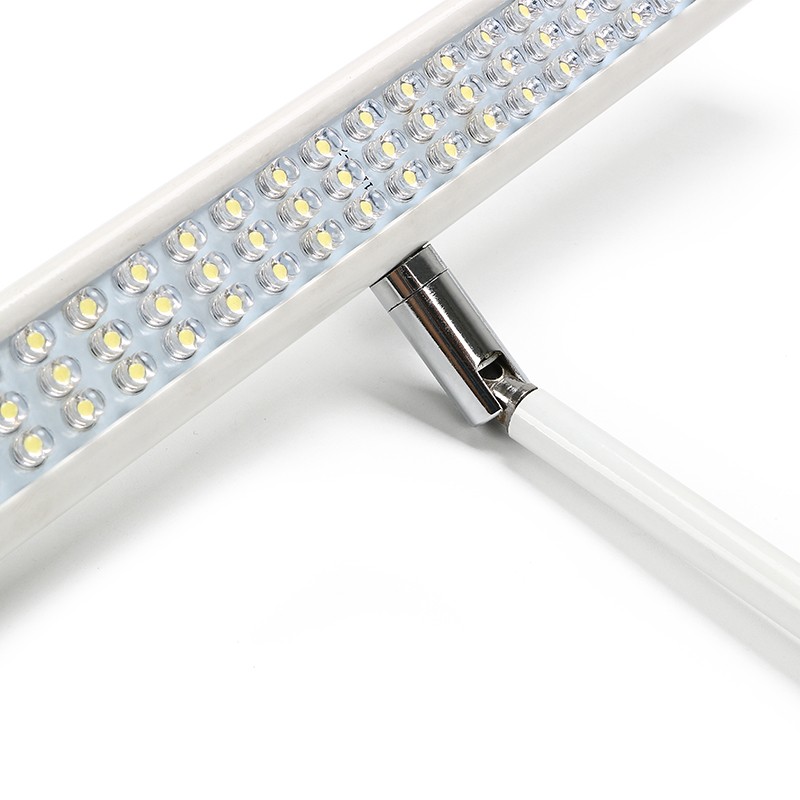

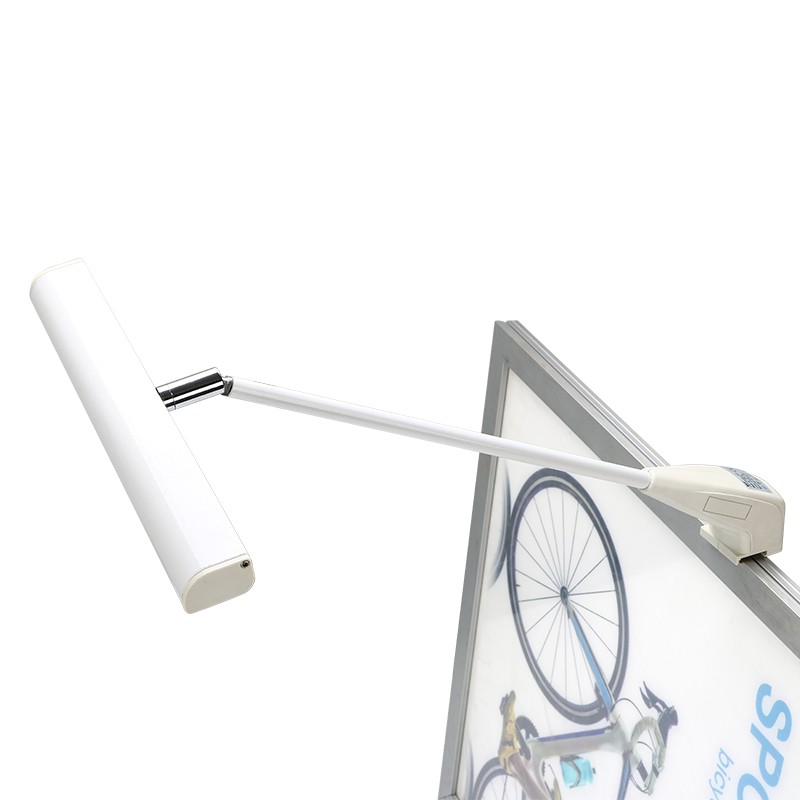

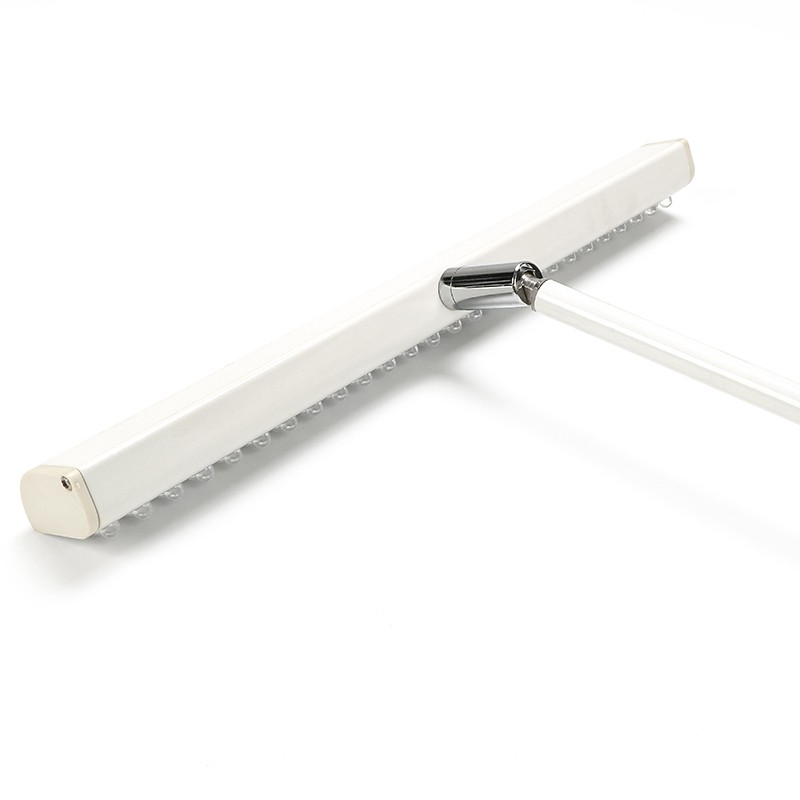

The 266 mm linear head can be positioned from the pictured arm joint. Evaluate the 60° beam and 450 lm output at the intended panel distance with a sample, including the surrounding exhibition lighting.

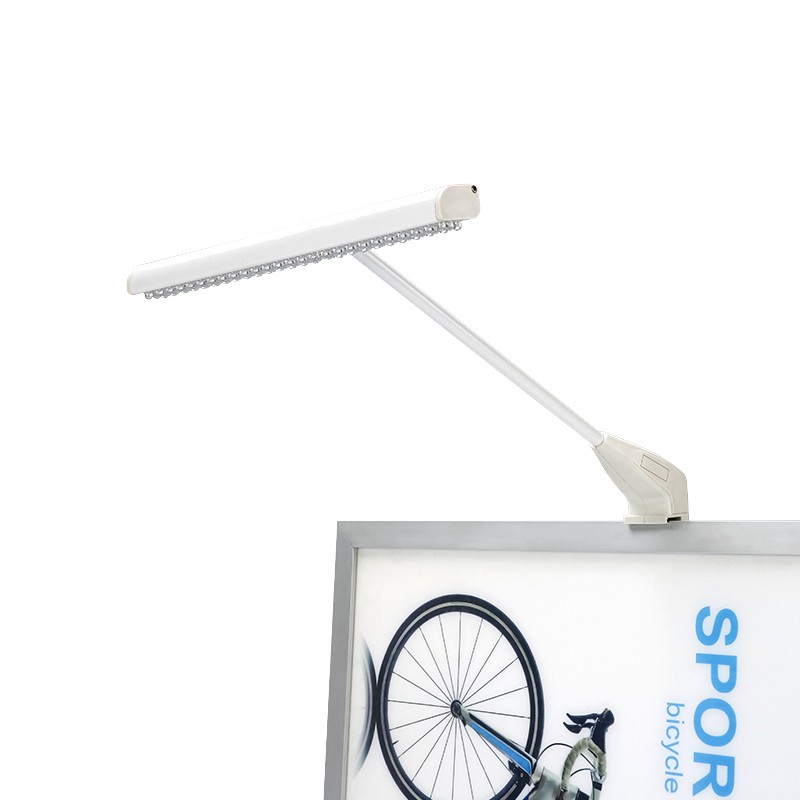

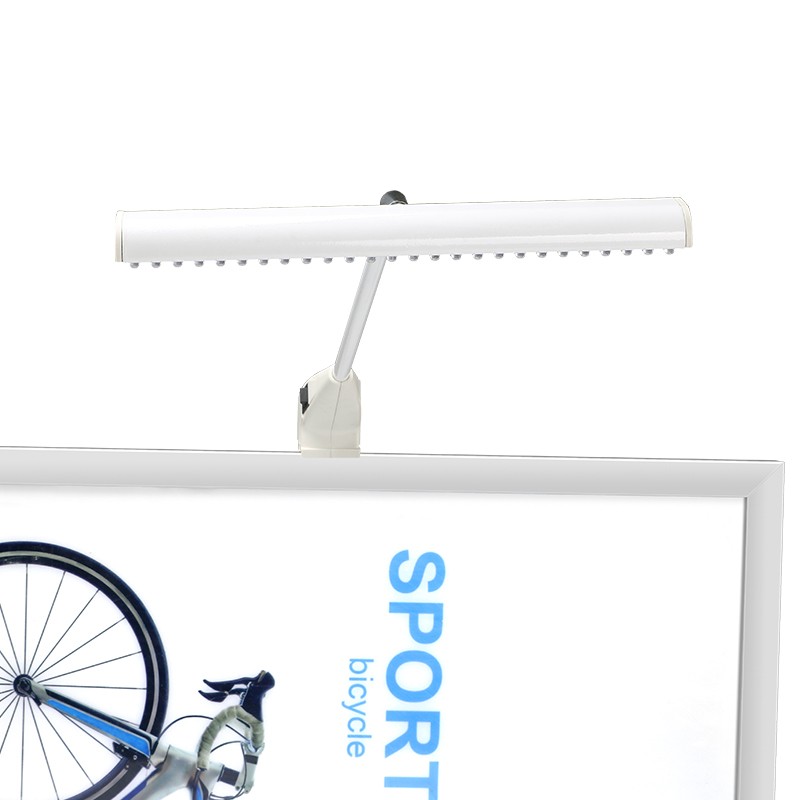

The installation illustration shows the base attached above a display panel. Send the frame profile and fixing-point dimensions so the required mechanical arrangement can be confirmed.
Match the B-shaped DC connection and base control
Order the electrical kit to the listed DC 12V lamp input and B-shaped connector. Provide the intended supply specification, connector details and cable route when checking an existing installation or specifying a new kit.

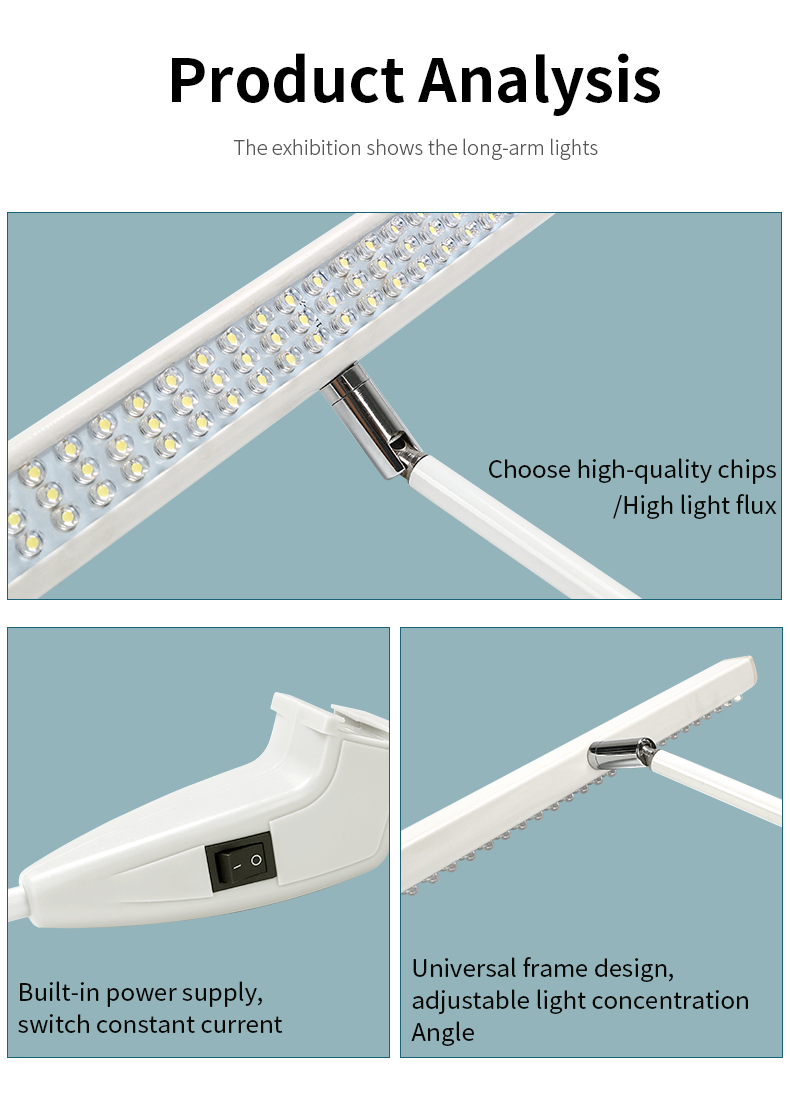

The close-up shows the base on/off switch and adjustable lamp-head joint. Choose the required white-light version when ordering. The technical table lists NW/CW; other appearance requirements can be included for sample-configuration confirmation.
Specify the protected kit and carton quantities
The packing example shows the linear lamp and leads protected within an individual cardboard box, followed by outer cartons. Confirm the components per kit, lead lengths, carton count and any private-label requirements as part of the wholesale quotation.
Procurement questions for the 78-LED linear model
Can I connect this lamp to my existing display-light supply?
Send the supply output rating, B-shaped connector details and proposed cable route. The listed lamp input is DC 12V, and the complete electrical kit should be confirmed for SL-1100-78L.
How should I choose the lamp positions for a panel?
Provide the graphic dimensions, mounting points and intended arm position. A sample can help assess the 60° beam and 450 lm output at the actual distance before the bulk kit is specified.
What information is needed for a distributor order?
Include the model, quantity, white-light appearance, fixing arrangement, DC kit and packing requirements. Wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Samples, lead time and custom supply
Samples are available for the connection, fitting and lighting checks. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; confirm sample cost, shipping, custom schedules and transit time with the order requirements.
