Clamp-mounted lighting for exhibition graphics

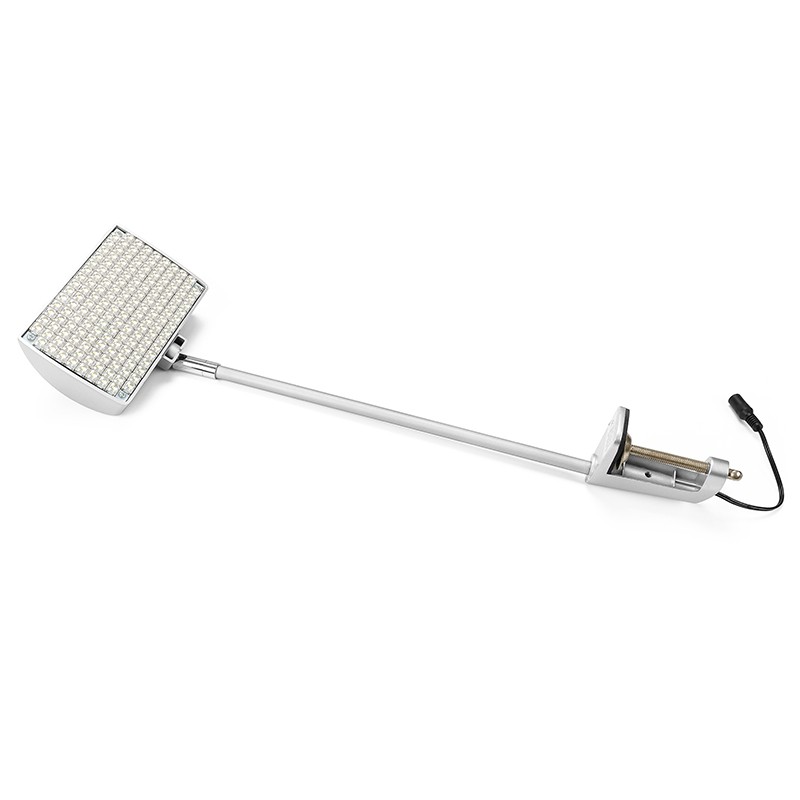

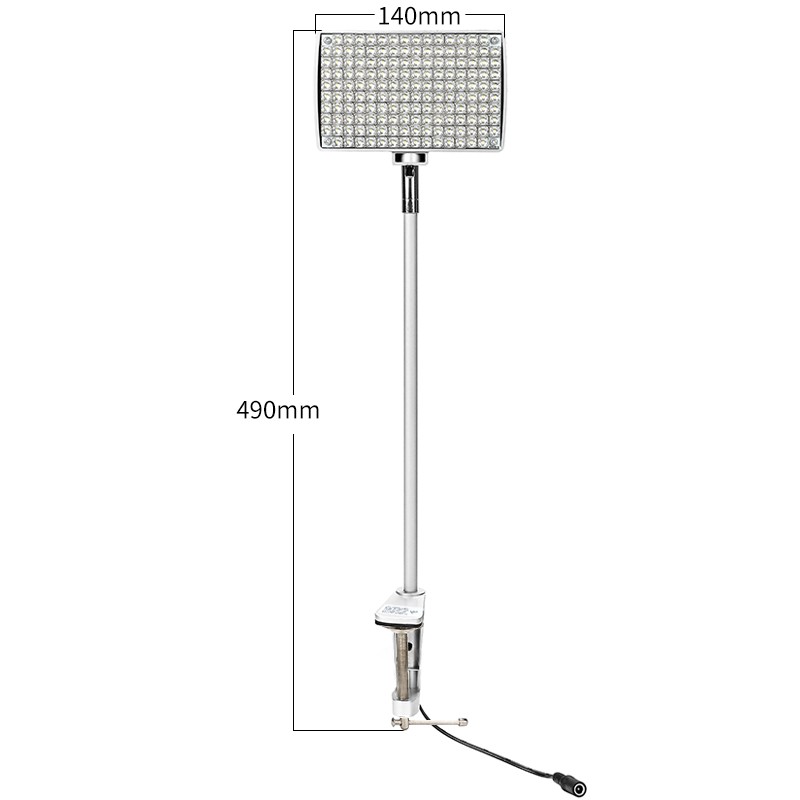

The SL-2001-156L is a 12W LED display arm light with 156 LEDs, specified 1050 lm output and a 68° beam. Its technical sheet lists DC 12V input and dimensions of 480 × 140 × 40 mm. An aluminium clamp and a DC lead are pictured at the base.
For exhibit builders and lighting distributors, quote the lamp, frame fixing and matching DC supply as one configuration. Send the frame profile and mounting thickness, required lamp quantity, DC connection details and destination mains plug so the complete electrical and mechanical kit can be confirmed.

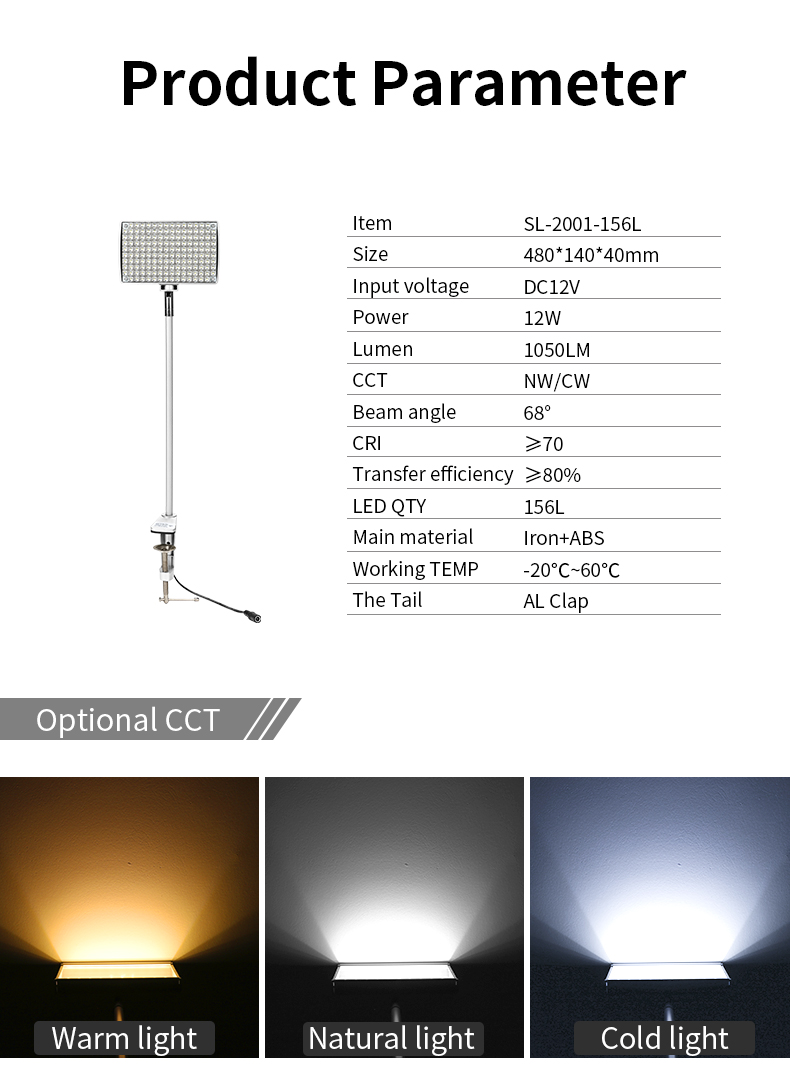

12W aluminium-clamp display-light specifications
| Specification | SL-2001-156L |
|---|
| Model | SL-2001-156L |
| Power | 12W |
| Light output | 1050 lm |

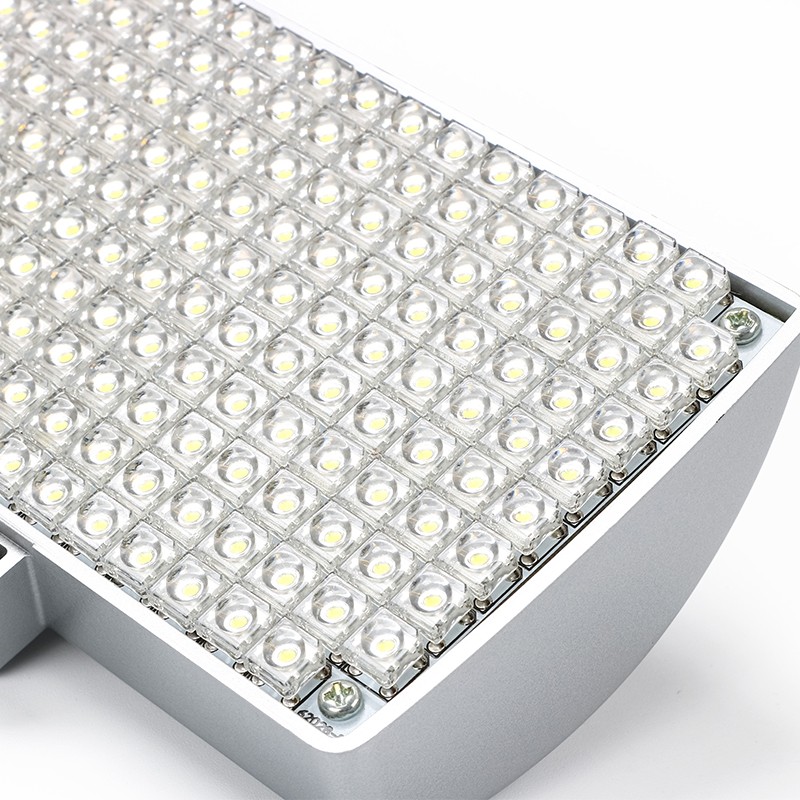

| LED quantity | 156 |
| Beam angle | 68° |
| Input voltage | DC 12V; matching supply configuration required |
| Dimensions | 480 × 140 × 40 mm |
| White-light options listed | NW / CW (neutral white / cool white) |
| Colour rendering | CRI ≥70 |
| Main materials listed | Iron + ABS |
| Base fitting | Aluminium clamp |
| Connection | DC lead pictured; confirm plug size and polarity |
| Head adjustment | Adjustable joint pictured |
| Operating-temperature range | -20°C to +60°C |
Check the mounting thickness and head position

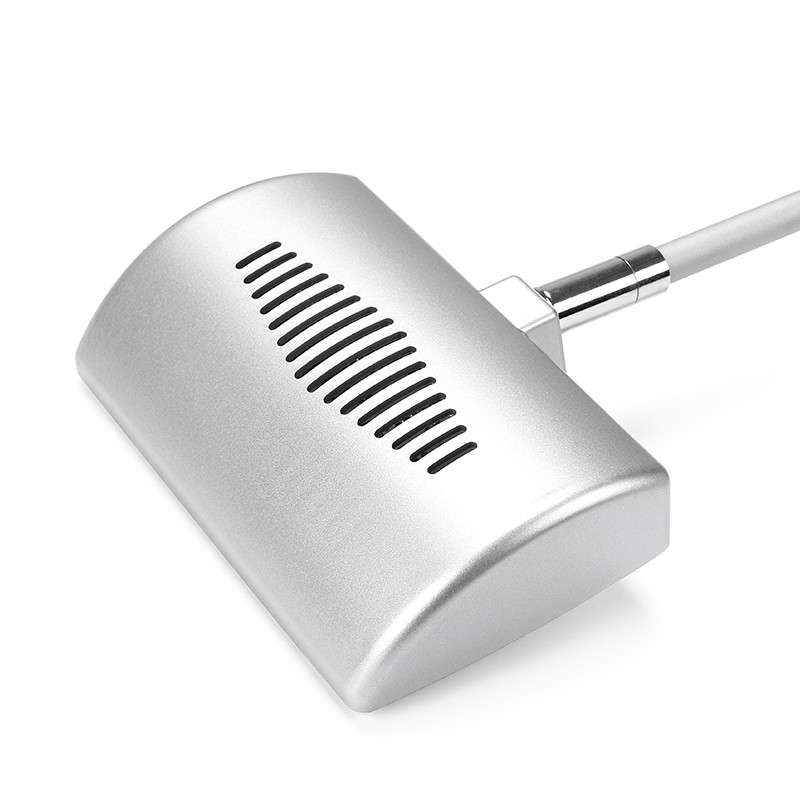

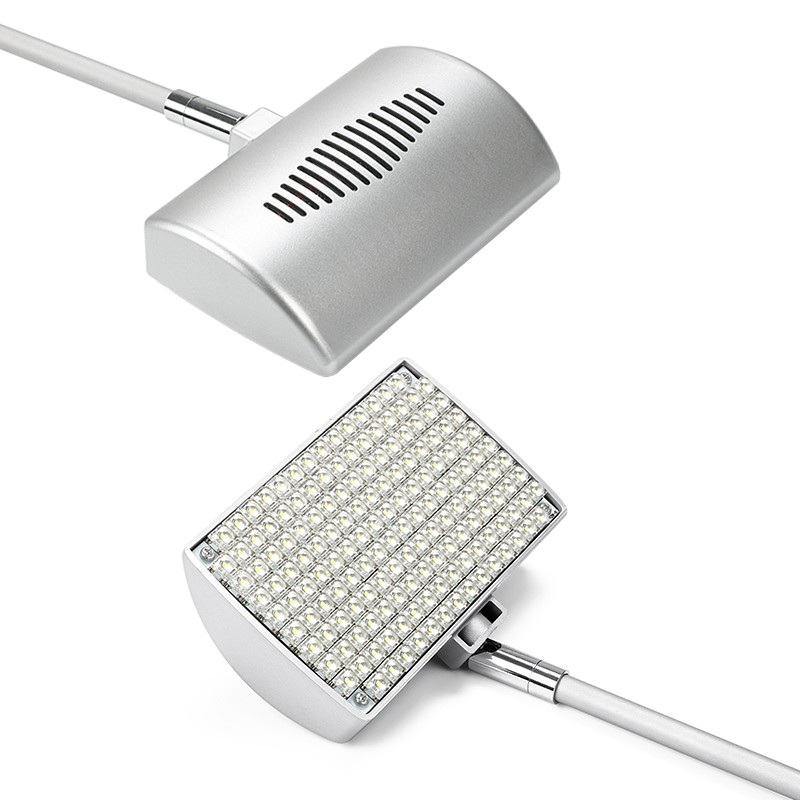

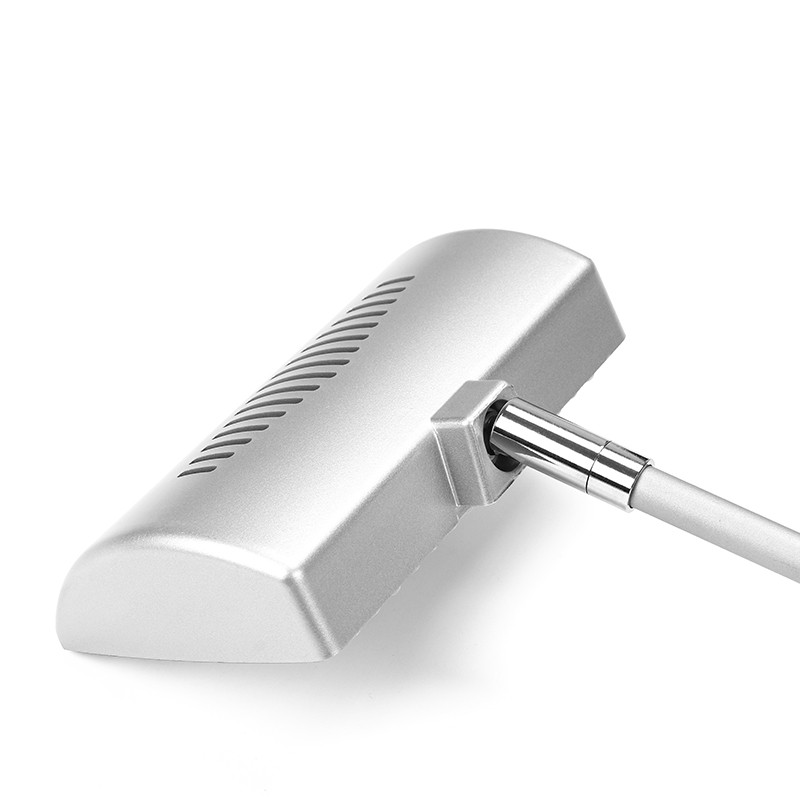

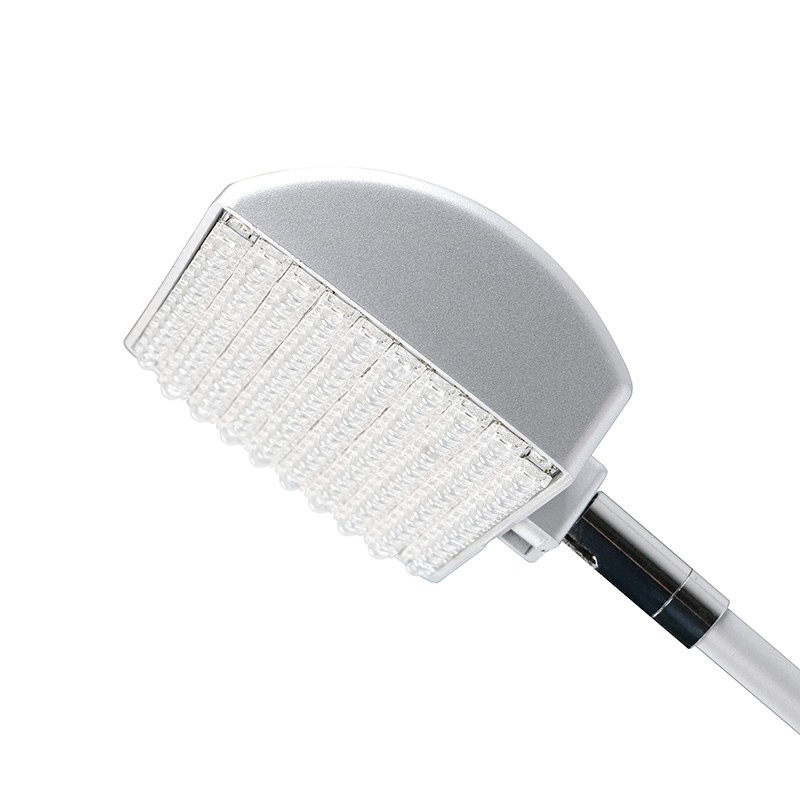

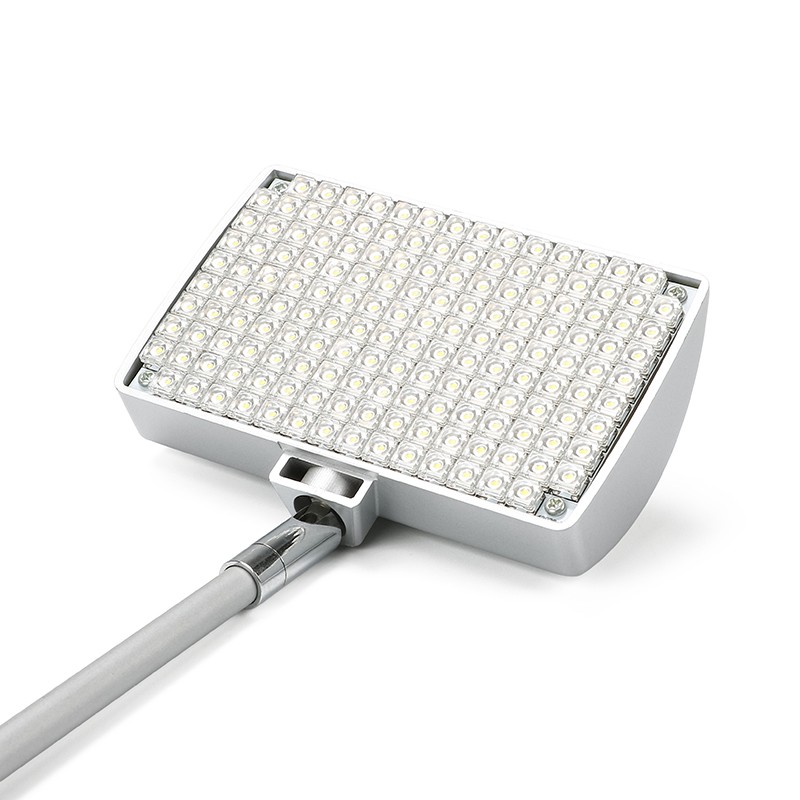

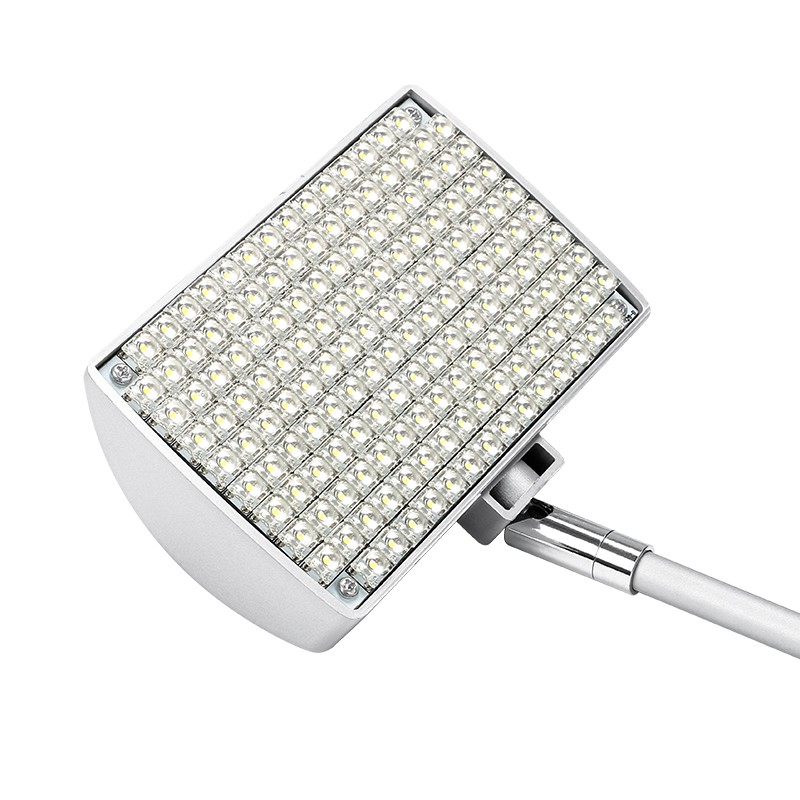

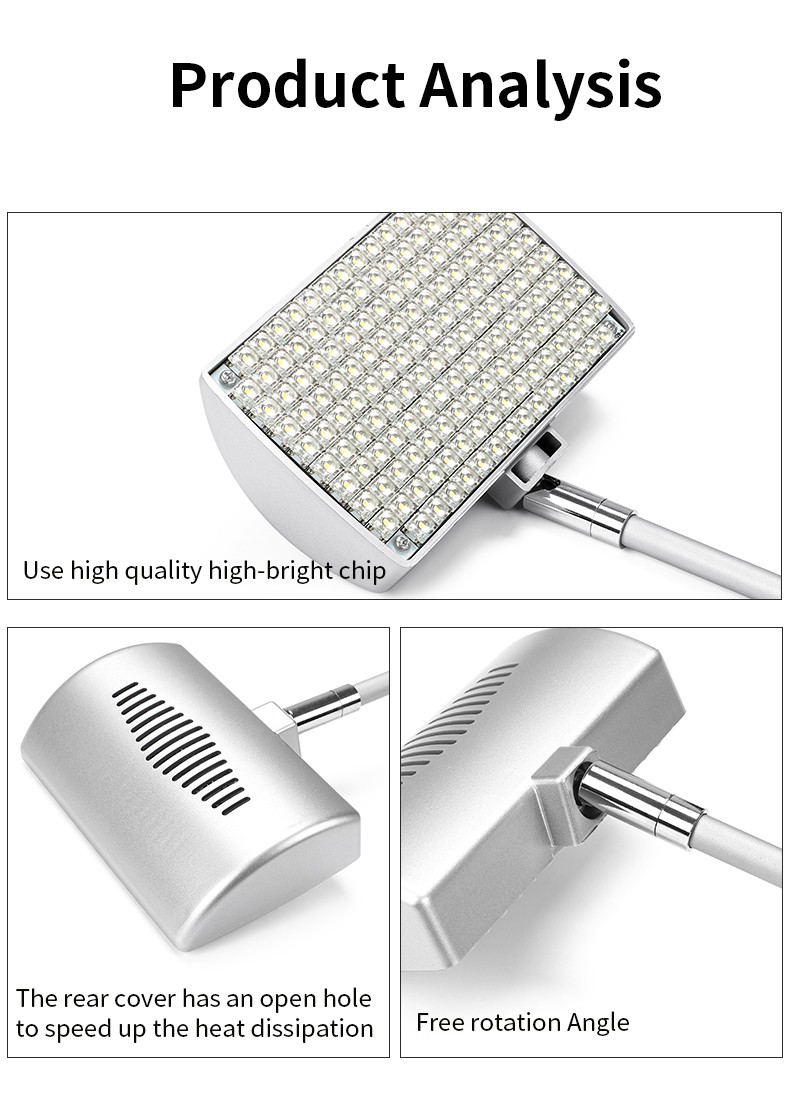

The product-analysis picture shows an adjustable head joint and ventilation slots in the rear cover. Position the head to direct its 68° beam onto the graphic surface, then assess the coverage at the intended mounting distance.

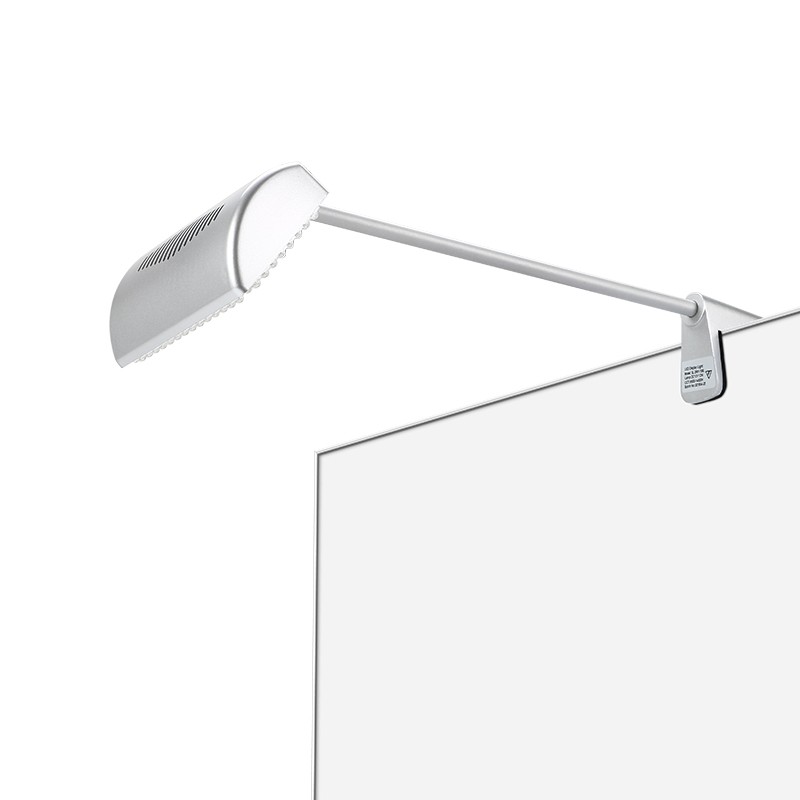

The lamp base uses the pictured aluminium clamp. Provide the frame section and mounting thickness when requesting a kit; the clamp opening and fixing arrangement are confirmed for the application.
Specify the DC supply and carton configuration
The listed lamp input is DC 12V. Confirm the matching supply output, DC plug dimensions, polarity and lead arrangement with the quotation. Include the destination mains plug requirements for the supply kit.
The packing illustration shows the clamped lamp and DC lead, an individual cardboard carton and outer cartons. Confirm the supplied components, carton quantity and branding or label requirements before the bulk order.
Questions before ordering clamp-on display lights
Will the aluminium clamp fit my display frame?
Send the mounting thickness, frame profile and a photo or drawing of the fixing point. The appropriate clamp arrangement can then be checked against the required installation.
Which white-light version should I request?
The technical table lists NW/CW. The appearance illustration also shows warm, natural and cold light examples. State the desired appearance so the available configuration and sample can be confirmed; no numerical Kelvin range is specified here.
What should I send for a bulk quotation?
Send SL-2001-156L, quantity, mounting details, white-light requirement, DC supply and plug requirements, and packing preferences. Orders start from 20 pcs, with lower unit prices at larger quantities.
Evaluate a sample and plan factory supply
Samples are available to assess the clamp fit, head position, beam coverage and DC kit. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit time are confirmed separately.
