Curved GU10 arm lighting for portable displays

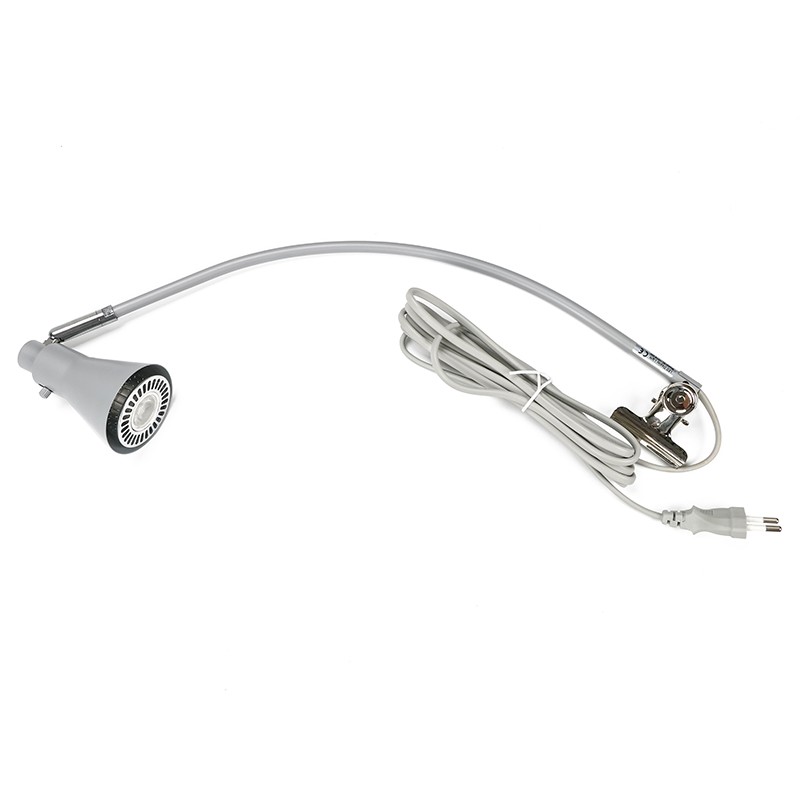

The SL-1019-5W is a 5W GU10 display arm light with a curved profile and a front-clip fixing. Its specification lists 350 lm output ±10%, AC 85–265V input and direct-input wiring. An adjustable head lets you aim the spotlight onto the graphic, and the GU10 lamp is removable as illustrated.
For portable-display suppliers and exhibition contractors, this model offers a curved-arm format for display graphics. Confirm the frame profile, clip arrangement, white-light version and destination plug so the supplied light matches the stand installation.
Curved profile, aiming and lamp replacement

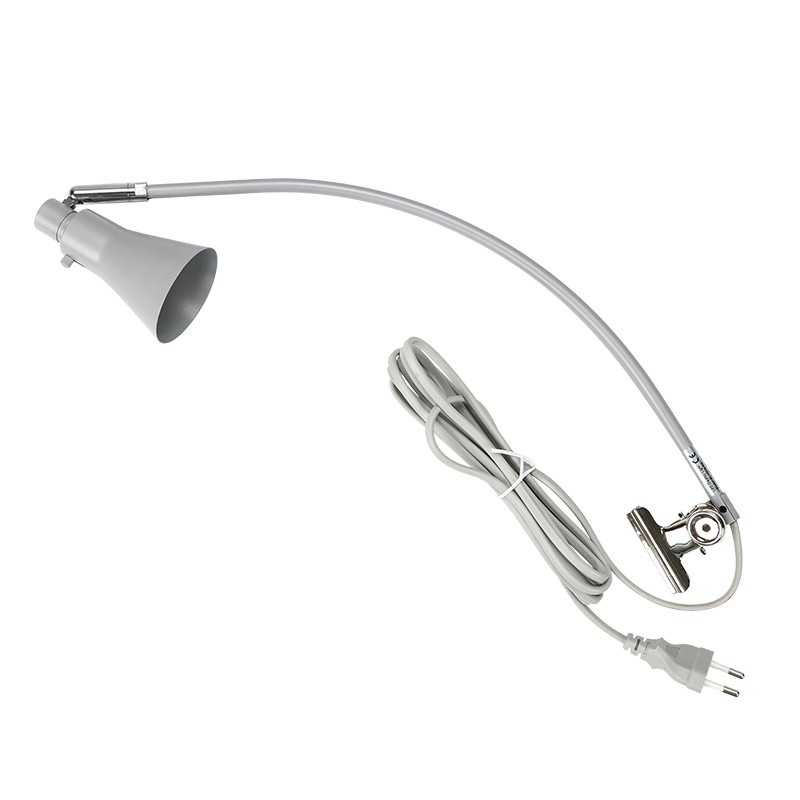

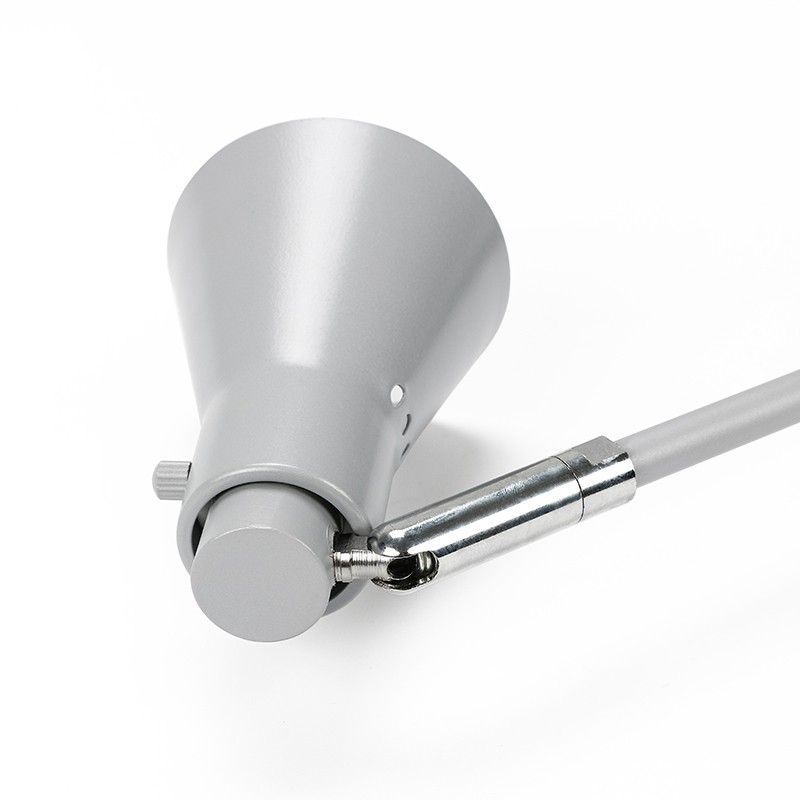

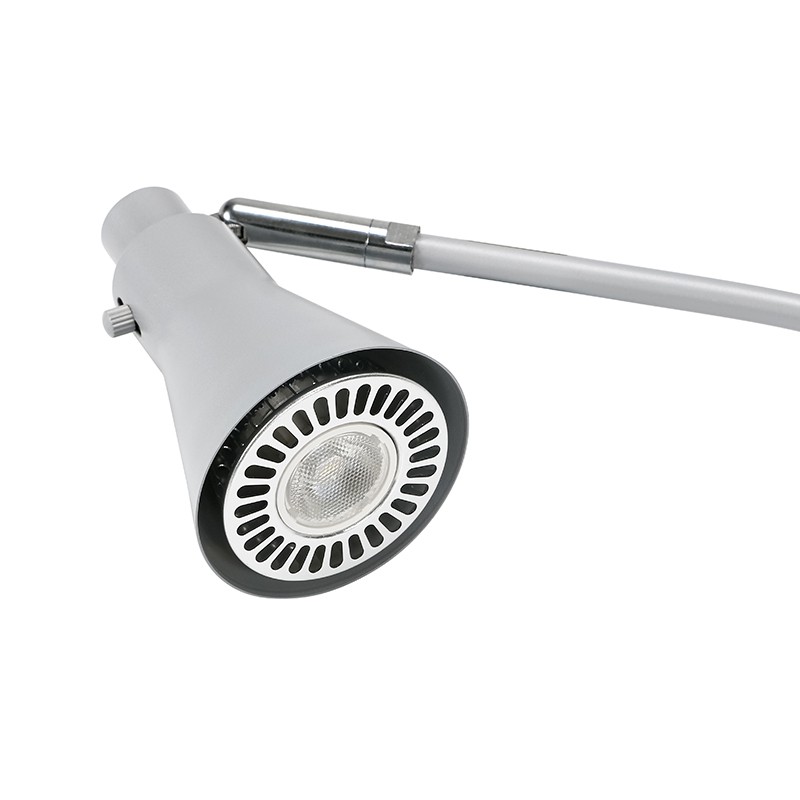

Position the arc-shaped arm above the graphic and aim the head toward the display surface. The close-ups show the head joint and a GU10 lamp removed from its holder. Confirm replacement-lamp voltage, size and power compatibility for the selected fitting.
GU10 curved-arm specifications
| Specification | SL-1019-5W |
|---|
| Model | SL-1019-5W |
| Lamp type | GU10 |
| Power | 5W |
| Listed output | 350 lm ±10% |
| Input voltage | AC 85–265V |
| Connection listed | Direct input |
| Dimensions | 360 × 65 × 53 mm |
| White-light versions | WW / NW / CW: warm, neutral or cool white |
| Body finishes | Silver-grey or black |
| Main materials listed | Q235, iron and ABS |
| Mounting reference | Front-clip arrangement illustrated |
| Lamp service | Removable GU10 lamp; adjustable head shown |
Portable graphics and exhibition panels

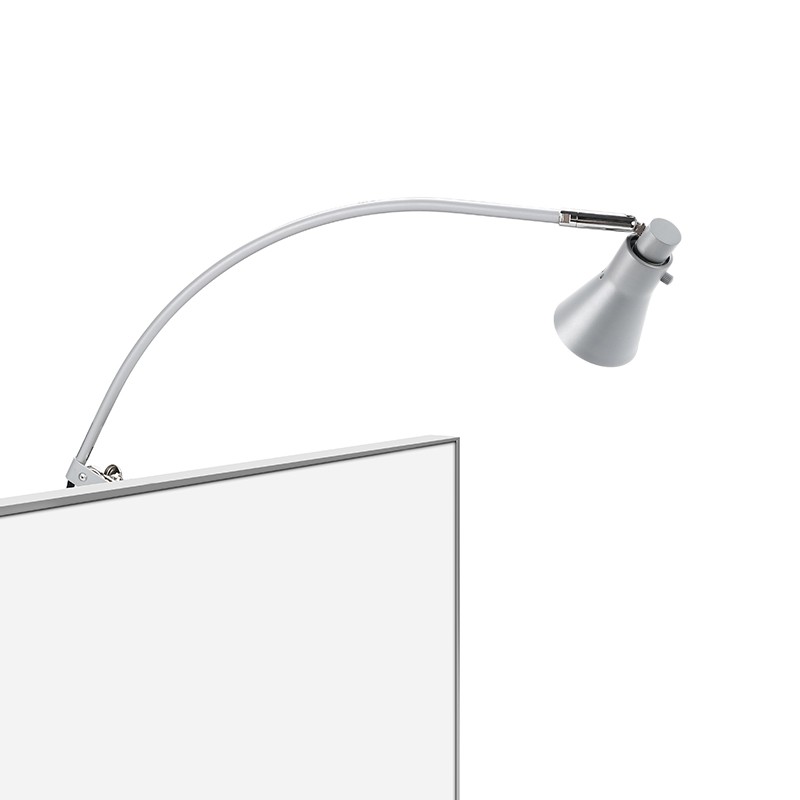

The application images show lighting above portable graphic stands and exhibition panels. Provide the display width and height, frame profile and intended clip position when selecting the fitting. Evaluate a sample on the actual graphic material before setting lamp quantity and spacing.
Front-clip fixing and regional lead selection
The mounting image identifies a two-in-one front clip. Match the illustrated fitting to your display frame and confirm the fixing dimensions; the images do not state a universal clamping range.
Choose silver-grey or black housing and a warm, neutral or cool white lamp version. The specification lists AC 85–265V with direct input. Include the destination country and plug requirement in the quotation, together with the lamp, lead and packing component list.
Curved GU10 light purchasing questions
How does this differ from the straight GU10 clamp-on light?
This model has a curved arm, front-clip arrangement, 360 × 65 × 53 mm dimensions and AC 85–265V input. The separate SL-1098C-5W light lists 525 × 120 × 50 mm dimensions and AC 220–240V input. Confirm the frame fitting and mains configuration for the version you select.
Can I replace the GU10 lamp?
The replacement image shows the lamp separated from its holder. Confirm a compatible lamp with the required voltage, dimensions and power before fitting.
Which white-light colours are available?
Warm, neutral and cool white are listed as order versions. Exact Kelvin ranges and a CCT switching function are not specified in these images; confirm the required version with the order.
Will the front clip fit a pop-up display frame?
Share the frame-profile dimensions and mounting photographs. The application images show portable displays, but the clip fit should be confirmed for your particular frame or with a sample.
Wholesale quotation requirements
Orders start from 20 pcs, with lower unit prices at higher quantities. Samples are available. Standard lead time is 12–18 days; custom configuration schedules and transit time are confirmed separately.
OEM, ODM and private-label enquiries are supported. Include model SL-1019-5W, quantity, finish, white-light version, frame dimensions, destination voltage and plug, packing and branding requirements to receive a matching quotation.
