Low-voltage curved lighting for display graphics
The SL-1008-5W is a curved MR16 display arm light specified at 5W, 300 lm and DC 12V, 0.42A. Its aluminium housing is offered in silver-grey or black. The images show a separable MR16 lamp and a curved arm positioned above portable display graphics.
For pop-up display suppliers and exhibition stand contractors, the curved profile, mounting fit and complete 12V supply arrangement are the main selection points. Provide the frame details and preferred white-light version so the quotation can identify the correct lamp, fitting and leads.

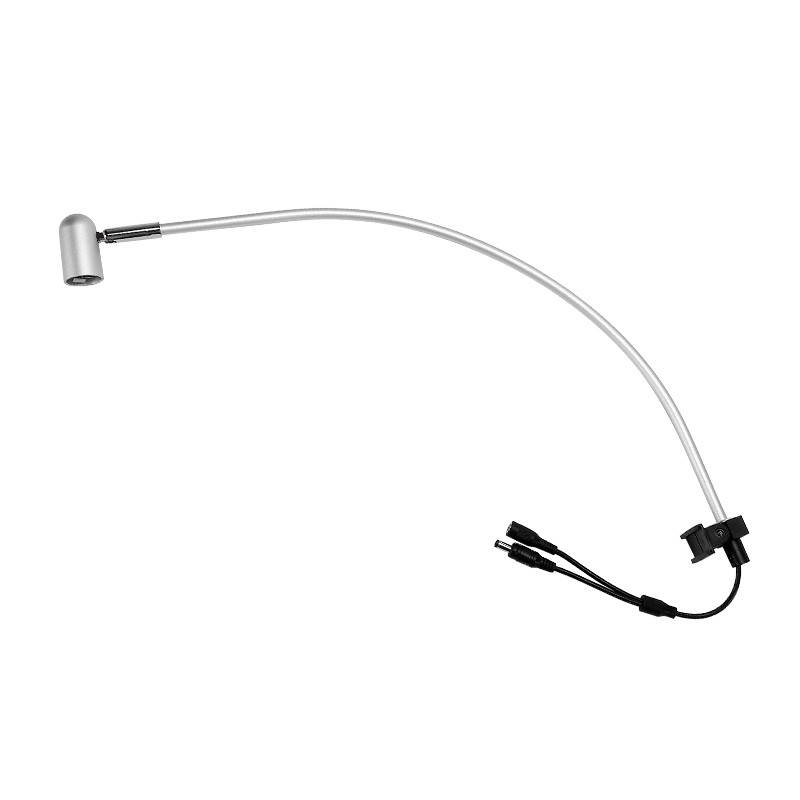

Curved arm and serviceable MR16 lamp

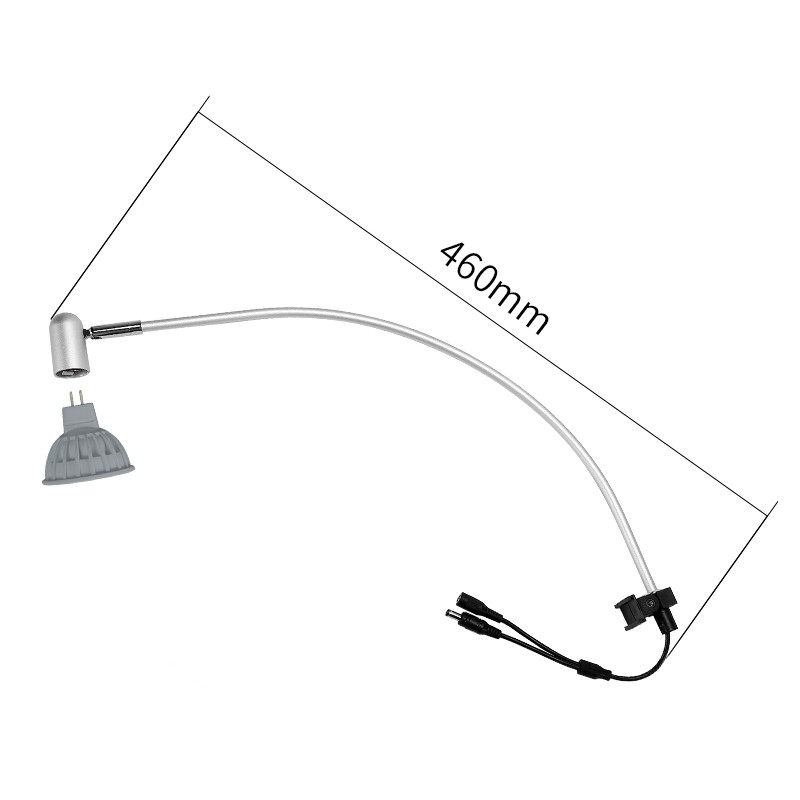

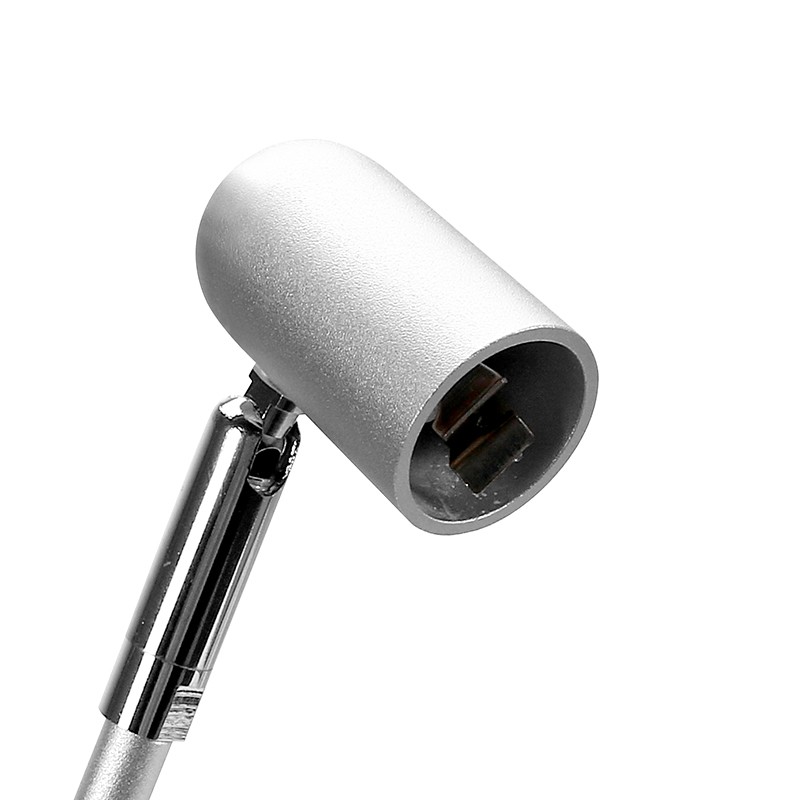

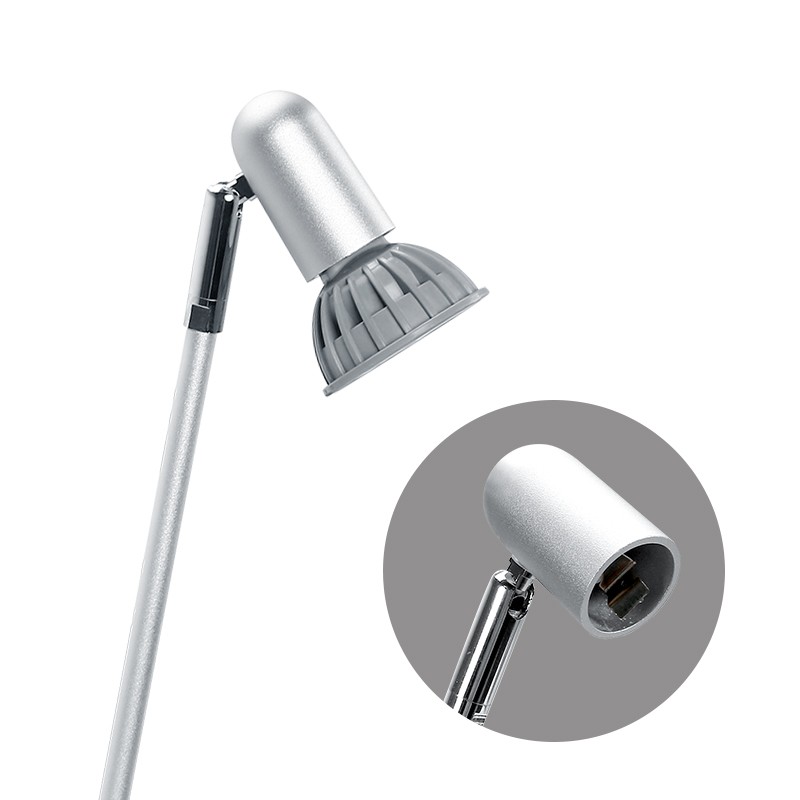

The curved arm positions the compact head above the display. The replacement illustration shows the MR16 lamp separated from its holder. Select a compatible 12V replacement lamp with the correct dimensions and power for this fitting.

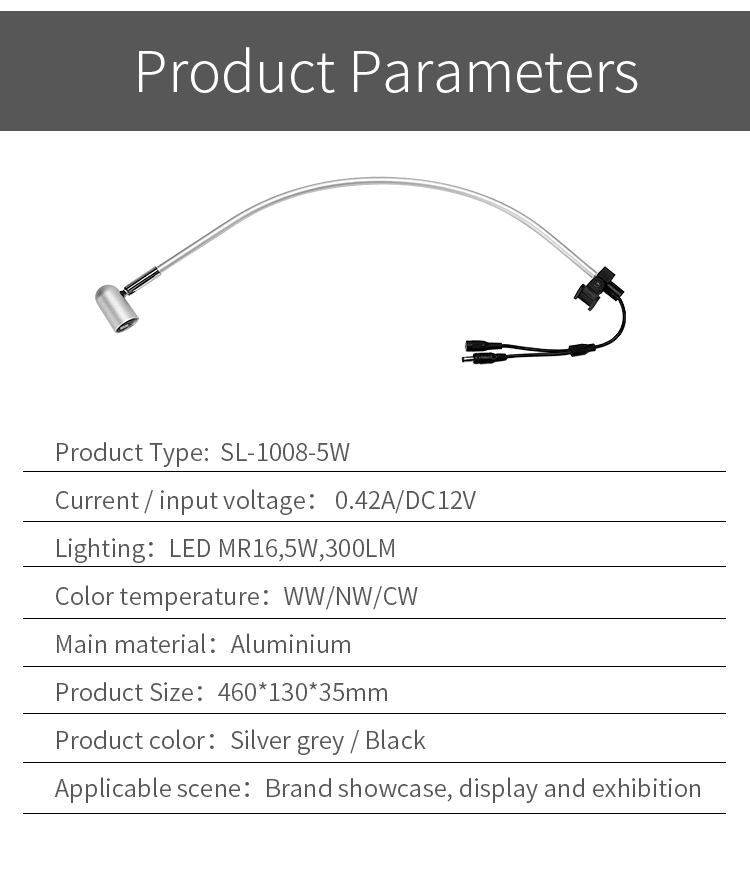

12V MR16 model specifications
| Specification | SL-1008-5W |
|---|
| Model | SL-1008-5W |
| Lamp type | LED MR16 |
| Power | 5W |
| Output | 300 lm |
| Input voltage | DC 12V |
| Listed current | 0.42A |
| Dimensions | 460 × 130 × 35 mm |
| White-light versions | WW / NW / CW: warm, neutral or cool white |
| Main material | Aluminium |
| Body finishes | Silver-grey or black |
| Arm profile | Curved |
| Lamp service | Separable MR16 lamp and holder illustrated |
| Order configuration | Confirm mounting fit, compatible 12V supply, leads and kit packing |
Portable display and stand applications

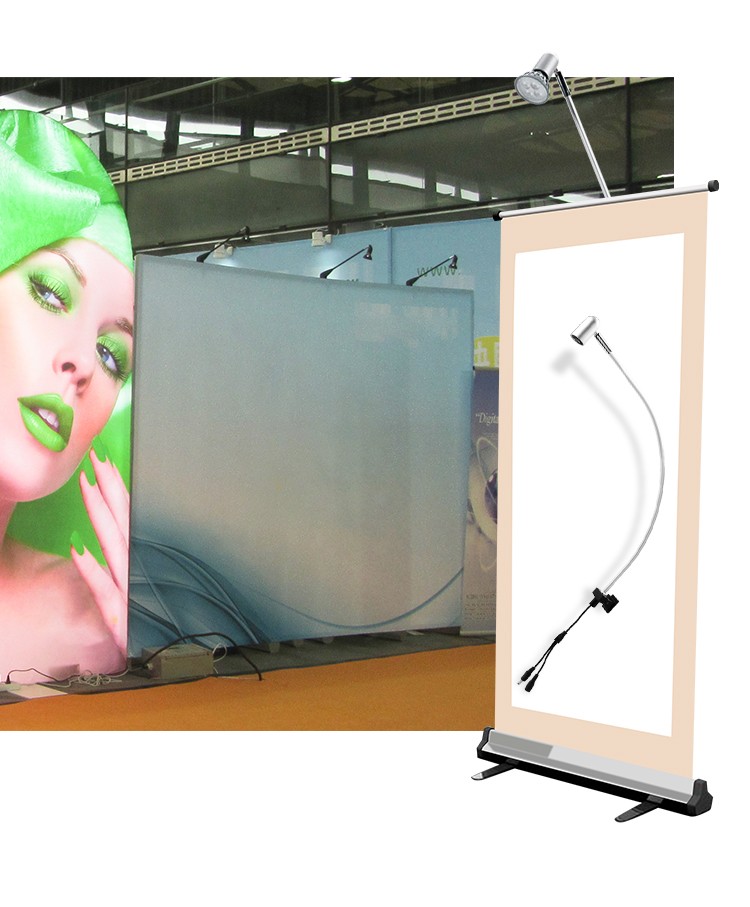

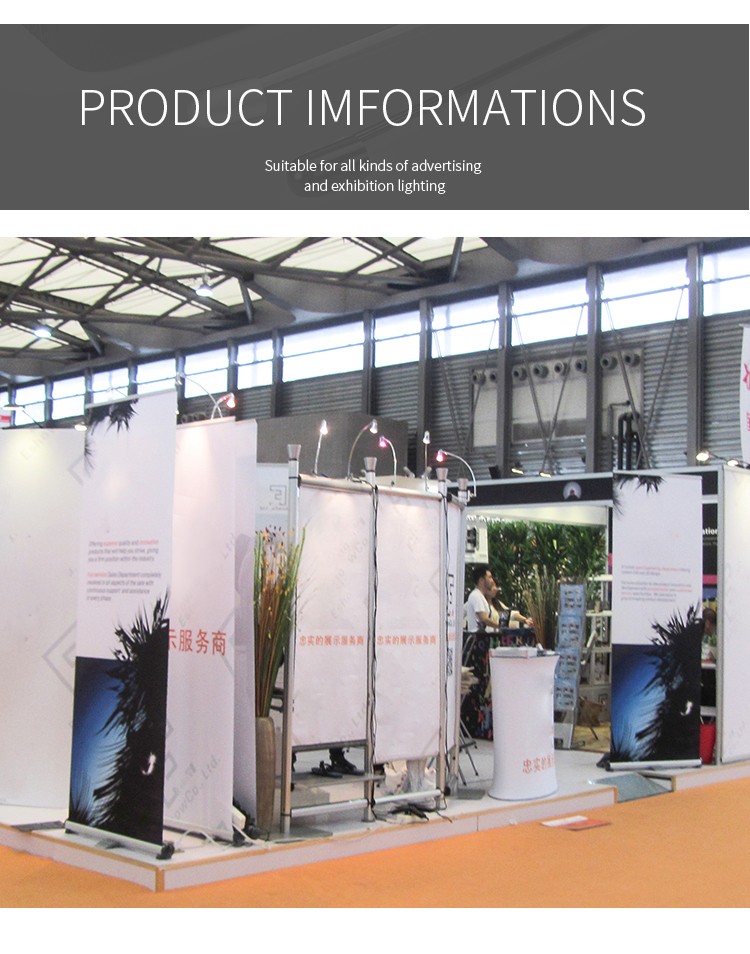

The application images show the light above portable graphic panels and exhibition displays. Send the display dimensions, frame profile and mounting position when planning the project. Check the fitting and white-light appearance with a sample on the actual display material.
Housing finish and complete supply set

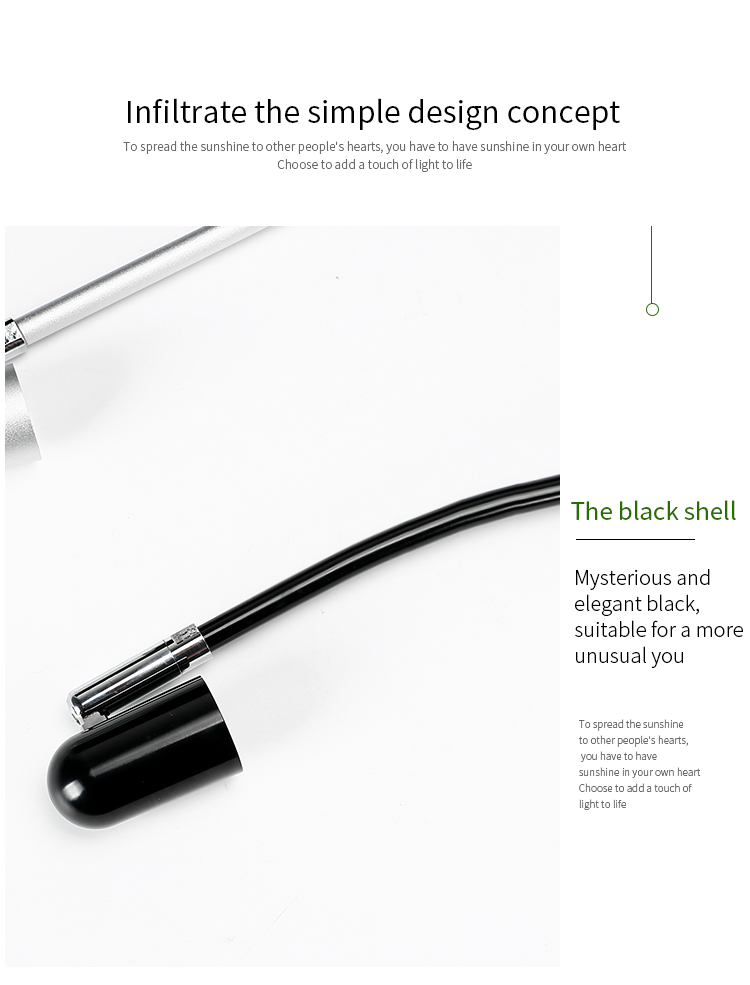

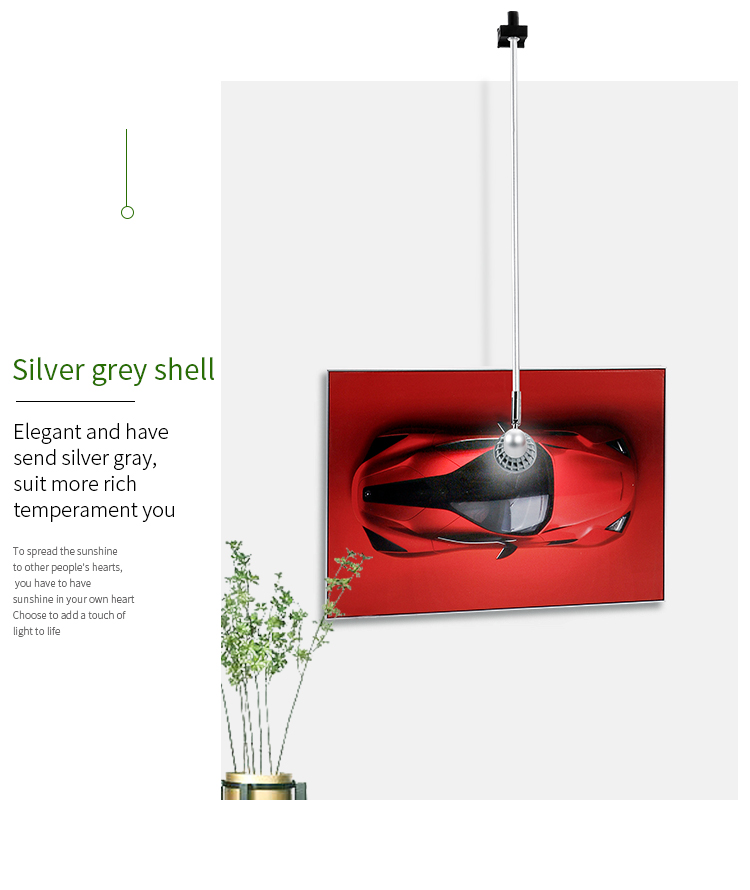

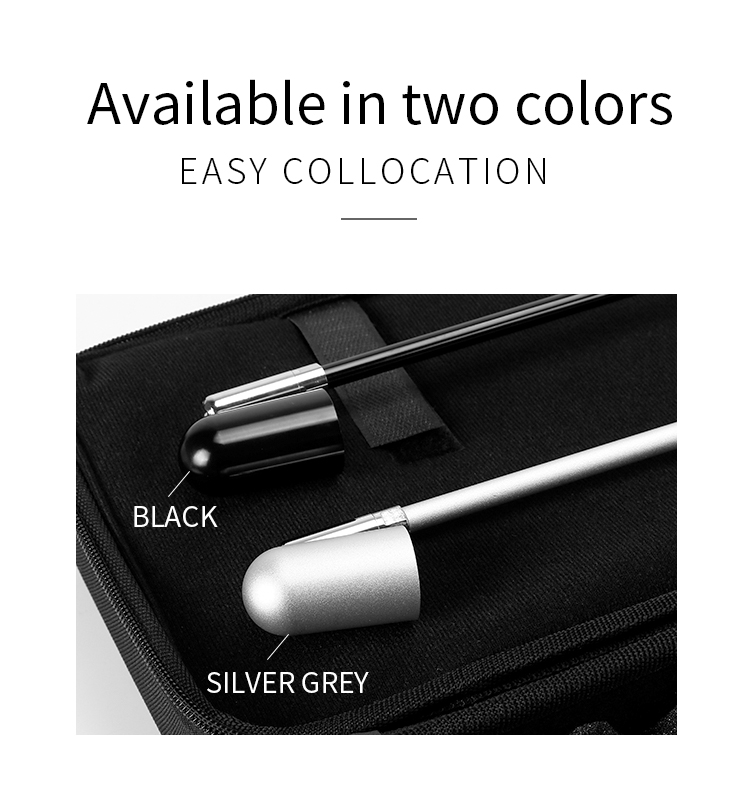

Choose black or silver-grey housing with warm, neutral or cool white illumination. The images list white-light order options without numerical Kelvin ranges or a CCT switching control.
Specify the compatible 12V supply, required connection leads, mounting parts and packing arrangement in the quotation. A case is pictured with the colour options; confirm whether it is included in your selected kit.
Curved MR16 light selection questions
Does this light connect directly to mains power?
The specification is DC 12V, 0.42A. Confirm a compatible supply and complete wiring set for the lamp quantity in your order.
How is it different from the straight MR16 pop-up light?
This model uses a curved arm and lists 460 × 130 × 35 mm dimensions. The related SL-1085-5W has a straight-arm format and lists 474 × 130 × 35 mm. Both list 5W MR16 lamps and 300 lm output; compare the frame fit and supply set.

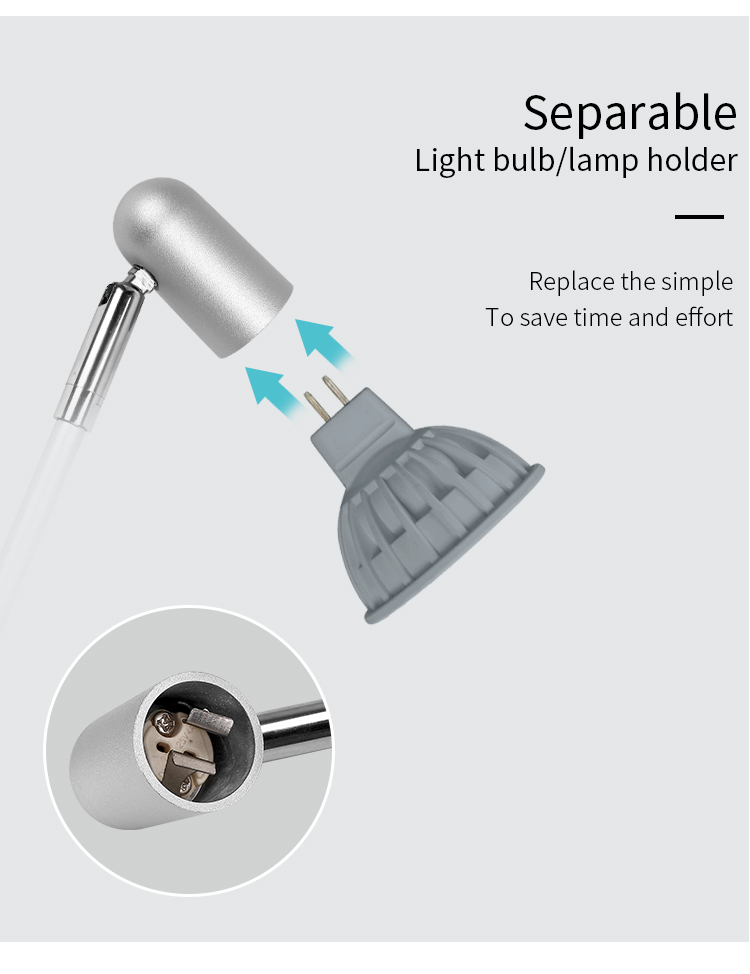

Can the MR16 lamp be replaced?
The detail image shows a separable lamp and holder. Confirm the replacement lamp's 12V configuration, dimensions and power before fitting.
What mounting information is needed for a bulk order?
Send the frame-profile dimensions, existing fitting photographs and intended lamp position. Ask the quotation to identify the mounting component, supply and leads for the complete set.
Bulk orders and custom display kits
MOQ is 20 pcs, with lower unit prices for larger orders. Samples are available for evaluating the colour, fitting and supplied kit. Standard lead time is 12–18 days; customised schedules and shipping time are confirmed separately.
OEM, ODM and private-label projects are supported. Send model SL-1008-5W, quantity, finish, white-light version, display-frame details, supply and lead requirements, destination country and any packing or branding specification.
