3500-lumen arm spotlights for exhibition walls

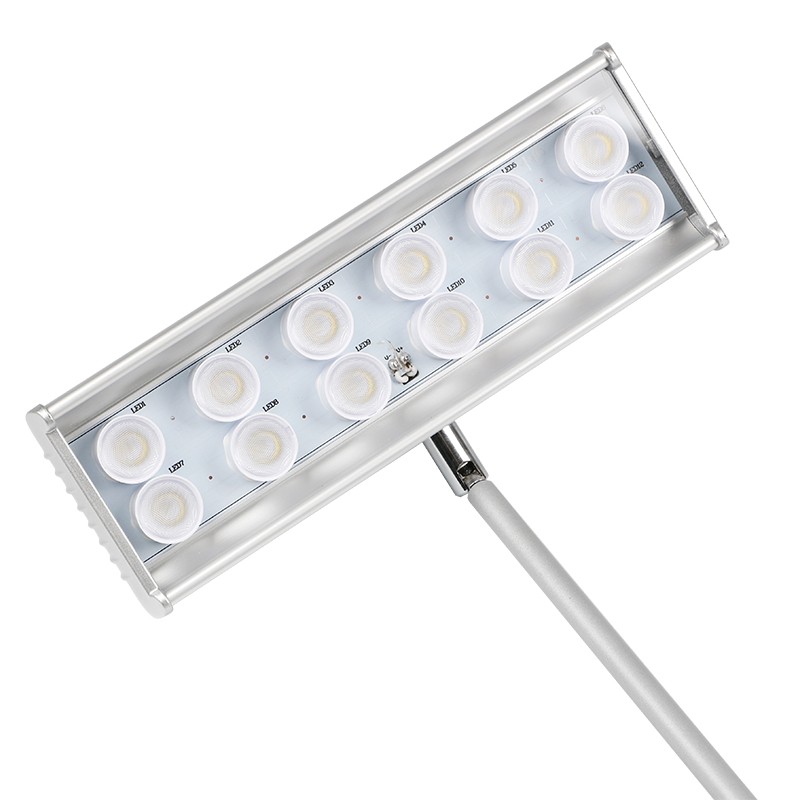

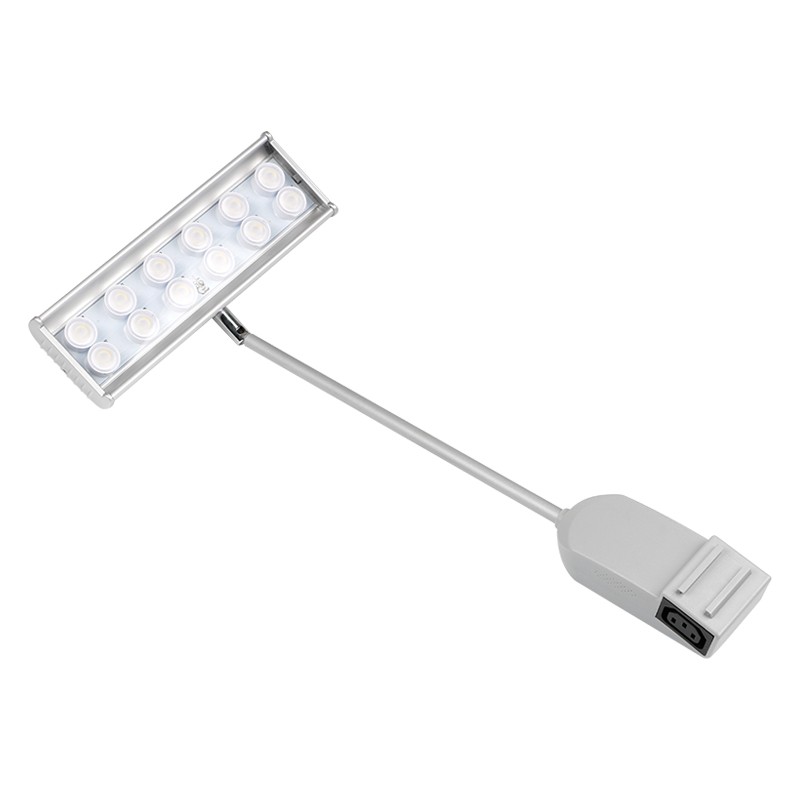

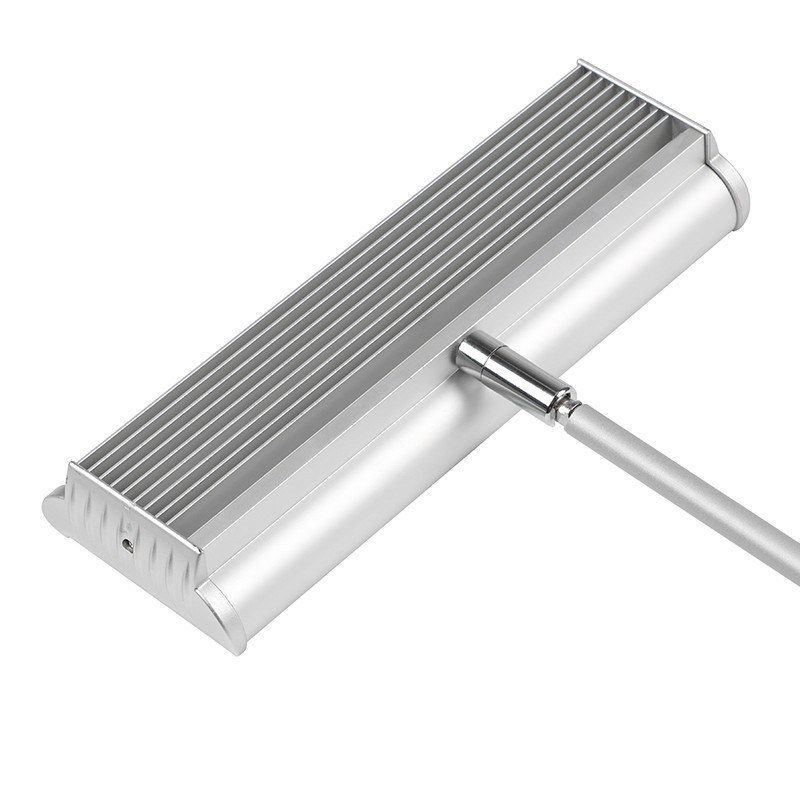

The SL-2077-N12L is a 35W LED exhibition spotlight with 12 LEDs, a specified 3500 lm output and a 60° beam. Its three-pin input and output connections support a linked lighting arrangement. The parameter sheet lists AC 100–240V input and black or silver body options, while the product close-up shows a built-in constant-current driver.
For exhibition-wall projects, compare output, beam coverage, fixing and connection layout together. Send the graphic dimensions, frame profile, mounting height, lamp quantity and desired cable route so the lamp finish, mains lead and connection leads can be specified for the order.

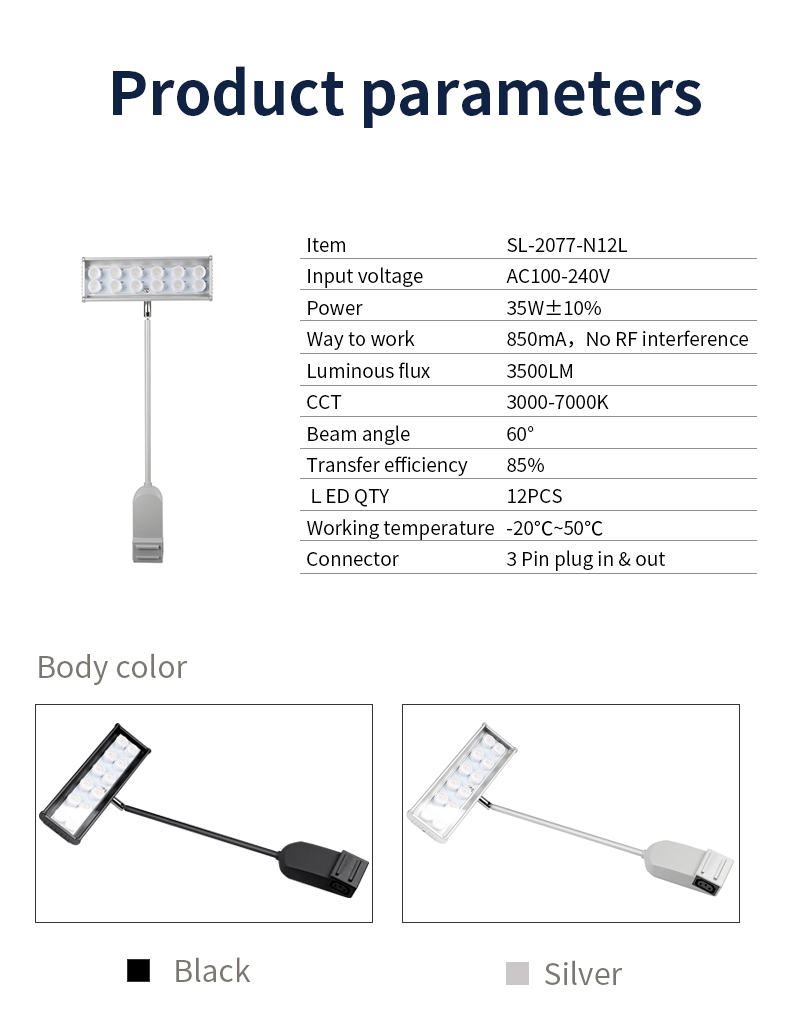

35W exhibition-spotlight specifications
| Specification | SL-2077-N12L |
|---|
| Model | SL-2077-N12L |
| Power | 35W ±10% |
| Light output | 3500 lm |
| LED quantity | 12 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 60° |
| Colour-temperature range | 3000–7000K; specify the order version |
| Connections | Three-pin input and output |
| Body options | Black / silver |
| Driver | Built-in constant-current driver pictured |
| Working-temperature range | -20°C to +50°C |
Plan the linked spotlight arrangement

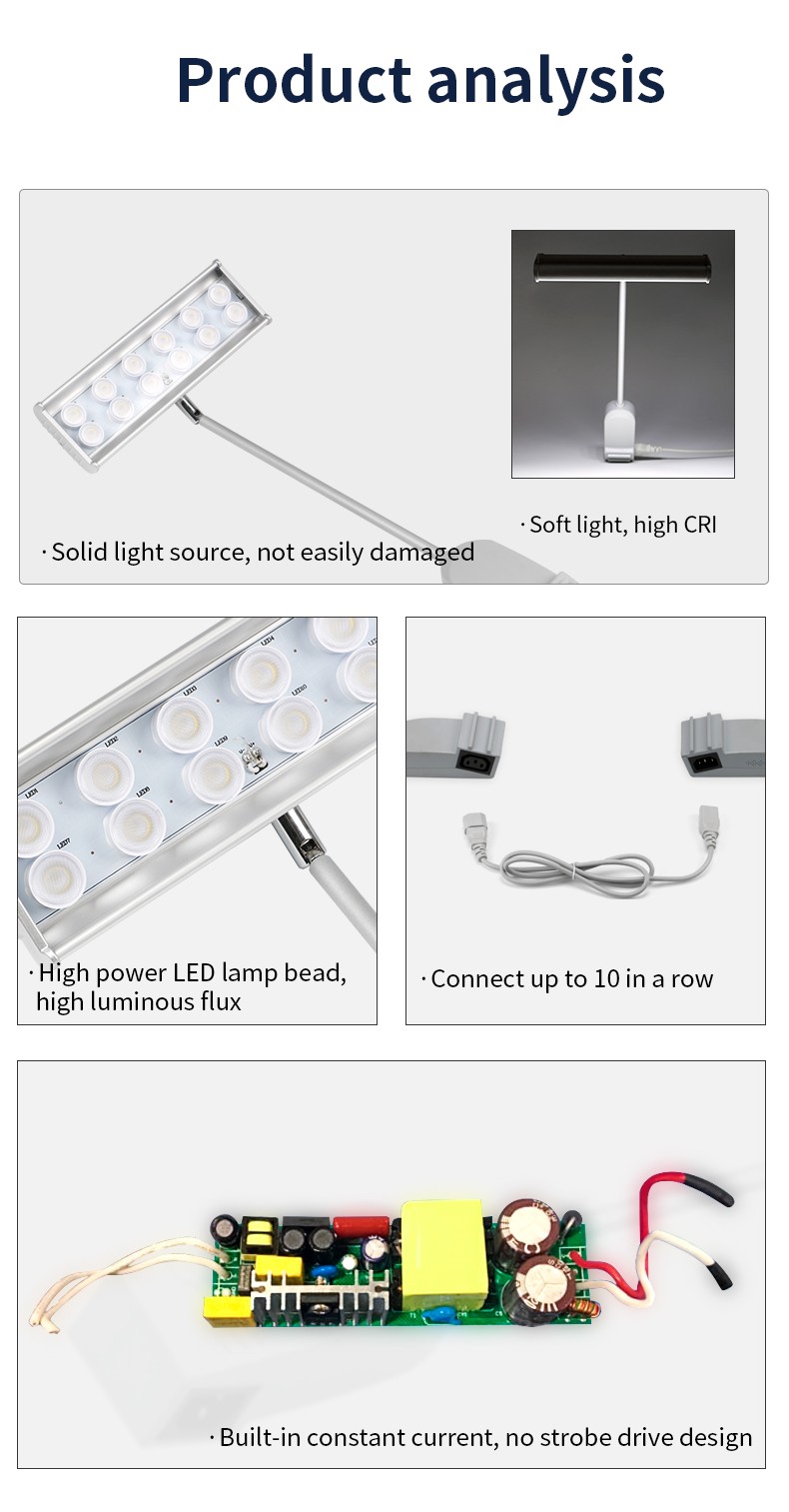

The product illustration describes connecting up to ten lamps in a row with the matching three-pin leads. Specify the lamp count and lead lengths, and confirm the permitted complete-kit arrangement and circuit requirements with the quotation. The close-up also shows the driver built into the lighting assembly.
Select white light and aim the 60° beam
The specification covers a 3000–7000K colour-temperature range, with warm, neutral and cool appearances illustrated. Select the required order version and evaluate the beam from the intended mounting position. Use the graphic width, mounting height and surrounding stand lighting when planning spacing.
Lighting for exhibition walls and framed displays

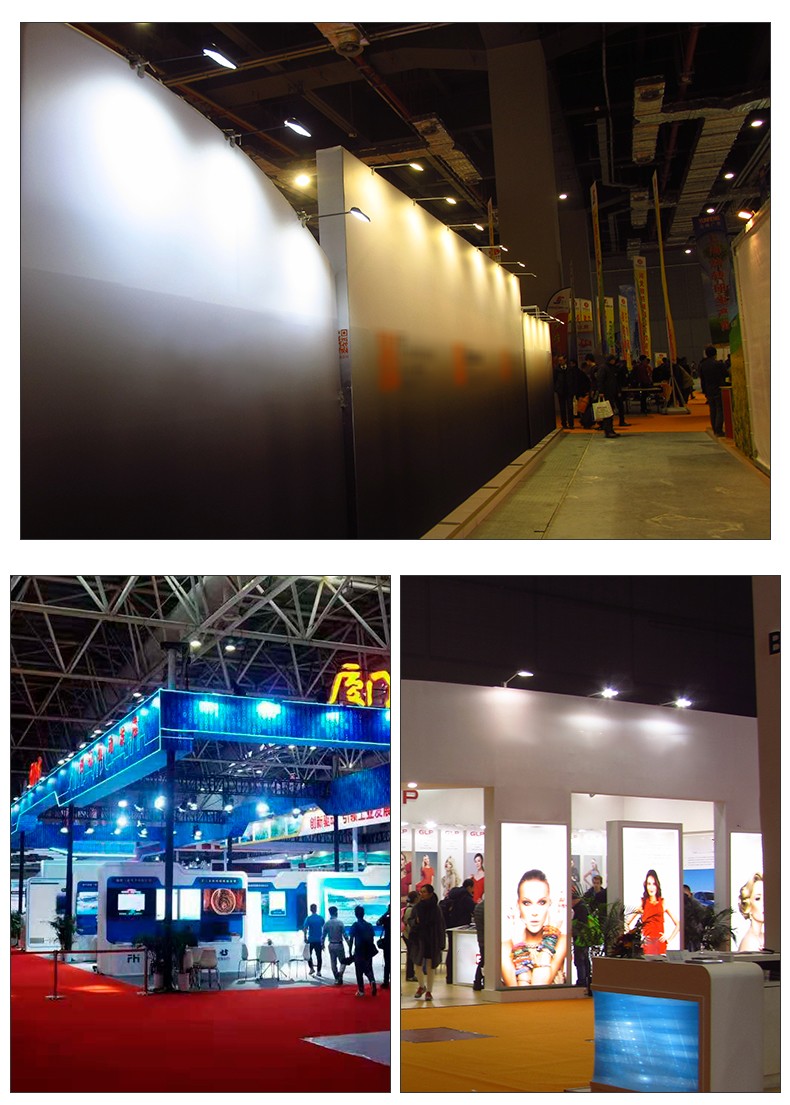

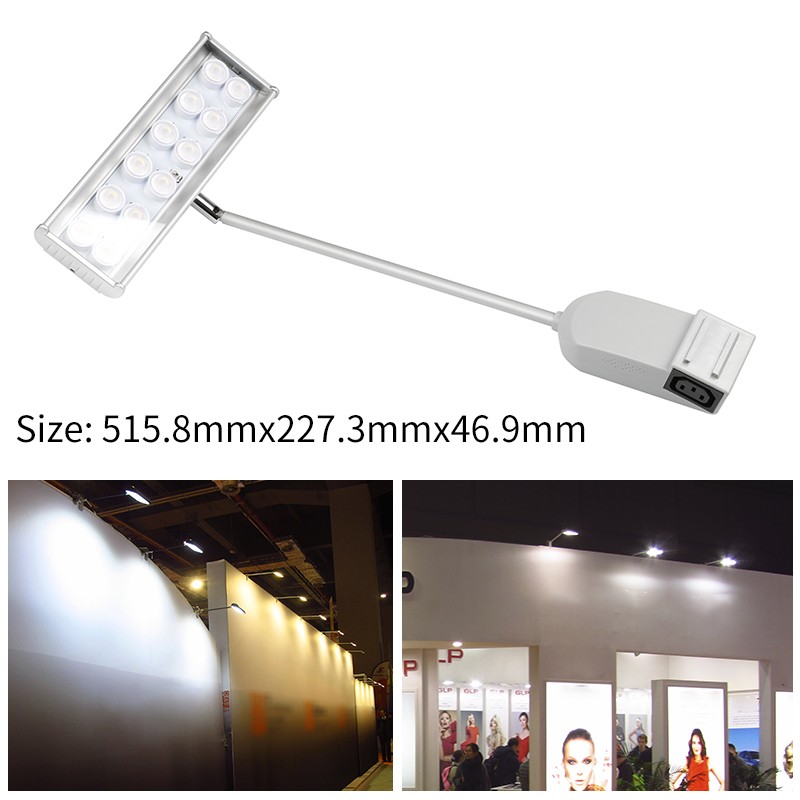

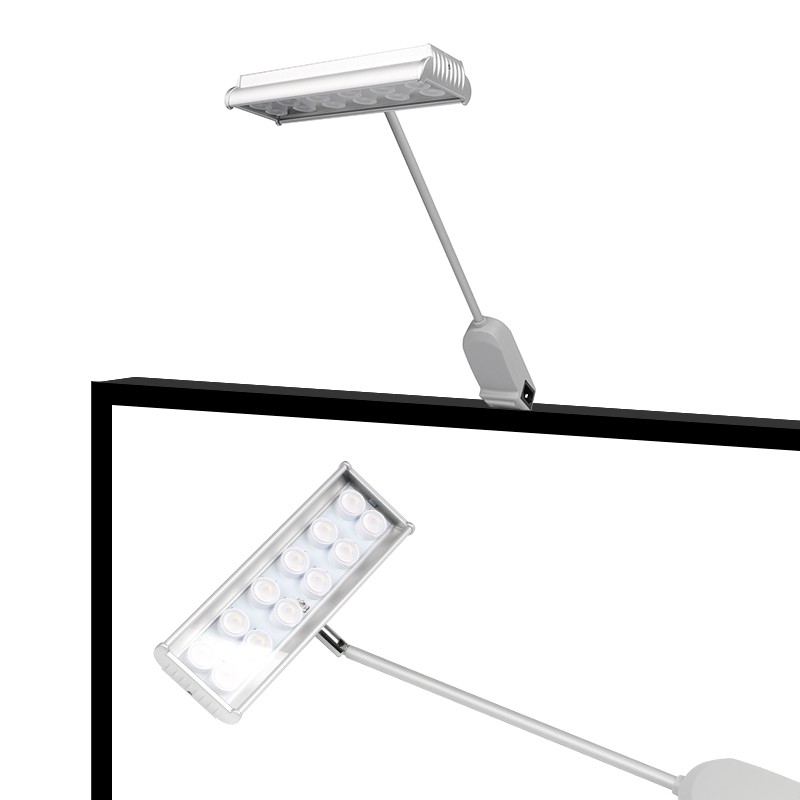

The application images show arm spotlights above exhibition walls, framed graphics and display panels. Match the fixing to the actual frame profile and provide the required installation position for confirmation. Choose black or silver to coordinate with the display structure.
Prepare lamp kits and branded packing

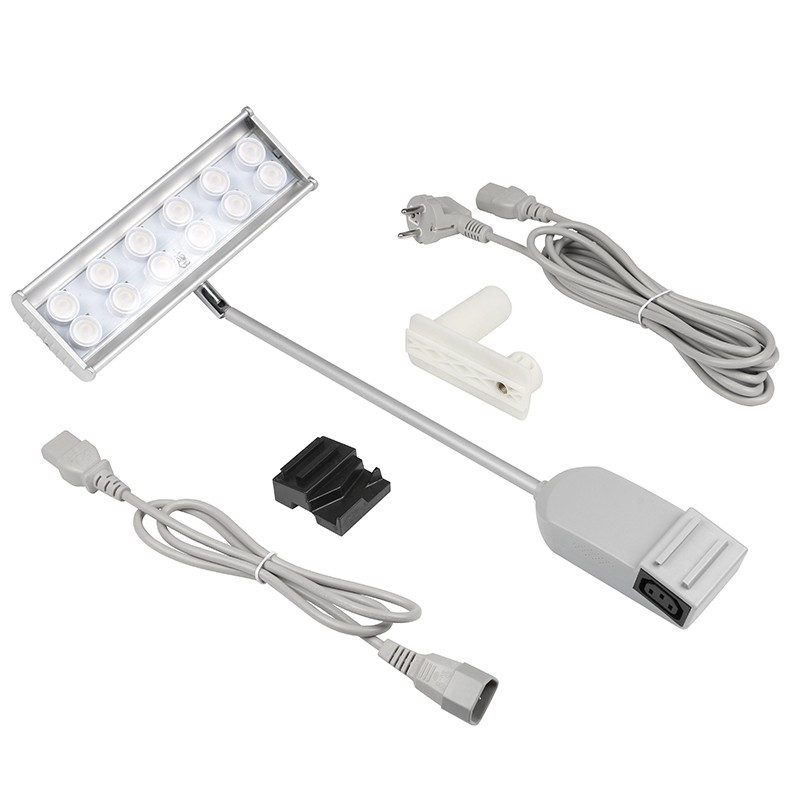

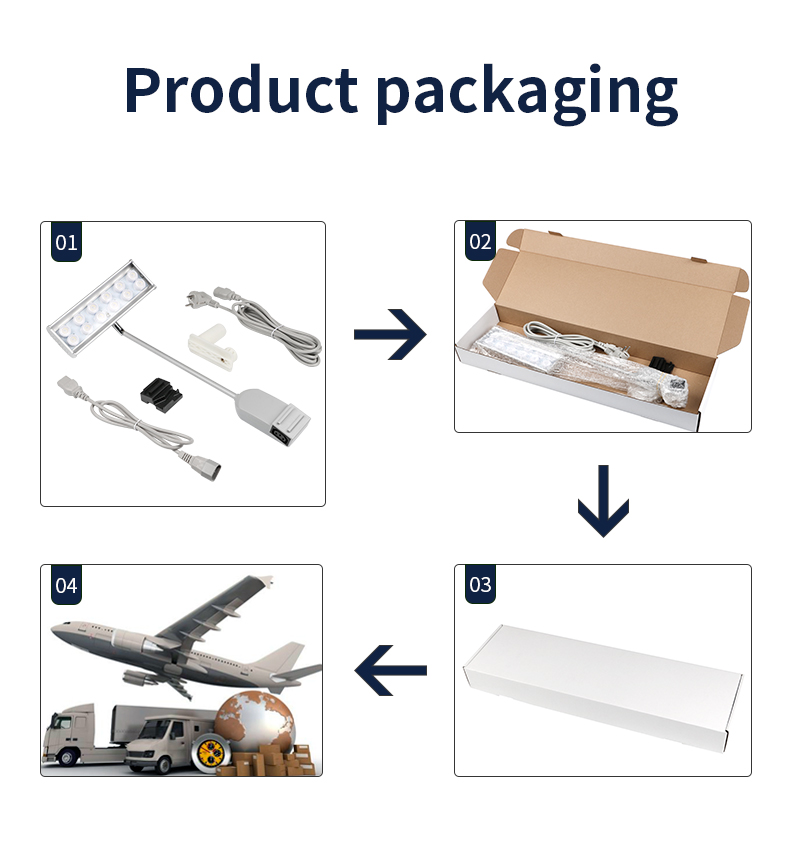

The packing illustration shows a lamp with mains and connection leads in a protective carton. Confirm the components per kit, destination plug, cable lengths, carton quantity and branding requirements with the order.
Questions for 3500-lumen spotlight procurement
Is the 3500 lm output suitable for my exhibition wall?
The listed output is 3500 lm with a 60° beam. Send the graphic dimensions, mounting height and lamp positions, and evaluate a sample on the intended display to assess coverage and appearance.
Can I order a ten-lamp linking layout?
Up to ten lamps in a row are described in the product illustration. Share the required lead layout, destination supply and lamp count so the matching kit and circuit requirements can be confirmed before ordering.
What is required for a wholesale or private-label quotation?
Include SL-2077-N12L, quantity, finish, white-light version, frame fixing, lamp layout, destination plug and packing requirements. Orders start from 20 pcs, with lower unit prices at higher quantities. OEM, ODM and private-label enquiries are supported.
Samples and factory lead time
Samples are available for checking beam coverage, fixing and connection leads. Standard lead time is 12–18 days. Sample cost, shipping, custom production schedules and transit are confirmed separately.
