Silver display spotlights for exhibition graphics

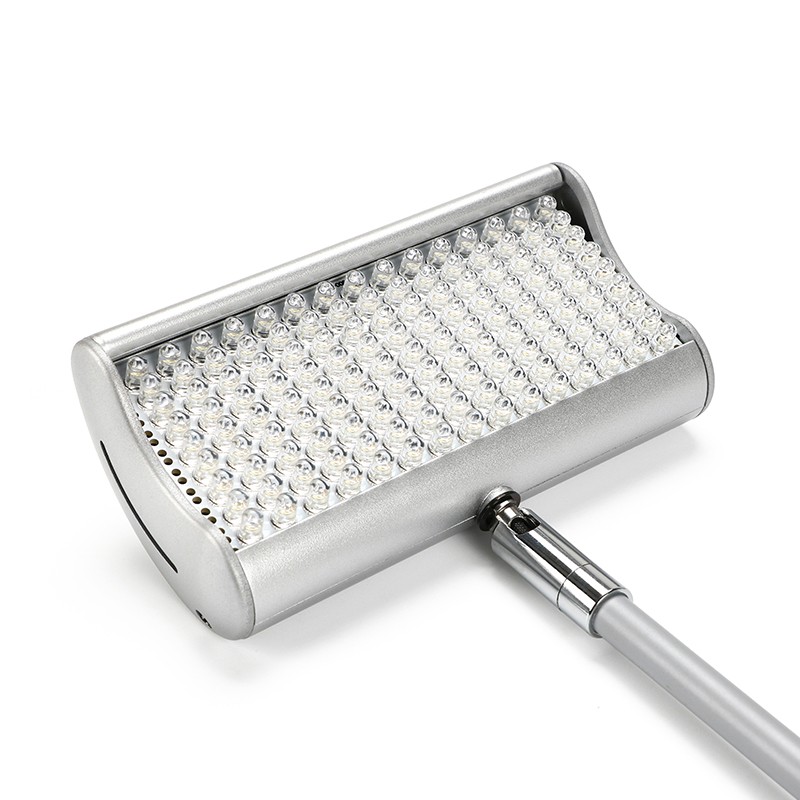

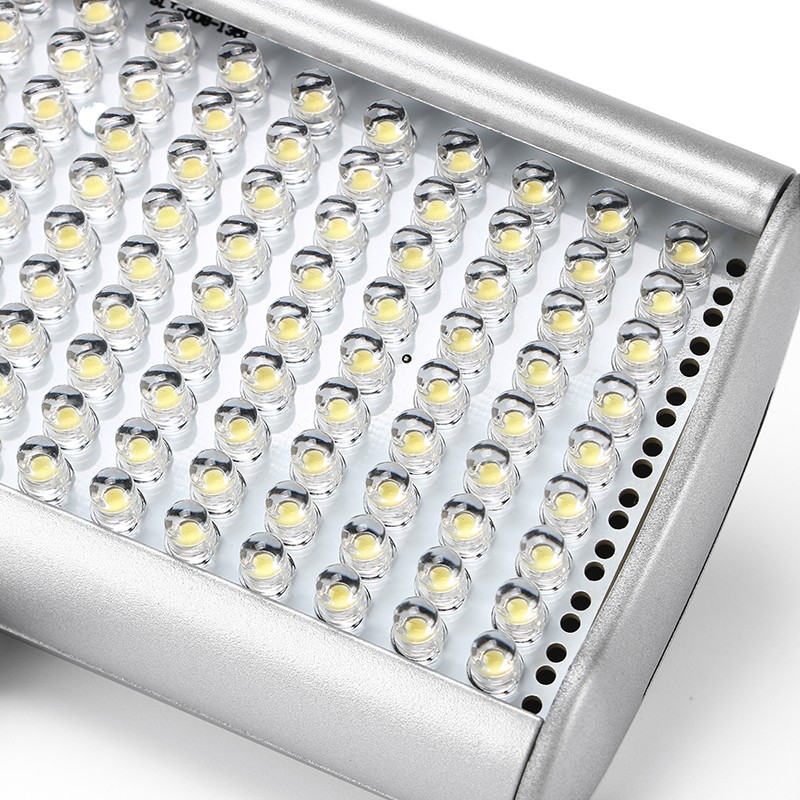

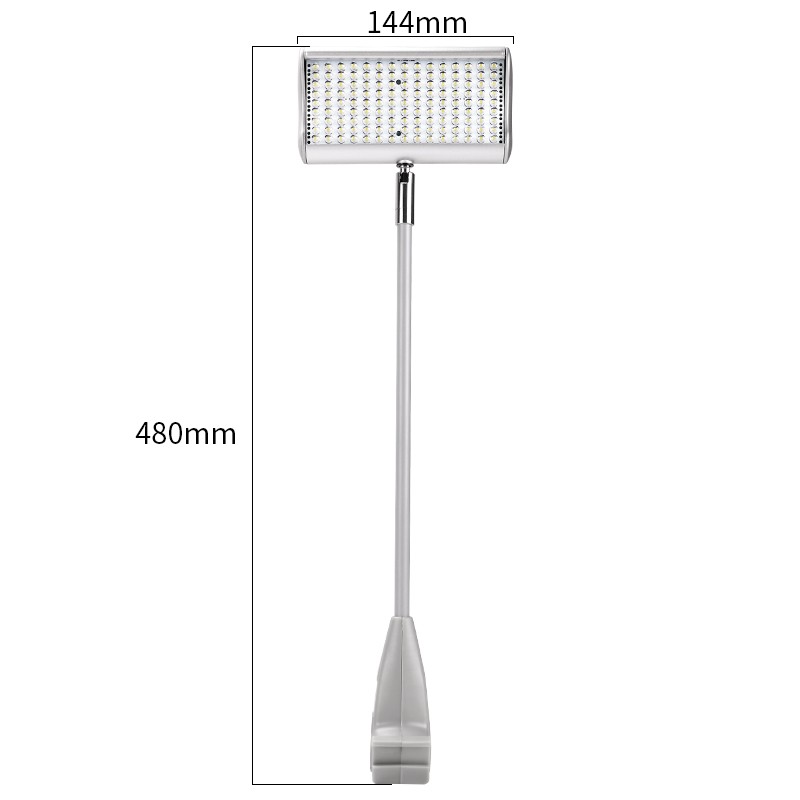

The SL-008-135L is an 11W silver LED display spotlight with 135 LEDs, specified 720 lm output and a 60° beam. Its 480 × 144 × 48 mm long-arm format positions an adjustable head above graphic panels, with a B-shape connection and DC 12V input.
For display-light distributors and stand contractors, choose the frame fitting and matching power kit with the lamp. Share the graphic dimensions, mounting profile and intended lamp positions so the sample and bulk configuration can be prepared for your display system.
11W silver spotlight technical data
| Specification | SL-008-135L |
|---|
| Model | SL-008-135L |
| Power | 11W |
| LED quantity | 135 |
| Specified light output | 720 lm |
| Beam angle | 60° |
| Lamp input | DC 12V |
| Dimensions | 480 × 144 × 48 mm |
| Listed colour temperature | 8500–14000K |
| Colour rendering stated | Ra ≥70 |
| Connection | B-shape plug |
| Material composition | Aluminium + Iron + ABS |
| Optional fittings | Forward/reverse slider; 0505/0509 aluminium clamp |
| Operating temperature | -20°C to +60°C |
Choose a slider or aluminium clamp fitting

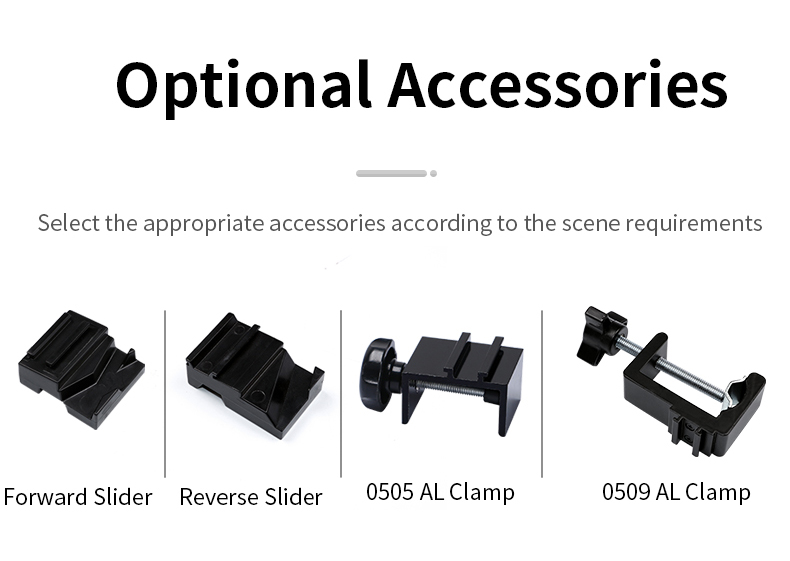

The accessory guide shows forward and reverse sliders, plus 0505 and 0509 aluminium clamps. Confirm the profile shape, fixing position and fitting dimensions before selecting parts for a repeat stand order.

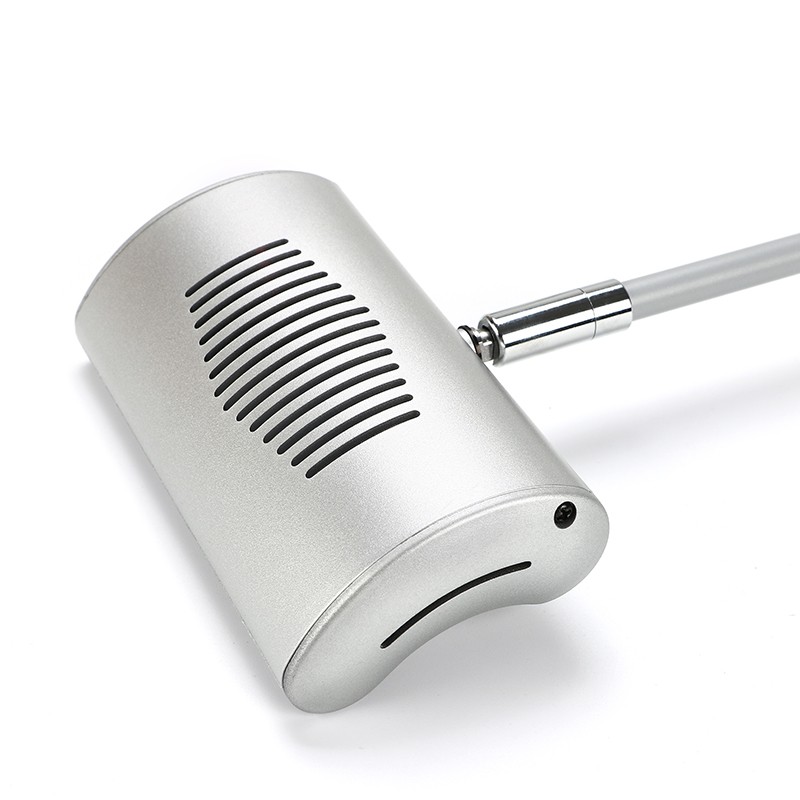

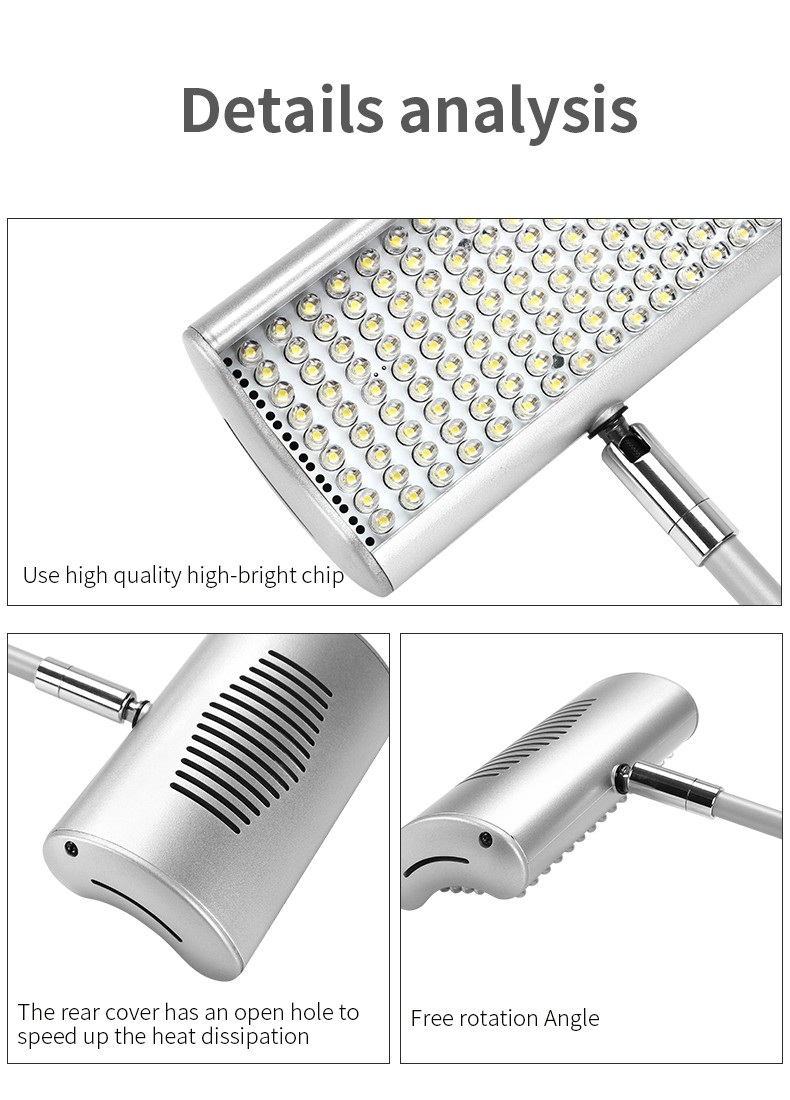

The head joint provides aiming adjustment, and the rear cover has ventilation slots. Set the lamp direction using a sample mounted on the intended frame.
Specify the colour-temperature version and panel layout

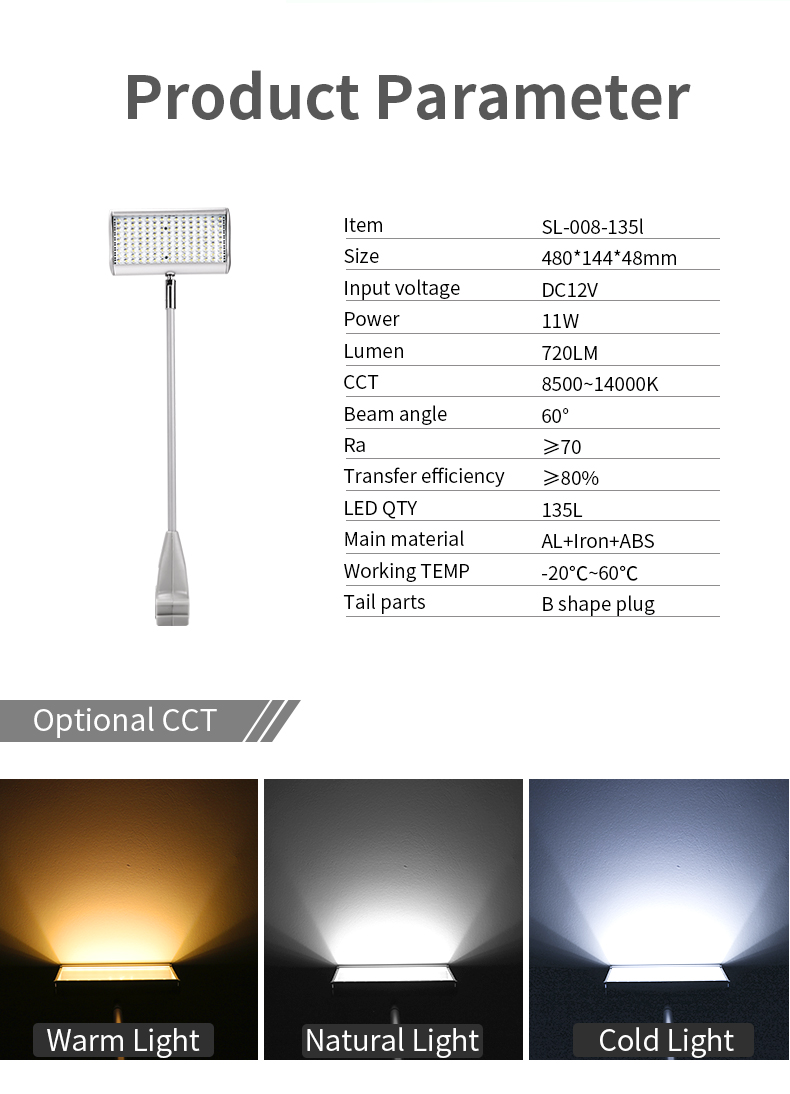

The parameter sheet lists 8500–14000K. Warm, natural and cold-light appearance illustrations are also shown; specify the required appearance and ask for its exact available colour-temperature range with the quotation.

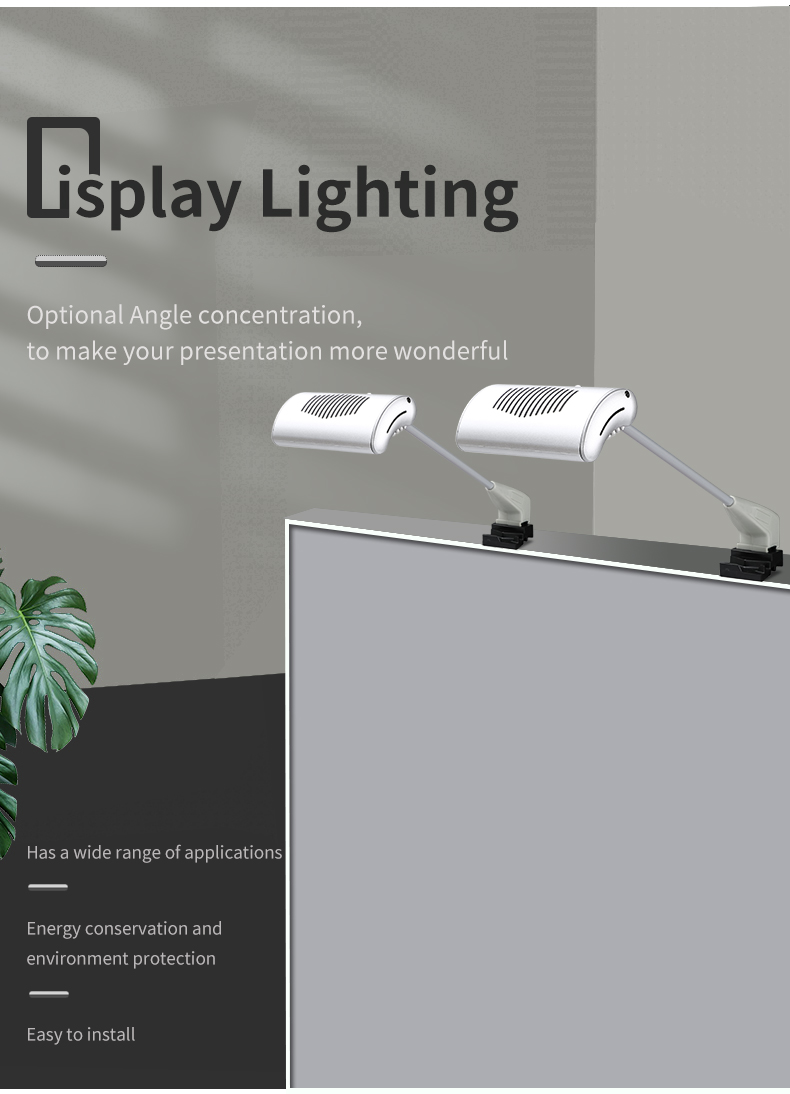

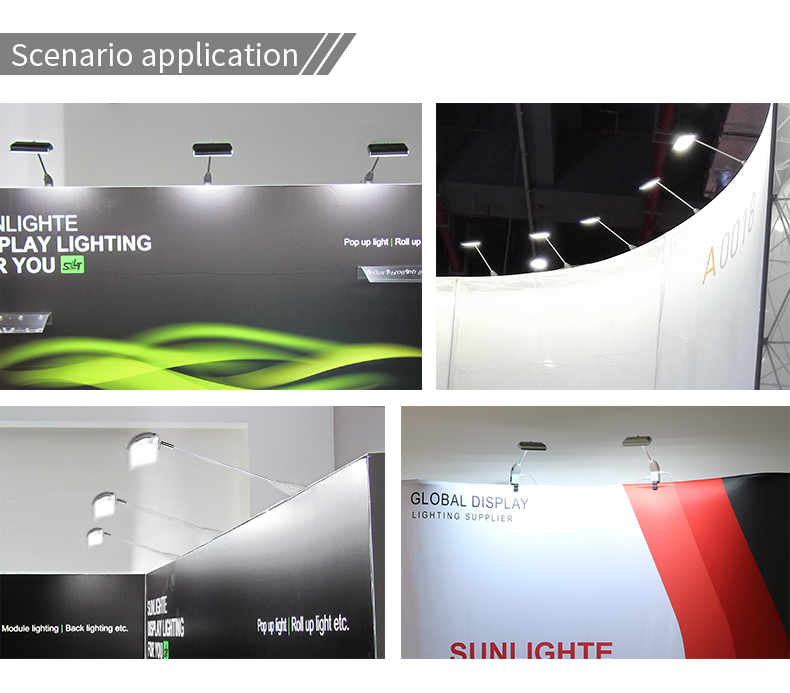

The application images show lamps along graphic walls. Determine spacing using the panel size, mounting height, graphic finish and surrounding hall lighting; evaluate the proposed arrangement with a sample.
Order the 12V power kit and carton configuration

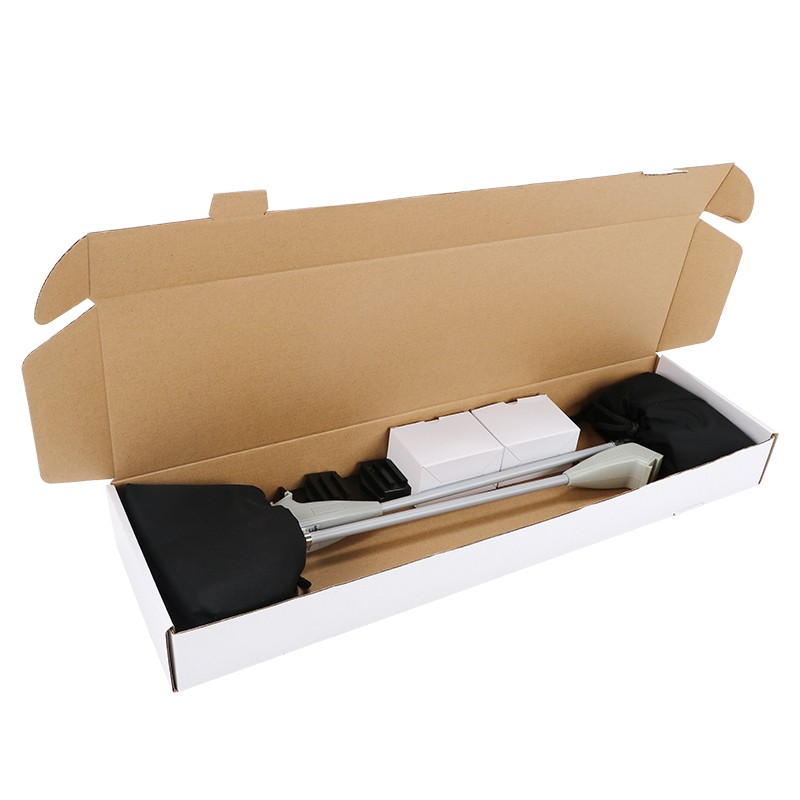

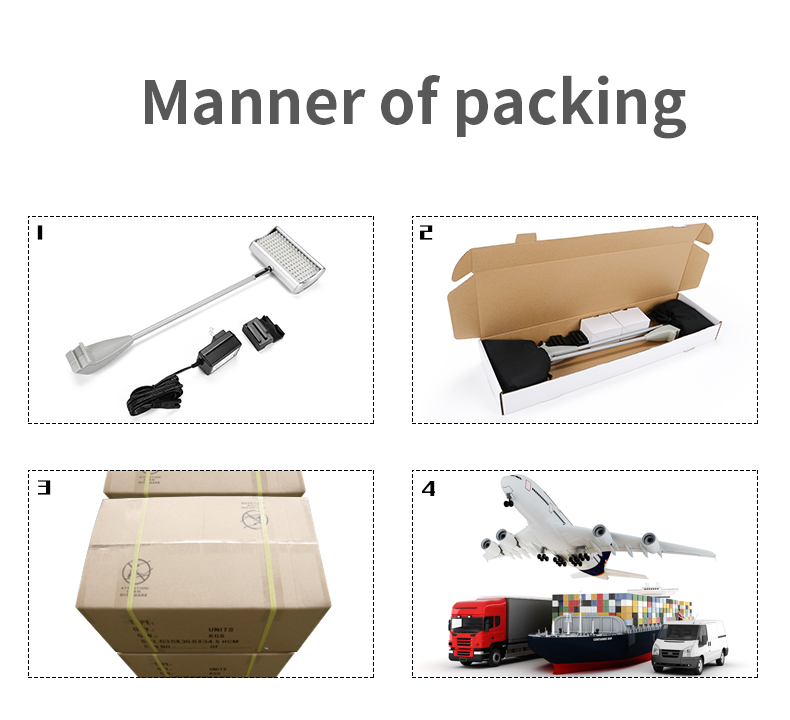

The lamp input is DC 12V. The packing example shows an external power unit, lead and separate fixing part, followed by an individual carton and outer cartons.
Confirm the matching electrical kit, destination plug, lead length, fittings and carton quantities for your order. Send connector and power-unit details when purchasing replacement components.
Silver display-light purchasing questions
How do I select the frame fitting?
Send the frame cross-section, mounting dimensions and required lamp position. The illustrated slider and clamp choices provide different fixing arrangements; the selected part must match your display.
Which colour temperature should I order?
The listed range is 8500–14000K. State your required appearance and exact Kelvin range if requesting another version, then confirm the sample configuration before the bulk order.
What should a wholesale enquiry include?
Include SL-008-135L, quantity, frame fitting, colour-temperature requirement, power kit and destination. Orders start from 20 pcs; larger quantities receive lower unit prices.
Samples, factory supply and custom orders
Samples are available for fitting, electrical connection and graphic-lighting evaluation. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules, transit and model-specific documents are confirmed separately.
