LED lighting kits for pop-up display frames
The SL-025-08-42L is a 42-LED display arm light with specified 2400 lm output and a 120° beam. Its adjustable head aims the light towards exhibition graphics, with a shoe-base or aluminium-clamp arrangement and a matching external power unit.
For suppliers of portable display systems, define the mounting version and power kit together. The shoe-base drawing is 464 mm long; the clamp version is 478 mm with a 146 × 74.4 mm head. State the selected fitting and frame dimensions when ordering multiple identical kits.

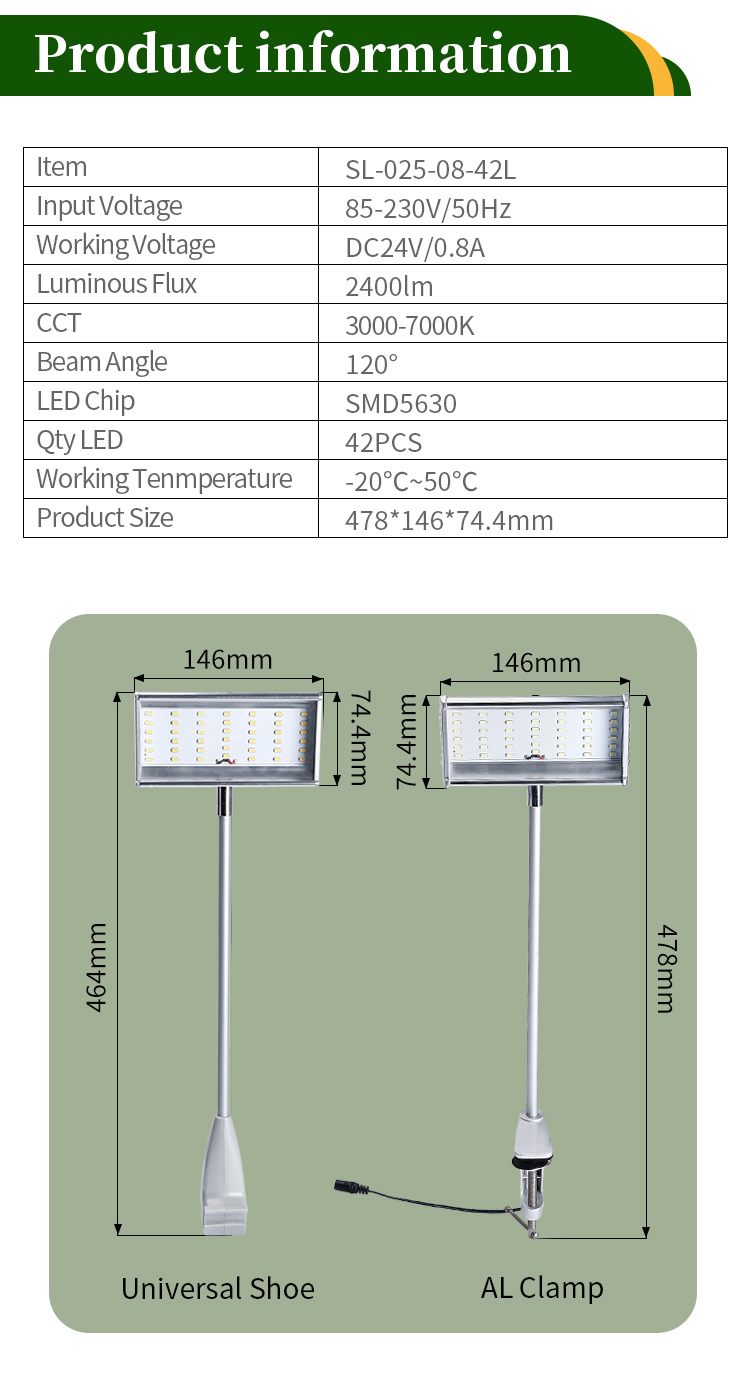

Technical data for the 42-LED pop-up light
| Specification | SL-025-08-42L |
|---|
| Model | SL-025-08-42L |
| Specified light output | 2400 lm |
| LED quantity / package | 42 / SMD5630 |
| Beam angle | 120° |
| Working voltage / current | DC 24V /0.8A |
| Supply-input information listed | 85–230V /50 Hz; confirm destination rating |
| Colour-temperature order range | 3000–7000K |
| Shoe-base drawing length | 464 mm |
| Clamp-version dimensions | 478 × 146 × 74.4 mm |
| Lamp-head dimensions shown | 146 × 74.4 mm |
| Connection choices | DC plug for clamp kit; B-shape plug for shoe-base kit |
| Power kit pictured | External power unit with input and output leads |
| Head positioning | Adjustable joint |
| Operating temperature | -20°C to +50°C |

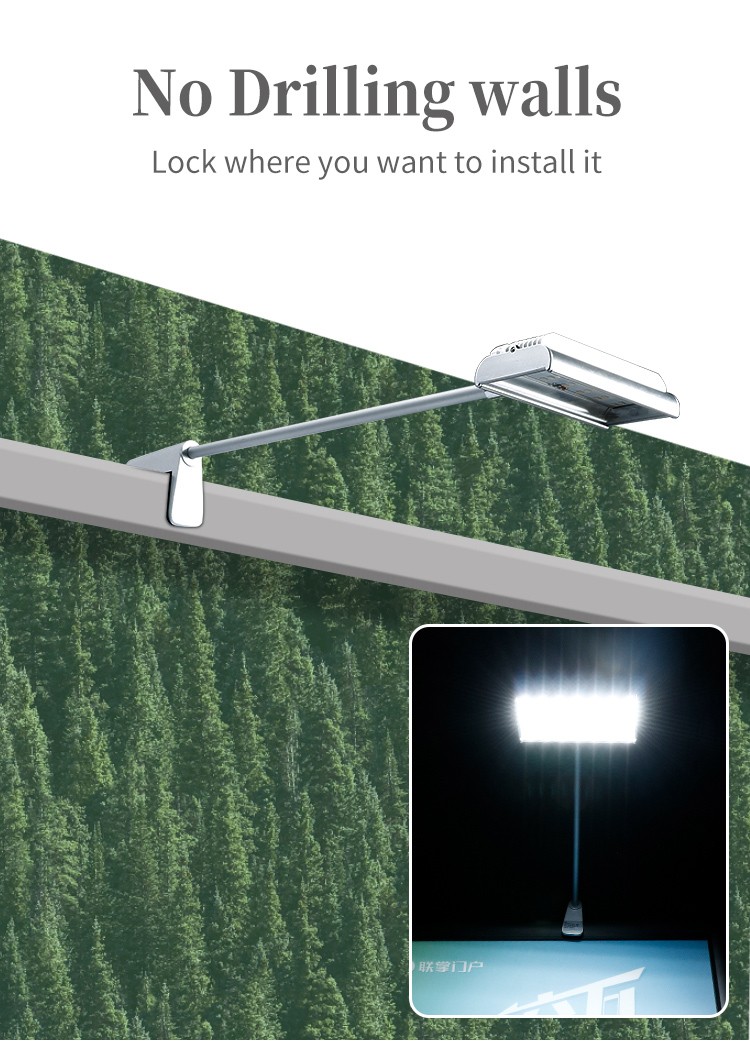

Choose the shoe-base or no-drill clamp version

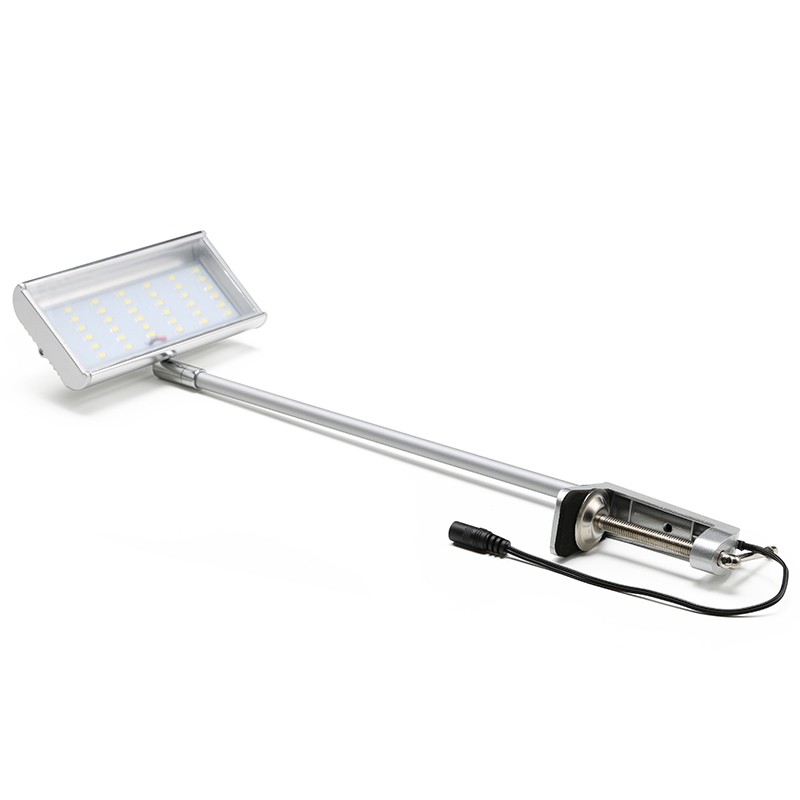

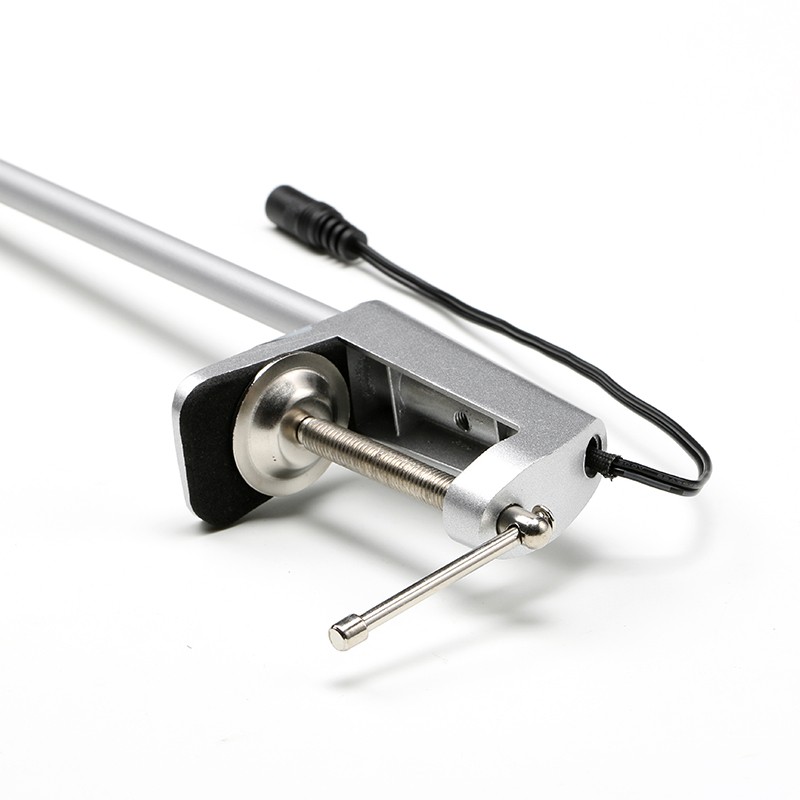

The aluminium clamp example secures the lamp to a suitable panel edge without drilling. The shoe-base version uses a fitting arrangement selected for the display profile.
Specify the frame section, edge thickness and available mounting point. Use the appropriate464 mm or478 mm drawing length when planning the fixture position.
Aim the lamp and select the white-light appearance

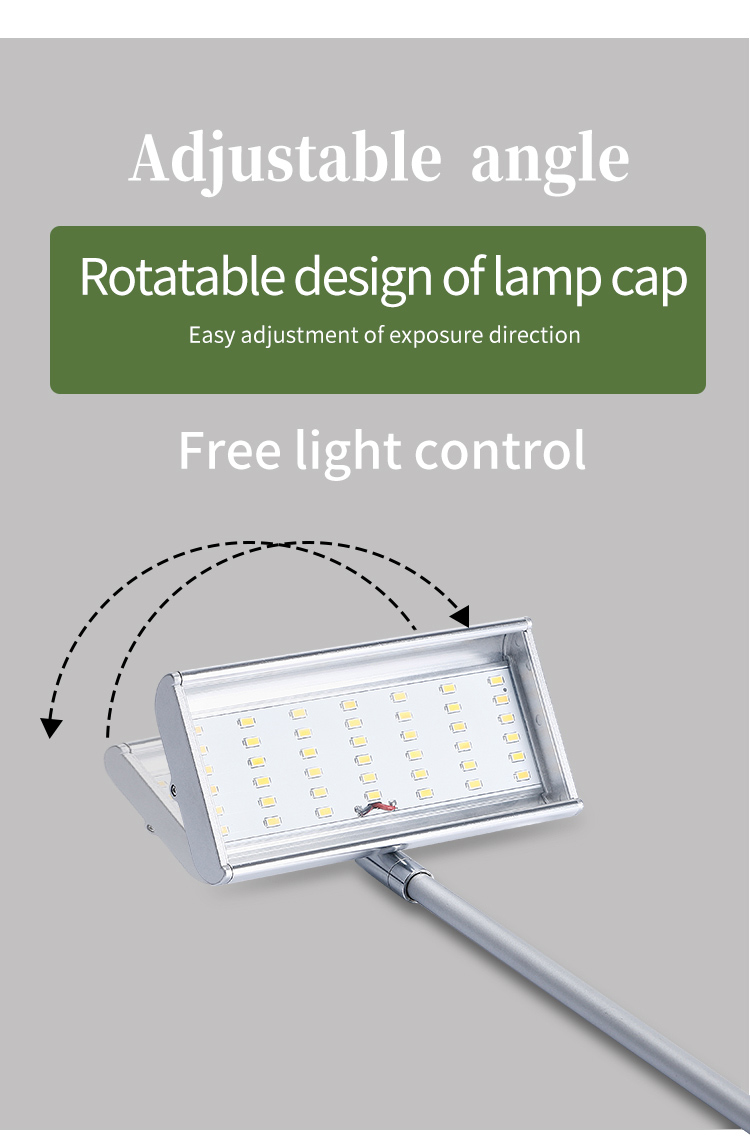

The head has an adjustable joint to direct the 120° beam towards the graphic surface. The listed order range is 3000–7000K; include the required appearance or Kelvin target in the enquiry.
For portable exhibition systems, evaluate the sample with the final artwork and proposed mounting distance. The installation environment and surrounding lighting help determine the required lamp positions.
Match the external power kit to the mounting version

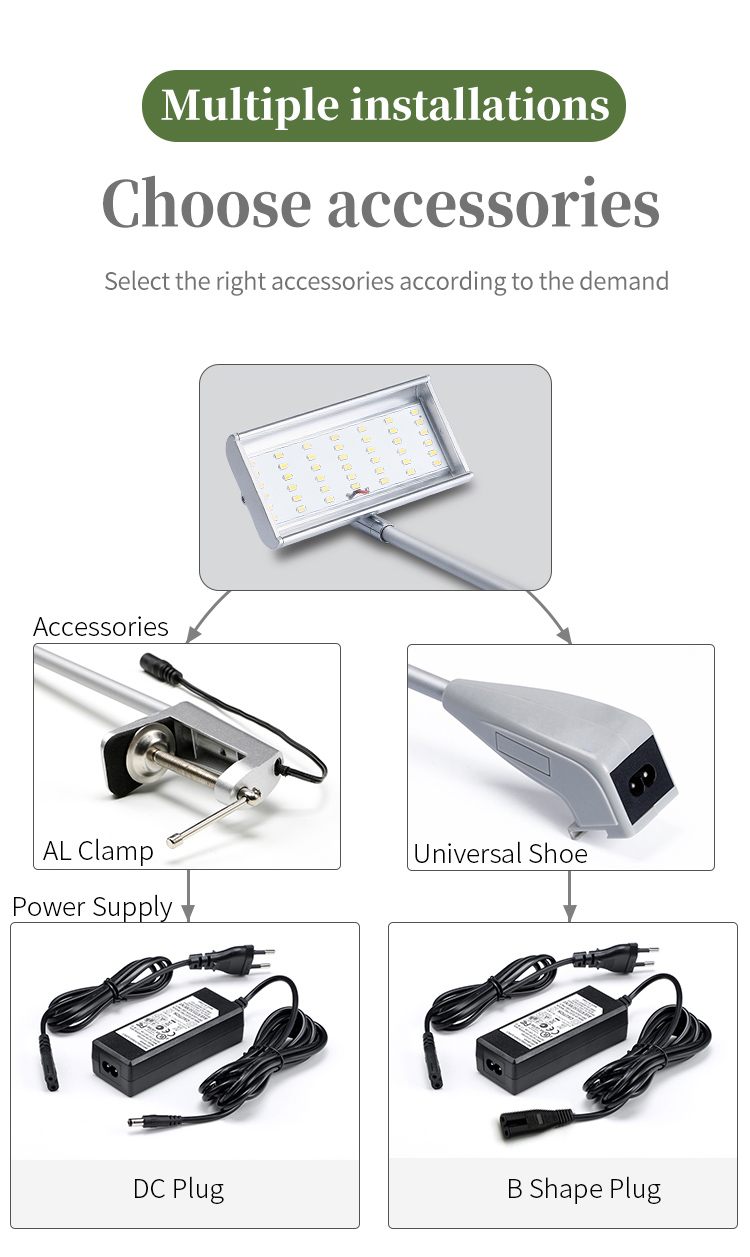

The pictured kits use an external power unit, with a DC plug for the clamp version and a B-shape connection for the shoe base. The lamp's working configuration is DC 24V /0.8A.
The source lists 85–230V /50 Hz supply-input information. Confirm the complete adapter rating for the destination market and specify the mains plug, lead length and included kit components.
Select fitting parts for the display profile

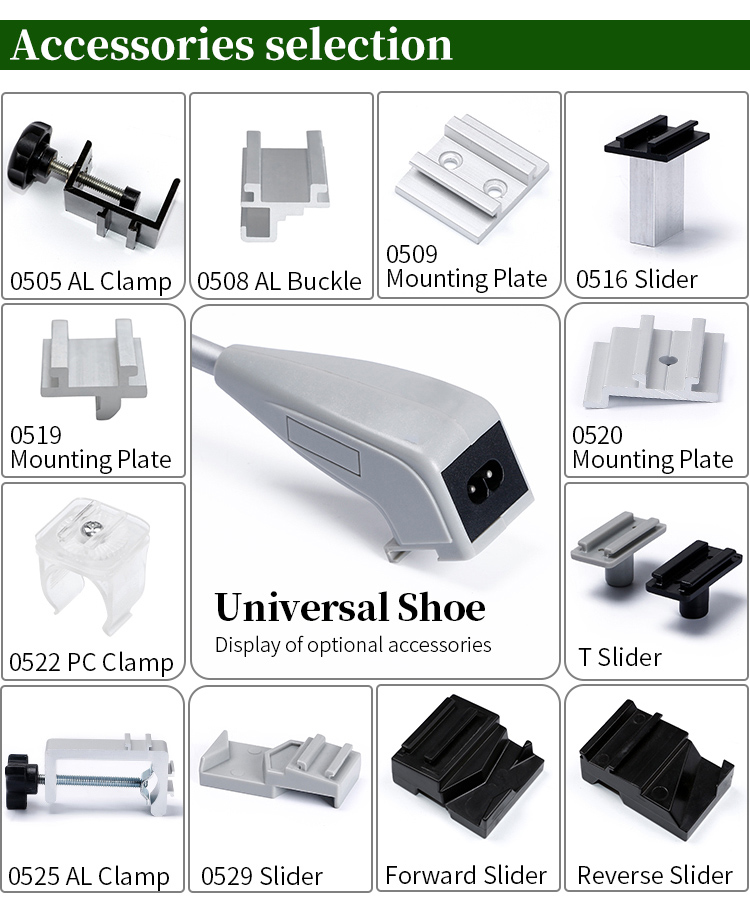

The guide includes 0505 and 0525 aluminium clamps,0508 buckle,0509,0519 and 0520 mounting plates,0522 PC clamp and several slider designs. The suitable fitting depends on the frame section and fixing dimensions.

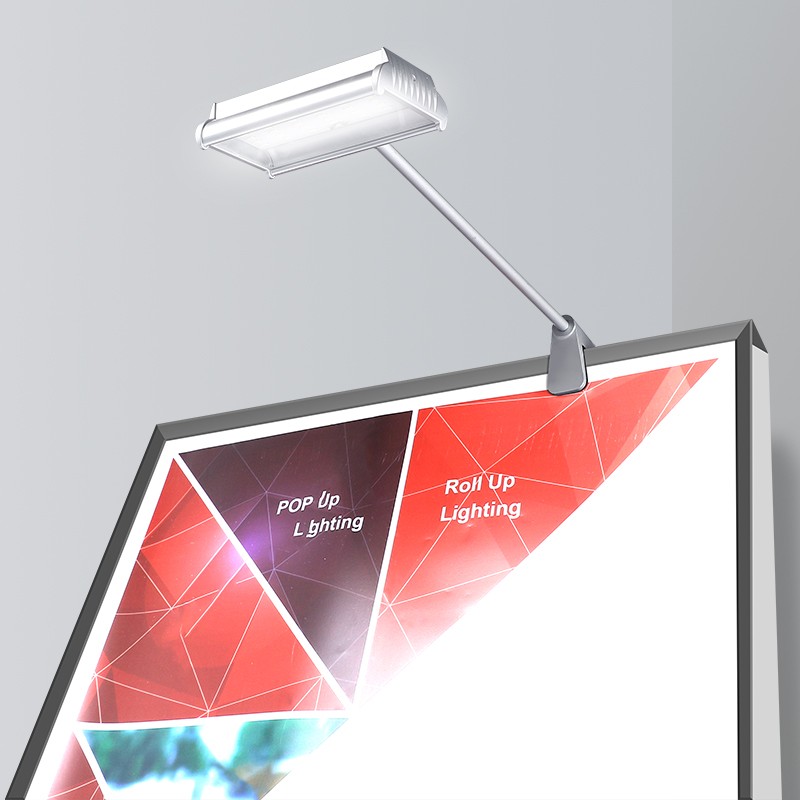

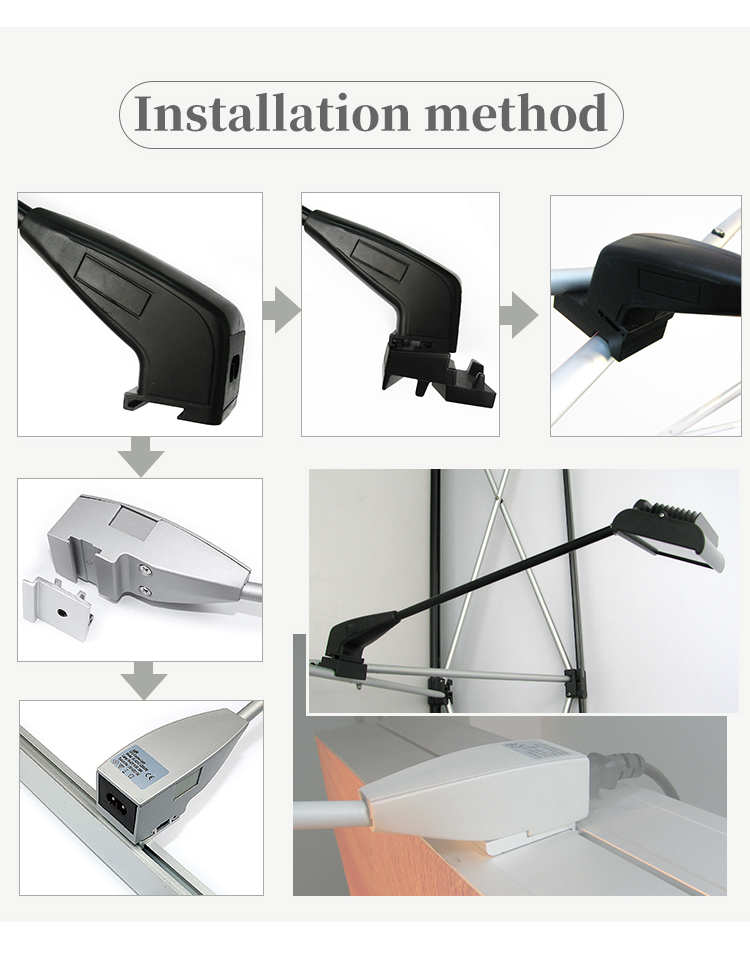

The mounting illustrations show shoe-base attachment to display profiles. A frame drawing or installation photo helps specify the fitting parts for a repeat kit order.
Purchasing questions for pop-up lighting kits
Do the mounting versions have different dimensions?

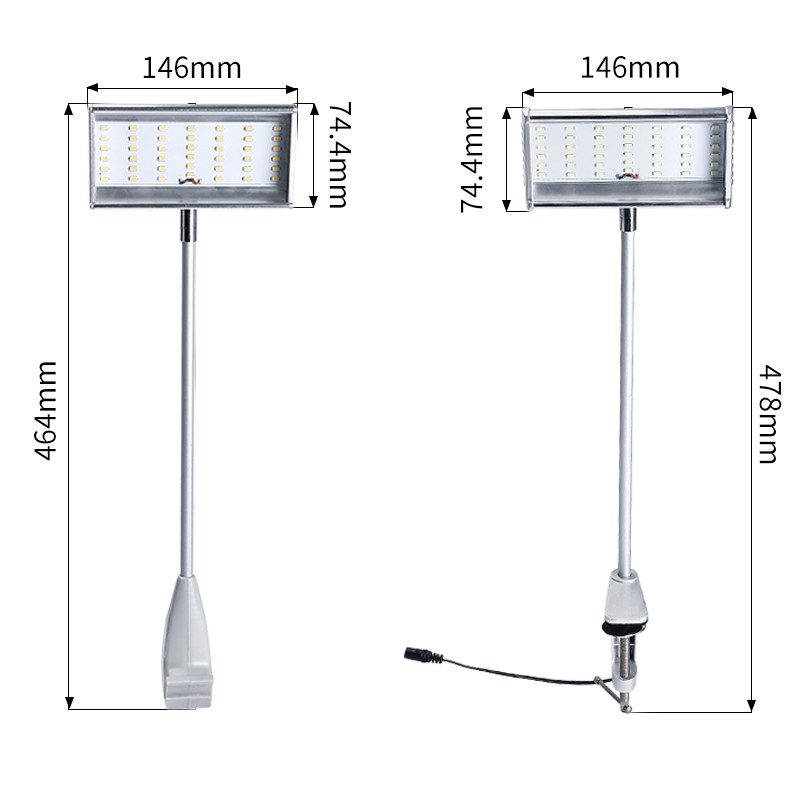

Yes. The drawings show a 464 mm shoe-base version and a 478 mm clamp version, with a 146 × 74.4 mm lamp head. Specify the mounting version with the model.
Which supply and lead should I order?
Choose the kit matching the lamp'sDC24V /0.8A working configuration and its DC or B-shape connection. Include the destination mains rating, plug and lead length in the enquiry.
Can I order samples and branded kits?
Samples, OEM, ODM and private-label enquiries are supported. Send the model, fitting, power kit and destination to confirm the sample configuration, cost and shipping.
Wholesale quantities and the production schedule
Orders start from 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days. Confirm custom schedules, packing and label requirements, transport time and any model-specific market documents with the quotation.
