42-LED Clamp Display Arm Light - 24V, 2400 lm

Clamp-on LED lighting for exhibition panels

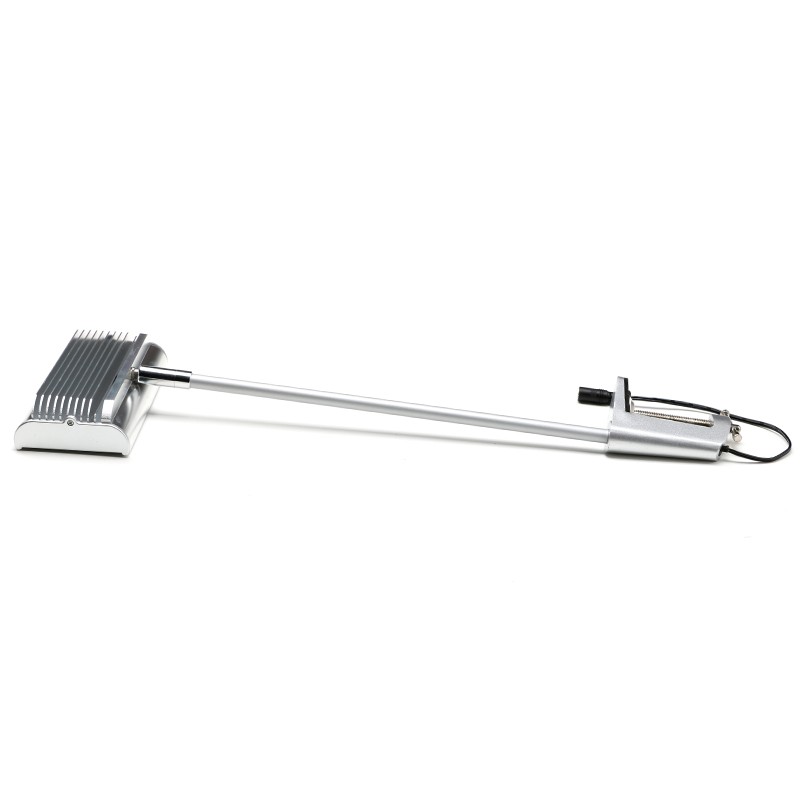

The SL-026-08-42L display arm light uses 42 SMD5630 LEDs with specified 2400 lm output and a 120° beam. The aluminium clamp version fixes the lamp to a suitable panel edge without drilling, while the adjustable head directs the light towards the graphic.

For display-kit distributors and exhibition contractors, choose the clamp or shoe-base arrangement together with the matching supply and lead. The clamp version is shown at 478 mm overall length; the shoe-base drawing is 464 mm, so specify the fitting when ordering repeat kits.

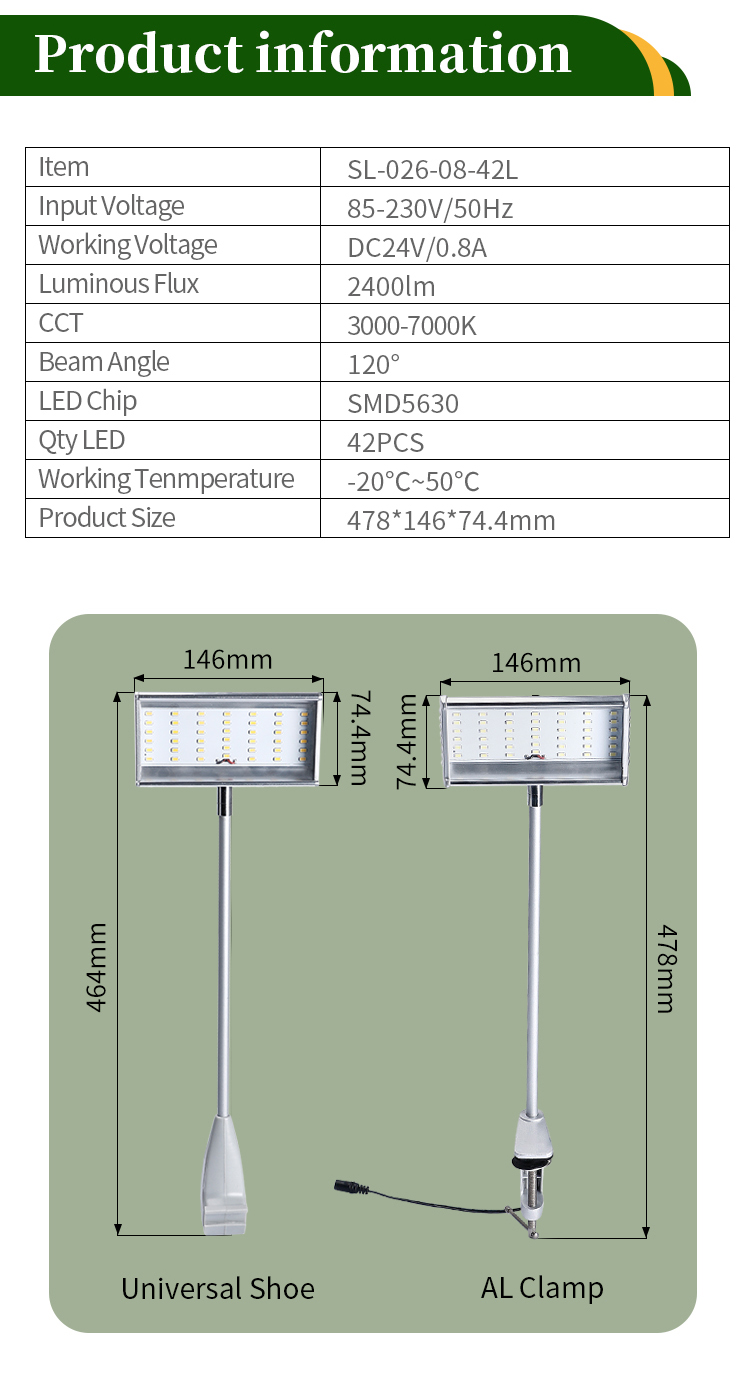

42-LED display-light technical information

Select a clamp for the panel edge

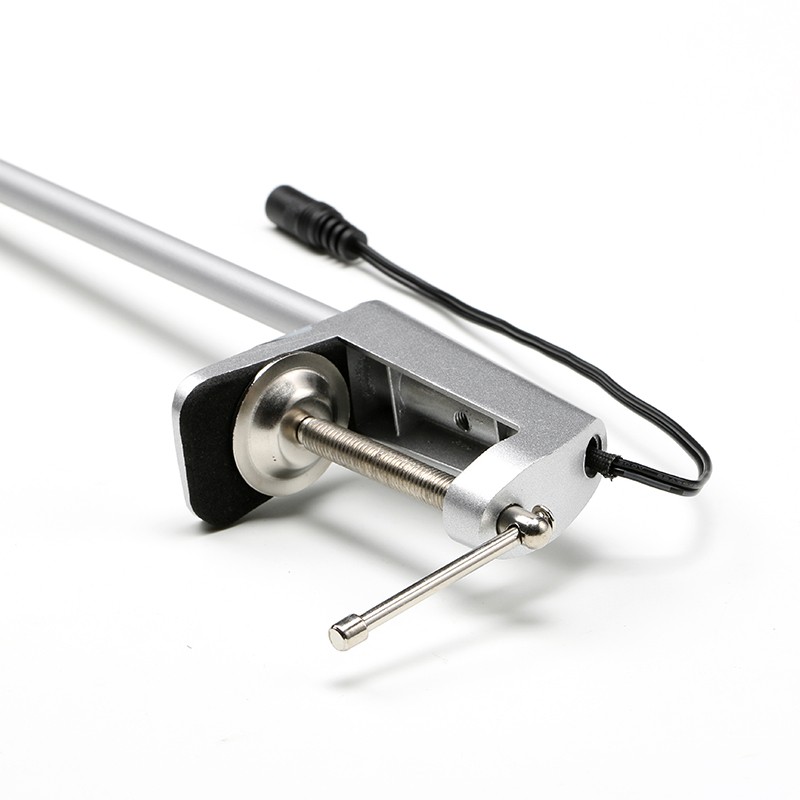

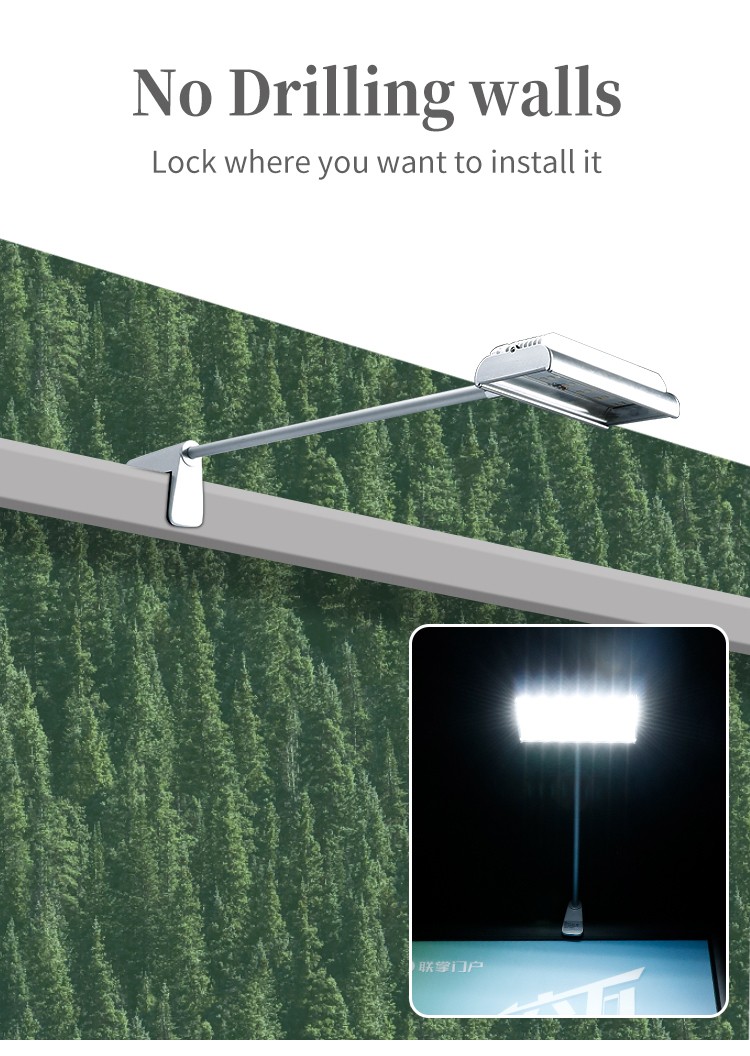

The installation example shows an aluminium clamp holding the light on a panel edge without drilling. Send the edge thickness, profile and fixing position so the suitable clamp arrangement can be checked.

Use the listed 478 mm clamp-version length and head dimensions when planning the lamp position. An existing display fitting should be checked against the selected version before a repeat installation is quoted.

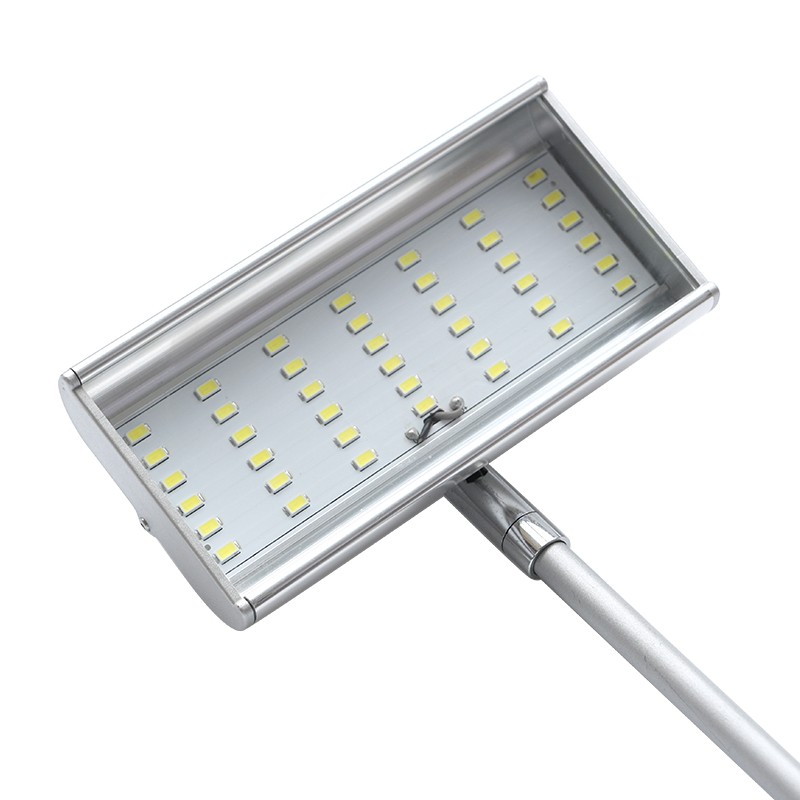

Aim the LED head towards the graphics

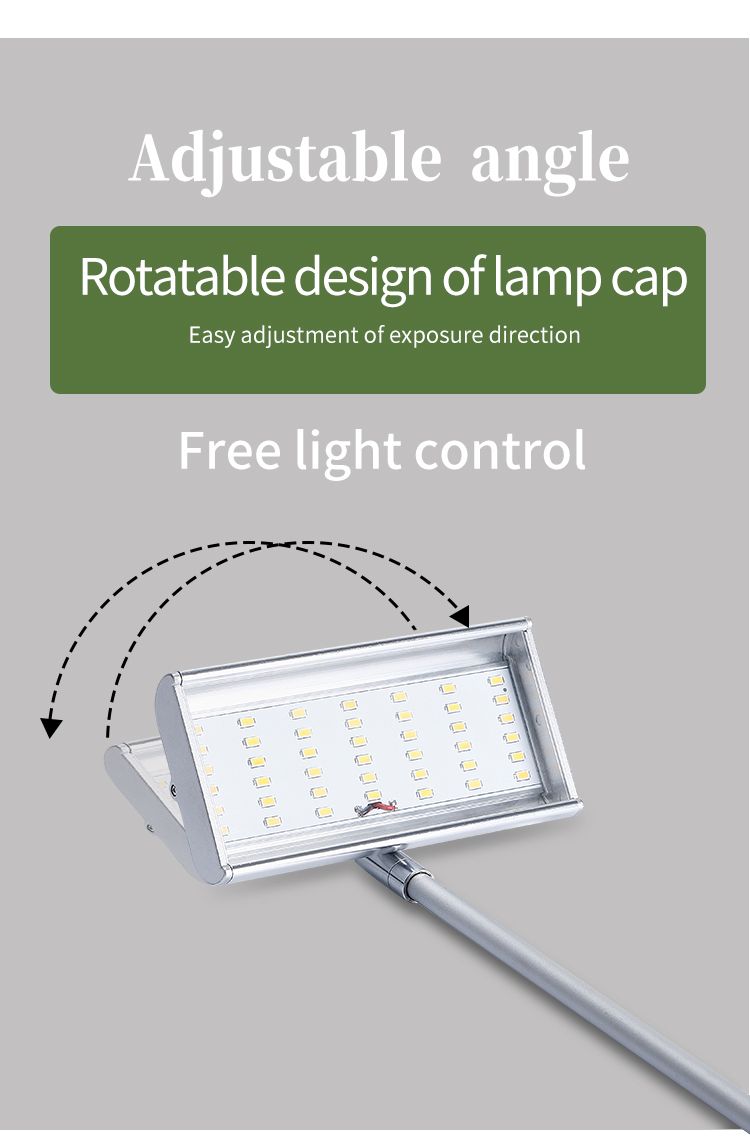

The head has an adjustable joint for directing light at the display surface. Use the 120° beam and proposed mounting distance when evaluating coverage across the artwork.

Specify a white-light target within the listed 3000–7000K order range. Samples help check the appearance alongside the surrounding exhibition lighting.

Choose the supply, connector and destination plug

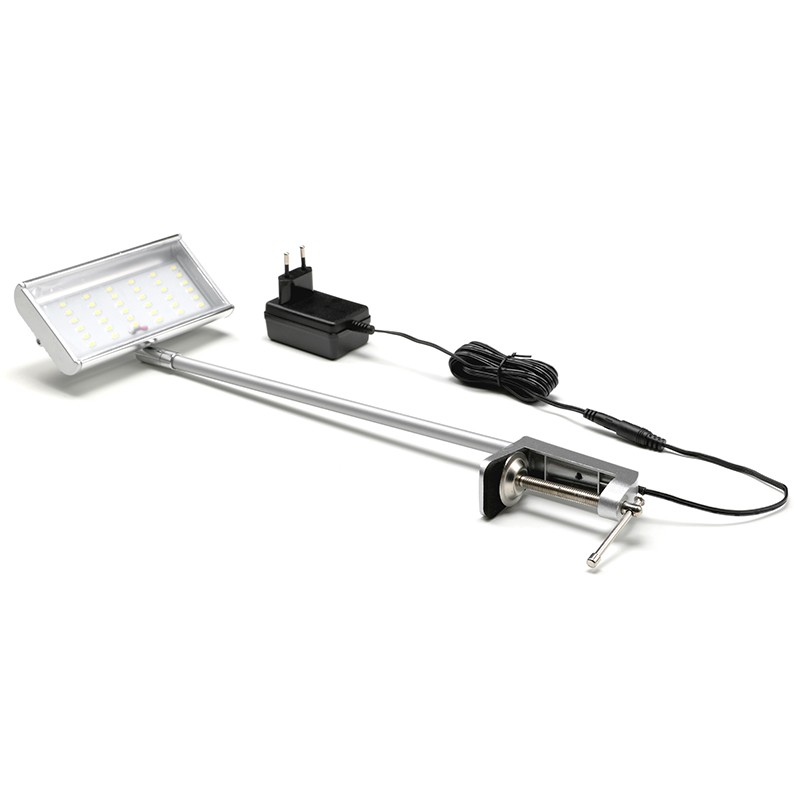

The lamp's listed working configuration is DC 24V / 0.8 A. The clamp kit is pictured with a DC connection, while the shoe-base kit uses a B-shape connection. Match the supply and connector to the selected mounting version.

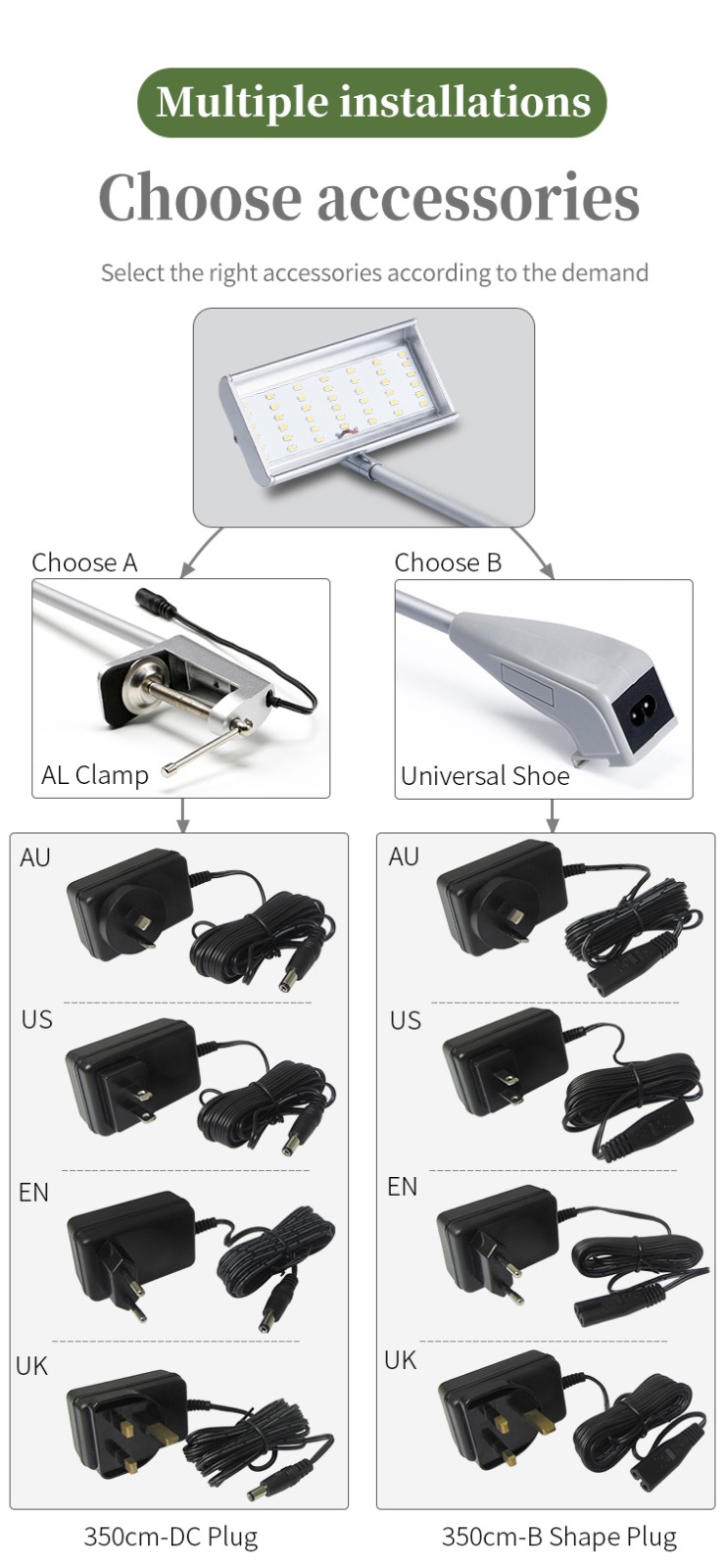

The accessory guide illustrates 350 cm leads and AU, US, EN and UK mains-plug examples. Its supply-input information is 85–230V / 50 Hz; confirm the complete supply rating for the destination market and include the required lead length in the enquiry.

Build the fitting kit around the display profile

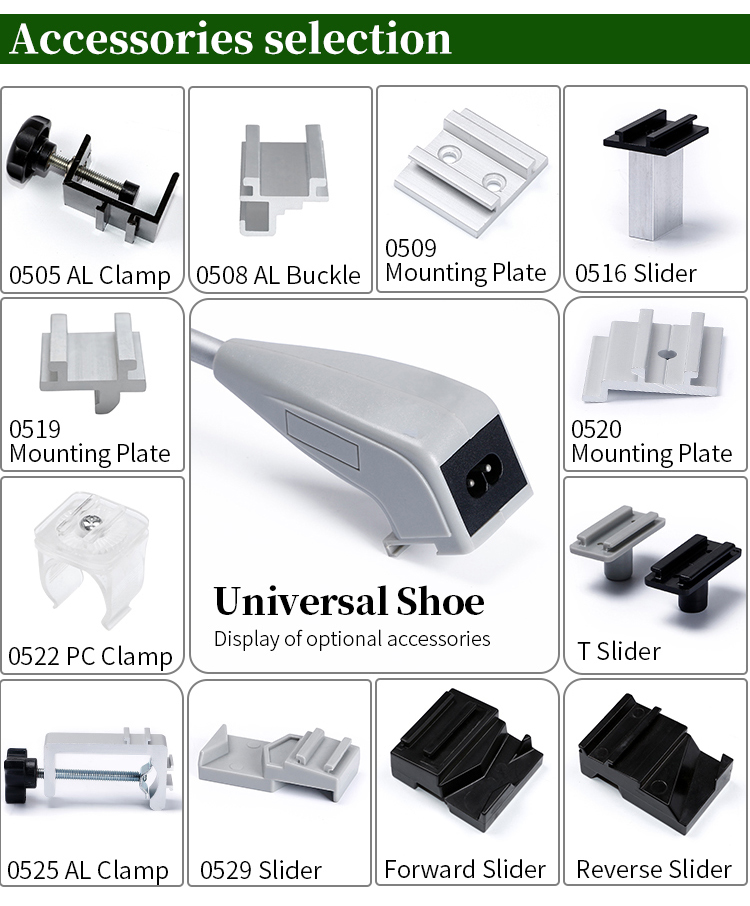

The accessory guide includes 0505 and 0525 aluminium clamps, 0508 buckle, 0509, 0519 and 0520 mounting plates, 0522 PC clamp and several slider designs. These are selectable fitting examples, with the appropriate parts confirmed for the frame.

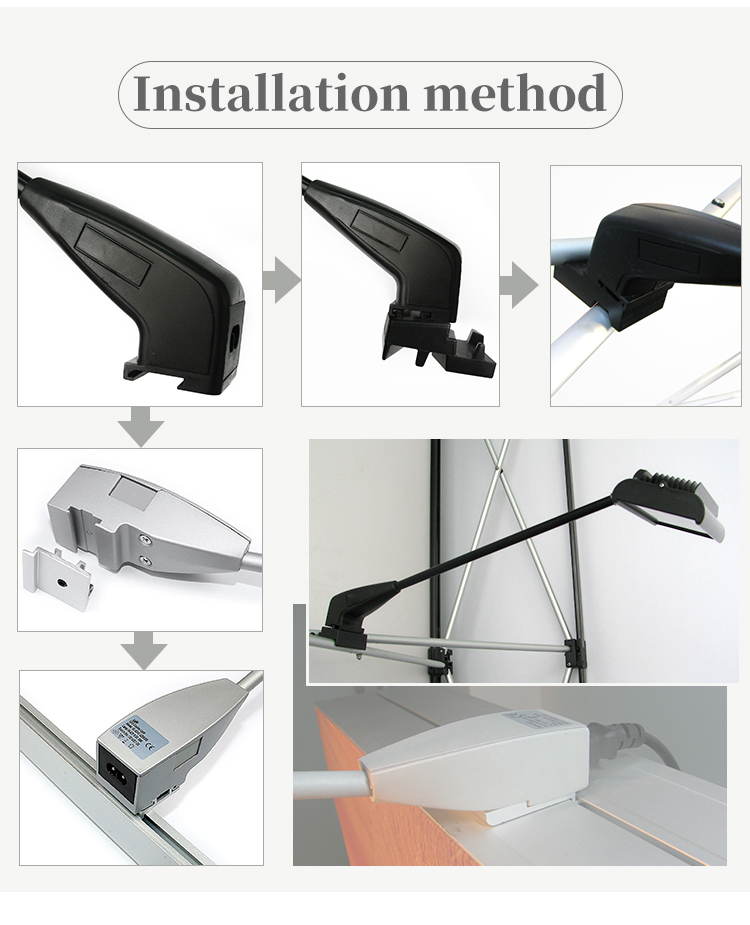

The mounting sequence illustrates shoe-base attachment to display profiles. Include a drawing or close-up photo of the fixing area, along with the preferred clamp or shoe base, to specify the complete installation kit.

Procurement questions for clamp display-light kits

Are the clamp and shoe-base versions the same length?

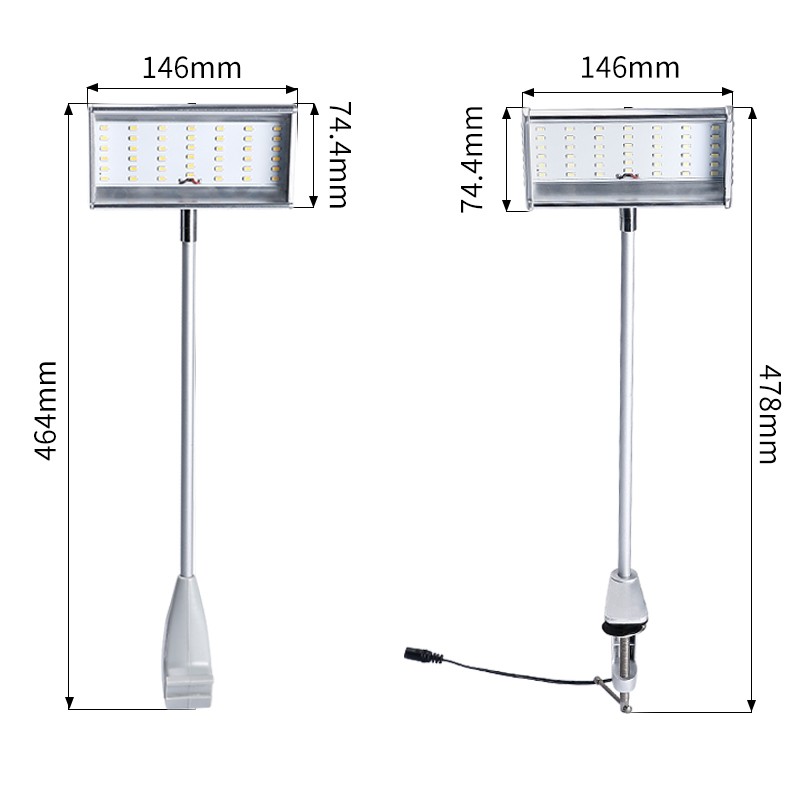

The drawings show a 478 mm clamp version and a 464 mm shoe-base version. The lamp head is shown at 146 × 74.4 mm; state the mounting version when ordering.

Can I use my existing adapter?

Check its output, connector and electrical configuration against this DC 24V / 0.8 A model. Provide adapter-label and connector details when asking for a replacement kit.

What should I include in a wholesale enquiry?

Send the model, quantity, mounting version, frame dimensions, white-light target, supply rating, destination plug and lead length. Orders start from 20 pcs, with lower prices for larger quantities.

Samples and customised factory supply

Samples are available for fitting and lighting evaluation. OEM, ODM and private-label enquiries are supported, with standard lead time of 12–18 days. Confirm sample cost, shipping, custom schedules, transit time and model-specific market documents separately.
