10W rigid LED strips with three white-light versions

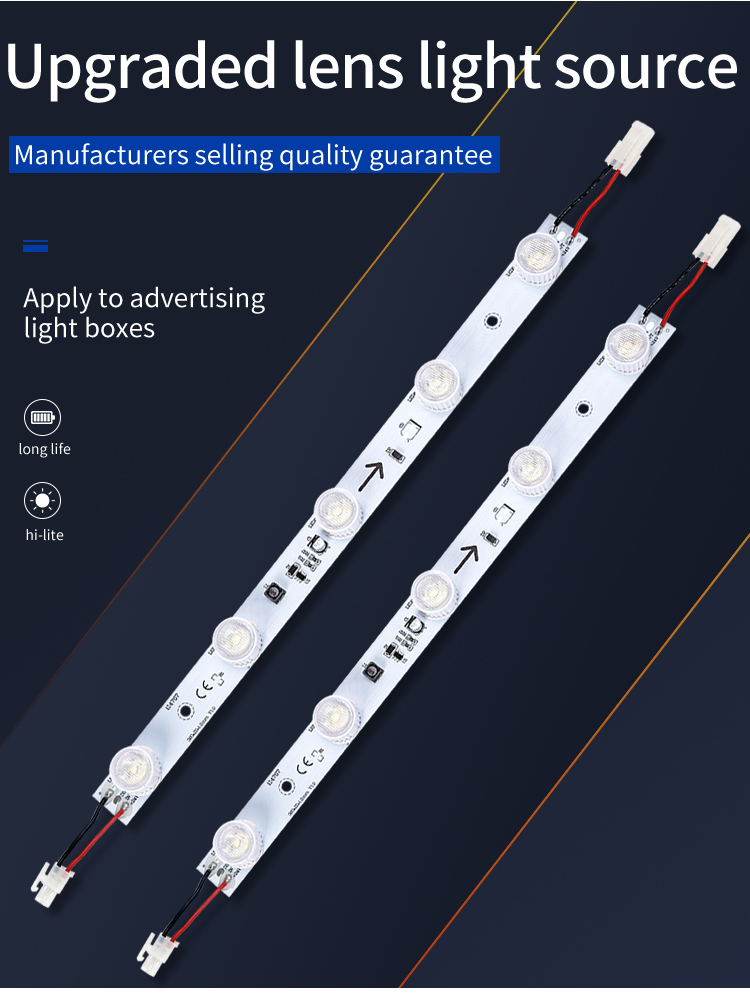

Choose the white-light version for a lens-equipped display or lightbox source. SL-BL003-100 is the catalogue ordering reference for this 360 × 23 × 16mm rigid LED strip. The product table specifies 10W, 1000 lm ±10% and 78mm LED spacing, with separate warm, neutral and cool white order ranges.
For display fabricators, lighting-component distributors and OEM buyers, the first selection is the required white appearance and sample specification. Provide the enclosure drawing, existing power configuration and connector details so the quoted version can be assessed in the intended assembly.

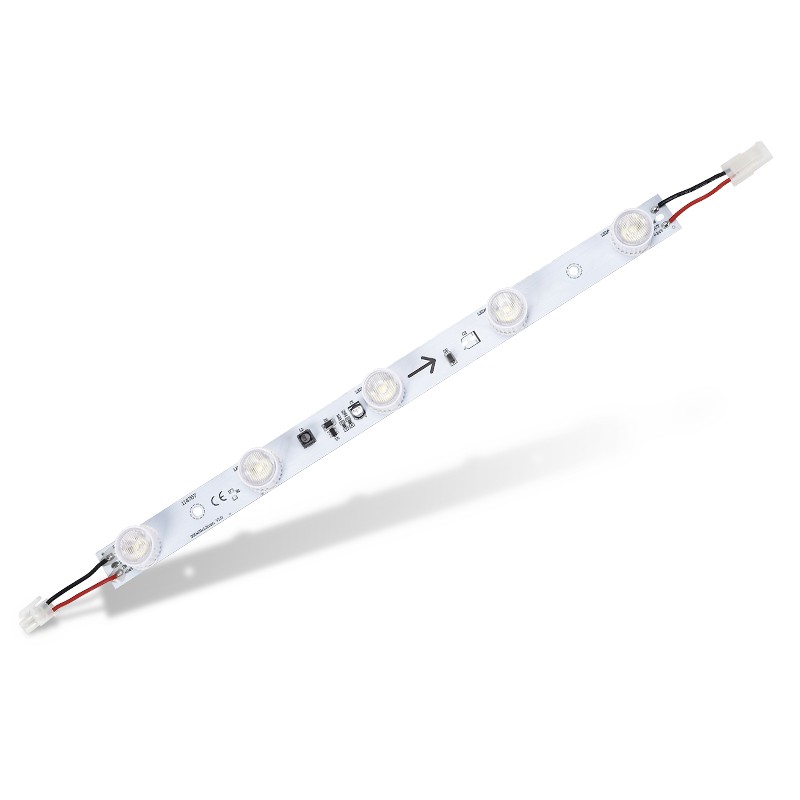

360mm rigid white LED strip specification

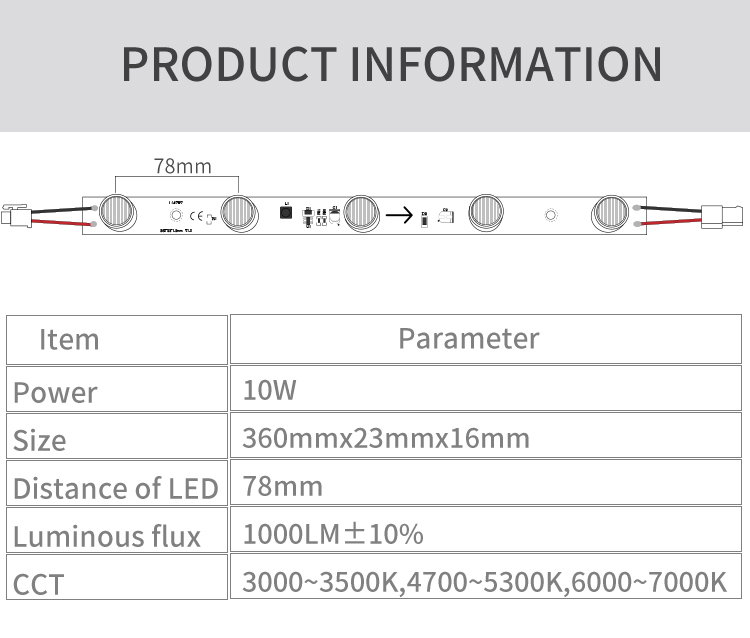

| Specification | SL-BL003-100 |
|---|
| Catalogue ordering reference | SL-BL003-100 |
| Complete dimensions | 360 × 23 × 16mm |
| Power | 10W |
| Luminous flux | 1000 lm ±10% |
| LED spacing | 78mm |
| Warm-white order range | 3000–3500K |
| Neutral-white order range | 4700–5300K |
| Cool-white order range | 6000–7000K |
| Pictured PCB supply marking | 24V DC; confirm the ordered electrical version |

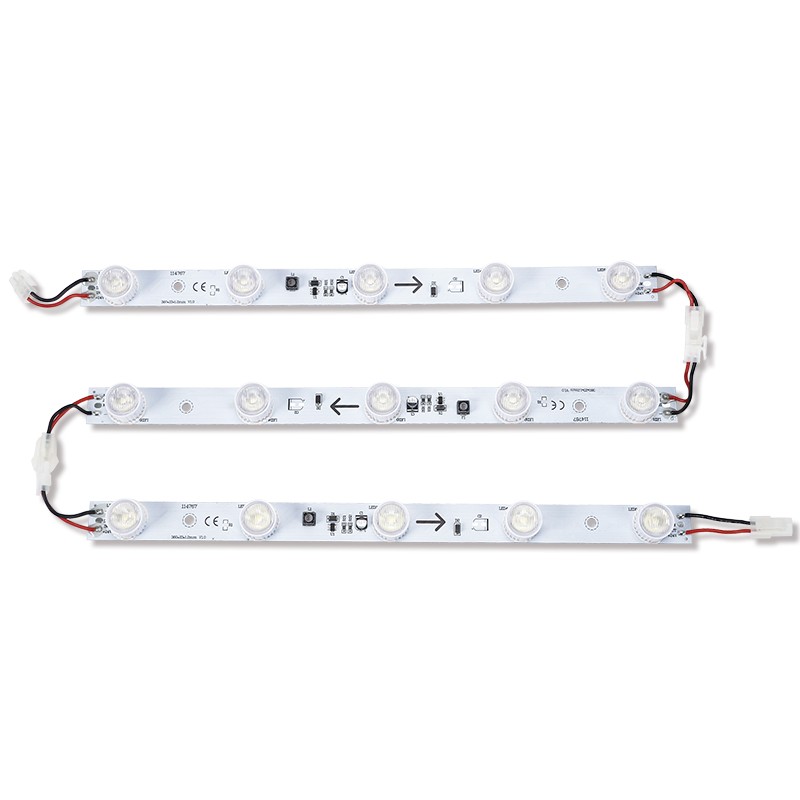

| Connection appearance | Red and black leads with white end plugs |
| Warranty | 2 years; confirm coverage with the quotation |
| Colour-rendering order option | CRI 90+ available; specify with the order |
Select warm, neutral or cool white for the project
The three white-light ranges are 3000–3500K, 4700–5300K and 6000–7000K. Select the intended range with the model and quantity, then assess the sample against the graphic, displayed goods or cabinet finish.
CRI 90+ white LEDs are available as an order option. State the required colour-rendering selection and obtain technical data for the quoted version. Approve the white-light and connector specification before placing a repeat or bulk order.
Lens-bar construction and electrical selection

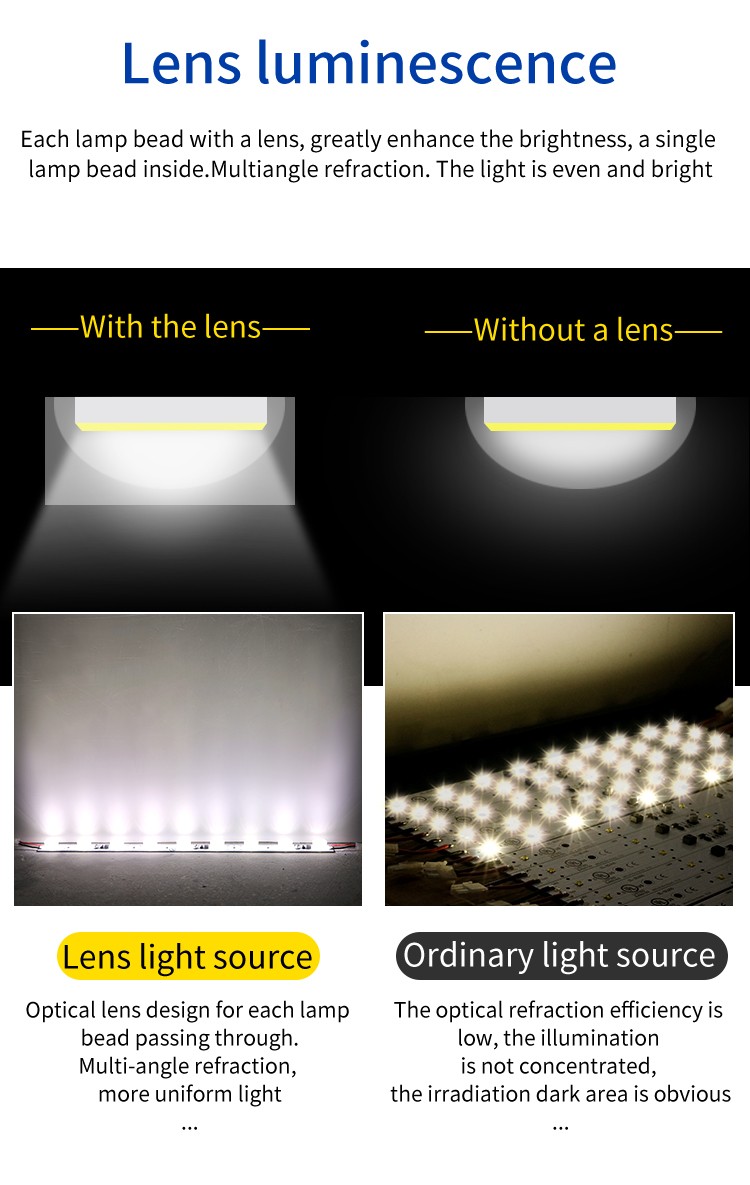

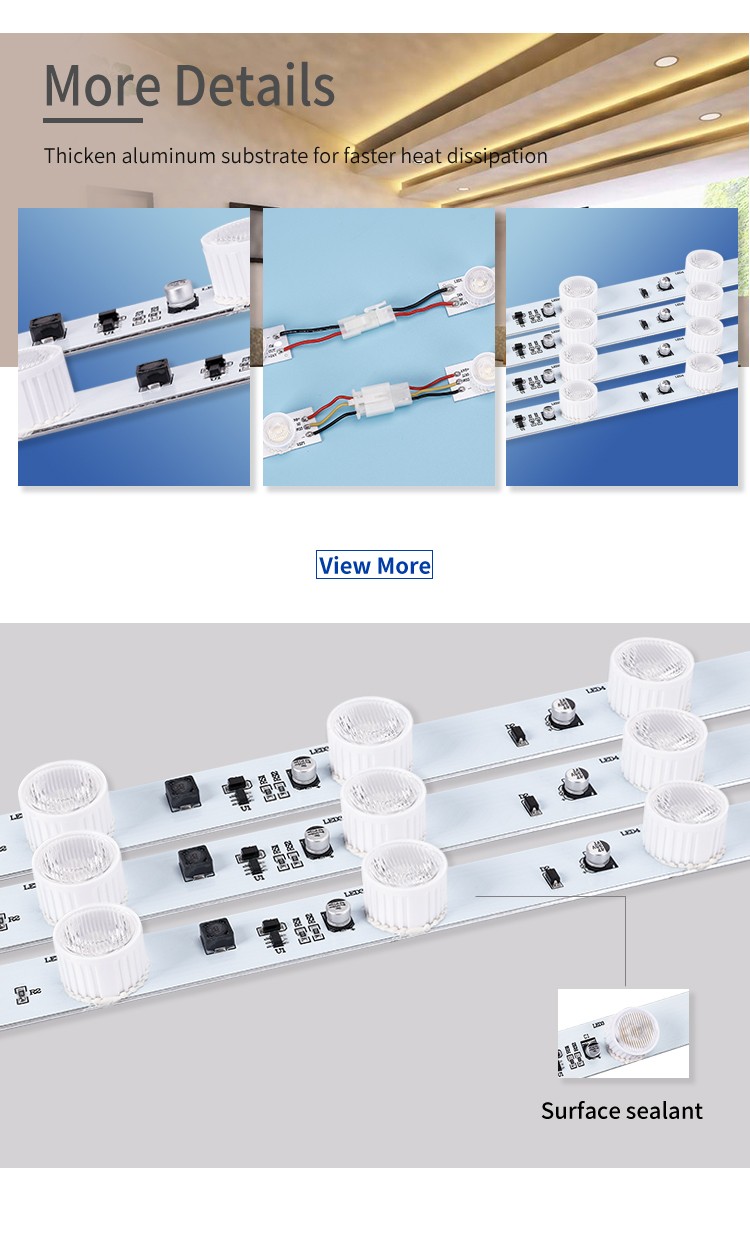

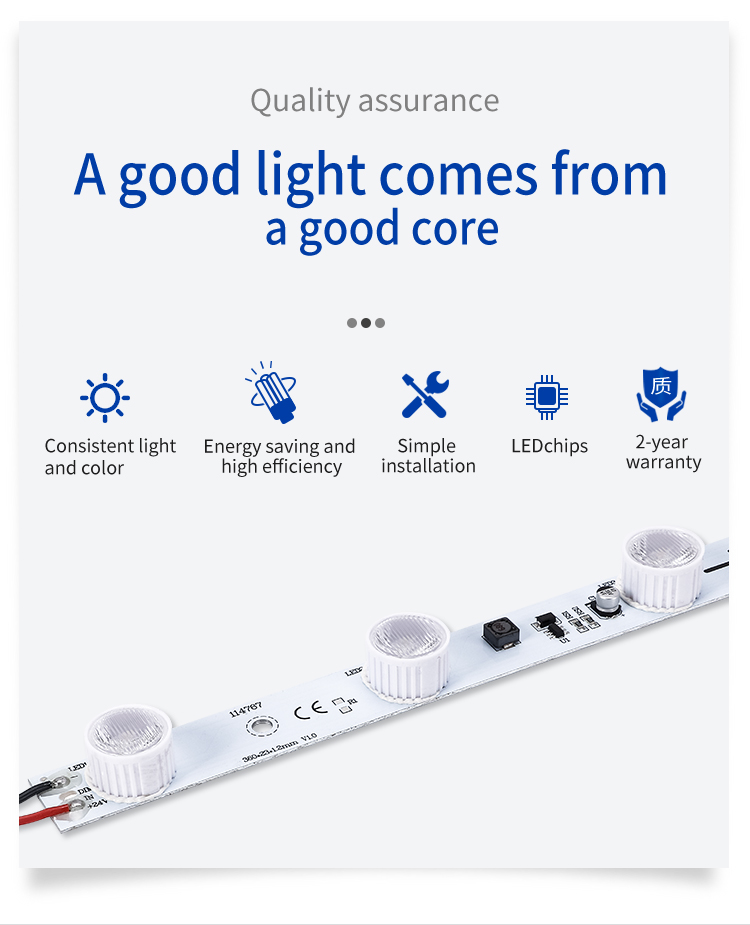

The original construction artwork shows an aluminium support with separate optical lenses, red and black leads, white end plugs and a surface-sealant detail. The lens assembly is included in the listed 16mm complete height.

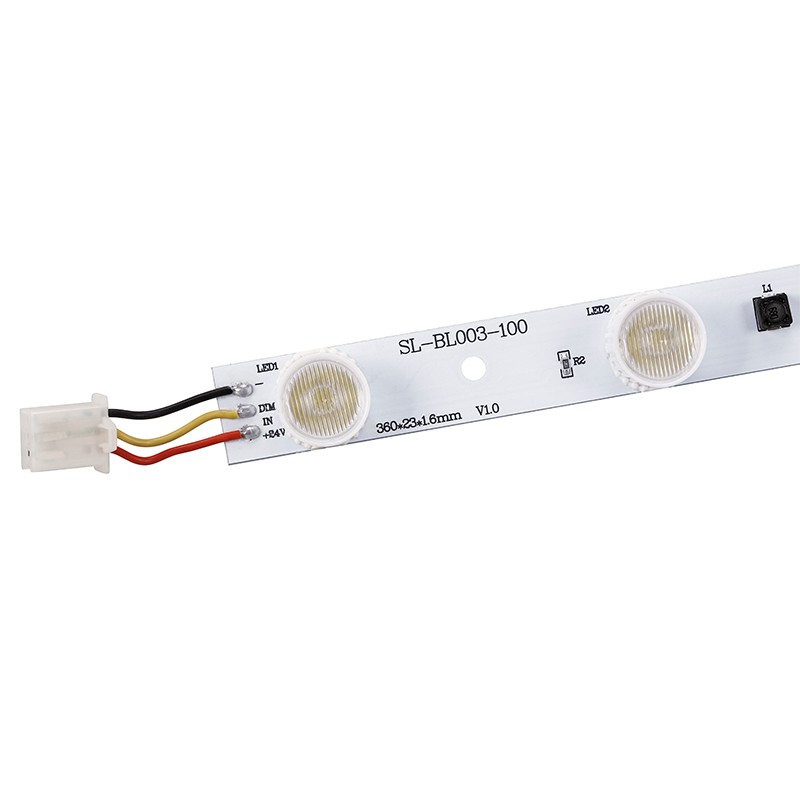

The pictured board has a 24V supply marking. Confirm the electrical specification, power unit and mating connection for the version ordered. Send the existing supply label and connection photographs when assessing a replacement source.
Warranty, samples and production supply
The original artwork states a two-year warranty. Confirm its coverage and the selected model specification with the quotation. Request current technical and market-specific compliance documents where needed for project approval.
Samples are available for white-light and assembly assessment; cost and destination shipping are confirmed separately. MOQ is 20 pcs, with volume pricing for higher quantities. Standard lead time is 12–18 days, subject to the agreed version and custom requirements; transit is separate. OEM, ODM and private-label enquiries are supported.
Rigid white LED strip purchasing questions
Are the three white-light ranges selected with a switch?
The product sheet lists white-light order ranges. Specify warm, neutral or cool white as the required version when ordering; a selectable-CCT switch is not shown in these pictures.
Can I request a high-CRI rigid LED strip sample?
Yes, specify the CRI 90+ white-light option and the required white range with SL-BL003-100. Sample cost, electrical configuration and shipping are confirmed for the quoted version.
What measurements are needed for a replacement strip?
Provide the enclosure, fixing positions, supply label and connector photographs. Compare them with the 360 × 23 × 16mm assembly dimensions and approve a sample before bulk replacement.
What needs to be agreed for an OEM wholesale order?
Confirm quantity, white-light range, CRI option, electrical version, connectors, marking and packing. Orders start at 20 pcs; higher quantities qualify for lower unit prices. Custom requirements are scheduled with the quotation.
