35mm mounting clips for display lights

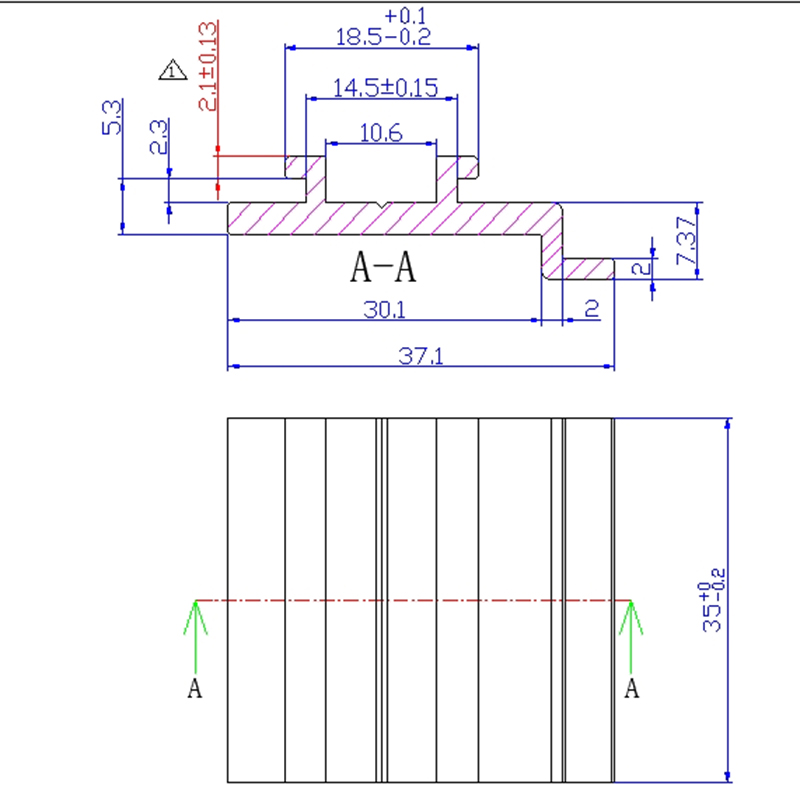

Match the frame profile and fixing point when specifying mounting clips for a display-light assembly. The SL-0520-S photographs show a compact metal profile with raised edges and a central fixing hole. The drawing marks a nominal 35mm length, 37.1mm width and 7.37mm overall profile height.
For exhibition contractors, display manufacturers and lighting accessory distributors, send the mating frame section and lamp-base drawing with the enquiry. Include the required finish, fastener details and installation load so the sample can be checked against the complete assembly.
SL-0520-S dimensions and interface reference
| Specification | SL-0520-S |
|---|
| Ordering model | SL-0520-S |
| Nominal profile length on drawing | 35mm |
| Length tolerance on drawing | +0 / −0.2mm |
| Width on section drawing | 37.1mm |
| Overall profile height on drawing | 7.37mm |
| Fixing feature pictured | Central hole |
| Interface pictured | Raised profile edges; compare the complete section drawing |
| Finish references pictured | Silver-colour and black |
| Sample specification | Mating frame, lamp base, fasteners, material and finish |
Compare the finish and fixing-hole arrangement

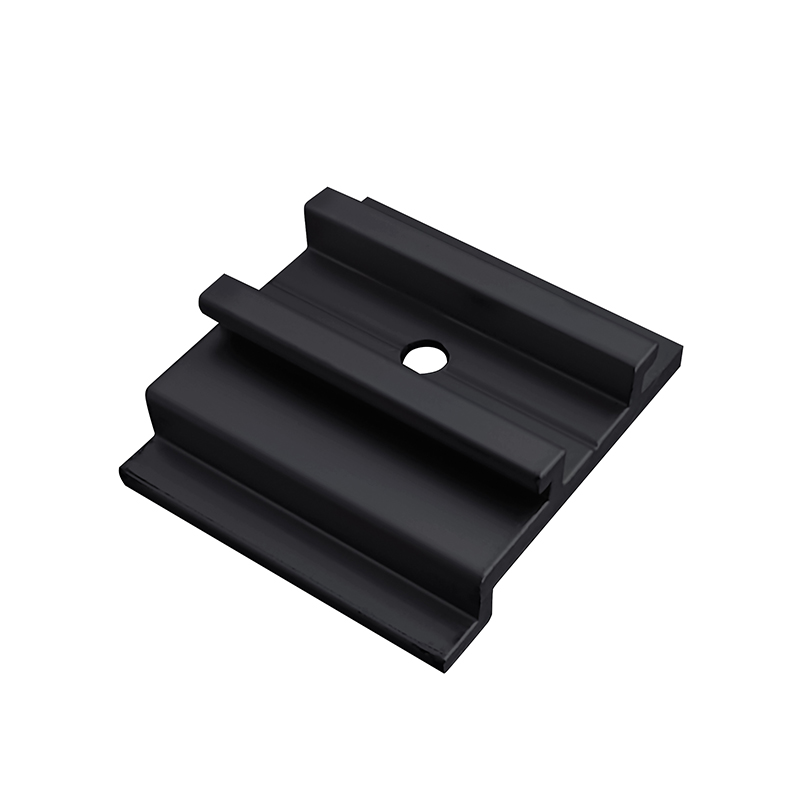

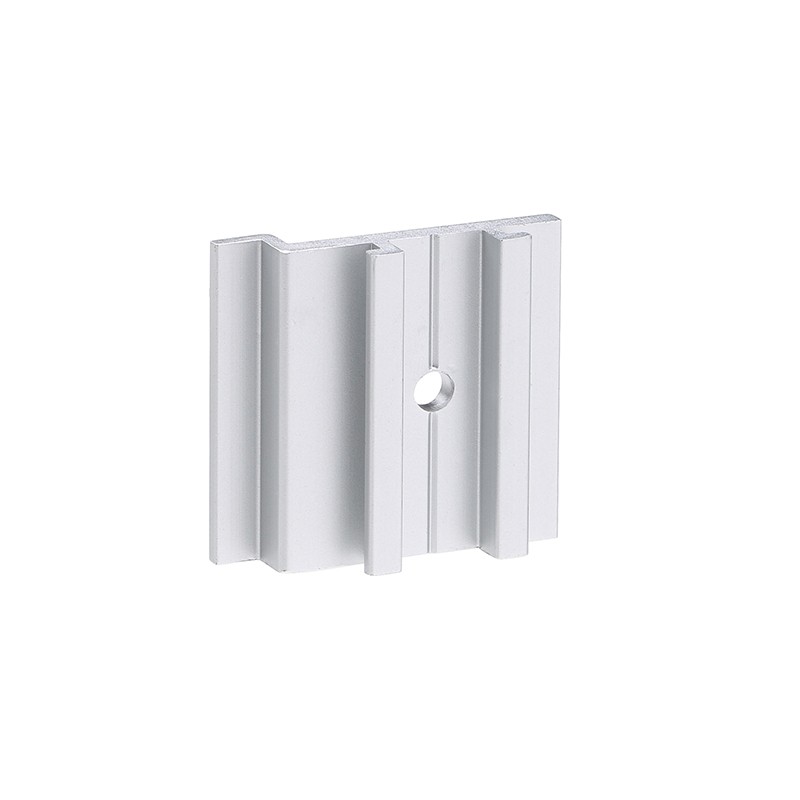

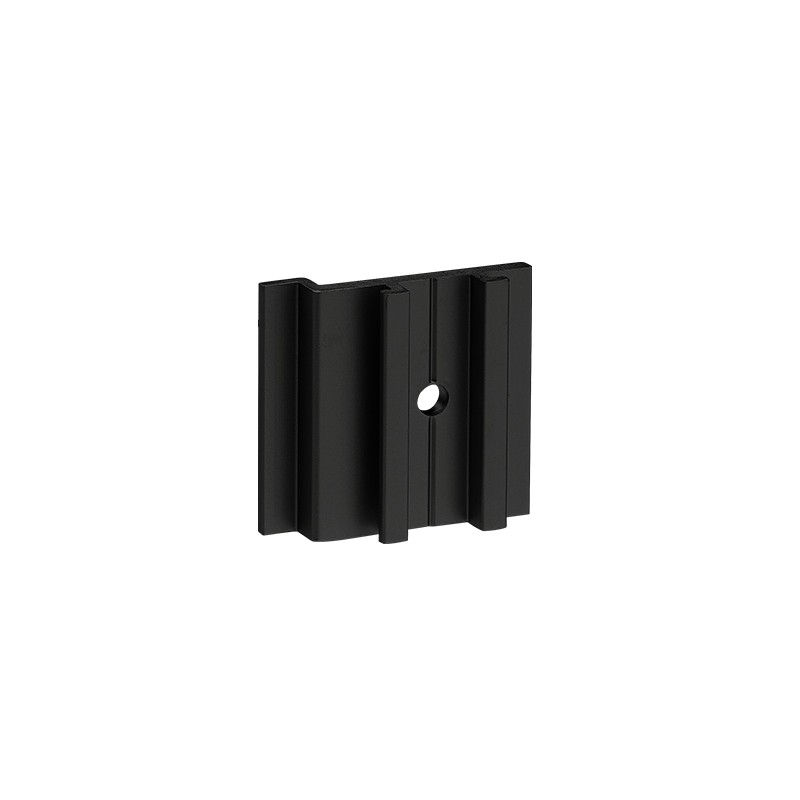

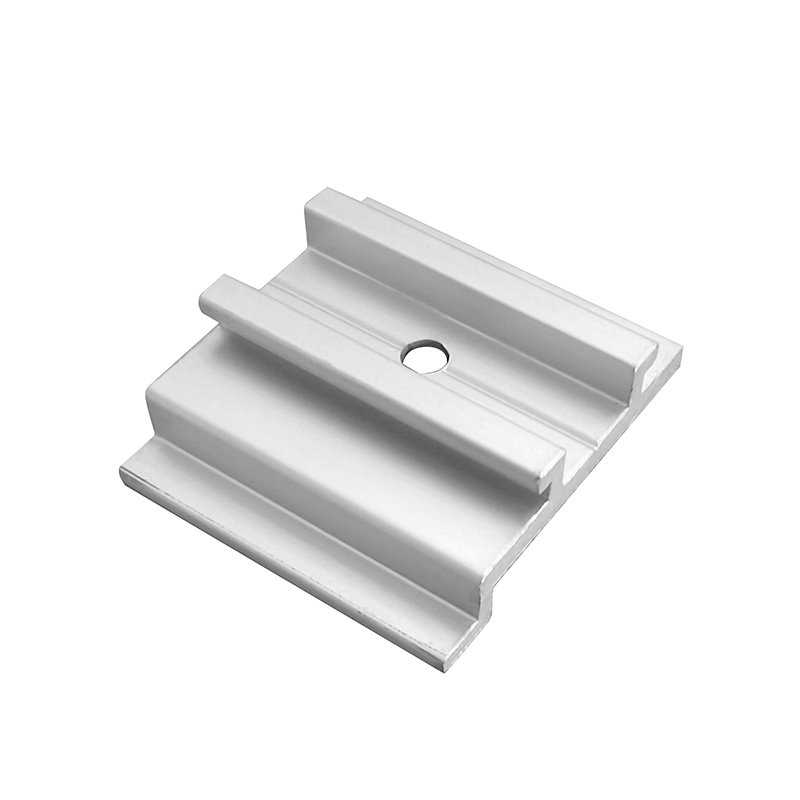

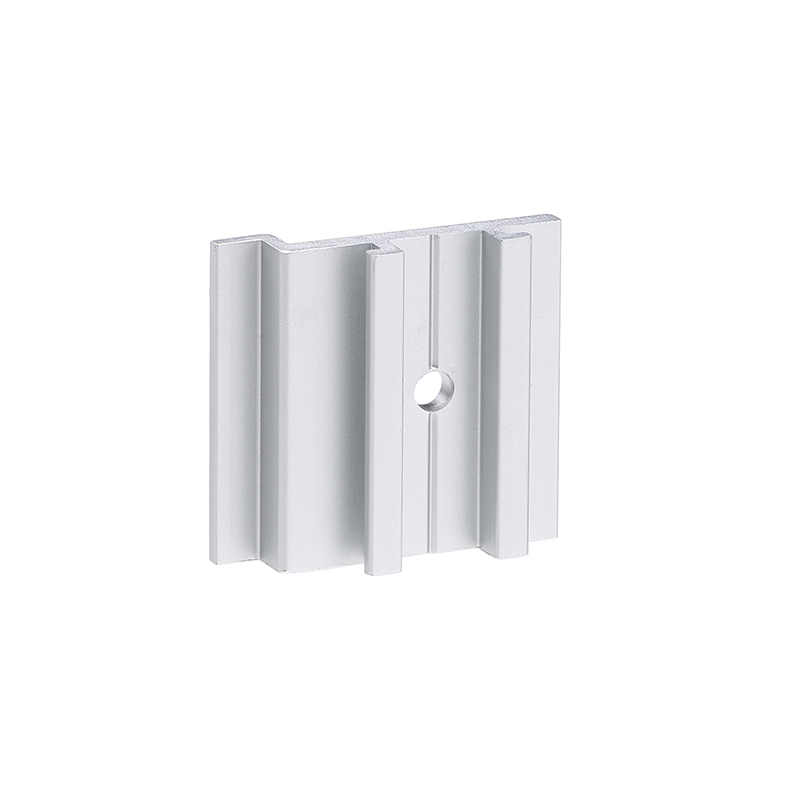

Use the silver-colour and black photographs to specify the required appearance. Confirm the material specification, finish and product marking for the quoted version.
Send the fastener diameter, head form and mating-part drawing to define the central fixing point. Agree the hole dimensions and exact supplied fasteners with the sample and quotation.
Approve the profiled connection on the actual frame

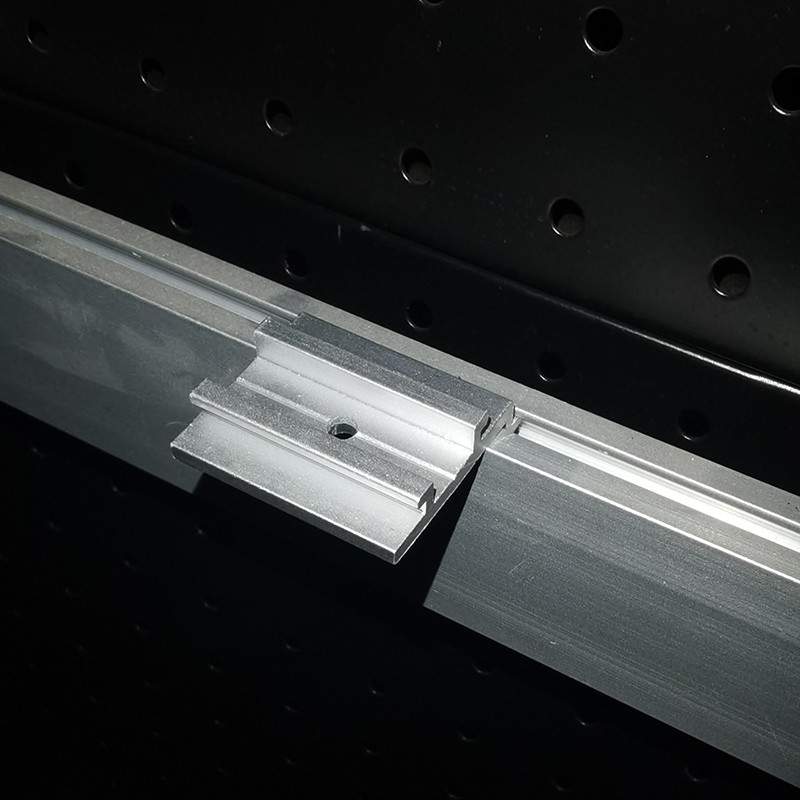

The installation photograph shows the clip against a frame profile. Compare the complete cross-section drawing with the intended mating frame and lamp-base interface.
Include the frame section, contact surfaces, lamp weight and arm position in the enquiry. Check the fit and installation requirements with a sample before specifying production quantities.
Mounting clip samples and bulk production
Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available for interface evaluation; sample charges and shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include profile drawings, fixing-hole requirements, finish, marking and packing. Send the target quantity and complete drawings to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
Display mounting clip purchasing questions
What dimensions are shown for SL-0520-S?
The drawing marks 35mm nominal length with +0 / −0.2mm tolerance, 37.1mm width and 7.37mm overall profile height. Use the complete drawing to check the mating section.
What fixing feature appears in the photographs?
A central hole is shown in the profiled body. Provide the required fastener and mating-part dimensions to confirm the fixing arrangement.
How can I check this clip against my exhibition frame?
Send the frame cross-section and lamp-base drawing, including contact surfaces, fixture weight and arm position. Approve the sample fit on the actual assembly.
What should I include in a wholesale mounting clip enquiry?
Include SL-0520-S, target quantity, finish, material specification, frame and lamp-base drawings, fastener details and packing requirements. Orders start at 20 pcs, with volume pricing available.
Compare a screw-jaw mounting arrangement
Choose the mounting format from the frame profile, lamp interface and installation requirements.
