58mm screw clamps for display lights

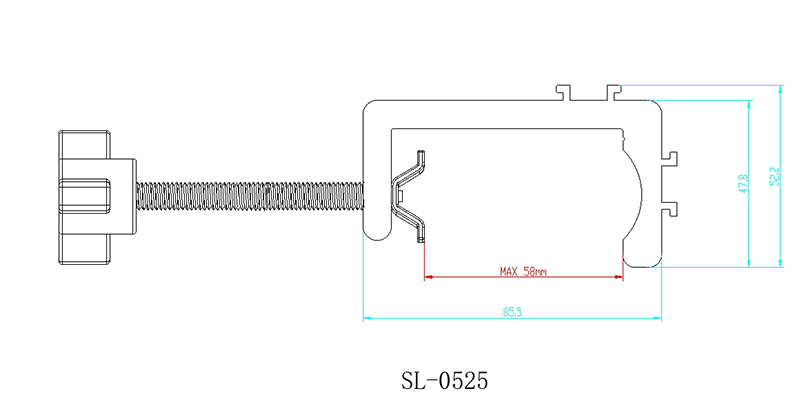

Check the clamp opening and lamp-base interface when specifying mounting hardware for a display. The SL-0525 drawing marks a maximum 58mm jaw opening. The product photographs show a metal clamp body, a hand-operated screw knob and a pressure pad, with silver-colour and black finish references.
For exhibition contractors, display-light distributors and fixture assemblers, send the mounting rail or panel dimensions together with the lamp-base drawing. Use the sample to check the jaw contact, mounting interface and complete lighting arrangement before requesting production quantities.
SL-0525 clamp dimensions and construction
| Specification | SL-0525 |
|---|
| Ordering model | SL-0525 |
| Maximum jaw opening on drawing | 58mm |
| Clamp-body length on drawing | 85.5mm, excluding the projecting screw and knob |
| Adjustment pictured | Hand knob operating a threaded screw |
| Contact component pictured | Metal pressure pad |
| Body and finish reference | Metal clamp; silver-colour and black photographs |
| Lamp mounting reference | Mating base shown separately and in an installation photograph |
| Fit details for the order | Rail or panel dimensions, lamp-base interface and installation load |
| Final supplied contents | Confirm clamp, mating parts and packing with the quotation |
Compare the clamp finishes and screw mechanism

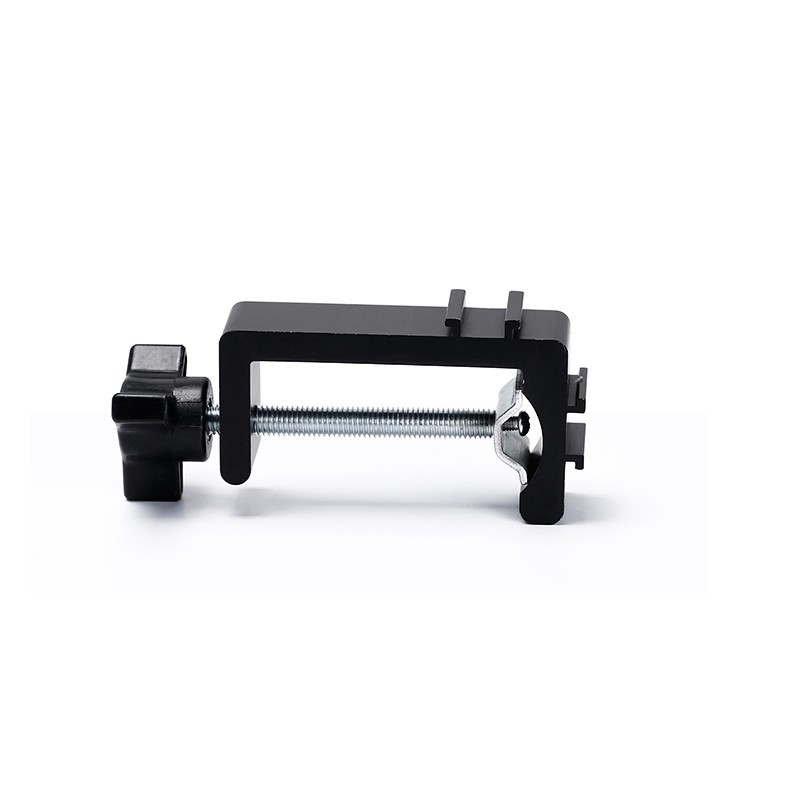

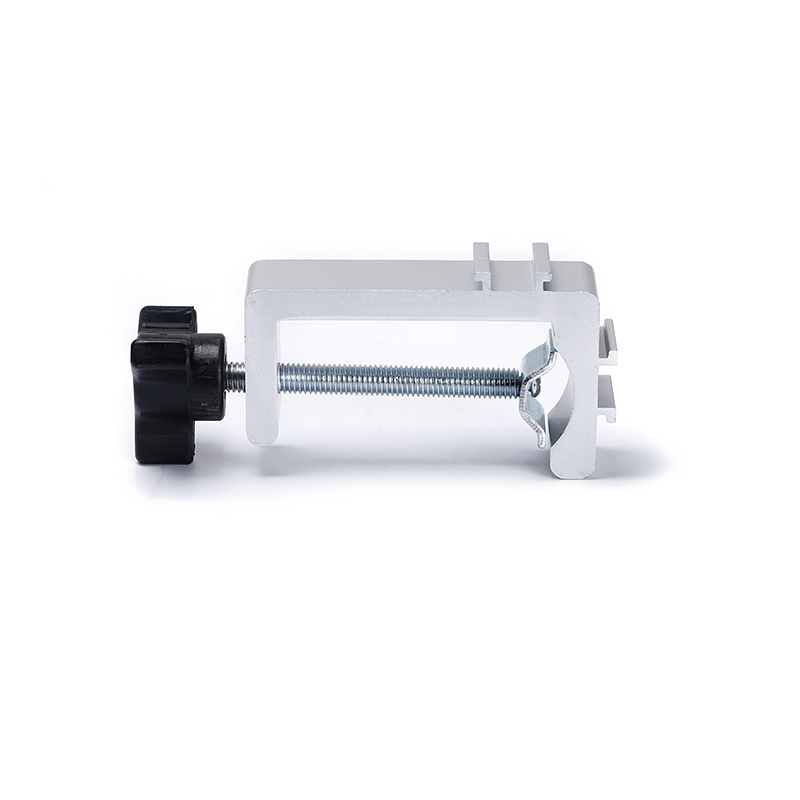

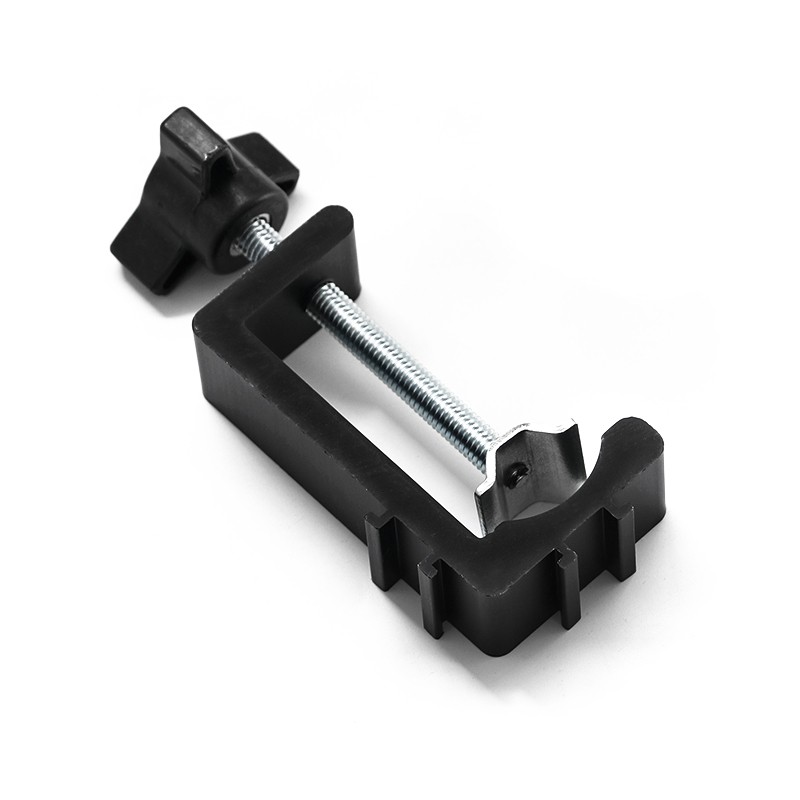

The silver-colour and black photographs provide finish references for sample selection. Confirm the required material specification, finish and product marking with the quotation.
The hand knob, threaded screw and metal pressure pad form the pictured clamping mechanism. Check the sample against the intended mounting surface, including its profile and finish.
Check the lamp-base and rail interfaces together

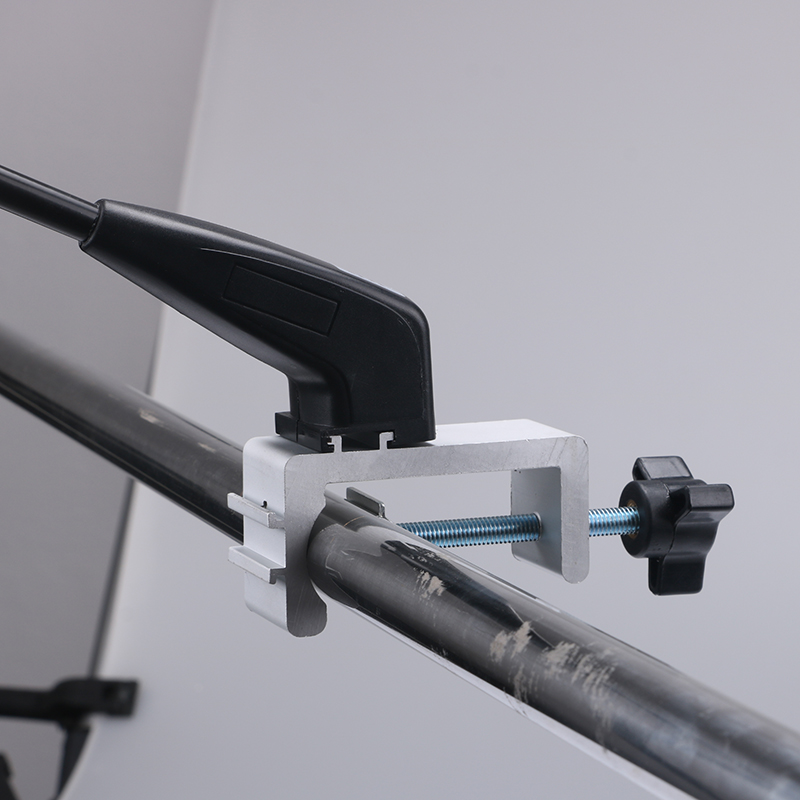

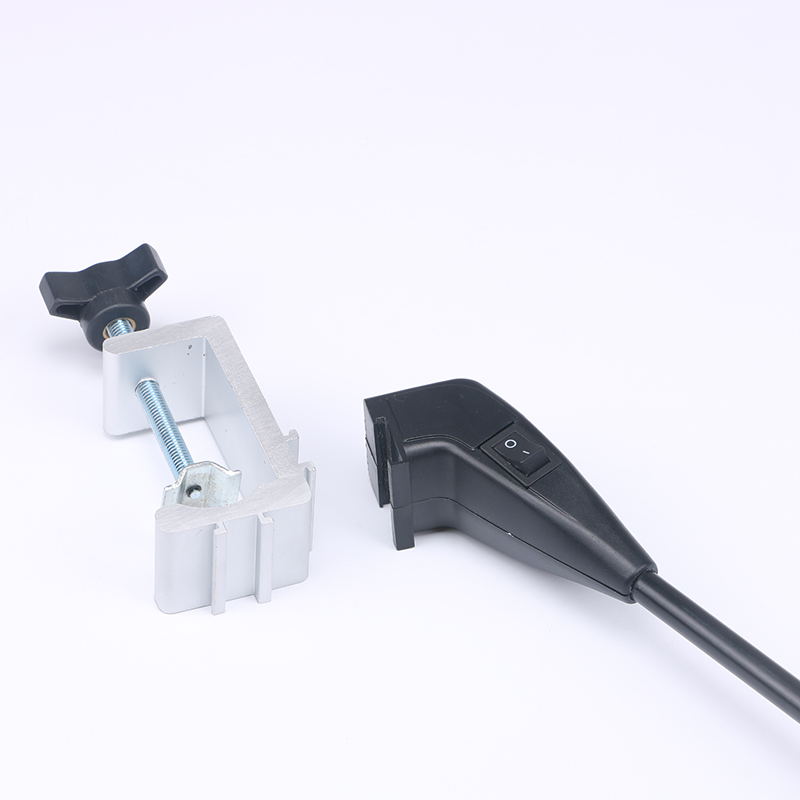

The photographs show a lamp base beside the clamp and an installed example on a horizontal round rail. Use these views to identify the mating arrangement required for the display.
Provide the rail diameter or panel thickness, surface profile, lamp-base drawing, fixture weight and arm position. Approve the mounting fit and installation requirements with a sample. Confirm the exact supplied mounting parts and installation instructions for the order.
Display-light mounting hardware in wholesale quantities
Wholesale orders start at 20 pcs. Higher quantities qualify for lower unit prices, and samples are available for fit evaluation. Sample charges and shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include mating-interface drawings, finish requirements, marking and packing. Send the dimensions, target quantity and artwork to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
Exhibition light clamp purchasing questions
What jaw opening is shown for SL-0525?
The technical drawing marks a maximum 58mm opening. Send the actual rail or panel dimensions and surface profile to check the mounting arrangement.
How is the clamp adjusted?
The photographs show a hand knob driving a threaded screw toward a metal pressure pad. Evaluate the sample on the intended mounting surface.
Does the rail photograph confirm a fit for my display light?
It illustrates one mounting arrangement. Provide the rail dimensions, lamp-base interface, fixture weight and arm position so the sample can be checked for your assembly.
What should I include in a bulk mounting-clamp enquiry?
Include SL-0525, quantity, finish, rail or panel dimensions, lamp-base drawing, installation requirements and packing. MOQ is 20 pcs, and samples are available before a production order.
