17mm-wide lens bars for lightbox backlighting
Match the backlight bar dimensions to the display drawing. SL-BM063-12L combines a 950 × 17 × 8.5mm aluminium-supported bar with twelve LEDs, 6W power and a 24V DC input. Its 180° optical lenses and linked-bar layout are illustrated in the original product pictures.
For advertising-lightbox manufacturers, display fabricators and component wholesalers, the 17mm bar width provides a clear dimension for checking mounting space. Choose the white-light version and define the bar positions, cable route and packing arrangement before approving a production sample.
6W optical backlight bar specification

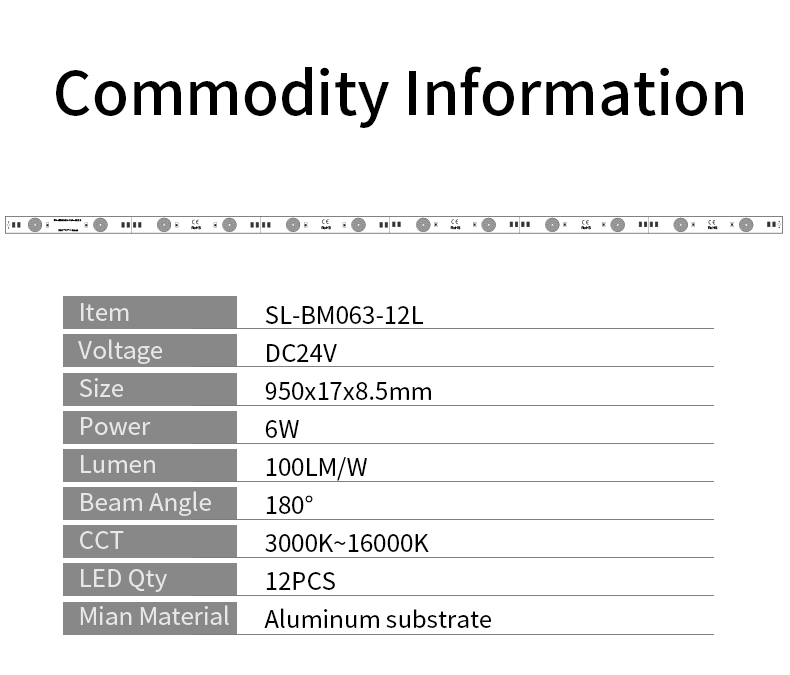

| Specification | SL-BM063-12L |
|---|
| Ordering model | SL-BM063-12L |
| Complete dimensions | 950 × 17 × 8.5mm |
| Power per bar | 6W |
| Input | 24V DC |
| LED quantity | 12 LEDs per bar |
| Optical angle | 180° |
| Listed luminous efficacy | 100 lm/W |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K / 9000–16000K |
| Substrate | Aluminium |
| Colour-rendering order option | CRI 90+ available; specify with the order |
White-light selection and optical layout
The colour-selection picture provides four order ranges, from 3000–3500K to 9000–16000K. Specify the required range and assess a sample with the actual graphic and enclosure. CRI 90+ white LEDs are available as an order option; request data for the quoted selection.

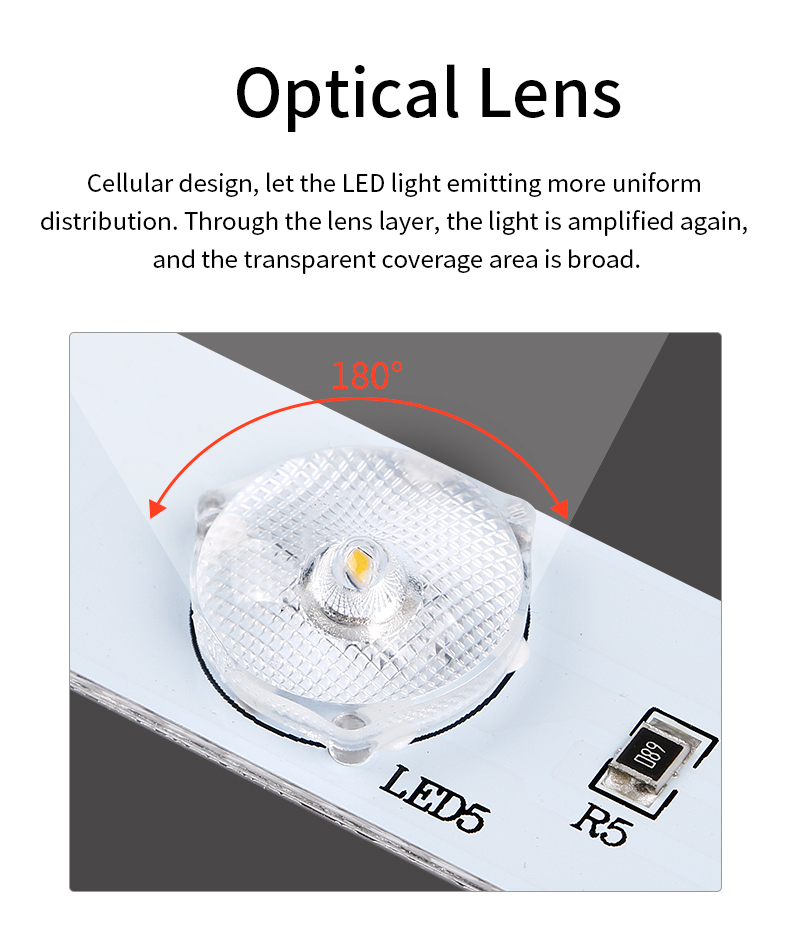

The optical artwork identifies a 180° lens. Provide the enclosure drawing, face material and proposed spacing to assess the lighting arrangement. The 100 lm/W entry is a luminous-efficacy figure; request version-specific luminous-flux data when the project requires an output value per bar.
Linked-bar arrangement and foam-protected packing

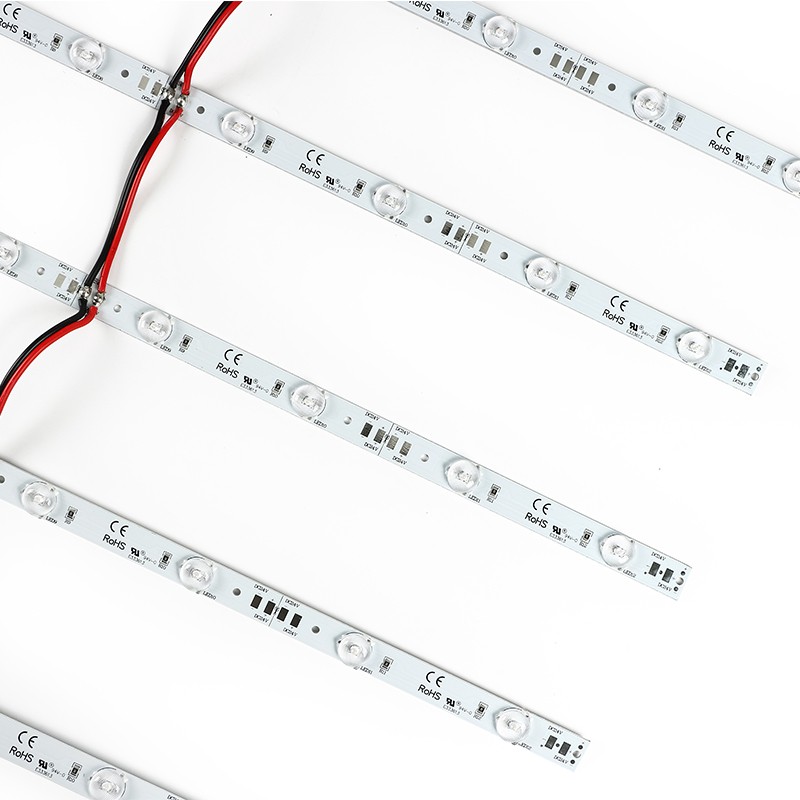

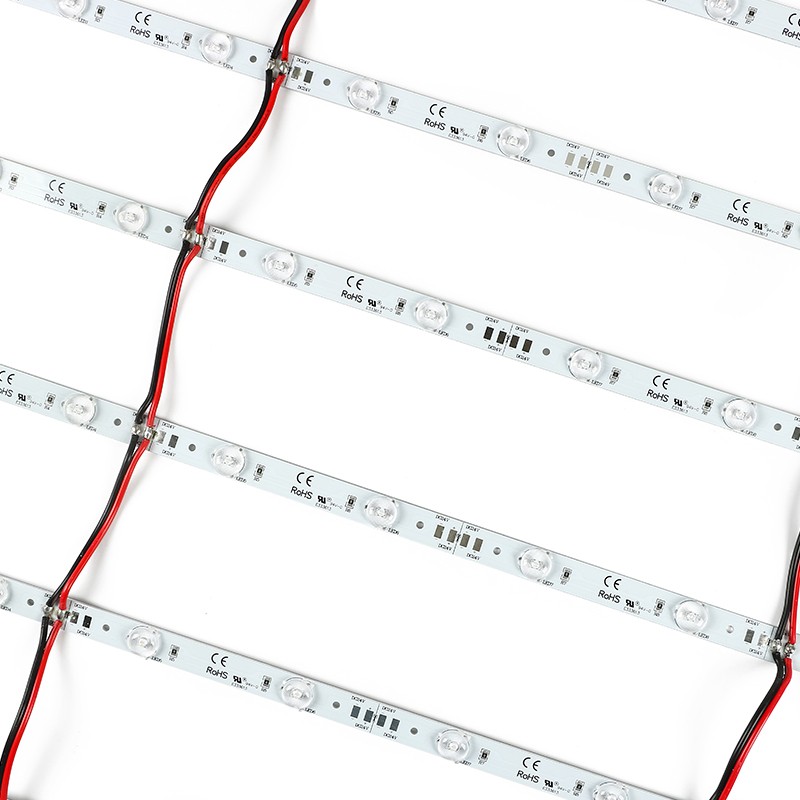

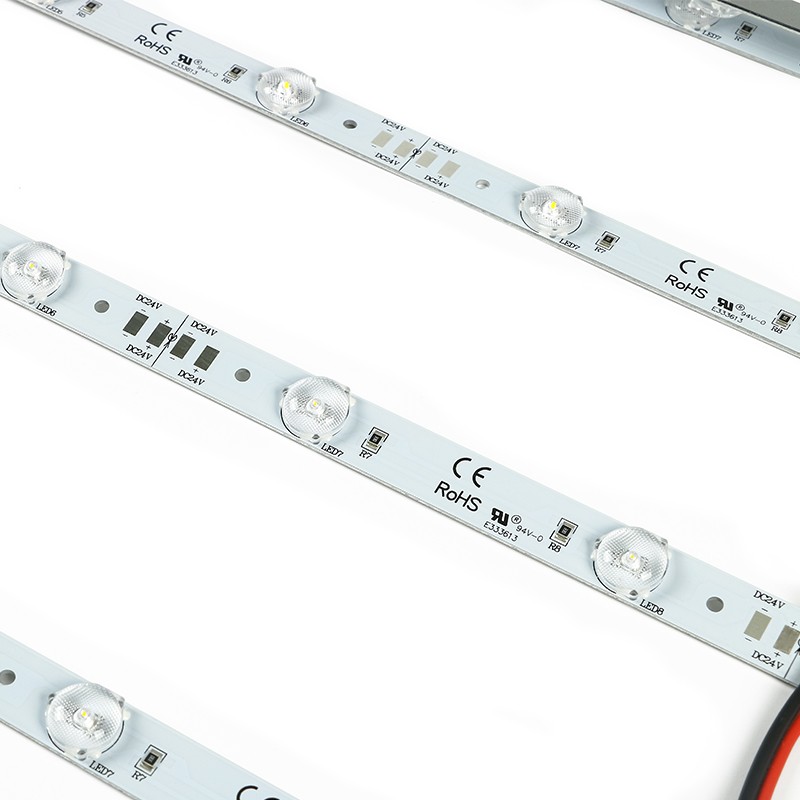

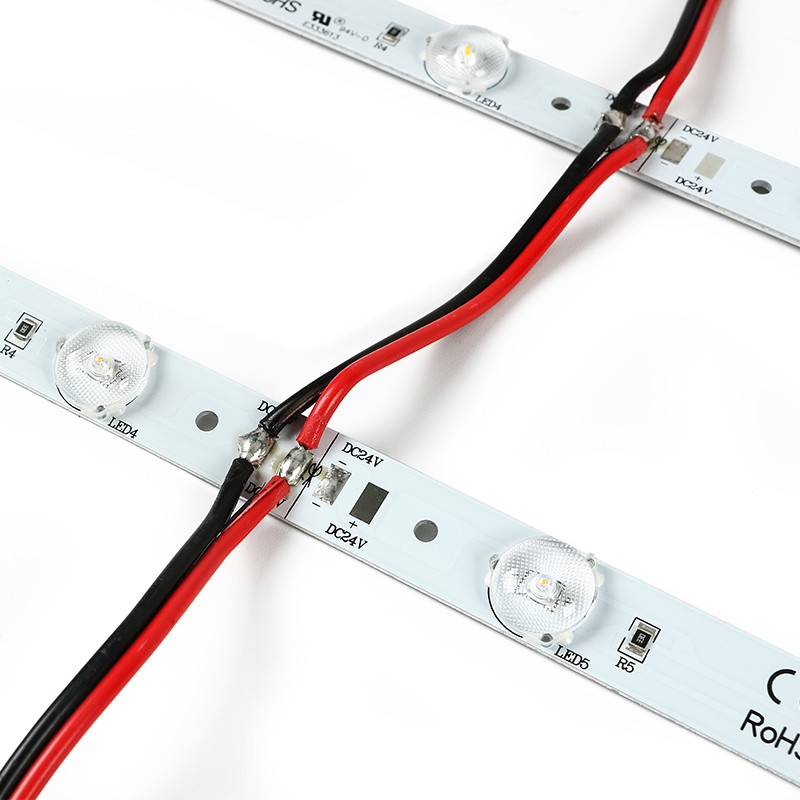

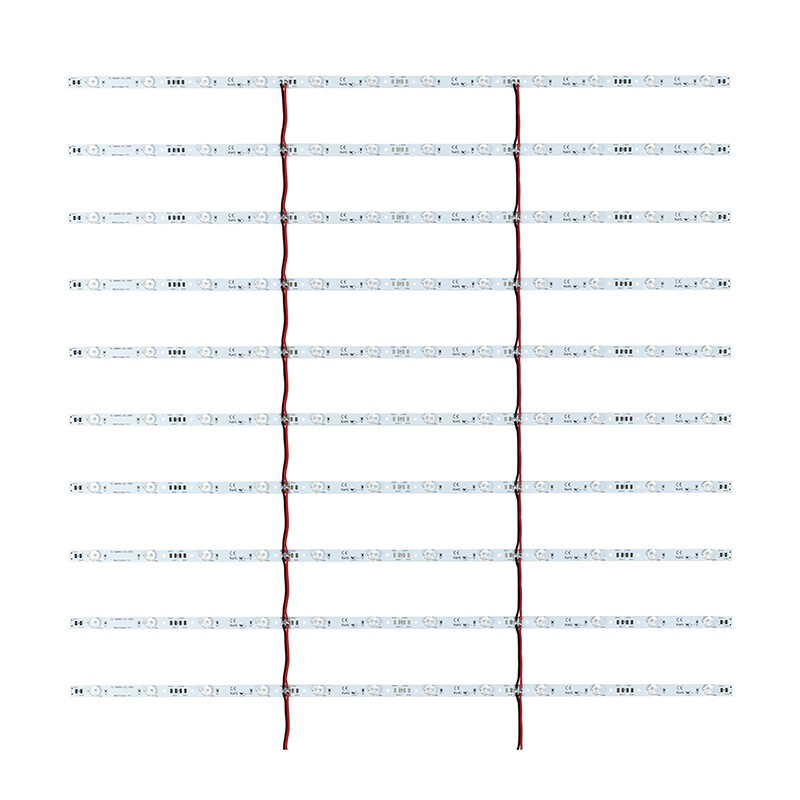

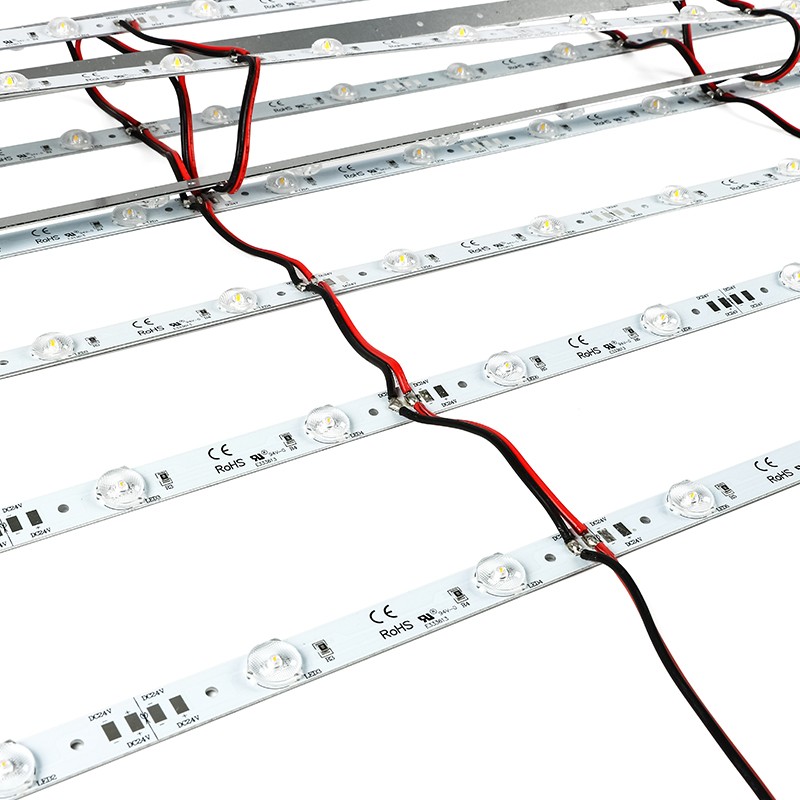

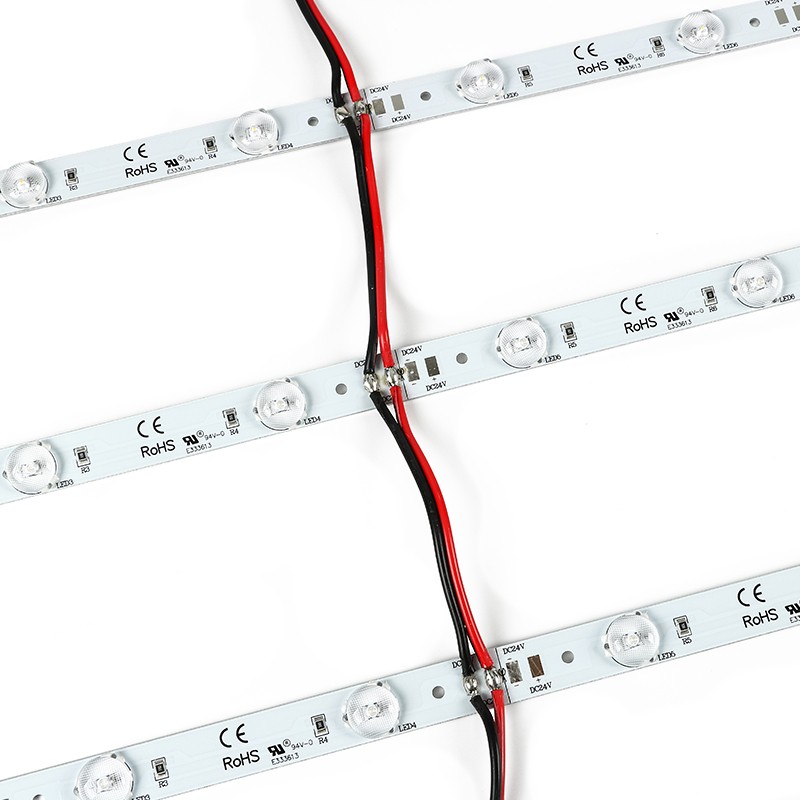

The original pictures show bars arranged in rows with linking wires. Agree the mounting positions, cable route, power-unit specification and permitted connection quantity for the quoted assembly. Use the 950 × 17 × 8.5mm dimensions to check component clearance.

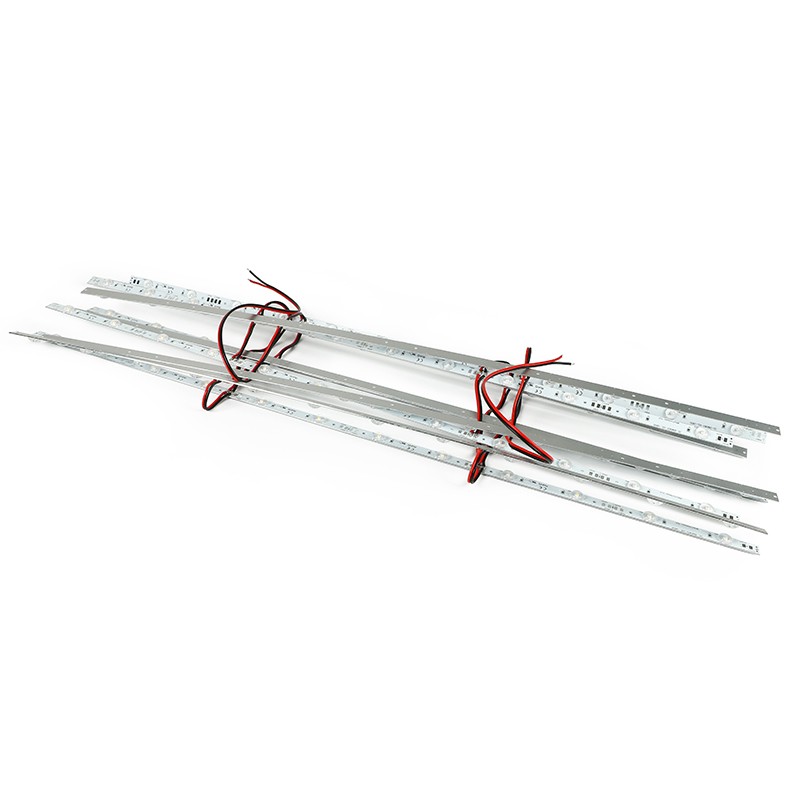

The packing sequence shows the linked arrangement laid flat, stacked and protected with foam in cartons. Include the required grouping, packing quantity and labelling in the order so the shipment supports your assembly workflow.
Advertising-display applications and factory supply

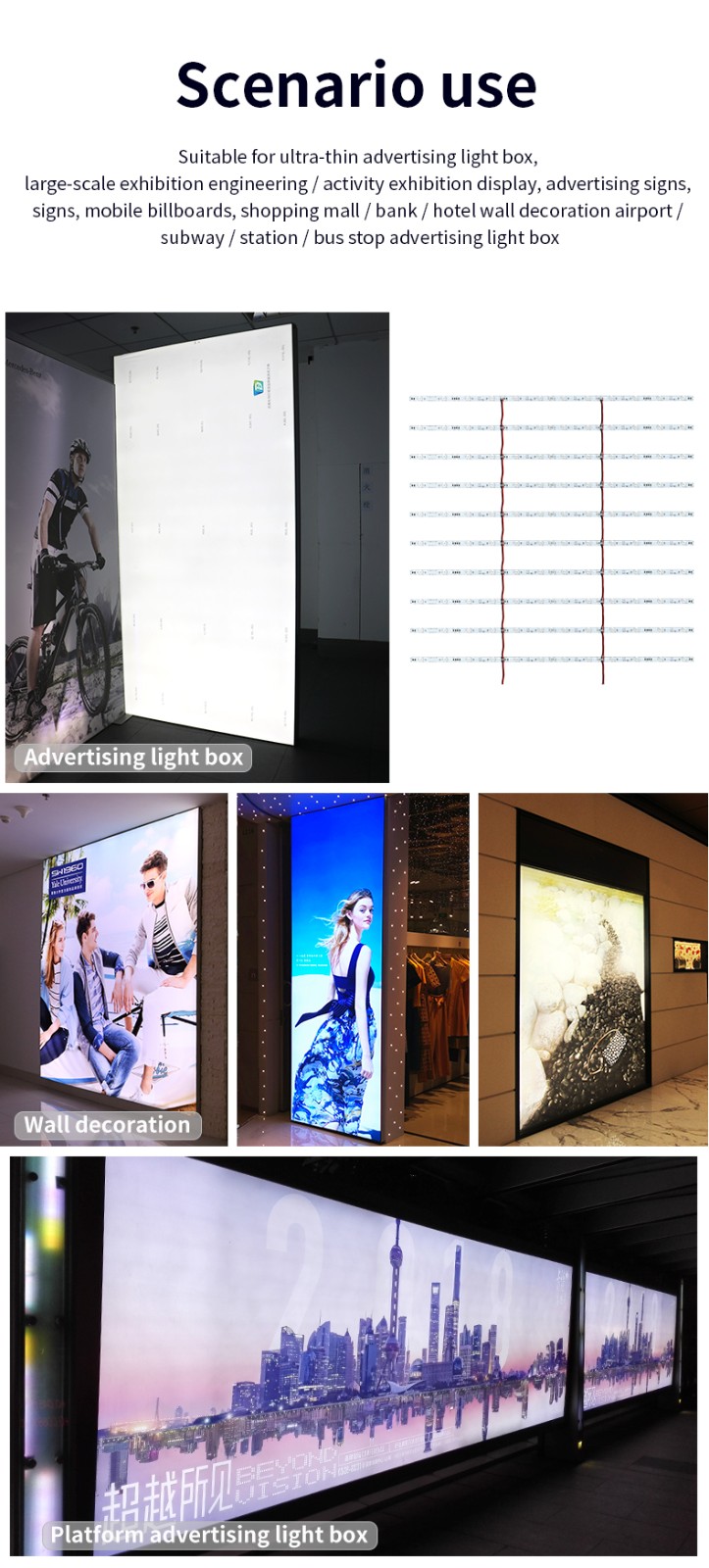

The application artwork includes advertising lightboxes, illuminated wall graphics and platform-advertising displays. Send the display dimensions and face material to define the sample layout and required white-light appearance.
Factory wholesale orders start at 20 pcs; higher quantities qualify for lower unit prices. Samples are available, with cost and shipping confirmed for the destination. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported; custom schedules and transit are agreed separately.
Optical backlight bar purchasing questions
How does the 17mm-wide bar differ from the 20mm version?
SL-BM063-12L is specified at 950 × 17 × 8.5mm, 6W and twelve LEDs. Use its complete dimensions to check the mounting arrangement; compare the separate 20mm-wide model using its own product data and approved sample.
Does 100 lm/W mean the complete bar produces 100 lumens?
The unit lm/W describes luminous efficacy. Obtain luminous-flux data for the selected version if the lighting specification requires a confirmed output per bar.
Can the lens bars be grouped for wholesale packing?
The pictures show linked bars stacked with foam protection in cartons. Specify the grouping, quantity and labelling with the enclosure layout and required white-light version to confirm the packing plan.
