1150mm ladder lights for fabric-lightbox layouts

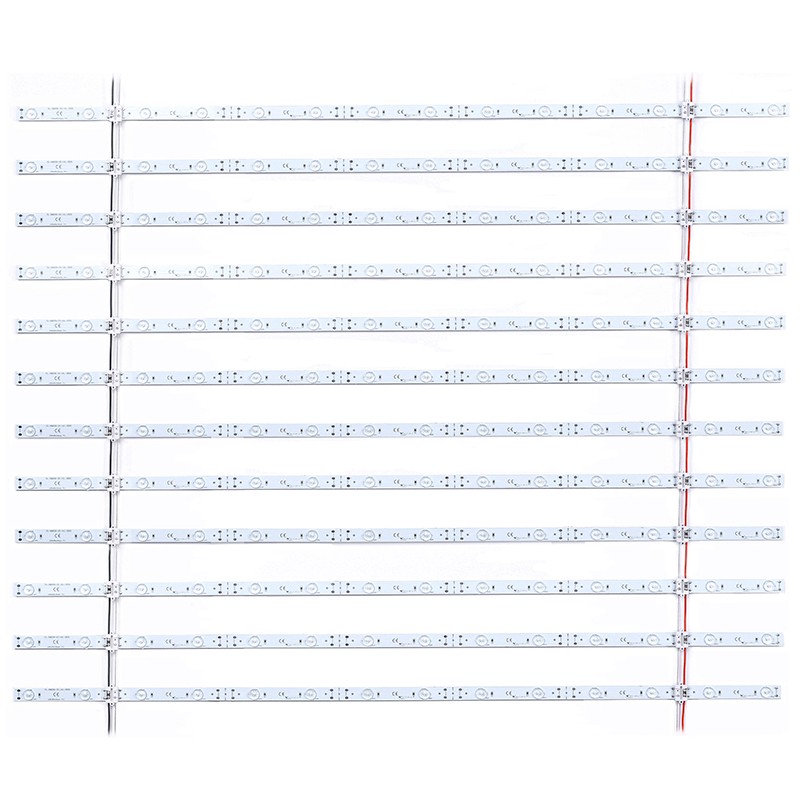

Build longer white-light rows around a defined component specification. SL-BM039-5070 is a 1150 × 20 × 7mm LED ladder light listed at 13W and 1250 lm, with fourteen LEDs, a 24V DC input and 180° optical lenses. Its original artwork includes fabric-lightbox, advertising-display and illuminated-ceiling concepts.
For textile-display manufacturers, sign fabricators and lighting-project wholesalers, evaluate the bar dimensions and light selection with the actual display face. Supply the enclosure drawing, intended rows and cable route to agree a sample layout, electrical configuration and bulk supply scope.
13W fourteen-LED ladder light specification

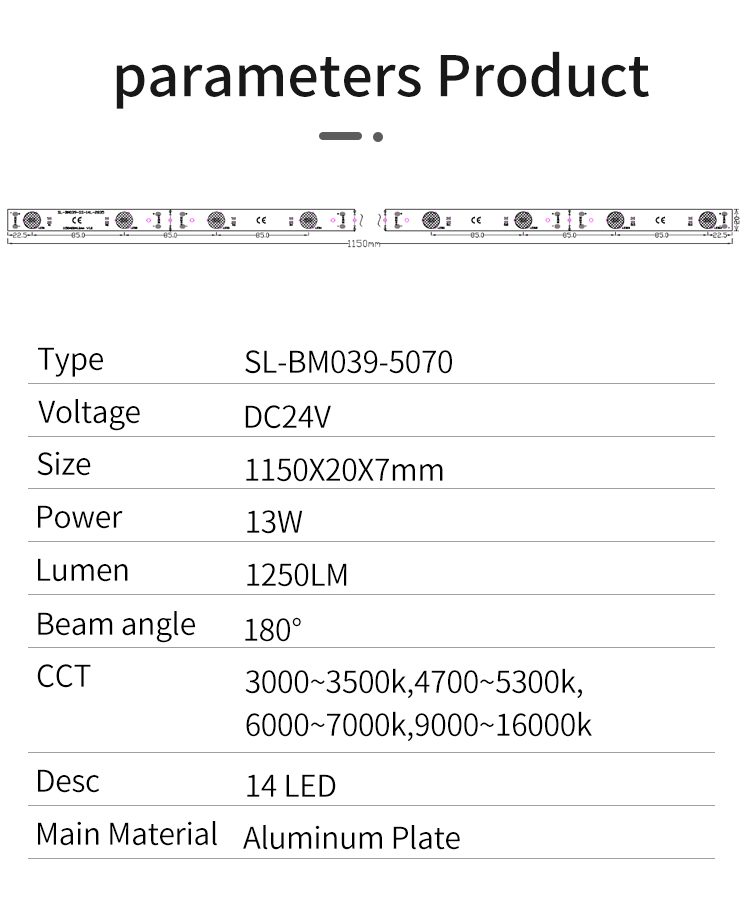

| Specification | SL-BM039-5070 |
|---|
| Ordering model | SL-BM039-5070 |
| Complete dimensions | 1150 × 20 × 7mm |
| Power per bar | 13W |
| Input | 24V DC |
| Listed luminous flux | 1250 lm |
| LED quantity | 14 LEDs per bar |
| Optical angle | 180° |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K / 9000–16000K |
| Aluminium substrate thickness | 1.6mm |
| Colour-rendering order option | CRI 90+ available; specify with the order |

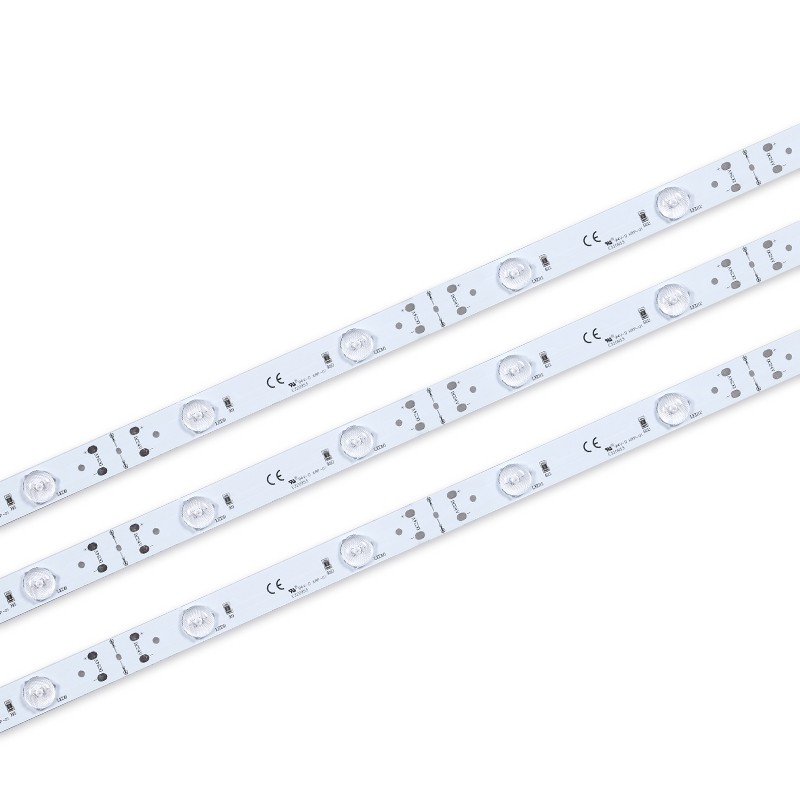

Aluminium construction and 180° lens layout

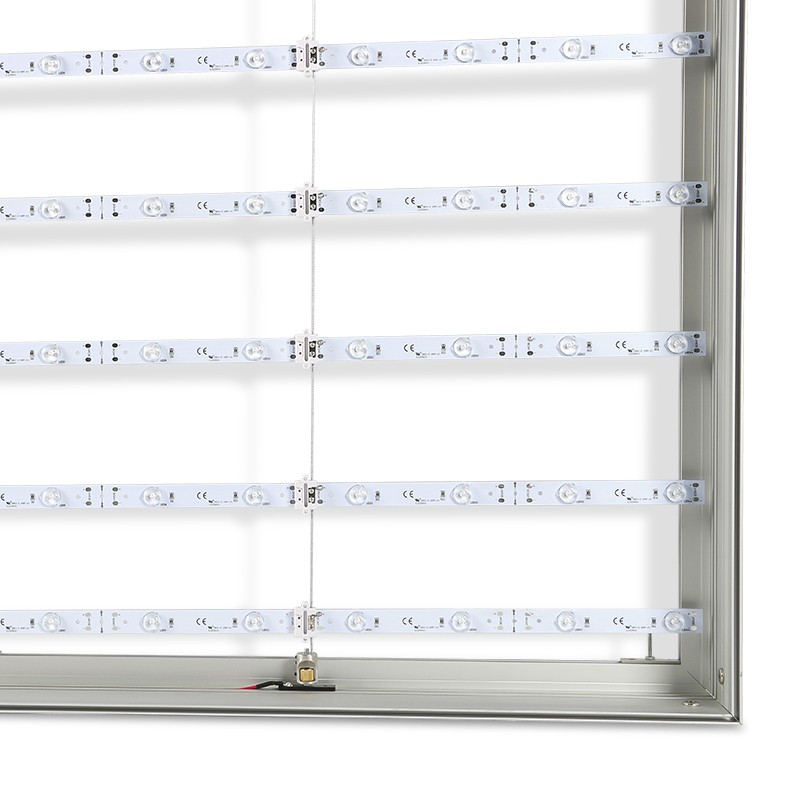

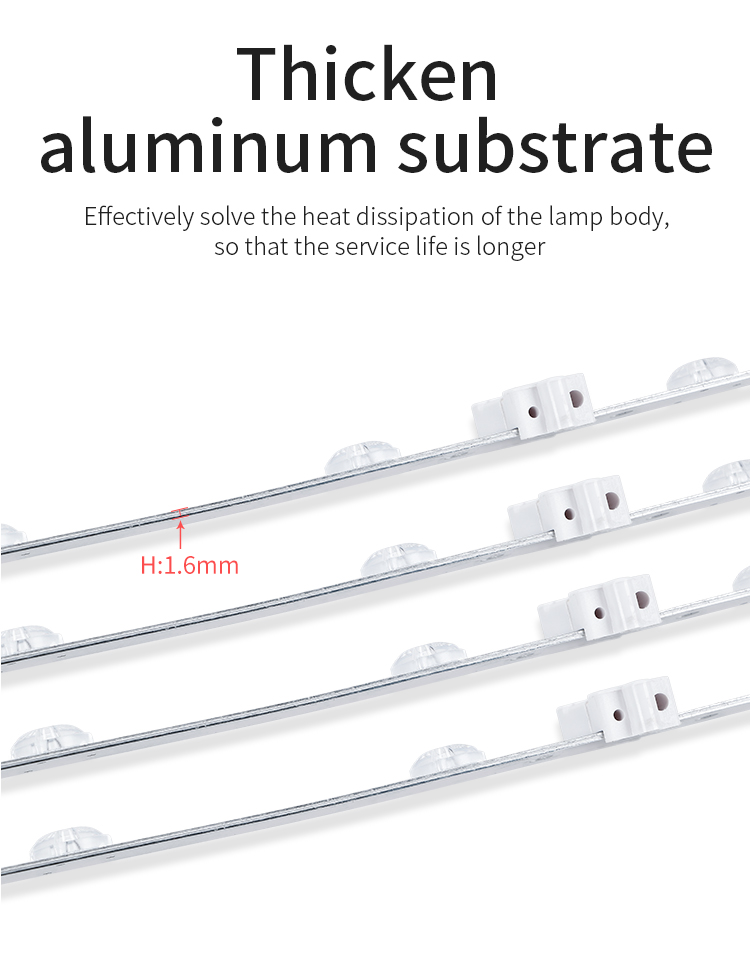

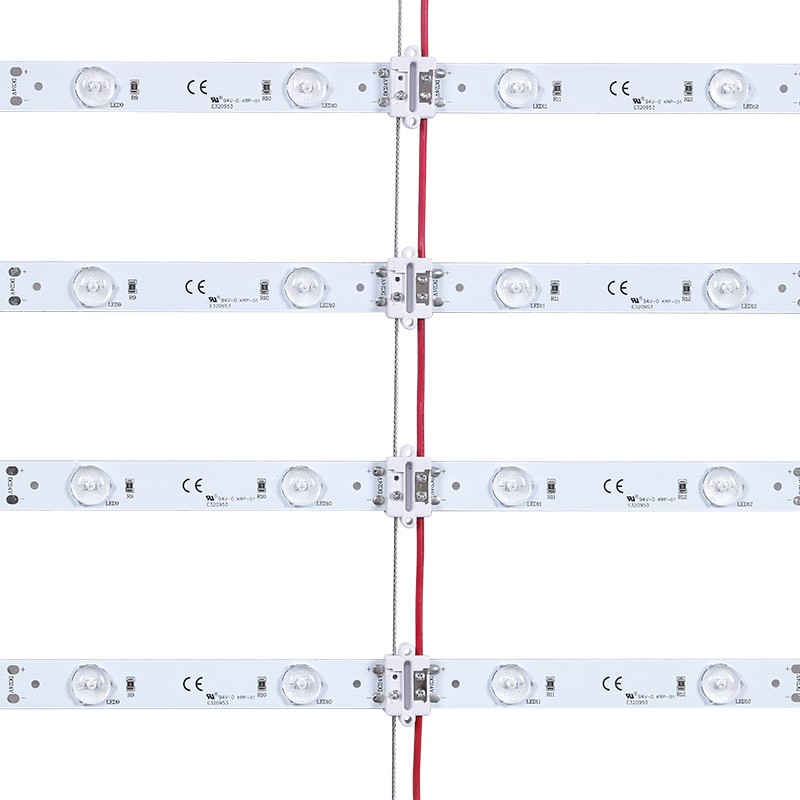

The assembly dimensions are 1150 × 20 × 7mm. A separate construction picture identifies a 1.6mm aluminium substrate. Use the complete bar dimensions with the mounting drawing to check fixing positions, lens clearance and the cable route.

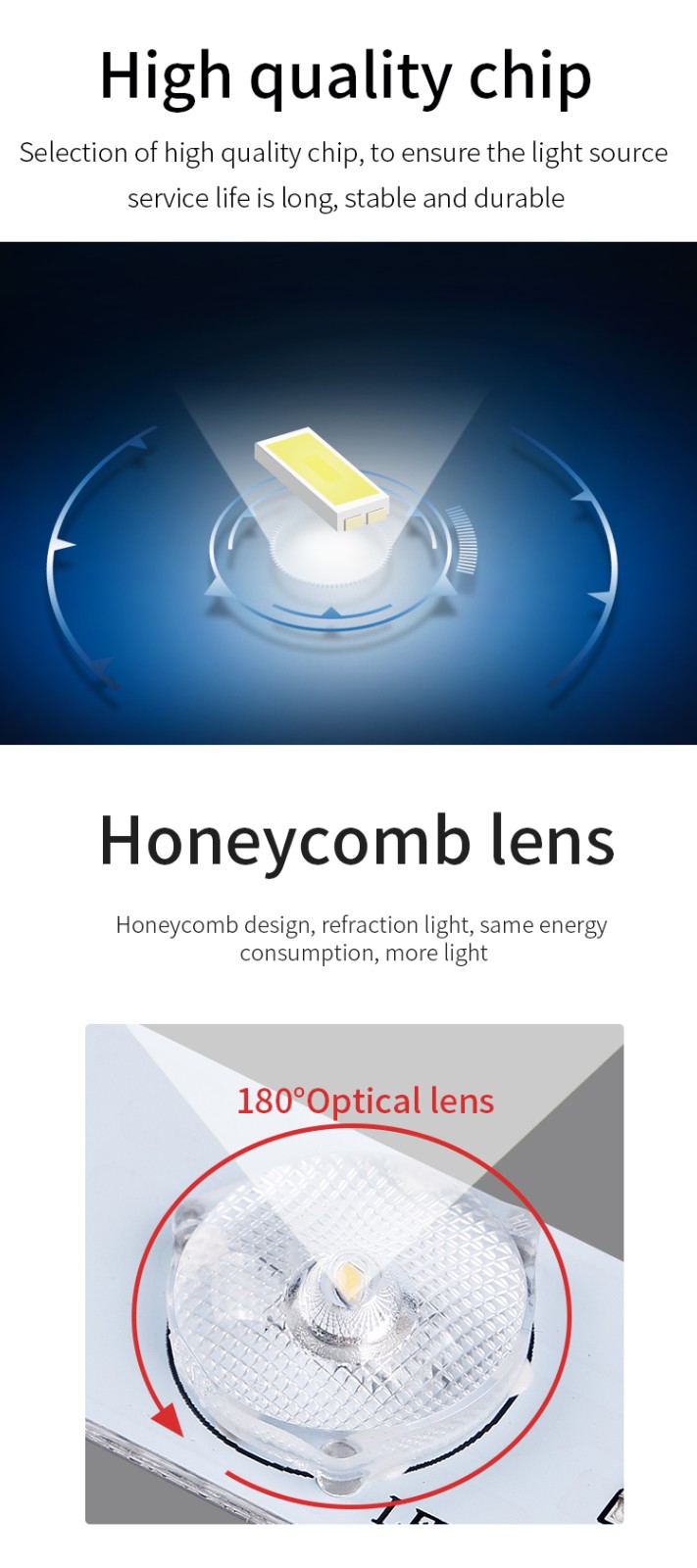

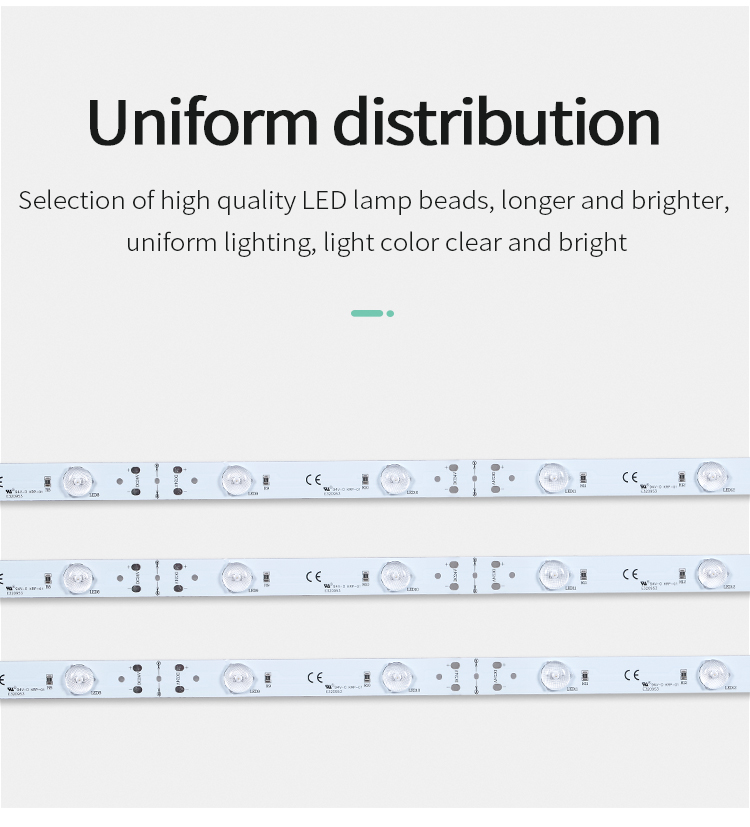

The optical illustration identifies a 180° honeycomb lens. Define the bar rows and display-face material with the enclosure drawing, then approve the lighting arrangement in a sample. Confirm the selected power unit, mating leads and permitted connection quantity for production.
White-light choices for textile and ceiling displays
The product table lists 3000–3500K, 4700–5300K, 6000–7000K and 9000–16000K white-light ranges. Choose the range required for the print or display surface and assess the sample in its intended enclosure. CRI 90+ white LEDs are available as an order option; confirm the version-specific data with the sample quotation.

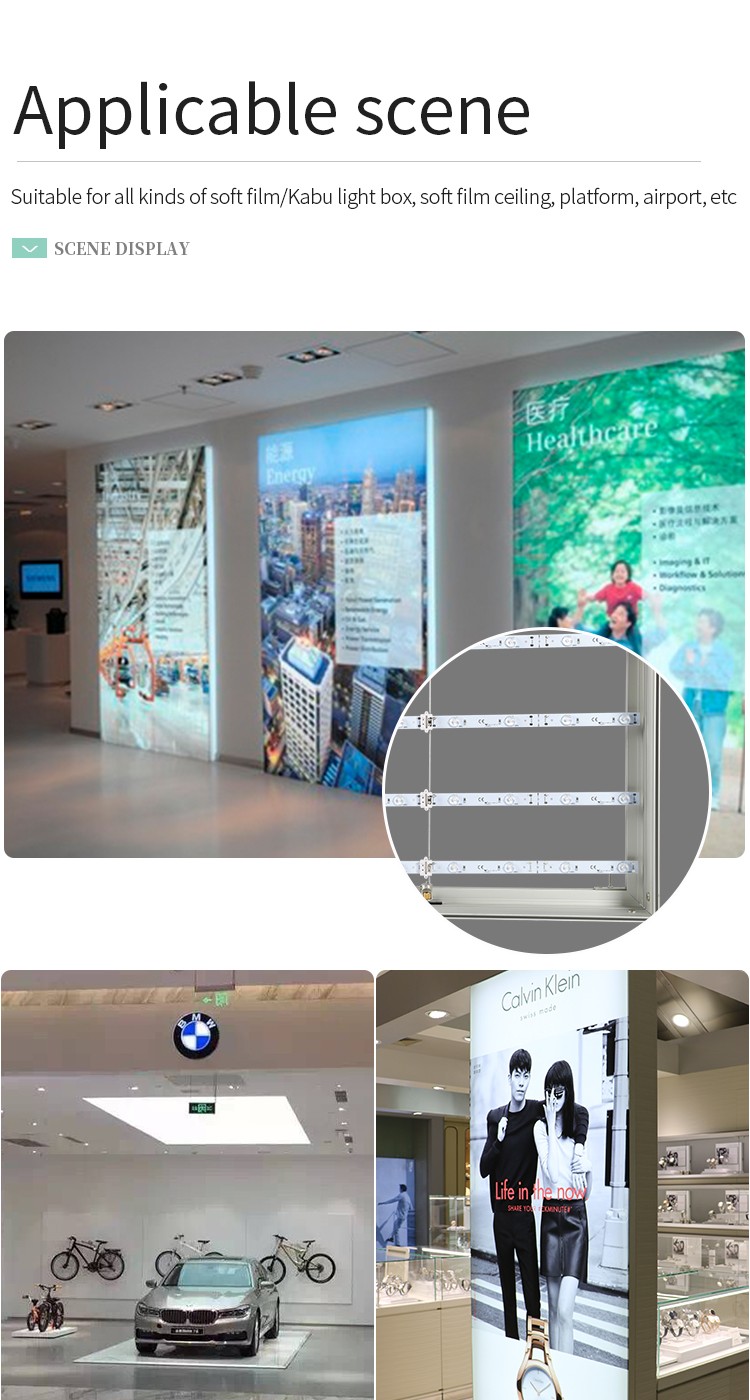

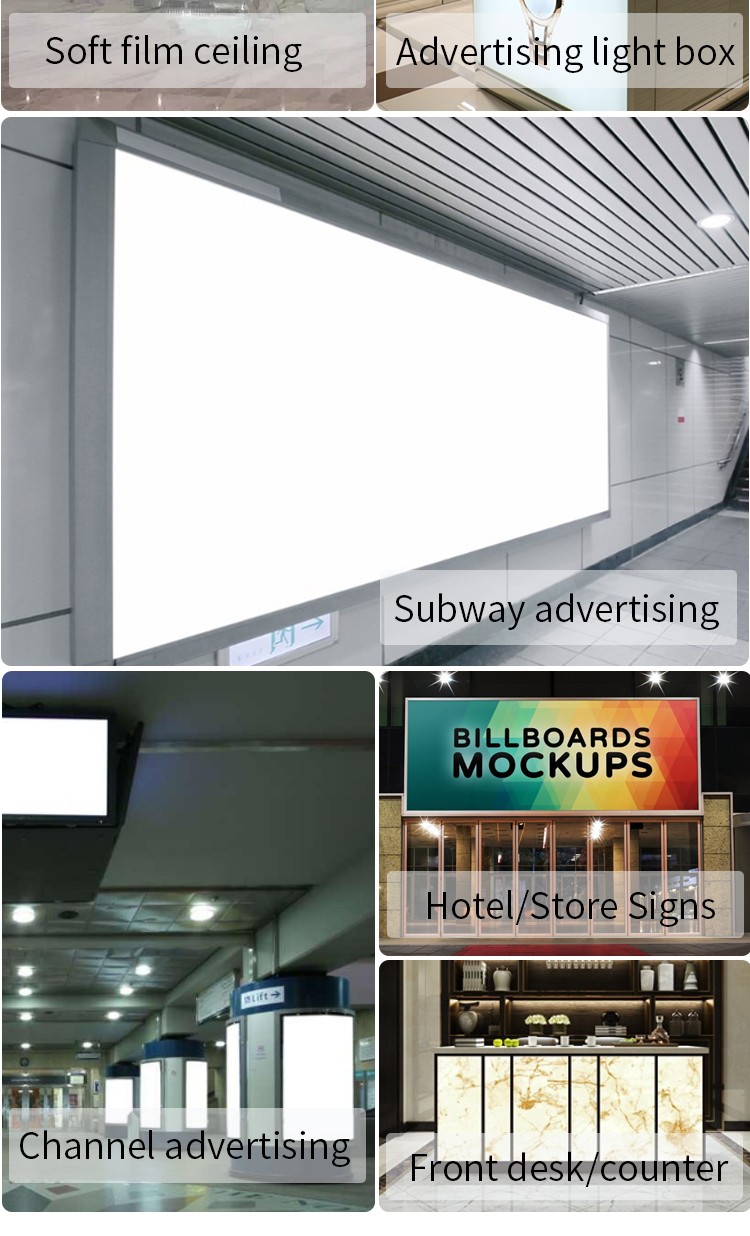

The application artwork covers fabric lightboxes, illuminated retail displays, soft-film ceilings and advertising graphics. Provide the face material, enclosure dimensions and proposed row positions so the sample can be assessed for the project.
Wholesale configuration and market documents
MOQ is 20 pcs, with lower unit prices at higher quantities. Samples are available; charges and shipping are confirmed for the destination. The standard lead time is 12–18 days. OEM, ODM and private-label supply are supported, with custom production schedules and transit agreed separately.
State the target market and required technical or compliance documents with SL-BM039-5070. Request current documents for the quoted configuration when approving the sample and supply specification.
Fourteen-LED ladder light purchasing questions
What is the listed output of the 1150mm ladder bar?
SL-BM039-5070 is listed at 1250 lm and 13W with fourteen LEDs and a 24V DC input. Specify the required white-light version and request its technical data with the sample quotation.
How do the 7mm assembly height and 1.6mm substrate relate?
The complete product dimensions are 1150 × 20 × 7mm. The separate 1.6mm value identifies the aluminium substrate. Check the full assembly drawing and mounting positions for the intended enclosure.
Can I specify white ladder lights for a textile or soft-film display?
Send the display-face material, enclosure drawing and proposed bar rows with SL-BM039-5070. Select the white-light range and CRI option, then assess a sample before defining the production layout.
What information defines a bulk fourteen-LED lighting order?
Include bar quantity, white-light selection, CRI requirement, mounting and cable drawings, power-unit scope, packing and destination. Add OEM marking and market-document requirements to confirm the quotation and schedule.
