950mm LED Lightbox Backlight Bar - 6W, 550 lm, 12 LEDs

950mm white backlight bars rated at 550 lm

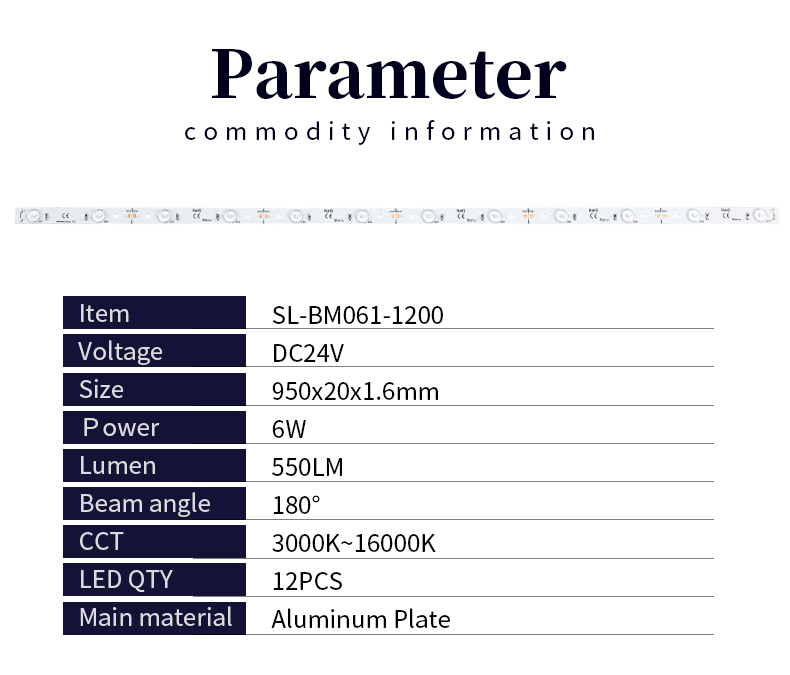

A defined white-light specification helps sign makers compare backlighting components. SL-BM061-1200 is listed at 6W and 550 lm, with twelve LEDs, 180° optics and a 24V DC input. The parameter picture specifies a 950mm length, 20mm width and 1.6mm aluminium board dimension.

For lightbox manufacturers, retail-display fabricators and wholesale lighting buyers, approve the light colour, board mounting and lens clearance in the intended enclosure. Send the graphic material, proposed bar layout and quantity to select the sample and prepare a matching bulk order.

550-lumen white backlight technical data

Specify the white range and colour-rendering version

Select 3000–3500K, 4700–5300K, 6000–7000K or 9000–16000K from the illustrated white-light ranges. Assess the selected version with the actual display face so the sample establishes the required appearance for production.

CRI 90+ white LEDs are available to order. State the CRI requirement with SL-BM061-1200 and obtain data for the quoted version. The original colour-rendering illustration describes an earlier Ra70 selection; the confirmed order specification defines the supplied version.

Board dimensions, lens clearance and electrical layout

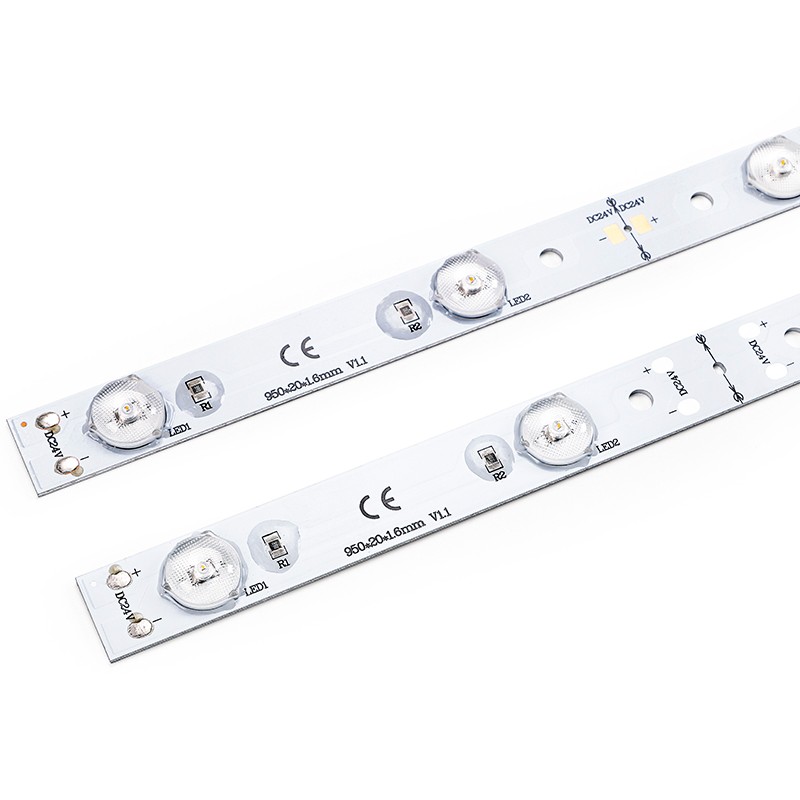

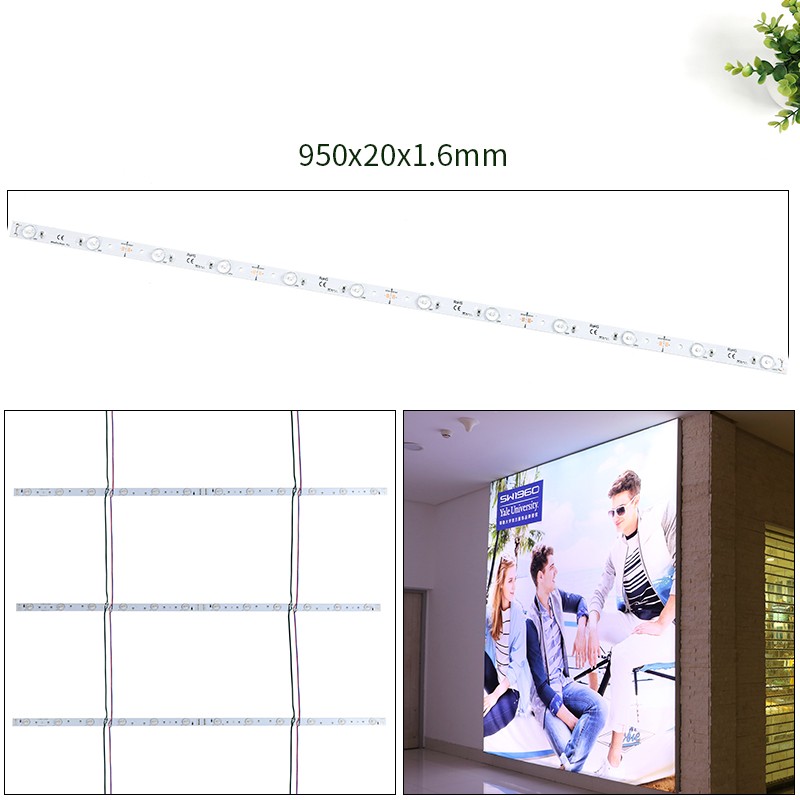

The parameter table and board printing identify 950 × 20 × 1.6mm. The 1.6mm dimension refers to the aluminium board; obtain the complete assembly drawing to confirm clearance above the lenses, fixing positions and lead routing.

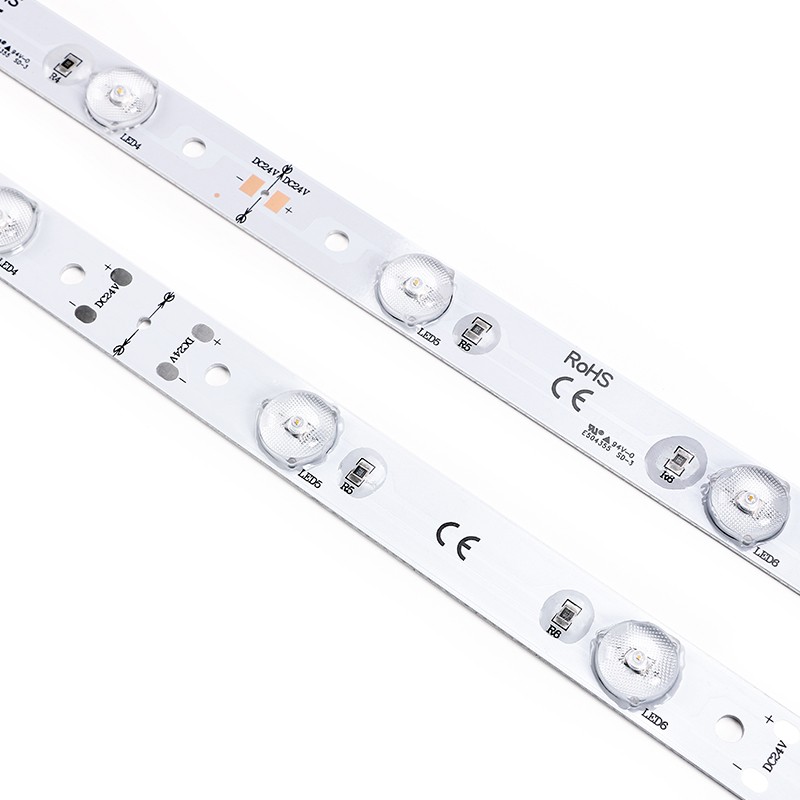

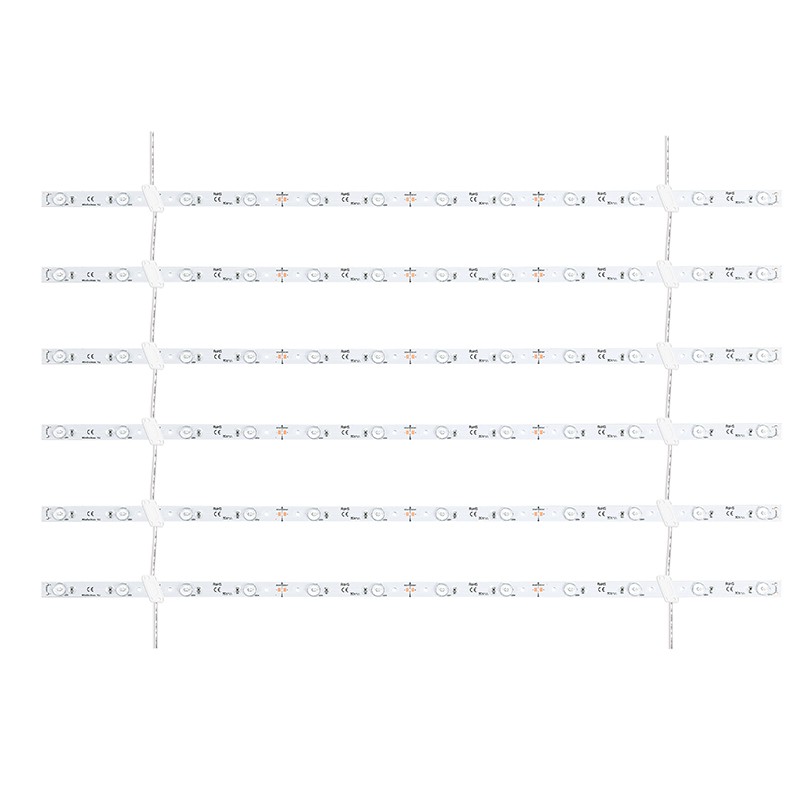

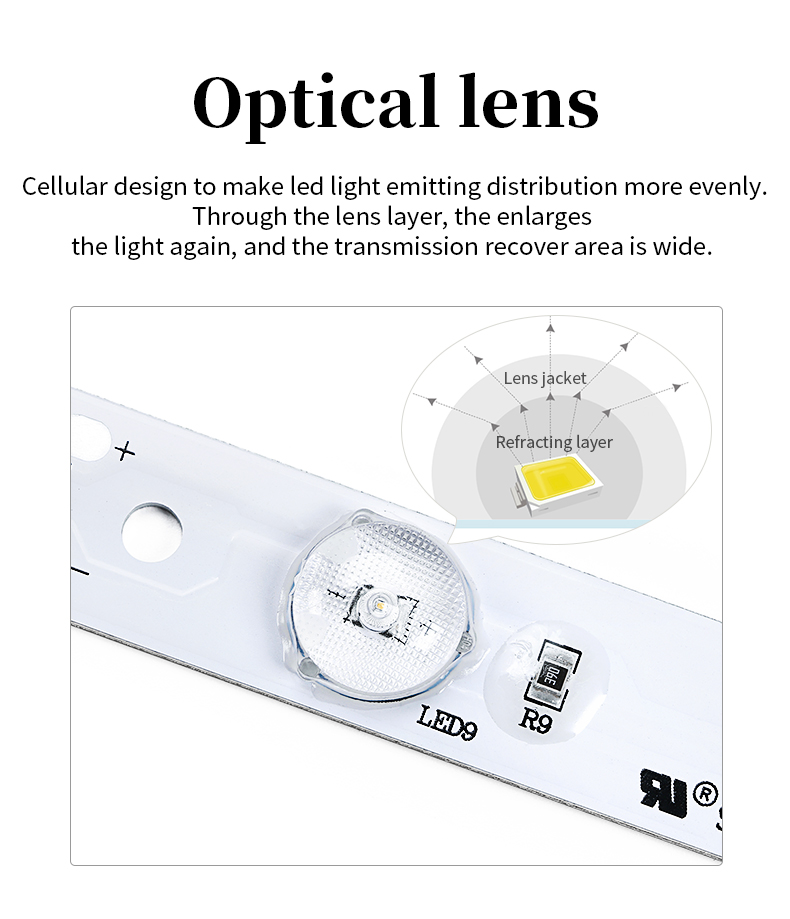

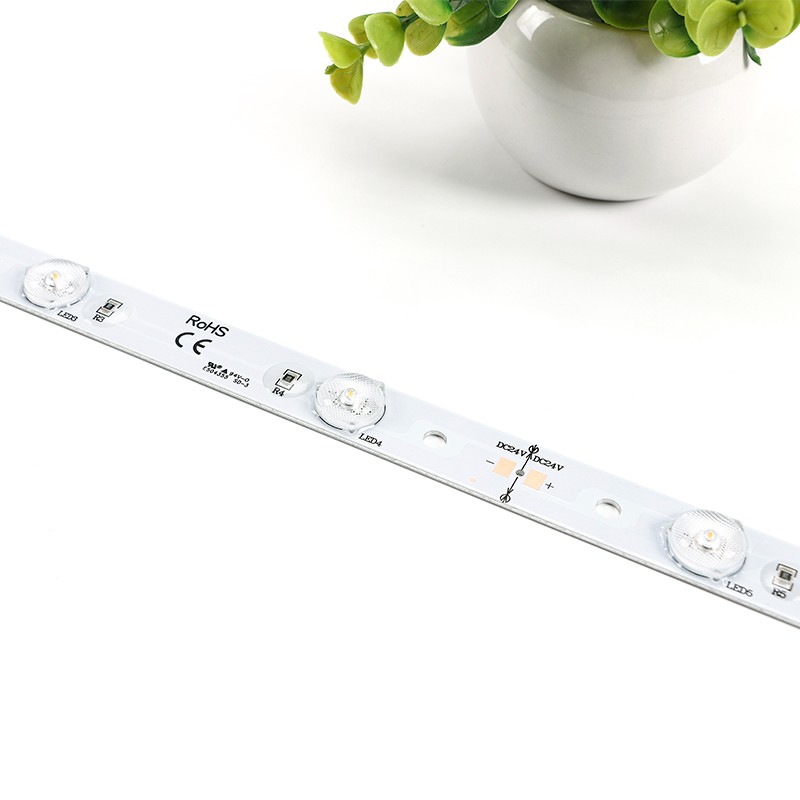

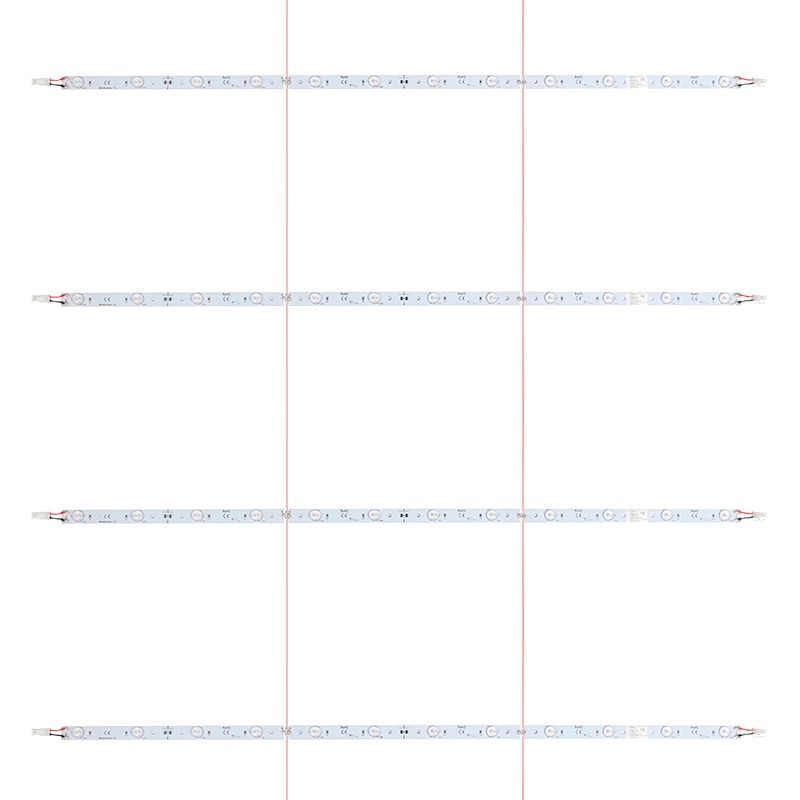

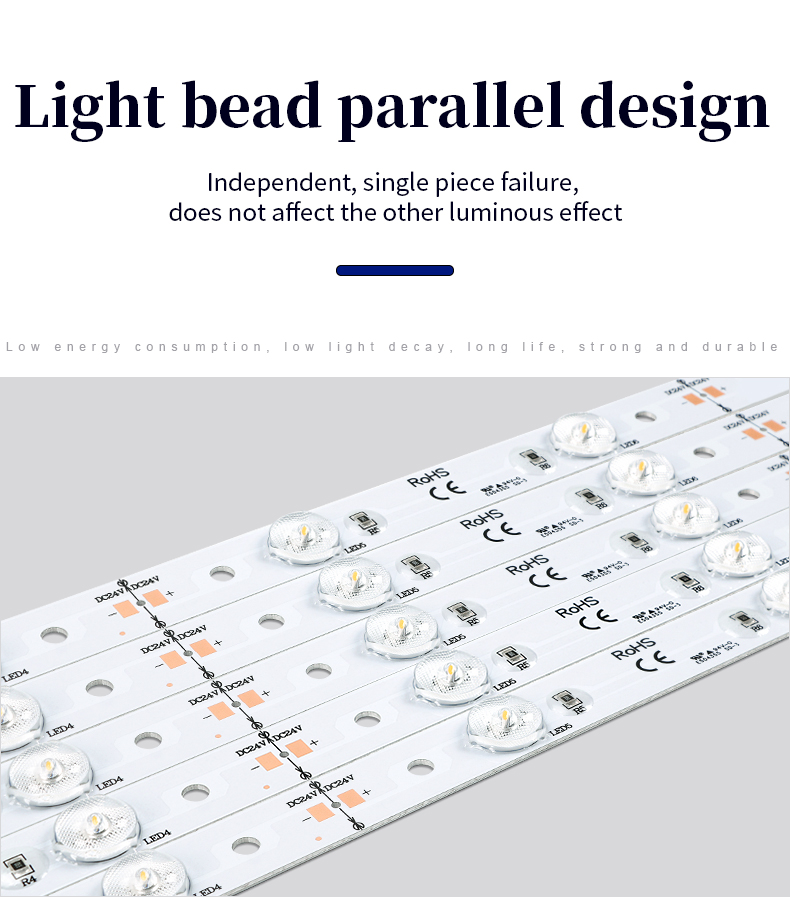

The pictures show lens-equipped boards and a linked arrangement. Provide the mounting drawing and intended bar quantity to confirm the electrical connections, matching power unit and permitted connection quantity. List the leads and fixing items required in the supply scope.

Lightbox project supply and technical documents

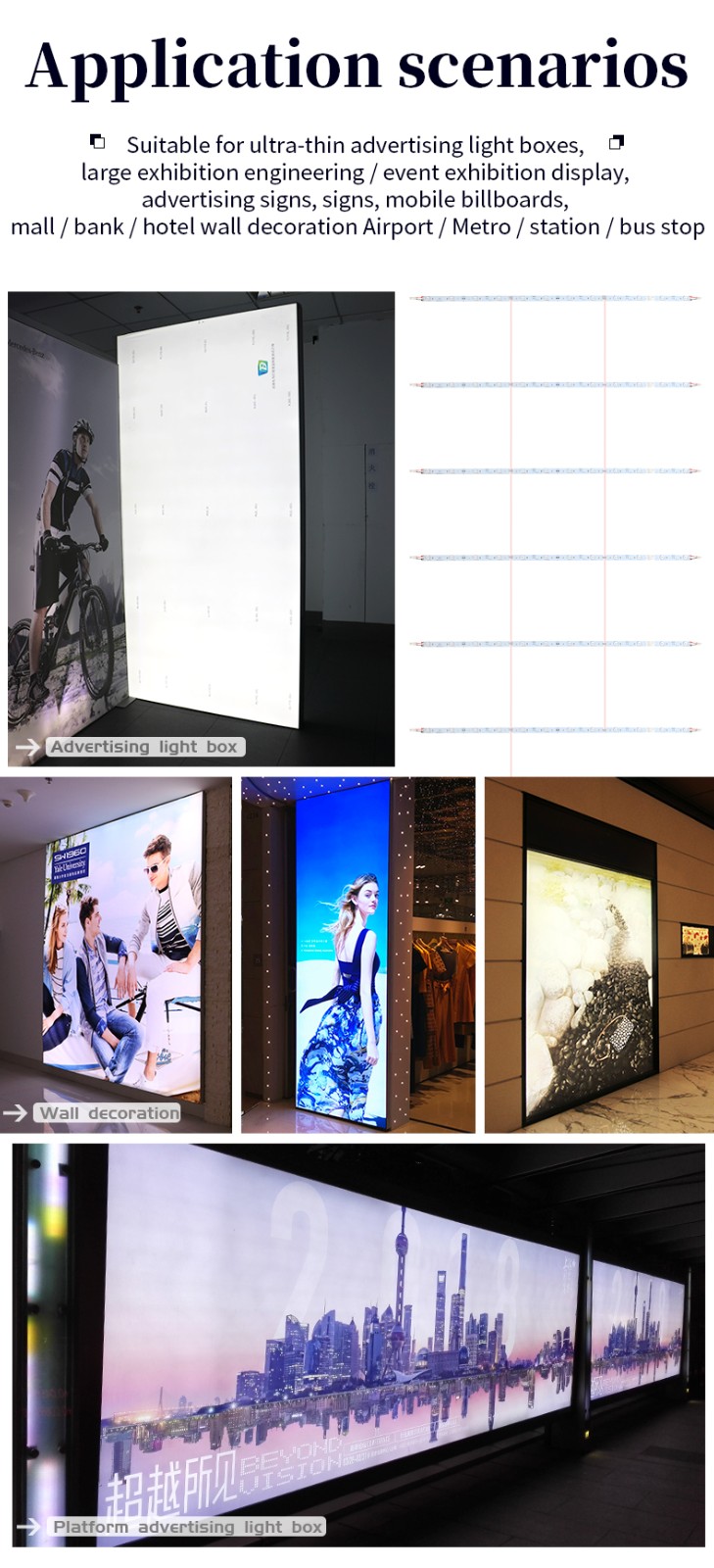

The application examples include advertising lightboxes, illuminated retail graphics and platform-display concepts. Define the face material, enclosure dimensions and lighting layout with your sample request.

Wholesale supply starts at 20 pcs, with volume pricing for larger quantities. Samples are available; charges and destination shipping are confirmed separately. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported, with custom schedules and transit agreed separately.

For market documentation, identify the destination and required technical or compliance information. Request current documents applicable to the quoted model and configuration when approving the order.

550-lumen backlight selection questions

Which model is listed at 6W and 550 lm?

SL-BM061-1200 is the twelve-LED white backlight bar listed at 6W, 550 lm and 24V DC. Its board is 950mm long and 20mm wide, with 180° optics.

Is the complete lens-bar height 1.6mm?

The 1.6mm dimension identifies the aluminium board in the product data and board printing. Request the complete assembly drawing to check the lens clearance and fixing arrangement in your lightbox.

How do I order a CRI90+ white backlight sample?

Include SL-BM061-1200, the desired white-light range, CRI90+ requirement, sample quantity and delivery country. Confirm the quoted version, technical data, sample charge and shipping before bulk selection.

What should a wholesale lightbox enquiry include?

Provide the display drawing, face material, proposed bar positions, quantity, light-colour requirement and destination. Include the required power unit, leads, fixing items and market documents to define the quotation.
