270.5mm LED Signage Module - 6W Six Lens LEDs

270.5mm six-LED modules for illuminated signage

Specify a 270.5mm LED signage module where the frame layout calls for a shorter rigid light source. SL-BL108-6L combines six lens LEDs, a 6W ±10% power rating and 720 lm ±10% specified output, with a 24V DC input and 15 × 60° optics.

For illuminated-sign fabricators and component distributors, the exact module envelope, connection arrangement and white-light version define the order. Provide the usable mounting space and project quantities to confirm the modules, coupling parts, fixing components and power-unit scope in one quotation.

6W signage module technical data

Check the module envelope and fixing space

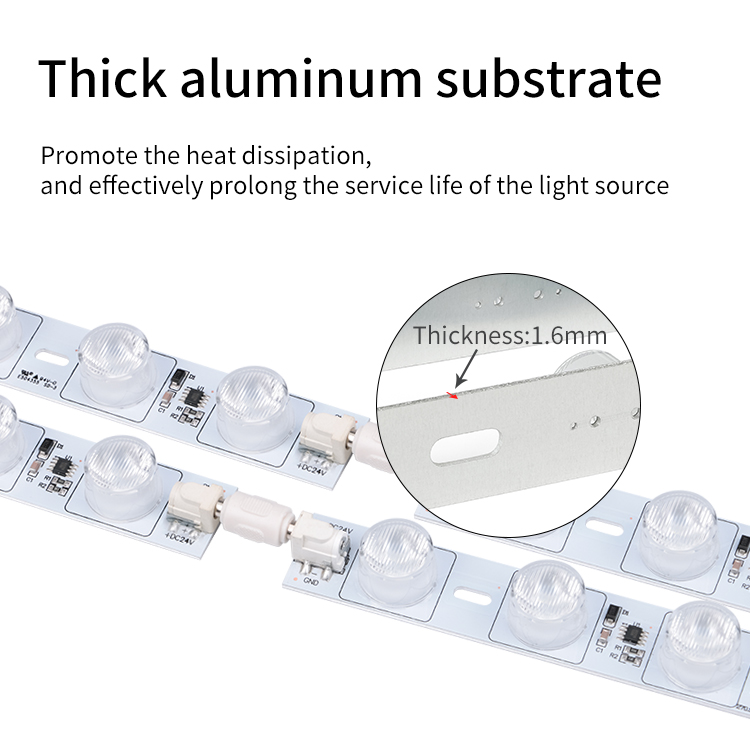

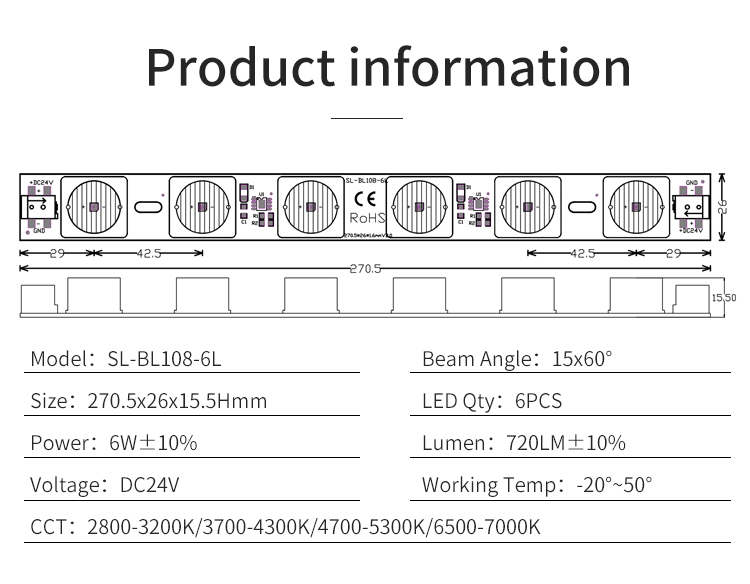

Use the full 270.5 × 26 × 15.5mm envelope when planning the enclosure. The original construction illustration identifies a 1.6mm aluminium substrate and slotted fixing areas, while the lenses contribute to the complete assembly height.

Send the frame profile, usable space and fixing positions so the mounting arrangement and supplied hardware can be confirmed for the production drawing.

Connection parts for a 24V sign assembly

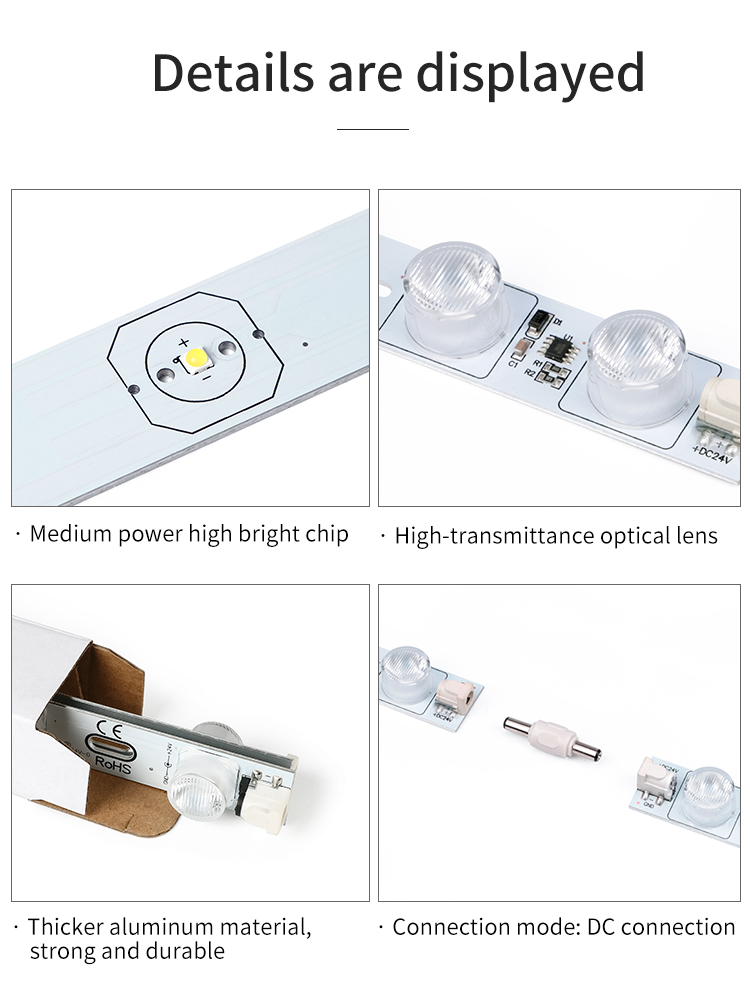

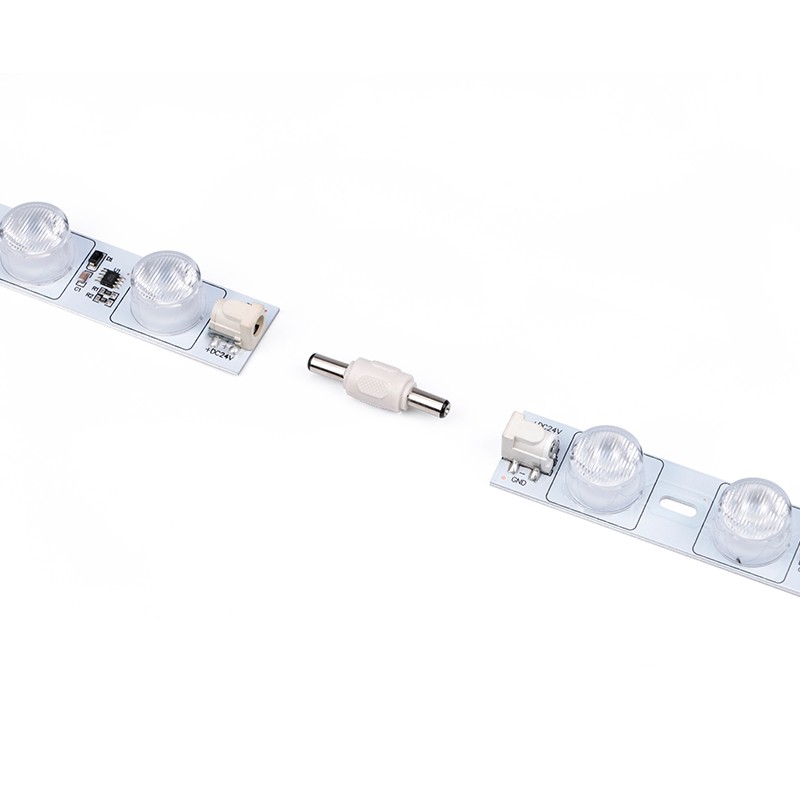

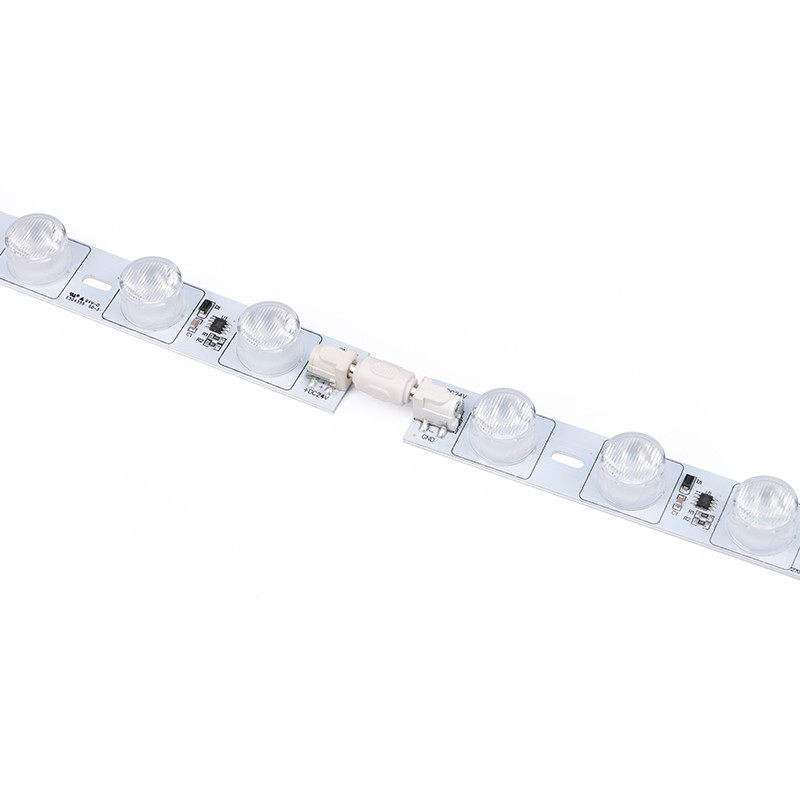

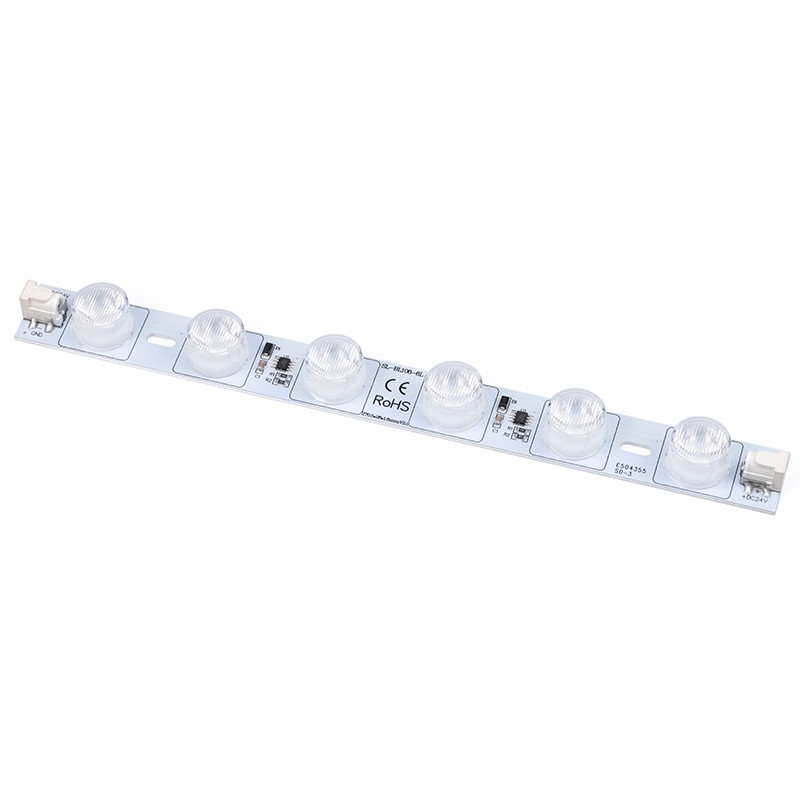

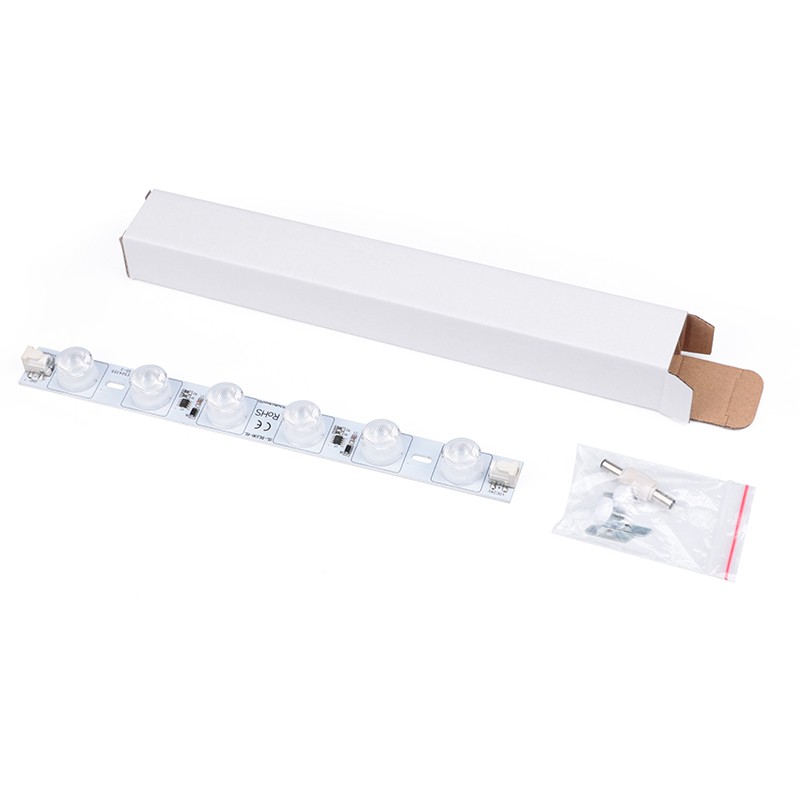

The close-ups show a socket at the board end and a separate DC coupling component. Prepare the connection layout alongside the module positions to define the coupling parts, leads and power units needed for assembly.

List the module quantity and preferred cable routing with the enquiry. The quotation can then identify the supplied electrical components and their quantities.

White-light order versions and display evaluation

The four listed ranges are 2800–3200K, 3700–4300K, 4700–5300K and 6500–7000K. Choose the order version against the intended graphic or diffuser, then assess a sample in the actual enclosure.

The application examples include illuminated advertising boxes and decorative displays. Provide the face material, enclosure dimensions and planned module layout to confirm a suitable project configuration.

Wholesale supply and order packing

The packing illustration shows individual boxes and accessory-bag examples. Confirm the connection parts, packing specification and units per carton for the order.

Wholesale orders begin at 20 pcs, with lower unit prices at higher quantities. Samples are available and standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample shipping, custom production schedules and transit time are confirmed separately.

Questions for sourcing six-LED signage modules

What is the exact length of this module?

SL-BL108-6L is 270.5mm long, 26mm wide and 15.5mm high. Include the frame profile and available mounting space when requesting the fixing arrangement.

How do I order the DC coupling components?

Provide a drawing showing the module positions and wiring route. The illustrated board-end sockets and DC coupling components are reference details; the supplied parts and quantities are confirmed in the quotation.

Can I choose the white-light appearance?

Four order ranges are listed: 2800–3200K, 3700–4300K, 4700–5300K and 6500–7000K. State the chosen range and request a sample to evaluate it with the sign face.

What information is needed for a 6W-module quotation?

Send the model, quantity, white-light version, connection layout and delivery country. Production quantities start from 20 pcs; samples and volume pricing are available.

Can the modules be supplied for a private-label project?

Yes. Include the branding and packaging requirements with the target quantity to confirm the scope and price. Standard lead time is 12–18 days, with custom requirements and transit confirmed separately.

Match other lengths in the SL-BL108 series

143mm 3W three-LED side-lighting module

398mm 9W nine-LED lightbox bar
