Compact linear lighting for exhibition graphics

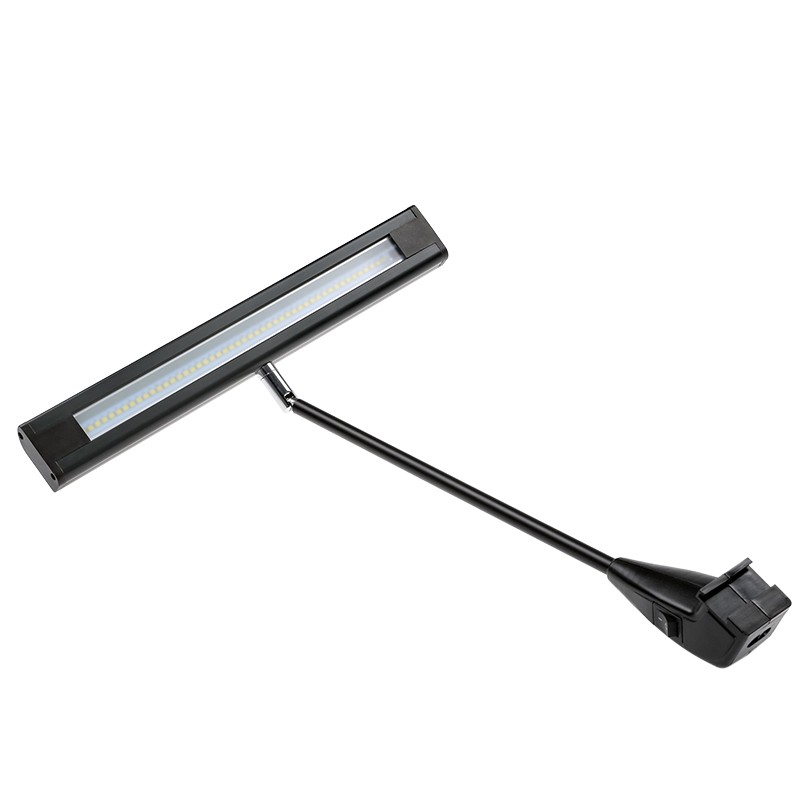

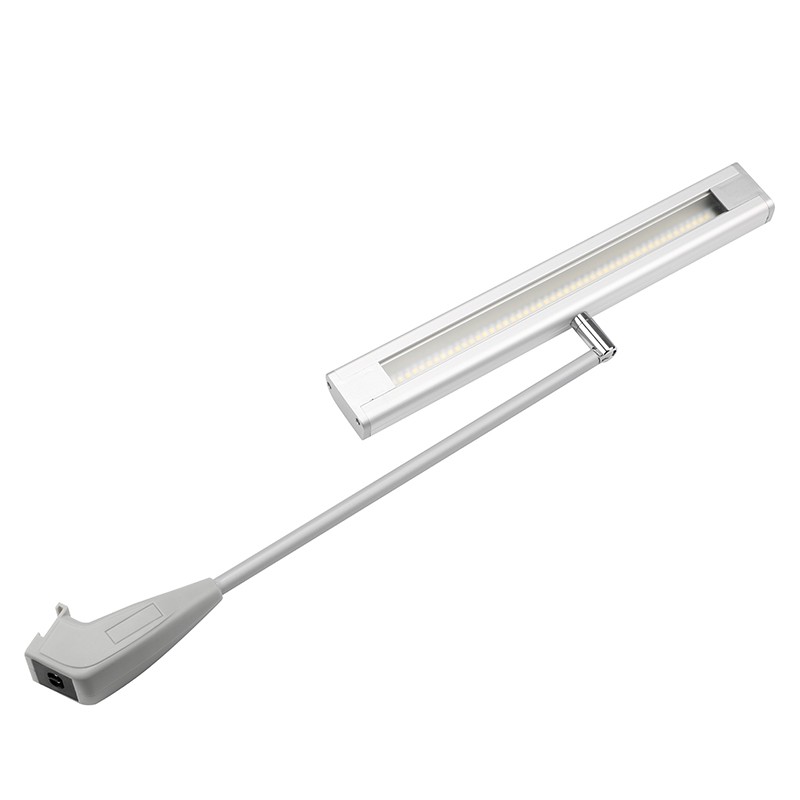

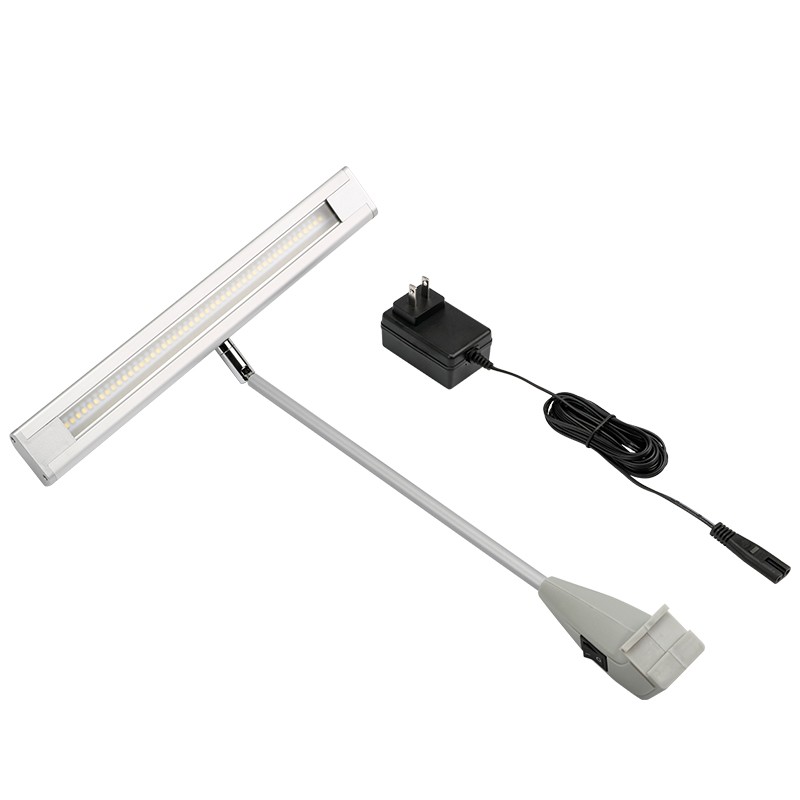

The SL-2102-048L is a 16W linear display arm light with a 310mm head and a listed output of 1300 lm ±10%. Its 60° beam and adjustable head let you direct the light onto a graphic panel. The images show black and silver-white versions with a universal-shoe base or an aluminium clamp option.
For portable-display manufacturers and exhibition contractors, the compact head, mounting choice and white-light appearance are the main ordering decisions. Share the graphic dimensions, frame profile and destination electrical requirements so the complete fitting and cable configuration can be confirmed.
Choose the fixing for your display frame

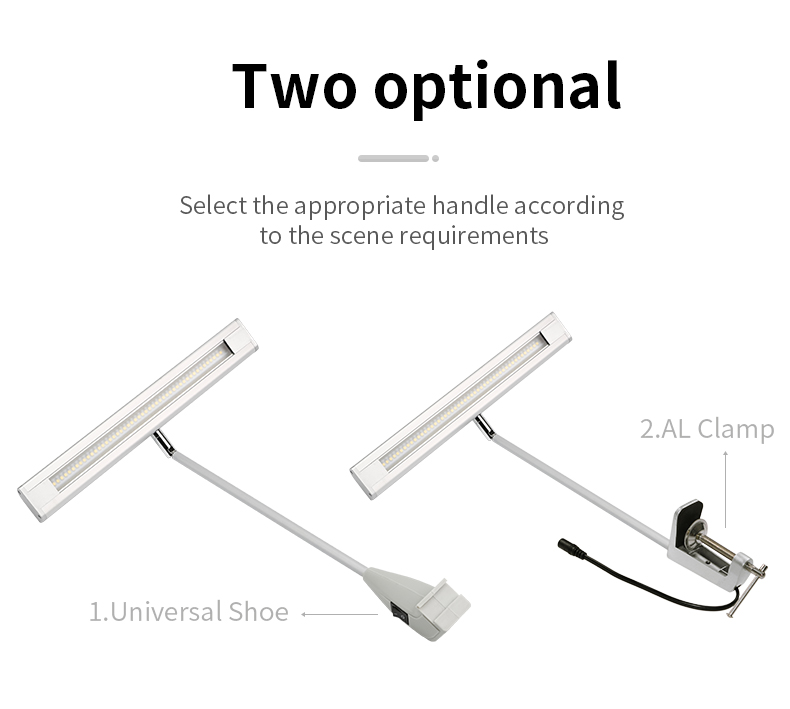

The mounting illustration shows two arrangements: a universal-shoe base and an aluminium clamp. Send the frame section dimensions and a photo of the mounting area to select the fitting. A sample helps check the actual mechanical fit before a production order.

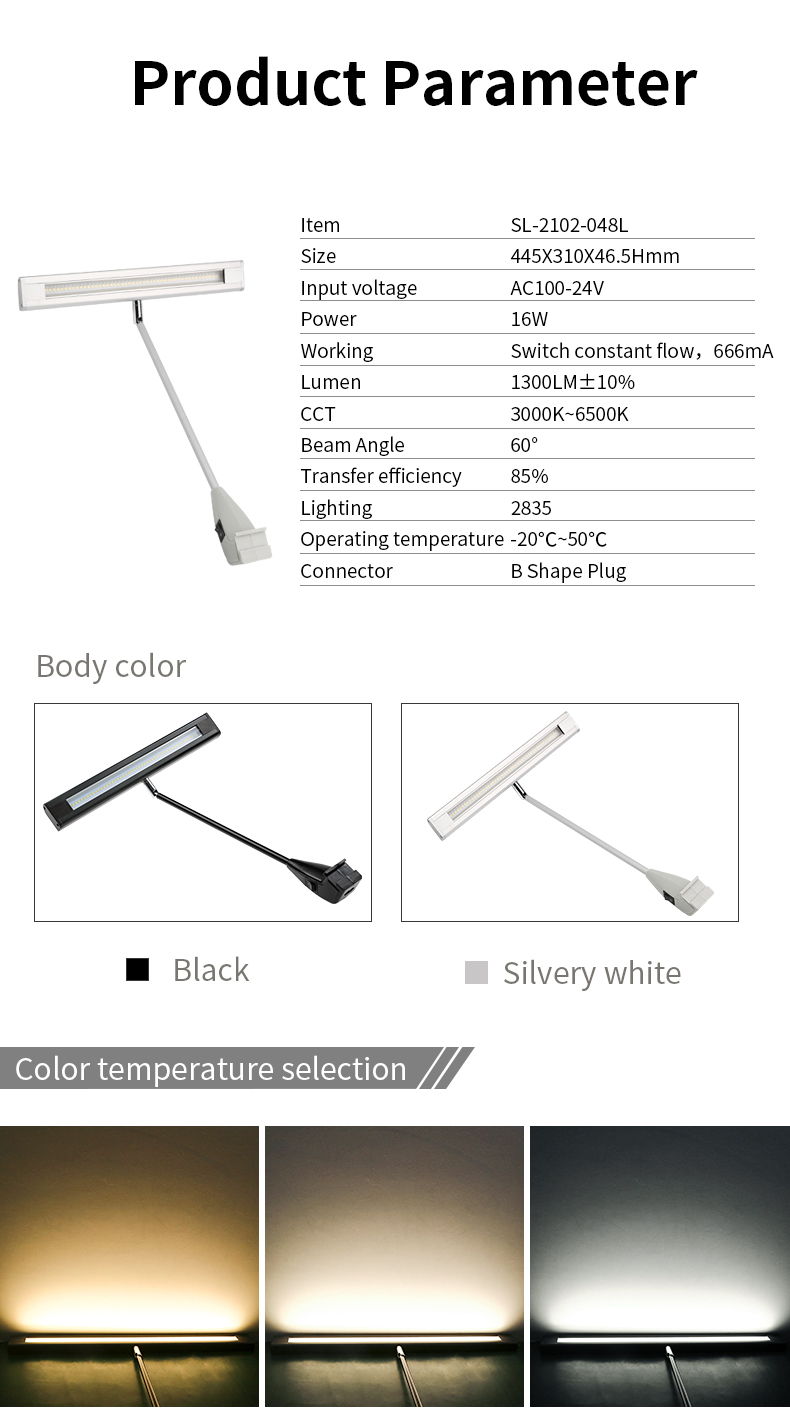

310mm-head model specifications
| Specification | SL-2102-048L |
|---|
| Model | SL-2102-048L |
| Power | 16W |
| Listed output | 1300 lm ±10% |
| Beam angle | 60° |

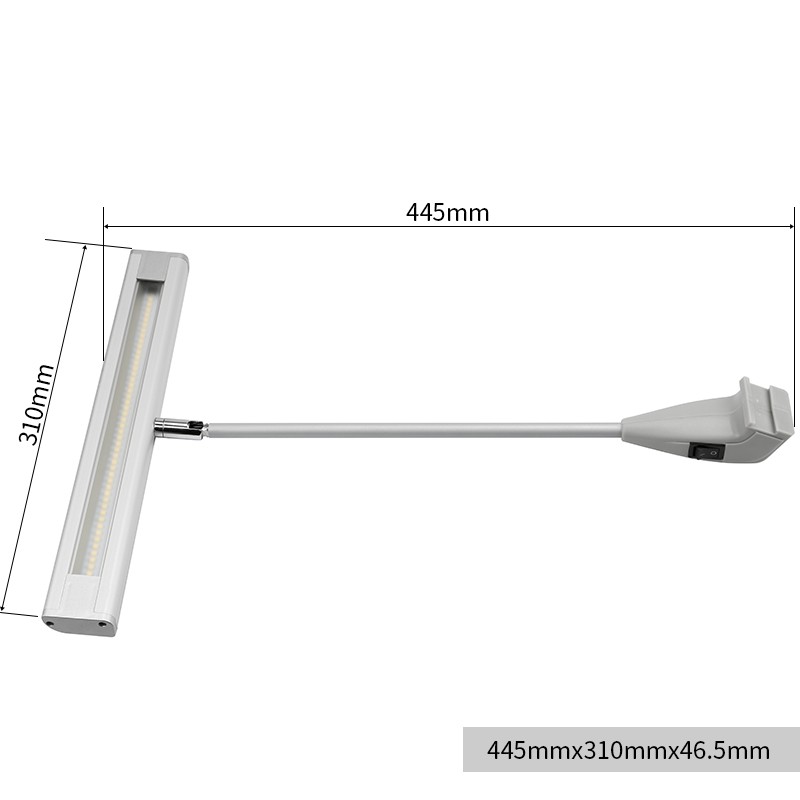

| Dimensions listed | 445 × 310 × 46.5 mm |
| Head length | 310 mm |
| Colour-temperature range listed | 3000–6500K; confirm the selected order version |
| LED package listed | 2835 |
| Body finishes | Black or silver-white |
| Construction illustrated | Aluminium lamp profile |
| Mounting options illustrated | Universal shoe or aluminium clamp |

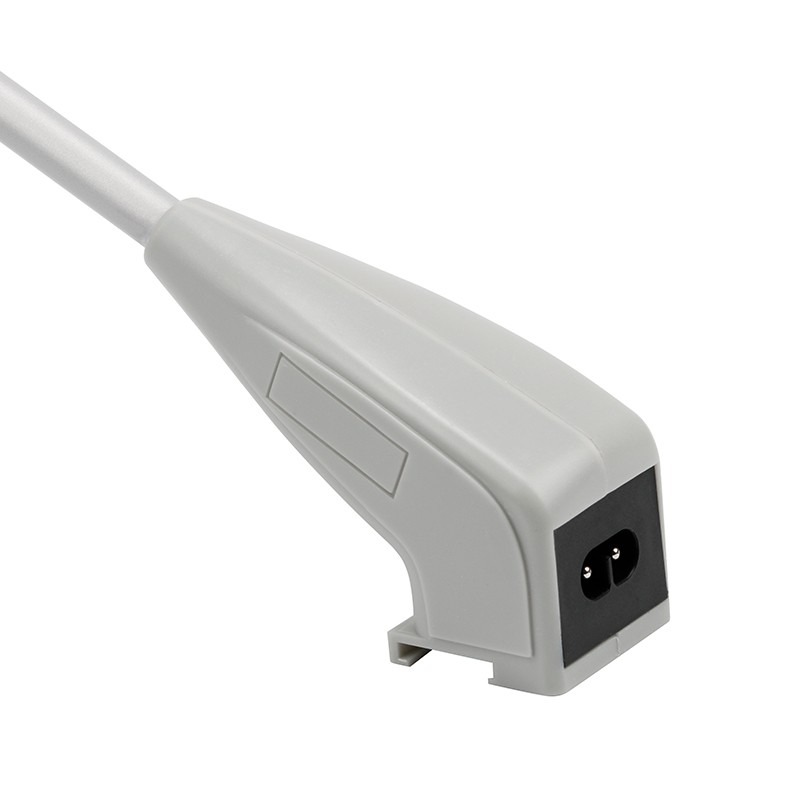

| Connector listed | B Shape Plug |
| Input voltage | Confirm the electrical rating and supplied cable configuration with the quotation |
Adjustable linear head and base switch

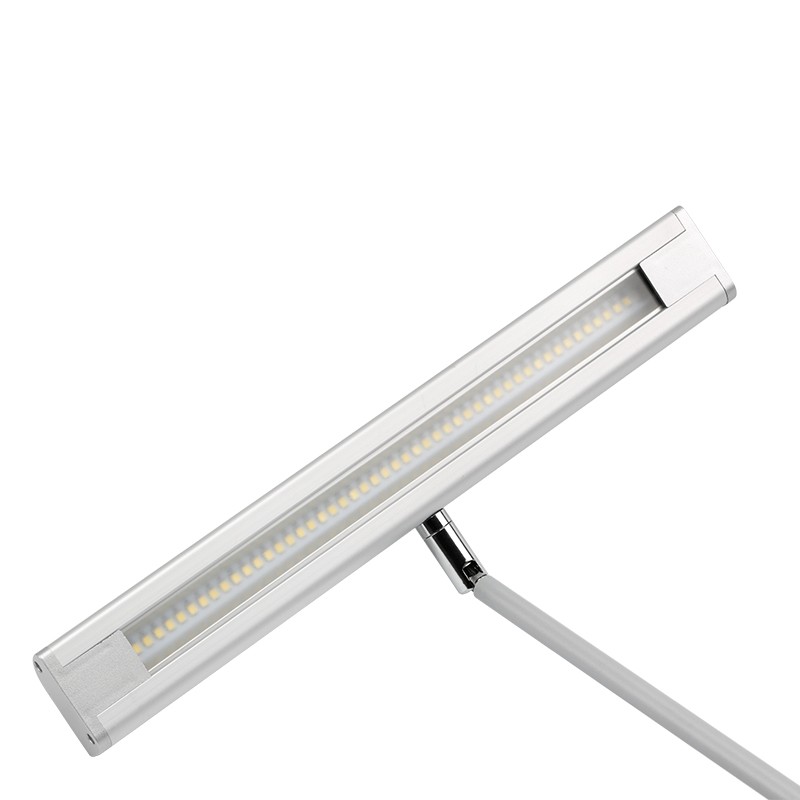

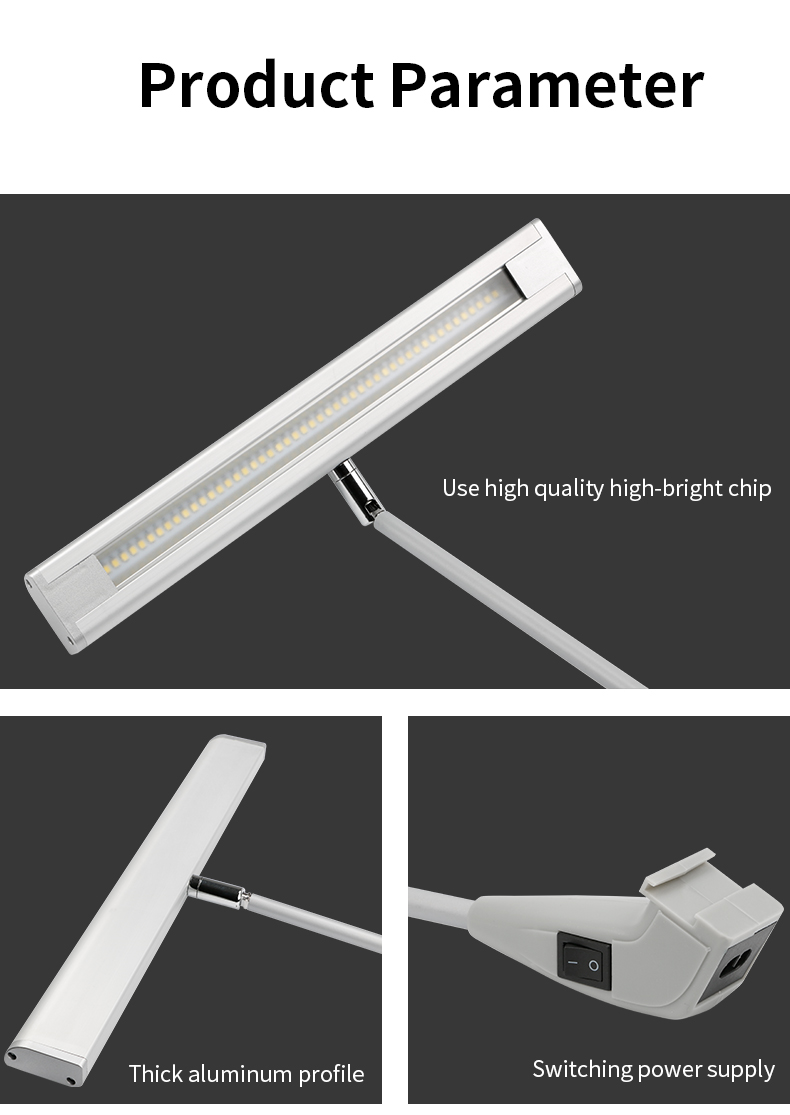

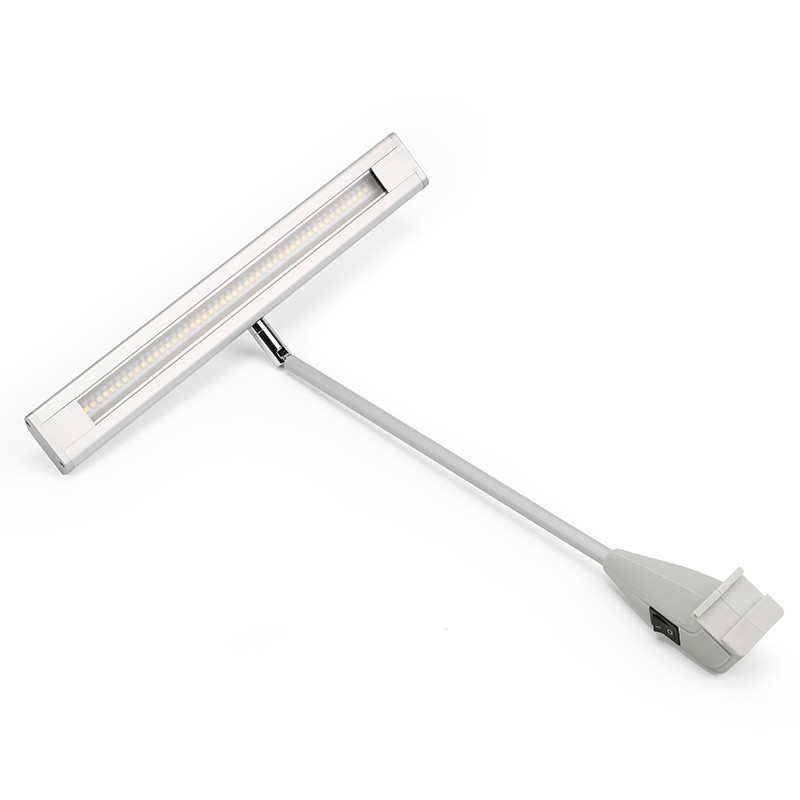

Aim the linear head at the printed display surface and check the illumination on your actual graphic. The detail images show an aluminium lamp profile, a head joint and an on/off switch on the base. Confirm the electrical input, destination plug and cable length for the supplied configuration.
Questions for compact display-light orders
Is this the same width as the 96-LED model?
This parameter sheet lists a 310mm head, while the SL-2101-96L sheet lists 466mm. Choose the head format by the graphic dimensions, mounting position and sample lighting result.
Can I choose warm or cool white?
The sheet lists 3000–6500K and shows different white-light appearances. Specify the desired colour temperature when ordering; this does not indicate an on-lamp CCT switch.
What should I send for a wholesale quote?
Include model SL-2102-048L, quantity, finish, colour temperature, frame profile, mounting choice and destination electrical requirements. Orders start at 20 pcs, with lower unit prices at higher quantities.
Samples, production and private-label supply
Samples are available to check the fitting and lighting appearance. Standard lead time is 12–18 days. Custom configuration schedules and transit time are confirmed separately.
OEM, ODM and private-label enquiries are supported. Send your packing, branding and specification requirements with the target quantity so the supply scope and quotation can be confirmed.
