Switched arm lighting for linked display layouts

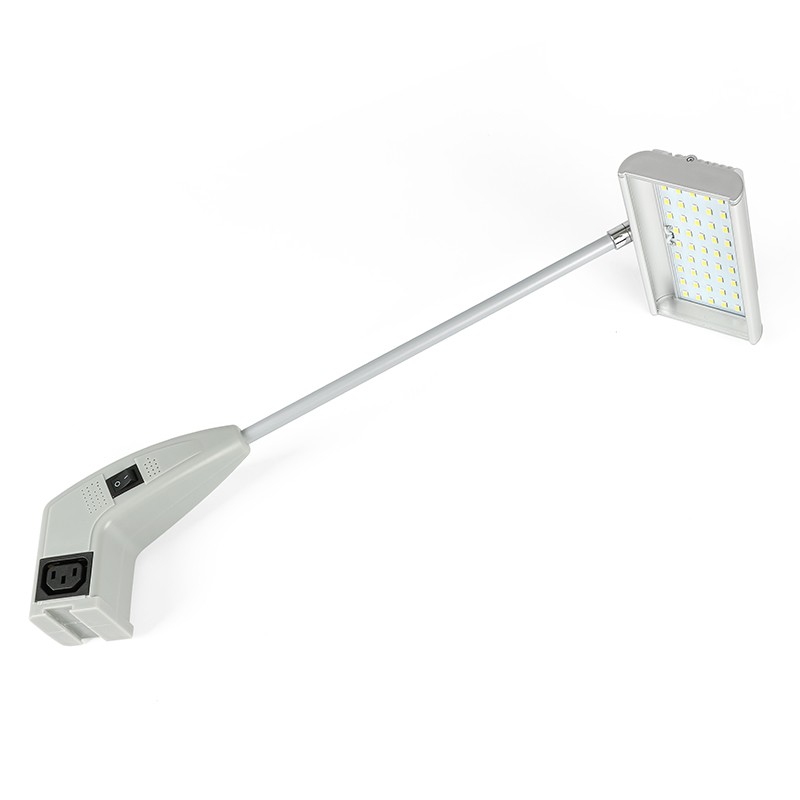

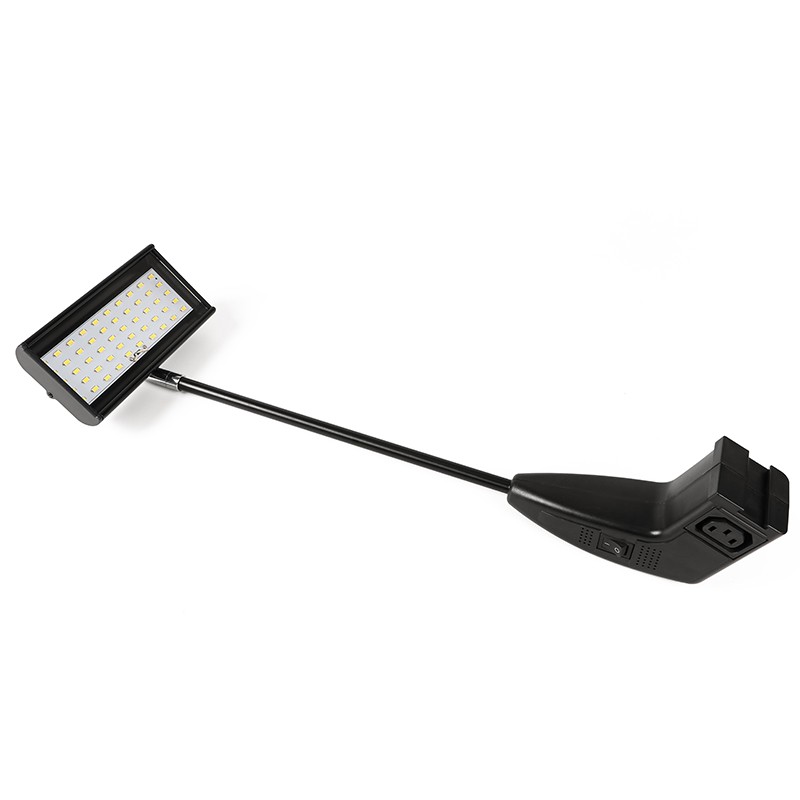

The SL-2062-04-N50L is a 21W display arm light with 50 LEDs, 1700 lm output and a 120° beam. Its specification lists AC 100–240V input, three-pin input/output and dimensions of 518 × 146 × 50 mm. The close-up shows a built-in power-supply base with an on/off switch and an adjustable head.
For stand builders and wholesale lighting-kit buyers, confirm the mounting position, cable route and white-light version before ordering. Share the frame profile, graphic dimensions, number of lamps and destination plug so the complete kit and permitted connection arrangement can be quoted for the project.

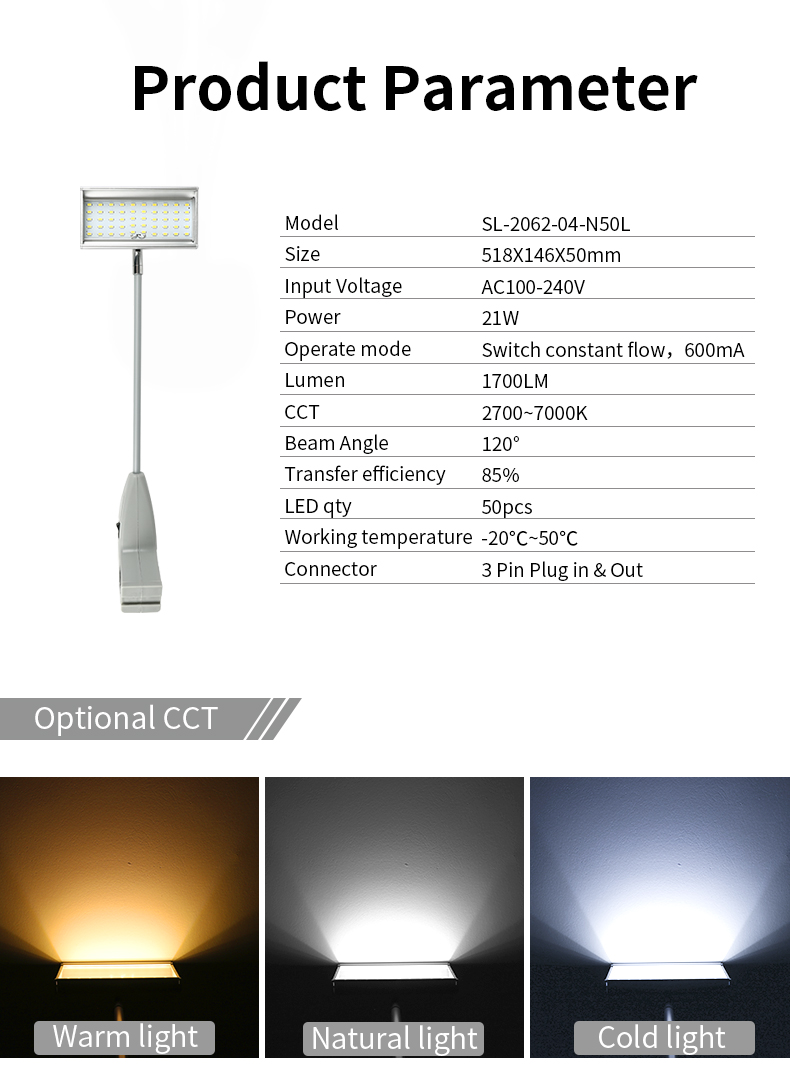

21W switched arm-light specifications
| Specification | SL-2062-04-N50L |
|---|
| Model | SL-2062-04-N50L |
| Power | 21W |
| Light output | 1700 lm |
| LED quantity | 50 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 120° |
| Dimensions | 518 × 146 × 50 mm |
| White-light order range | 2700–7000K |
| Connections | Three-pin input and output |
| Control | Base on/off switch |
| Driver | Built-in supply pictured; constant current, 600 mA as listed |
| Working-temperature range | -20°C to +50°C |
Place the head and use the base switch

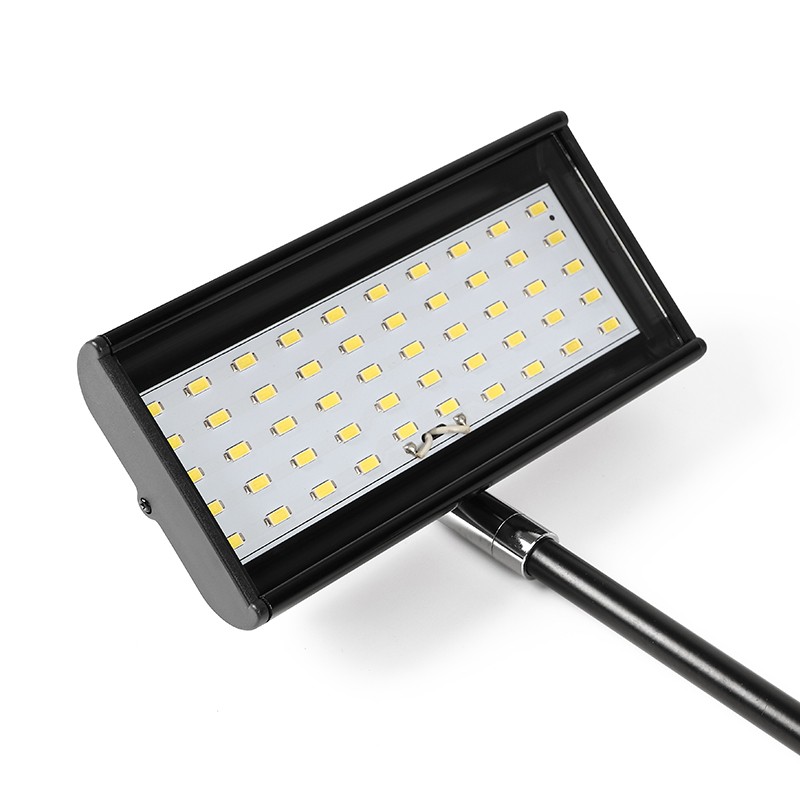

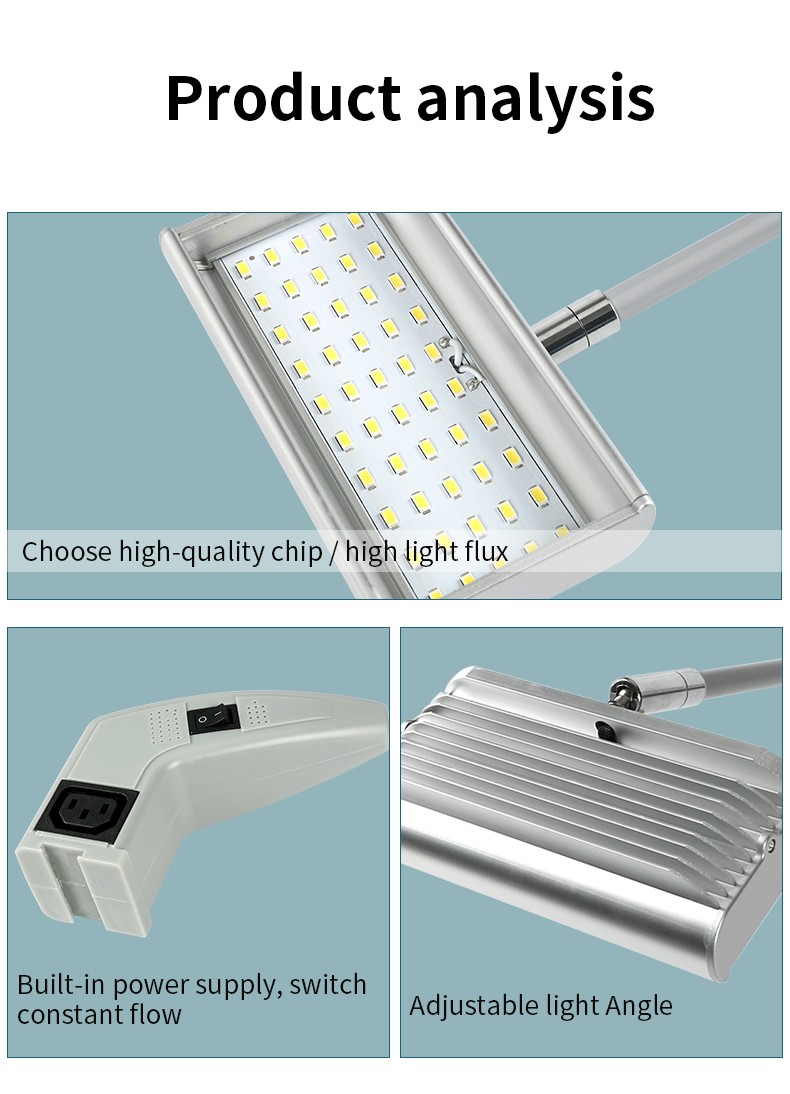

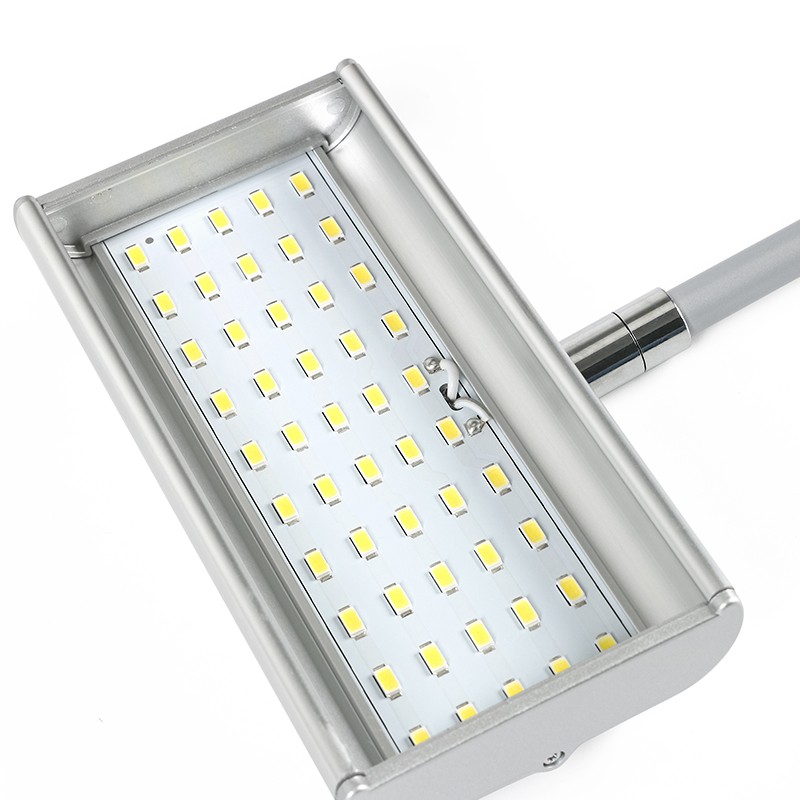

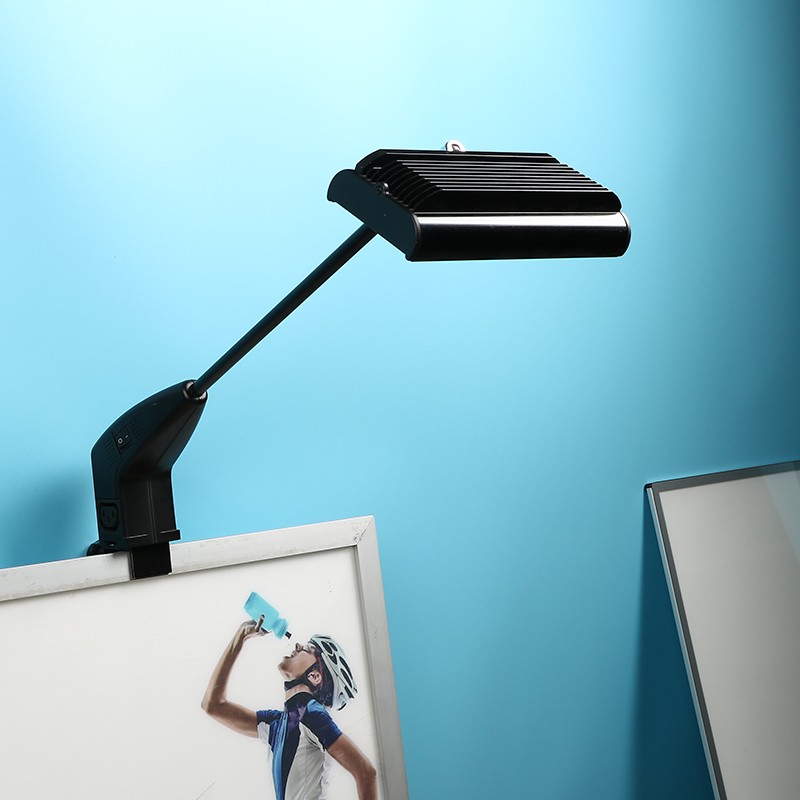

The product close-up shows the 50-LED head, adjustable joint and rear heat-dissipation ribs. Aim the 120° beam from the planned fixing position and check the coverage against the display graphic.

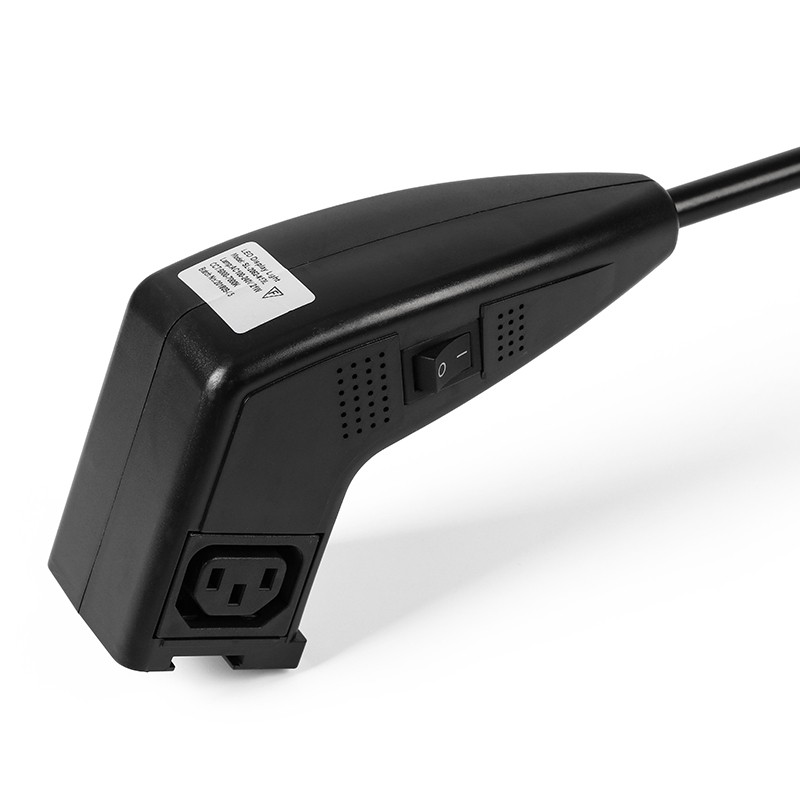

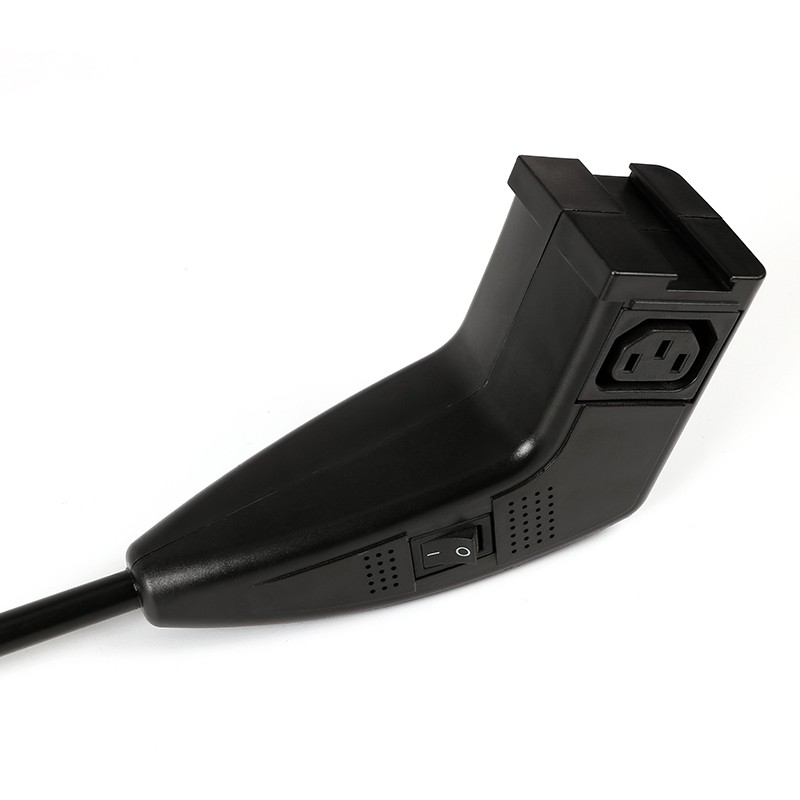

An on/off switch is shown on the base alongside the built-in power supply. Select the required white-light version within the listed 2700–7000K order range before preparing the sample or bulk order.
Specify leads, fittings and carton contents

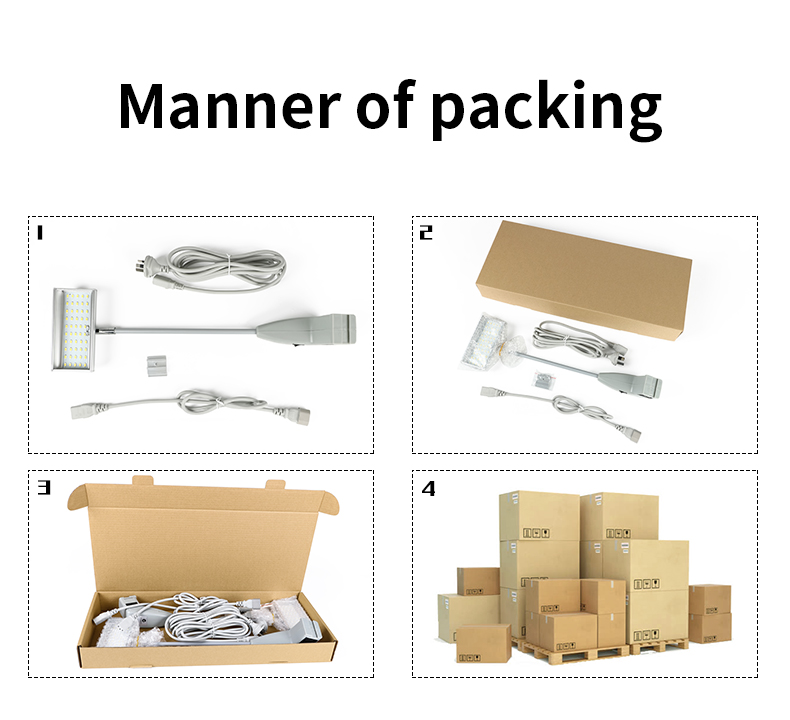

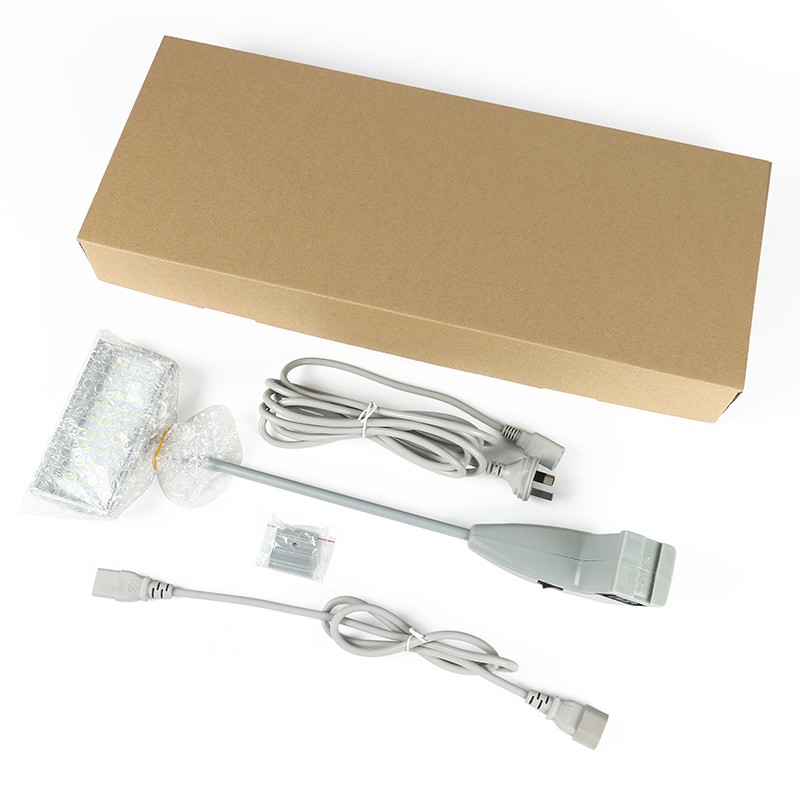

The packing illustration shows a lamp, mains and linking leads and a fitting, followed by individual and outer cartons. Confirm the fitting against the frame profile, and include the lamp count, cable route and destination plug when requesting the kit configuration.
The model lists three-pin input/output. Confirm the permitted linking arrangement and components per kit, lead lengths, carton quantities and any branded packing requirements with the quotation.
Purchasing questions for switched exhibition lights
Does the base switch provide dimming or colour selection?
The pictured control is an on/off switch. Order the required white-light version within the listed 2700–7000K range and confirm any additional control requirements separately.
How should I plan a linked lamp layout?
Provide the quantity, fixing positions, lead requirements and venue supply information. The three-pin input/output configuration must be confirmed for the complete kit before ordering.
What is needed for a factory quotation?
Send SL-2062-04-N50L, quantity, colour-temperature requirement, frame profile, cable route, destination plug and packing details. Wholesale supply starts from 20 pcs, with lower unit prices at larger quantities.
Sample assessment and OEM supply
Samples are available to check the mechanical fit, beam coverage and switch operation. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit time are confirmed separately.
