COB arm lighting for exhibition graphics

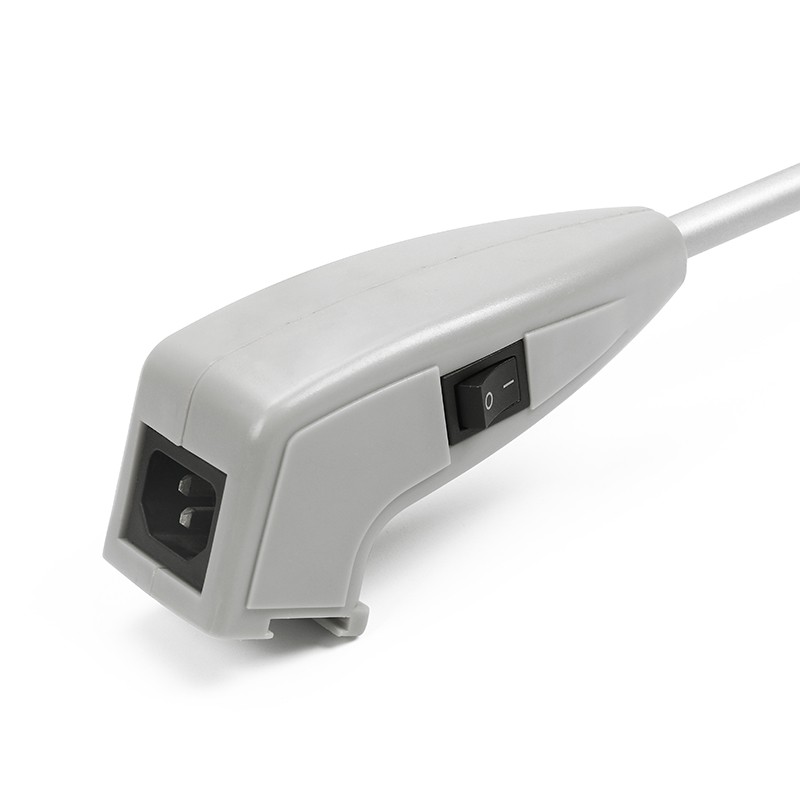

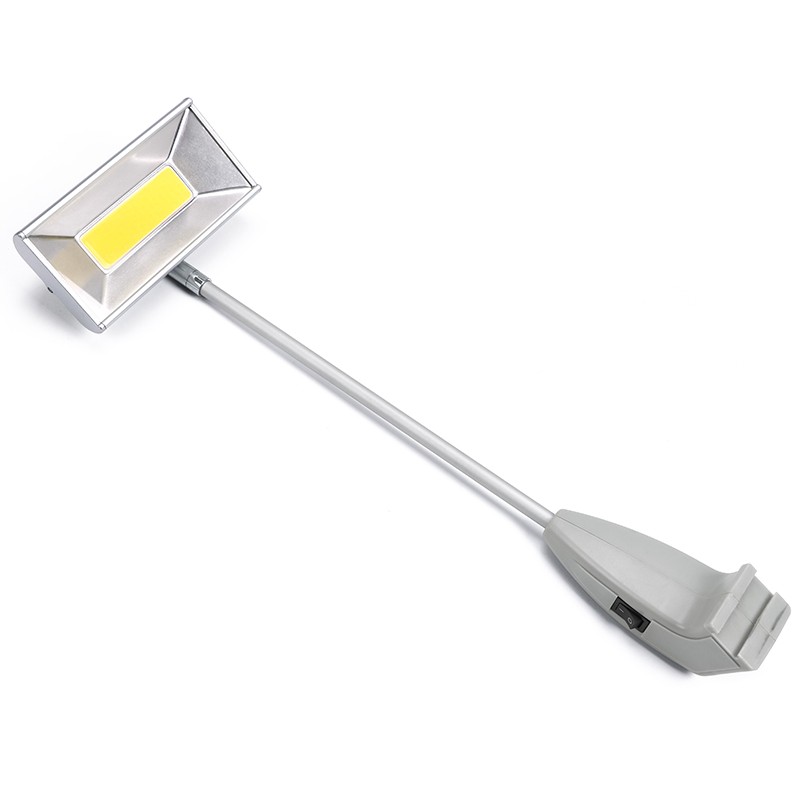

The SL-2067-COB200 is a 20W COB long arm light for exhibition graphics and display panels. Its technical sheet specifies 1800 lm ±10% output, a 120° beam, AC 100–240V input and dimensions of 460 × 146 × 40 mm. A base on/off switch and adjustable head are shown in the product close-up.
For booth builders and display-light distributors, select the fitting and white-light version alongside the electrical kit. Forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate are pictured. Send the frame profile, graphic dimensions, lamp quantity and destination plug to obtain a quotation for the required configuration.
20W COB long-arm light specifications
| Specification | SL-2067-COB200 |
|---|
| Model | SL-2067-COB200 |
| Power | 20W |
| Light output | 1800 lm ±10% |
| LED type | COB |
| Input voltage | AC 100–240V |
| Beam angle | 120° |
| Dimensions | 460 × 146 × 40 mm |
| White-light order range | 3000–7000K |
| Connector | Three-pin plug |
| Control | Base on/off switch pictured |
| Driver operating mode | Constant current, 500 mA as listed |
| Optional fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp / 0520 mounting plate |
| Operating-temperature range | -20°C to +50°C |
Match the COB head and fixing to the graphic

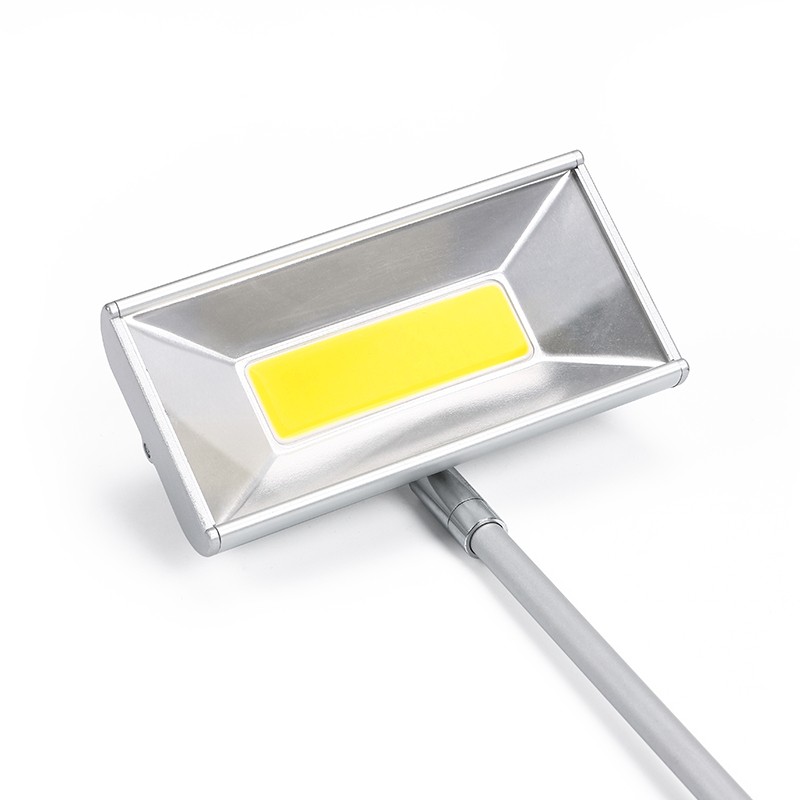

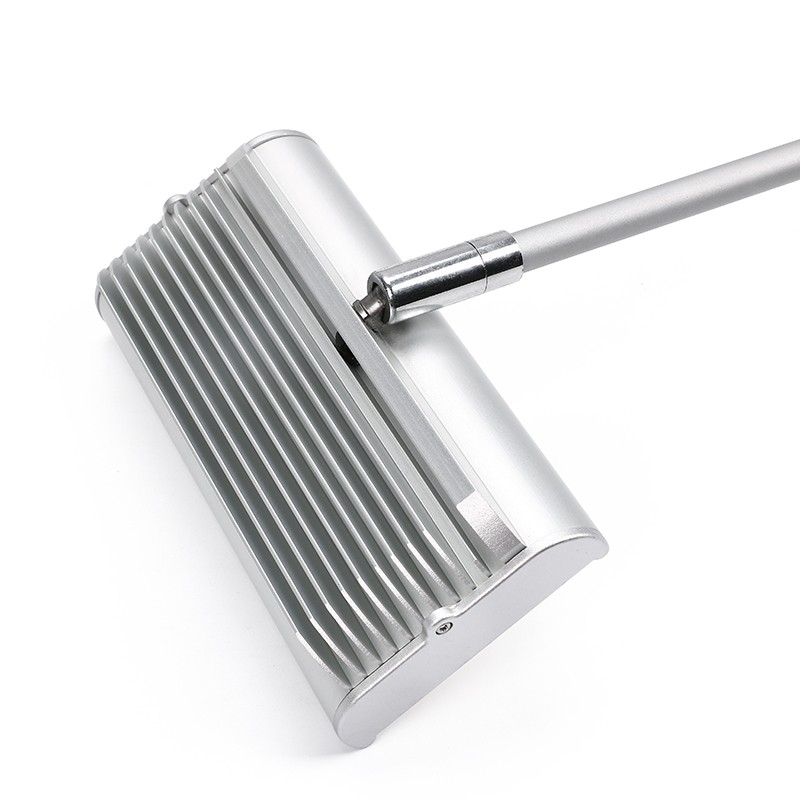

The rectangular COB source, rear heat-dissipation ribs and adjustable joint are shown in the close-up. Position the head from the intended mounting point and check the 120° beam against the graphic size. Confirm the frame dimensions before selecting a slider, aluminium clamp or mounting plate.
Order the white-light version and connection kit
The technical sheet lists a 3000–7000K white-light order range. Use the warm, neutral and cool appearance examples to discuss the version required for the display. The base switch provides on/off control; specify the required colour temperature when ordering.

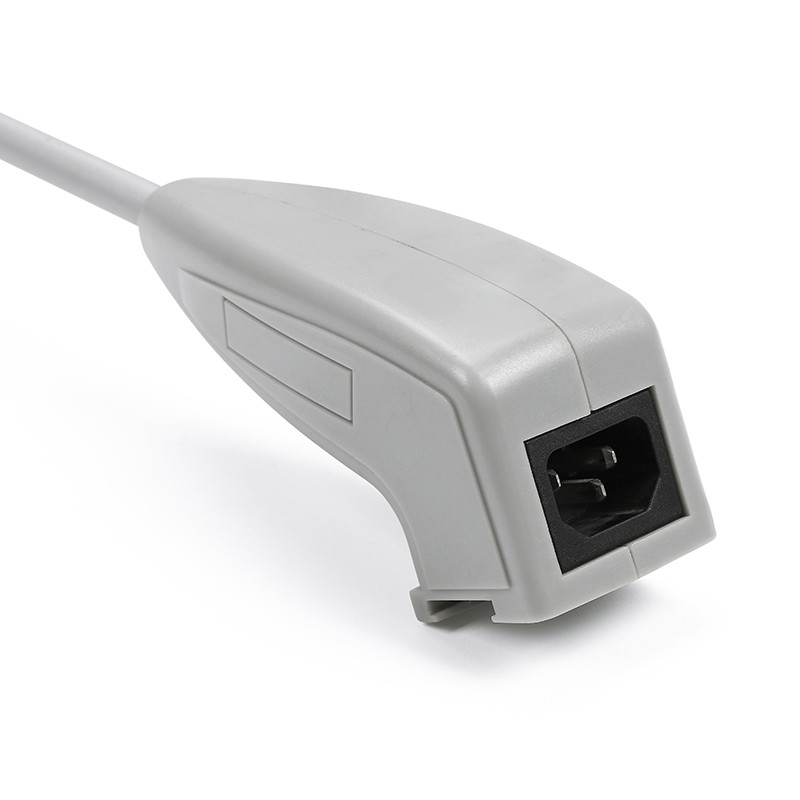

The connector is listed as a three-pin plug. Provide the mains-plug requirement, lamp quantity and cable route so the matching leads and complete electrical configuration can be confirmed.
Exhibition applications and wholesale packing
Application images show COB arm lights over exhibition panels and display graphics. A sample can be used to check the mounting position, coverage and white-light appearance before preparing a larger display-light order.
The packing illustration shows a lamp with leads and fittings, an individual cardboard box and outer cartons. Confirm the components per kit, lead lengths, units per carton and any private-label packing requirements with the quotation.
COB display-light purchasing questions
Does the base switch change colour temperature?
It is shown as an on/off switch. Select the white-light version within the listed 3000–7000K order range and confirm the configuration with the sample request.
Which frame fitting should I order?
The pictured choices are forward and reverse sliders, 0505 or 0509 aluminium clamps and a 0520 mounting plate. Send the frame section and fixing position so the fit can be checked.
What information is needed for a bulk quotation?
Include SL-2067-COB200, target quantity, fitting, required colour temperature, destination plug and packing requirements. Wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Samples and custom supply
Samples are available for fixing and lighting checks. Standard lead time is 12–18 days, with OEM, ODM and private-label enquiries supported. Sample cost, shipping, custom schedules and transit time are confirmed separately.
