Linkable arm lights for coordinated display layouts

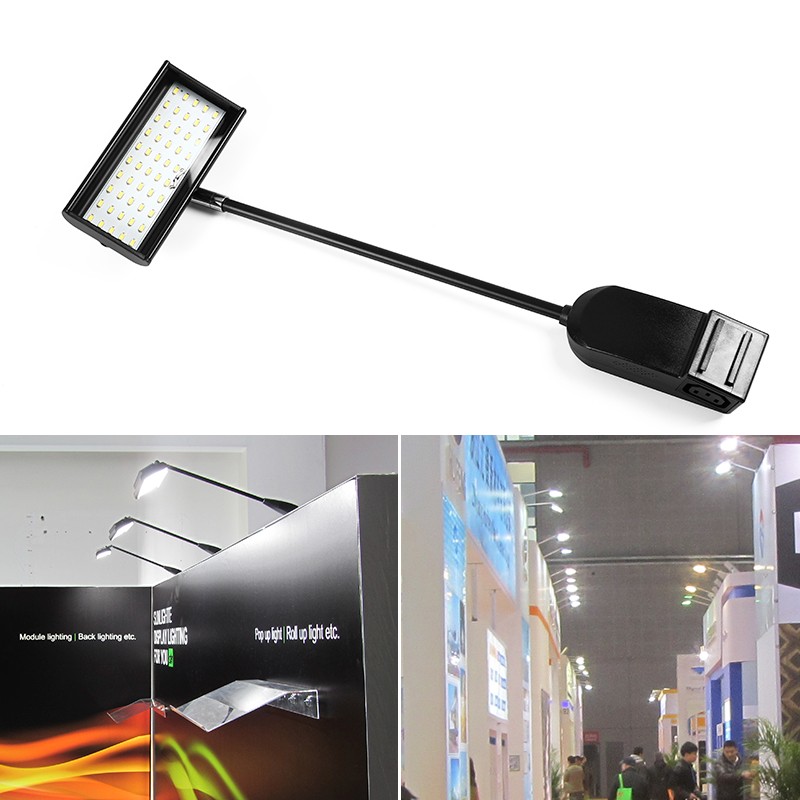

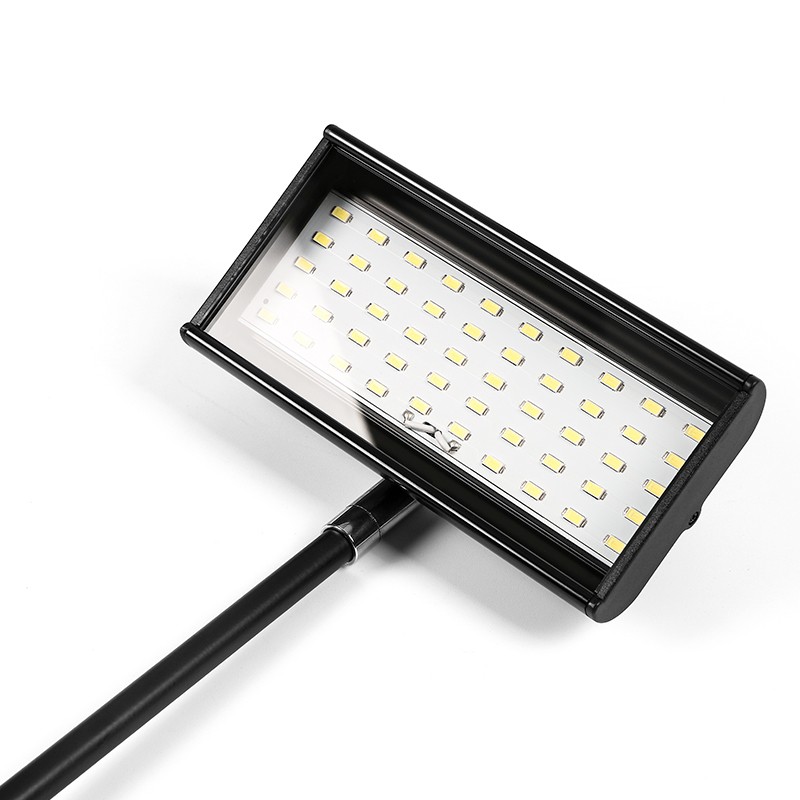

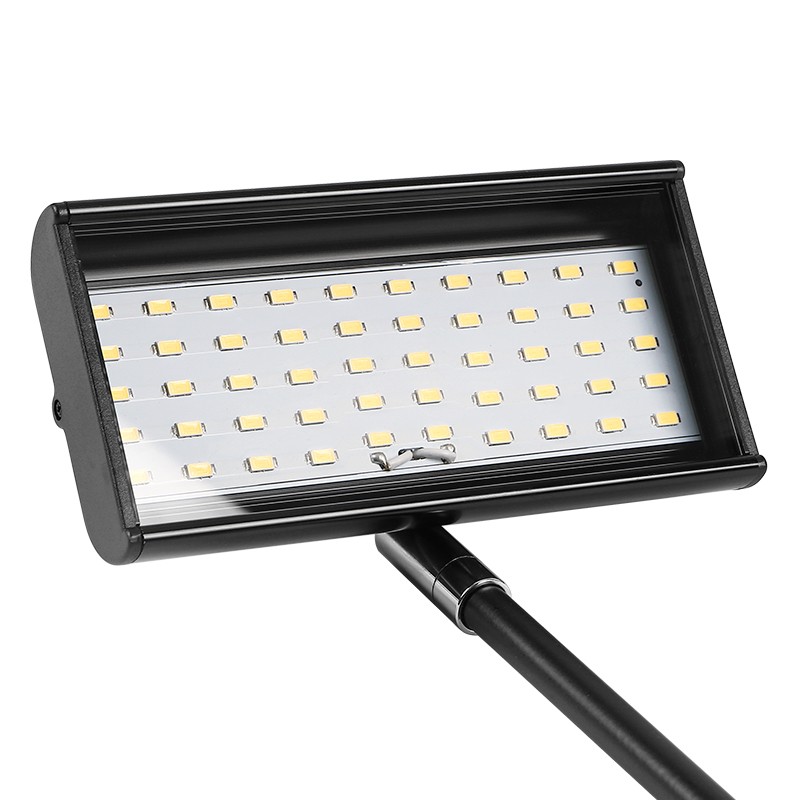

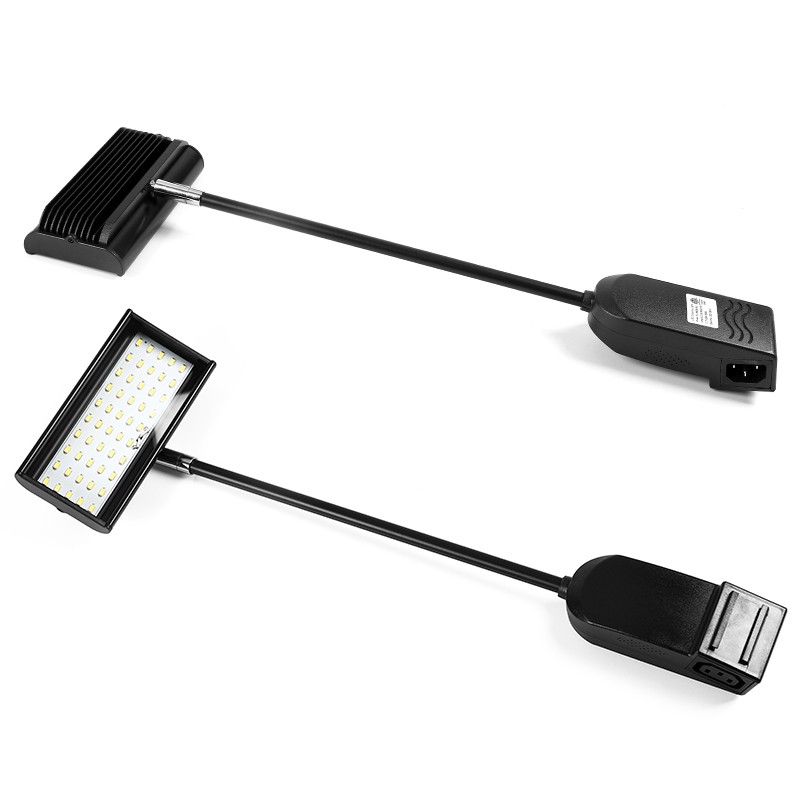

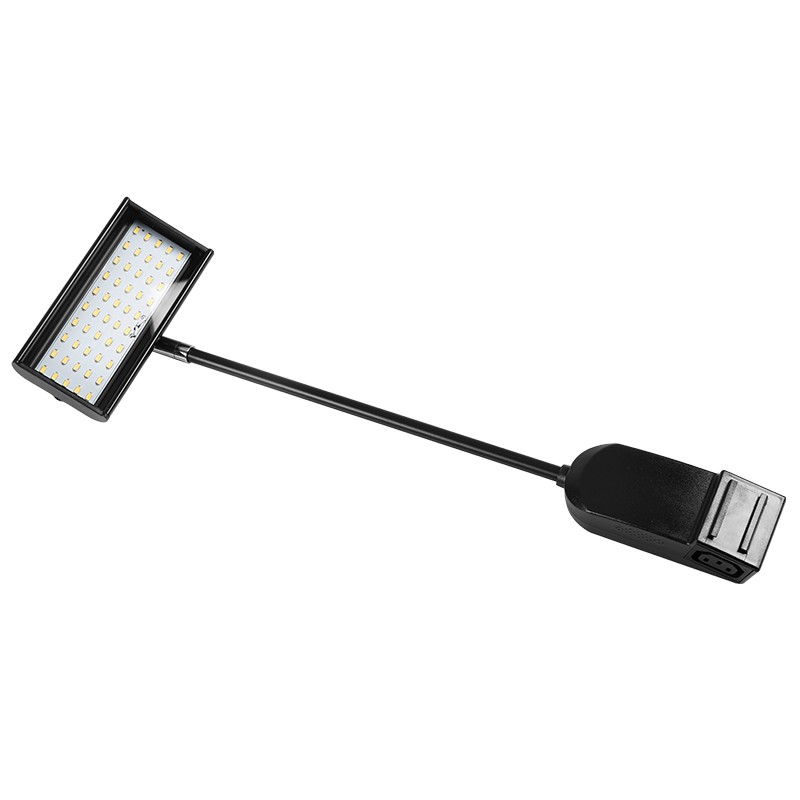

The SL-2062-N50L is a 21W exhibition arm light with 50 LEDs, 1800 lm output and a 120° beam. The technical sheet lists AC 100–240V input, three-pin input/output and a 3000–7000K white-light order range. Black and silver lamp bodies are pictured as finish options.
For exhibition contractors and lighting-kit distributors, plan the fixing positions, connector route and lamp finish as one configuration. The adjustable head can be aimed towards the display graphic, while the base houses the pictured power supply. Provide graphic dimensions, frame details, lamp quantity and destination mains plug so the fittings and permitted connection layout can be confirmed.
21W linkable exhibition-light technical data
| Specification | SL-2062-N50L |
|---|
| Model | SL-2062-N50L |
| Power | 21W |
| Light output | 1800 lm |
| LED quantity | 50 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 120° |
| White-light order range | 3000–7000K |
| Connections | Three-pin input and output |
| Driver | Built-in supply pictured; constant current, 600 mA as listed |
| Body finish options | Black / Silver, as pictured |
| Colour rendering index | CRI ≥70 |
| Working-temperature range | -20°C to +50°C |
Aim the head and plan the connection route

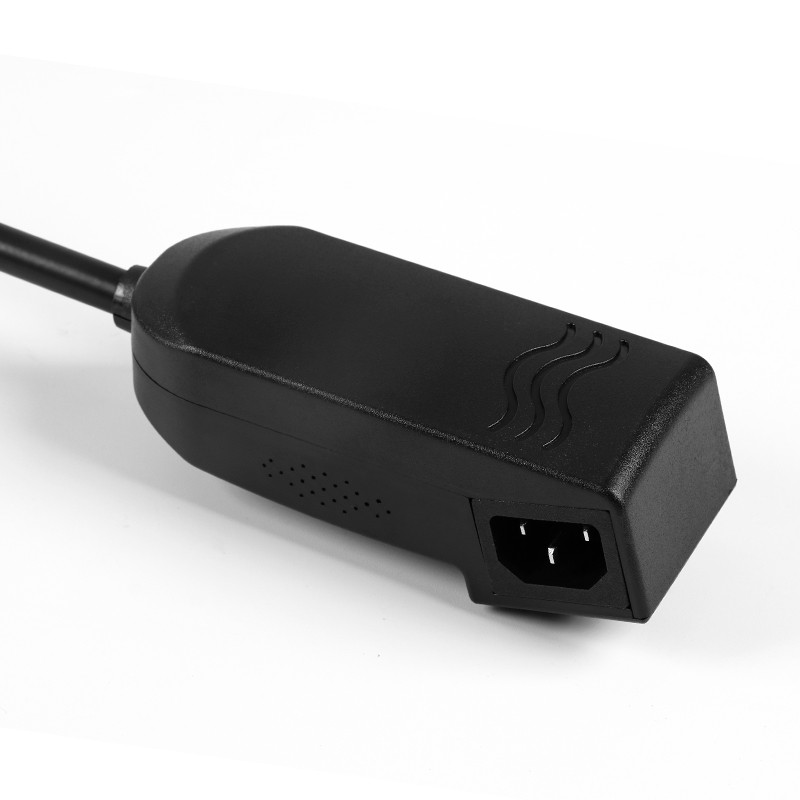

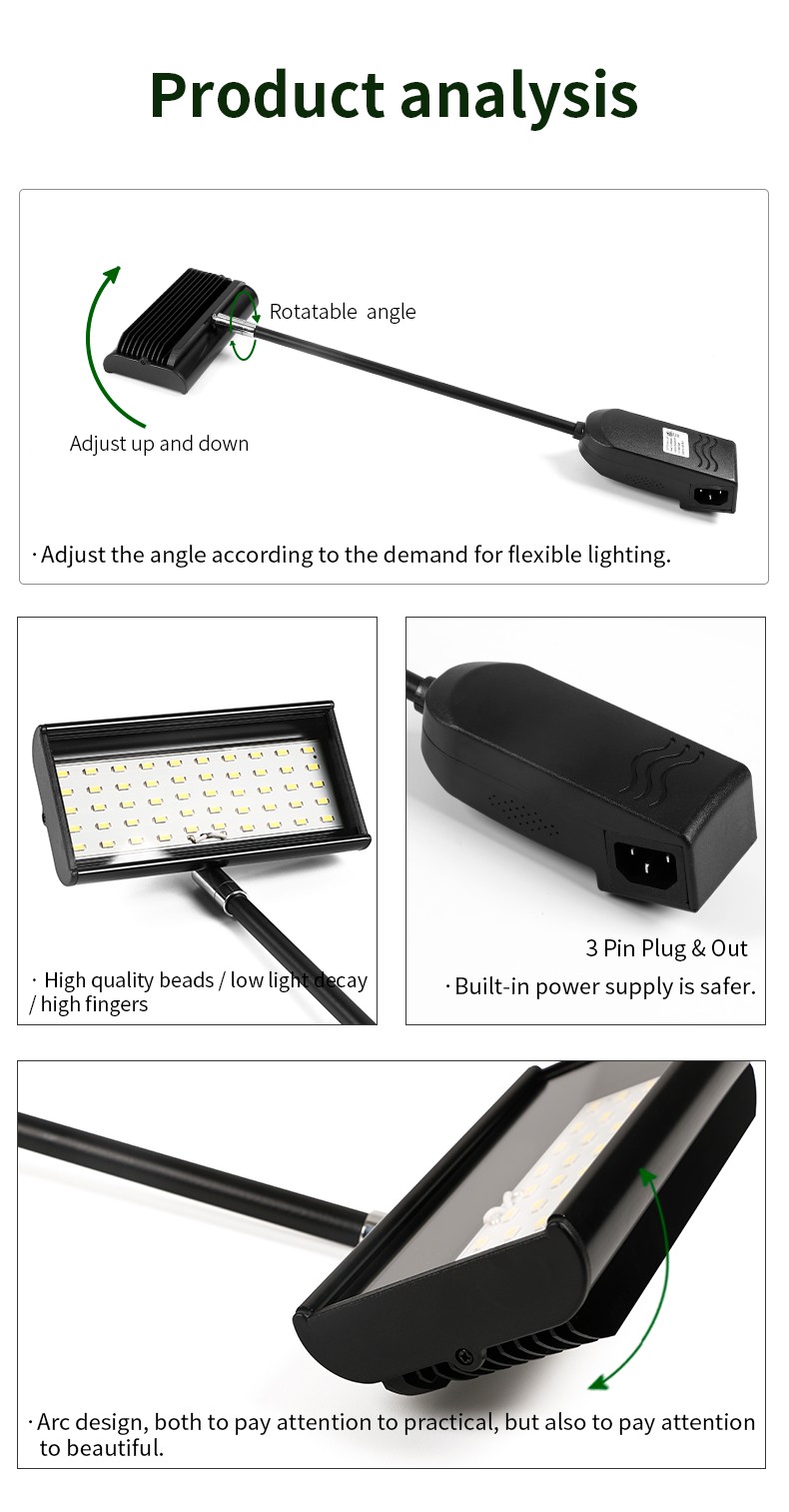

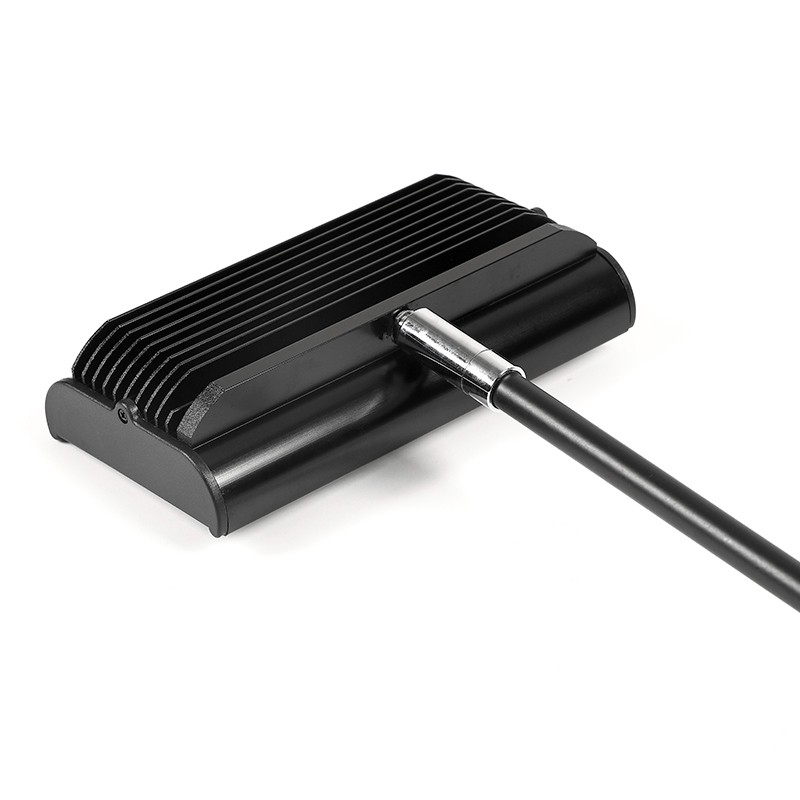

The product analysis shows up/down adjustment and a rotating head joint, with the power supply inside the base. Set the head from the intended fixing position and evaluate the 120° coverage on the graphic.

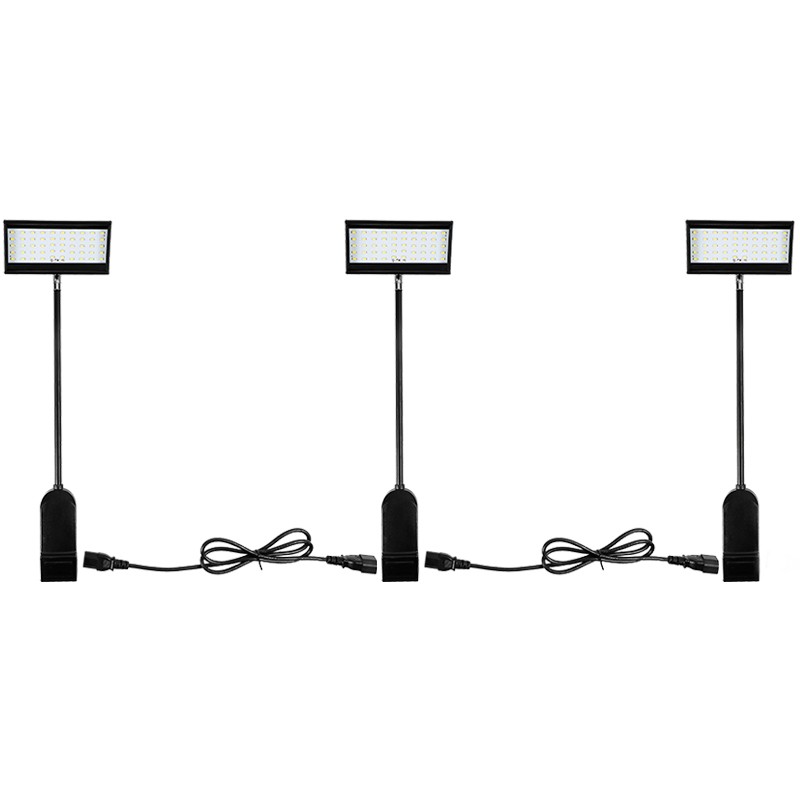

Three-pin input/output is listed for this model. Provide the required lamp count, connection route and lead specifications so the permitted complete-kit arrangement can be confirmed before a bulk order.
Coordinate body finish, fittings and white light

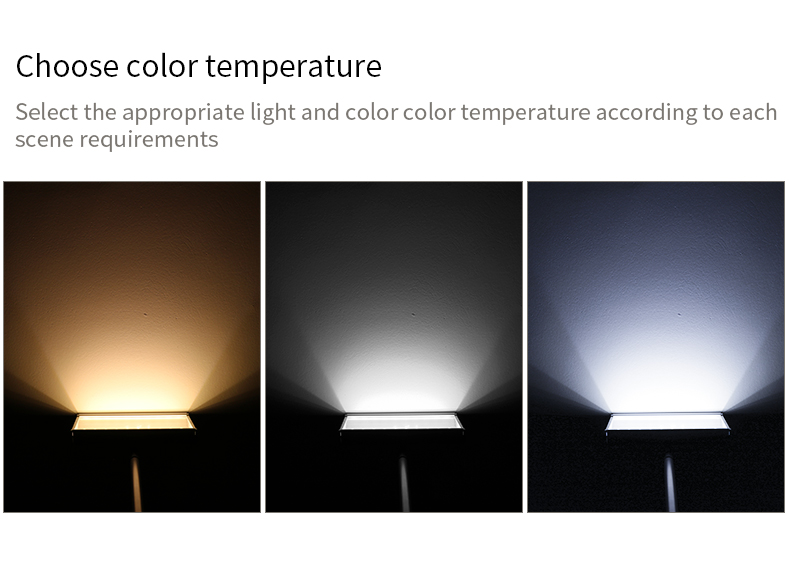

Choose the pictured black or silver body option to suit the display hardware. Specify the required colour temperature within the listed 3000–7000K order range; the warm, neutral and cool examples show appearance choices.
The product illustration includes a lead and frame fittings. Share the frame profile, mounting location and required cable route so the fitting and electrical kit can be quoted together.
Exhibition-wall applications and kit ordering

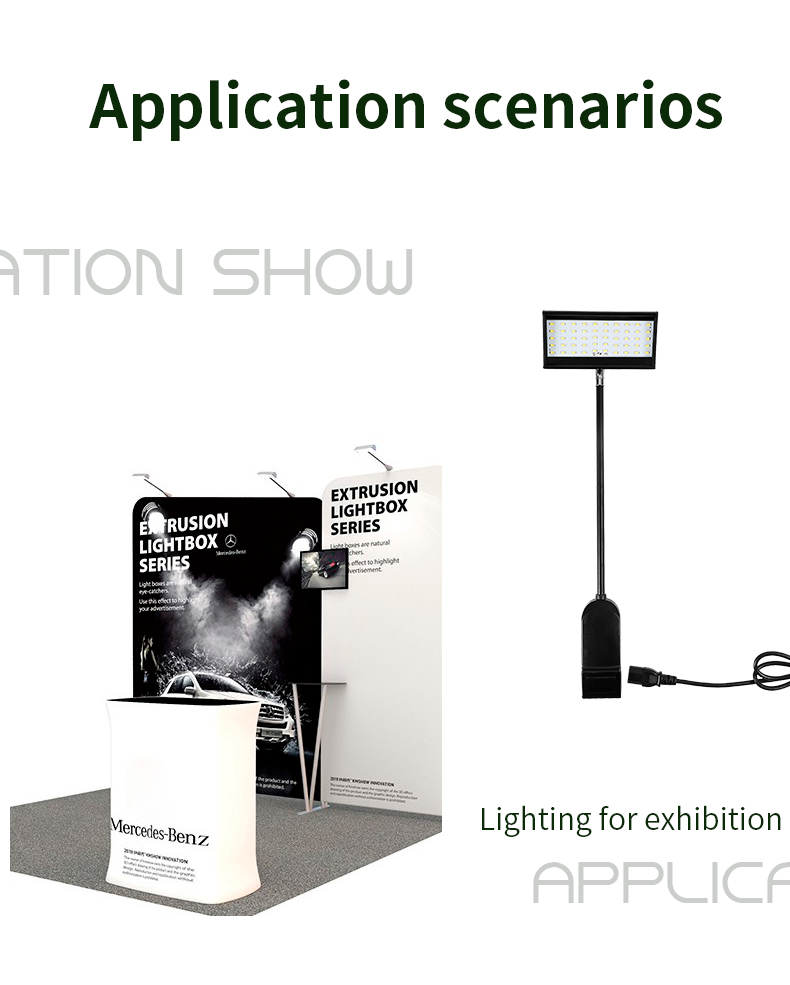

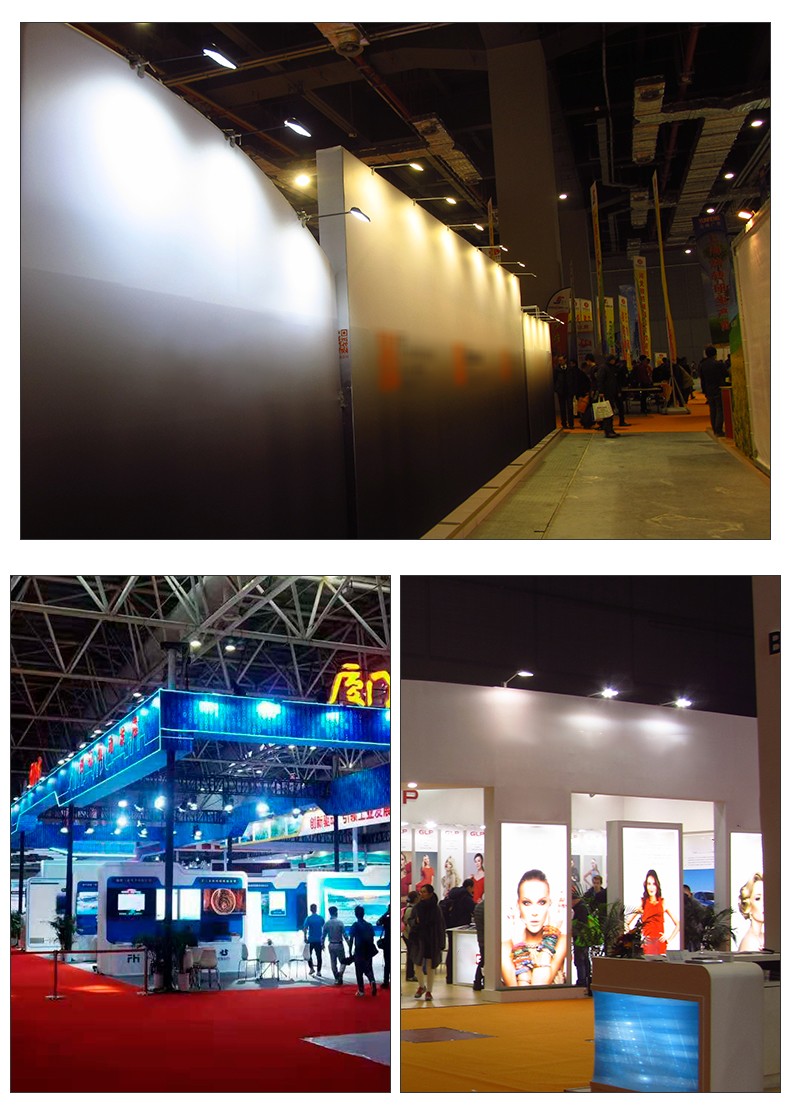

The application examples show arm lights above exhibition panels and display graphics. Provide graphic height, width and planned fixing positions when discussing the lighting layout. A sample can help assess the beam coverage and finish alongside the actual stand materials.

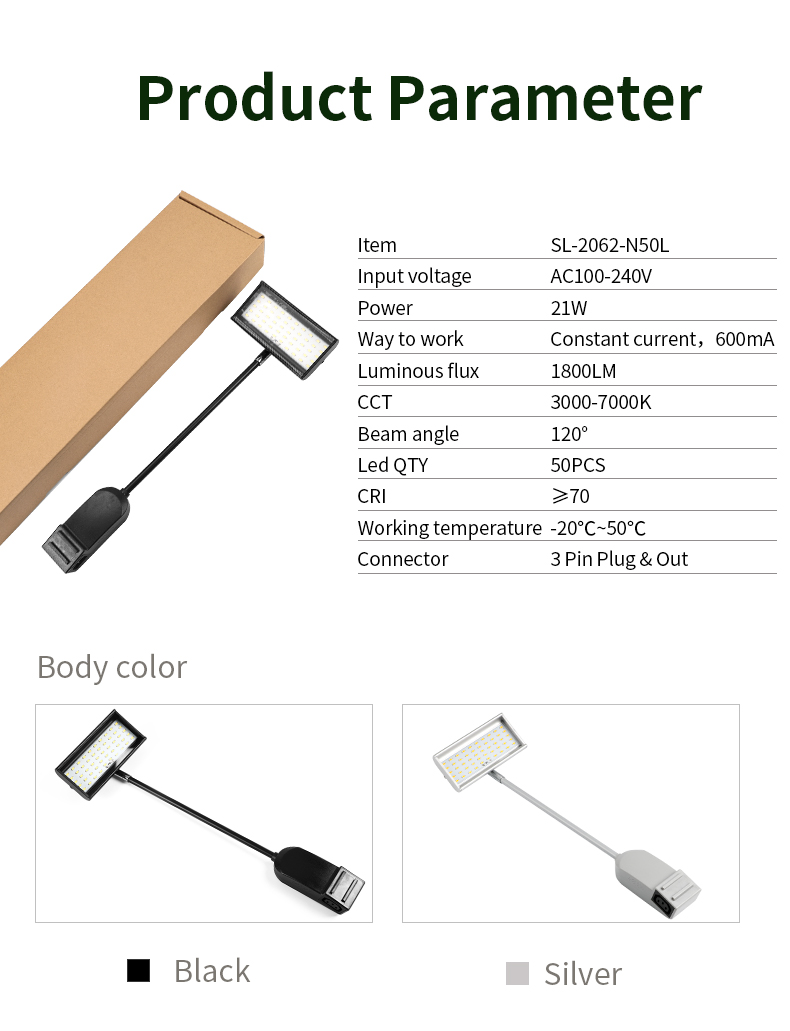

The parameter illustration shows the lamp beside a cardboard box. Confirm the components per kit, carton quantities and packing requirements with the wholesale quotation.
Questions for linkable display-light procurement
How many arm lights can I connect together?
Submit the lamp count, lead details, connection route and venue supply information so the permitted configuration can be confirmed. The source sheet lists three-pin input/output and does not state a maximum linking quantity.
What is the listed colour rendering index?
The model's technical picture specifies CRI ≥70. If your graphic or product display requires a higher value, include that requirement with the enquiry for model-specific confirmation.
Which details are needed for a wholesale quote?
Provide SL-2062-N50L, quantity, black or silver finish, required white-light version, frame details, leads and destination plug. Orders start from 20 pcs, and larger quantities receive lower unit prices.
Evaluate a sample before custom supply
Samples are available for the fixing, beam and finish checks. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit time are confirmed separately.
