480mm RGBW LED light bars for coloured display layouts
Build a colour-lighting layout around a six-LED aluminium bar. SL-BL034-RGB320 measures 480 × 32 × 22mm and is rated at 32W with a 24V DC input. The component images show 80mm LED spacing and five-pin connections; the specification lists 1300–1500 lm output.
For display-system manufacturers and sign-component buyers, the ordering decisions include the required colours, white-light specification, control arrangement and connection layout. Send the frame drawing, target quantity and control requirements to define a matching sample and production configuration.

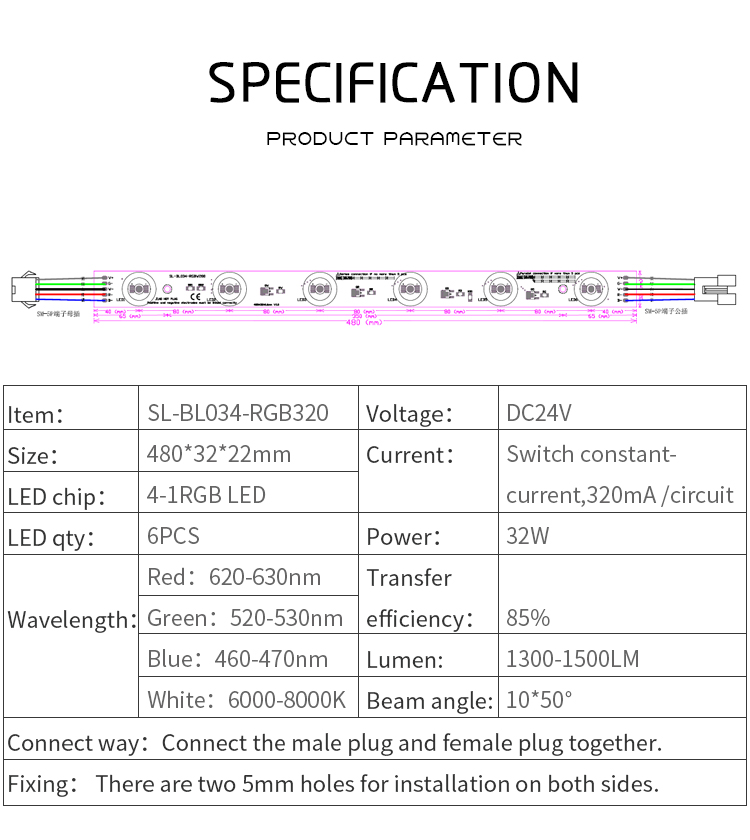

32W RGBW bar specification and ordering data
| Specification | SL-BL034-RGB320 |
|---|
| Model | SL-BL034-RGB320 |
| Dimensions | 480 × 32 × 22mm |
| Power | 32W |
| Input | 24V DC |
| LED quantity | 6 pcs, four-in-one type |
| LED spacing | 80mm |
| Listed luminous flux | 1300–1500 lm |
| Red wavelength | 620–630nm |
| Green wavelength | 520–530nm |
| Blue wavelength | 460–470nm |
| White-channel order range | 6000–8000K |
| Listed circuit current | 320mA per circuit |
| Connections | 5-pin male and female plugs |
| Fixing holes | 5mm, at the bar ends |
| White-channel CRI option | CRI 90+ available to order |
| Warranty | 2 years; confirm terms with the quotation |
Specify colour appearance and white-channel requirements

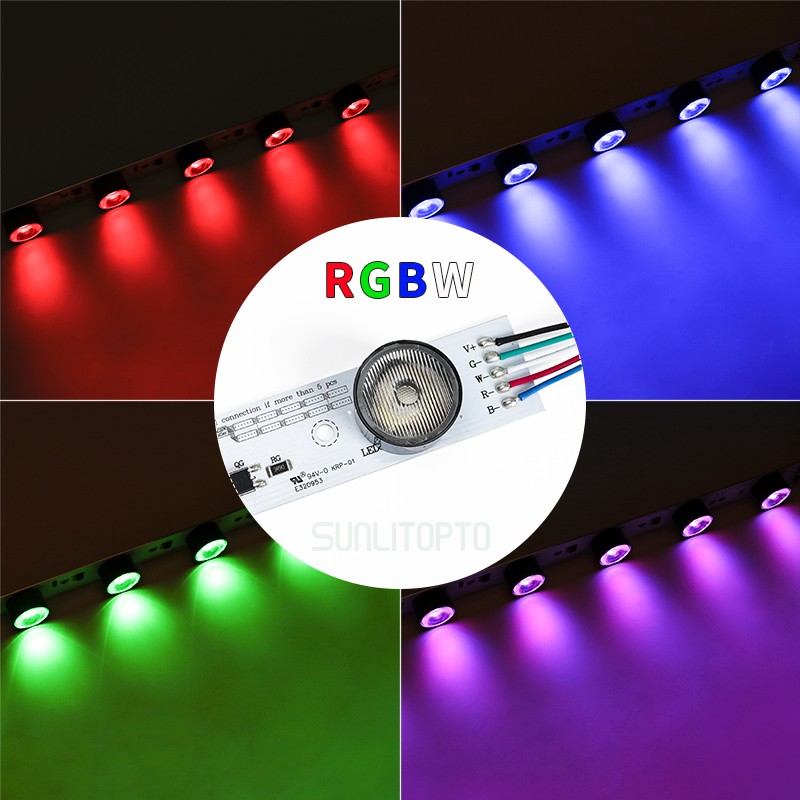

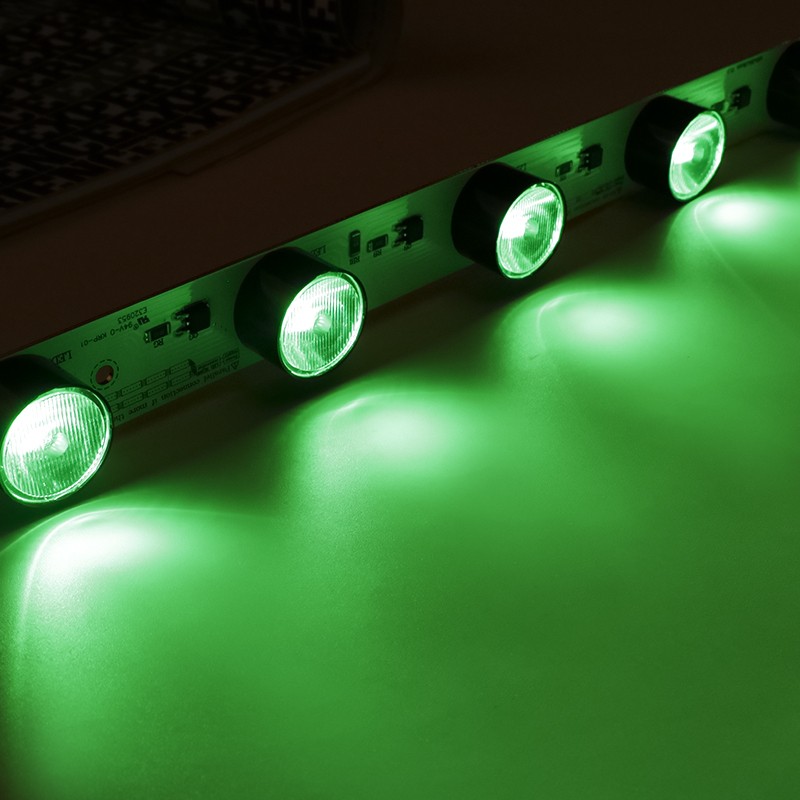

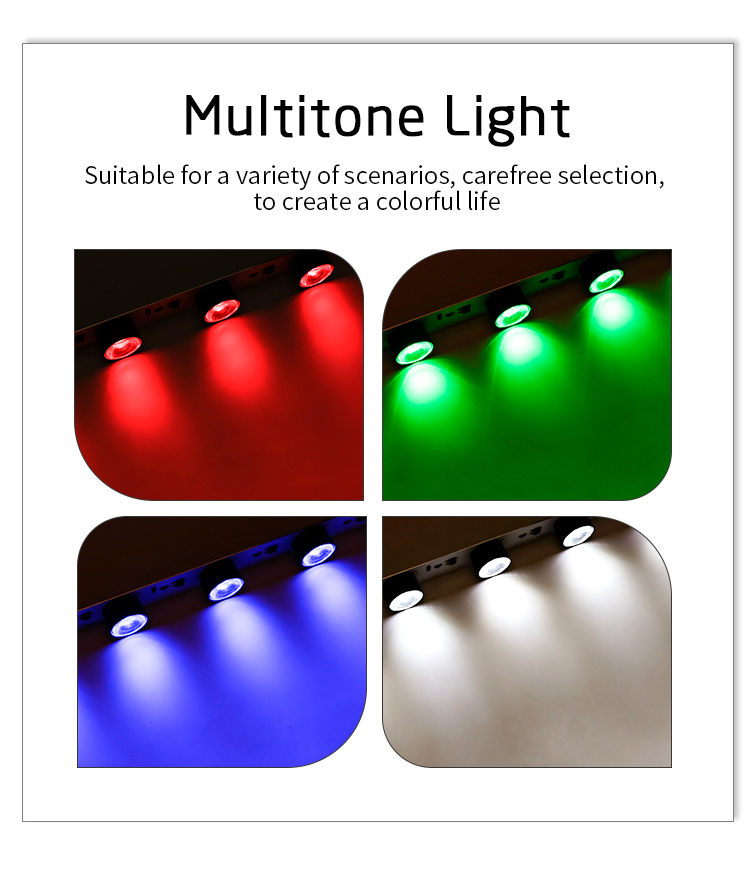

The original photographs show red, green, blue and white output. The parameter table lists red, green and blue wavelength bands and a 6000–8000K white-channel ordering range. Define the colour appearance and required white version with the sample request.

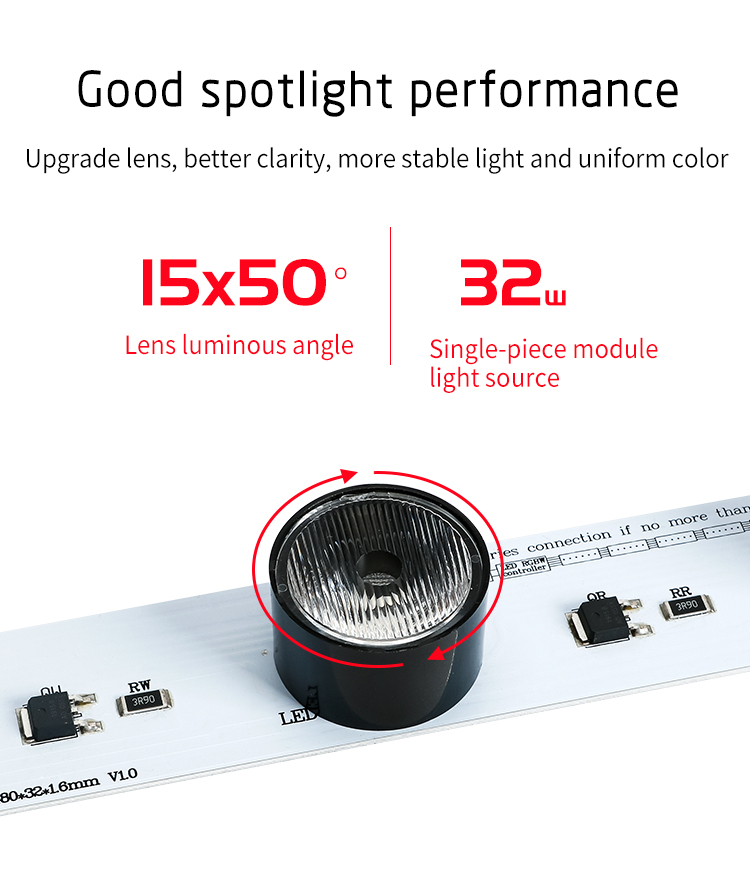

CRI 90+ white-light LEDs can be specified for an order. State this requirement when quoting the RGBW white-channel configuration, together with any supporting technical data needed for the project. Confirm the lens specification and intended module positions before production.
Five-pin connections and aluminium bar construction

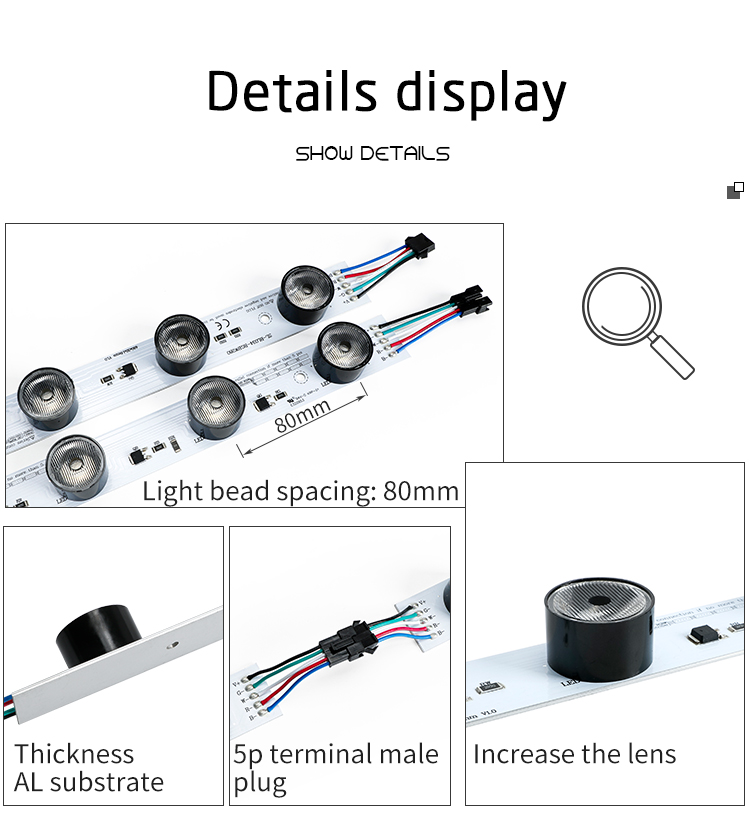

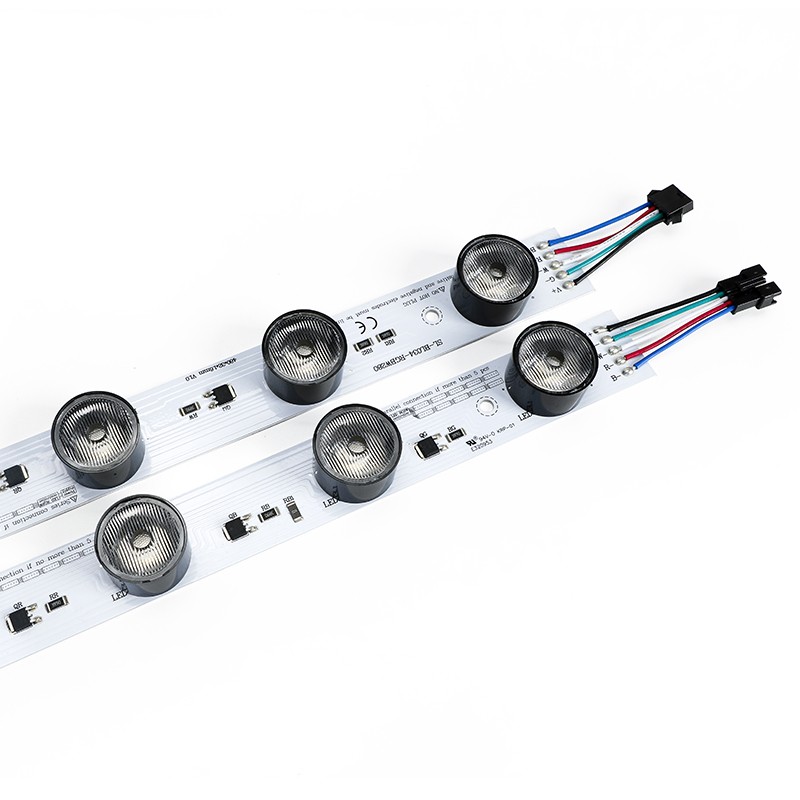

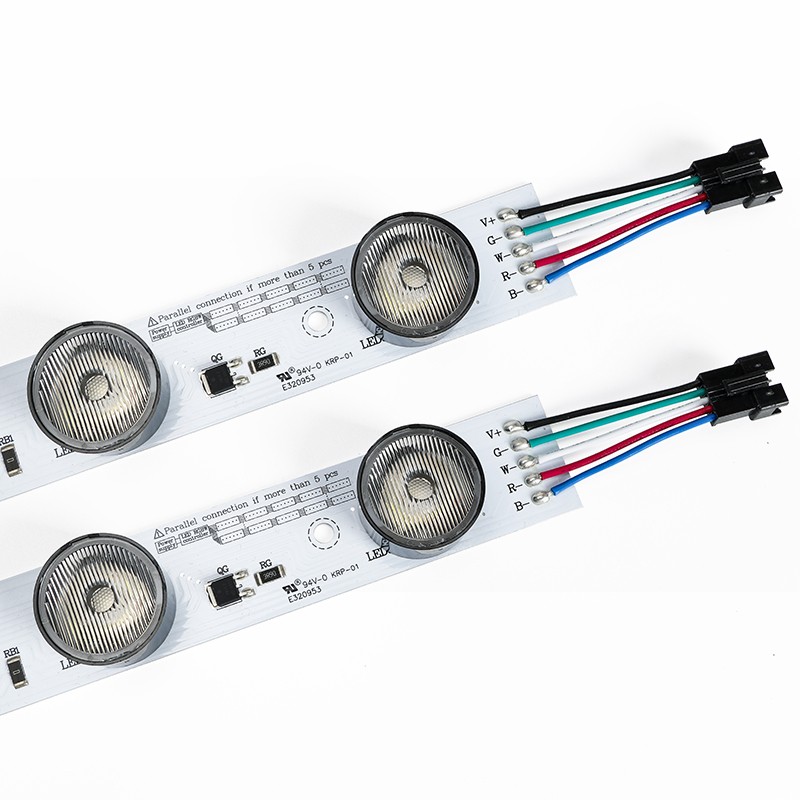

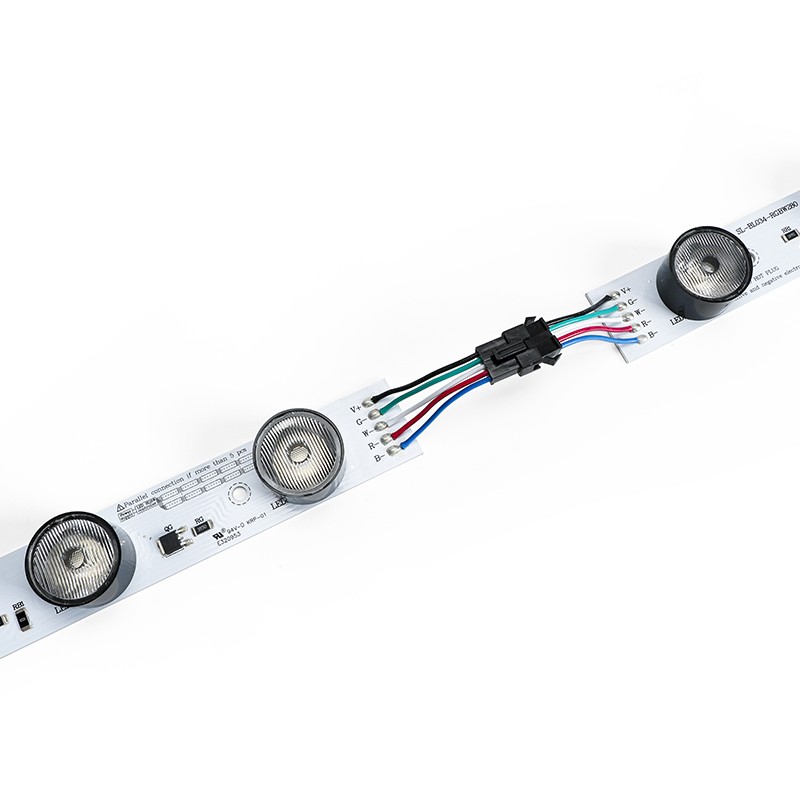

The close-ups show mating five-pin male and female plugs with separate coloured leads. Confirm the pin mapping, polarity, required cables and control arrangement for the ordered 24V DC system. Request the approved supply and wiring layout for the complete installation.

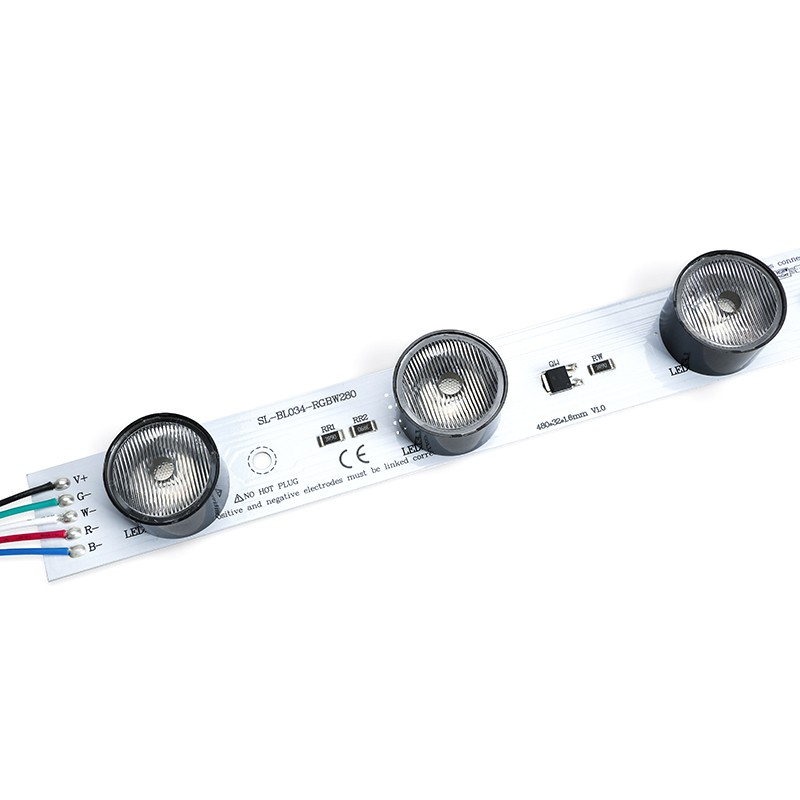

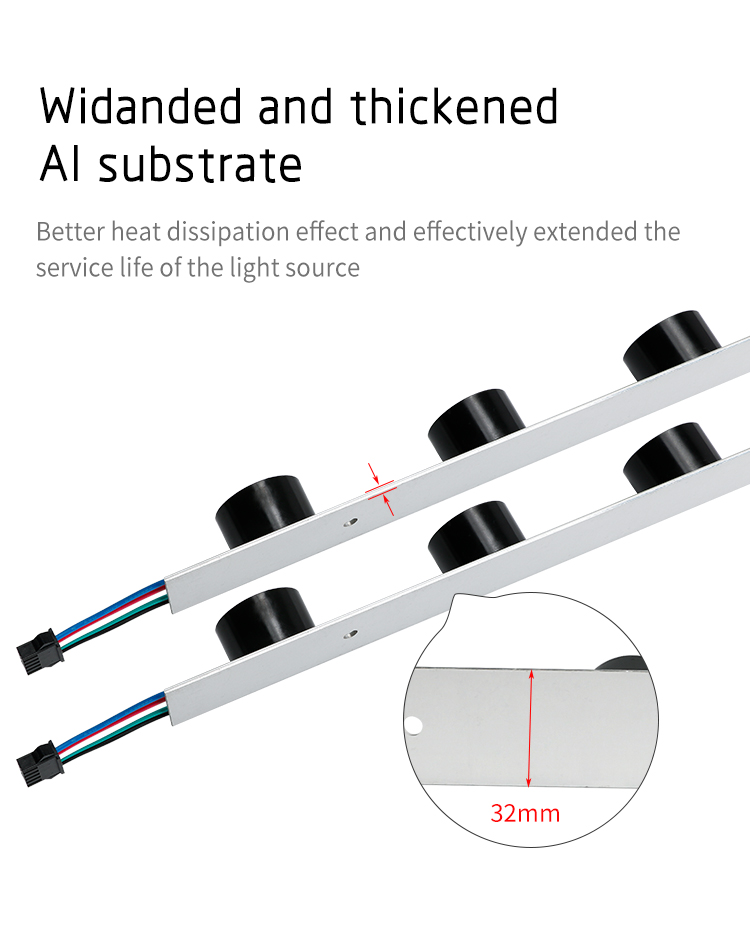

The aluminium support is 32mm wide and the LED spacing is illustrated as 80mm. The specification describes 5mm mounting holes at the bar ends. Check the full 480 × 32 × 22mm envelope, hole positions and connector clearance against the frame drawing.
Display applications, production supply and warranty

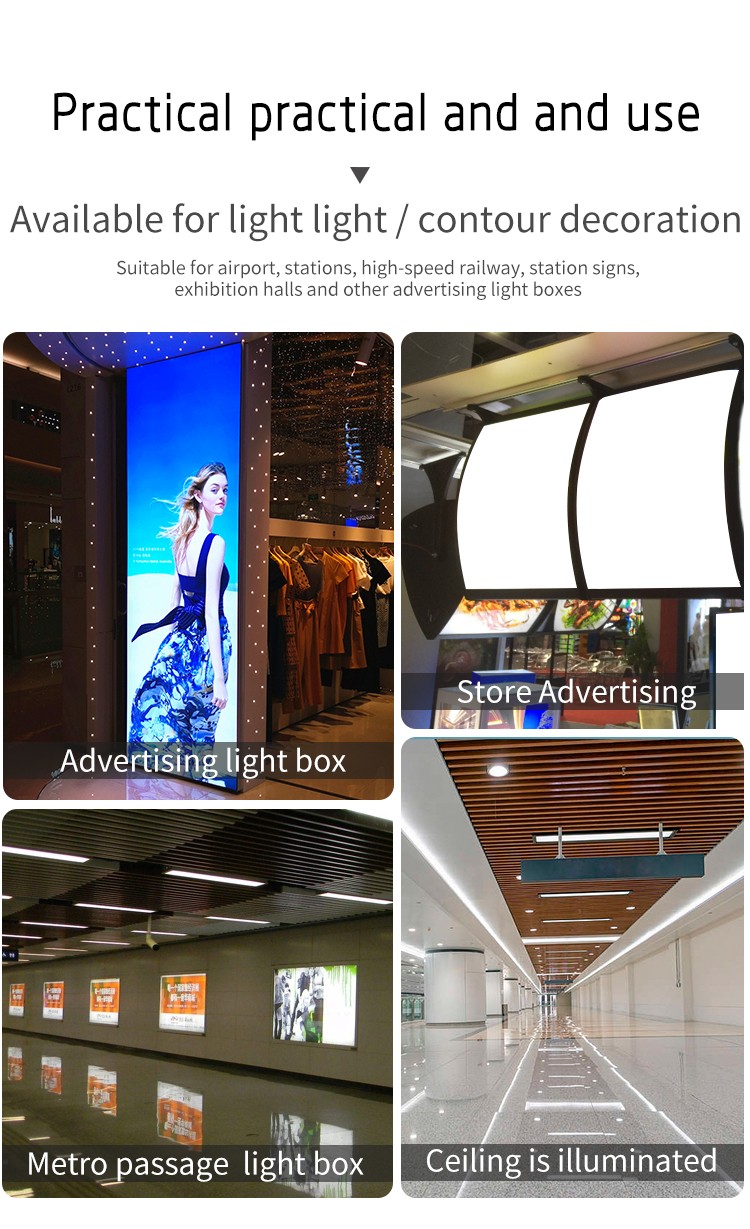

The application images show advertising lightboxes, store displays, station signage and decorative lighting concepts. Share the enclosure dimensions, graphic materials, installation conditions and desired colour effects to review the sample configuration.
Wholesale orders start at 20 pcs, with lower unit prices at larger quantities. Samples are available; confirm sample cost and shipping separately. OEM, ODM and private-label requirements can be reviewed with the order.
The product artwork states a two-year warranty. Confirm the warranty conditions and the covered configuration with the quotation. Standard production lead time is 12–18 days; custom schedules and transit time are confirmed separately.
RGBW light bar procurement questions
What information is needed to select the RGBW lens and control configuration?
Provide the frame drawing, intended bar positions, desired colour effects and control-system requirements. Confirm the model-specific lens specification, five-pin mapping and matching 24V DC wiring arrangement with the sample and quotation.
Can the RGBW bar be supplied with a CRI 90+ white channel?
Yes, CRI 90+ white-light LEDs can be specified for an order. Confirm the white-channel version and relevant technical information for the quoted configuration; the requirement applies to white-light performance.
Is the listed 320mA the complete bar current?
The parameter table labels the value as 320mA per circuit. Request the electrical data for the complete quoted configuration when selecting the supply and control system. Do not use a per-circuit value as the total bar current.
Can I sample the six-LED bar before purchasing in quantity?
Samples are available. Send the white-channel specification, connection requirements, frame drawing and delivery country to confirm sample cost and shipping. Bulk orders start at 20 pcs and higher quantities qualify for lower unit prices.
