360mm LED sign lighting modules with DC sockets

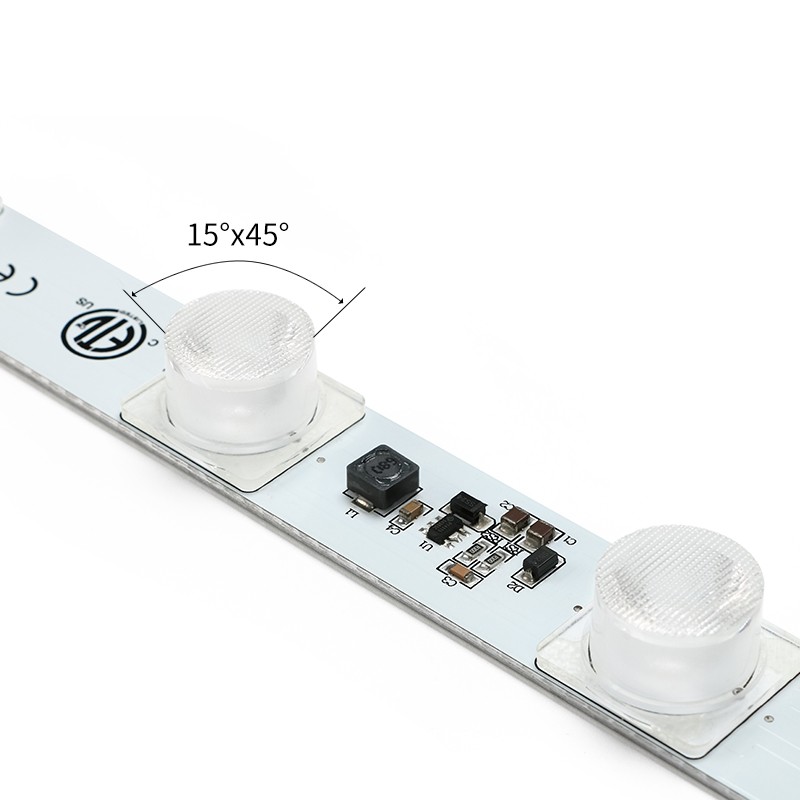

Plan the lightbox source and its connection layout around a five-LED DC-socket module. SL-BL039-100 measures 360 × 26 × 16mm and is specified at 10W with a 24V DC input. The product sheet lists 820 lm ±10% luminous flux, 15 × 45° optics and a 3000–8000K white-light order range.
For sign-component wholesalers and display builders, the DC connection arrangement, fixing parts and frame clearance determine the required configuration. Send the enclosure drawing, white-light requirement and proposed quantity so a matching sample and bulk quotation can be prepared.
10W DC-socket module technical specification

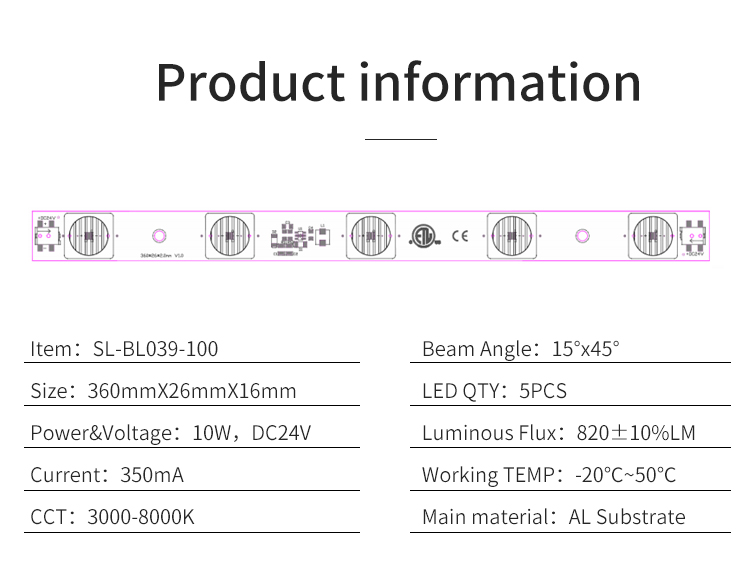

| Specification | SL-BL039-100 |
|---|
| Model | SL-BL039-100 |
| Dimensions | 360 × 26 × 16mm |
| Power | 10W |
| Input | 24V DC |
| Listed current | 350mA |
| LED quantity | 5 pcs |
| Luminous flux | 820 lm ±10% |
| Lens angle | 15 × 45° |
| White-light order range | 3000–8000K |
| Operating temperature | −20°C to +50°C |
| Substrate | Aluminium, 2.0mm illustrated thickness |
Connection layout and aluminium construction

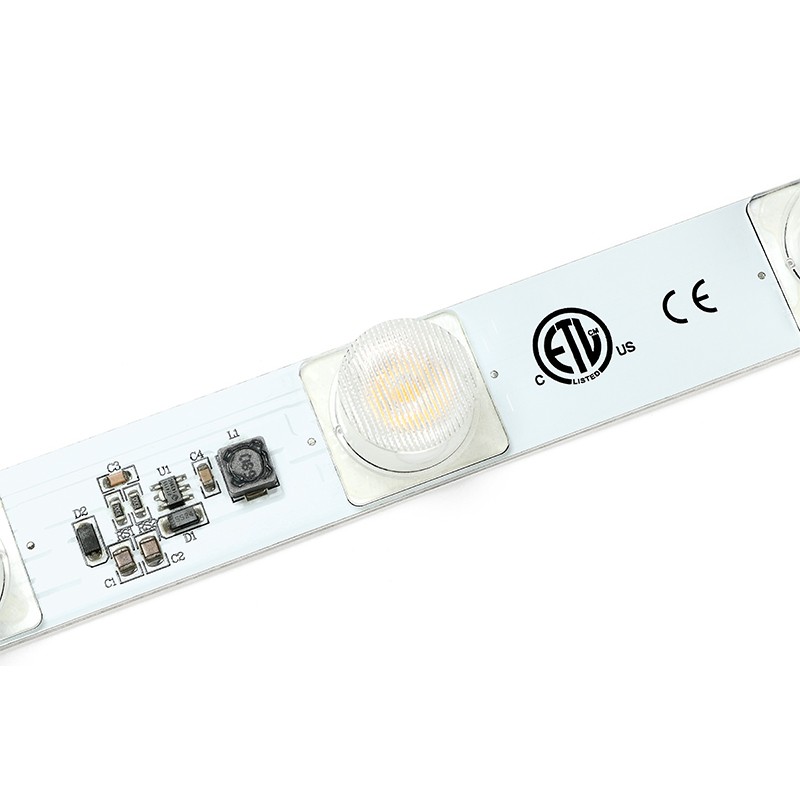

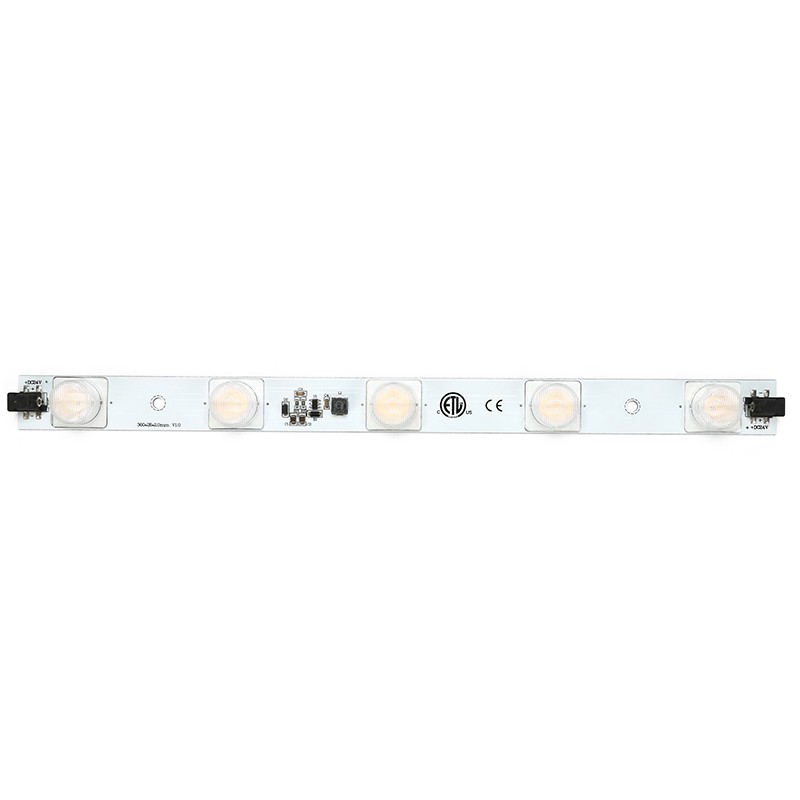

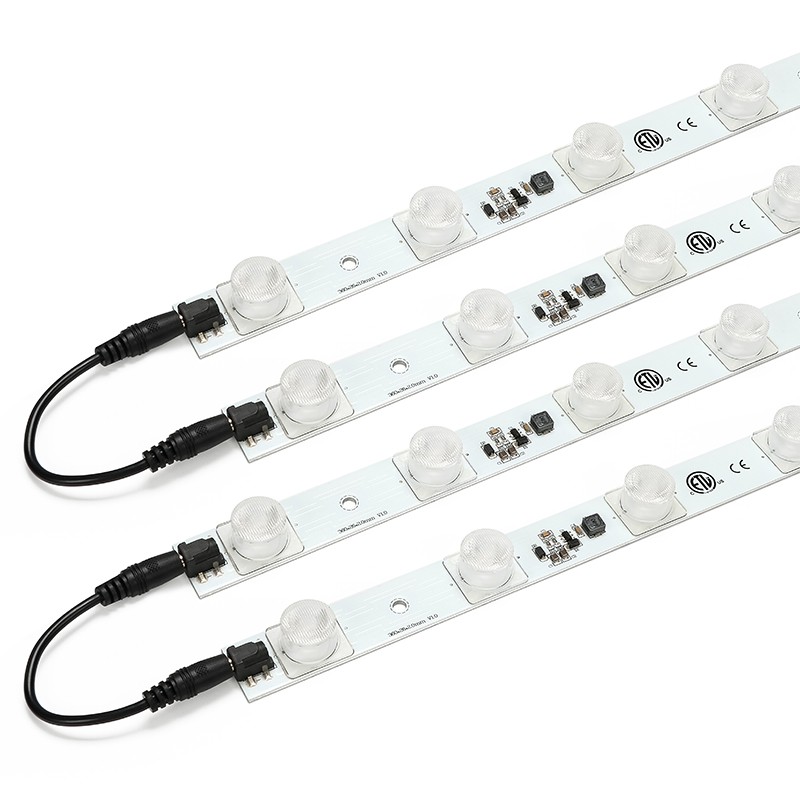

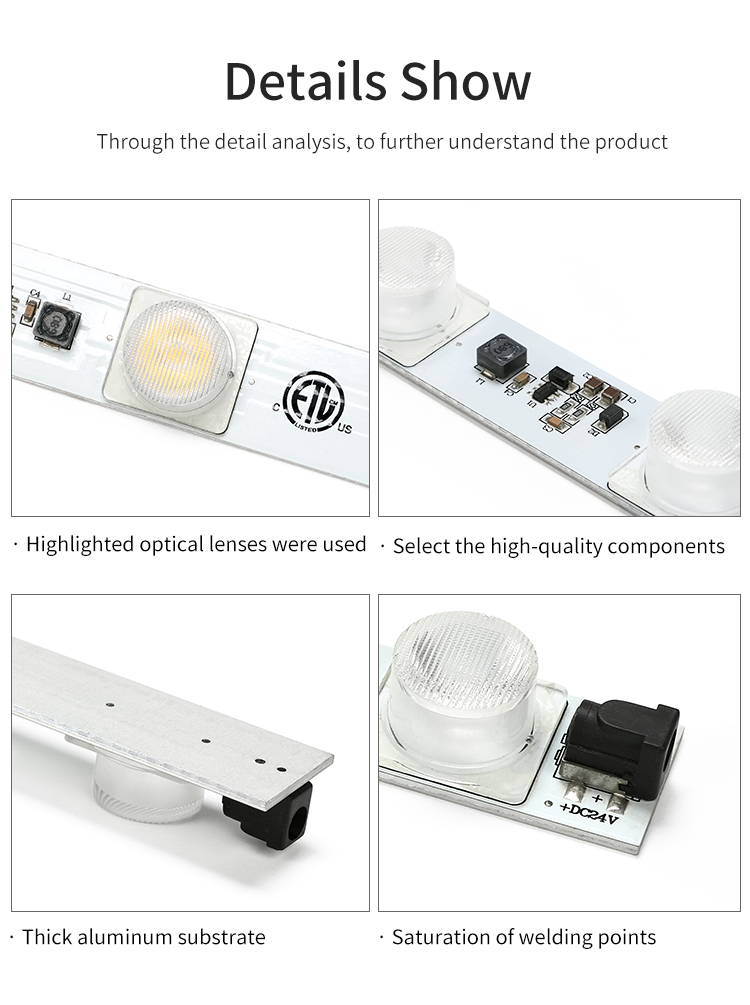

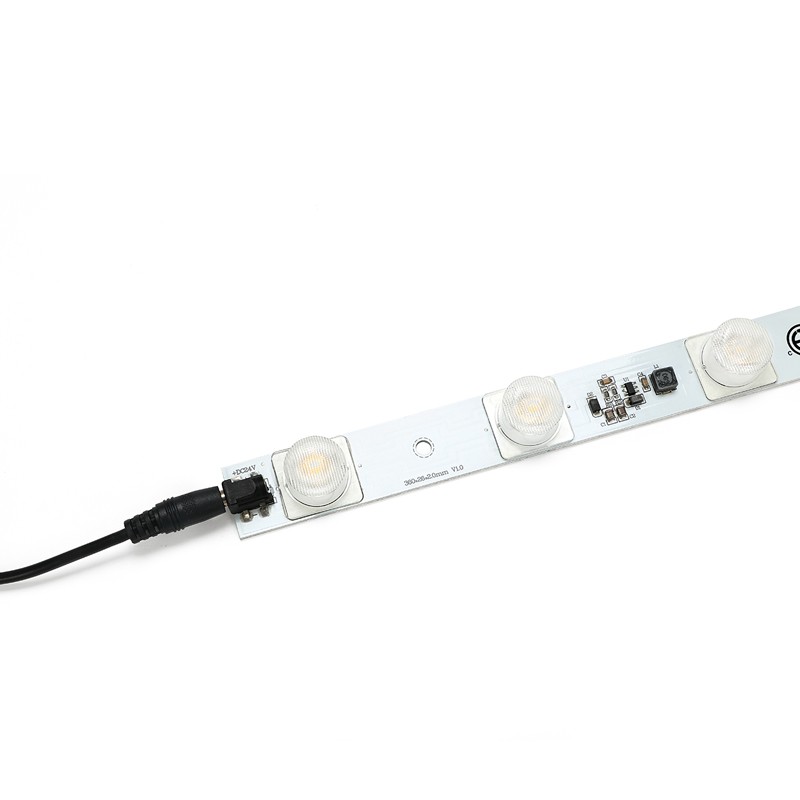

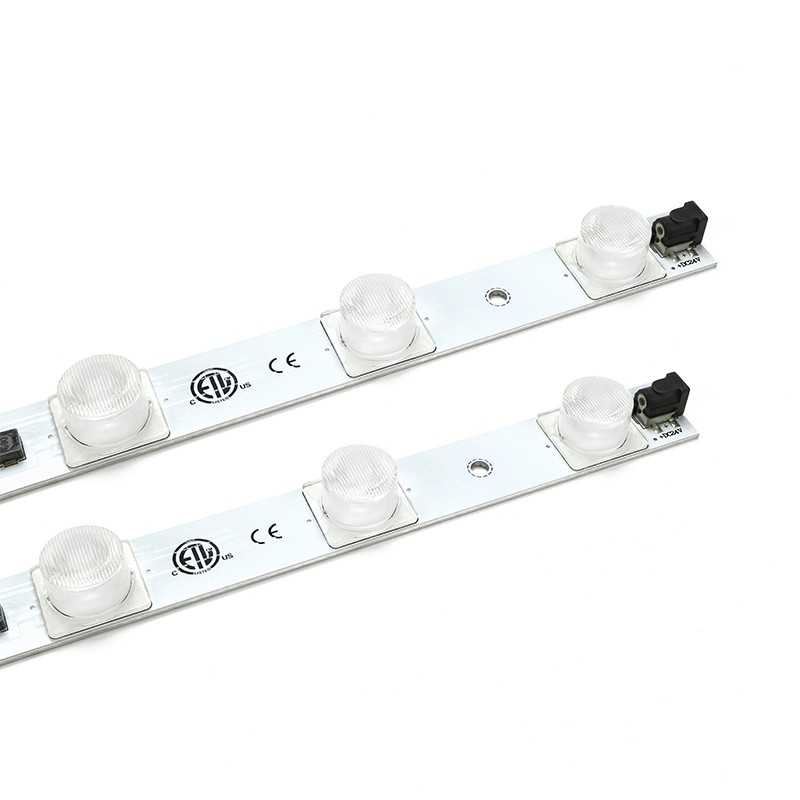

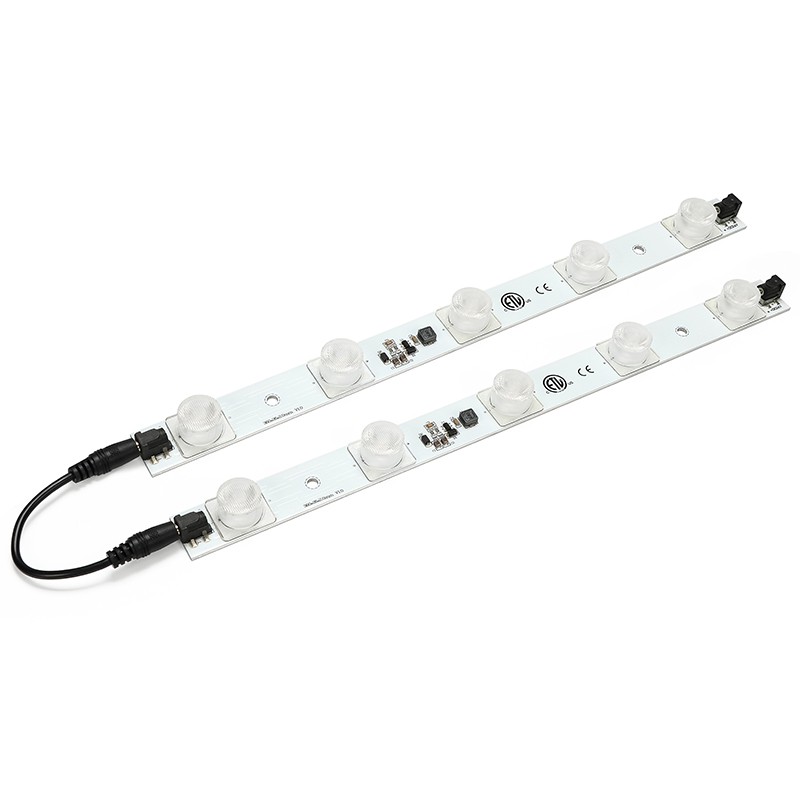

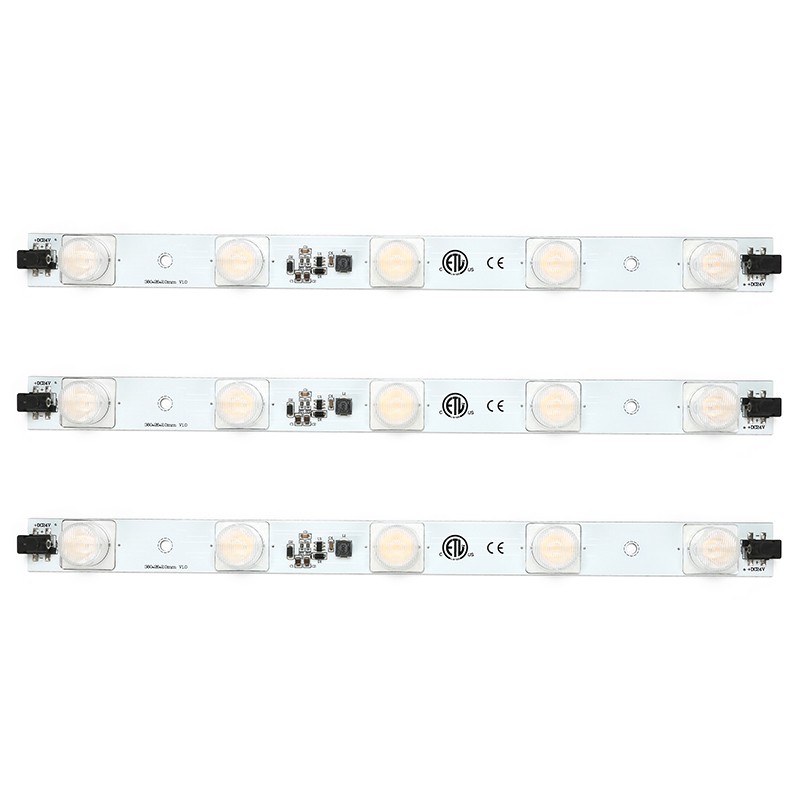

The component close-ups show black DC sockets at the ends of the module. Specify the required connection arrangement and matching 24V DC supply together; confirm connector compatibility, polarity and the approved wiring layout for the complete assembly.

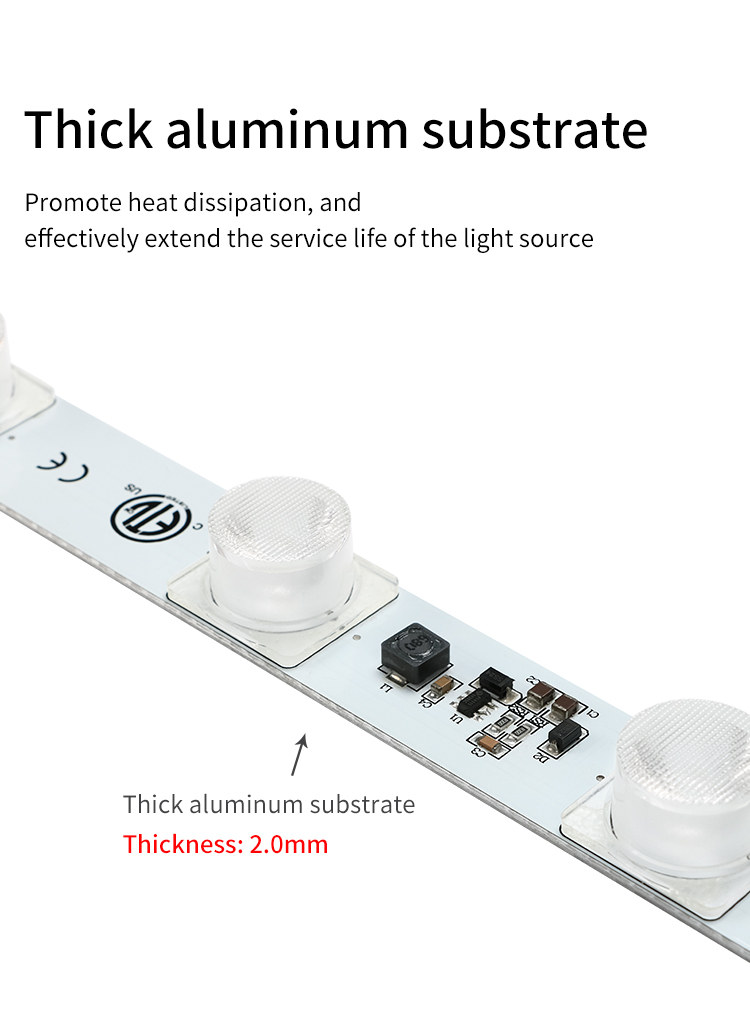

The substrate image labels the aluminium support as 2.0mm thick. The complete module height is listed separately as 16mm. Use the full 360 × 26 × 16mm dimensions to check frame clearance, including the lenses and DC sockets.
Select the fixing parts and white-light version

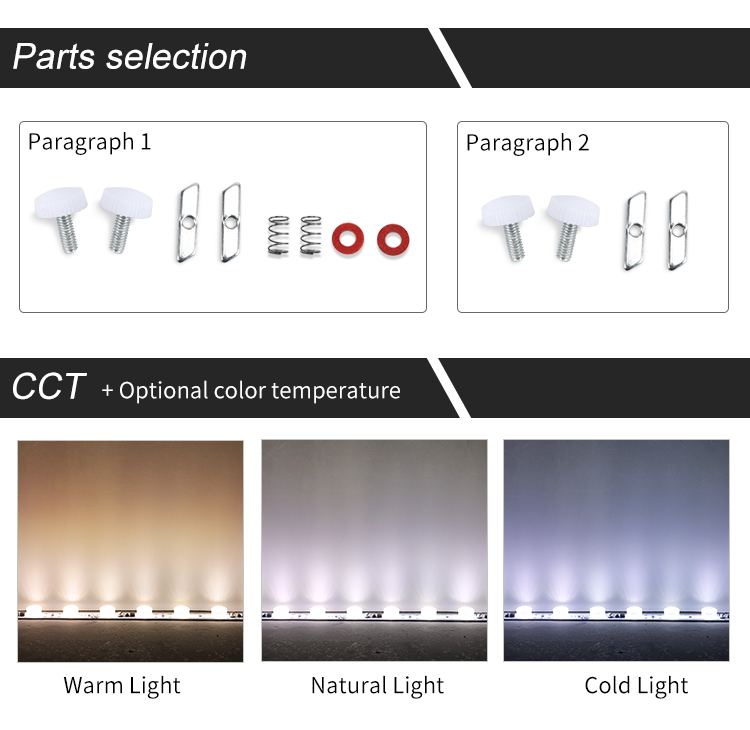

Two fixing-part arrangements are pictured: white threaded knobs with metal fixing pieces, with springs and red washers in one arrangement. Send the frame section to select the mounting method and confirm the supplied hardware scope.
The parameter sheet lists a 3000–8000K white-light ordering range. The warm, natural and cold photographs illustrate possible appearance selections; confirm the specific range for the sample and production order.
Advertising-lightbox layouts and order packaging

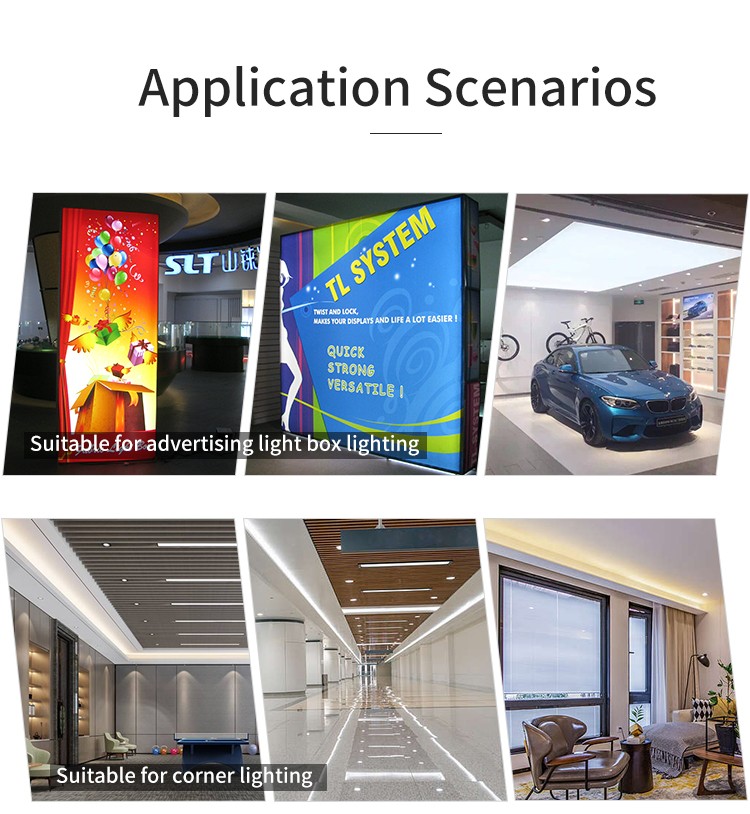

The display-frame and application images show possible lightbox and interior arrangements. Provide the enclosure dimensions, face material and proposed module positions to check the sample configuration for the project.
Packing images show individual white packaging and an outer carton. Confirm module quantities, connection parts, marking and private-label packaging with the quotation; shipping method and transport charges are agreed separately.
DC-connector LED module wholesale questions
What should I confirm for the DC-socket connections?
Provide the connection layout and required lead or connector specification. Confirm polarity, connector compatibility, matching 24V DC supply and the approved wiring arrangement for SL-BL039-100 before ordering.
Is the 2.0mm substrate thickness the complete module height?
The construction image labels the aluminium substrate as 2.0mm thick. The product sheet lists the complete assembly as 360 × 26 × 16mm; use the 16mm overall height when reviewing lens and socket clearance.
Can I order a sample and then request bulk pricing?
Samples are available. Send the required white-light range, mounting profile, DC connection arrangement and delivery country to confirm sample cost and shipping. Wholesale orders start at 20 pcs, with lower unit prices at larger quantities.
What production and private-label options are available?
OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; confirm the schedule for your quantity, specifications and packing requirements. Transit time is confirmed separately.
