360mm rigid LED light bars with warm or cool white options

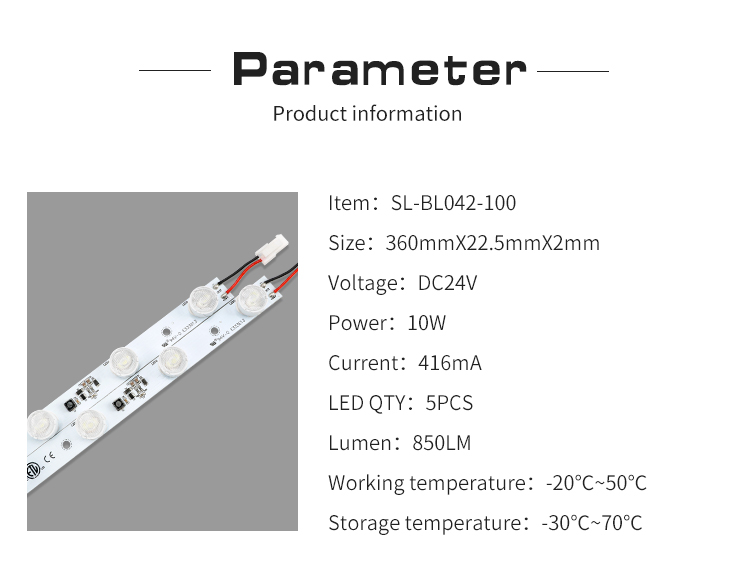

Select a rigid lens bar for an illuminated display or advertising-lightbox assembly. SL-BL042-100 uses five LEDs on an aluminium-supported light source, with a listed length of 360mm and width of 22.5mm. The parameter sheet specifies 10W, 24V DC, 416mA current and 850 lm output.
For sign makers and display-component buyers, the main choices are white-light appearance, frame fixing and lead connections. Provide the frame section and available component clearances to confirm the assembled configuration, mounting parts and sample before production.
10W rigid five-LED bar technical data
| Specification | SL-BL042-100 |
|---|
| Model | SL-BL042-100 |
| Length × width | 360 × 22.5mm |
| Power | 10W |
| Input | 24V DC |
| Listed current | 416mA |
| LED quantity | 5 pcs |
| Luminous flux | 850 lm |
| Warm-white order range | 3000–3500K |
| Cool-white order range | 6000–8000K |
| Operating temperature | −20°C to +50°C |
| Storage temperature | −30°C to +70°C |
| Support material | Aluminium |
Choose warm white or cool white for the display

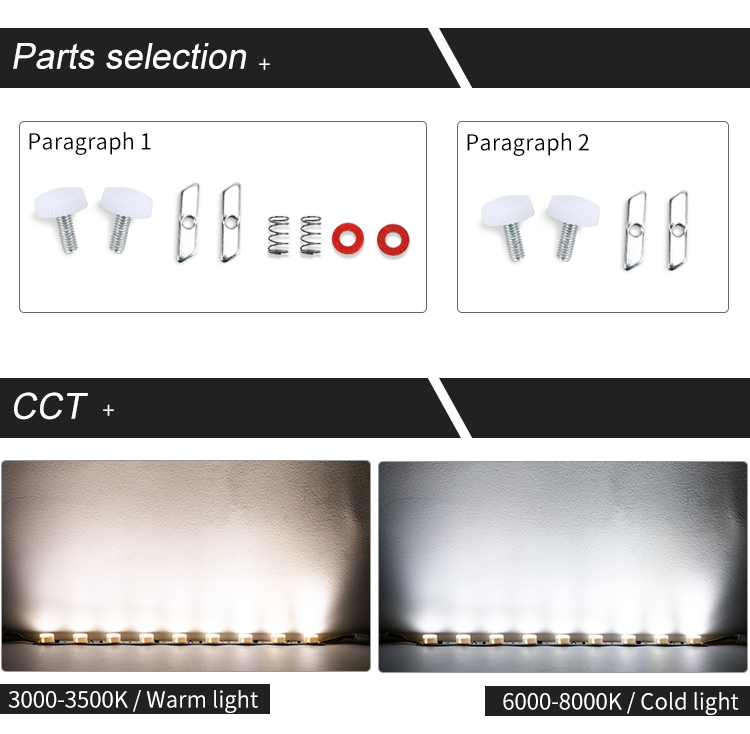

The colour-selection picture identifies two ordering ranges: 3000–3500K warm white and 6000–8000K cool white. Select the required appearance for the graphic, diffuser and surrounding display lighting.
Use the sample to assess the white-light appearance in the actual frame. State the selected range with the model number so the sample and bulk order can follow the same agreed specification.
Lead connections, aluminium support and fixing choice

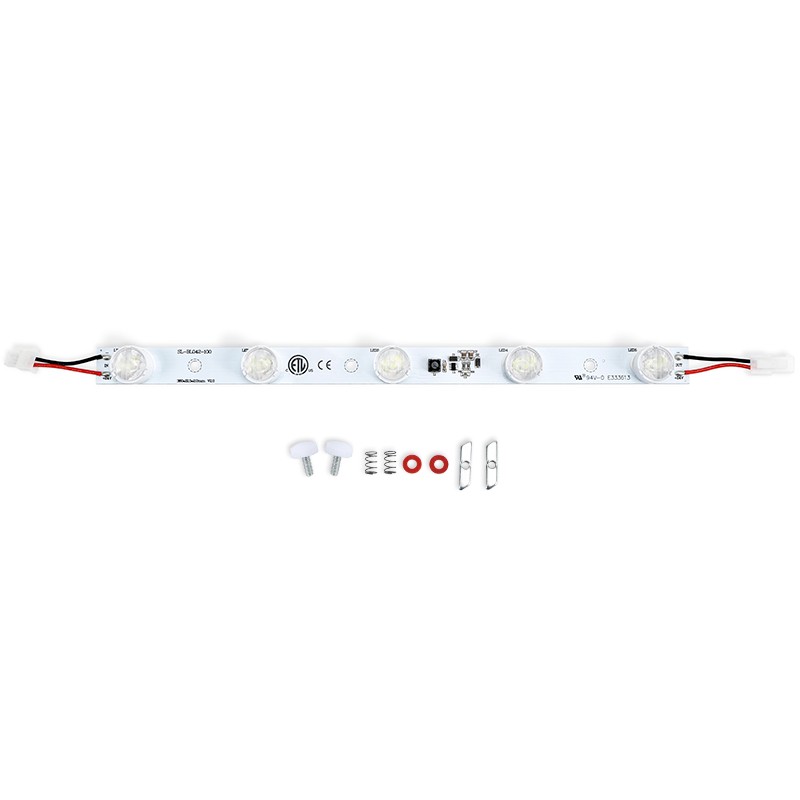

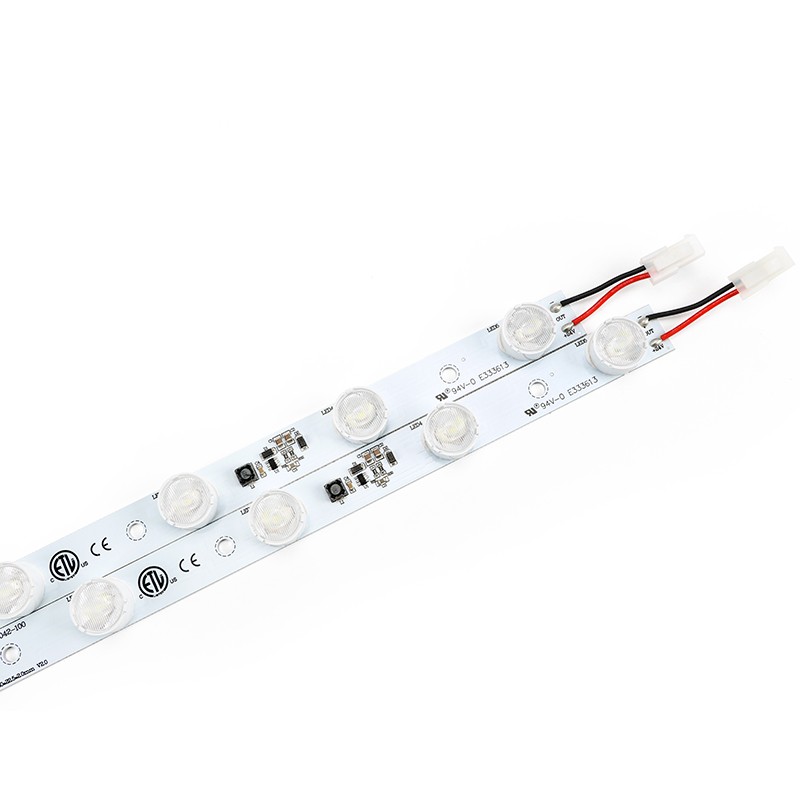

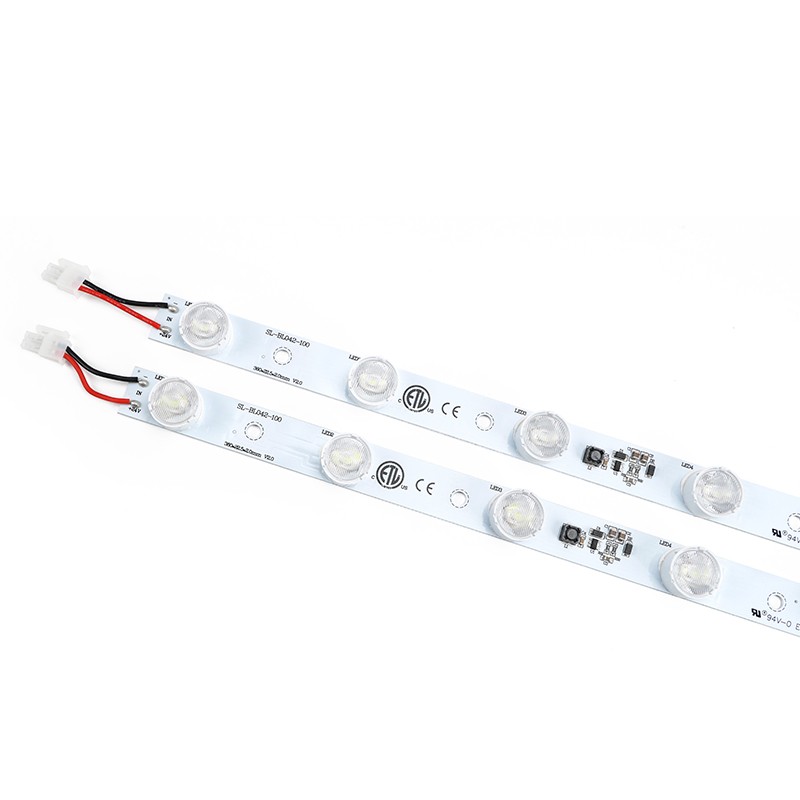

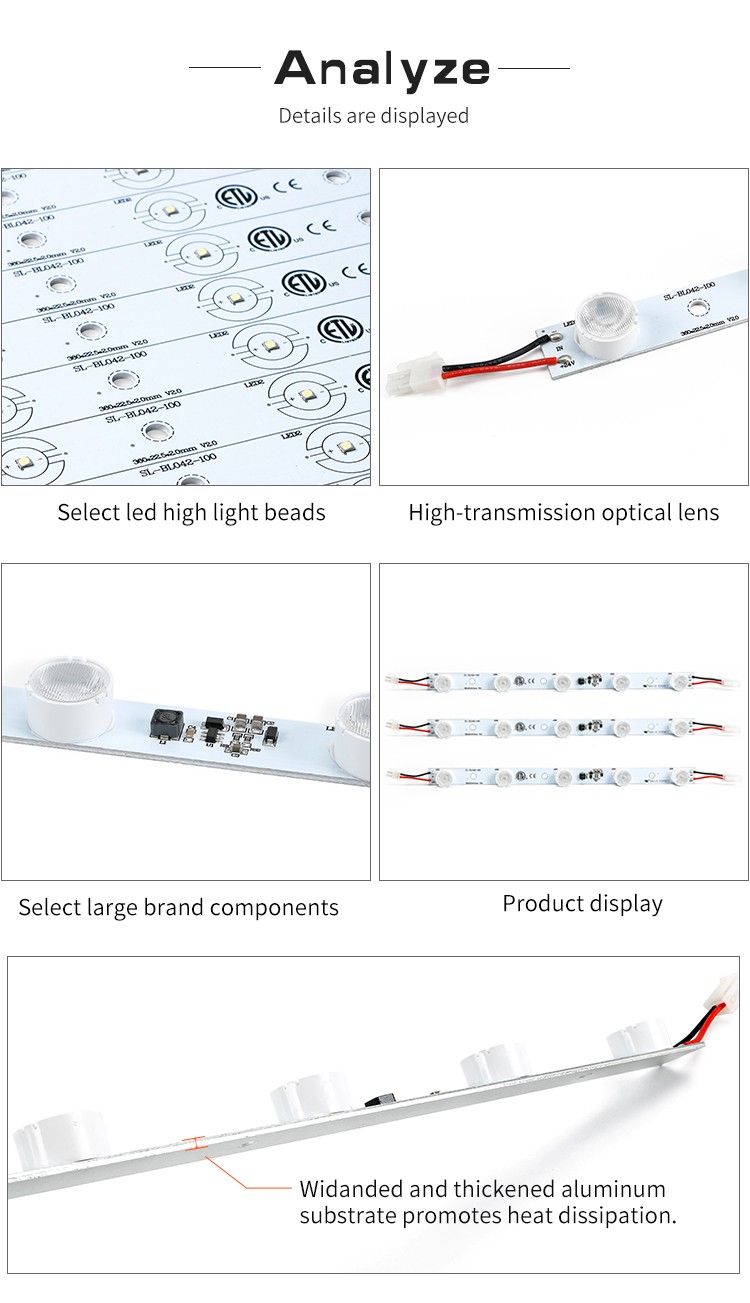

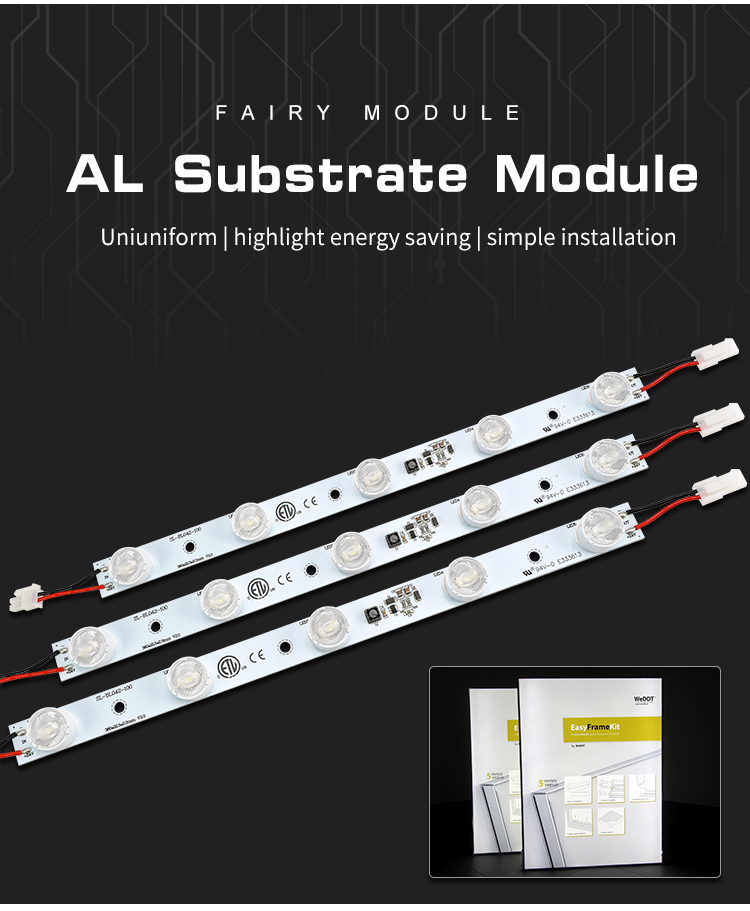

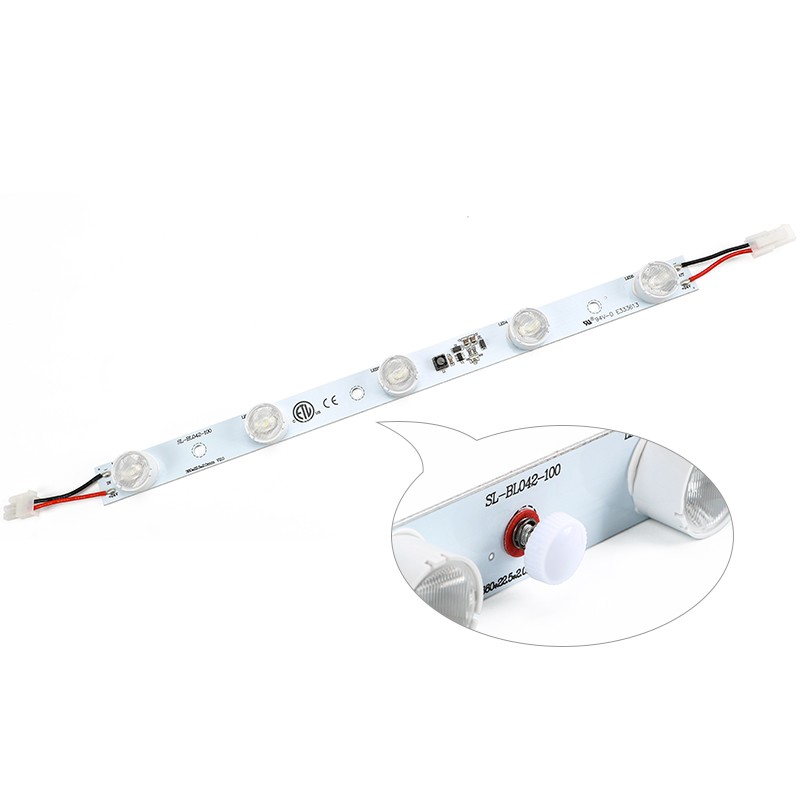

The construction pictures show individual lenses on an aluminium-supported board, with red and black end leads and white plugs. Confirm the matching 24V DC supply, connector arrangement, polarity and wiring layout for the ordered assembly.

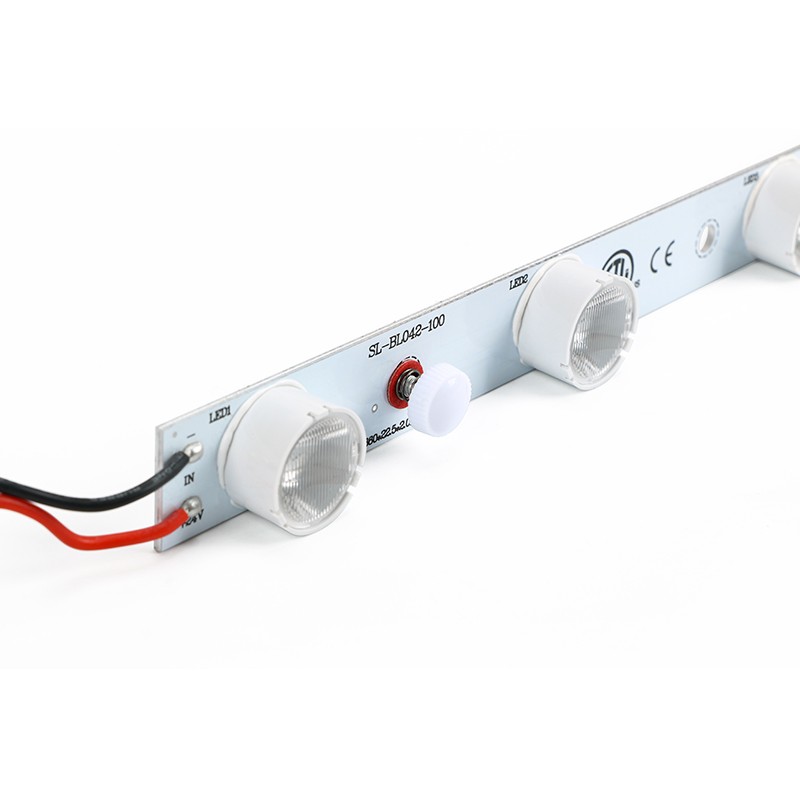

The fixing illustration offers white threaded knobs and metal fixing pieces, with springs and washers in one arrangement. Send the frame profile and available clearance to confirm the complete assembly drawing, fixing method and supplied hardware scope.
Lightbox project supply and packing requirements

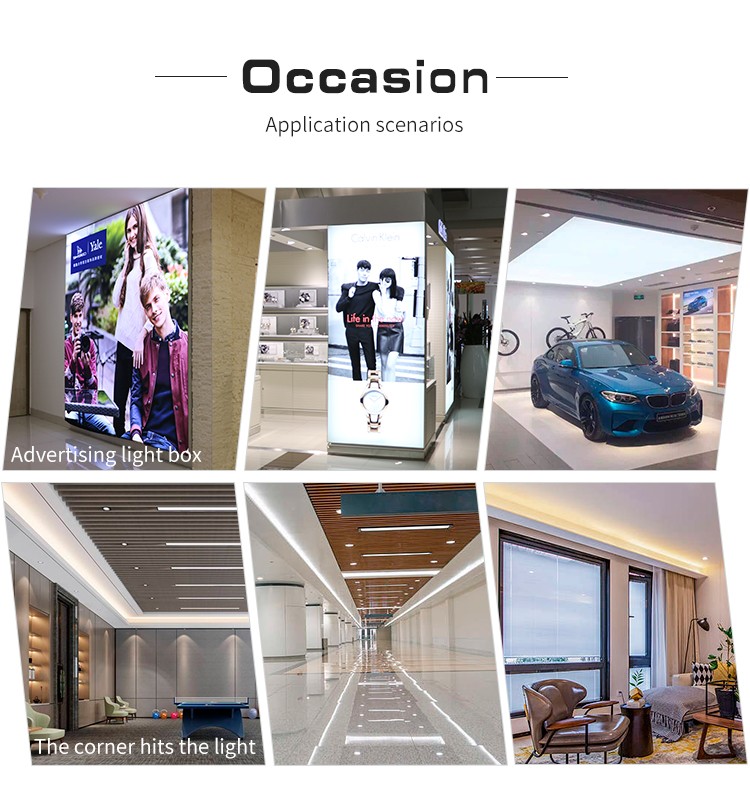

The application pictures show advertising-lightbox and interior display concepts. Provide the enclosure size, face material and installation drawing to review module positions and the required sample configuration.
Specify the number of bars, connection parts, marking and packaging required for the order. Sample cost and shipping are confirmed separately; private-label packing can be reviewed with the production quotation.
Rigid LED light bar purchasing questions
Which white-light versions can I specify for a sample?
The original selection image shows 3000–3500K warm white and 6000–8000K cool white. Samples are available; send the target range, frame drawing and delivery country to confirm configuration, cost and shipping.
What drawing is needed to check the mounting clearance?
Send the frame section, fixing points and available height around the light source. The listed length and width are 360 × 22.5mm; confirm the complete lens-and-board assembly drawing and mounting parts for the order.
What is the minimum order for the 10W rigid bar?
Wholesale orders start at 20 pcs, with lower unit prices at larger quantities. Include the required white-light range, connection leads and fixing parts when requesting volume pricing.
Can the rigid-bar order use OEM marking and custom packing?
OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; confirm the schedule for the order quantity, specifications and packing requirements. Transit time is separate.
