Black wall-washer lighting for display graphics
The SL-6013-N24L is a 50W LED display wall washer with specified 5500 lm ±10% output, 24 LEDs and a 60° beam. The black finish shown suits display-wall lighting layouts where the fixture is part of the stand design. Listed fixture input is AC 100–240V, and the head can be aimed at the graphic face.
For exhibition contractors and display distributors, define the mounting profile, wall dimensions and cable route with the lamp order. Request a sample in the selected finish and white-light version to assess the appearance and layout before a wholesale batch.
50W black display-light specifications
| Specification | SL-6013-N24L |
|---|
| Model | SL-6013-N24L |
| Rated power | 50W ±10% |
| Specified light output | 5500 lm ±10% |
| LED quantity / type | 24 / 3535 |
| Beam angle | 60° |
| Fixture input | AC 100–240V |
| Driver working mode listed | Constant current, 1800 mA |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K |

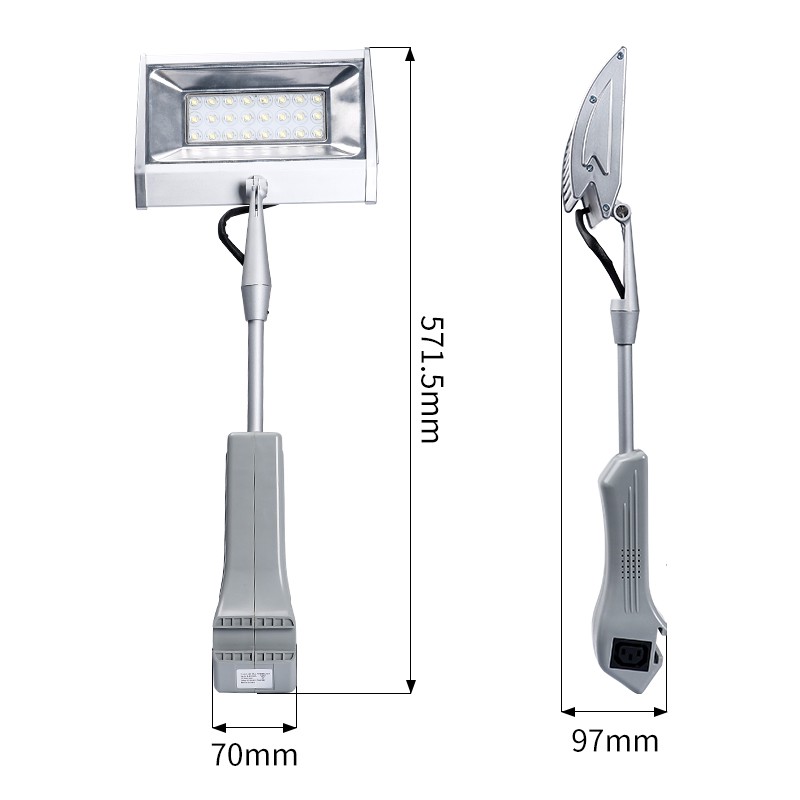

| Overall height shown | 571.5 mm |
| Head width shown | 219 mm |
| Base dimensions shown | 70 mm front width / 97 mm side dimension |
| Connection | 3-pin plug; linking ports pictured |
| Fitting options | 0526 aluminium clamp; 0527 / 0528 mounting plates |
| Operating temperature | -20°C to +50°C |
Choose the black finish and aim the graphic light

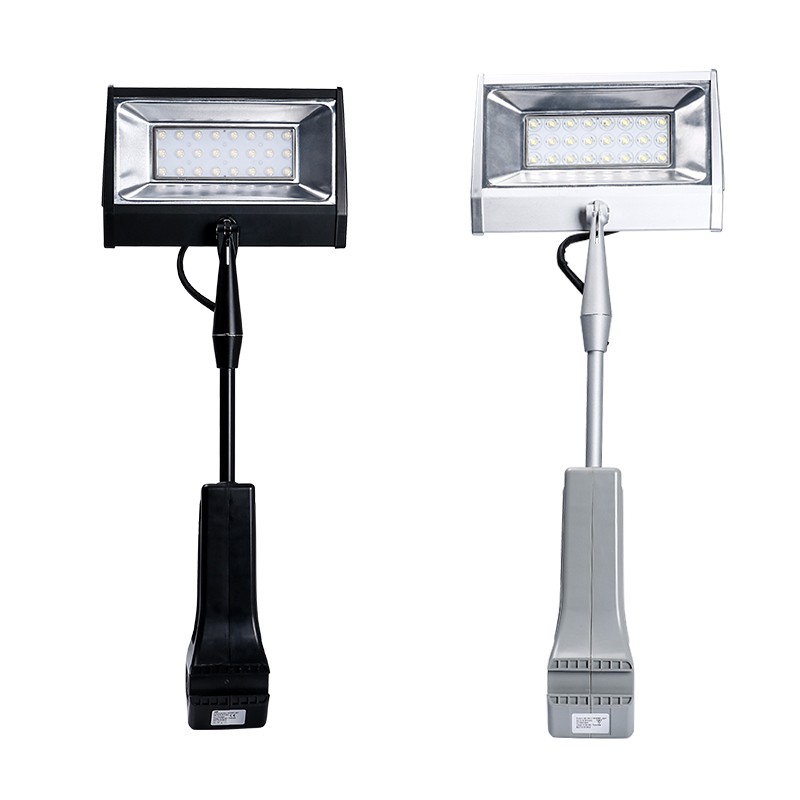

Black and silver fixtures appear in the original finish illustration. Specify black for this quotation, or ask for a sample in the finish required by the stand design.

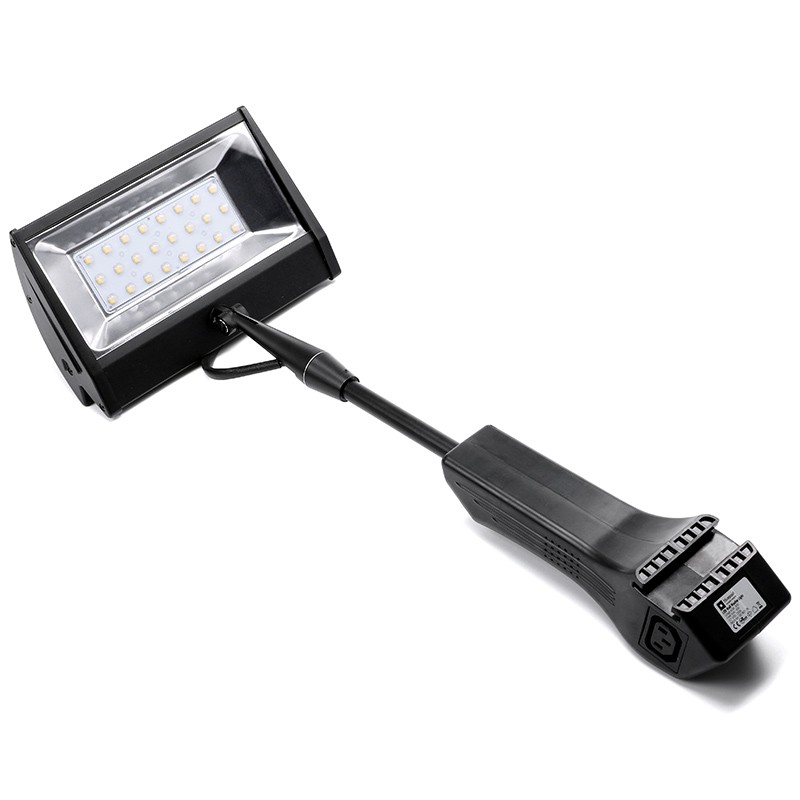

The adjustable joint directs the head towards the wall. Use the graphic size, mounting height and surrounding lighting to plan the 60° beam overlap; actual coverage should be evaluated in the intended layout.
Select the clamp or mounting plate
The illustrated clamp installation secures the arm above a graphic panel without drilling into the wall. The accessory guide identifies the 0526 aluminium clamp and 0527 or 0528 mounting plates.
Provide the frame cross-section and fixing dimensions to select the fitting. Check clearance for the 571.5 mm assembly and arrange the cable route with the mounting position.
Plan the power and linking configuration
The fixture is listed for AC 100–240V input. EN, US, AU and UK power-lead examples are pictured; specify the destination plug and required leads with the batch.
The installation guide shows two connection ports and an N=5 linked-lamp arrangement. Treat this as the illustrated layout, and confirm the permitted quantity, linking leads and supply-circuit configuration for the exact kit.
Purchasing questions for black display wall washers
Is the black light a different output version?
The pictured black and silver fixtures use the same SL-6013-N24L specification. Choose the finish to match the display, and confirm the supplied finish on the quotation.
Can I choose the white-light appearance?
Specify 3000–3500K, 4700–5300K or 6000–7000K as the required order version. Evaluate a sample with the graphic before confirming the batch.
What information is needed for a wholesale price?
Send the quantity, black finish, white-light version, frame details, fitting choice, lead configuration and destination. Orders start from 20 pcs; higher quantities receive lower unit prices.
Samples, custom supply and packing
Samples are available. Standard lead time is 12–18 days, with OEM, ODM and private-label enquiries supported. Confirm included fitting parts, lead lengths, carton quantities and protective packing with the quotation. Sample cost, shipping, custom schedules, transit and model-specific documents are confirmed separately.
