Pop-up display lighting with a choice of fixing

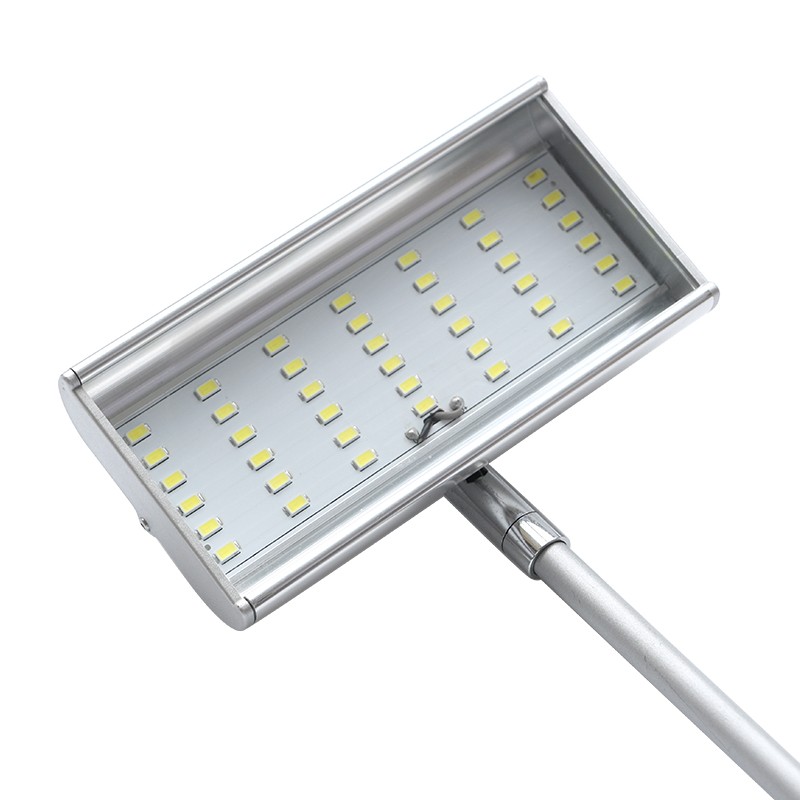

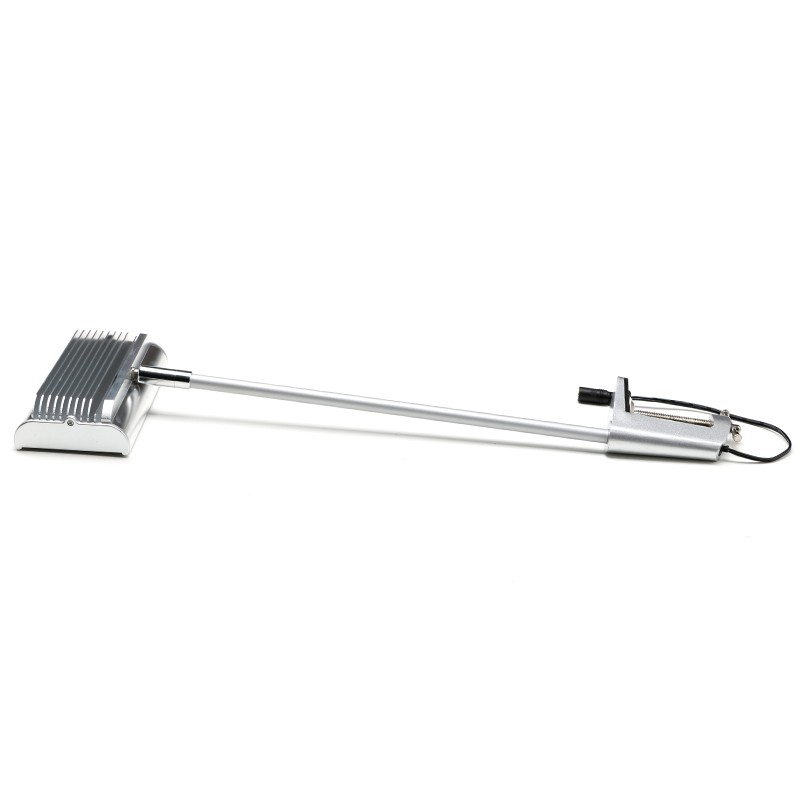

The SL-026-08-42L is a silver LED spotlight for pop-up displays and exhibition graphics, with 42 SMD5630 LEDs, specified 2400 lm output and a 120° beam. Its listed working supply is DC 24V, 0.8A. Choose the aluminium-clamp or shoe-base arrangement to suit the fixing profile.
For portable-display distributors and stand contractors, specify the frame connection before ordering a lighting kit. Send the profile dimensions, graphic size, required white-light appearance and destination so the fitting, power unit and sample configuration can be checked together.

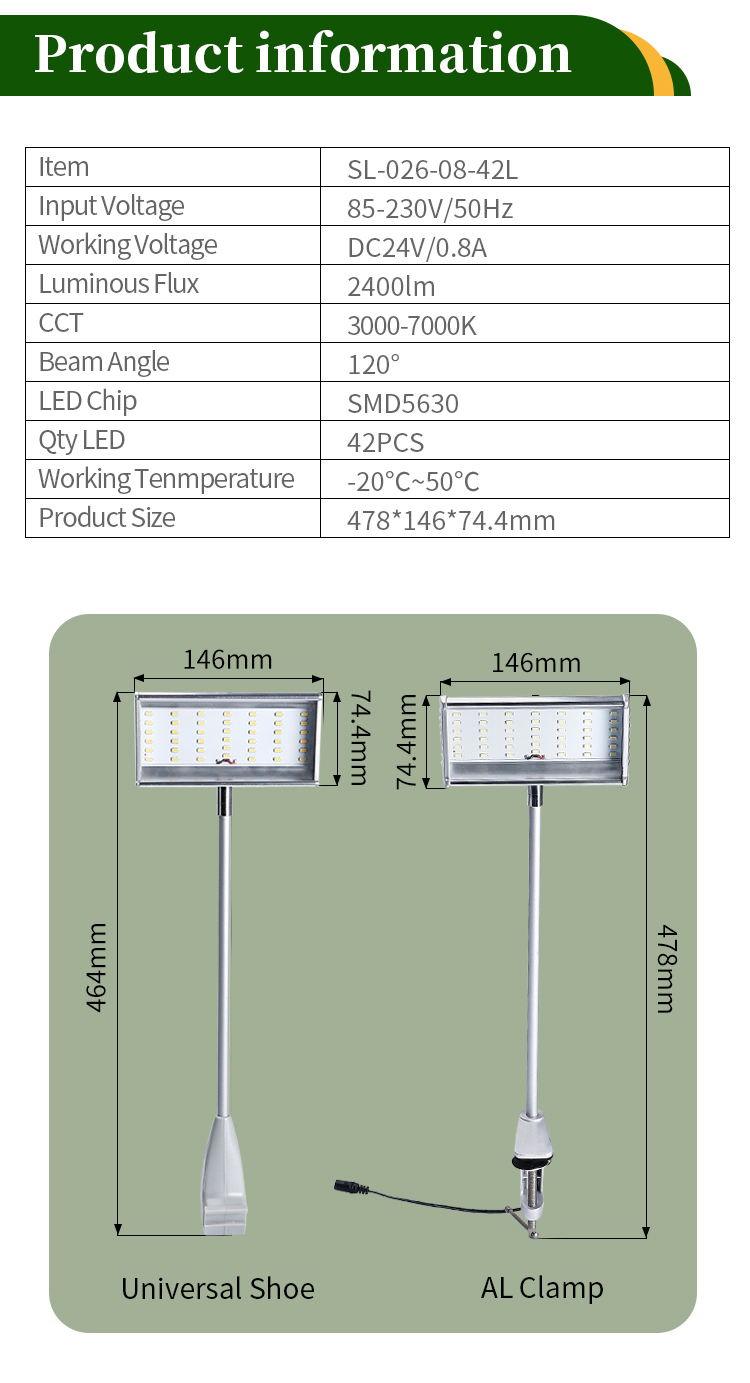

42-LED pop-up spotlight technical data
| Specification | SL-026-08-42L |
|---|
| Model | SL-026-08-42L |
| LED quantity / type | 42 / SMD5630 |
| Specified light output | 2400 lm |
| Beam angle | 120° |
| Working supply | DC 24V, 0.8A |
| White-light order range listed | 3000–7000K |
| Head dimensions shown | 146 × 74.4 mm |
| Clamp-version height shown | 478 mm |
| Shoe-version height shown | 464 mm |
| Fixing choices pictured | Aluminium clamp / Shoe base |
| Kit connections pictured | DC plug for clamp / B-shape for shoe base |
| Power-unit input listed | 85–230V, 50Hz |
| Operating temperature | -20°C to +50°C |
Match the clamp or shoe to the display frame

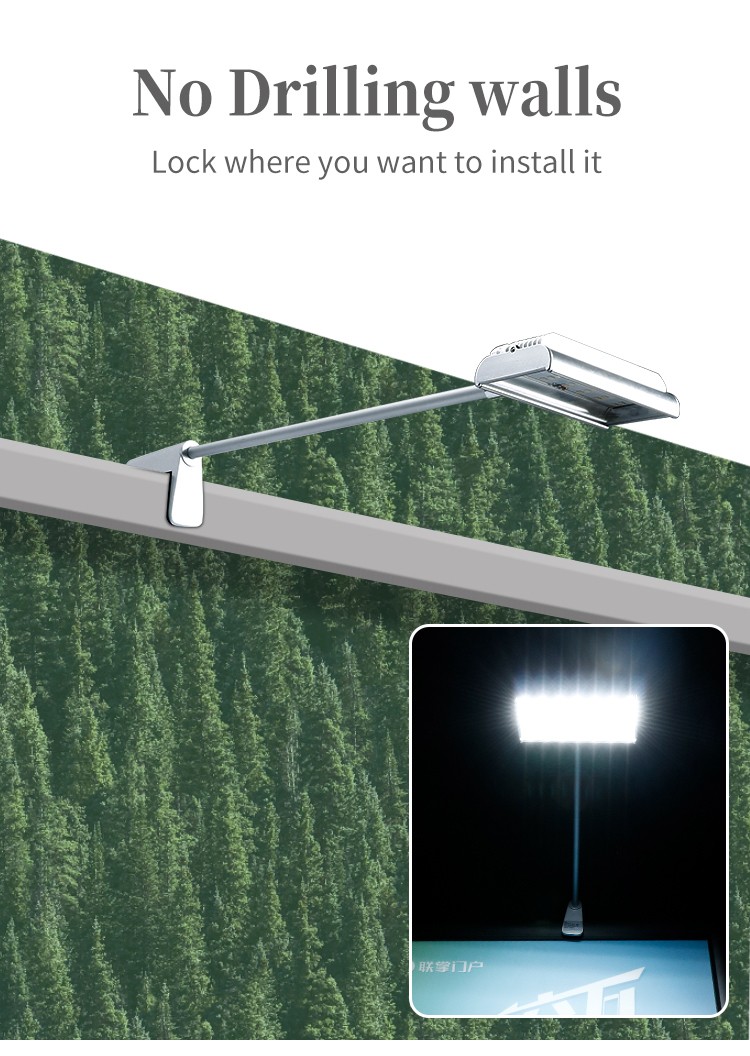

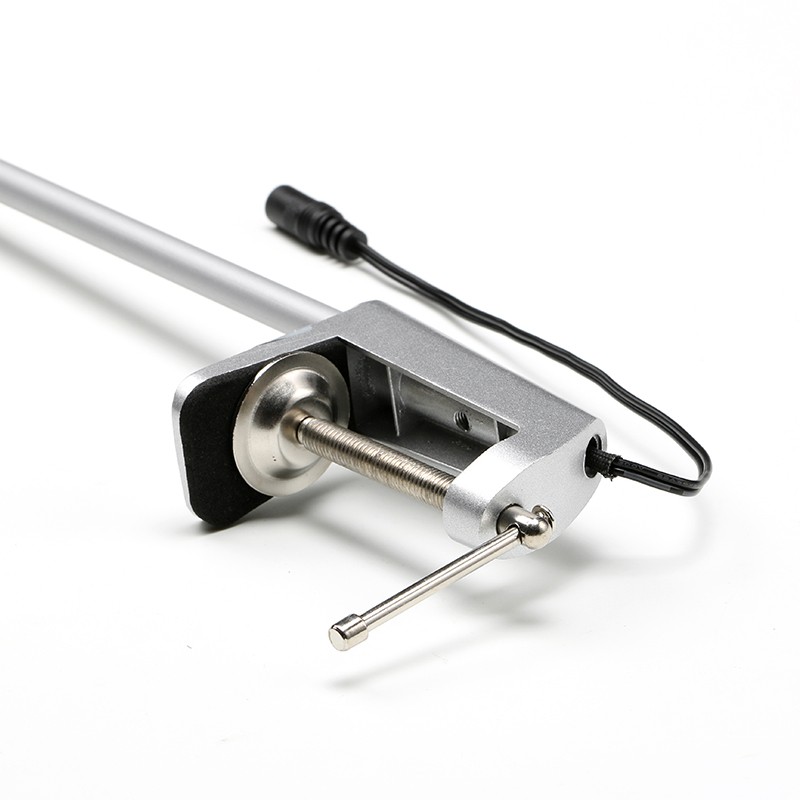

The clamp version secures at the selected fixing point without drilling into the graphic wall. Check the frame thickness and fixing surface before choosing the clamp.

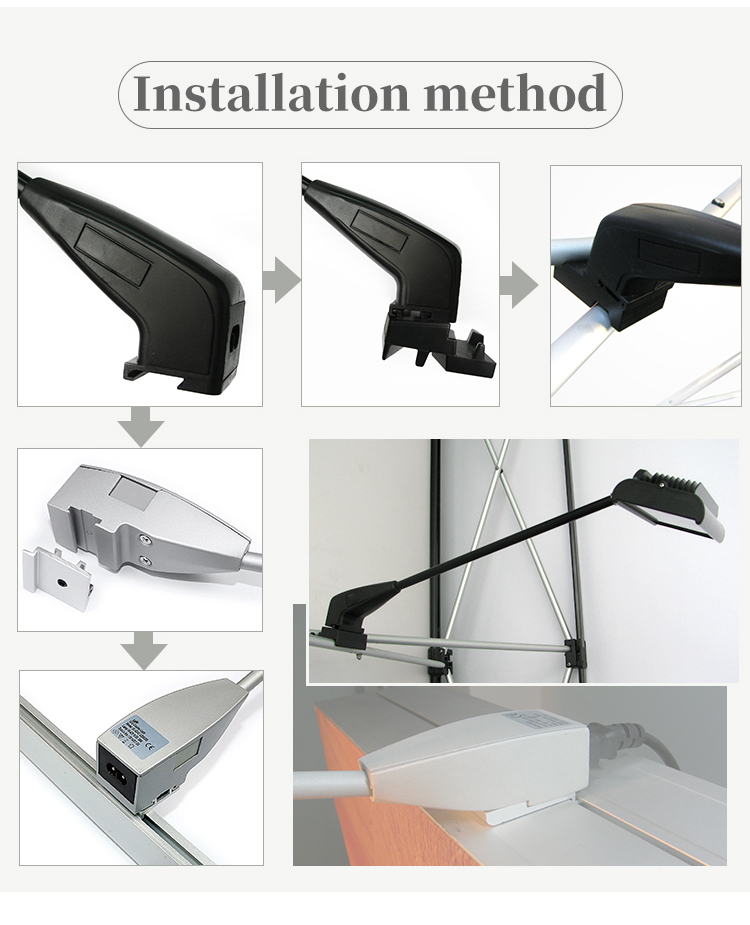

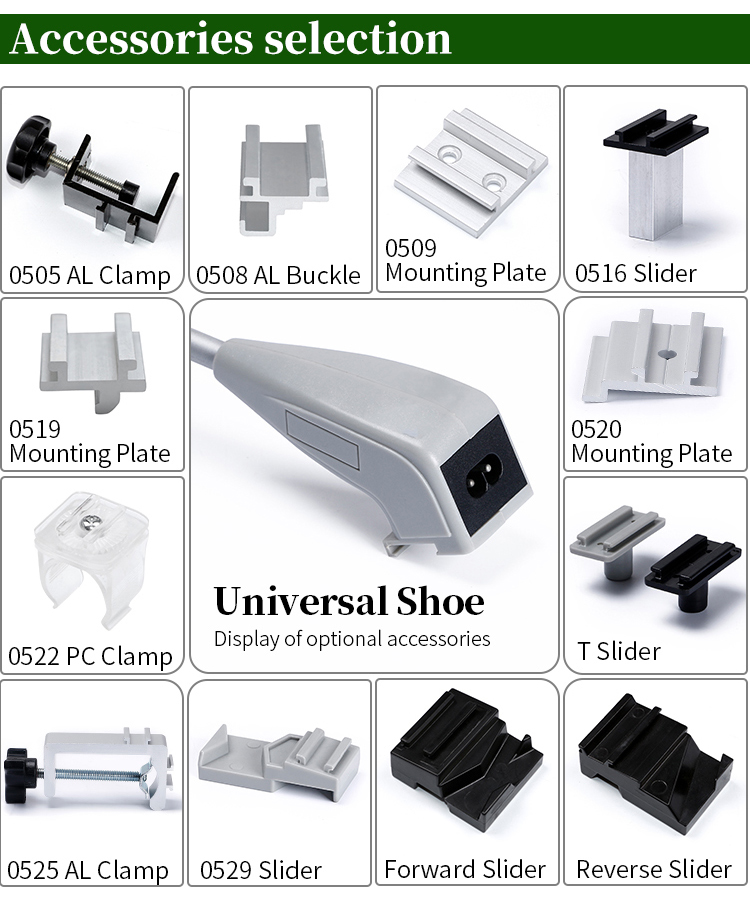

The accessory guide also shows a shoe base, mounting plates, a buckle and several sliders. Send a profile drawing or dimensions to identify the fitting for your display; the base name alone does not establish compatibility.
Set the head position and white-light appearance

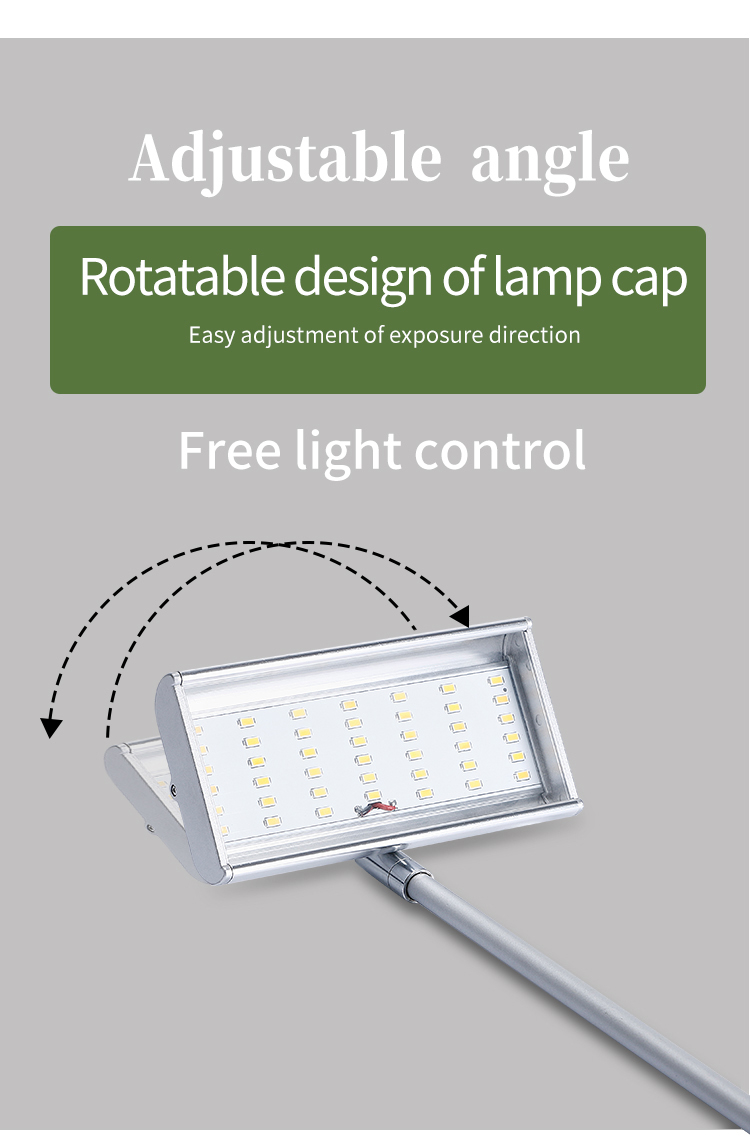

The adjustable joint lets the head aim towards the graphic face. Evaluate mounting height, panel width and beam overlap using a sample layout before confirming the project quantity.
The parameter sheet lists a 3000–7000K order range. Specify the required white-light version with the enquiry; confirm the exact supplied version against the final graphics.
Define the external power kit and lead route

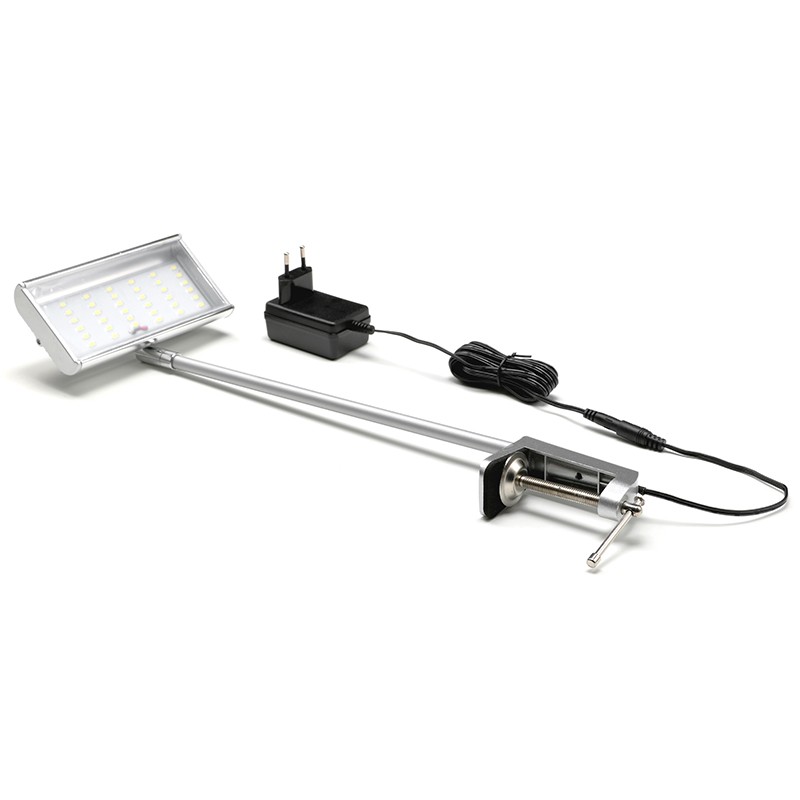

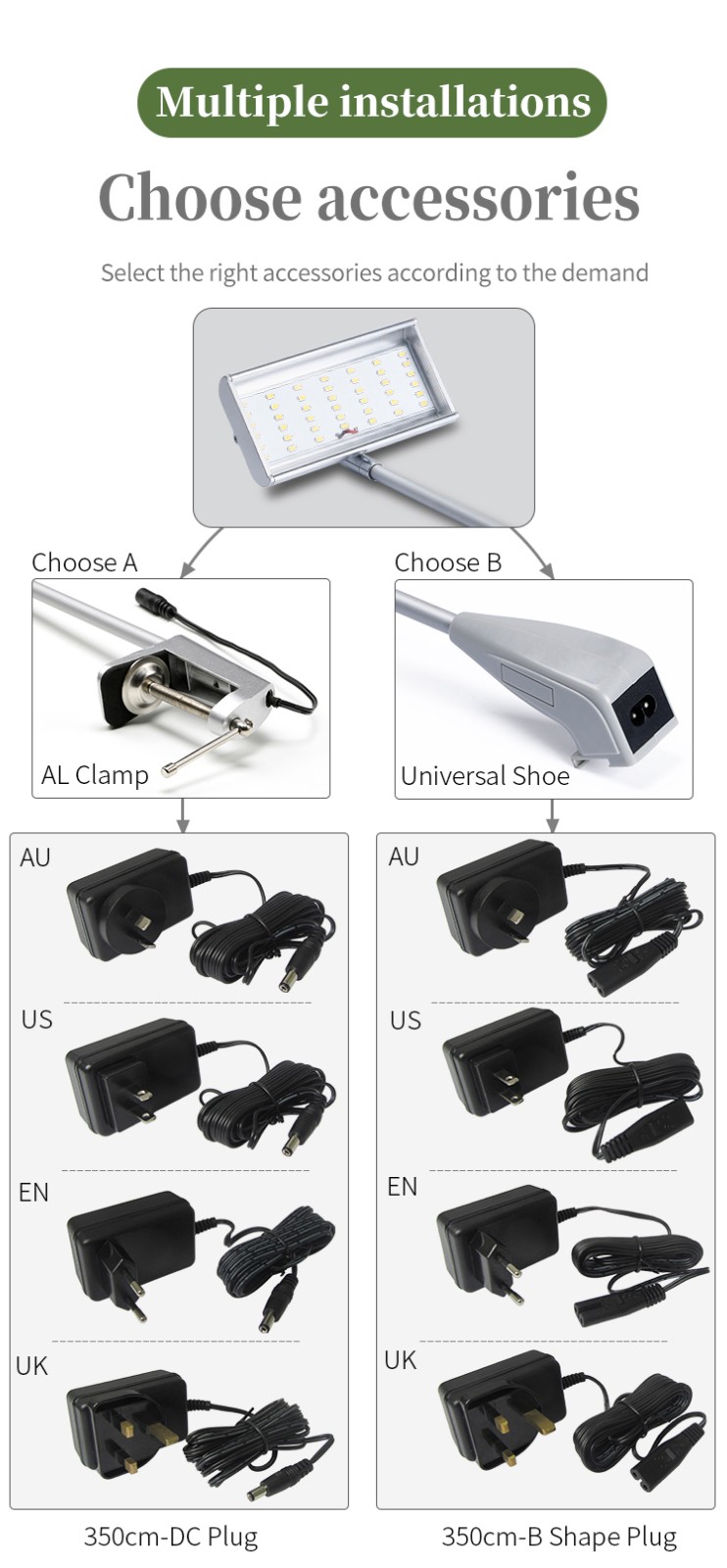

The lamp's working supply is DC 24V, 0.8A. The original kit guide pairs clamp and shoe configurations with external wall-plug power units and identifies 350 cm DC-plug or B-shape lead examples.
AU, US, EN and UK plug examples are pictured. Confirm the destination plug, matching supply rating, connector, lead length and included fitting parts for the selected kit. Carton quantities and protective packing are agreed with the wholesale order.
Questions for portable-display lighting buyers
Which base should I choose for a pop-up stand?
Provide the frame profile, thickness, fixing area and available clearance. The clamp, shoe and optional fitting dimensions need to be checked against your stand.
Does the light connect directly to mains power?
The working supply is DC 24V, 0.8A. Request the matching external power kit and destination plug, and confirm its input configuration with the quotation.
How do I specify a sample or wholesale kit?
Include SL-026-08-42L, frame information, lamp quantity, light version, power connection and destination. Samples are available; wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Factory orders and supply schedule
Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported. Sample cost, shipping, custom schedules, transit and required model-specific documents are confirmed separately.
