34W arm spotlights with frame-mounting options

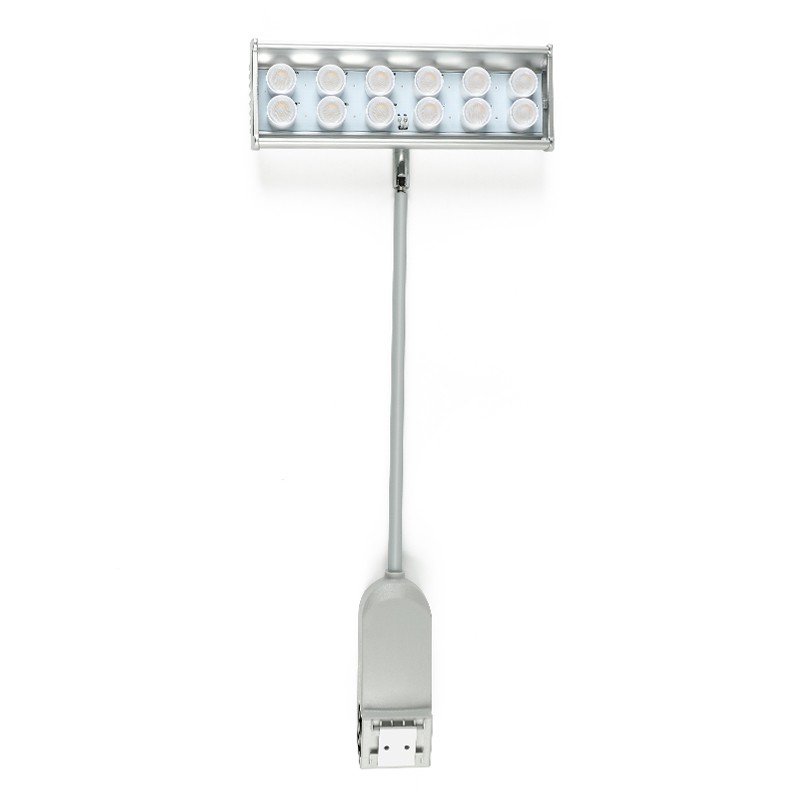

The SL-2077-12-N12L is a 34W exhibition arm spotlight with specified 3500 lm output and a 60° beam. The technical sheet lists ±10% tolerances for power and light output, AC 100–240V input and dimensions of 515.8 × 227.3 × 46.9 mm. Three-pin input and output connections support a planned multi-lamp layout.
For display-wall distributors and exhibition contractors, confirm the fixing, lamp positions and lead arrangement together. Forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate are pictured as options. Send the frame profile, graphic dimensions, lamp count and destination mains plug for a matching quotation.

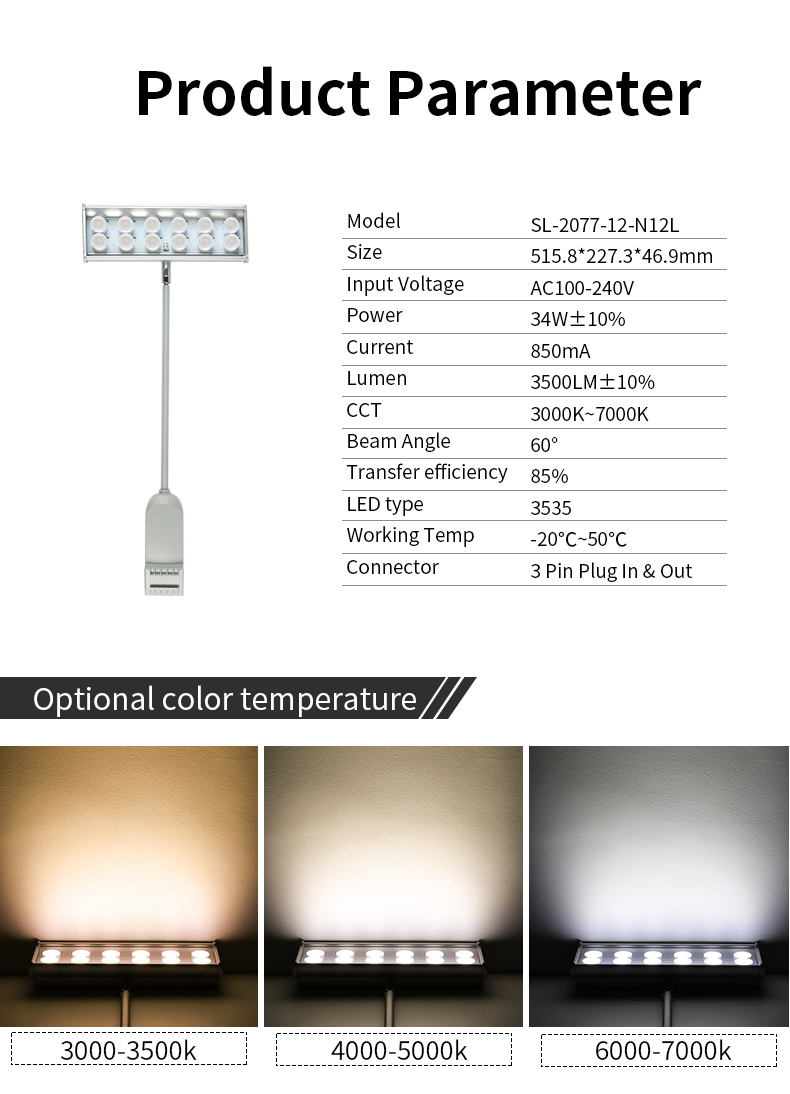

34W frame-mounted spotlight technical data
| Specification | SL-2077-12-N12L |
|---|
| Model | SL-2077-12-N12L |
| Power | 34W ±10% |
| Light output | 3500 lm ±10% |
| Input voltage | AC 100–240V |
| Beam angle | 60° |

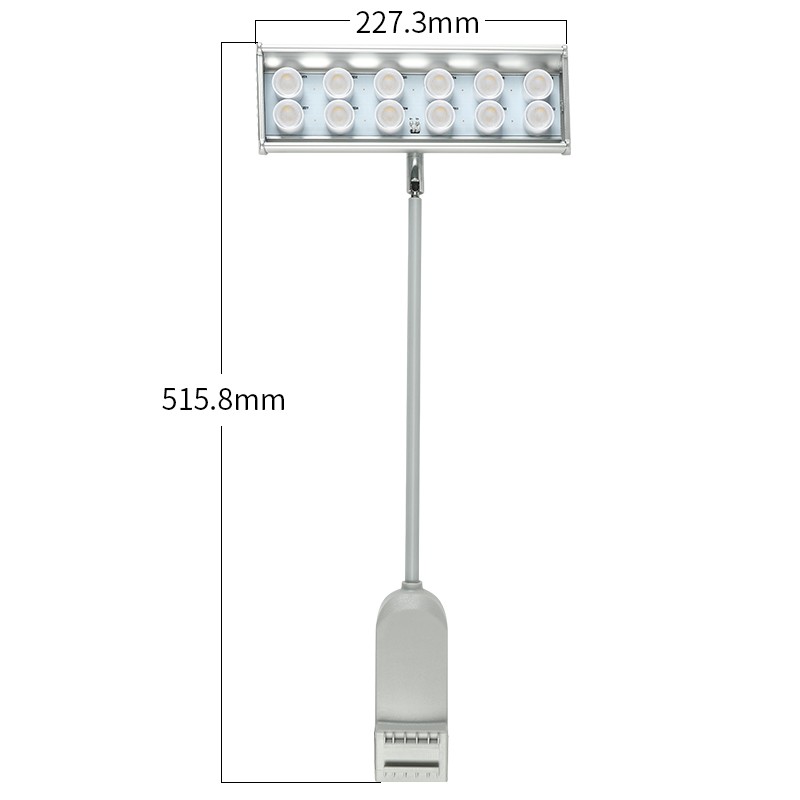

| Dimensions | 515.8 × 227.3 × 46.9 mm |
| LED type | 3535 |
| White-light order ranges | 3000–3500K / 4000–5000K / 6000–7000K |
| Connections | Three-pin input and output |
| Driver | Built-in driver pictured |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp / 0520 mounting plate |
| Working-temperature range | -20°C to +50°C |
Choose a slider, aluminium clamp or mounting plate

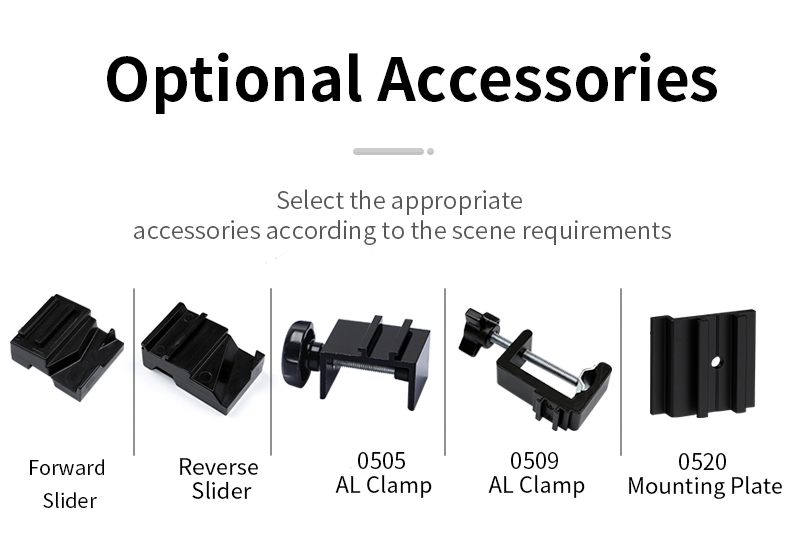

Select the fitting against the actual frame profile and available fixing space. The accessory illustration includes forward and reverse sliders, two aluminium clamp models and a mounting plate. Provide the frame drawing and mounting position so the mechanical fit can be checked before a bulk order.
Configure connections and white-light appearance

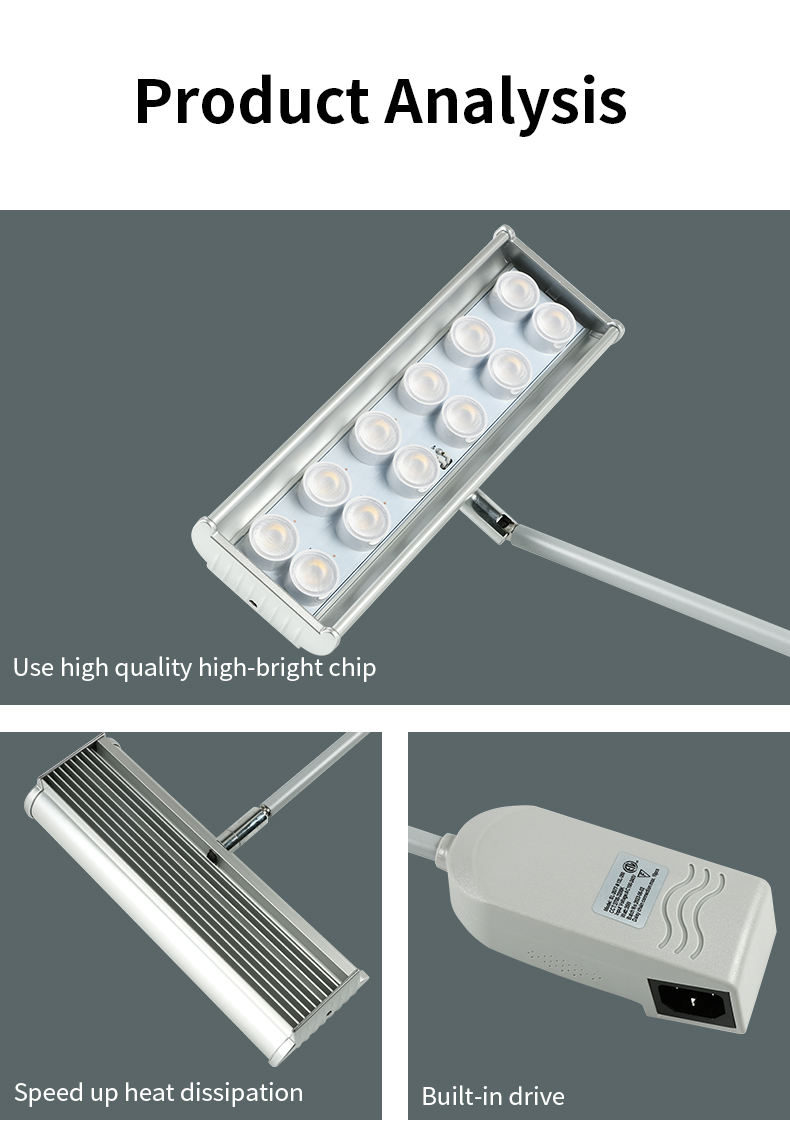

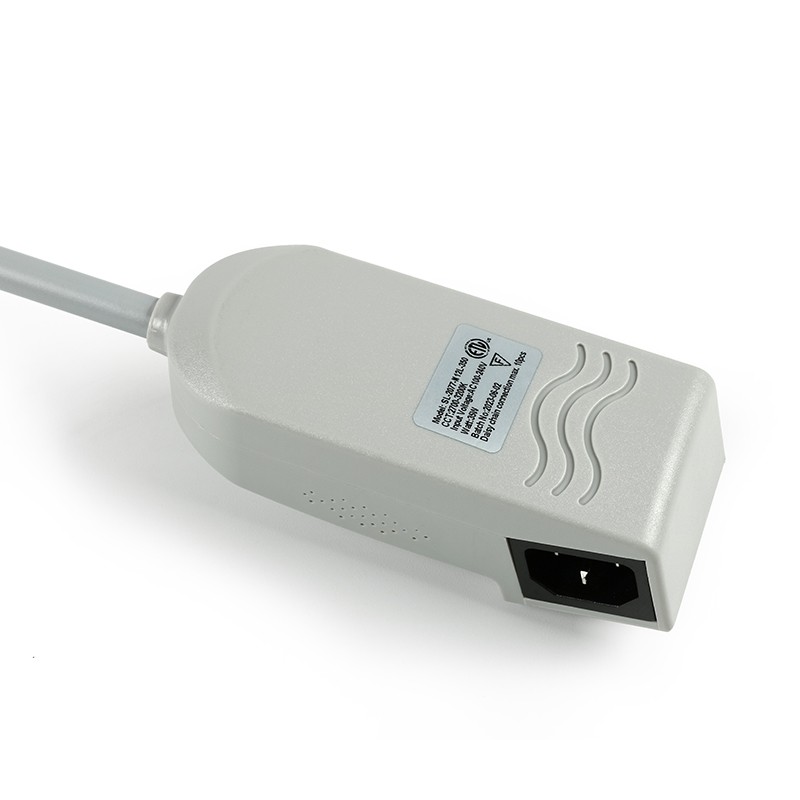

The pictured base contains the driver, and the specification lists three-pin input and output. Send the lamp quantity, connection route, lead lengths and destination mains plug so the permitted complete-kit layout can be confirmed.

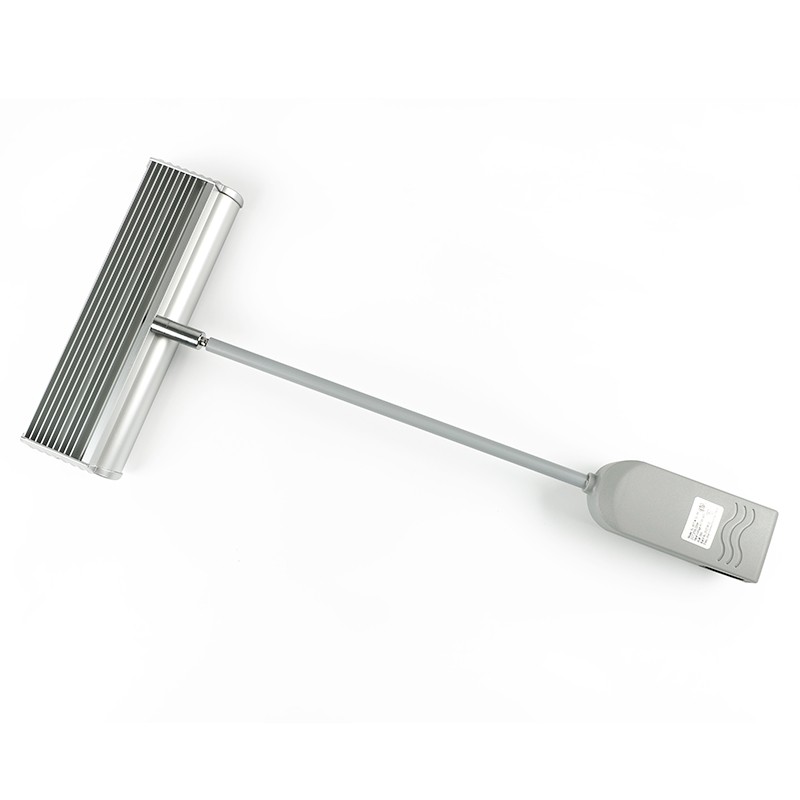

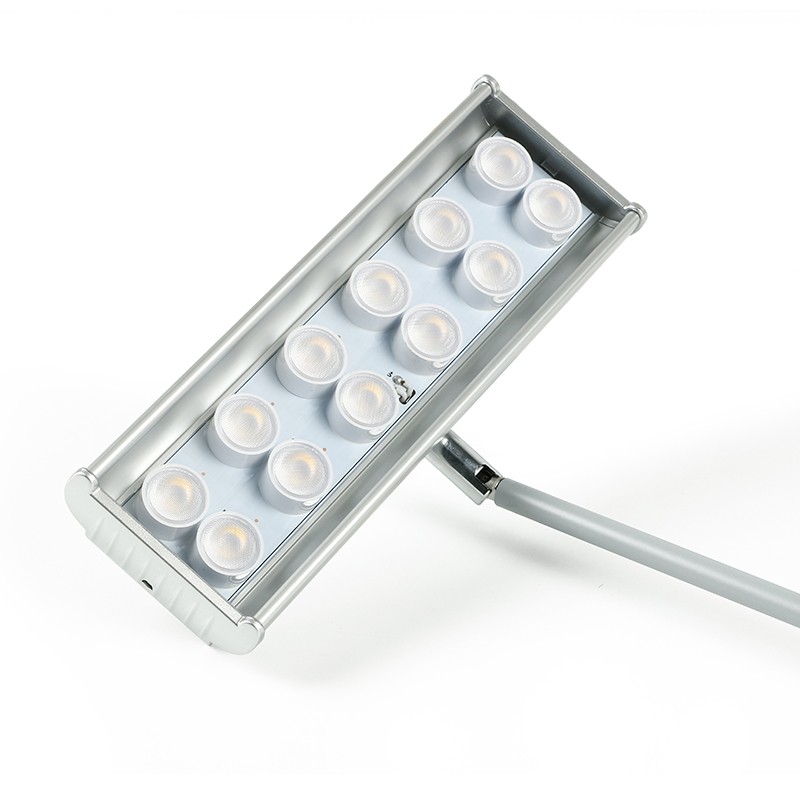

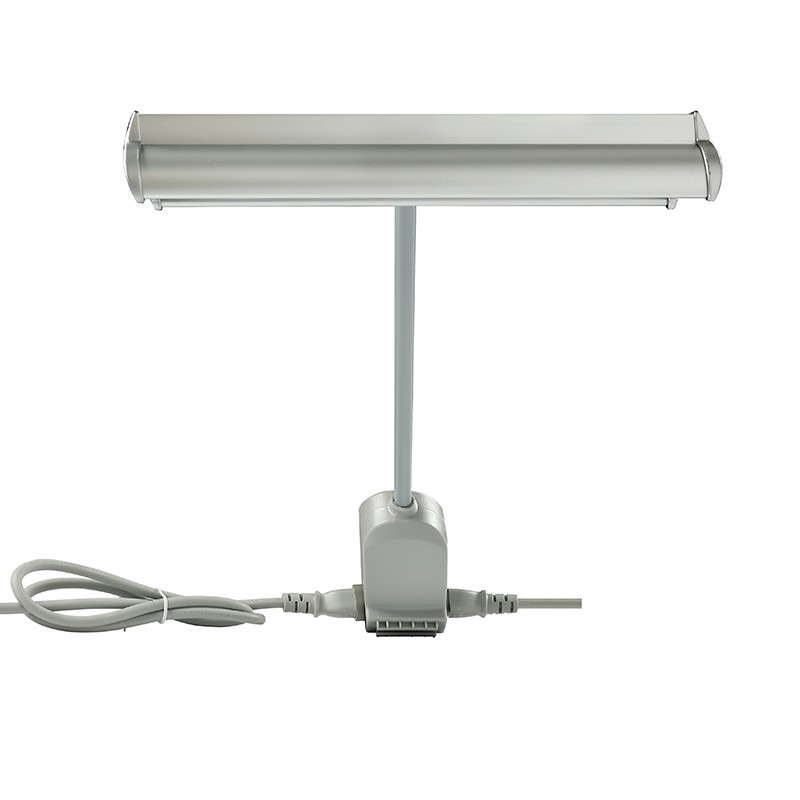

Select the 3000–3500K, 4000–5000K or 6000–7000K order range to suit the graphic and surrounding stand lighting. The head and rear ribs are shown in the close-up; aim the 60° beam from the intended fixing position and evaluate coverage with a sample.
Display-wall applications and carton packing

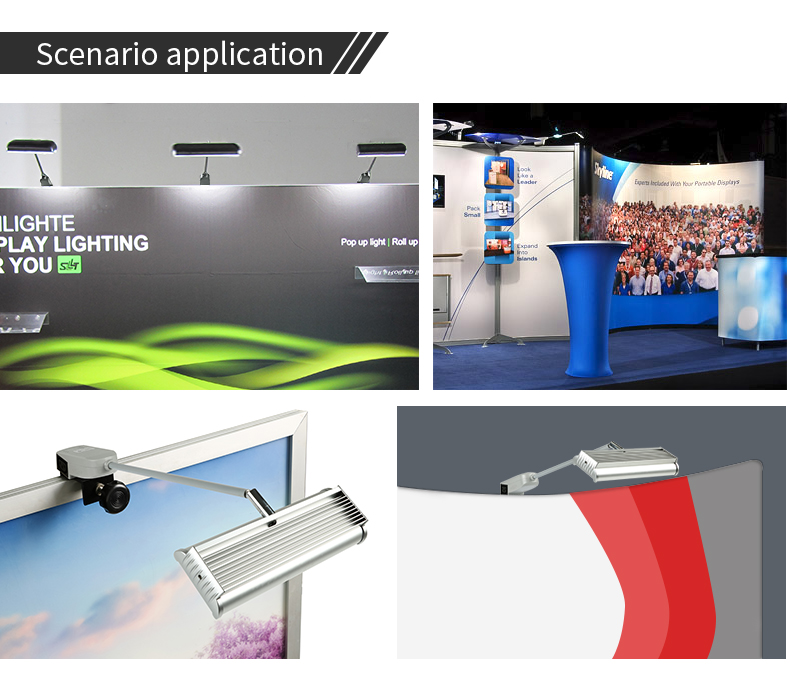

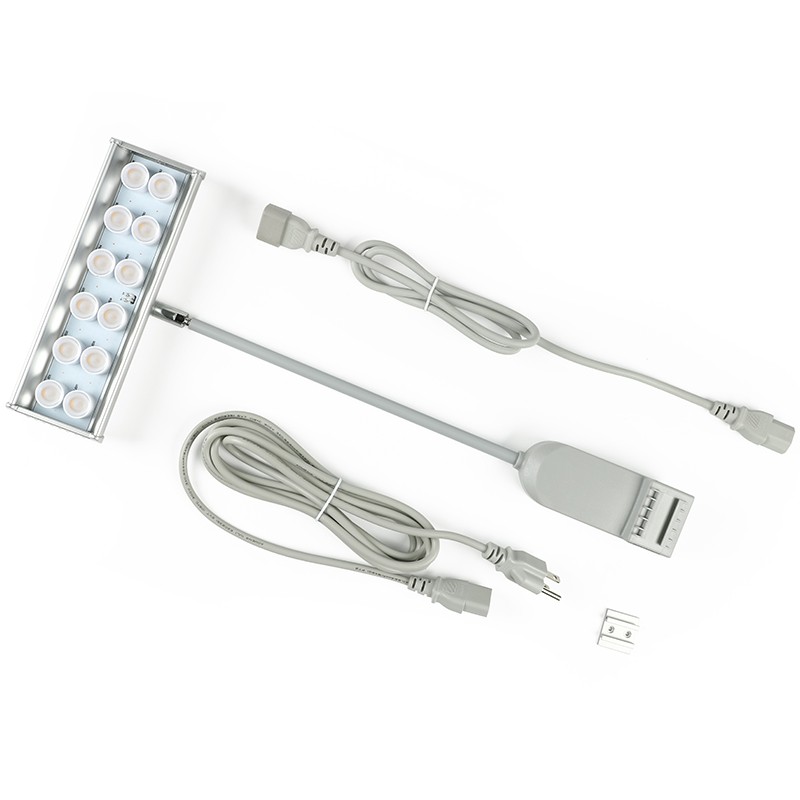

The application images show arm spotlights above exhibition panels and framed graphics. Supply panel dimensions and planned lamp positions when requesting a layout. The carton example includes a lamp with mains and connection leads; confirm the components per kit, carton quantities and any branding requirements with the quotation.
Questions for high-output exhibition-light orders
Which fixing suits my display frame?
Forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate are pictured. Send the frame section, fixing position and available space so the required fitting can be confirmed.
Can this 34W model use an existing linking lead?
Provide the connector details, lead specification and required lamp layout for compatibility confirmation. Three-pin input and output are listed, but the permitted arrangement must be confirmed for the complete kit.
What should I include in a wholesale quotation request?
Include SL-2077-12-N12L, quantity, white-light range, fitting, frame measurements, lamp count, destination plug and packing requirements. Orders start from 20 pcs, with lower unit prices at larger quantities.
Sample checks and custom factory supply
Samples are available to assess the fitting, beam coverage and connection arrangement. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit are confirmed separately.
