965mm rigid LED strips for lightbox frame layouts
Specify a long rigid LED strip for an illuminated advertising-box assembly. SL-BL102-18L measures 965 × 21.5 × 13mm and combines 18 LEDs, 10 × 60° lenses and a 24V DC input. The listed power is 21W ±10%, with 2100 lm ±10% specified light output.
For lightbox manufacturers and sign-component distributors, the key selection points are usable frame length, lens orientation and power-unit arrangement. Send the enclosure drawing, graphic or diffuser details and required quantity to confirm the lighting layout, connecting components and wholesale price.

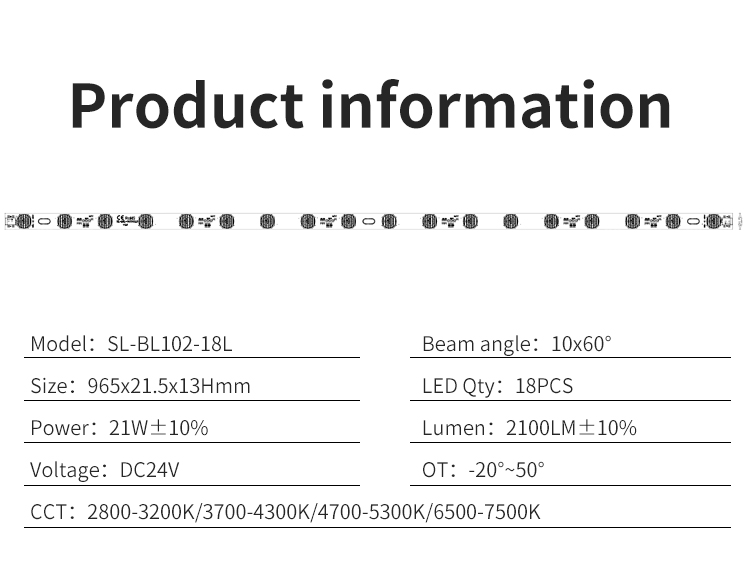

21W rigid strip technical specifications
| Specification | SL-BL102-18L |
|---|
| Model | SL-BL102-18L |
| Dimensions | 965 × 21.5 × 13mm |
| Power | 21W ±10% |
| Input voltage | 24V DC |
| Specified luminous flux | 2100 lm ±10% |
| LED quantity | 18 LEDs |
| Lens angle | 10 × 60° |
| White-light order range 1 | 2800–3200K |
| White-light order range 2 | 3700–4300K |
| White-light order range 3 | 4700–5300K |
| White-light order range 4 | 6500–7500K |
| Aluminium substrate thickness shown | 1.6mm |
| Operating temperature | −20 to +50°C |
Plan the long-bar mounting envelope

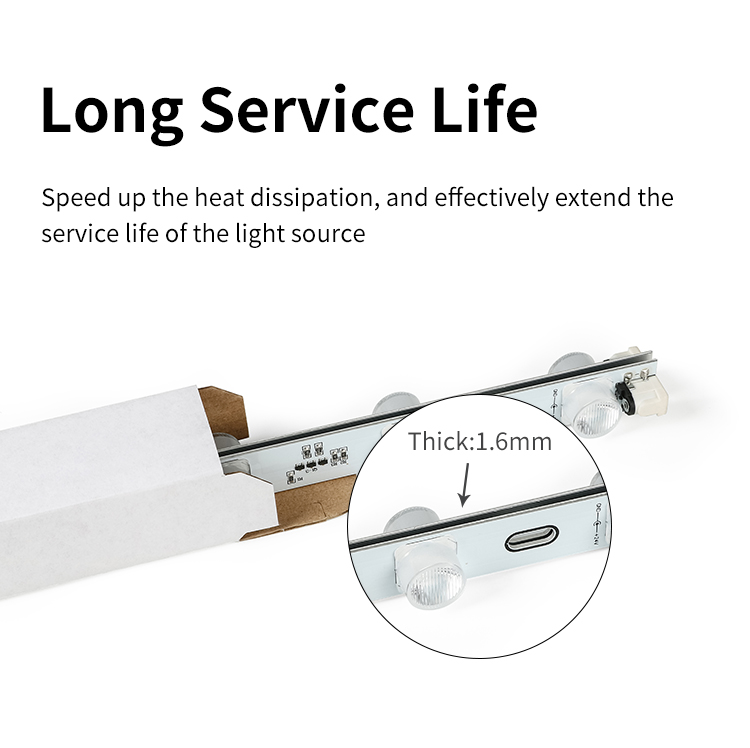

Check the 965mm length and 21.5mm width against the usable enclosure space. The complete lens-equipped assembly is 13mm high; the construction illustration separately identifies a 1.6mm aluminium substrate.

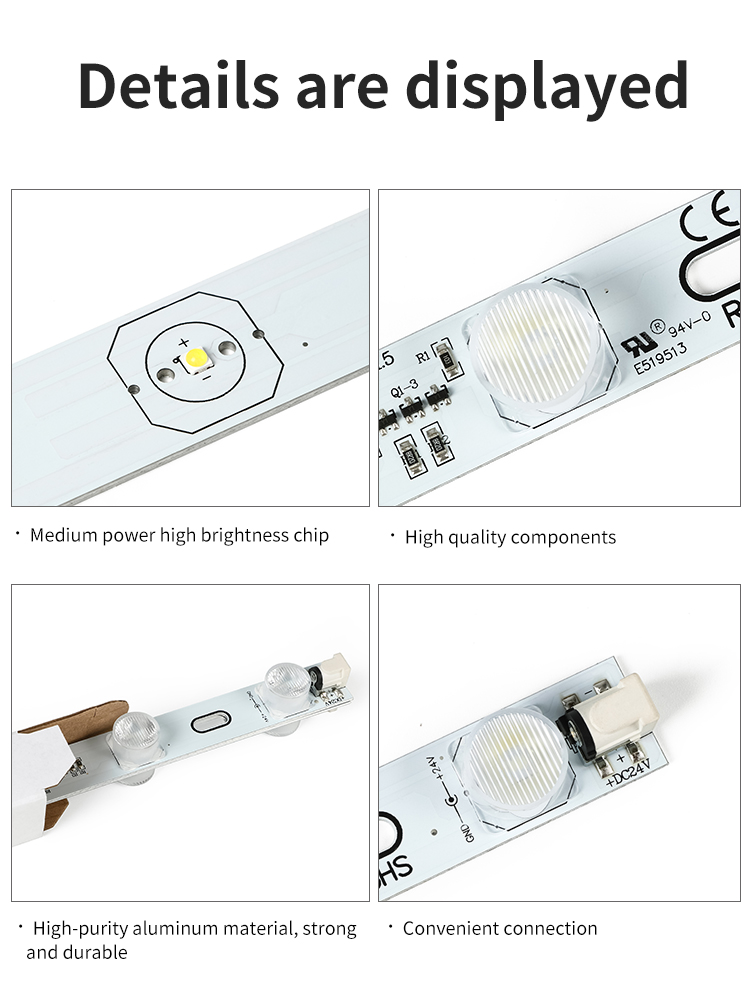

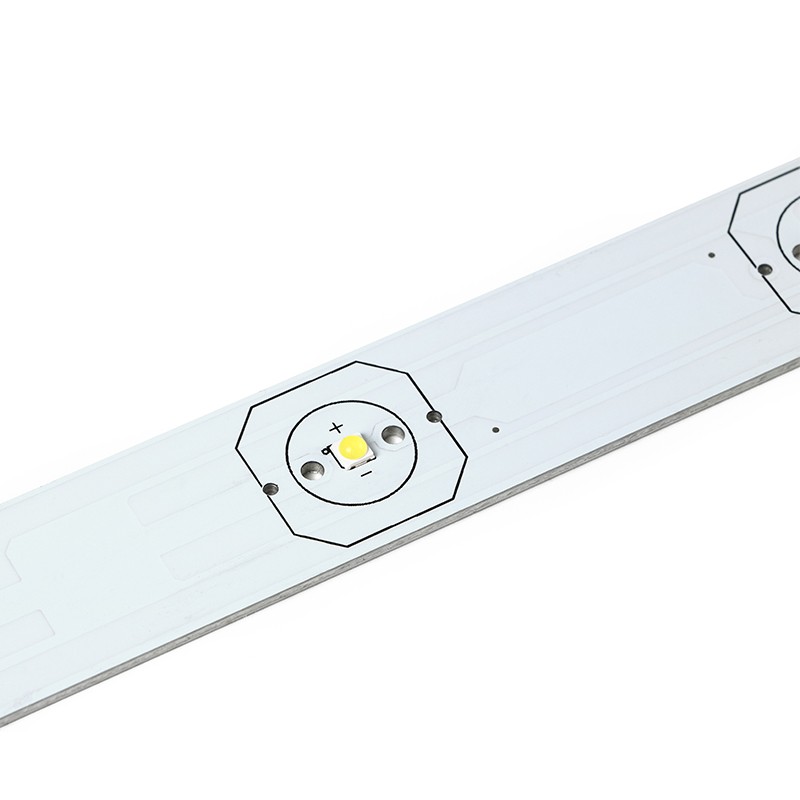

The photographs show slotted fixing areas along the bar. Provide the frame profile and fixing positions so the mounting arrangement and supplied hardware can be confirmed for the project.
Optical layout and 24V connection planning

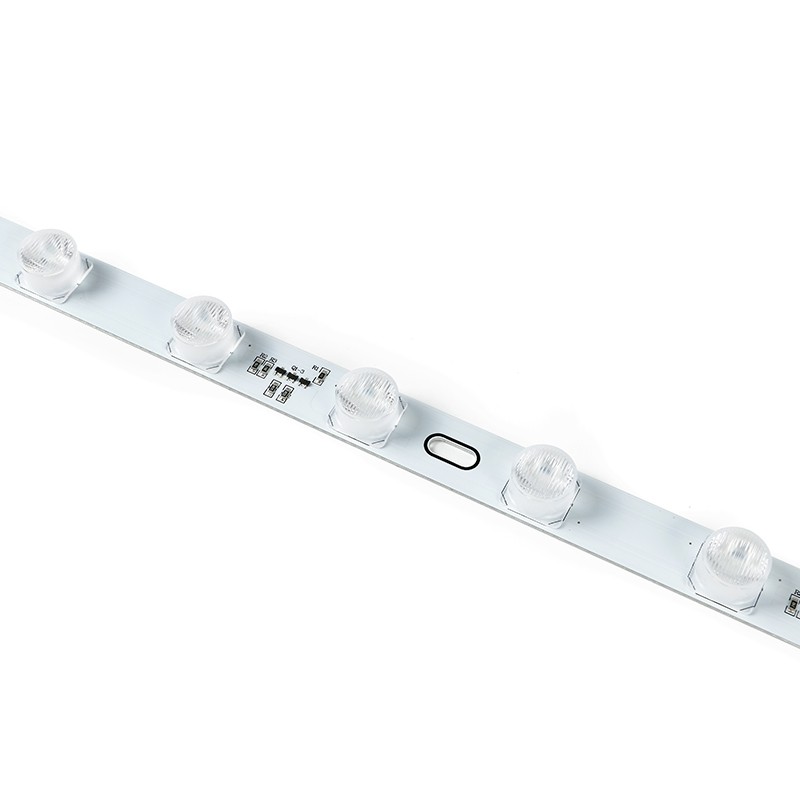

The bar uses individual lenses with a specified 10 × 60° angle. Set out the proposed bar positions and lens orientation on the lightbox drawing, then assess a sample with the actual graphic and diffuser.

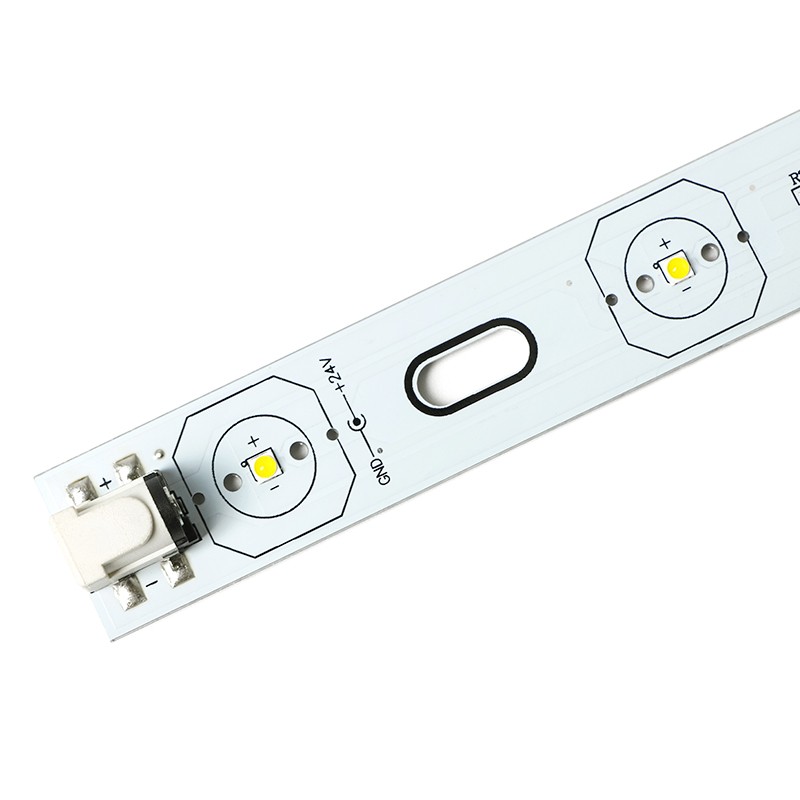

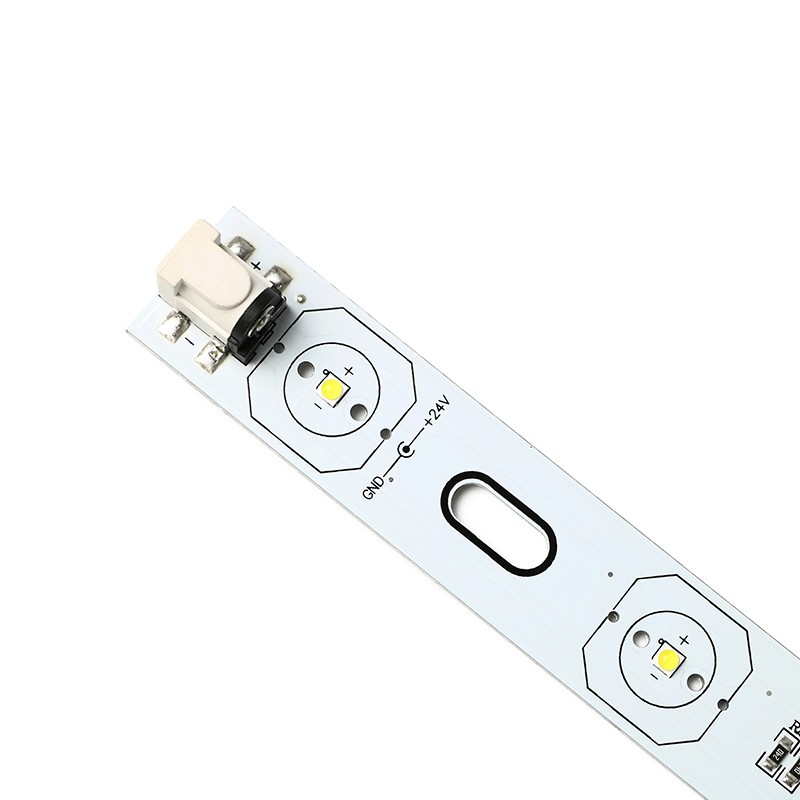

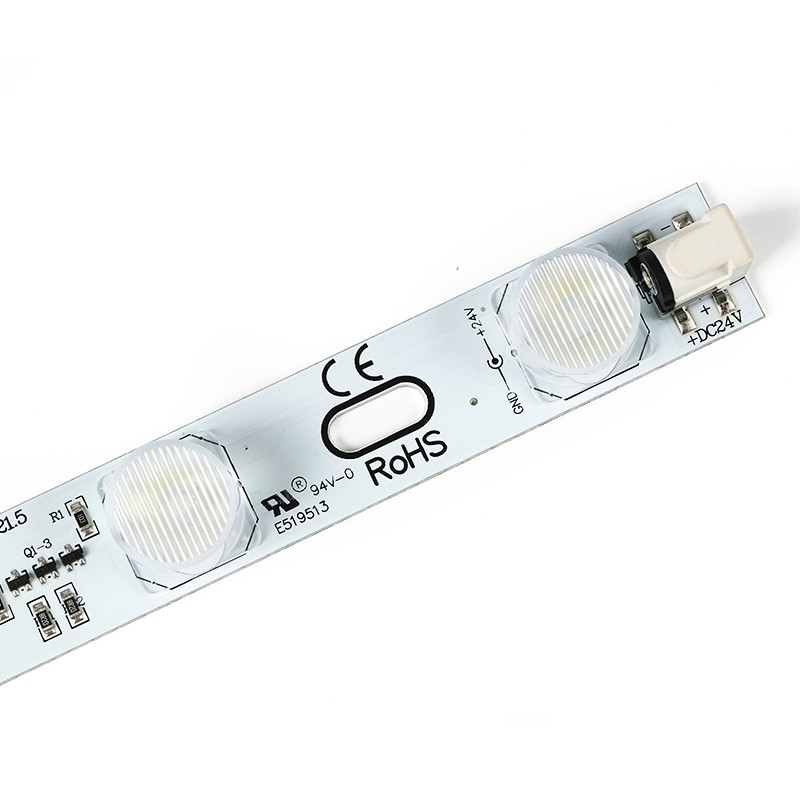

The board-end connection detail shows +DC24V and GND markings. Include the bar quantity, cable route and required connecting parts so the 24V power units and electrical components can be itemised.
Choose the white-light order version
Four white-light ranges are listed: 2800–3200K, 3700–4300K, 4700–5300K and 6500–7500K. State the required version with the model number to align the sample and production specification.

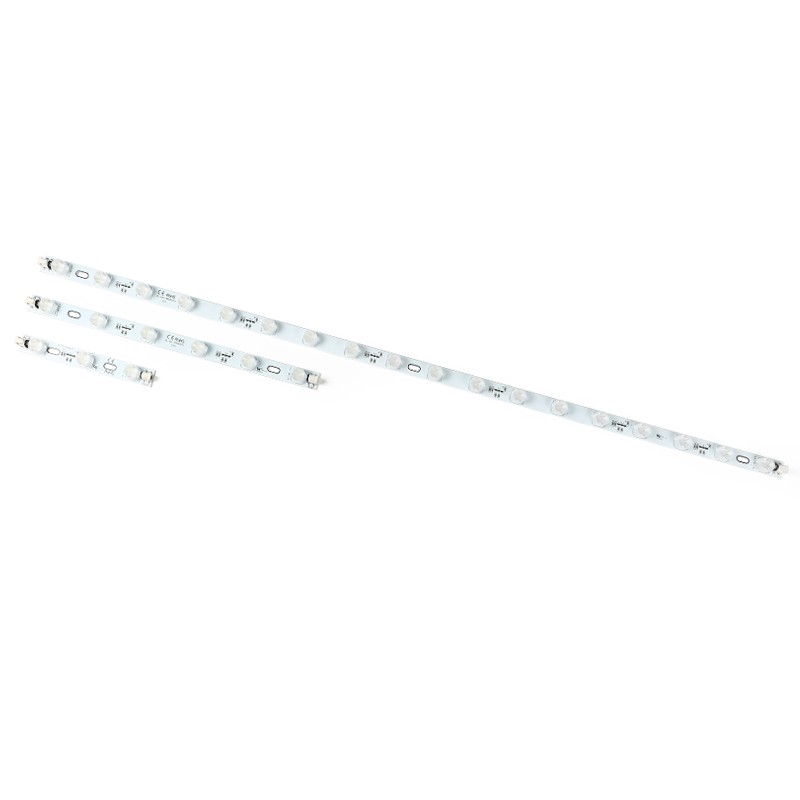

The series illustration also shows the shorter three- and six-LED variants. Compare each model’s dimensions, light output and power when preparing a layout that uses different bar lengths.
Packing and production quantities
The packing illustration shows individual protection and outer cartons. Ask for the packing quantity, supplied connection parts and shipment dimensions for the order.
Wholesale quantities start from 20 pcs, with lower unit prices at higher volumes. Samples are available, with cost and shipping confirmed separately. Standard lead time is 12–18 days; OEM, ODM and private-label enquiries are supported, with custom schedules and transit time confirmed for the quotation.
Questions for sourcing 965mm rigid LED strips
How much installation space should the drawing allow?
Use the full 965 × 21.5 × 13mm envelope and show the fixing positions, cable route and available frame space. The final mounting and connection components are confirmed with the project quotation.
What light output and supply are specified?
SL-BL102-18L is listed at 2100 lm ±10% and 21W ±10%, with a 24V DC input. Send the number of bars and planned layout to confirm the power-unit scope.
Which white-light options are listed?
Choose from 2800–3200K, 3700–4300K, 4700–5300K or 6500–7500K. Request a sample of the selected version to assess it behind the intended graphic or diffuser.
What should a bulk-order enquiry include?
Provide the model, target quantity, white-light version, enclosure drawing and delivery country. Production orders start from 20 pcs; samples, volume pricing and OEM, ODM or private-label requirements can be quoted together.
