Backlight tiles for illuminated poster displays
Plan a retail poster lightbox around 75mm square LED backlight tiles, each containing six SMD2835 LEDs. The board is specified at DC 24V, 0.6W and 50–55 lm, with a 120° beam. Quote the catalogue reference SLBL007-E006 when requesting this backlighting component.
Lightbox producers and illuminated-display distributors should define the finished sign face before choosing the panel layout. Supply the poster size, internal box dimensions, face material and required white-light appearance so the tile arrangement and sample configuration address the display you intend to build.
Backlighting components for poster lightboxes

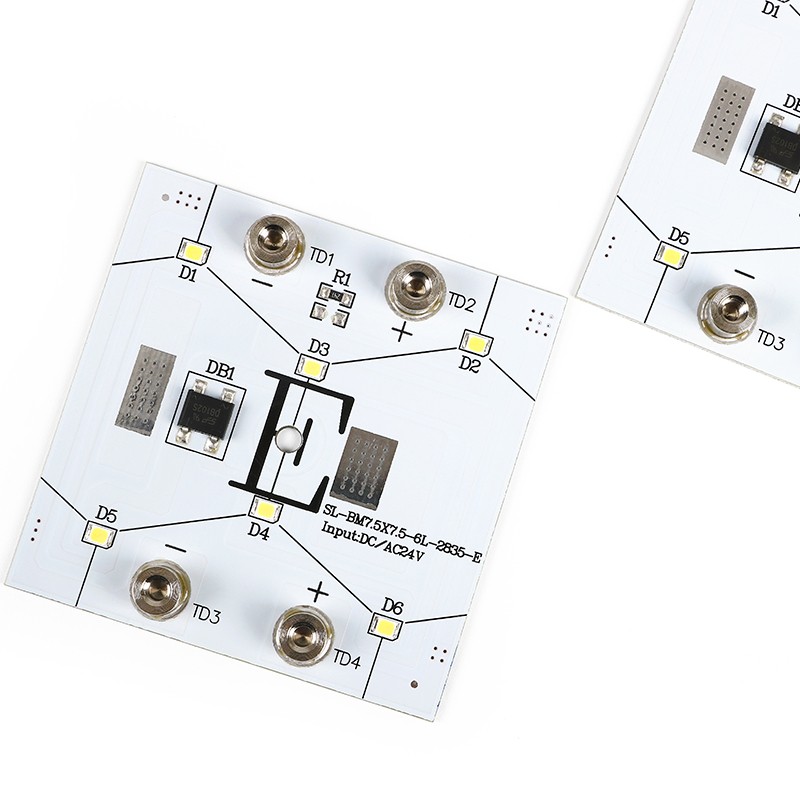

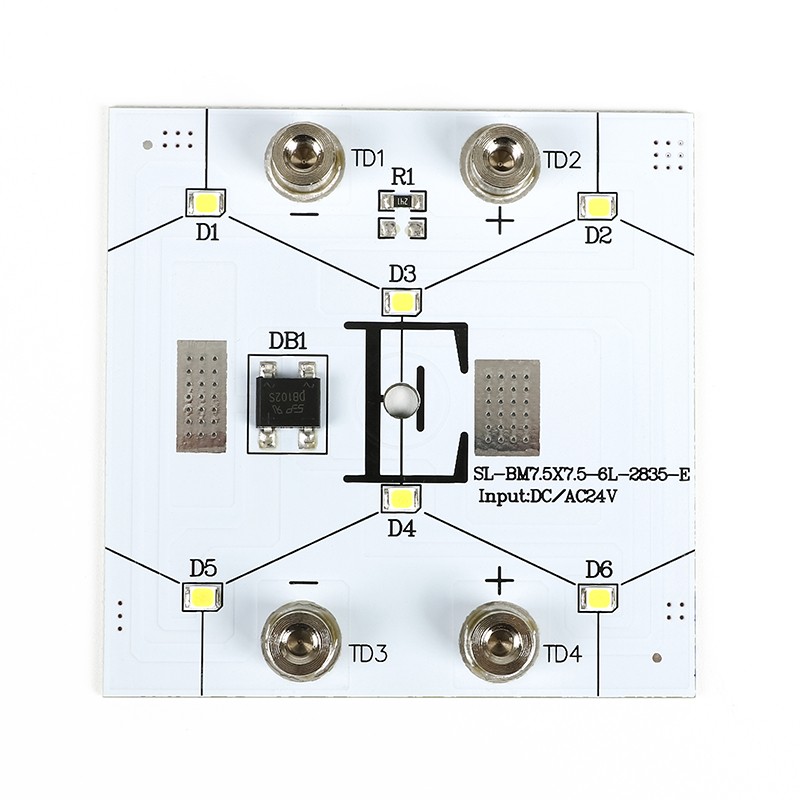

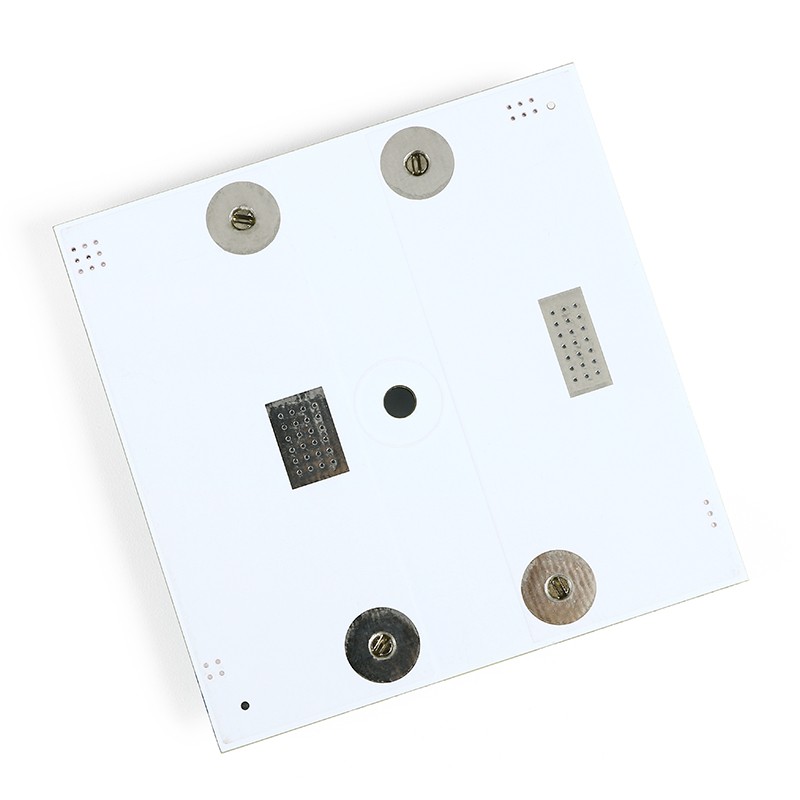

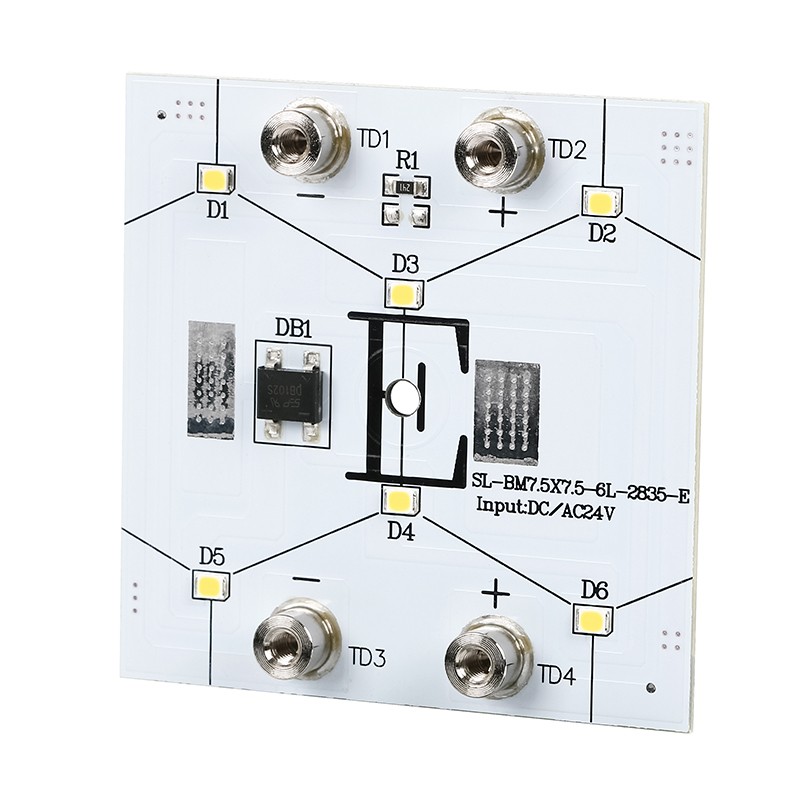

The illustrations show the square boards used behind an illuminated display face. Match the tile arrangement to the usable area inside the enclosure, allowing for the frame, graphic and electrical connections. The finished face, rather than the bare LED board, is the surface to evaluate for appearance.

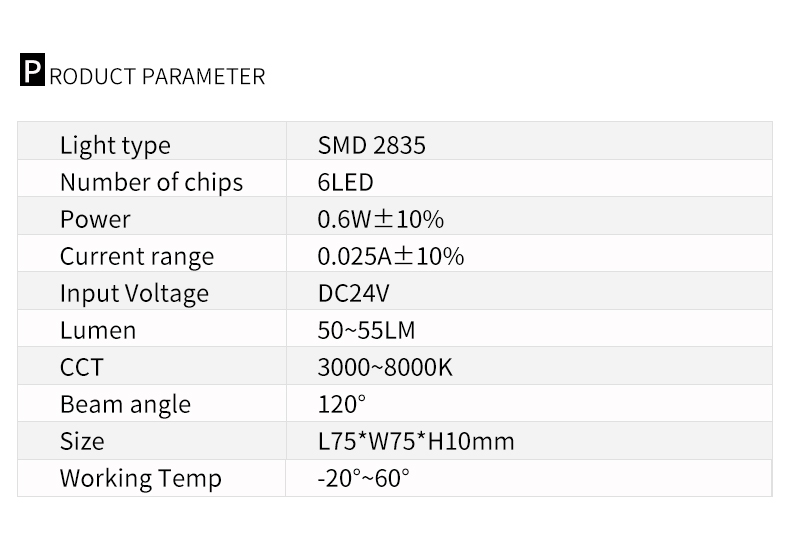

Six-LED tile specifications
| Specification | SLBL007-E006 |
|---|
| Catalogue ordering reference | SLBL007-E006 |

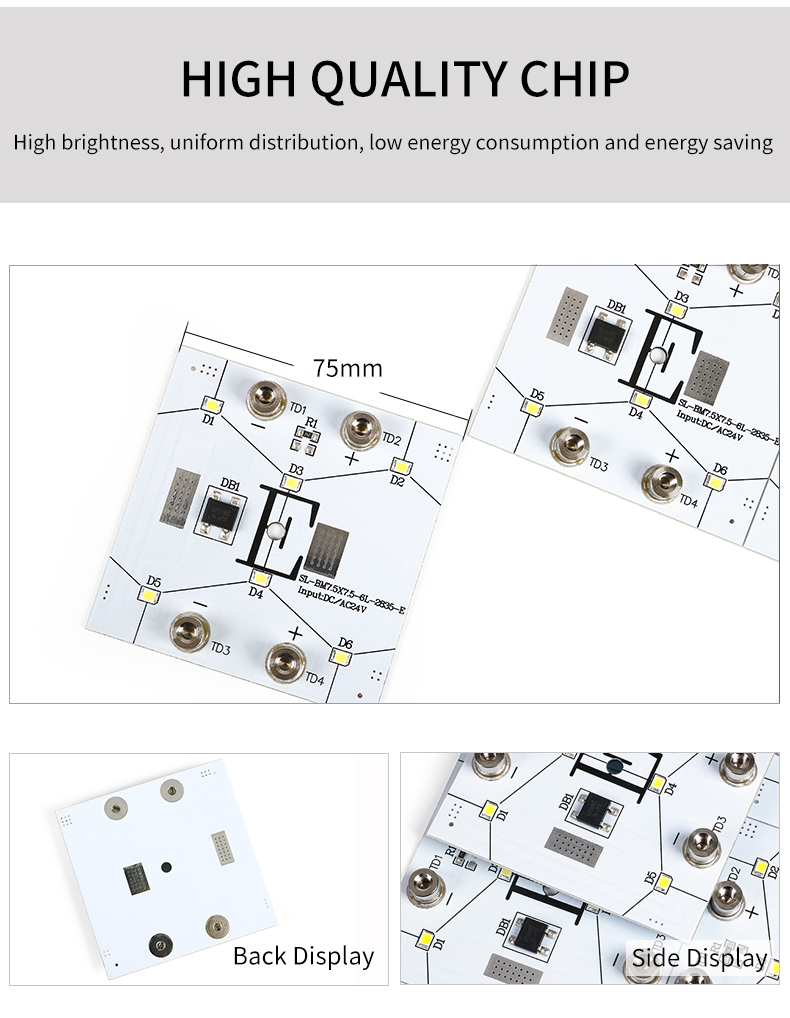

| Board size listed | 75 × 75 × 10 mm |
| LED package / quantity | SMD2835 / 6 |
| Power per board listed | 0.6W ±10% |
| Input specified in parameter table | DC 24V |
| Current listed | 0.025A ±10% |
| Specified output per board | 50–55 lm |
| Beam angle | 120° |
| White-light order range listed | 3000–8000K |
| Working temperature listed | −20 to +60°C |
| Connections illustrated | Screw terminals with metal bridge joints |
Panel assembly and fixing details

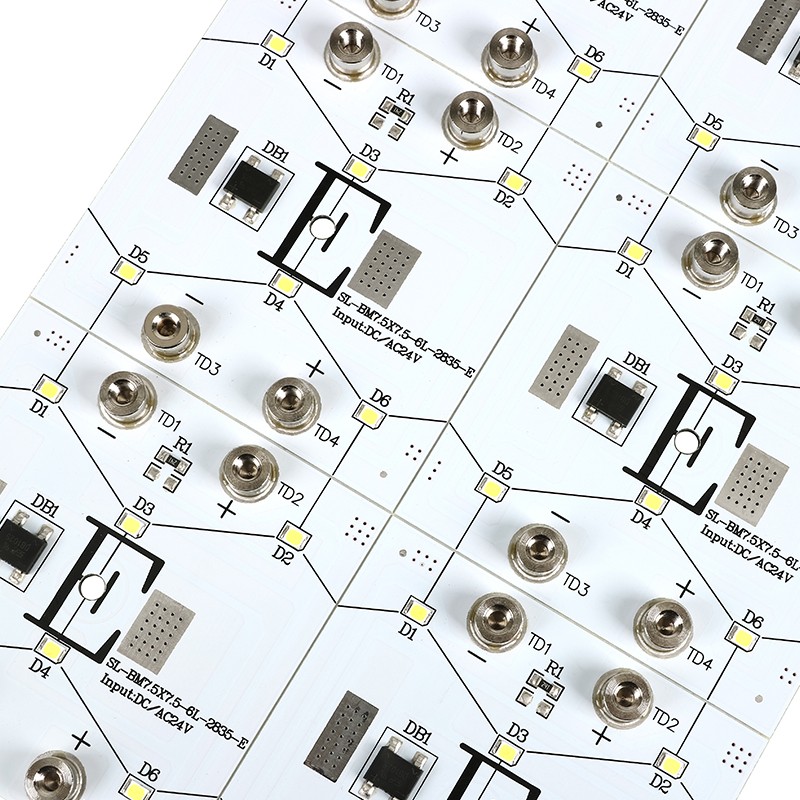

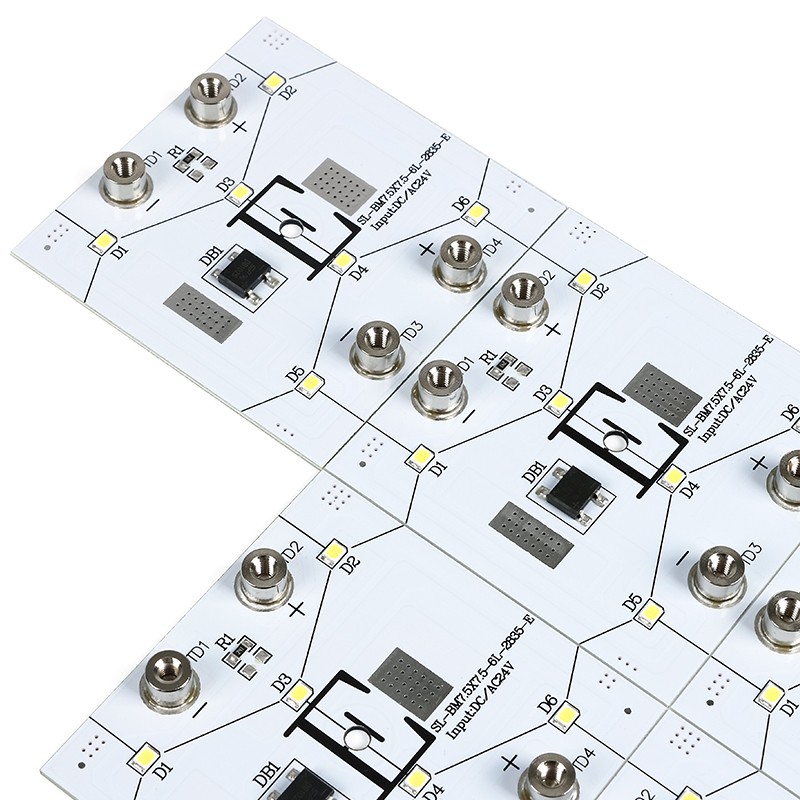

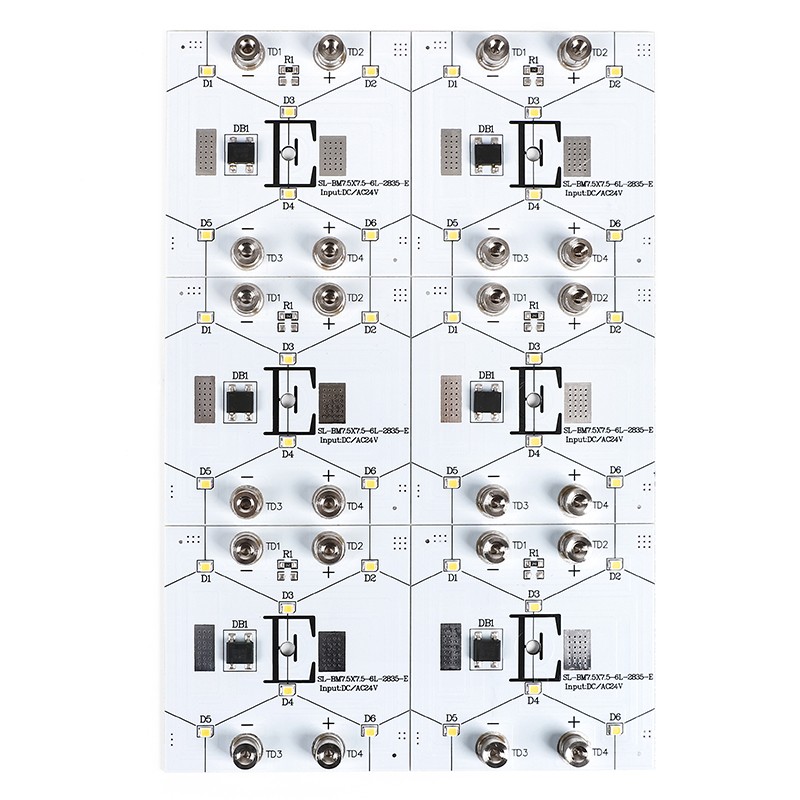

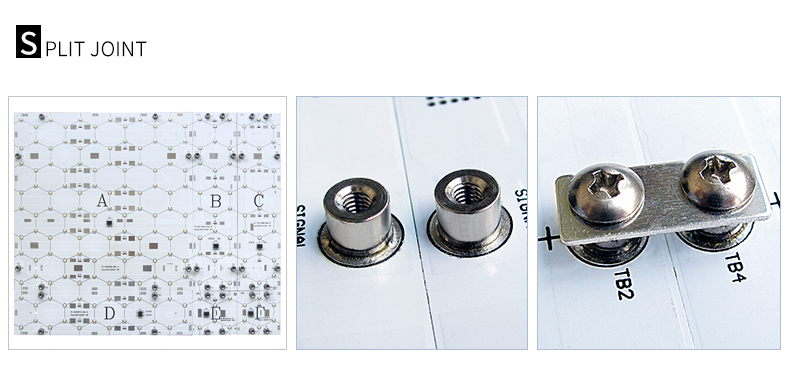

Boards are pictured in a grid, with metal bridges fastened by screws at adjoining terminals. Provide an assembly drawing or the intended panel dimensions when specifying the joint components. Confirm fixing points, electrical feeds and access for wiring as part of the lightbox design.
Choose the white-light version on a sample
The listed order range is 3000–8000K. Select the required version to suit the poster artwork and surrounding retail lighting; the range does not indicate an adjustable colour-temperature control. Trial the proposed boards, diffuser and graphic together, then confirm the final tile count and compatible DC 24V power unit.
Poster-lightbox order questions
What measurements are needed for a poster lightbox lighting enquiry?
Send the visible poster size, usable internal width and height, enclosure depth and face material. Include SLBL007-E006, required quantity, white-light choice and destination so the board layout and supply scope can be checked.
Can I connect the boards directly to the local mains supply?
The detailed parameter table specifies DC 24V. Order a power unit and wiring arrangement confirmed for the complete panel and destination; the board is not specified for direct connection to local mains voltage.
Does a 120° beam guarantee an evenly lit poster at any depth?
The specified beam angle describes the board. The finished appearance also depends on enclosure depth, board spacing, diffuser and graphic material. Use a representative sample to validate the proposed arrangement.
How do I order a sample and then a wholesale quantity?
Samples are available. Confirm the board version, connection parts, sample cost and shipping first. Wholesale orders start at 20 pcs, and larger quantities receive lower unit prices; identify whether the quantity refers to boards or complete assemblies.
Can you supply a custom lightbox backlighting arrangement?
OEM, ODM and private-label enquiries are supported. Share the enclosure drawing, assembly scope and target quantity to confirm the work involved. Standard lead time is 12–18 days; custom schedules and transit time are confirmed separately.
