COB display lighting with three-pin input and output

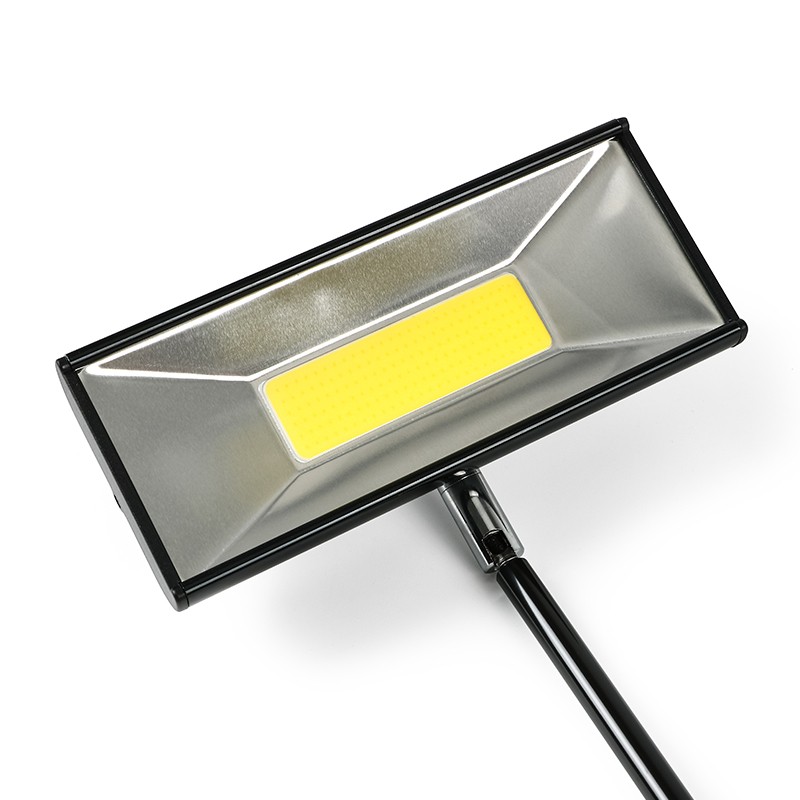

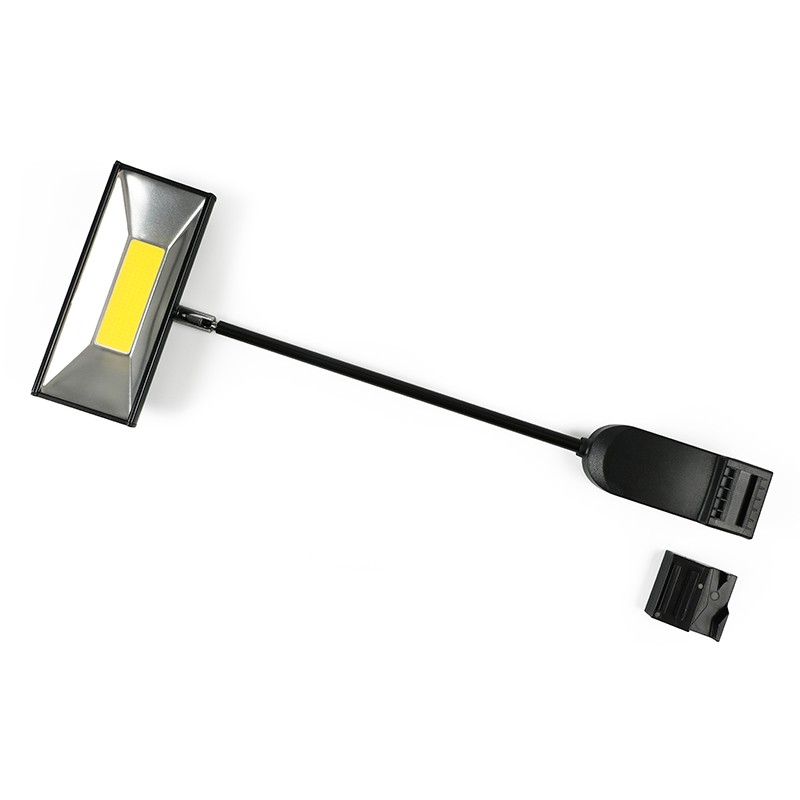

The SL-032-12-NCOB300 is a 30W COB display arm light with specified 3000 lm ±10% output. The source pictures list AC 100–240V fixture input, dimensions of 520 × 174 × 51 mm and three-pin input/output connections. The product analysis shows an adjustable head and a built-in supply at the base.
For display-system distributors and exhibition contractors, specify the lighting kit using the graphic dimensions, frame fittings and complete lead route. Include the lamp count, destination plug and required white-light range so the optical configuration and permitted electrical layout can be confirmed before the bulk order.

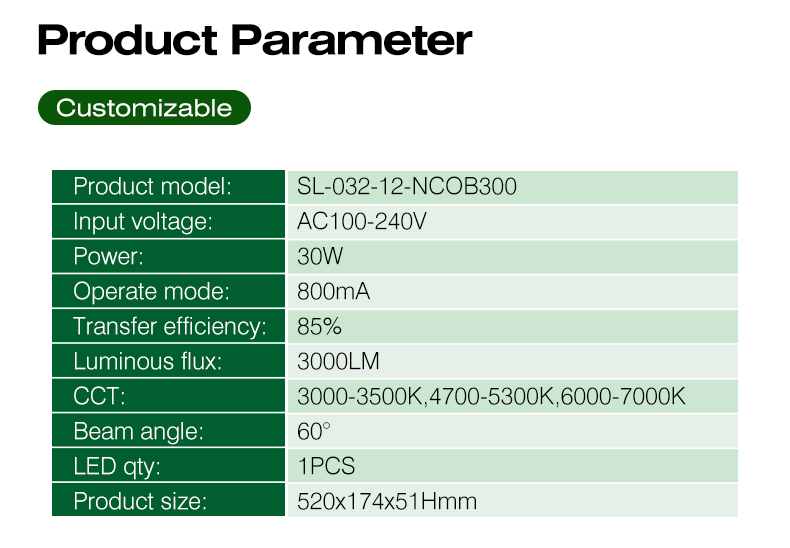

30W COB arm-light technical specifications
| Specification | SL-032-12-NCOB300 |
|---|
| Model | SL-032-12-NCOB300 |
| Power | 30W |
| Light output | 3000 lm ±10% |
| Light source | COB LED |
| COB assembly quantity listed | 1 |
| Fixture input voltage | AC 100–240V |
| Dimensions | 520 × 174 × 51 mm |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K |
| Driver operating mode listed | DC 30–40V / 0.8 A |
| Connector | 3-pin input and output |
| Power supply | Built-in, as pictured |
| Head adjustment | Adjustable head joint pictured |
| Optical configuration | Confirm for the sample and order |
| Optional frame fittings | Forward/reverse slider; 0505/0525 clamp; 0520 mounting plate |
| Operating-temperature range | -20°C to +50°C |
Confirm the input, output and complete lead layout

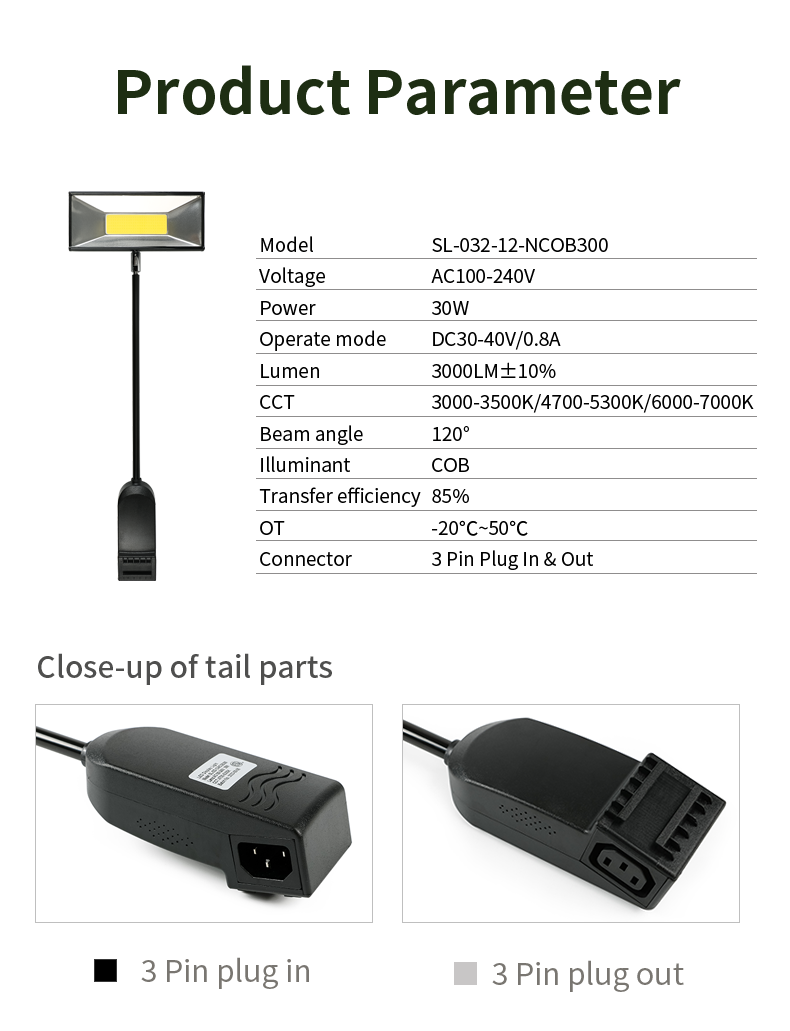

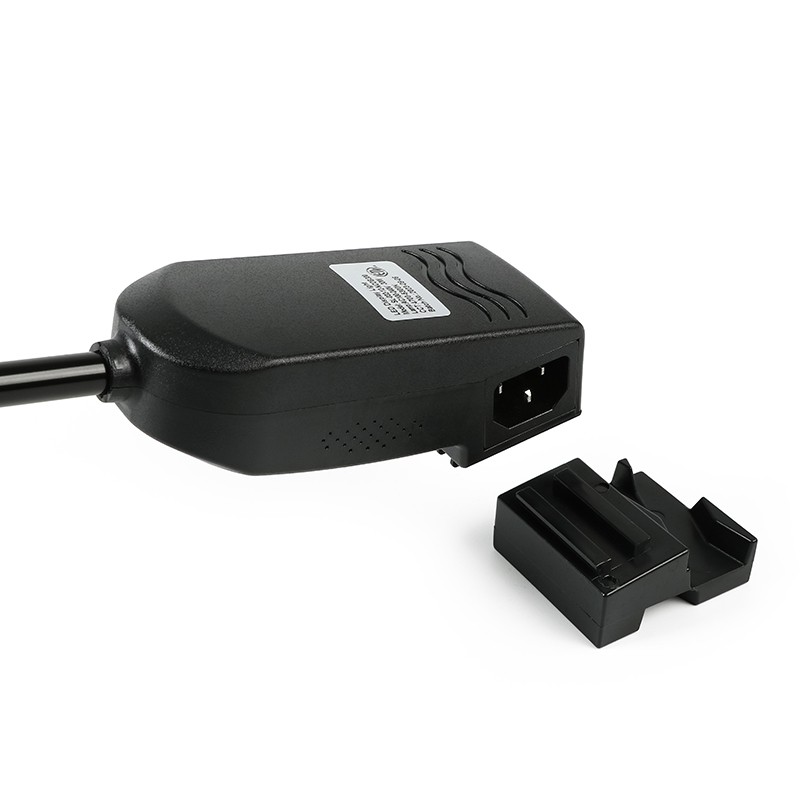

The connection picture identifies a three-pin inlet and outlet at the base. The fixture input is listed as AC 100–240V; the DC 30–40V / 0.8 A operating information belongs to the driver configuration.
Send the lamp count, mains plug, linking leads and cable route for the complete-kit check. The permitted number and electrical arrangement are confirmed for the selected model and order.
Choose the fixing and aim the COB head

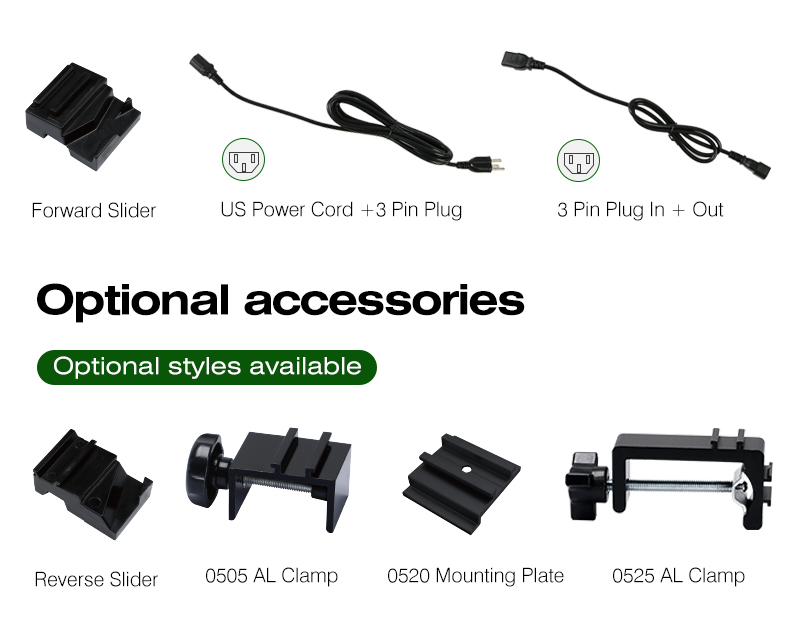

The accessory illustration includes forward and reverse sliders, 0505 and 0525 aluminium clamps and a 0520 mounting plate. Provide the frame section and fixing-point dimensions so the suitable arrangement can be confirmed.

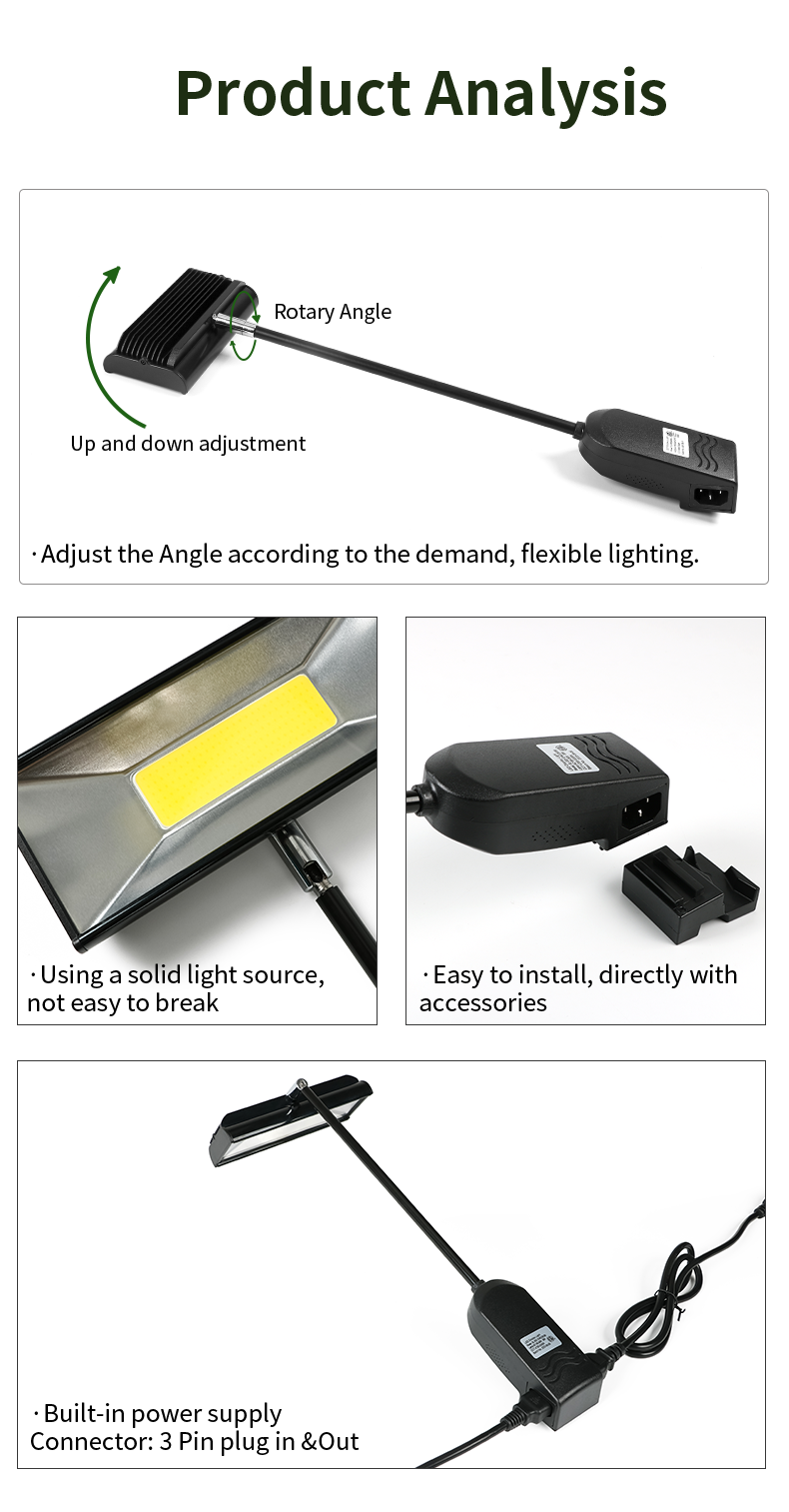

The product analysis shows head adjustment and a built-in supply at the base. Use a sample at the intended mounting distance to assess the required coverage and confirm the optical configuration.

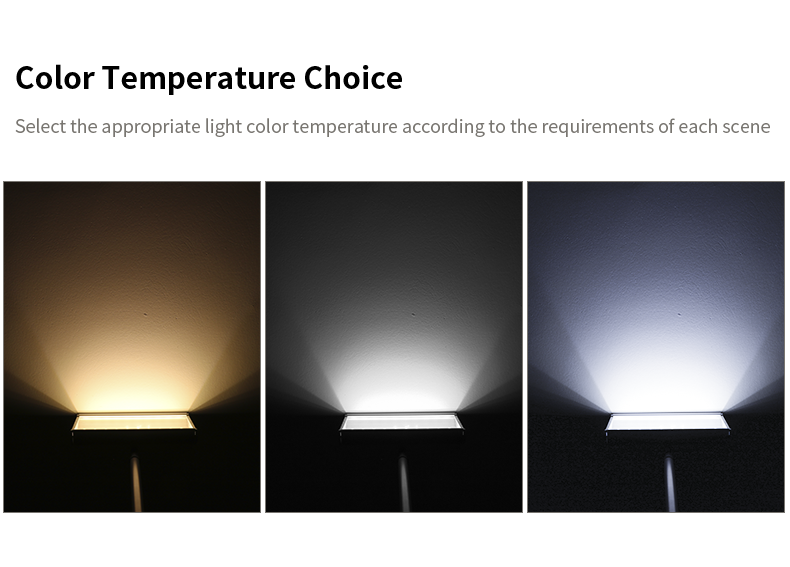

Select a white-light range for the display
The listed order ranges are 3000–3500K, 4700–5300K and 6000–7000K. Specify the desired warm, neutral or cool appearance with the model and quantity.
Compare the sample against the actual graphic colours and exhibition environment when selecting the configuration.
Plan lighting around panels and exhibition graphics

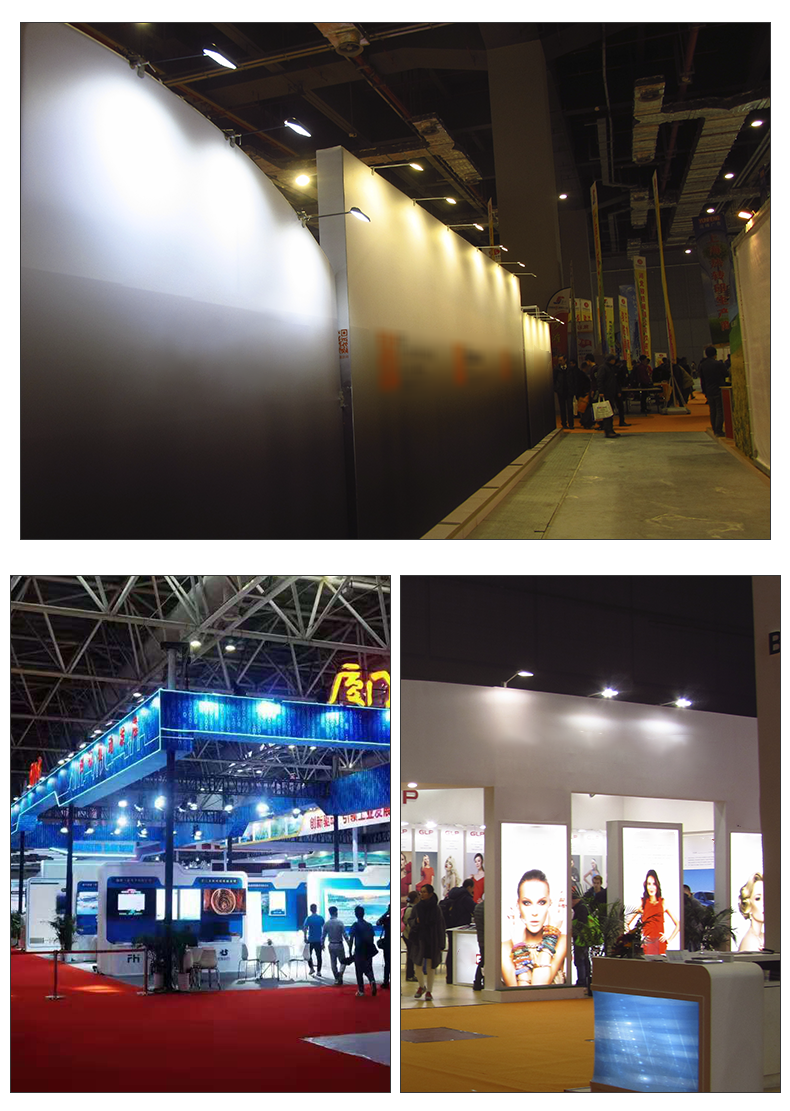

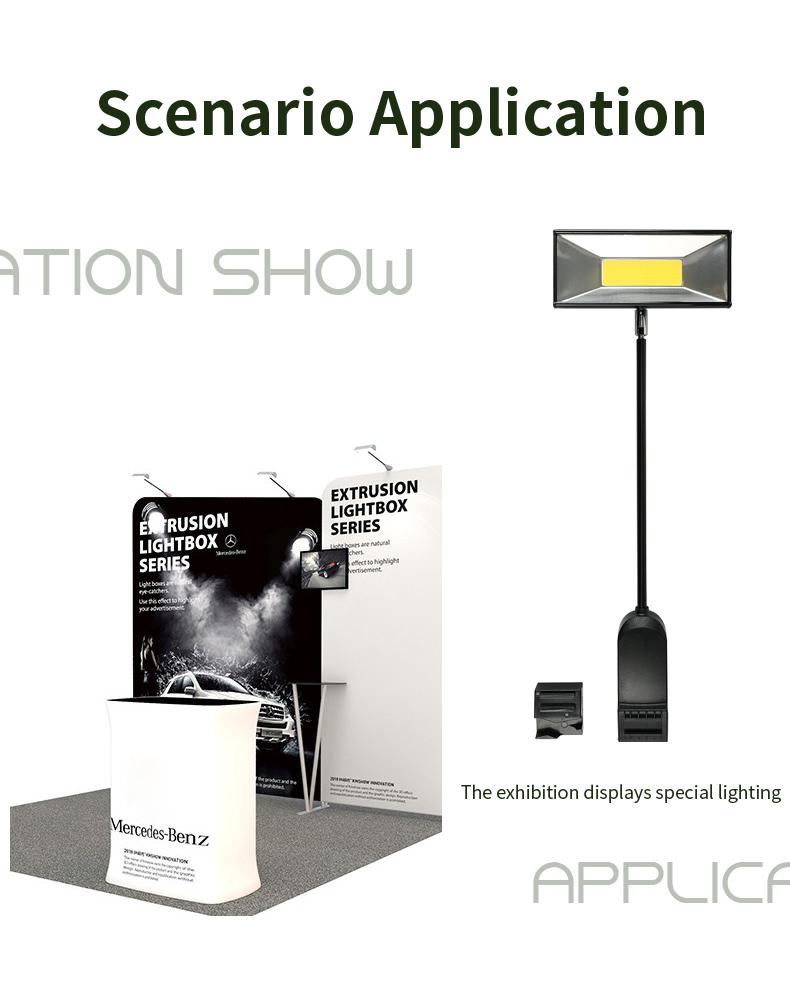

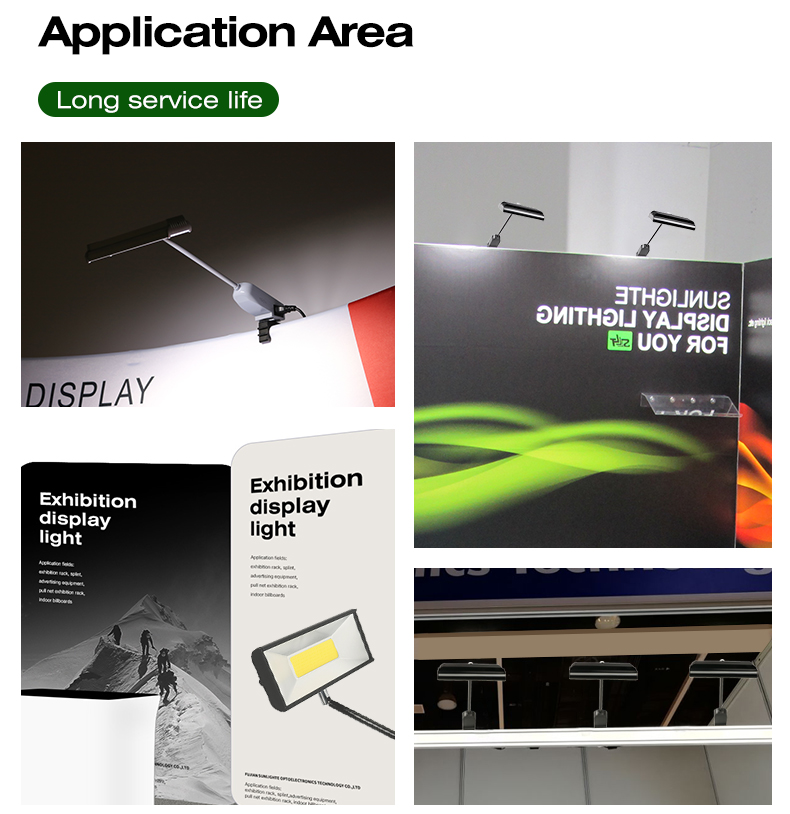

The application pictures show arm lights positioned around display frames, graphic walls and exhibition stands. Provide the panel dimensions, mounting positions and surrounding lighting requirements with the enquiry.
A stand drawing or installation photo helps check the fittings and identify suitable sample-evaluation positions.
Specify linking leads and customised packaging

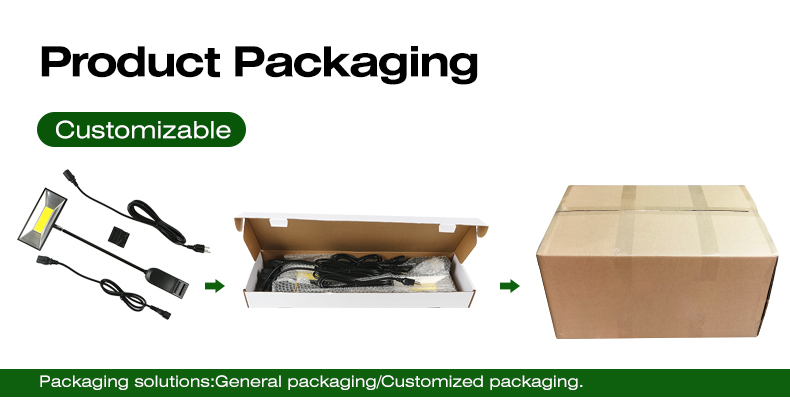

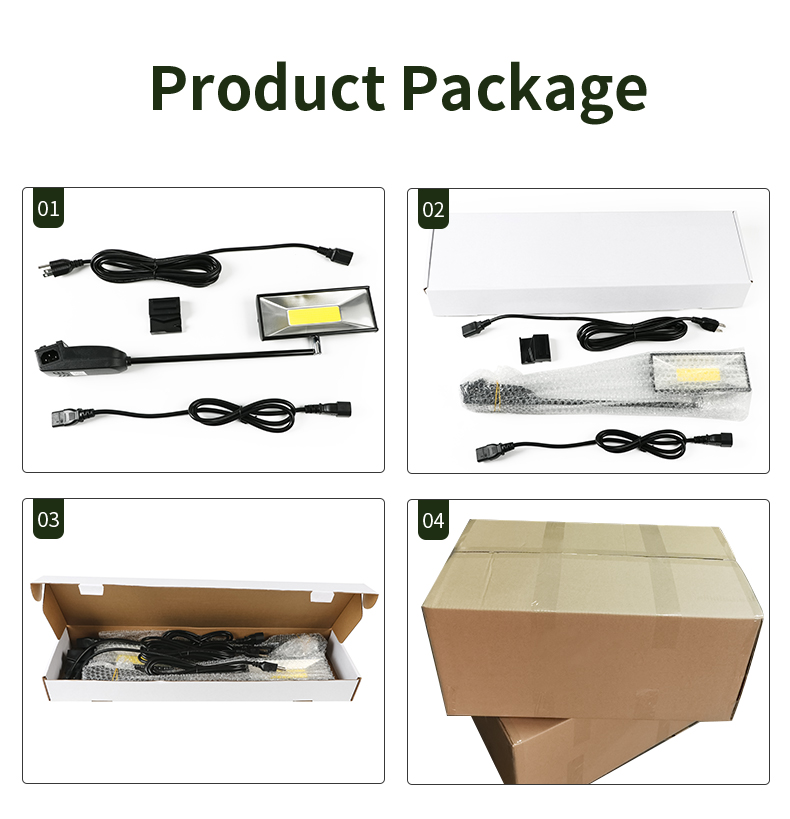

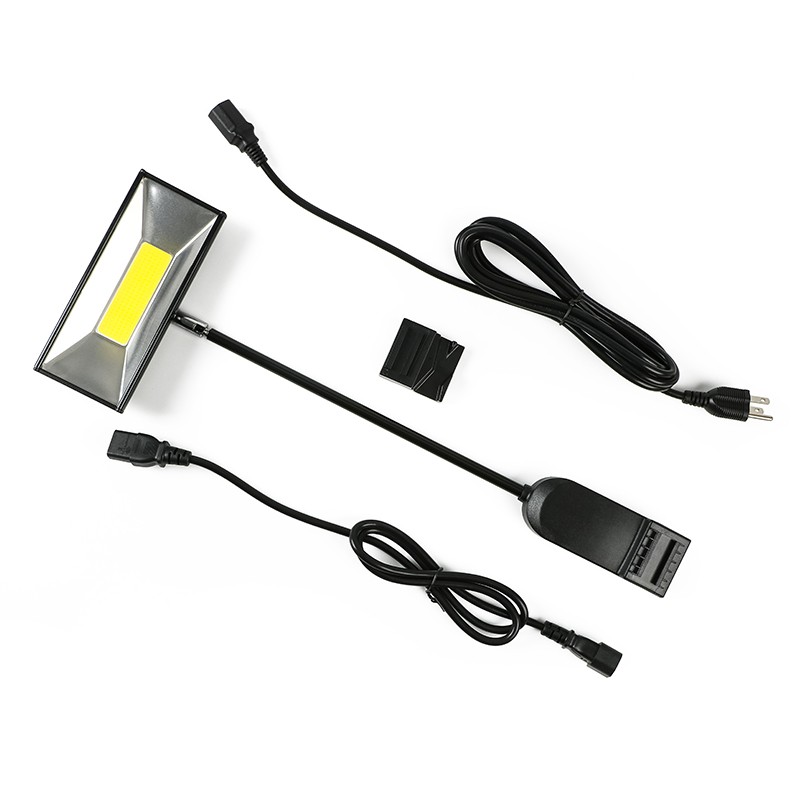

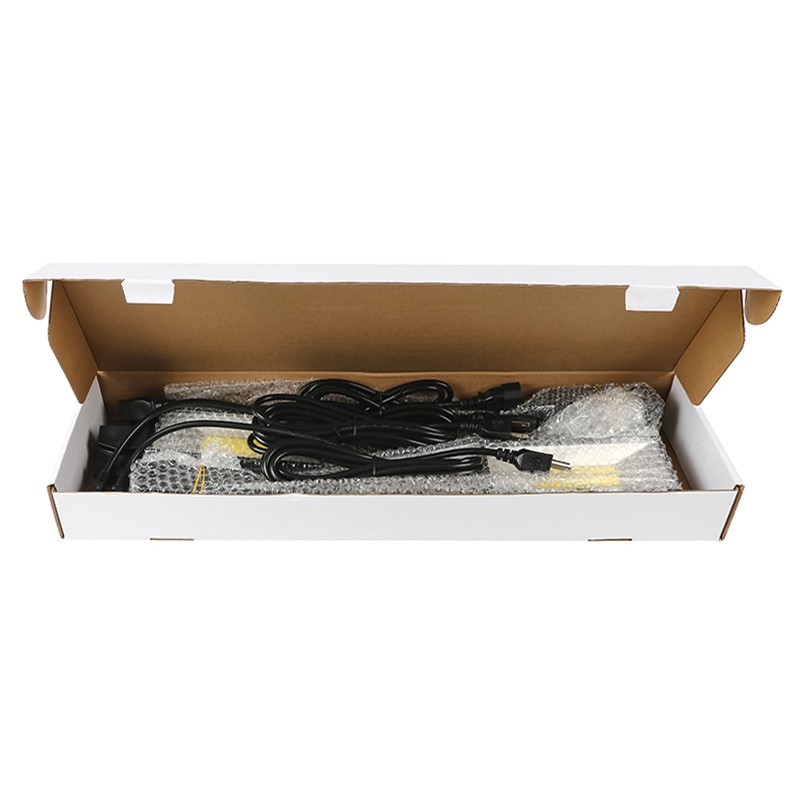

The packing illustrations show the COB lamp, power cord, linking lead and fixing component protected within an individual cardboard box and outer cartons. General and customised packaging are shown as order options.
Confirm the components per kit, lead lengths, carton quantities and branding or label requirements with the wholesale quotation.
Procurement questions for COB display-light kits
How should I specify the light coverage?
Send the graphic dimensions, mounting distance and lamp positions. Confirm the required optical configuration with the sample before the bulk kit is ordered.
How many lamps can be connected in one kit?
Provide the lamp count, destination mains plug and proposed lead layout. The allowed connection arrangement and complete-kit rating are confirmed for the selected configuration.
What is needed for a factory or private-label quotation?
Send the model, quantity, white-light range, fittings, lead configuration and packing or branding requirements. Orders start from 20 pcs, with lower unit prices at larger quantities. OEM, ODM and private-label enquiries are supported.
Sample evaluation and the supply schedule
Samples are available for the fitting, connector, optical and white-light checks. Standard lead time is 12–18 days. Confirm sample cost, shipping, custom schedules, transit time and any model-specific technical documents separately.
