Exhibition arm lights with an 8-shaped connection

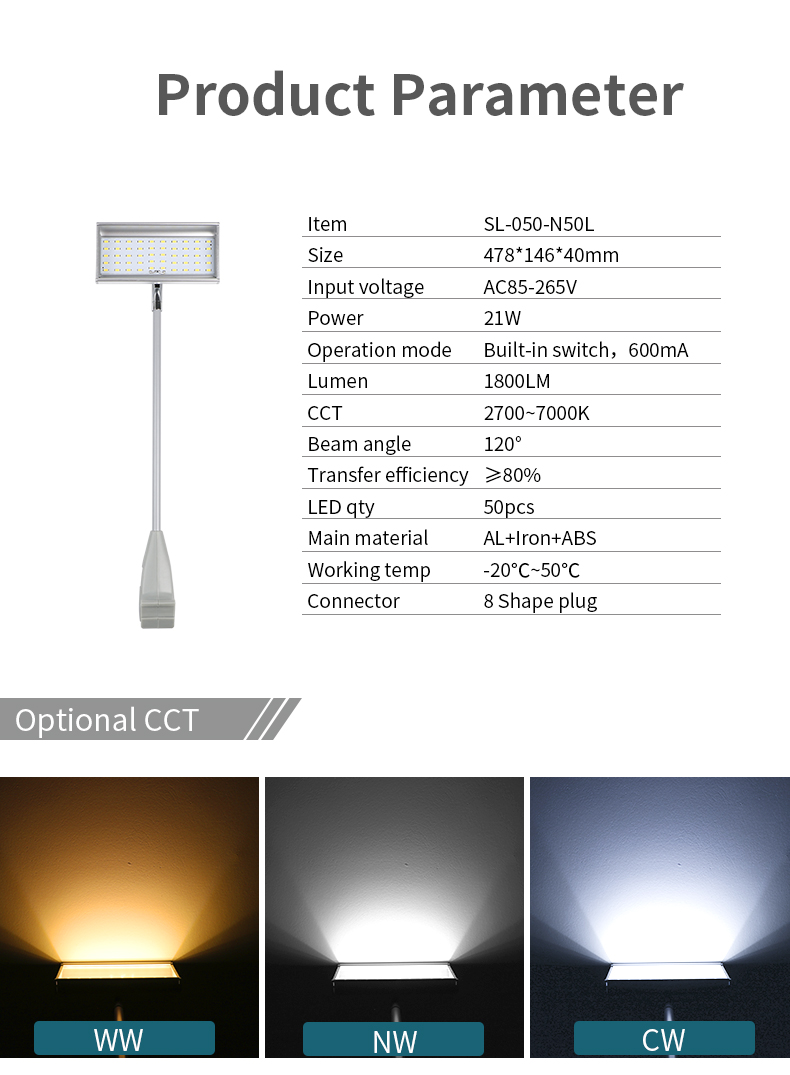

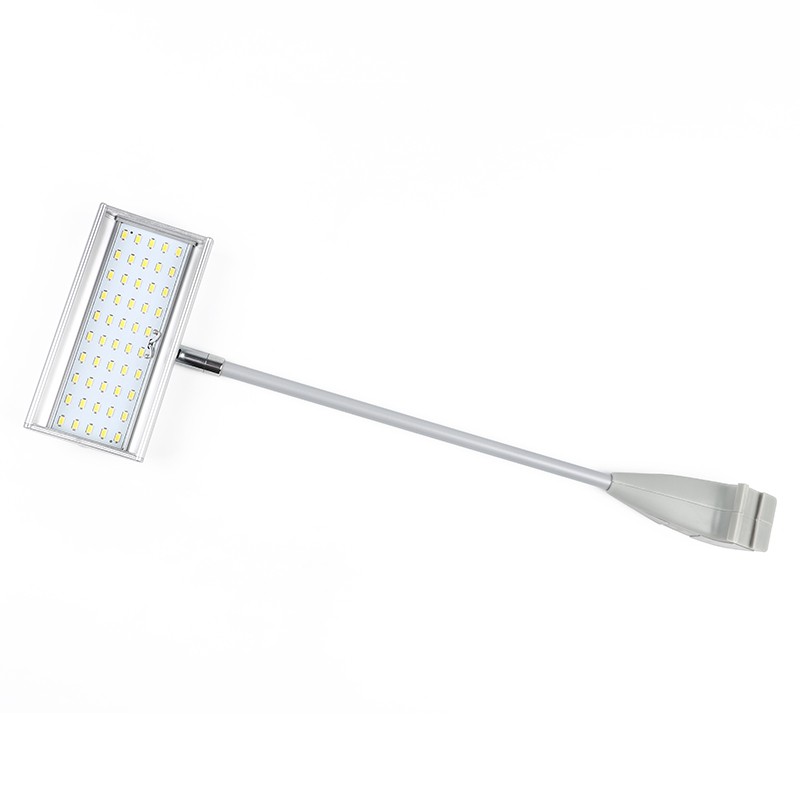

The SL-050-N50L is a 21W LED exhibition arm light with 50 LEDs, specified 1800 lm output and a 120° beam. The parameter picture lists AC 85–265V input, dimensions of 478 × 146 × 40 mm and an 8-shaped, or figure-8, connection. Its analysis picture shows the LED head, rear heat-dissipation ribs and adjustable arm joint.
For stand contractors and display-light distributors, select the lamp, frame fixing and matching cord as one kit. Provide the graphic dimensions, mounting profile, lamp quantity, destination plug and required white-light configuration so the electrical and mechanical arrangement can be confirmed.
21W figure-8 connection model specifications
| Specification | SL-050-N50L |
|---|
| Model | SL-050-N50L |
| Power | 21W |
| Light output | 1800 lm |
| LED quantity | 50 |
| Beam angle | 120° |
| Input voltage | AC 85–265V |

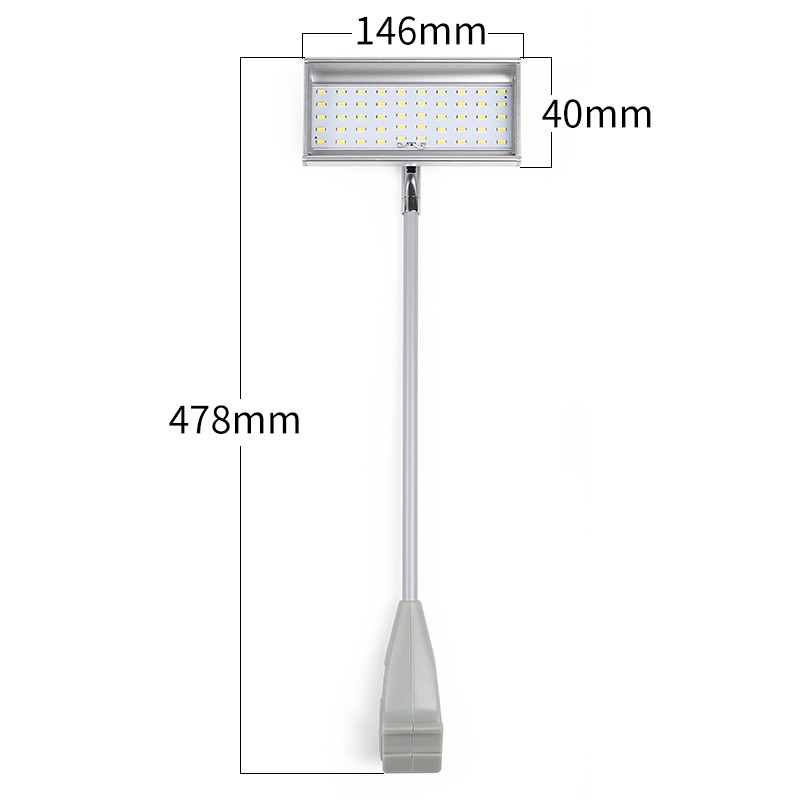

| Dimensions | 478 × 146 × 40 mm |
| Connector listed | 8-shape plug; match the cord to this model |
| White-light order range | 2700–7000K |
| Operating-mode current listed | 600 mA |
| Power supply | Built-in, as described in the source analysis |
| Main materials listed | Aluminium + Iron + ABS |
| Head adjustment | Adjustable joint pictured |
| Operating-temperature range | -20°C to +50°C |
Aim the LED head and check the frame fixing

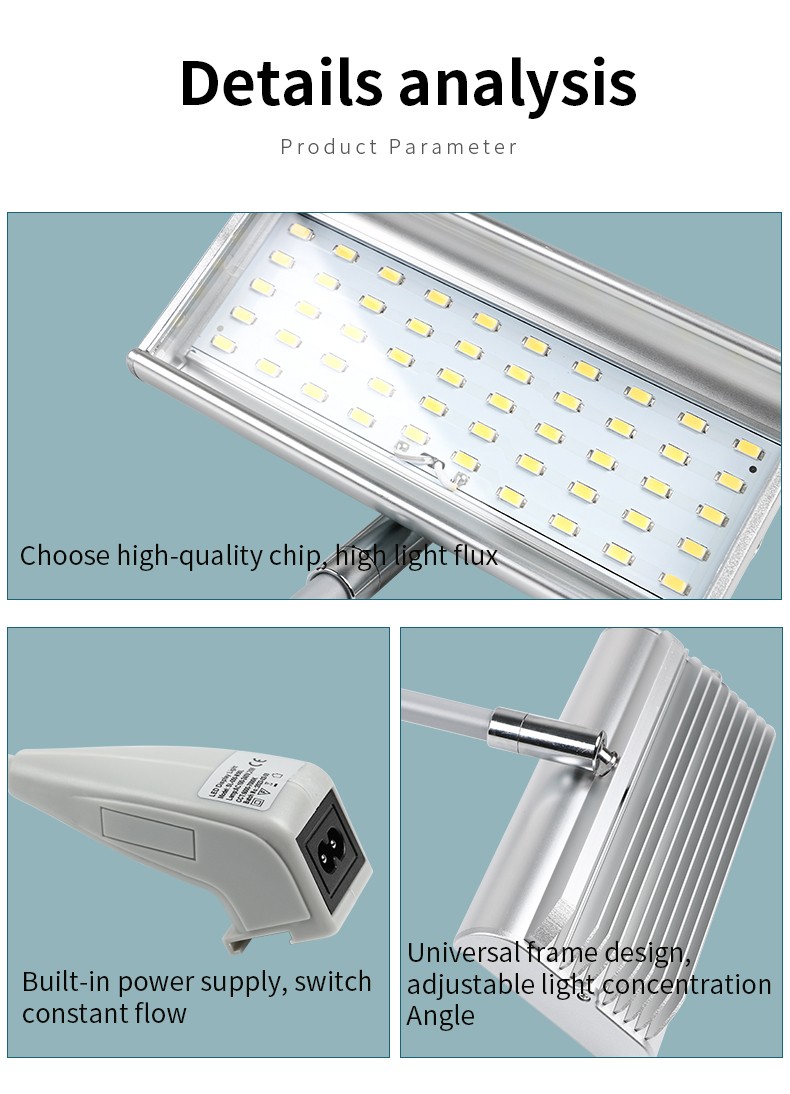

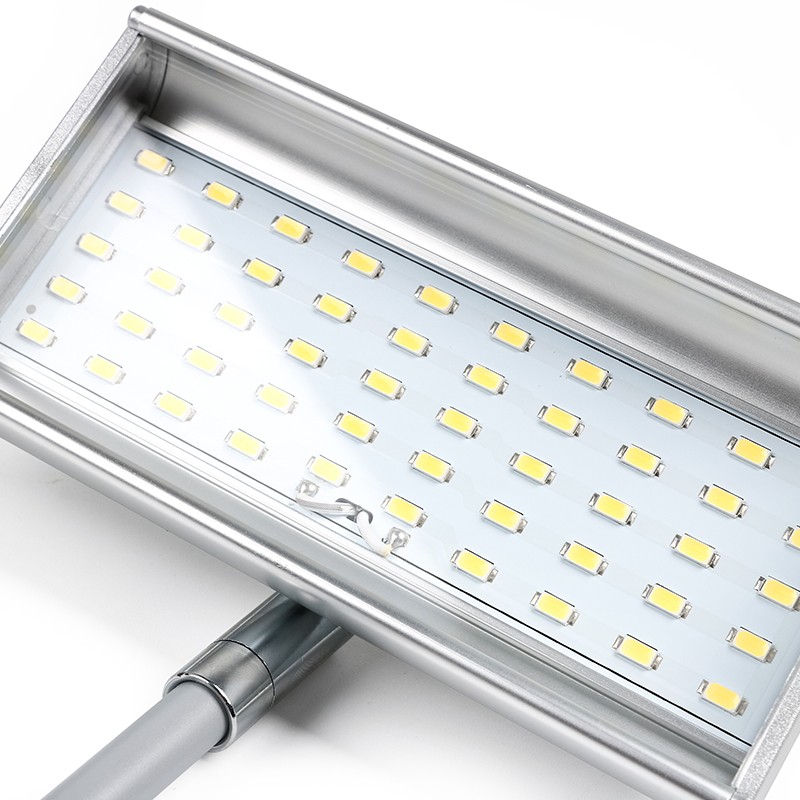

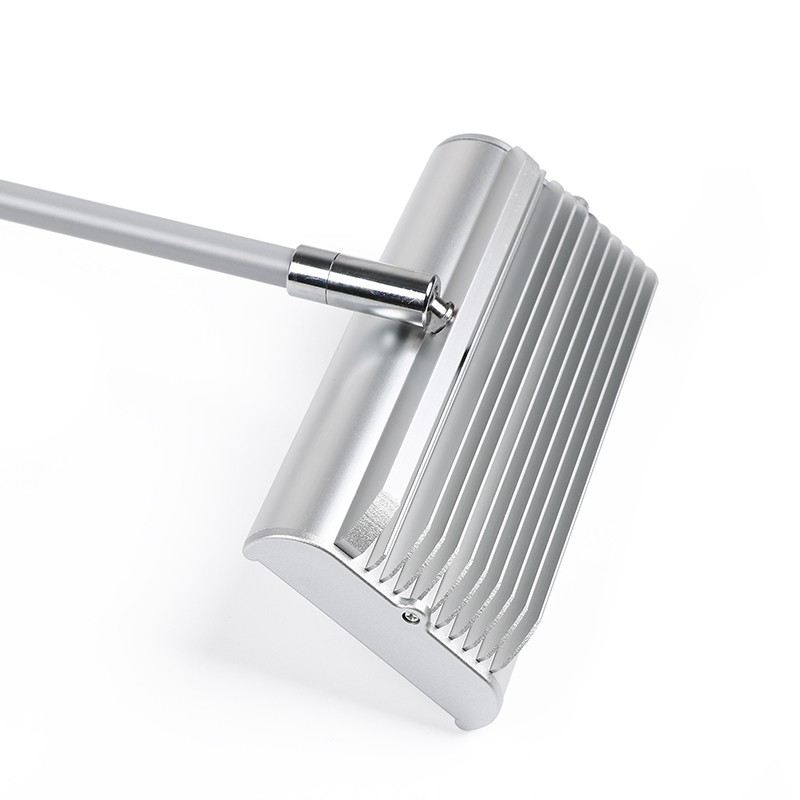

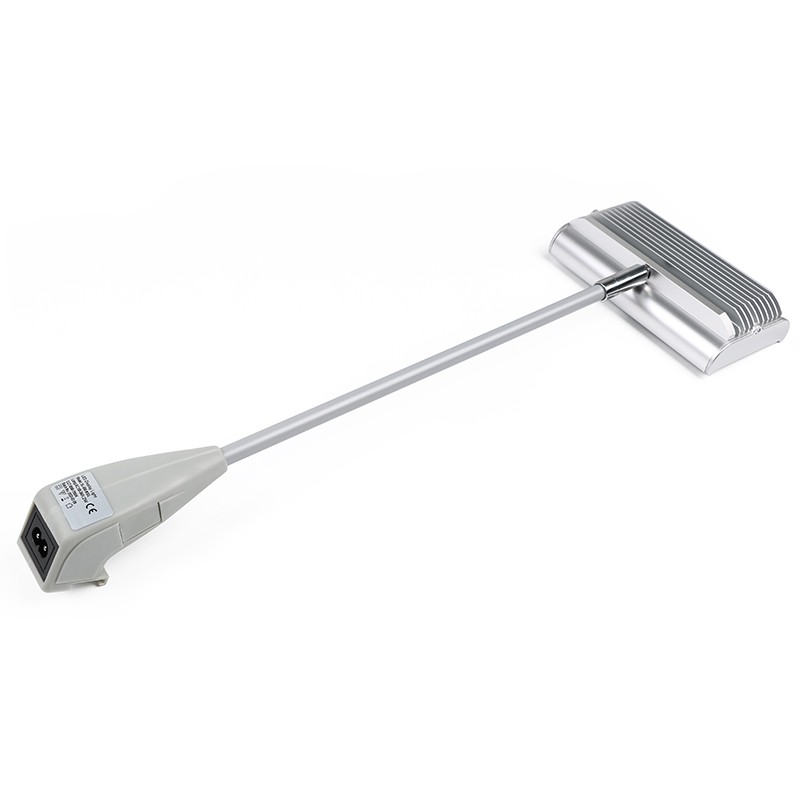

The product-analysis picture shows the LED array, rear cooling ribs and adjustable head joint. Aim the lamp from the selected fixing point and assess the 120° beam on the actual graphic surface.

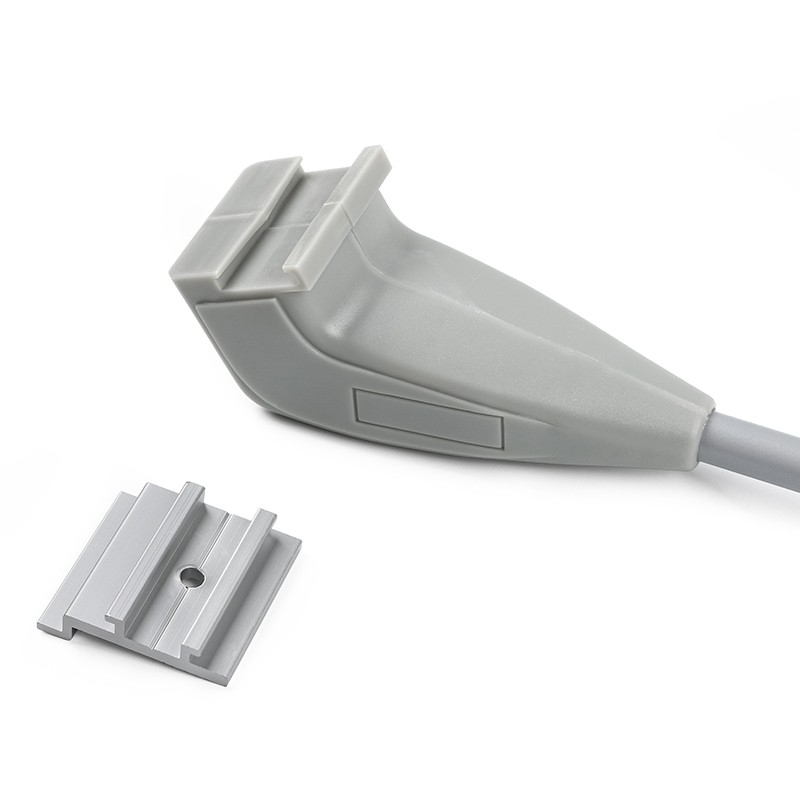

Provide the mounting profile and intended lamp position with the enquiry so the fitting can be checked against the frame.
Match the power cord and white-light configuration
The technical sheet lists an 8-shaped connection and AC 85–265V input. Specify the mating connection details, required mains plug and cable route with the kit. When using an existing cord, provide its specification for compatibility confirmation.
Choose the required white-light appearance within the listed 2700–7000K order range. The source illustration shows warm, neutral and cool white examples for comparison.
Specify individual cartons and kit contents

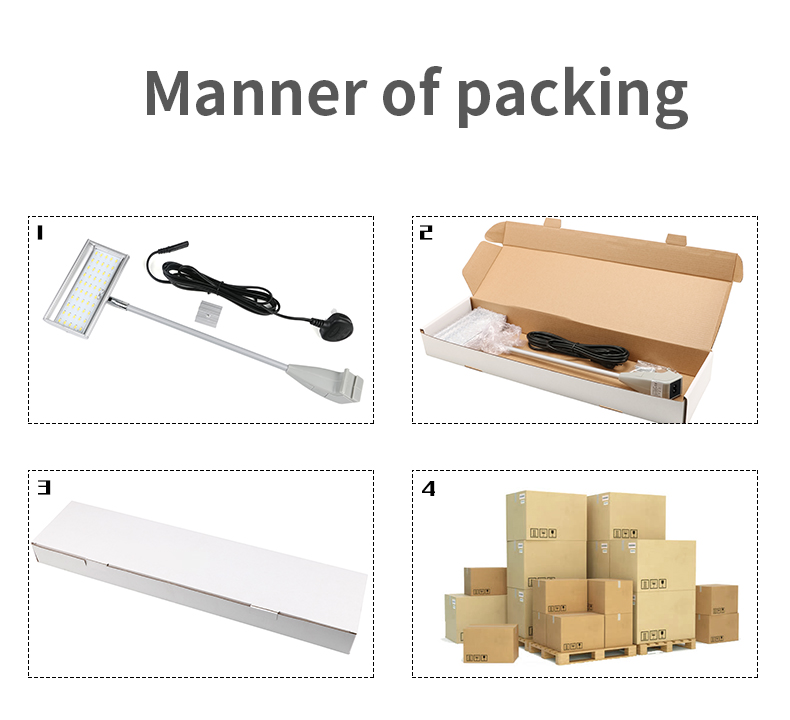

The packing example shows the lamp, a matching cord and a fitting component, followed by protective packing, an individual box and outer cartons. Confirm the components per kit, lead length and carton quantities with the bulk quotation.
Questions for exhibition-light procurement
Which power cord should I order with this lamp?
Request the cord configuration for SL-050-N50L and the required destination plug. The parameter picture identifies an 8-shaped connection; send the mating details when checking a cord from another installation.
What information helps select the fixing arrangement?
Provide the frame profile, mounting-point dimensions, graphic size and lamp position. A sample can help assess the fitting and lighting at the intended distance.
Can I request private-label supply for a distributor order?
OEM, ODM and private-label enquiries are supported. Send the model, quantity, electrical configuration, white-light requirement and branding or packing details. Orders start from 20 pcs, with lower unit prices at larger quantities.
Evaluate a sample and confirm the schedule
Samples are available to assess the connection, fitting and graphic illumination. Standard lead time is 12–18 days. Sample cost, shipping, custom schedules, transit time and any model-specific document requirements are confirmed separately.
