Three-pin arm lighting for exhibition panels

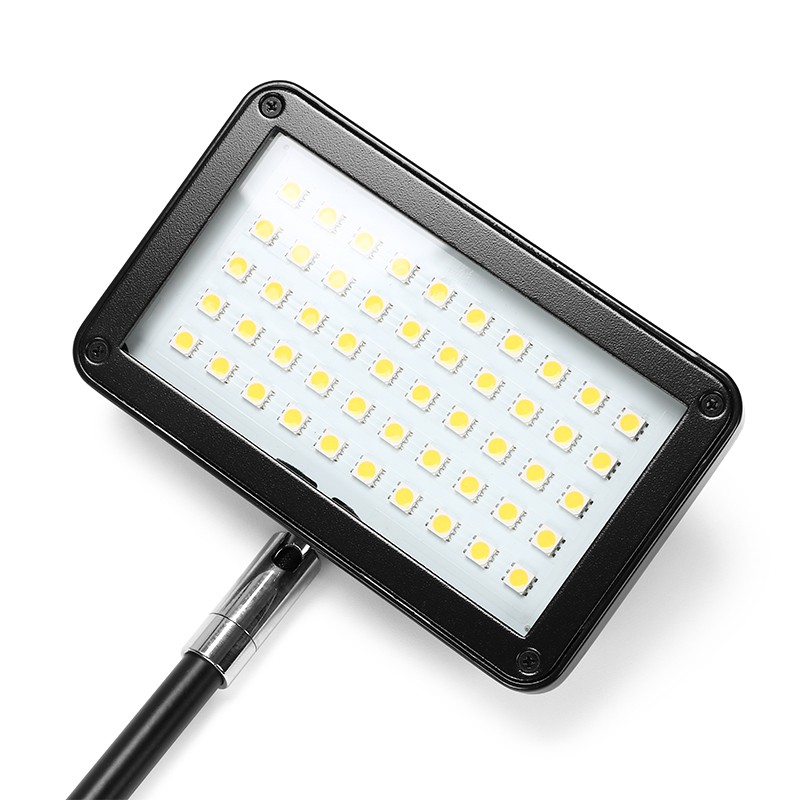

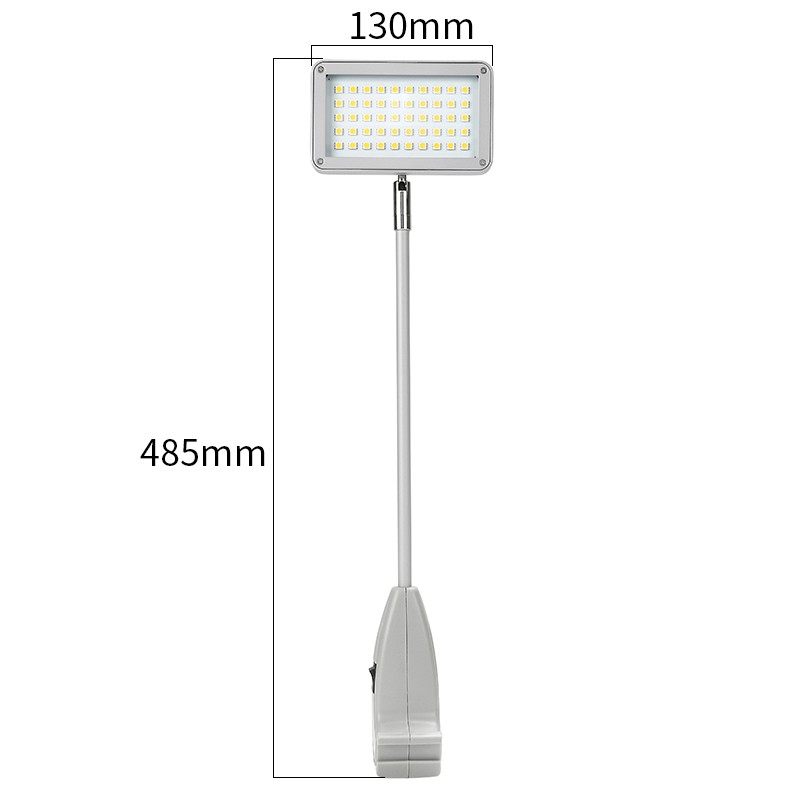

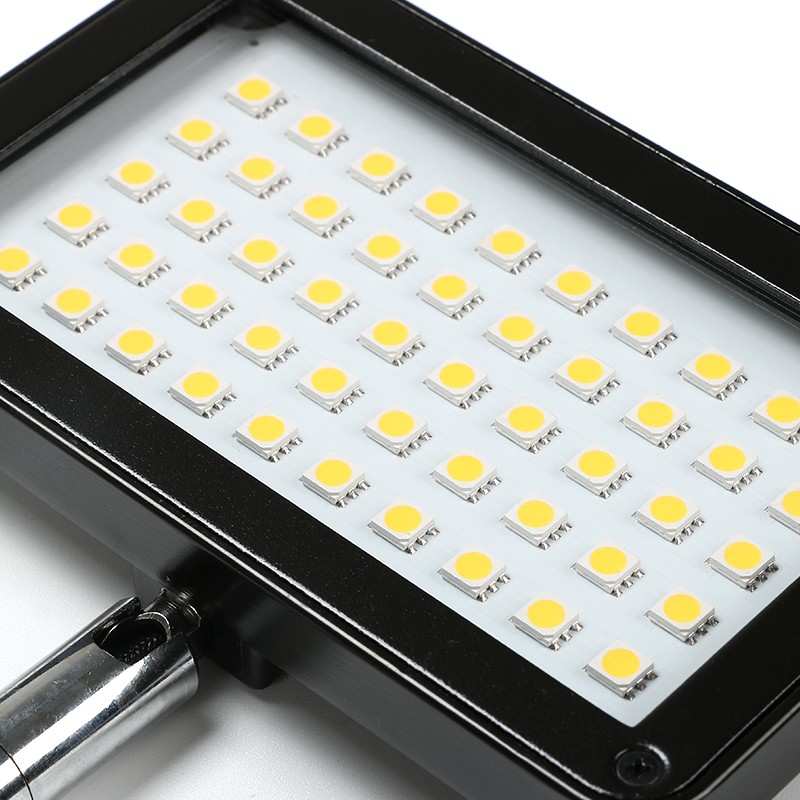

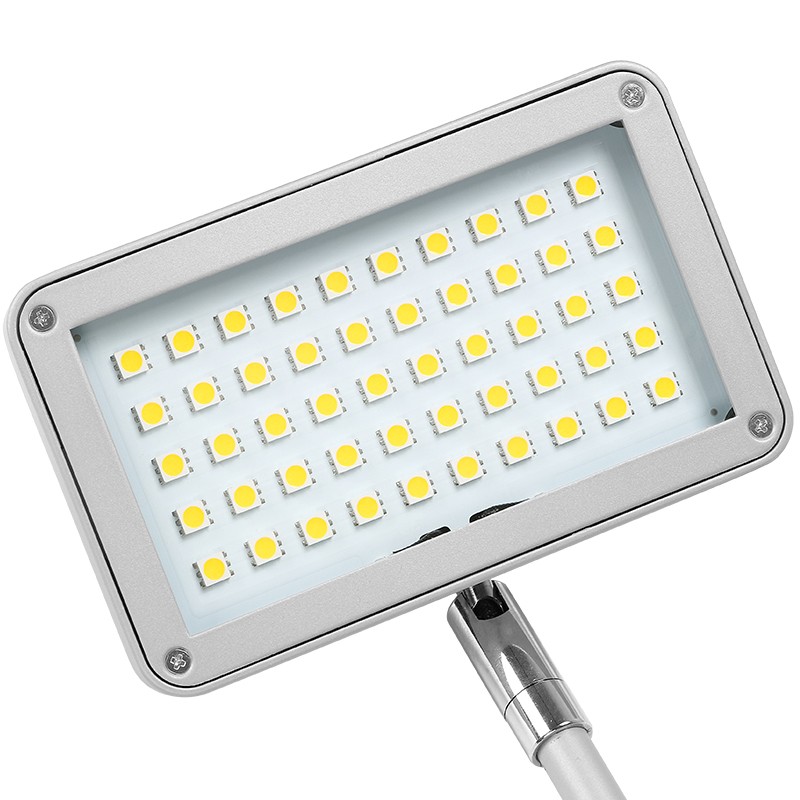

The SL-051-N50L is a 12W LED trade-show arm light with 50 LEDs, specified 1000 lm output and a 120° beam. The technical picture lists AC 100–240V input, a three-pin plug and dimensions of 485 × 130 × 46.5 mm. The product close-up shows a base on/off switch and an adjustable head joint.
For exhibit-kit distributors and stand builders, specify the lamp positions, frame fixing and mains cord together. Share the panel dimensions, mounting profile, quantity, required white-light appearance and destination plug so the complete kit can be confirmed.

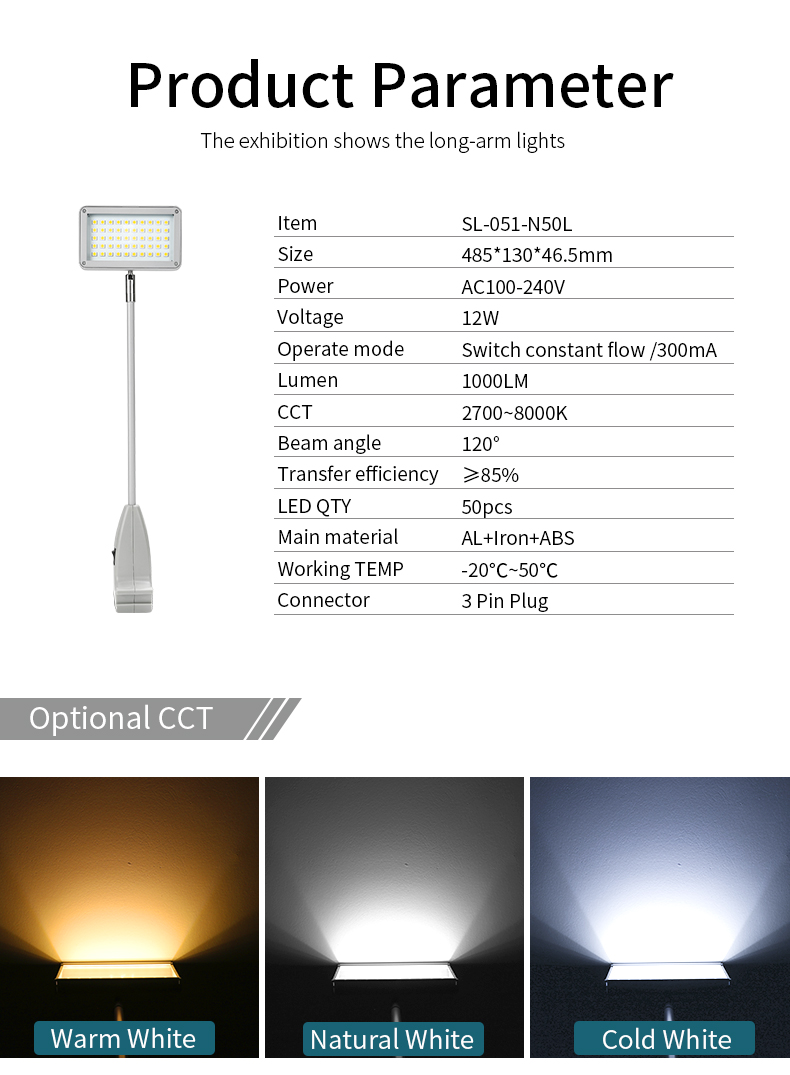

12W three-pin display-light technical data
| Specification | SL-051-N50L |
|---|
| Model | SL-051-N50L |
| Power | 12W |
| Light output | 1000 lm |
| LED quantity | 50 |
| Beam angle | 120° |
| Input voltage | AC 100–240V |
| Dimensions | 485 × 130 × 46.5 mm |
| White-light order range | 2700–8000K |
| Operating mode listed | Constant current, 300 mA |
| Connector | 3-pin plug |
| Control | Base on/off switch pictured |
| Power supply | Built-in, as shown in the product analysis |
| Main materials listed | Aluminium + Iron + ABS |
| Operating-temperature range | -20°C to +50°C |
Position the lamp above the graphic

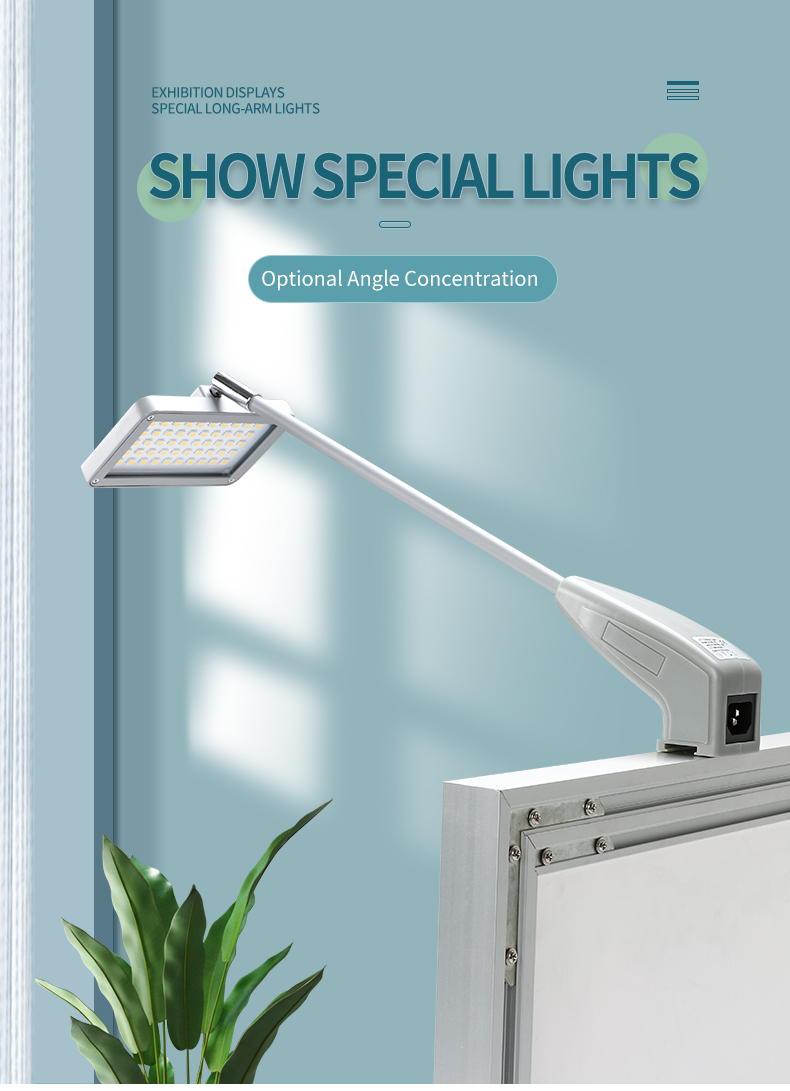

The installation illustration shows the lamp fixed above an exhibition panel. Choose the mounting position using the panel dimensions, the intended distance and the listed 120° beam.

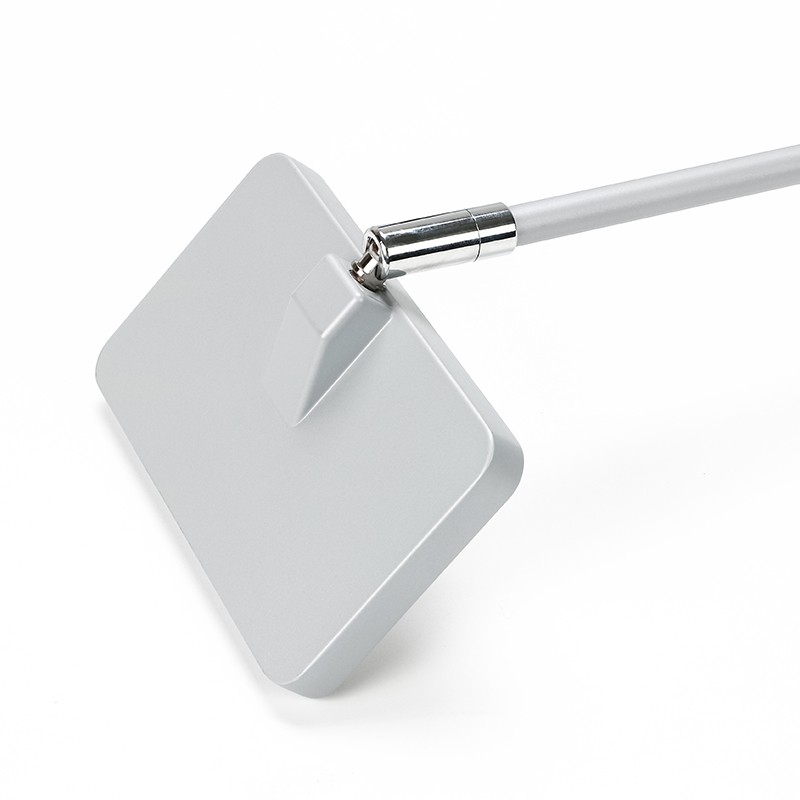

The adjustable head joint directs the lamp toward the graphic surface. Provide the frame profile and fixing-point dimensions so the mechanical kit can be checked for the installation.
Confirm the three-pin kit and base control
The source sheet specifies a three-pin plug and AC 100–240V input. Match the mains cord and connection arrangement to this model, including the required destination plug.

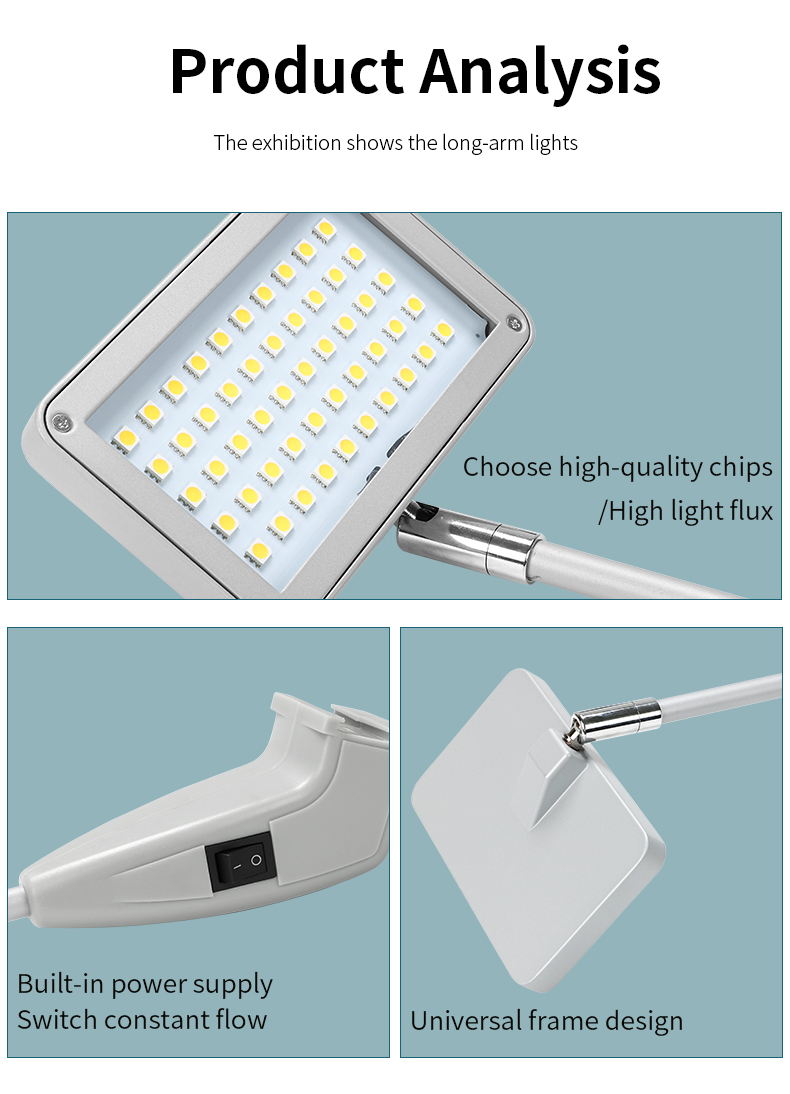

The close-up shows the base on/off switch and describes a built-in power supply. State the required white-light configuration within the listed 2700–8000K range when ordering.
Quote the complete protected lighting kit
The packaging picture shows the lamp, a lead and a fixing component with an individual cardboard box and outer cartons. Confirm the supplied components, lead length and carton quantities as part of the quotation.
Include any labelling or packing requirements with the quantity so factory supply can be planned for the distributor or project order.
Purchasing questions for this 12W arm light
How do I specify the white-light version?
The technical picture lists 2700–8000K. Include the required appearance or Kelvin target with the model number so the sample and bulk configuration can be confirmed.
Can I use an existing three-pin power lead?
Provide its connector details, mains plug and proposed cable route. The complete connection arrangement should be checked for SL-051-N50L before the kit is ordered.
What is needed for a wholesale kit quotation?
Send the model, quantity, panel and mounting details, white-light requirement, destination plug and packing preferences. Orders start from 20 pcs, with lower unit prices at larger quantities.
Samples and custom factory supply
Samples are available for fitting, beam and electrical-kit evaluation. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; confirm sample cost, shipping, custom schedules, transit time and required technical documents separately.
