9.6W white LED ladder lights for backlit displays

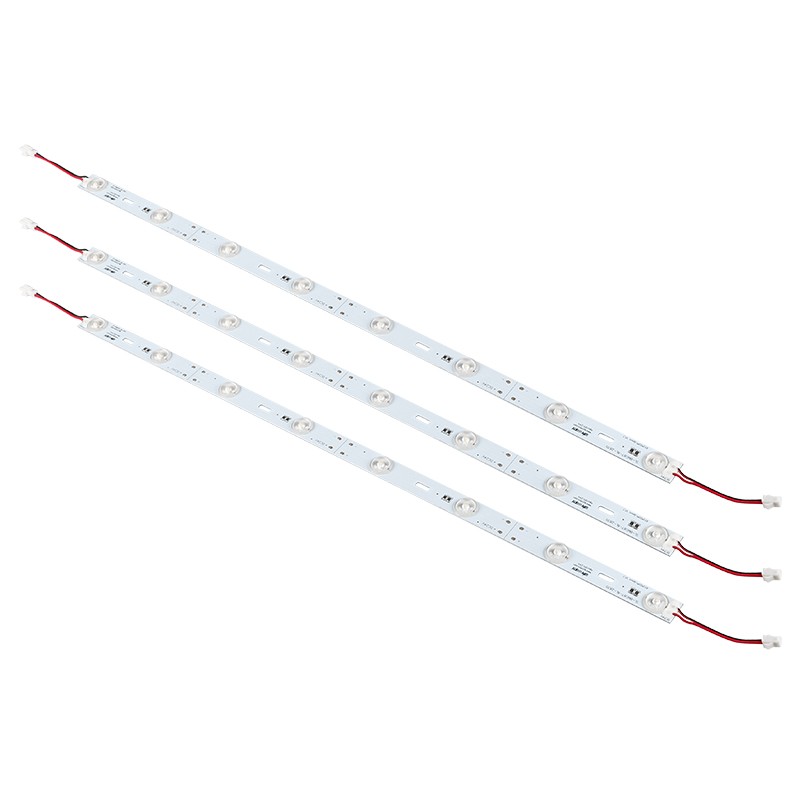

Choose an eight-LED white-light source for the display layout. SL-BM087-8L is specified at 9.6W, 24V DC and 850 lm, with 170° optical lenses. The aluminium-supported bars and linked arrangements are illustrated for advertising lightboxes, fabric displays and illuminated film applications.
For lightbox fabricators, display distributors and project purchasers, approve the white-light selection, bar dimensions and connector arrangement with the sample. Send the enclosure drawing, face material and required quantity to define the lighting-component order.

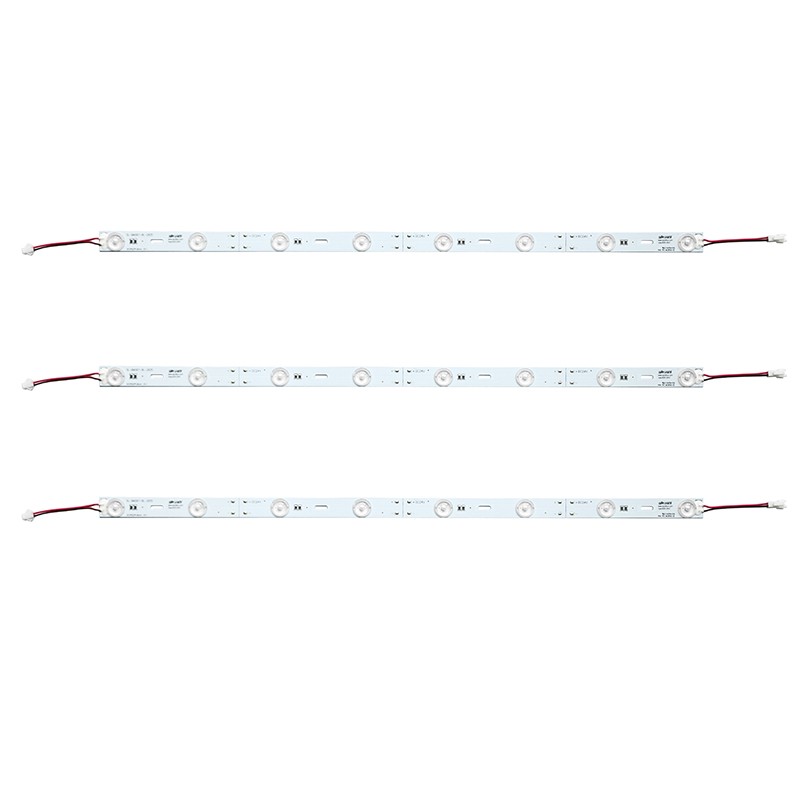

Eight-LED white ladder light technical specification

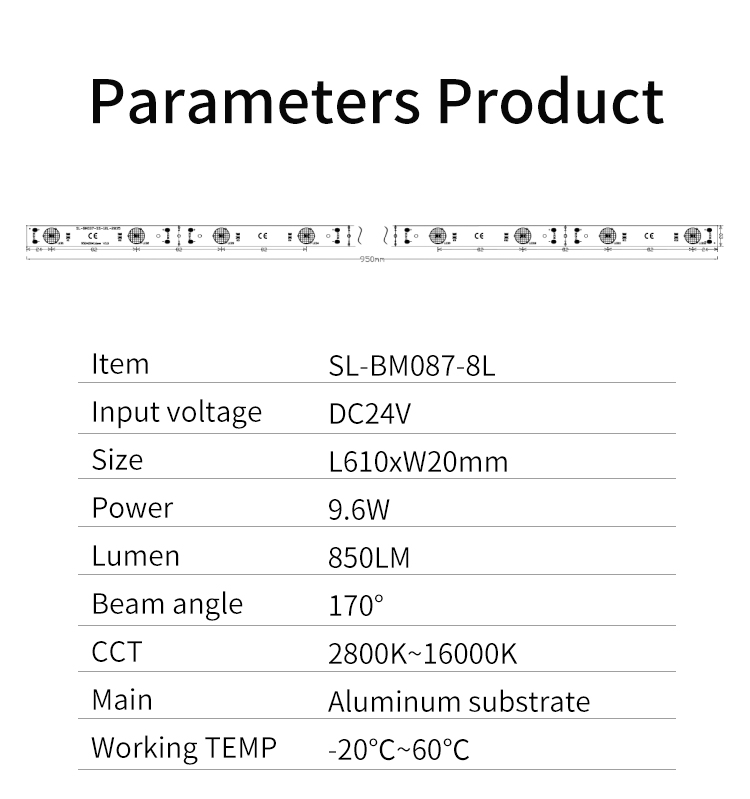

| Specification | SL-BM087-8L |
|---|
| Ordering model | SL-BM087-8L |
| Power | 9.6W |
| Input | 24V DC |
| Luminous flux | 850 lm |
| LED quantity for this model | 8 LEDs per bar |
| Optical angle | 170° |
| White-light order range in sheet | 2800–16000K; specify the required version |
| Bar width | 20mm |
| Substrate | Aluminium, 1.6mm thickness |
| Working temperature | −20 to +60°C |
| Connection appearance | Red and black leads with white plugs |
| Colour-rendering order option | CRI 90+ available; specify with the order |
Choose the white-light version and LED configuration
The sheet lists a 2800–16000K white-light order range. State the required white appearance and obtain output and electrical data for the selected version. Specify CRI 90+ white LEDs where required for the project.

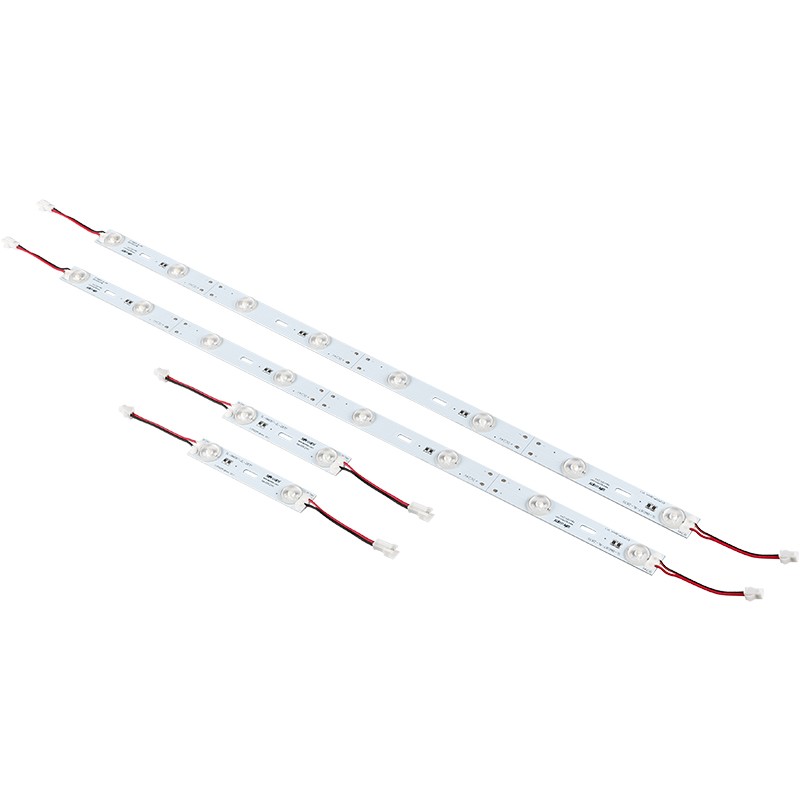

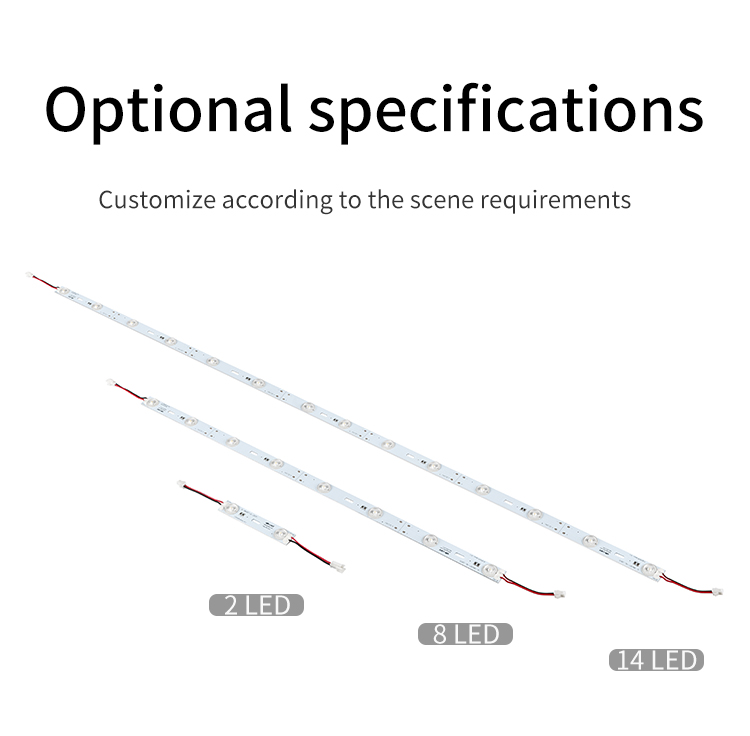

The variant picture shows two-, eight- and fourteen-LED bar appearances. This page covers the SL-BM087-8L eight-LED model. Request separate specifications and dimensions when considering another LED-count configuration.
Aluminium substrate, optics and connection layout

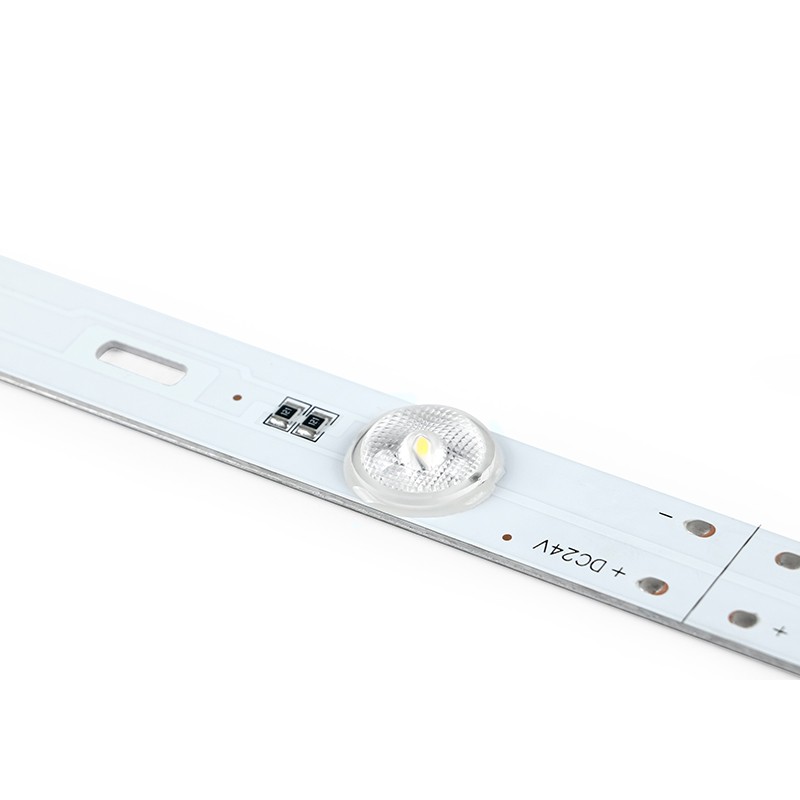

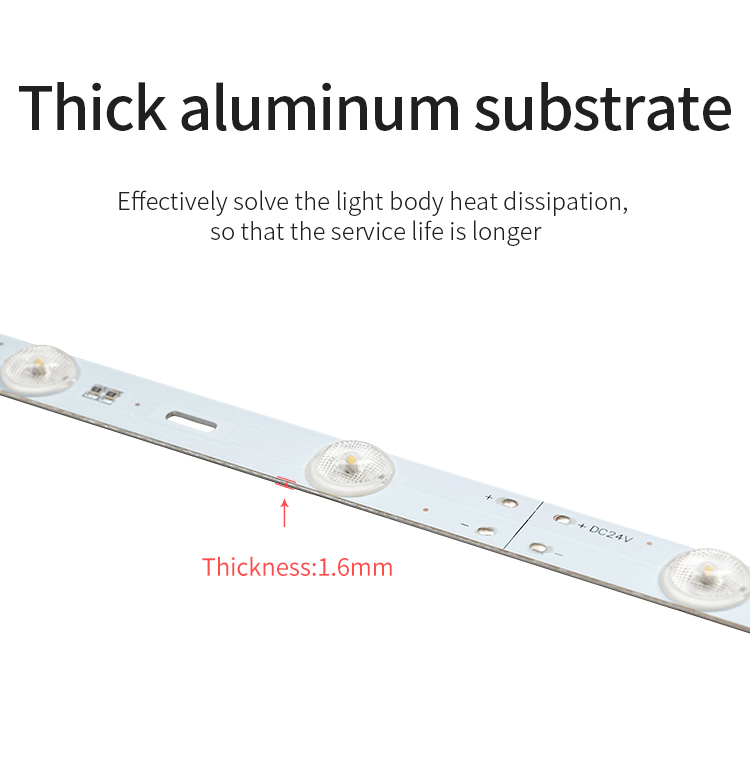

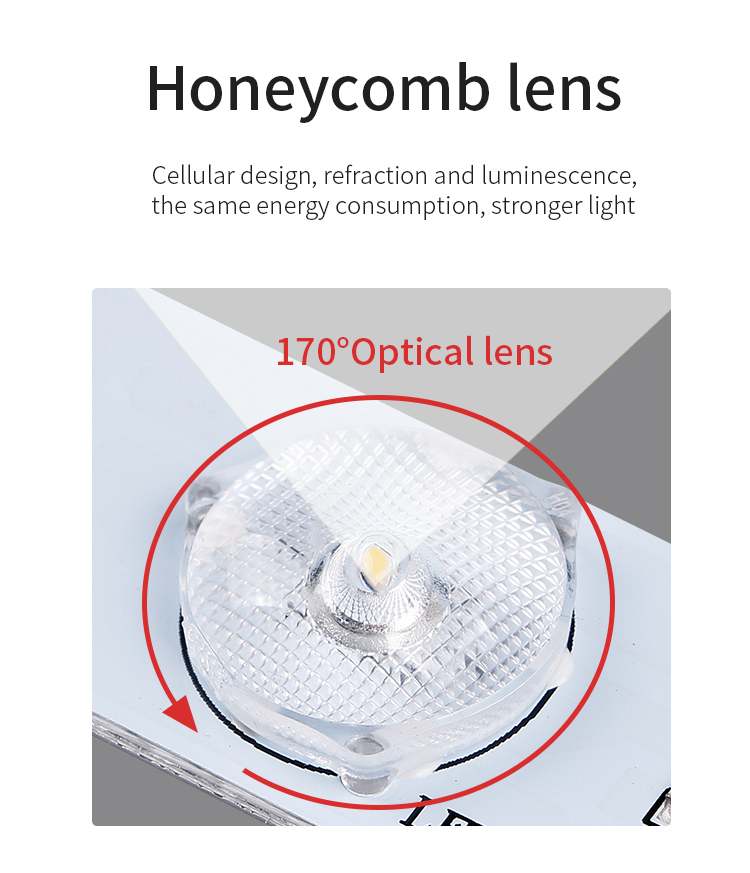

The construction image shows a 1.6mm aluminium substrate with round holes and slots; the optical illustration identifies a 170° honeycomb lens. Approve the complete bar dimensions, lens clearance and fixing positions against the enclosure drawing.

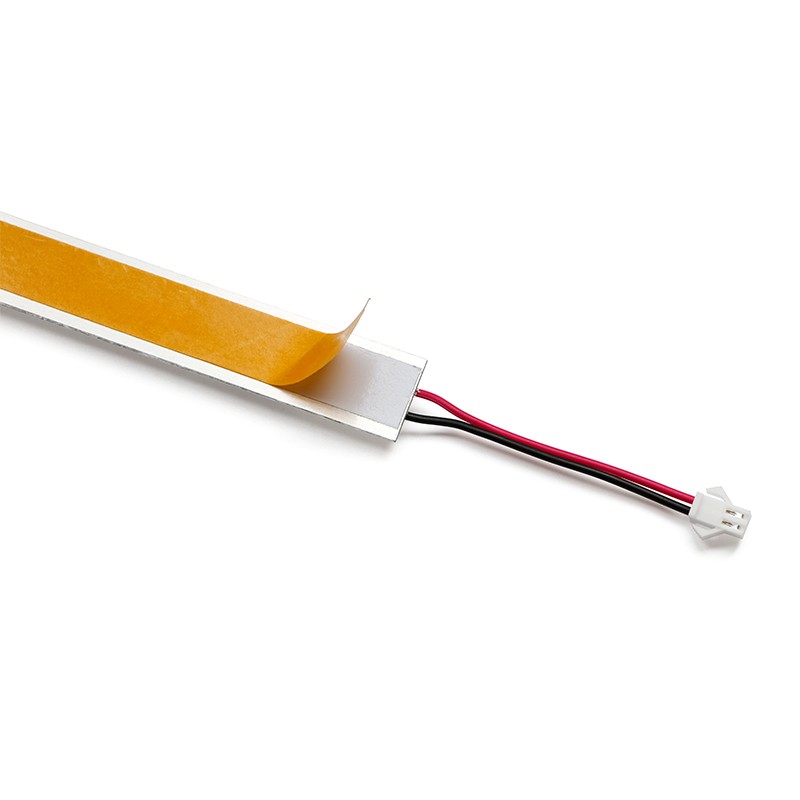

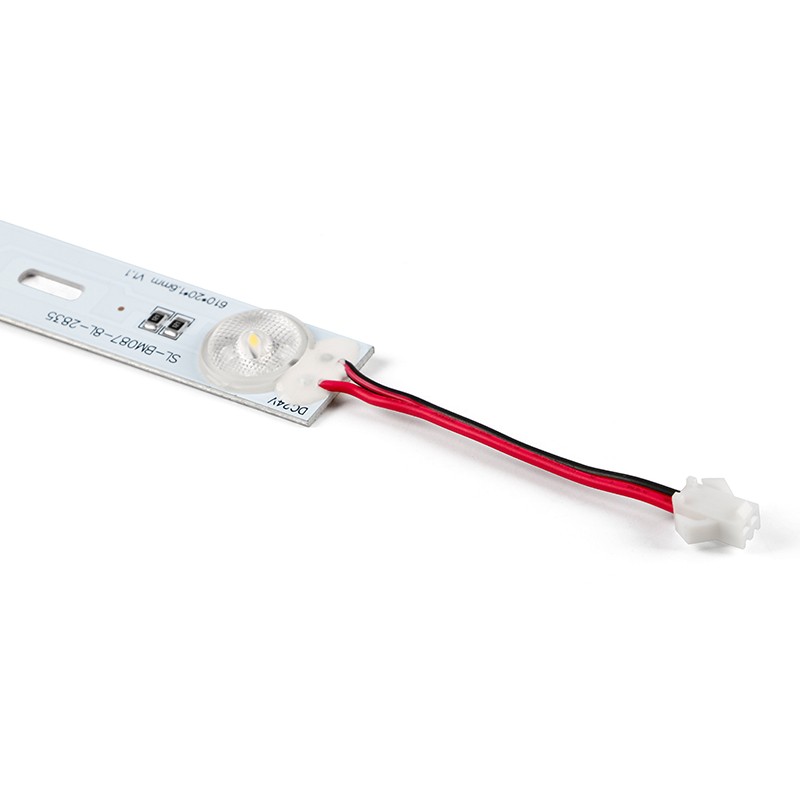

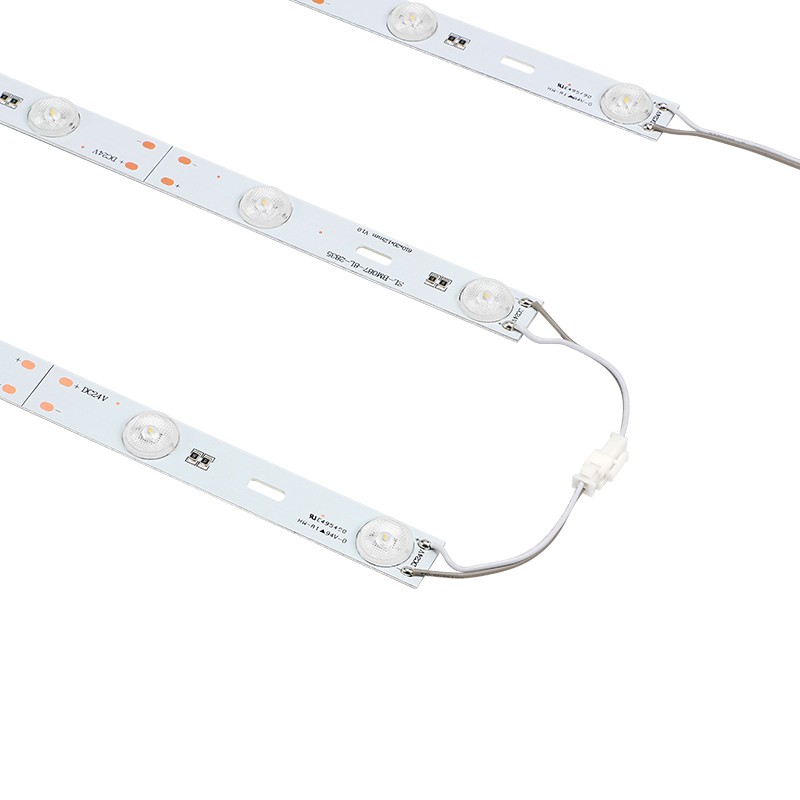

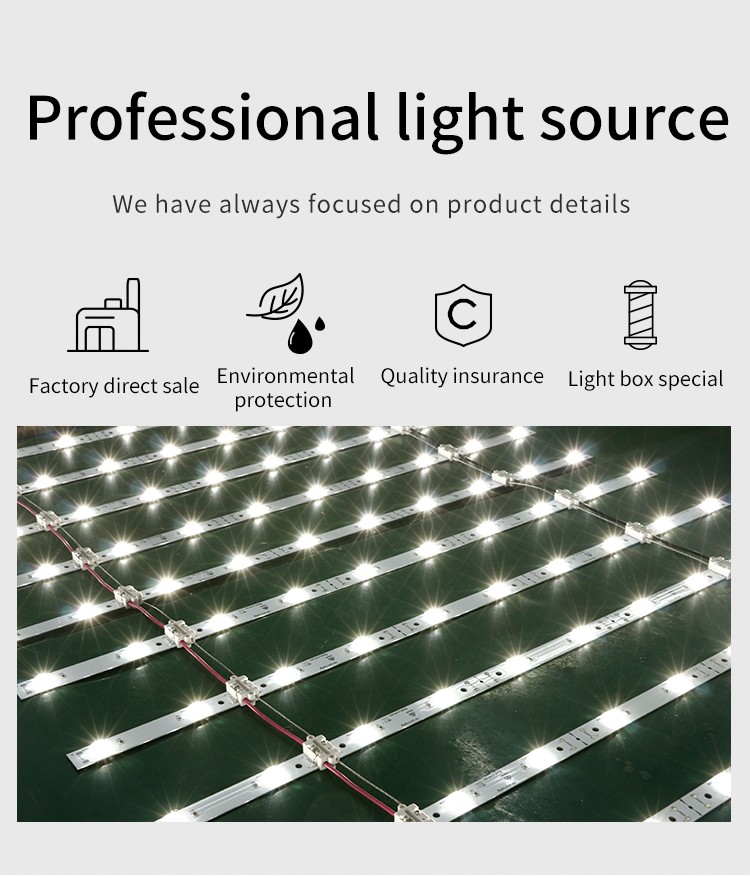

Red and black leads with white plugs are shown in the linked arrangements. Agree the mating connectors, cable route, power-unit specification and permitted connection quantity for the ordered version. List required accessories in the quotation.
Backlit display sampling and packing

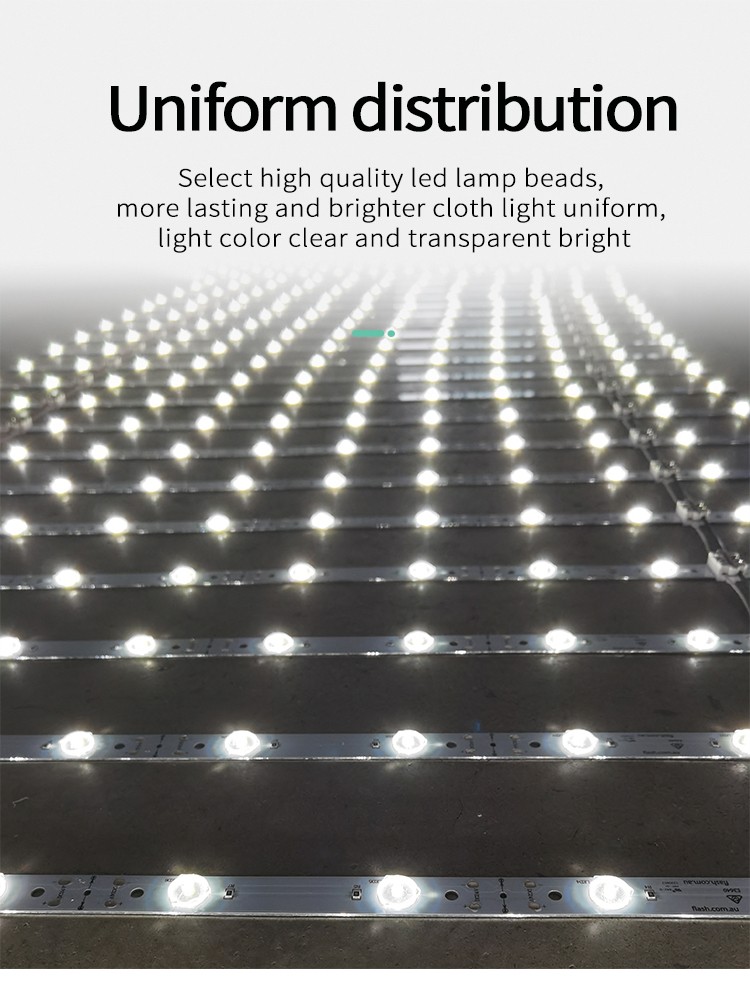

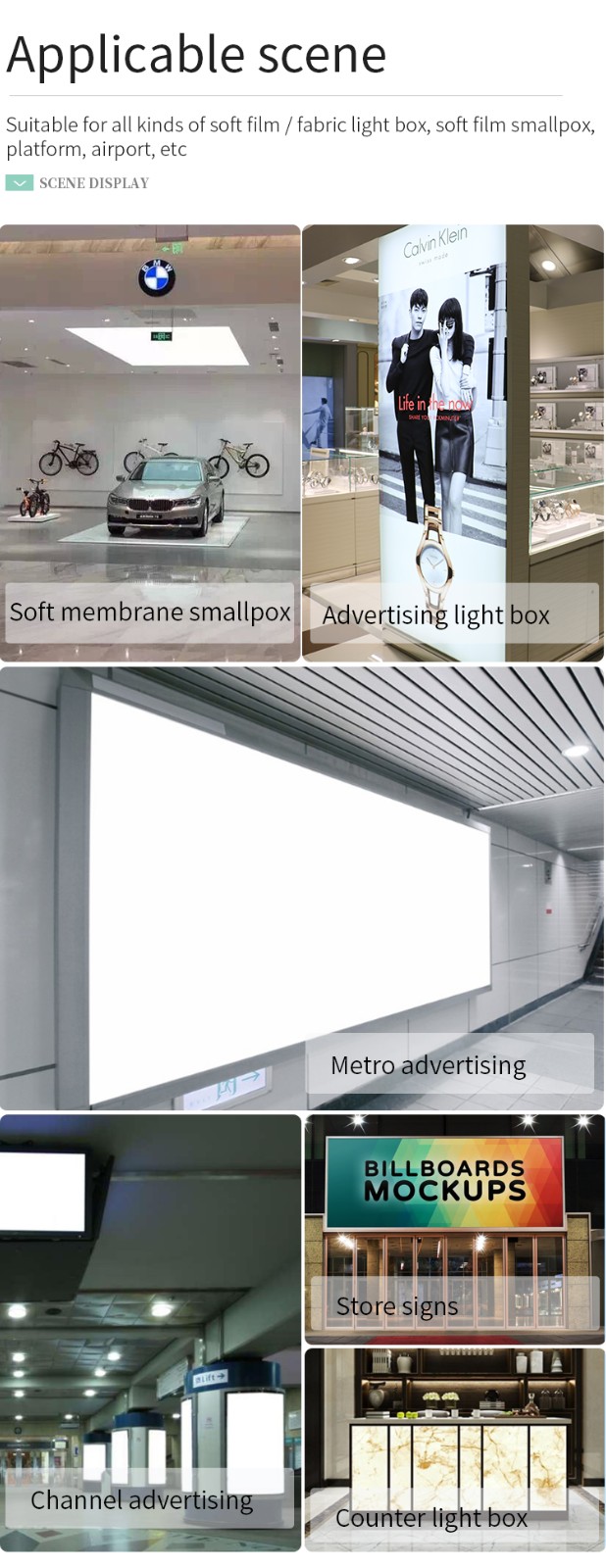

The application artwork includes fabric or film lightboxes, retail advertising displays and illuminated ceiling concepts. Provide the intended face material and mounting layout for sample assessment in the actual enclosure.

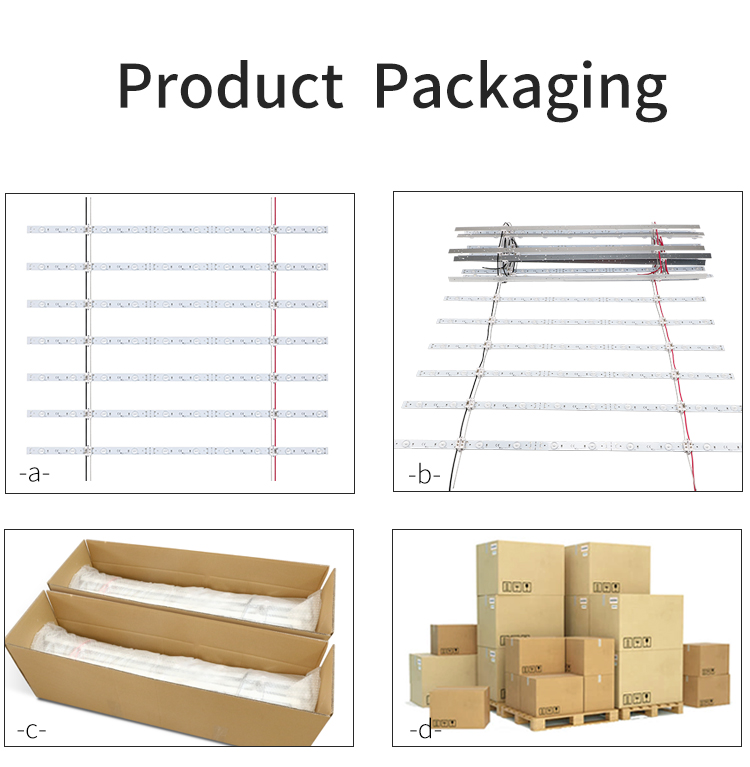

The packing views show linked bars stacked with foam support and placed in cartons. Confirm the bar grouping and packing quantity with the order. Wholesale supply starts at 20 pcs, with volume pricing at higher quantities. Samples are available; sample charges and shipping are separate. Standard lead time is 12–18 days, with custom requirements and transit confirmed separately. OEM, ODM and private-label supply are supported.
White ladder backlight purchasing questions
Is the eight-LED model supplied with a selected white-light version?
Specify the required white-light selection with SL-BM087-8L. The product sheet lists an order range; approve the selected version, output data and optional CRI 90+ specification with a sample.
What drawing is needed to check the bar for my lightbox?
Provide the enclosure dimensions, fixing positions, cable route and face material. Obtain the approved complete bar drawing and confirm the connector version before planning bulk assembly.
Can I order the other LED-count versions shown in the picture?
The picture illustrates two-, eight- and fourteen-LED alternatives. State the configuration you need so its ordering reference, power, output and dimensions can be confirmed separately.
What should an eight-LED backlighting enquiry include?
Send the model, bar quantity, required white light, CRI selection, display drawing and destination country. Add power, lead, assembly-grouping, OEM marking and packing requirements to define the quotation.
