Specify spotlight kits for trade-show graphics

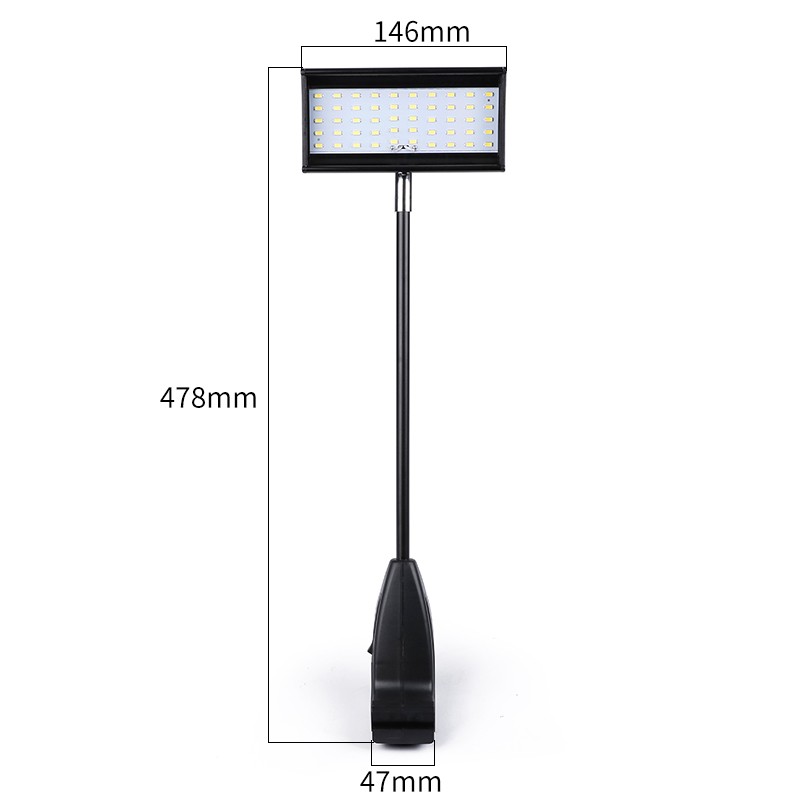

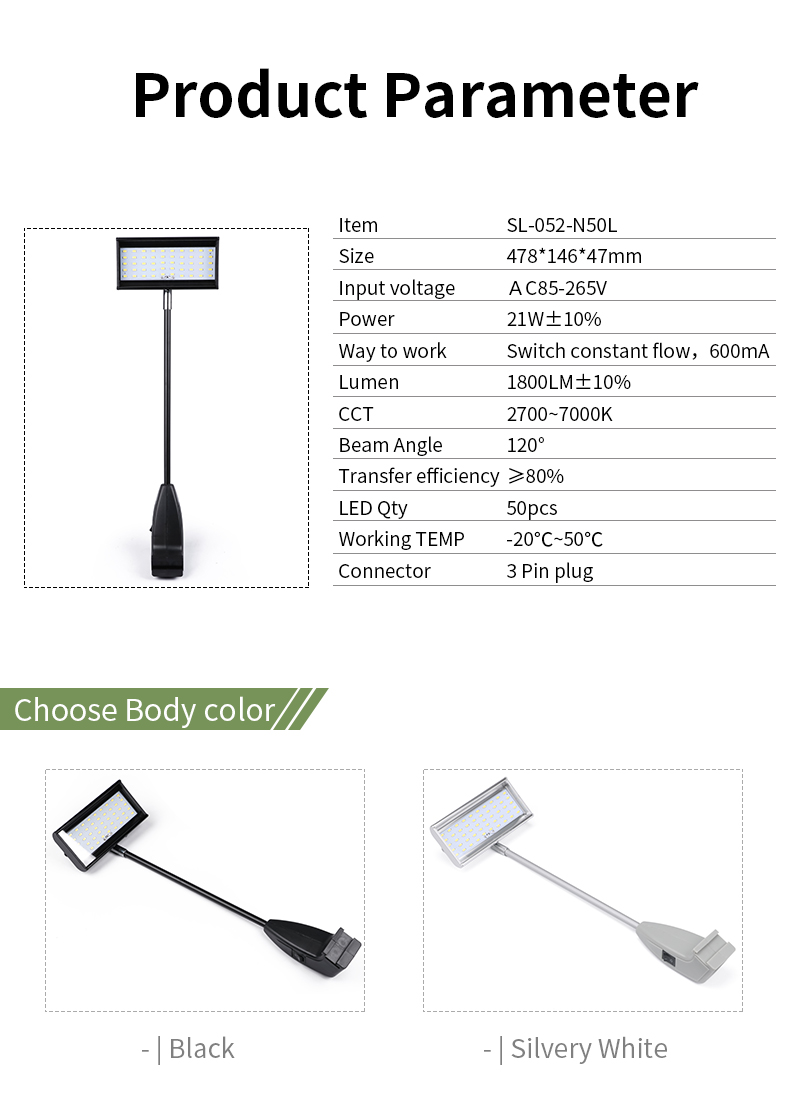

The SL-052-N50L is a 21W ±10% LED display spotlight with 50 LEDs, specified 1800 lm ±10% output and a 120° beam. The parameter picture lists AC 85–265V input, dimensions of 478 × 146 × 47 mm and a three-pin plug. Black and silvery-white bodies are pictured as finish options.
For display-kit distributors and exhibition contractors, quote the finish, frame fittings, mains cord and connecting leads together. Provide the frame profile, graphic dimensions, lamp quantity and destination plug so the permitted electrical arrangement and installation kit can be confirmed.
21W AC-input spotlight technical data
| Specification | SL-052-N50L |
|---|
| Model | SL-052-N50L |
| Power | 21W ±10% |
| Light output | 1800 lm ±10% |
| LED quantity | 50 |
| LED type shown | 5630 |
| Beam angle | 120° |
| Input voltage | AC 85–265V |
| Dimensions | 478 × 146 × 47 mm |
| White-light order range | 2700–7000K |
| Operating mode listed | Constant current, 600 mA |
| Connector | 3-pin plug |
| Control | Base on/off switch pictured |
| Body finish options | Black / Silvery white |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp |
| Operating-temperature range | -20°C to +50°C |
Choose the lamp finish and aiming position

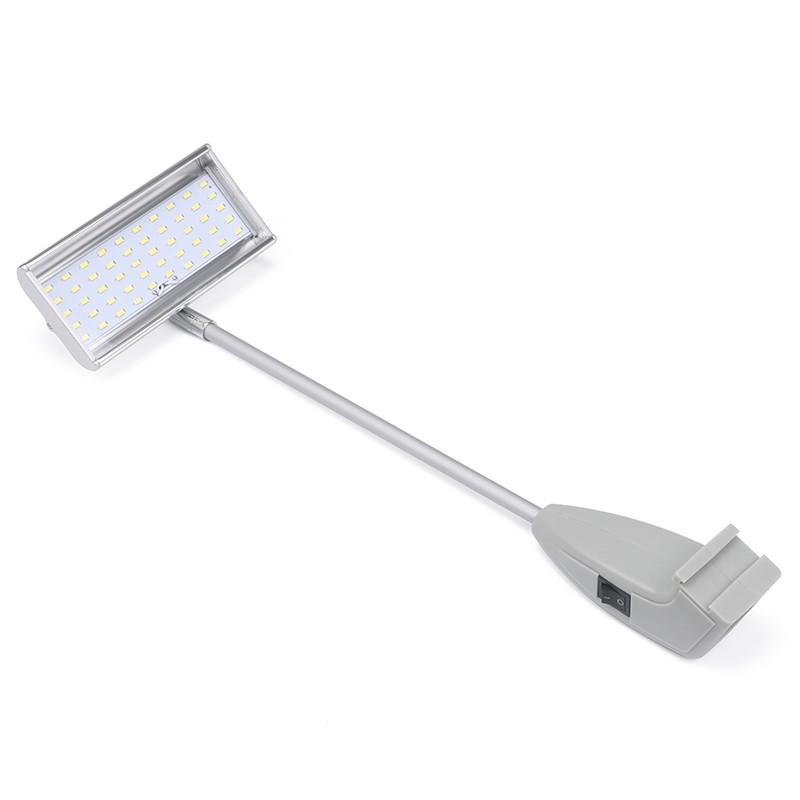

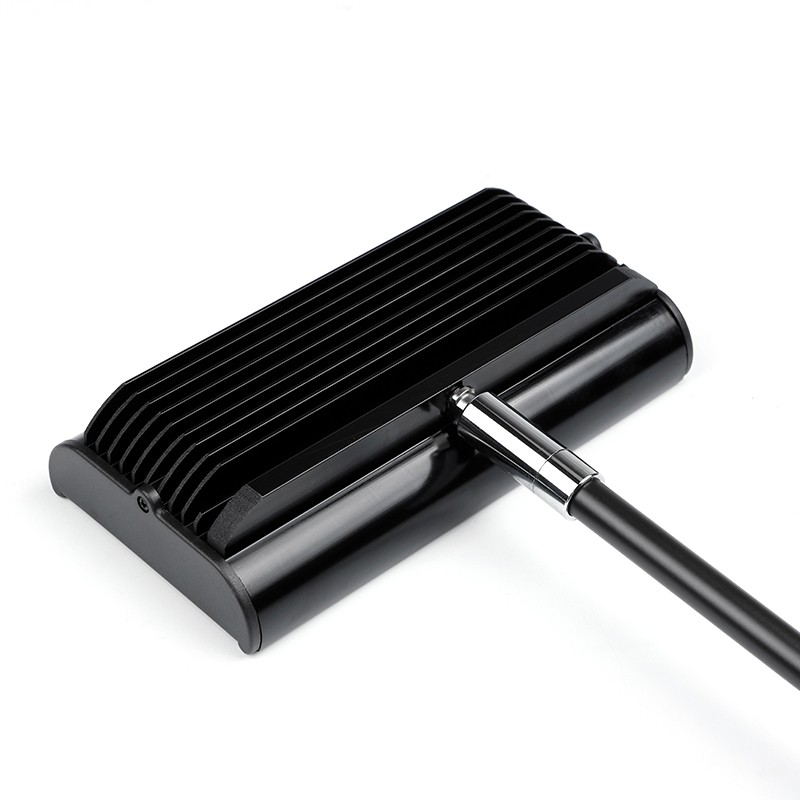

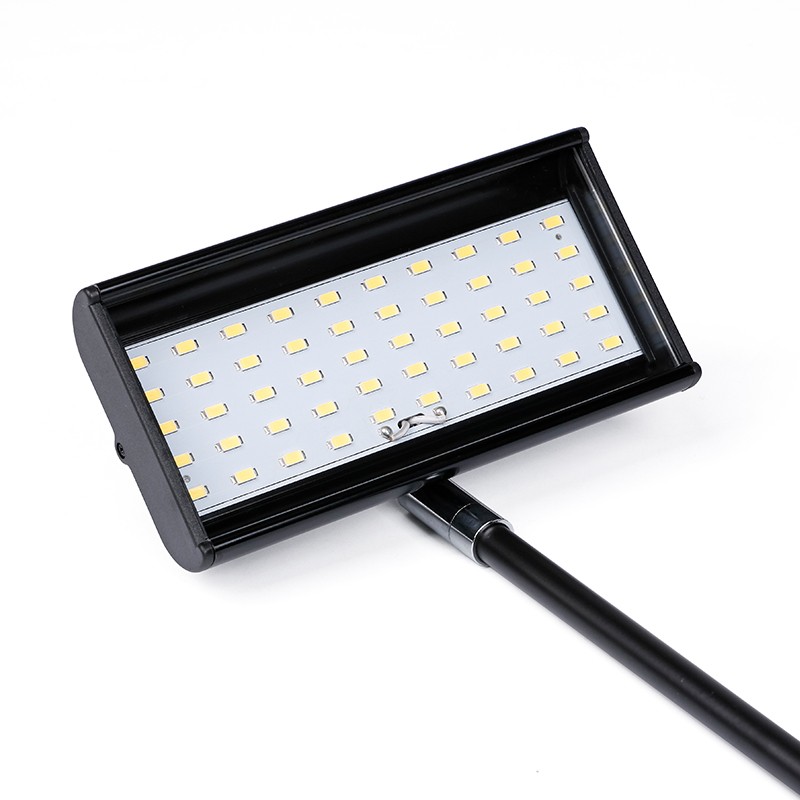

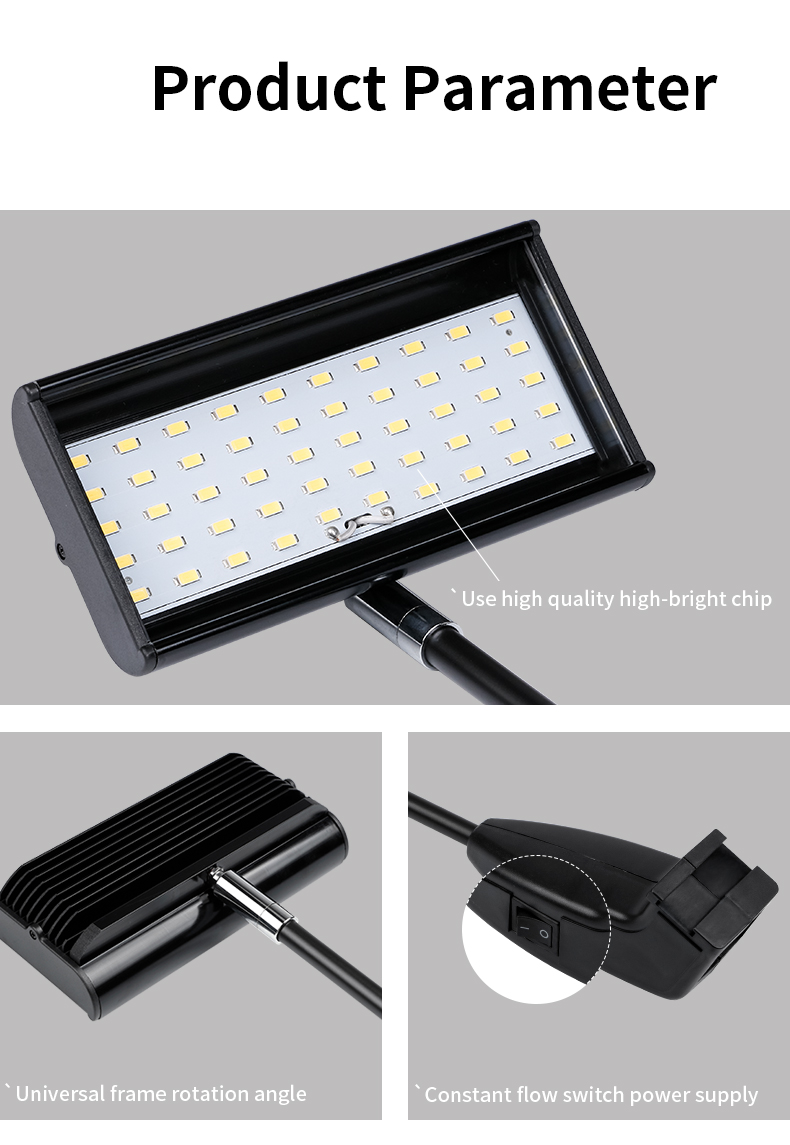

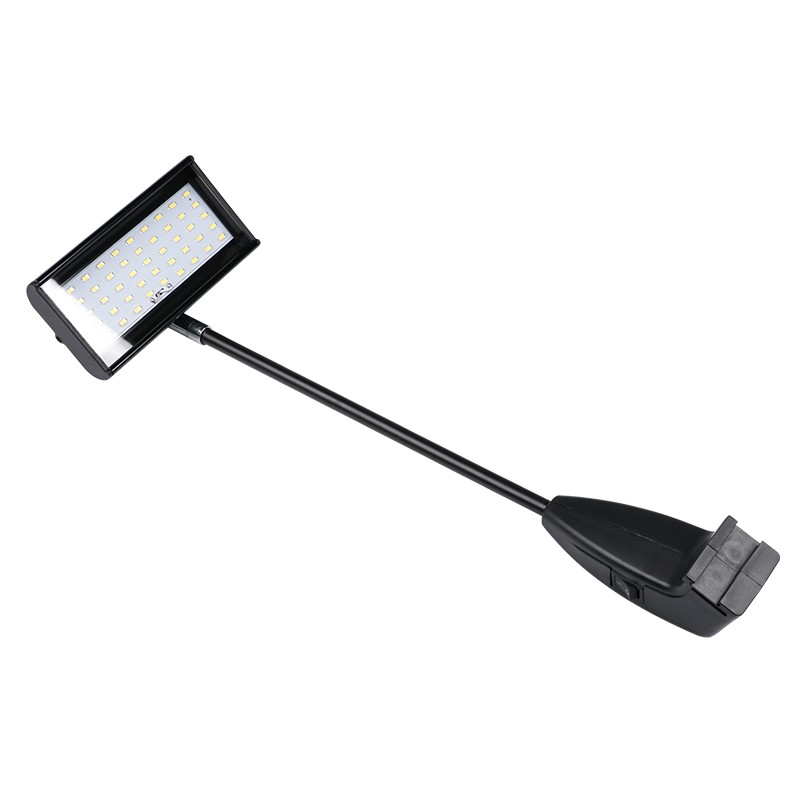

The pictured black and silvery-white bodies provide finish choices for different stand hardware. The product close-up shows the LED array, rear heat-dissipation ribs, adjustable head joint and base on/off switch.
Specify the required white-light appearance within the listed 2700–7000K order range. Select the configuration with the enquiry and use a sample to assess the beam on the actual graphic surface.
Select frame fittings and the three-pin lead kit

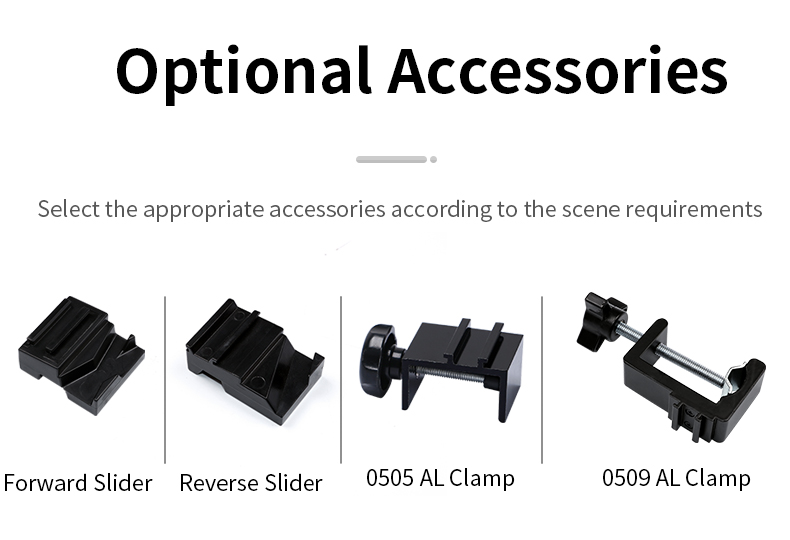

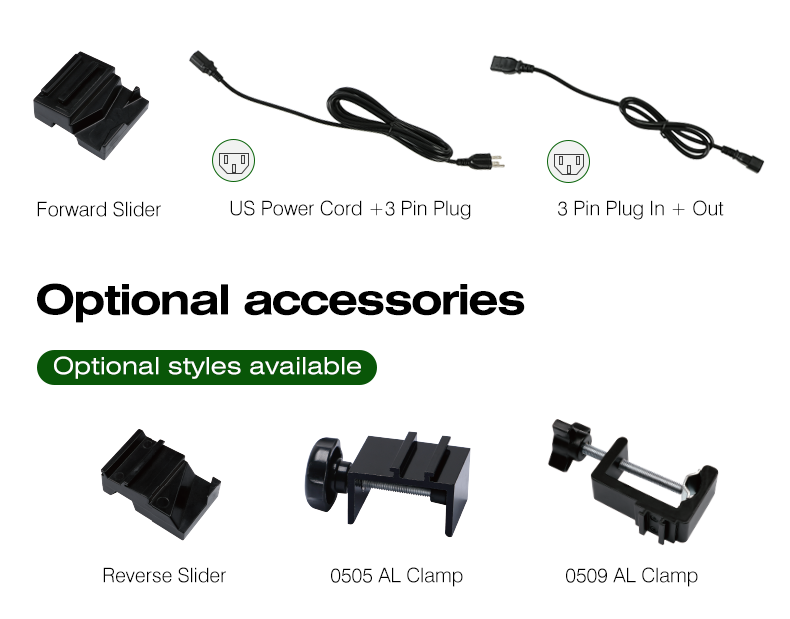

The accessory pictures show forward and reverse sliders, 0505 and 0509 aluminium clamps, a US-style power cord and a three-pin linking lead. Include the frame section, fixing point and destination plug so the correct kit can be quoted.

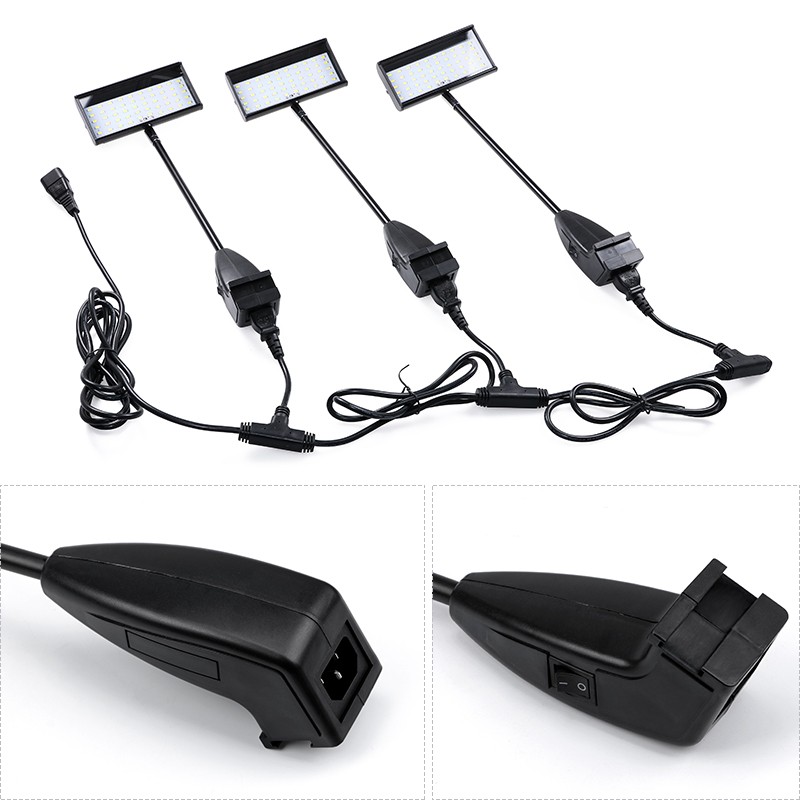

If the installation uses several lamps, send the lamp count, connector details and cable route. Confirm the allowed electrical layout and complete-kit rating for this model before ordering.
Plan light positions around exhibition graphics

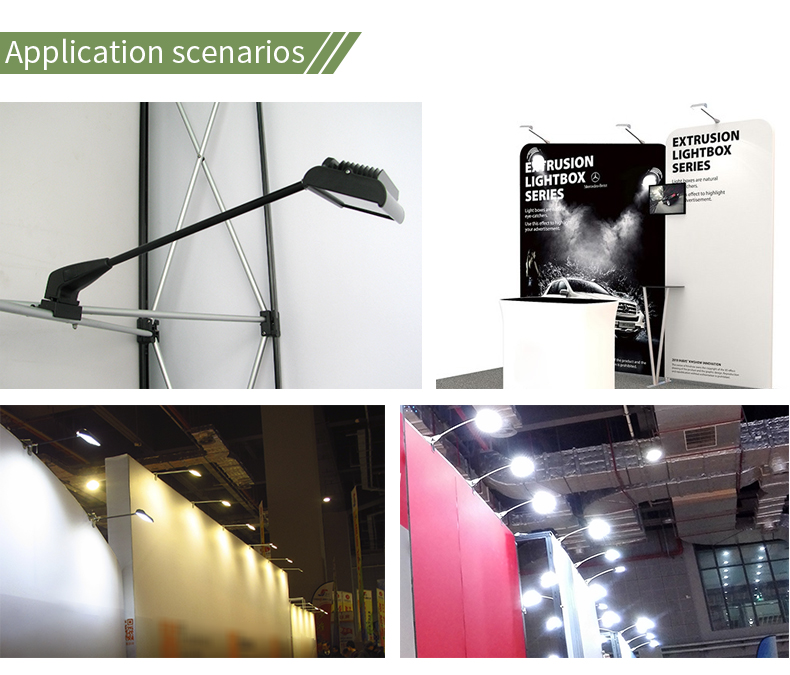

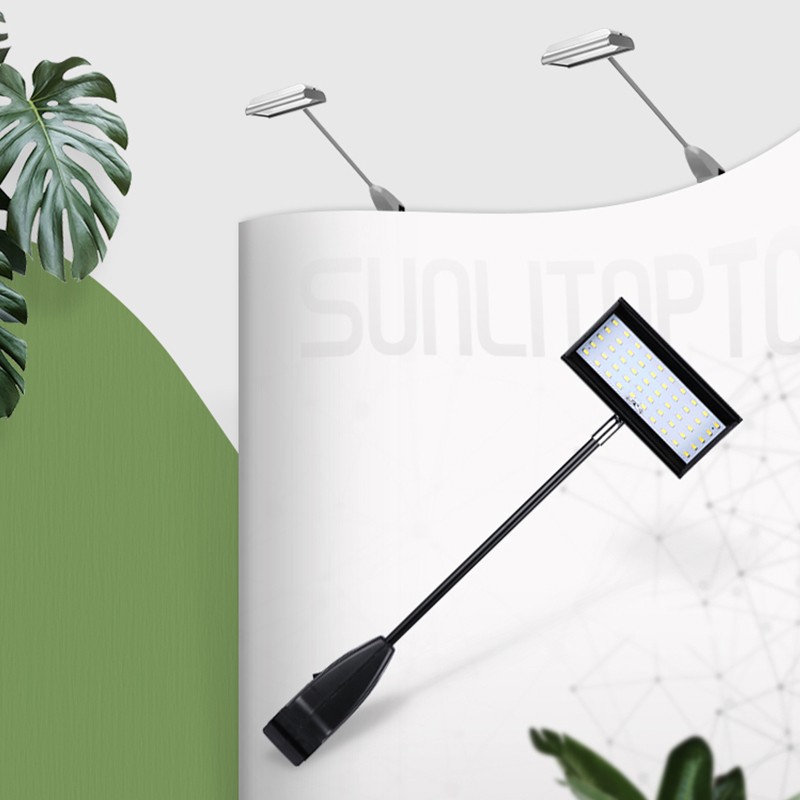

The application pictures show lamps used with display frames and exhibition graphic walls. Choose mounting positions using the actual panel dimensions, surrounding lighting and the listed 120° beam.
Provide a stand drawing or photo with the enquiry so the required fittings and sample-evaluation positions can be discussed.
Confirm kit contents and customised cartons
The packaging pictures show the lamp, leads and fixing component protected in an individual cardboard box, followed by outer cartons. General and customised packaging are shown as order options.
Confirm the components per kit, lead lengths, carton quantities and label or branding requirements with the bulk quotation.
Questions for spotlight kit buyers
Can I choose the lamp body finish?
Black and silvery-white bodies are pictured. Include the required finish and quantity with SL-052-N50L so the supply configuration can be confirmed.
Can I use the illustrated linking lead for several lamps?
Send the lamp count, lead route, mains plug and connector details for a complete electrical-kit check. The permitted number and arrangement are confirmed for this model and order configuration.
What should I provide for OEM or distributor pricing?
Send the model, quantity, finish, white-light requirement, fittings, electrical kit and packing details. Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. OEM, ODM and private-label enquiries are supported.
Arrange samples and the supply schedule
Samples are available for fitting, beam, finish and lead-kit evaluation. Standard lead time is 12–18 days. Confirm sample cost, shipping, customised schedules, transit time and any required model-specific technical documents separately.
