Three-pin connection kits for display arm lighting

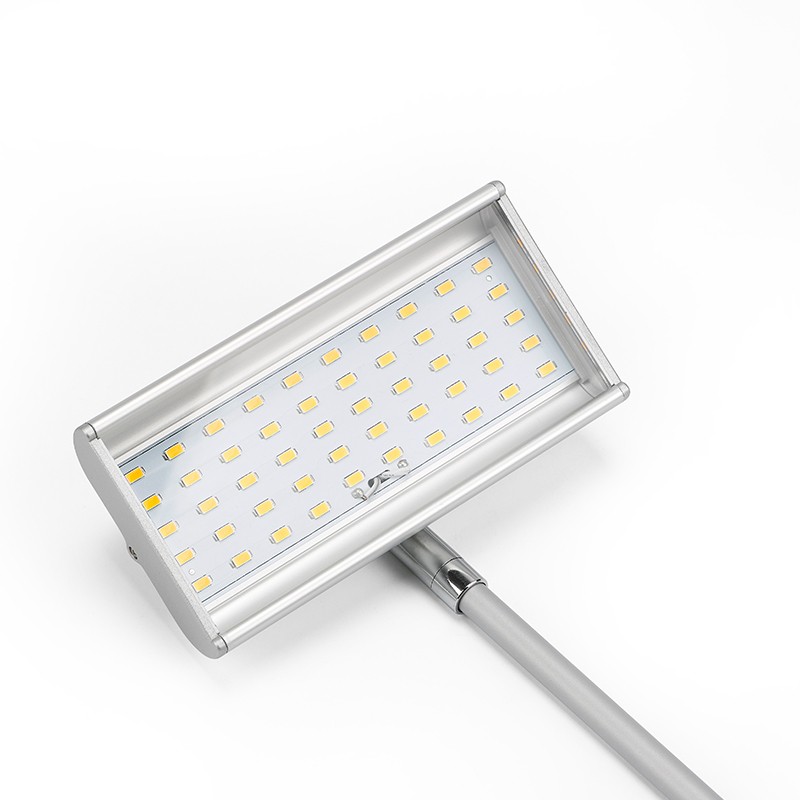

The SL-2054-03-N50L is a 21W linkable display arm light with 50 LEDs, 1800 lm output and a 120° beam. Its technical sheet lists AC 100–240V input, dimensions of 518 × 146 × 50 mm and three-pin male and female connections. The product close-up shows an adjustable head and a base on/off switch.

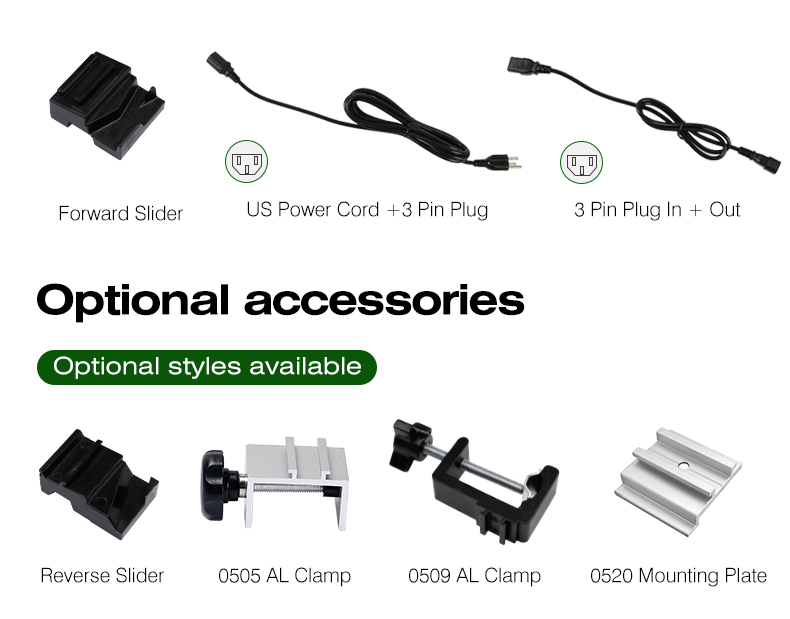

For lighting-kit distributors and stand builders, specify the lamp positions, fixing choices and leads as one order. The accessory pictures include sliders, aluminium clamps, a mounting plate, a US-style power cord and a three-pin linking lead. Share the frame profile, cable route, lamp count and destination plug so the permitted complete-kit configuration can be confirmed.

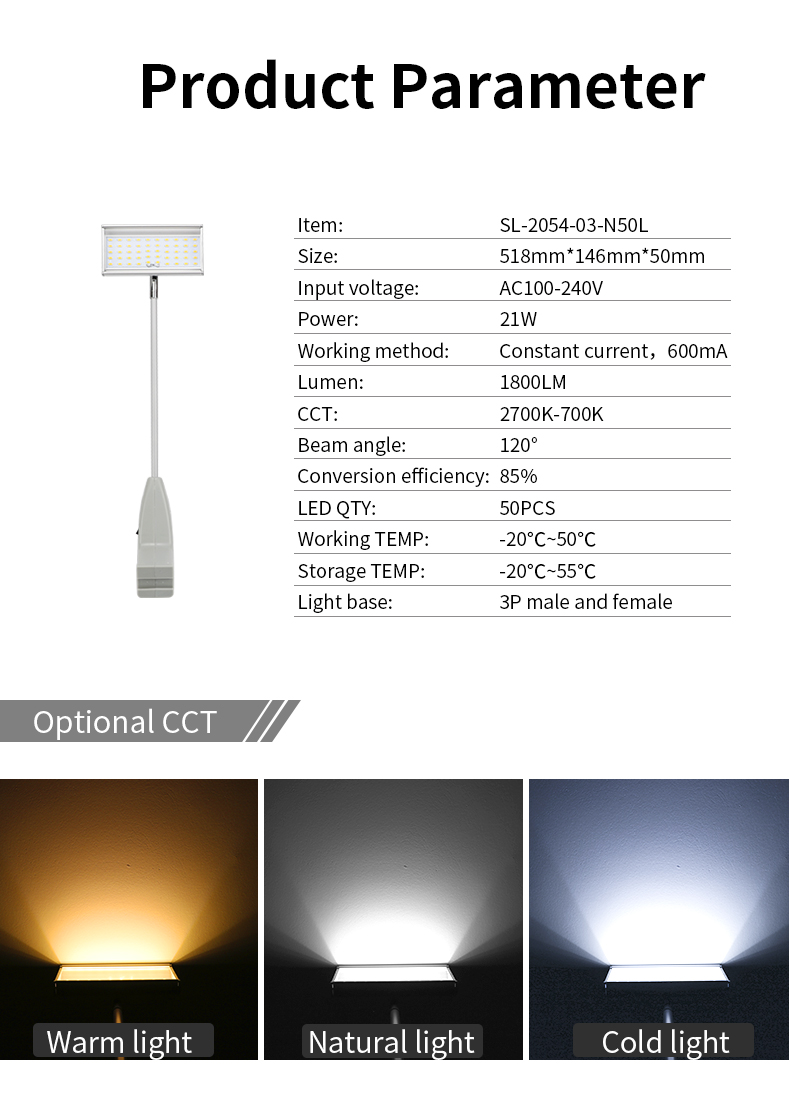

21W male/female connector model specifications
| Specification | SL-2054-03-N50L |
|---|
| Model | SL-2054-03-N50L |
| Power | 21W |
| Light output | 1800 lm |
| LED quantity | 50 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 120° |

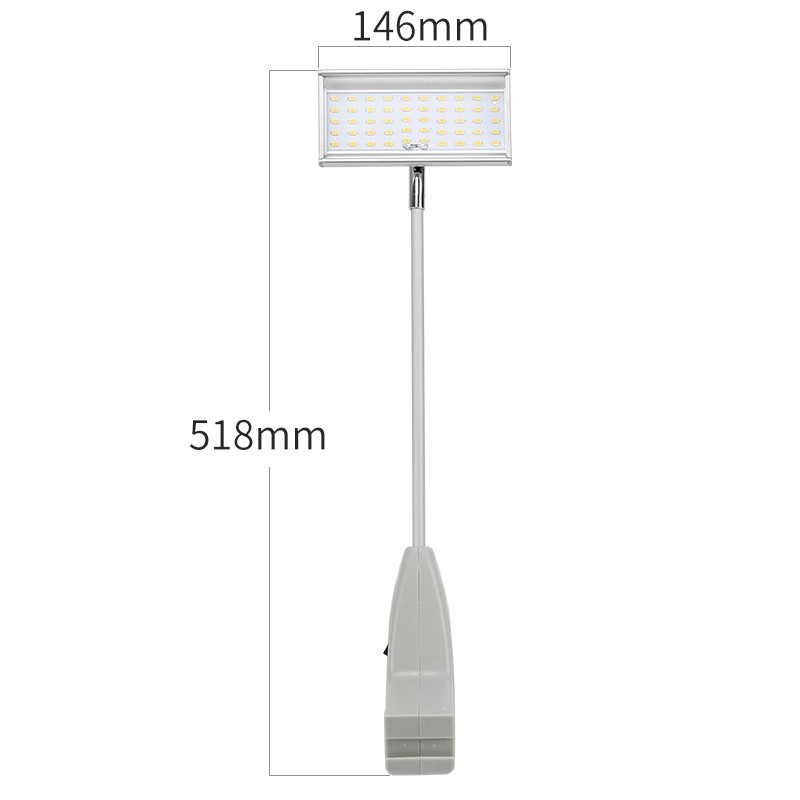

| Dimensions | 518 × 146 × 50 mm |
| Connections | Three-pin male and female |
| Control | Base on/off switch pictured |
| Driver operating mode | Constant current, 600 mA as listed |
| White-light configuration | Warm / Neutral / Cool appearance examples; specify the required version |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp / 0520 mounting plate |
| Working-temperature range | -20°C to +50°C |
Match sliders, clamps and leads to the display

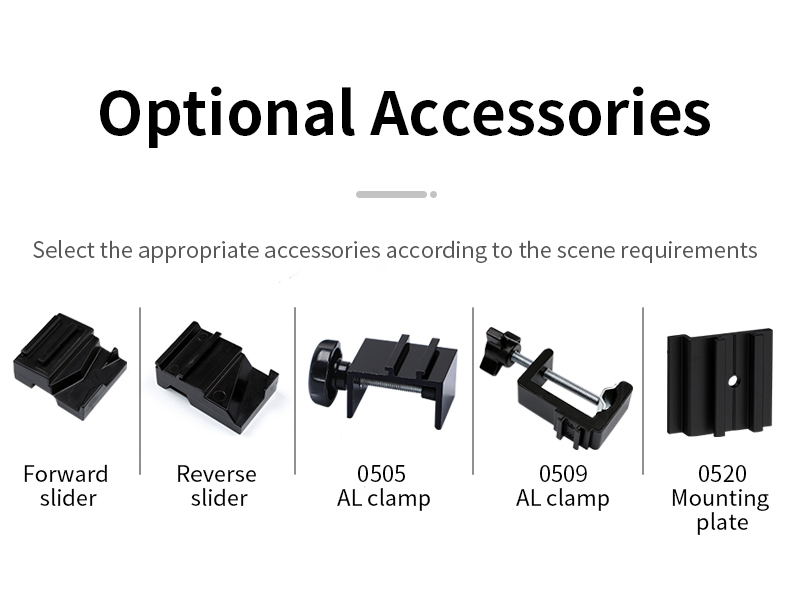

The fixing choices include forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate. Provide the frame profile and available fixing space to confirm the selected fitting.

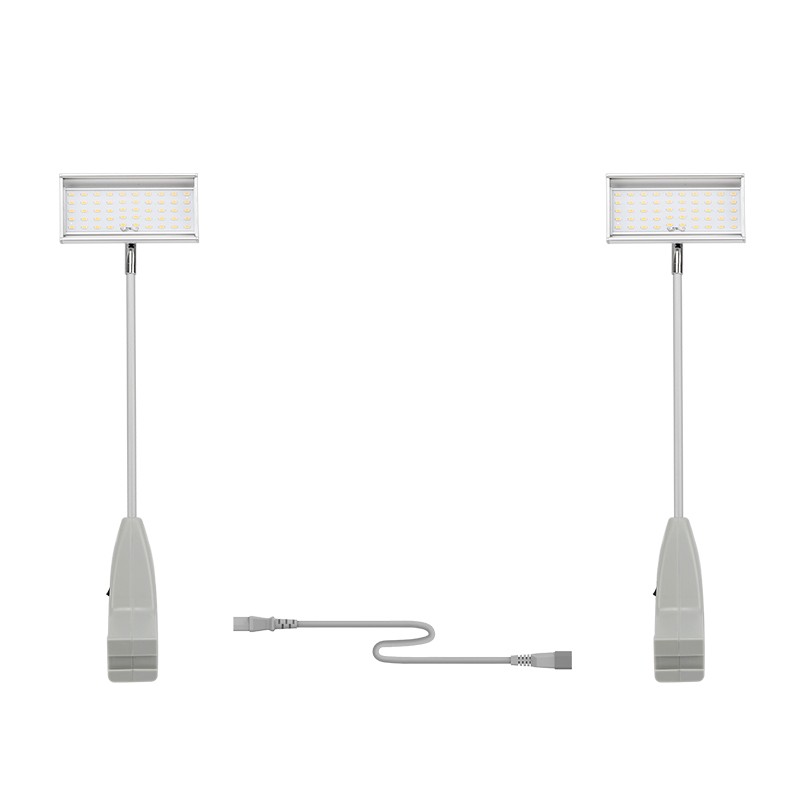

The accessory illustration shows a US-style mains cord and three-pin linking lead. Specify the destination plug, cable route and lamp quantity so the leads and permitted connection layout can be checked as part of the full order.

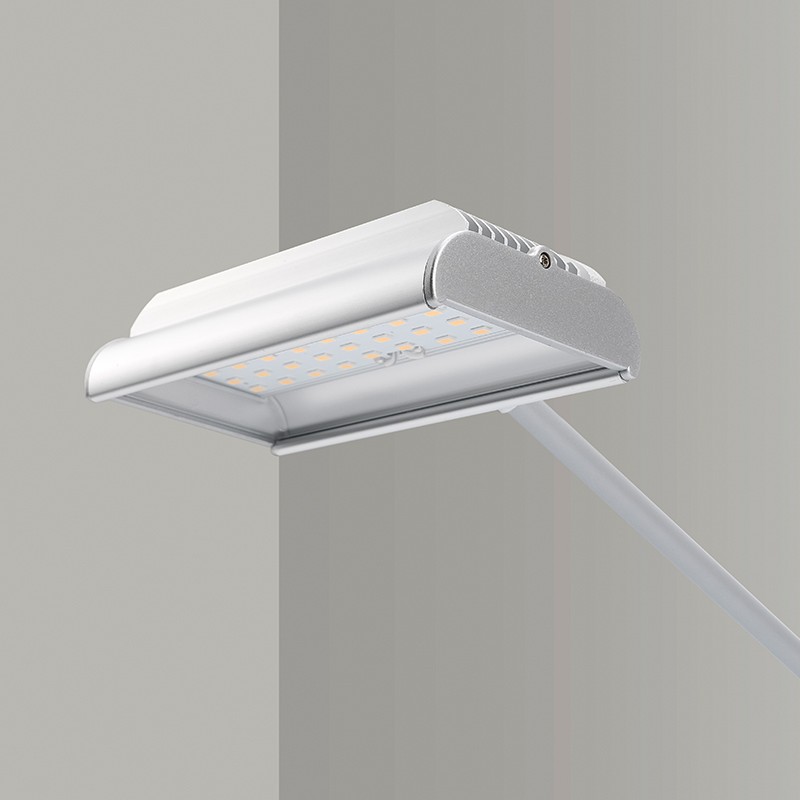

Aim the head and specify the white-light version

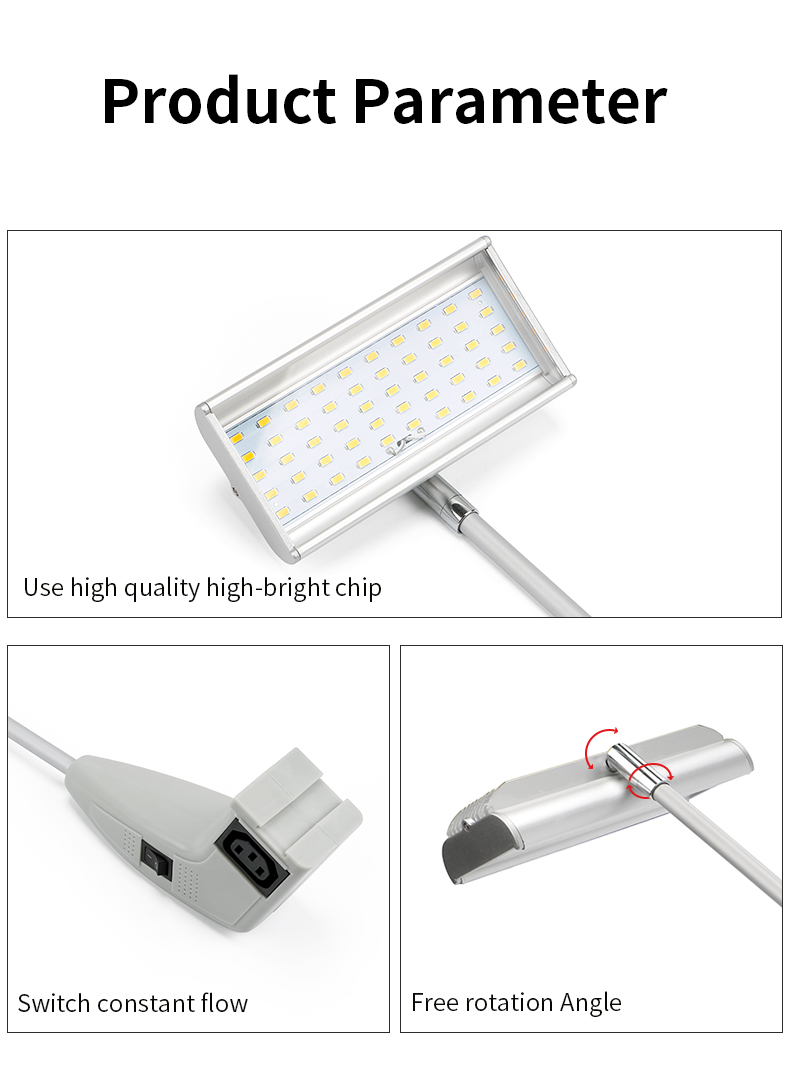

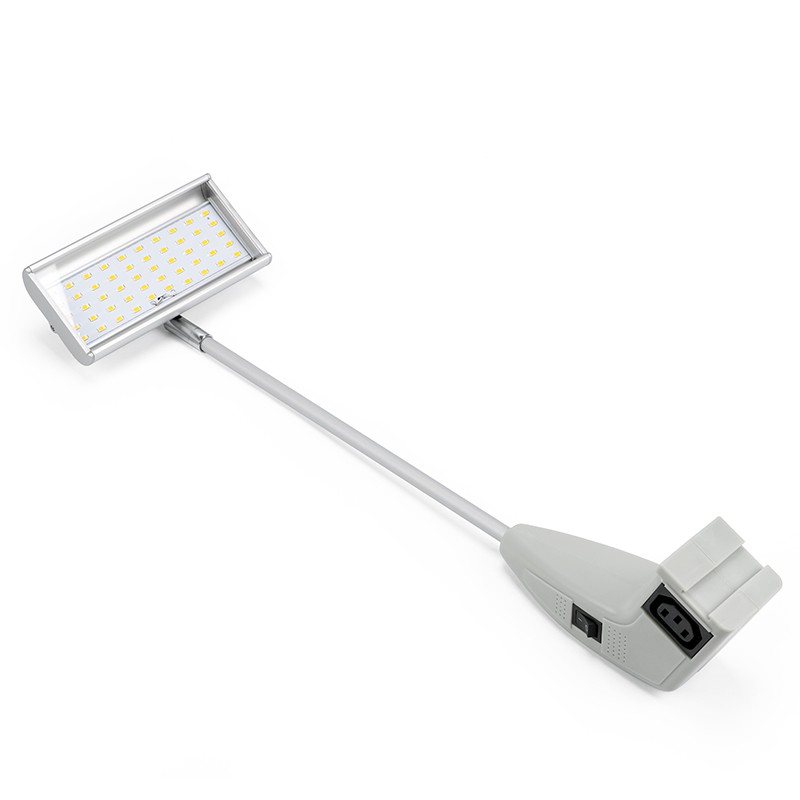

The product close-up shows a rotating joint and base on/off switch. Aim the 120° beam at the actual graphic and evaluate the coverage with a sample from the intended mounting position.
Warm, neutral and cool white appearance examples are provided. Include the required colour-temperature specification with the enquiry so the exact order configuration can be confirmed.
General or customised kit packaging

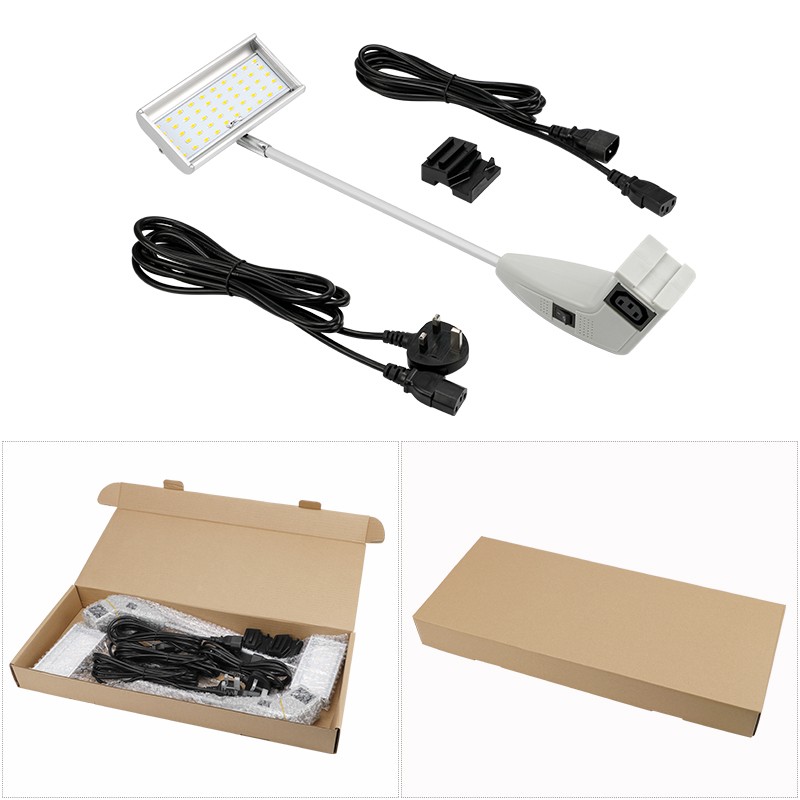

The packing examples show the lamp, leads and fitting in an individual carton, followed by outer carton packing. General and customised packaging are illustrated. Confirm the components per kit, carton quantity, label requirements and any private-label packing with the wholesale quotation.
Questions for linkable lighting-kit procurement
What should I provide for a linked lamp order?
Include SL-2054-03-N50L, quantity, lamp positions, fixing details, lead specifications and destination mains plug. Confirm the permitted connection layout for the complete kit before ordering.
Can the packaging be customised?
General and customised packing are illustrated, and private-label enquiries are supported. Share the artwork, carton and label requirements so the scope, pricing and schedule can be confirmed.
Does the base switch change the light colour?
It is pictured as an on/off switch. Specify the required white-light version with the order; colour-temperature details are confirmed for the quoted configuration.
Samples, wholesale pricing and custom supply
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available for fitting, beam and lead-layout checks. Standard lead time is 12–18 days, and OEM, ODM and private-label enquiries are supported. Sample cost, shipping, custom schedules and transit time are confirmed separately.
