R7S LED arm lighting for display frames

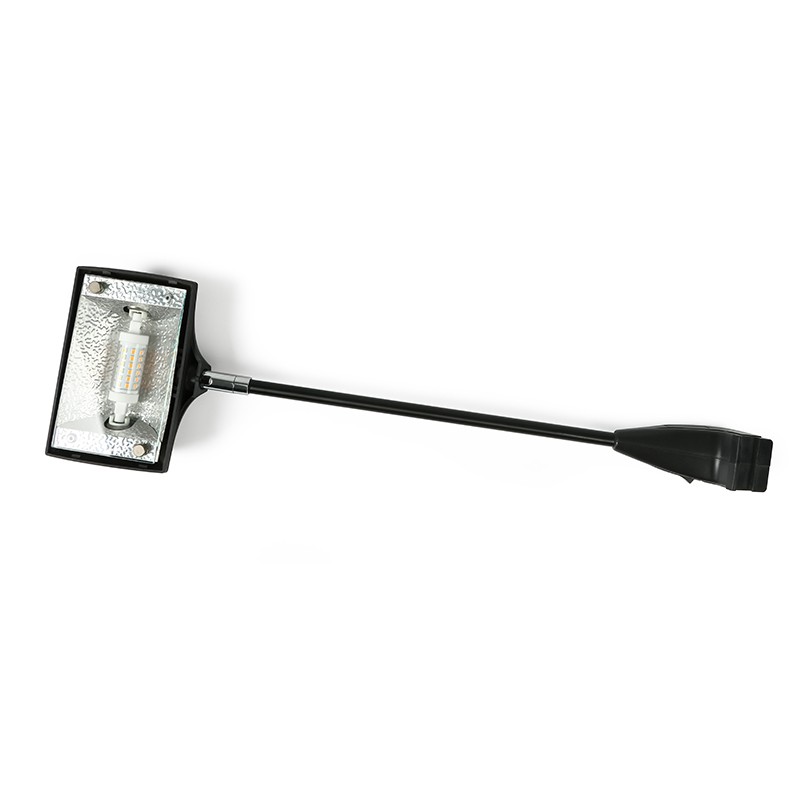

The SL-2001-R7S-LED-8W is an 8W R7S LED display arm light with 48 LEDs and specified 750 lm ±10% output. The technical sheet lists dimensions of 515.5 × 137.5 × 56.9 mm and AC 100–140V or AC 200–240V input configurations. Confirm the appropriate voltage version and destination plug when ordering.
For portable-display suppliers and exhibition-kit buyers, choose the frame fitting, white-light range and electrical version together. Forward and reverse sliders and 0505 or 0509 aluminium clamps are pictured. Send the frame profile, mounting position and lamp quantity so the fitting and complete kit can be checked before a wholesale order.

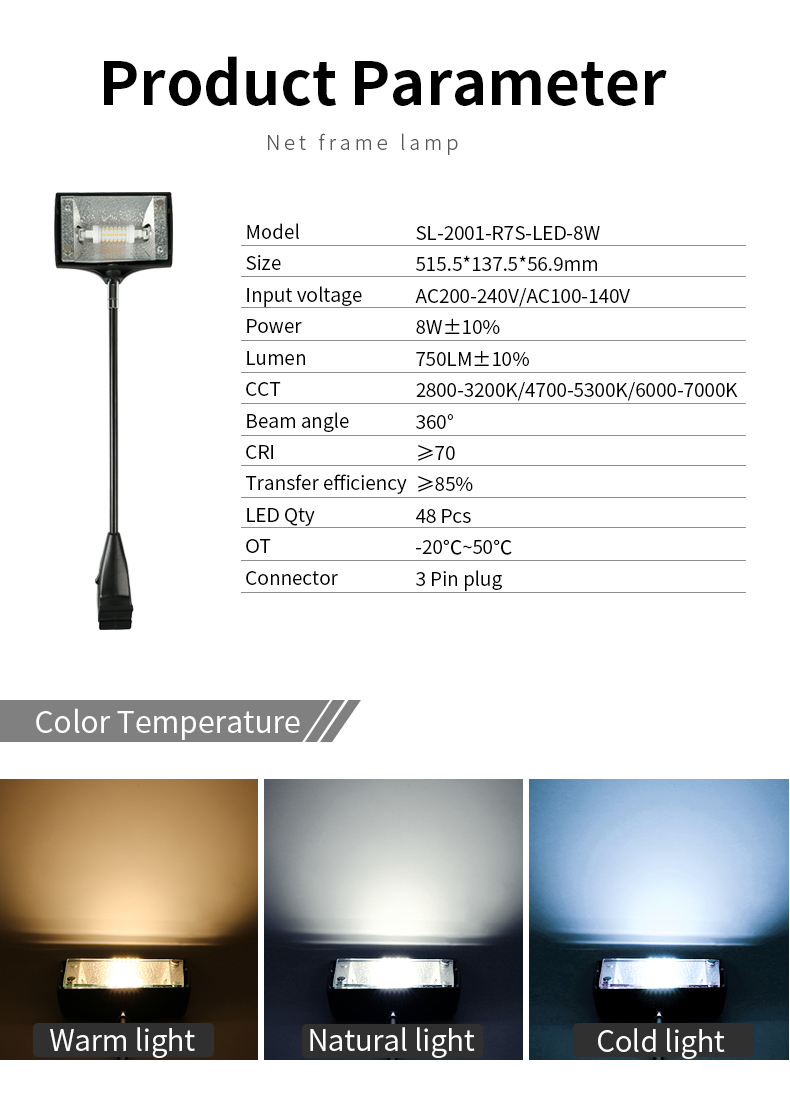

8W R7S LED frame-light specifications
| Specification | SL-2001-R7S-LED-8W |
|---|
| Model | SL-2001-R7S-LED-8W |
| Power | 8W ±10% |
| Light output | 750 lm ±10% |
| LED quantity | 48 pcs |
| Light source | R7S LED, as identified by the model and pictures |
| Input-voltage versions | AC 100–140V / AC 200–240V; confirm required version |
| Dimensions | 515.5 × 137.5 × 56.9 mm |
| White-light order ranges | 2800–3200K / 4700–5300K / 6000–7000K |
| Connector | Three-pin plug |
| Driver and control | Built-in supply and base on/off switch pictured |
| Colour rendering index | CRI ≥70 |
| LED-source angle listed | 360°; evaluate fixture coverage with a sample |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp |
| Operating-temperature range | -20°C to +50°C |
Choose the voltage and white-light version
The input ranges are listed as AC 100–140V and AC 200–240V configurations. Provide the destination mains voltage and plug requirement to confirm the correct order version.

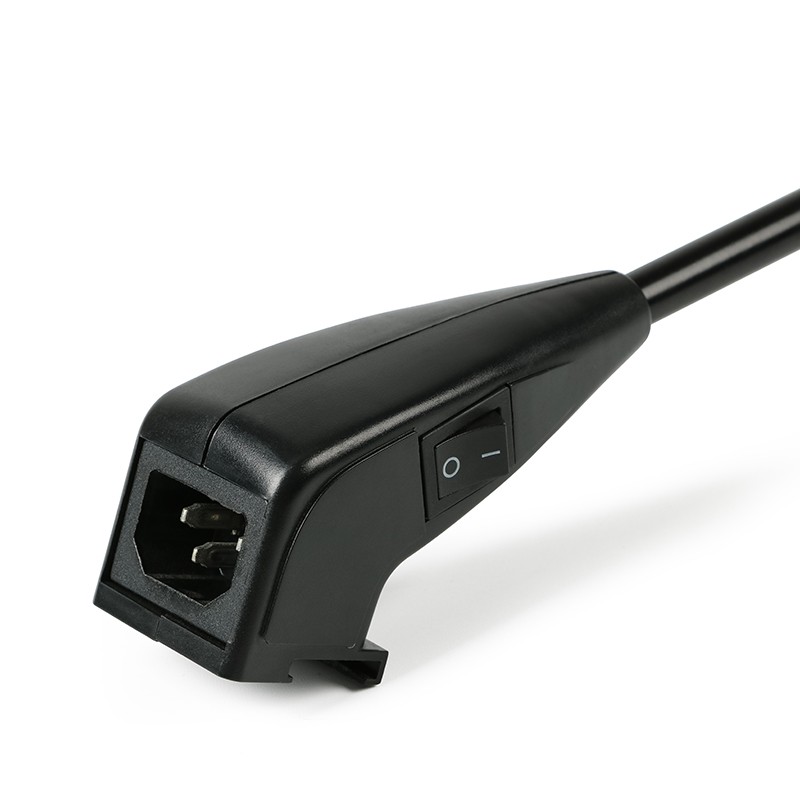

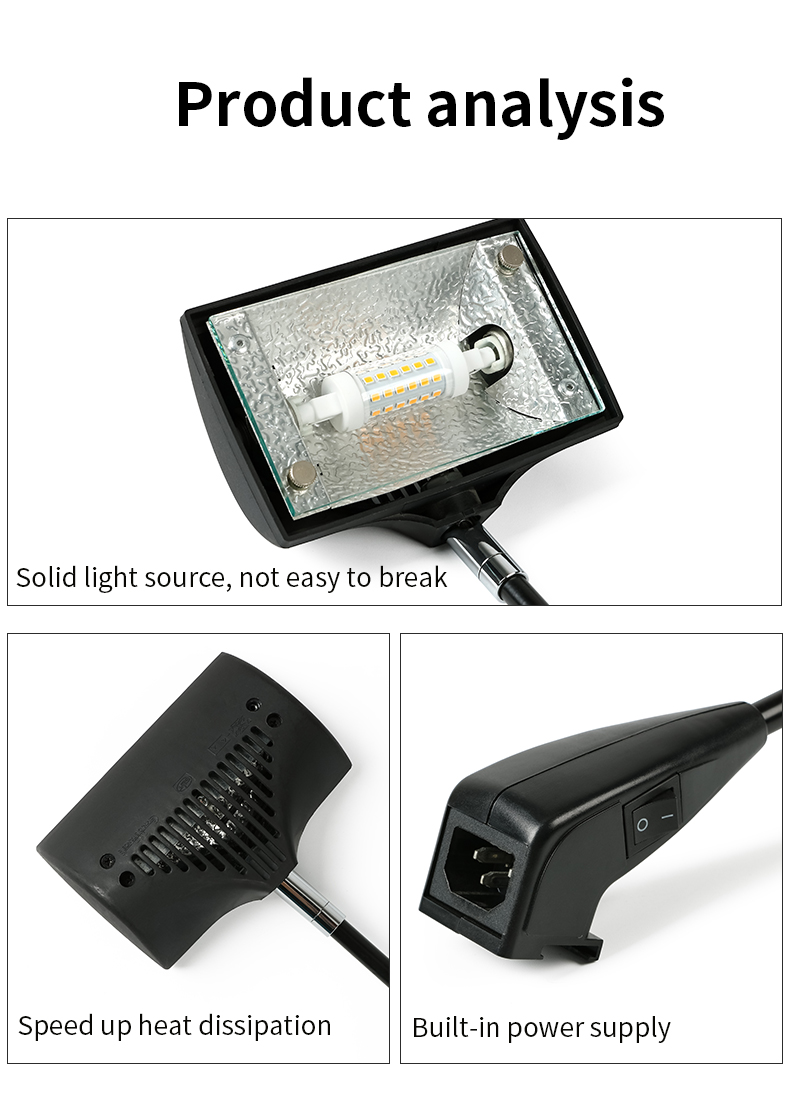

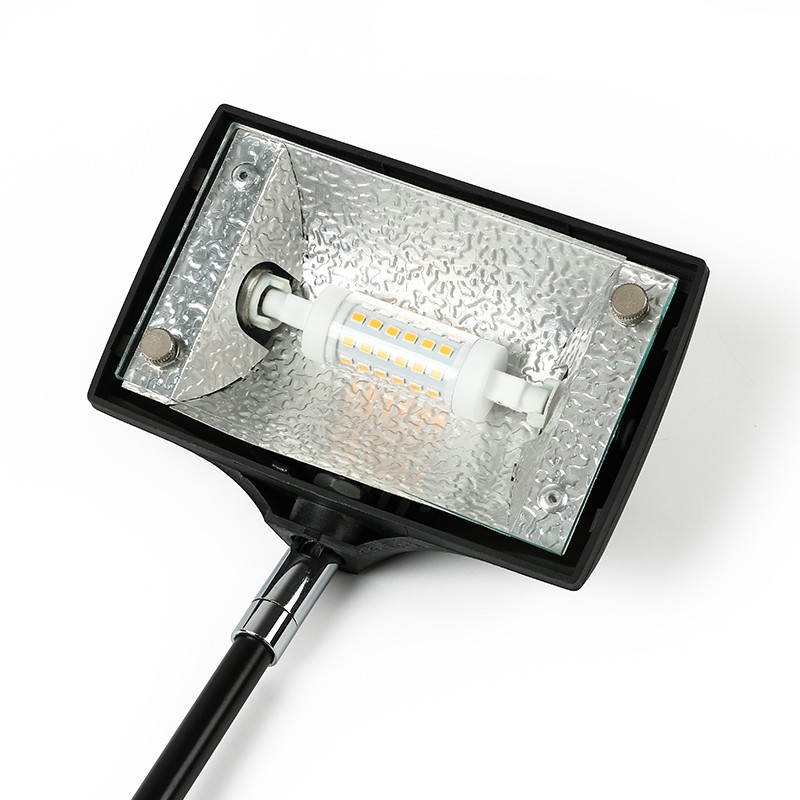

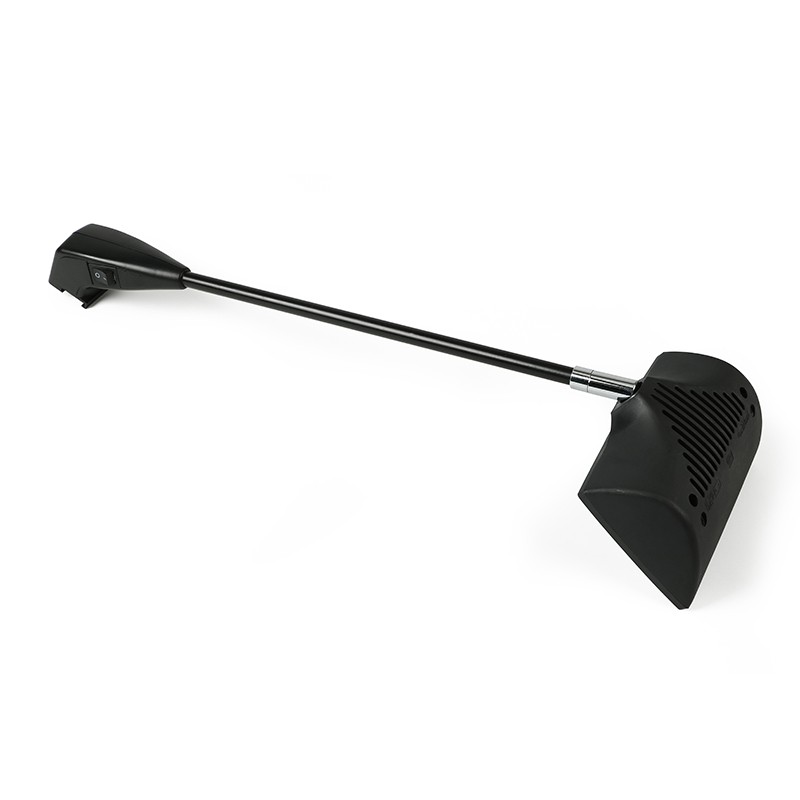

Choose the listed 2800–3200K, 4700–5300K or 6000–7000K white-light range for the display appearance. The reflector head contains the pictured R7S LED source, and the base has an on/off switch and built-in supply.
Match the fixing and check graphic coverage

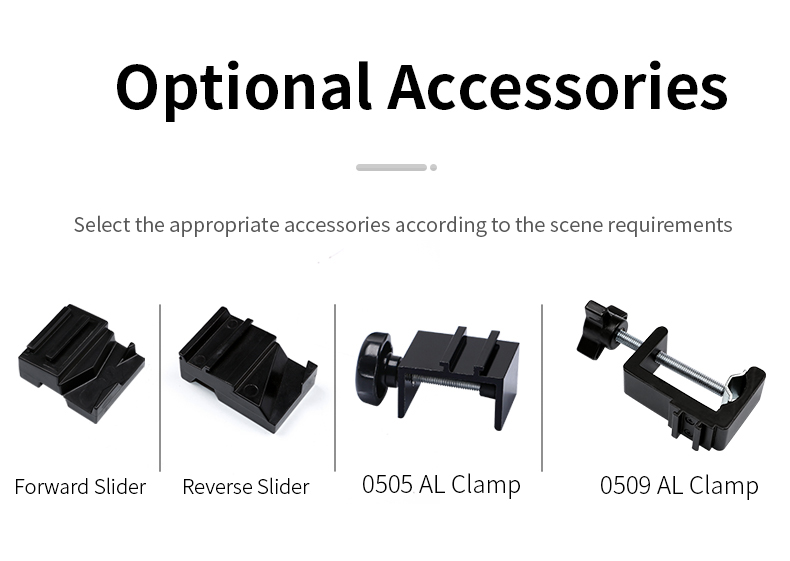

The fitting illustration shows forward and reverse sliders and 0505 or 0509 aluminium clamps. Share the frame section and mounting position so the mechanical fit can be checked.
Use a sample to evaluate the illuminated area from the intended mounting point. The technical sheet lists a 360° source angle; the reflector and installed head position affect the light reaching the display graphic.
Portable-display applications and carrying-case packing

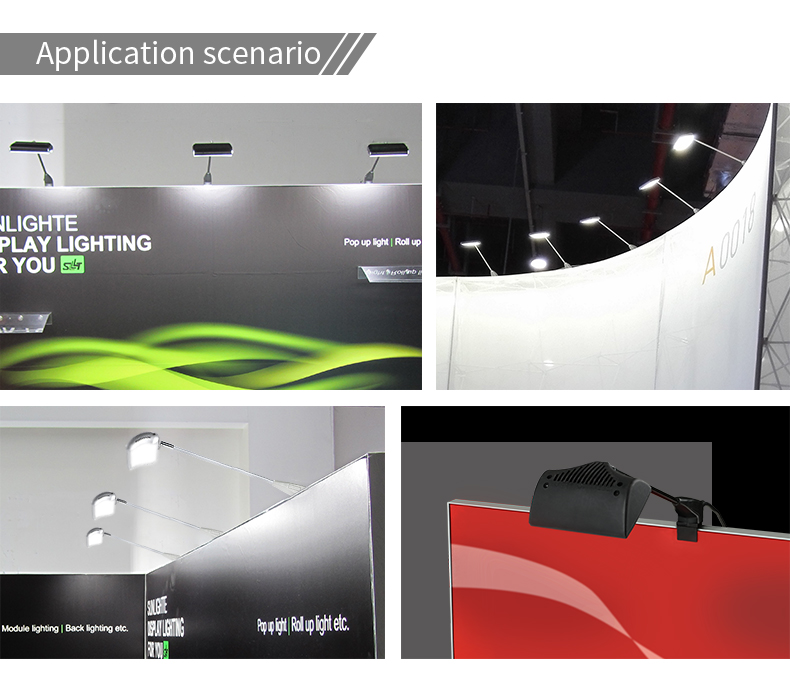

Application examples show arm lights above exhibition panels and portable display graphics. Include the display dimensions and required lamp positions when discussing the layout.
The packing example shows a lamp and mains lead, a soft carrying case and outer cartons. Confirm the number of lamps and components per kit, case requirements, carton quantities and any private-label packing with the quotation.
Questions for R7S LED display-light buyers
Which input-voltage version should I order?
Provide the destination mains voltage and plug type. The listed configurations are AC 100–140V and AC 200–240V, so the correct version must be confirmed for the order.
Which mounting fittings are pictured?
Forward and reverse sliders and 0505 or 0509 aluminium clamps are shown. Send the frame measurements and fixing position so the required fitting can be checked.
What should I include in a wholesale enquiry?
Send SL-2001-R7S-LED-8W, quantity, voltage version, white-light range, fitting, destination plug and packing requirements. Orders start from 20 pcs, with lower unit prices at larger quantities.
Samples and OEM packing enquiries
Samples are available for the fit, beam coverage and electrical-version checks. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit time are confirmed separately.
