Compact LED arm lighting for exhibition panels

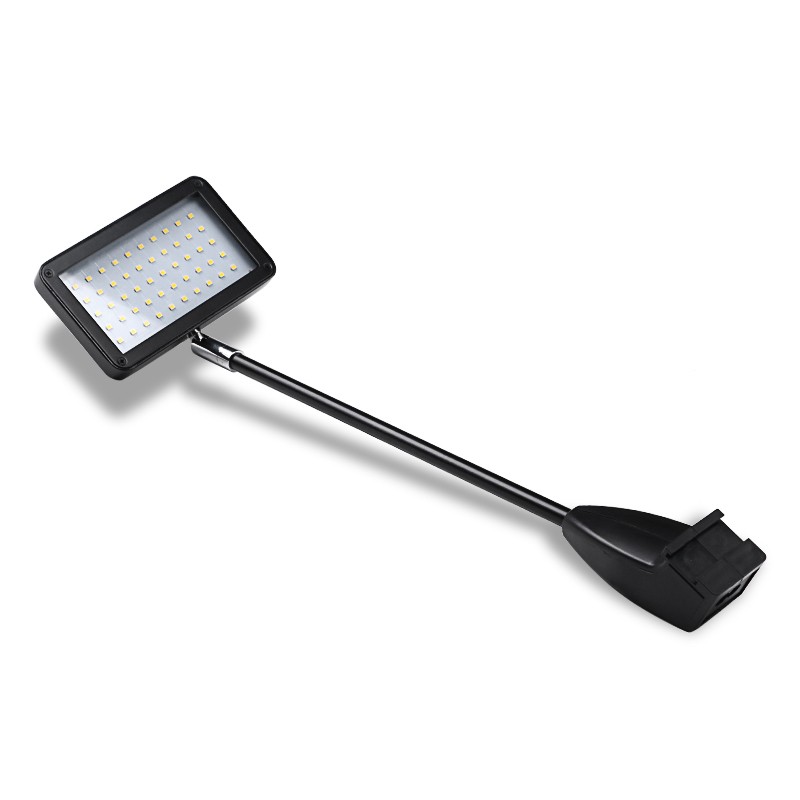

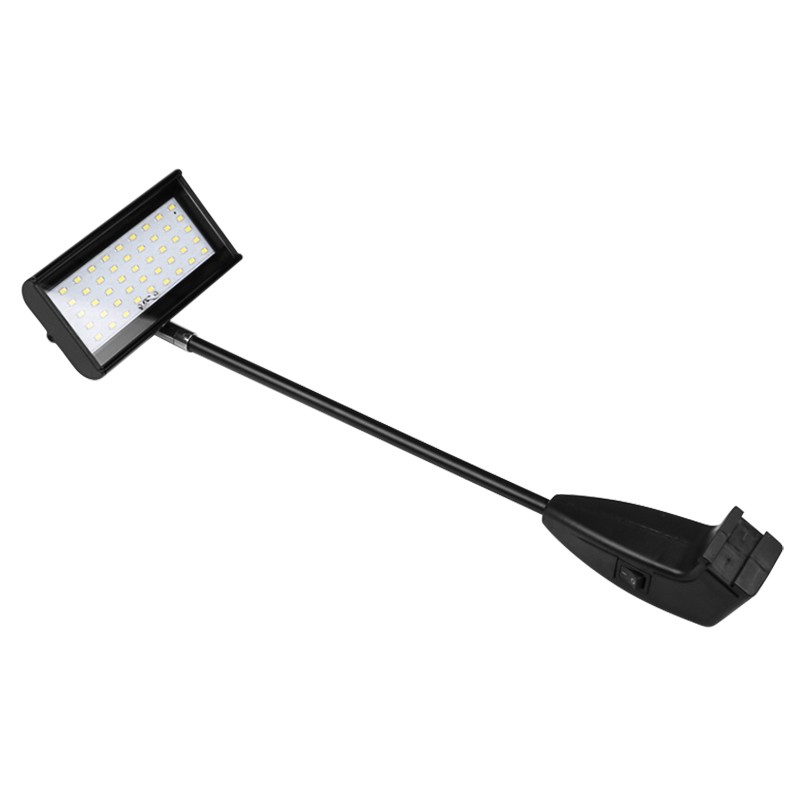

The SL-2082-N50L is an 11W LED exhibition panel light with a flat aluminium lamp head and 50 LEDs. Its listed output is 1000–1200 lm with a 120° beam. The head adjusts through the illustrated 90° up/down range to aim the light onto a display panel or trade show graphic.
For display suppliers and exhibition stand contractors, this model offers a compact head format with figure-eight connection options. Specify the mounting profile, CCT version and input-only or input/output base arrangement so each lamp supplied matches the booth installation.
A flat head with adjustable aiming

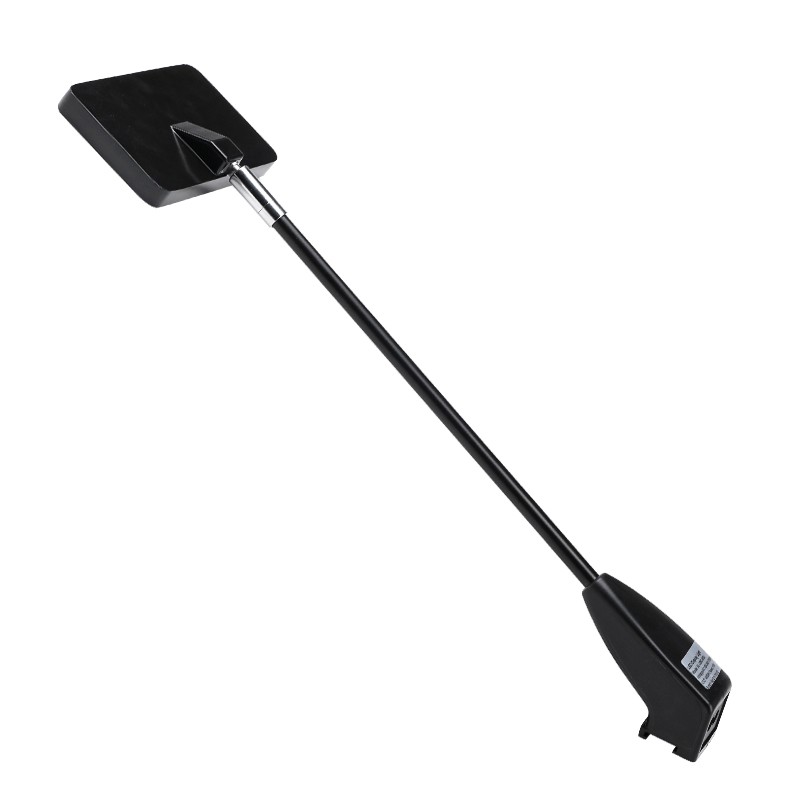

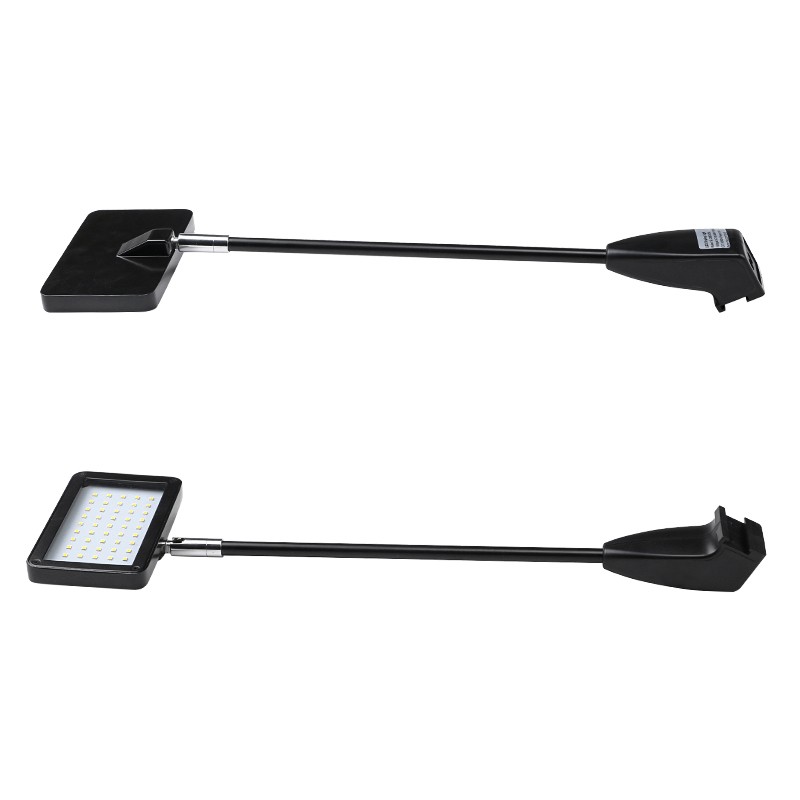

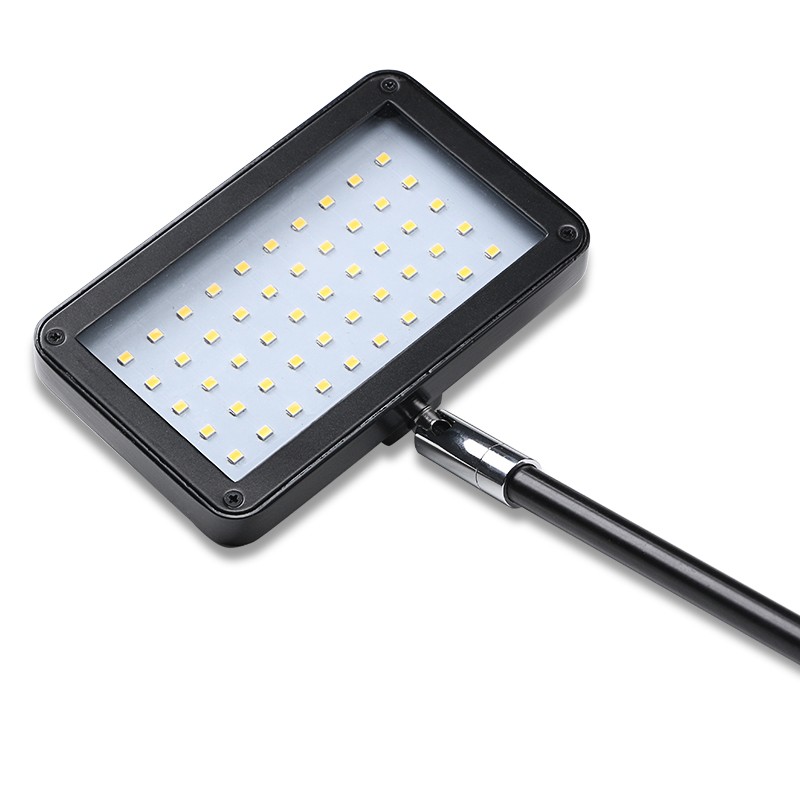

The aluminium head carries 50 LEDs in a compact panel format. Use the illustrated up/down adjustment to position the light toward the display face. The 90° adjustment range and the 120° beam angle describe different features: head movement and light spread, respectively.
Electrical, optical and dimensional data
| Specification | SL-2082-N50L |
|---|
| Model | SL-2082-N50L |
| Power | 11W |
| Luminous flux | 1000–1200 lm |
| LED quantity | 50 LEDs |
| Beam angle | 120° |
| Head adjustment illustrated | 90° up/down |
| Input voltage | AC 100–240V |
| Constant-current operating value | 300 mA |

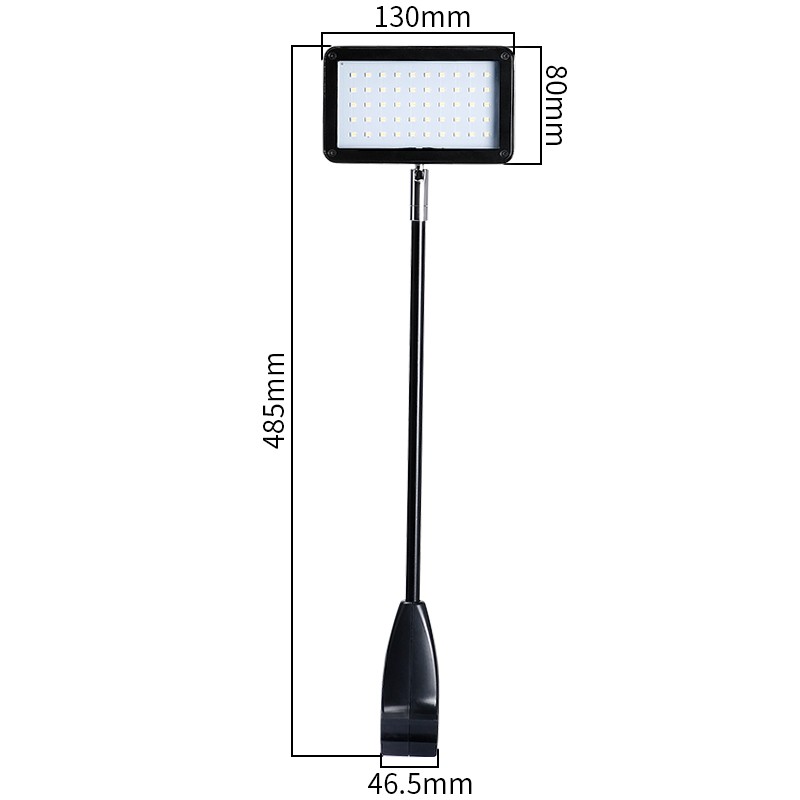

| Illustrated length | 485 mm |
| Lamp-head dimensions | 130 × 80 mm |
| Illustrated base height | 46.5 mm |
| Colour temperature options listed | 2700–3200K; 3700–4300K; 4700–5300K; 6000–7000K; 9000–16000K |
| Working temperature | −20°C to 50°C |
| Connection | Figure-eight plug; input-only and input/output base options illustrated |
| Mounting references | Forward/reverse sliders; 0505 AL clamp, 0525 AL clamp and 0520 mounting plate |
Figure-eight bases and exhibition frame fittings

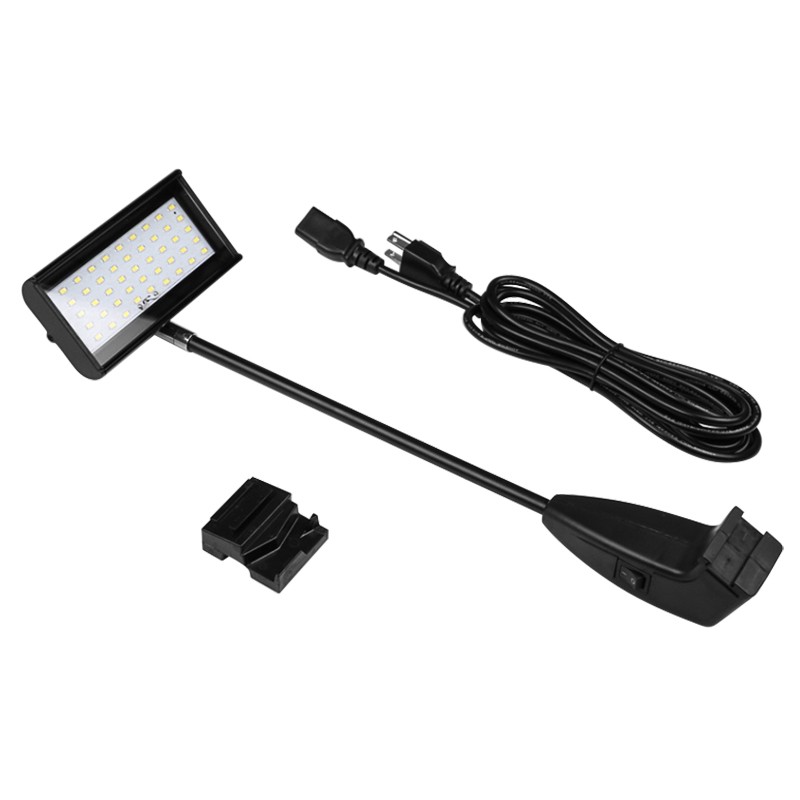

The accessory image shows two base configurations: a figure-eight input-only version and a version with figure-eight input and output. Select the required arrangement before ordering. For a linked installation, confirm connector compatibility, the permitted connected load and the number of lamps with the supplied configuration.

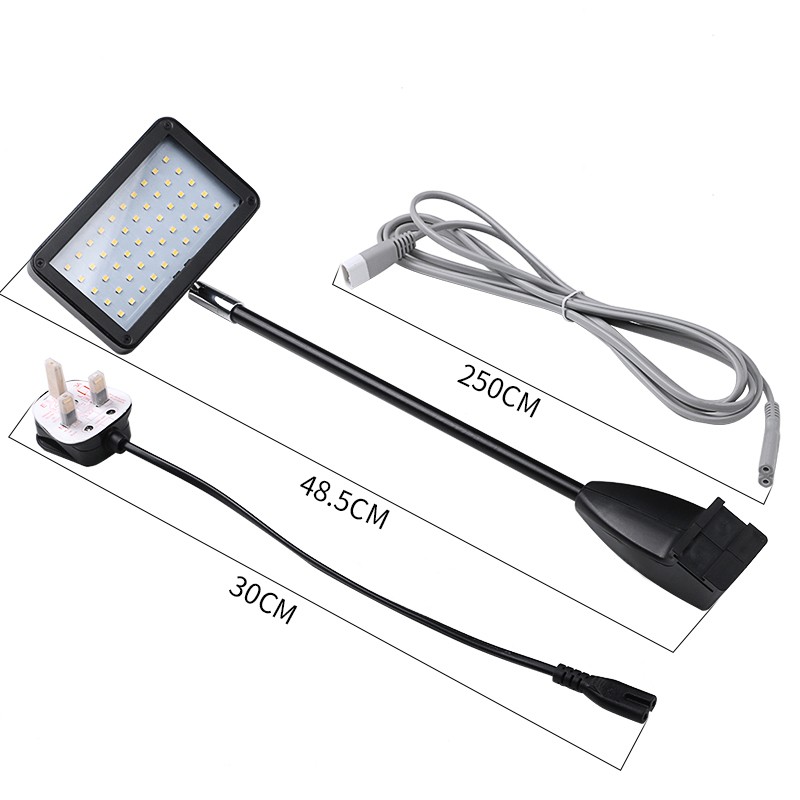

Mounting references include forward and reverse sliders, 0505 AL and 0525 AL clamps, and a 0520 mounting plate. Regional power-lead styles are also illustrated. Send the destination country and frame-profile dimensions to identify the appropriate lead and fitting in the quotation.
Front lighting for display panels

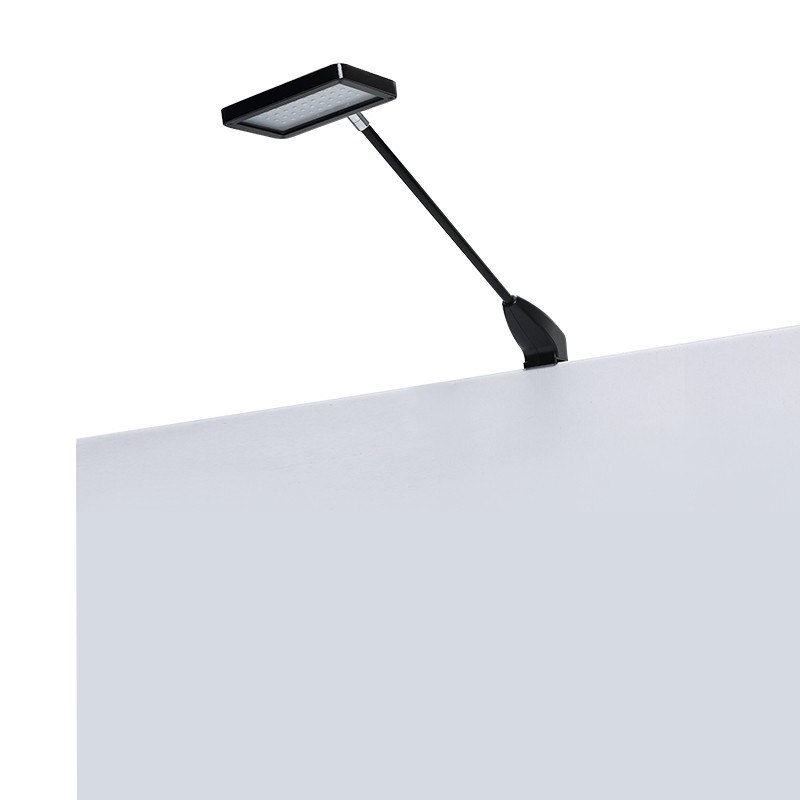

The application photograph shows the arm light above an exhibition panel. For trade show booth or exhibition stand projects, share the graphic dimensions, planned lamp positions and desired white-light colour. Assess a sample on the actual display material before setting the lamp spacing for a larger order.
11W display light ordering questions
Can I connect several lights using the output base?
An input/output base option is illustrated. Confirm that this is the version supplied, and request the allowed connection arrangement and lamp quantity for your order. The images do not specify a maximum linking count.
Is the light head adjustable by 90° or 120°?
The head-adjustment image states 90° up/down movement. The specification lists a separate 120° beam angle. Choose the mounting position and aiming angle according to the panel layout.
Which white-light colours can I order?
The specification lists five CCT ranges: 2700–3200K, 3700–4300K, 4700–5300K, 6000–7000K and 9000–16000K. Specify the required range and confirm the available version before ordering; these are order options rather than a documented switching function.
Are the clamp and regional mains lead included?
The pictures show multiple accessory choices. Ask for a quotation identifying the selected base, clamp or plate, lead style and all included components so the supplied set is clear.
Bulk orders and sample evaluation
Wholesale orders start from 20 pcs. Larger quantities qualify for lower unit prices, and samples are available for checking the light appearance and frame fit. Standard lead time is 12–18 days; transit time and any customised schedule are confirmed separately.
OEM, ODM and private-label enquiries are supported. Include model SL-2082-N50L, quantity, CCT range, base configuration, fitting dimensions, regional lead requirement and destination market to obtain a matching quotation.
