White-light selection for 12W lightbox modules
Choose a lens-equipped 12W LED module for illuminated advertising graphics and display assemblies. The specified light output is 1000 lm ±10%, with warm, neutral and cold-white order versions. This listing uses SL-BL011-120 as its catalogue ordering reference.
For display manufacturers and sign suppliers, select the white-light appearance against the intended graphic and diffuser. Send the usable enclosure dimensions, face material, power-unit details and required quantity so the module configuration, electrical supply and installation scope can be confirmed in one quotation.

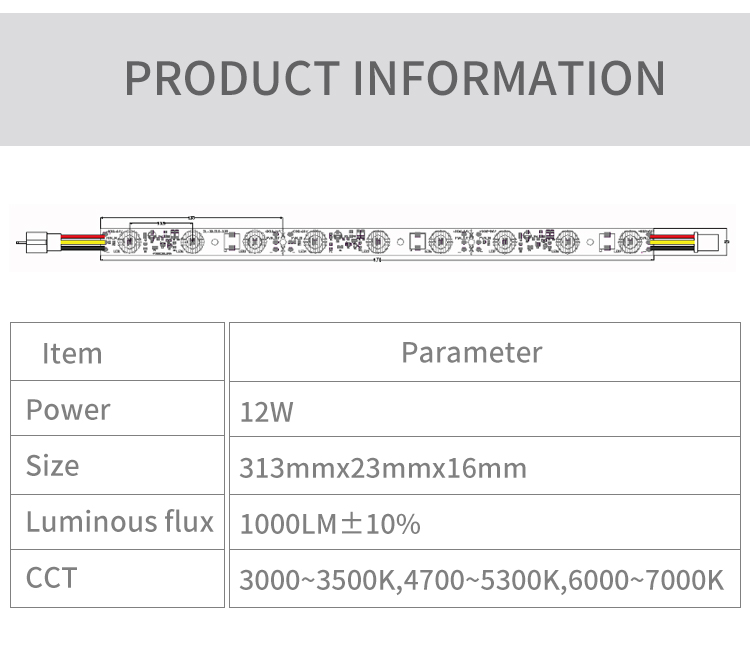

12W light output and white-light order versions
| Specification | SL-BL011-120 |
|---|
| Catalogue ordering reference | SL-BL011-120 |
| Power | 12W |
| Specified luminous flux | 1000 lm ±10% |
| Warm-white order version | 3000–3500K |
| Neutral-white order version | 4700–5300K |
| Cold-white order version | 6000–7000K |
| Cross-section listed | 23mm width × 16mm height |

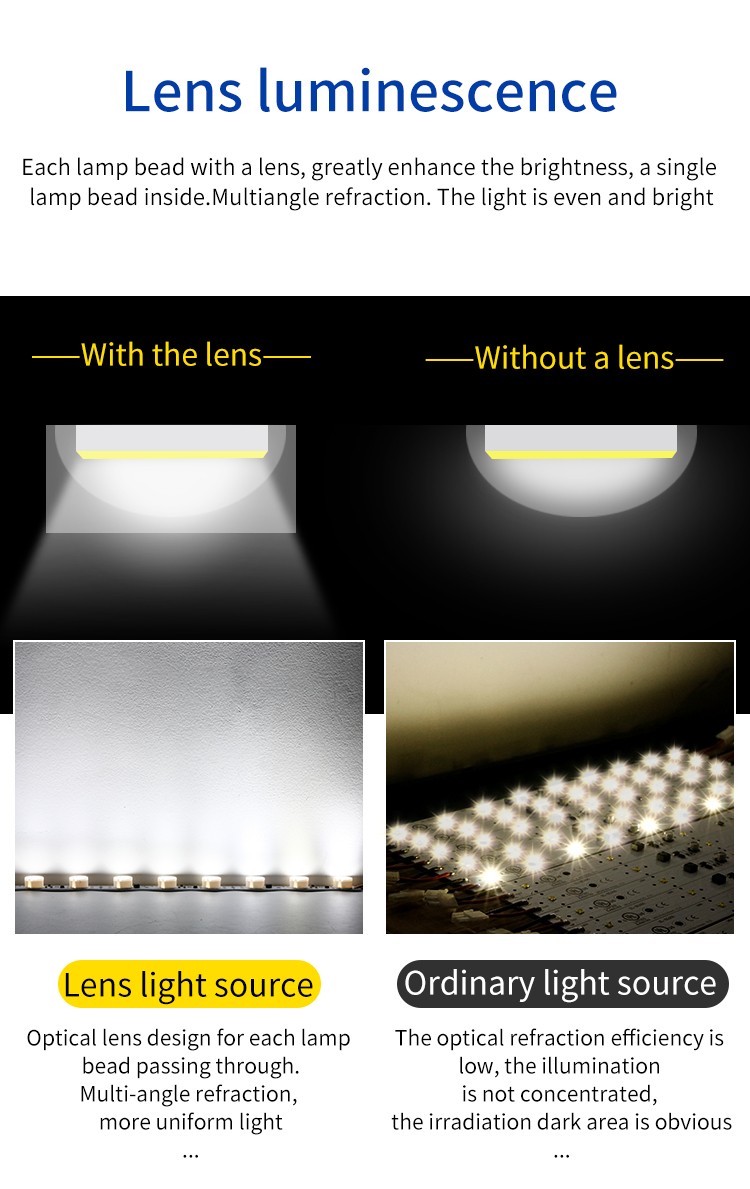

| Optical construction | Individual LED lenses, as pictured |
| Connection detail illustrated | Board-end leads and plug connectors |
| Warranty shown in product graphic | 2 years; coverage and terms confirmed with the quotation |
Match the white-light version to the display

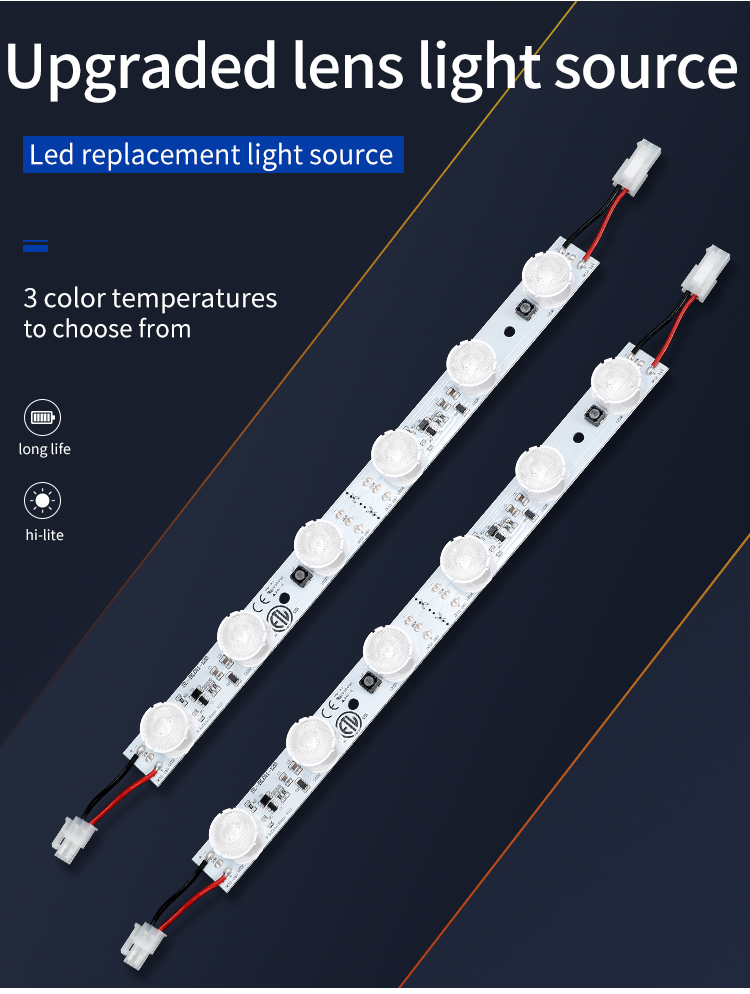

The warm-white, neutral-white and cold-white ranges are separate order choices. Assess the selected version behind the actual graphic or diffuser so colours and brightness can be reviewed in the finished display.

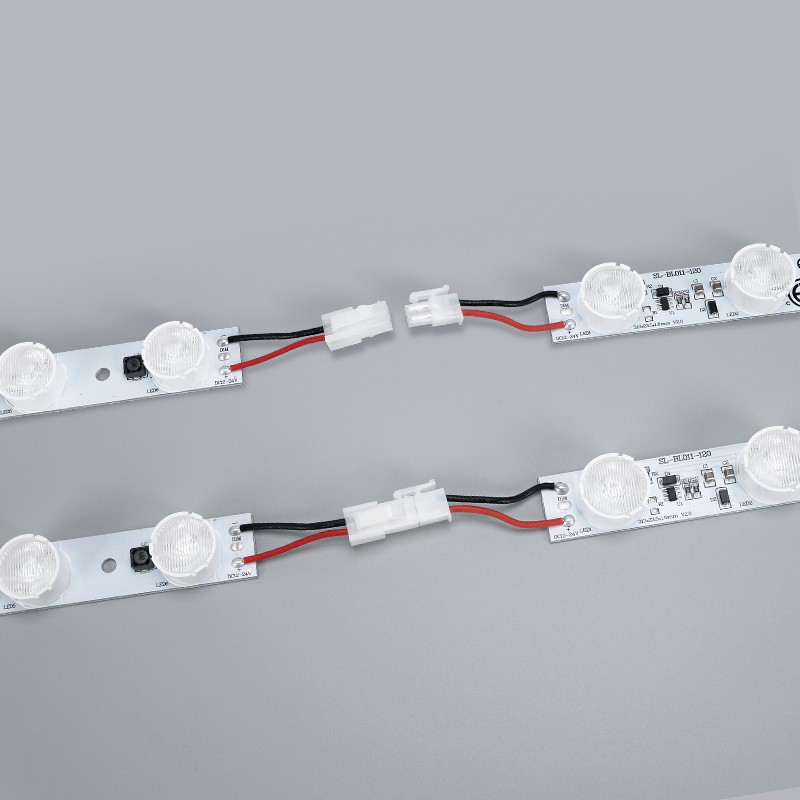

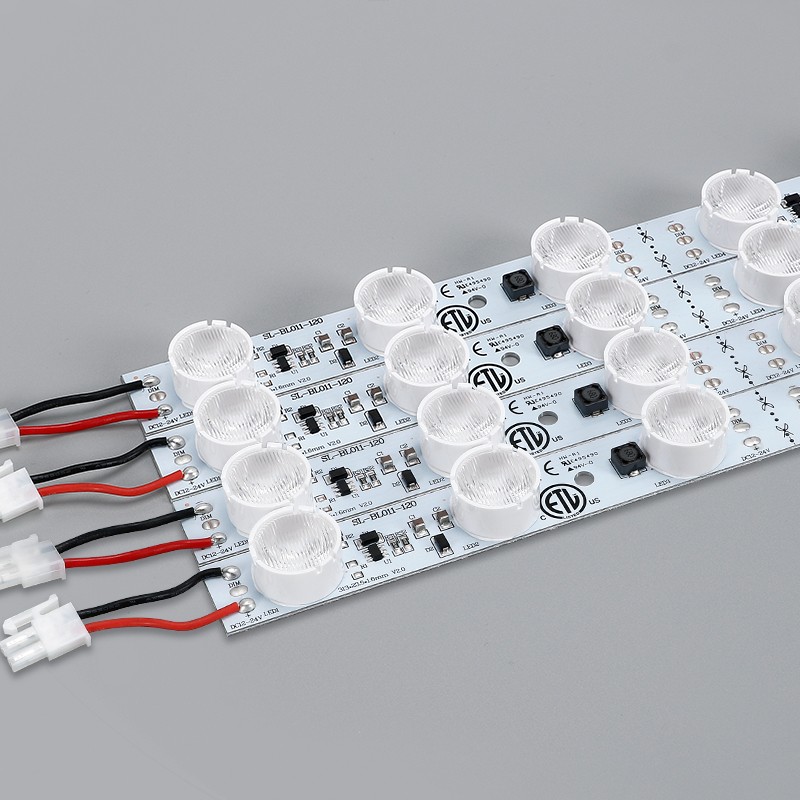

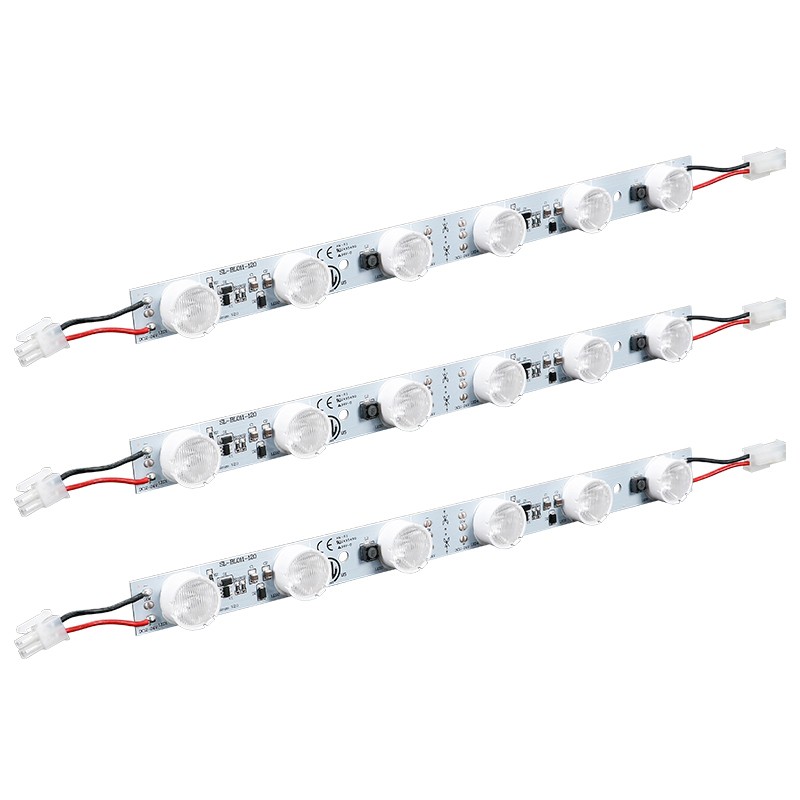

The product photographs show individual lenses along the bar and plug-ended leads. Confirm the required bar dimensions, supply configuration and connecting components with the project quotation.

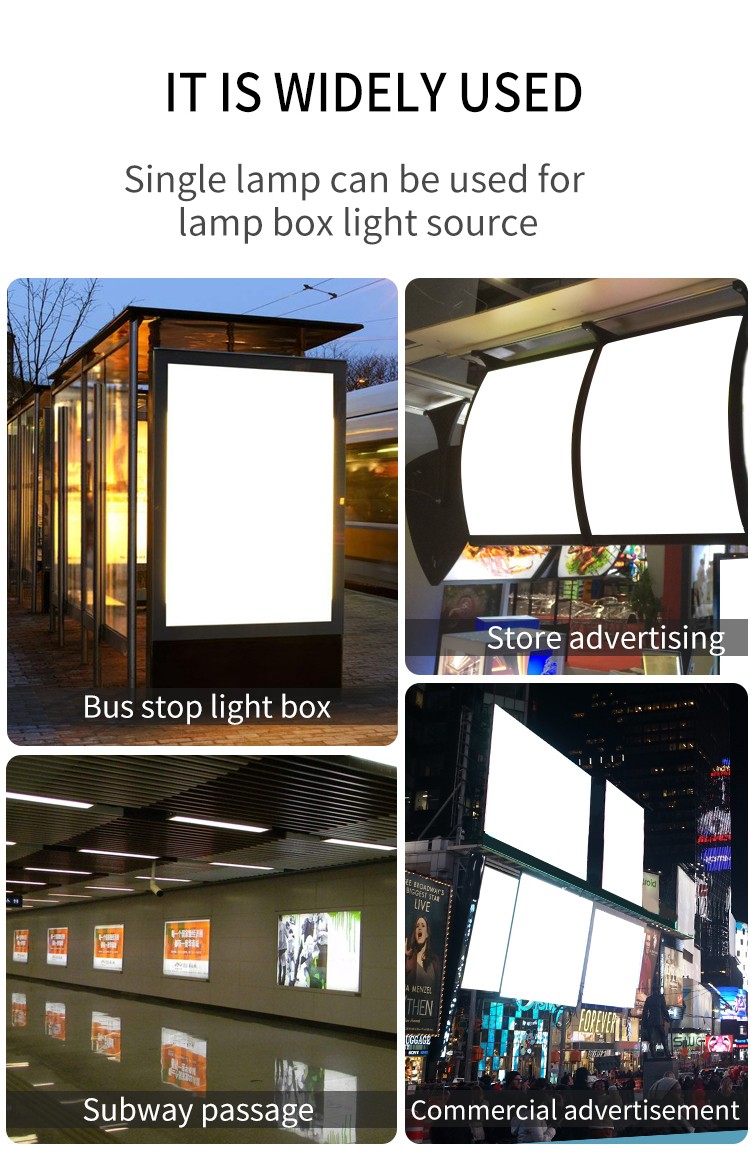

Lightbox production and replacement-source planning

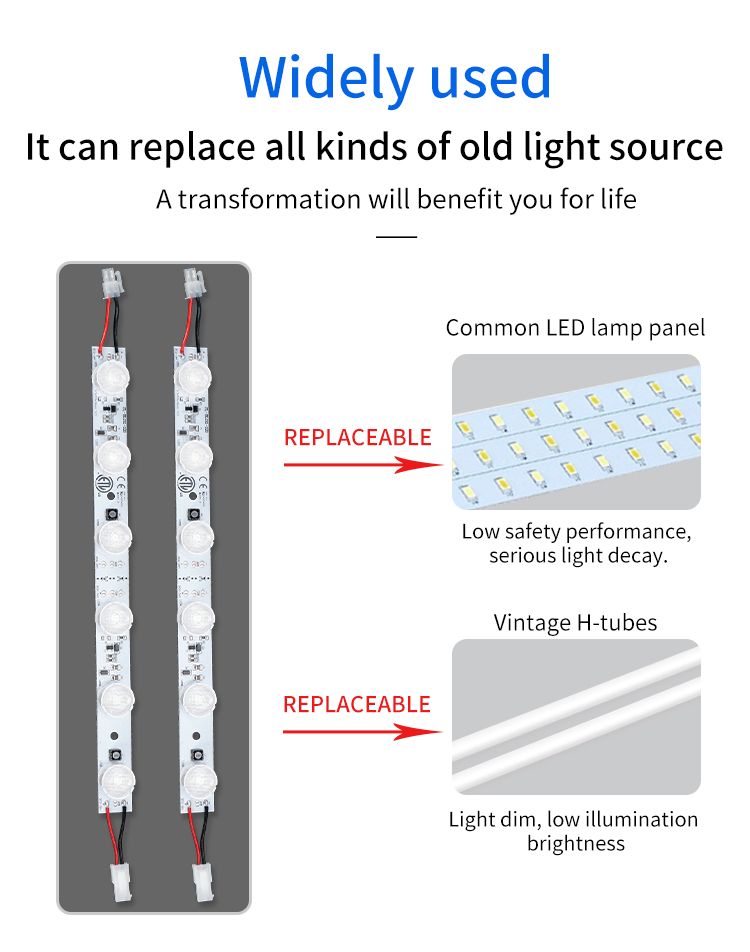

The application examples include advertising lightboxes and retail signage. For a new assembly, provide the enclosure drawing, fixing positions and proposed module layout. For a replacement project, include the existing source dimensions, supply label and wiring photographs to define the matching configuration.
External controls and project supply scope

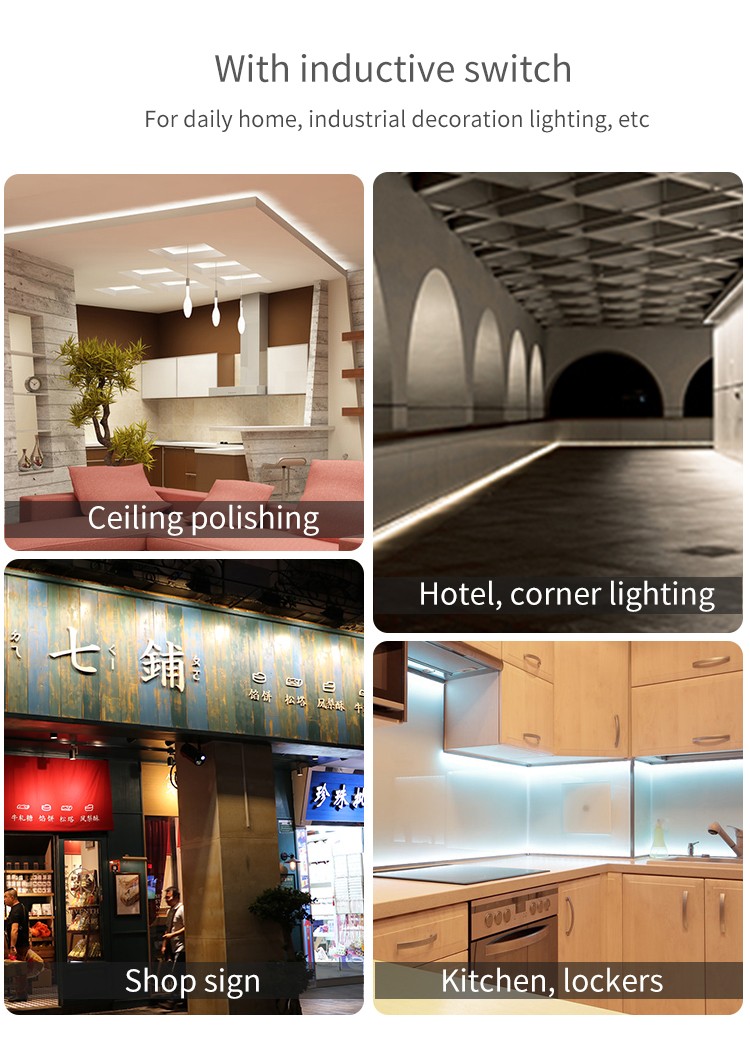

The interior-lighting examples show applications with an external induction switch. State the intended application and preferred control method so the switch, power unit, leads and installation components can be itemised with the modules.
The product graphic states a two-year warranty. Request the applicable coverage and terms alongside technical documents for the quoted configuration.
White lightbox-module purchasing questions
Which white-light version should I specify?
Choose 3000–3500K warm white, 4700–5300K neutral white or 6000–7000K cold white for the order. Include the graphic and diffuser requirements when requesting a sample.
Can the colour temperature be changed on the module?
The listed ranges identify white-light supply versions. Select the required version when ordering and confirm any control requirement separately with the electrical configuration.
What details are needed to match an existing lightbox?
Send SL-BL011-120, the usable enclosure dimensions, current source measurements, mounting positions and power-unit output. Add wiring photographs and the required quantity so the replacement configuration can be checked.
Are samples available for comparing display appearance?
Samples are available. Specify the white-light version, project details and destination; sample quantity, cost and shipping are confirmed separately.
What are the wholesale and custom-order terms?
Orders start at 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; custom scope and transit time are confirmed for the order.
