16W Linear Exhibition Arm Light - 96 LEDs, B-Shape Plug

Linear arm lighting for exhibition graphic panels

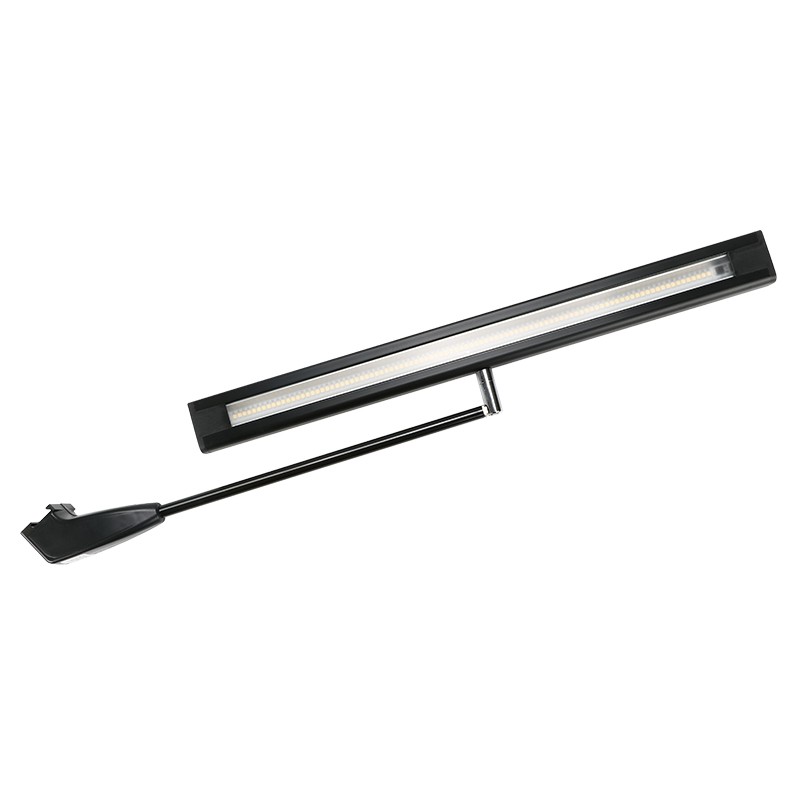

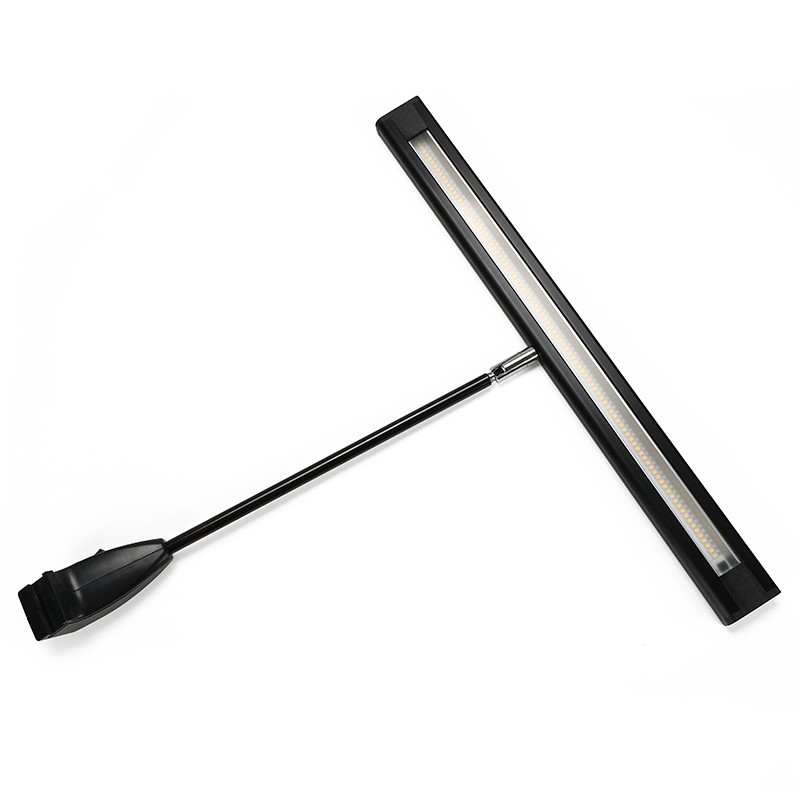

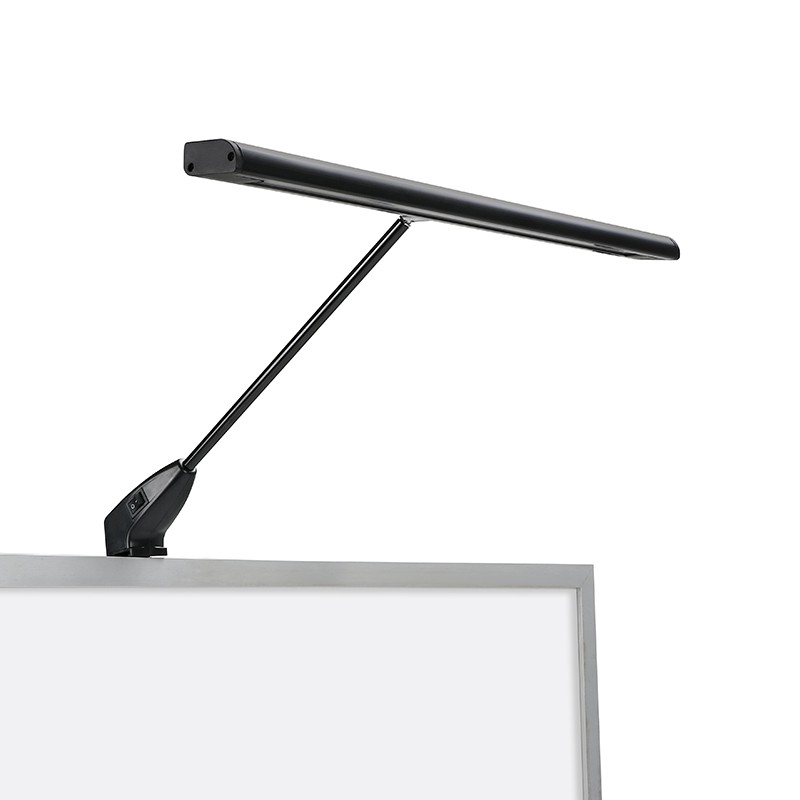

The SL-2101-96L is a 16W linear exhibition light with a 96-LED head, 1300 lm output and a 60° beam. The black housing and adjustable head are illustrated above graphic panels and exhibition displays. The specification lists AC 100–240V input and a B-shape plug, while the base detail shows a local on/off switch.

For exhibition stand contractors and display-light distributors, the useful ordering choices are the white-light colour, frame fitting and power-lead configuration. This is an AC-input model with a B-shape connection; identify the required connector when comparing it with other 16W linear arm lights.

Adjustable linear head and base switch

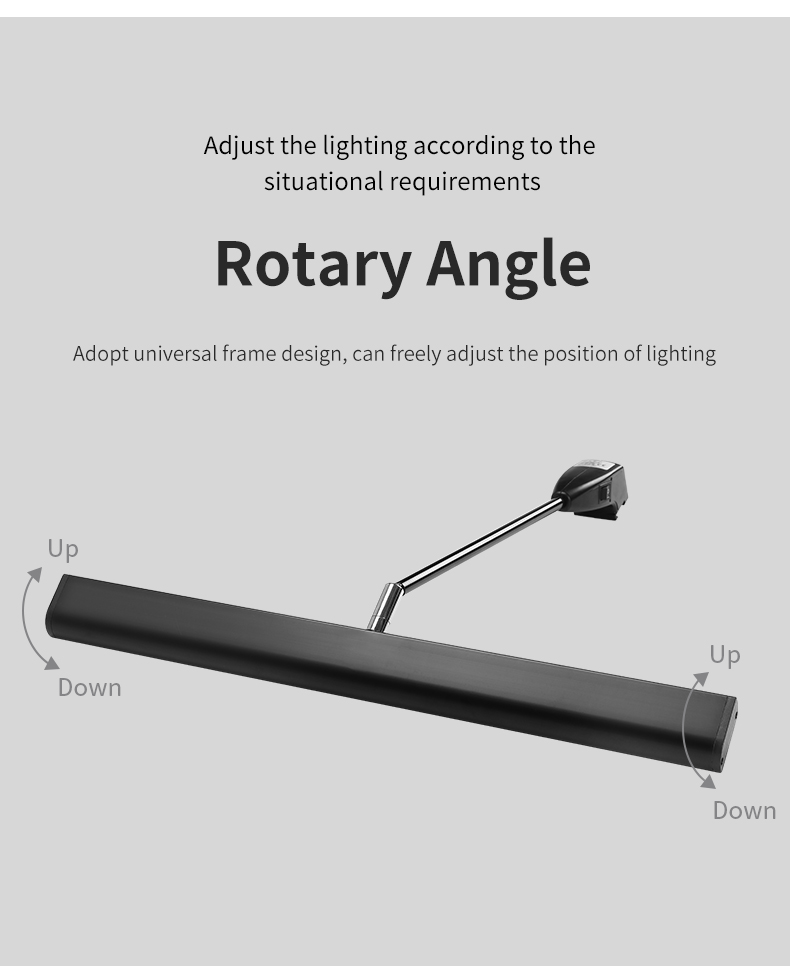

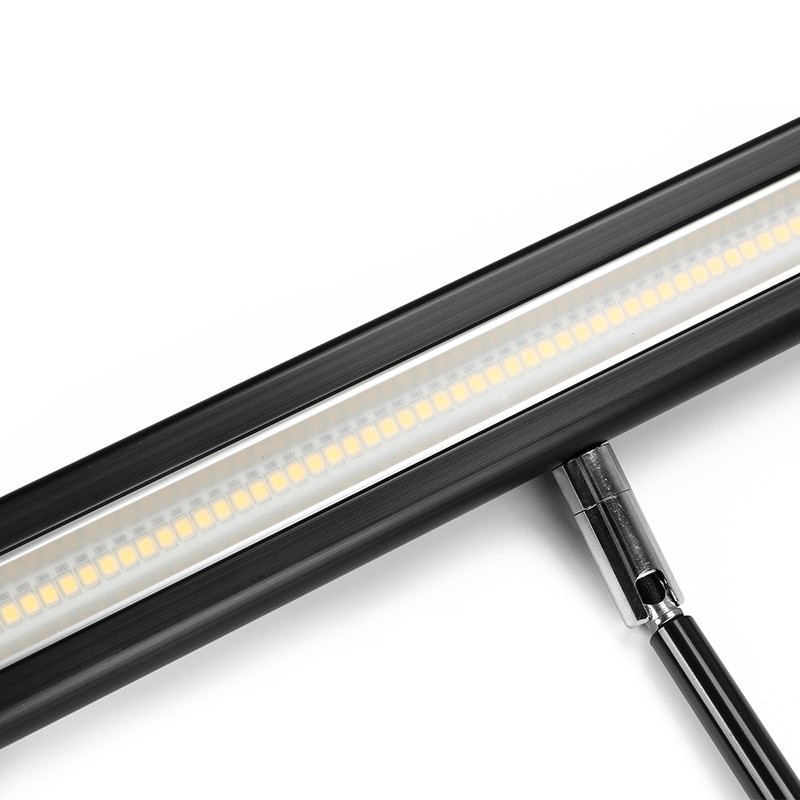

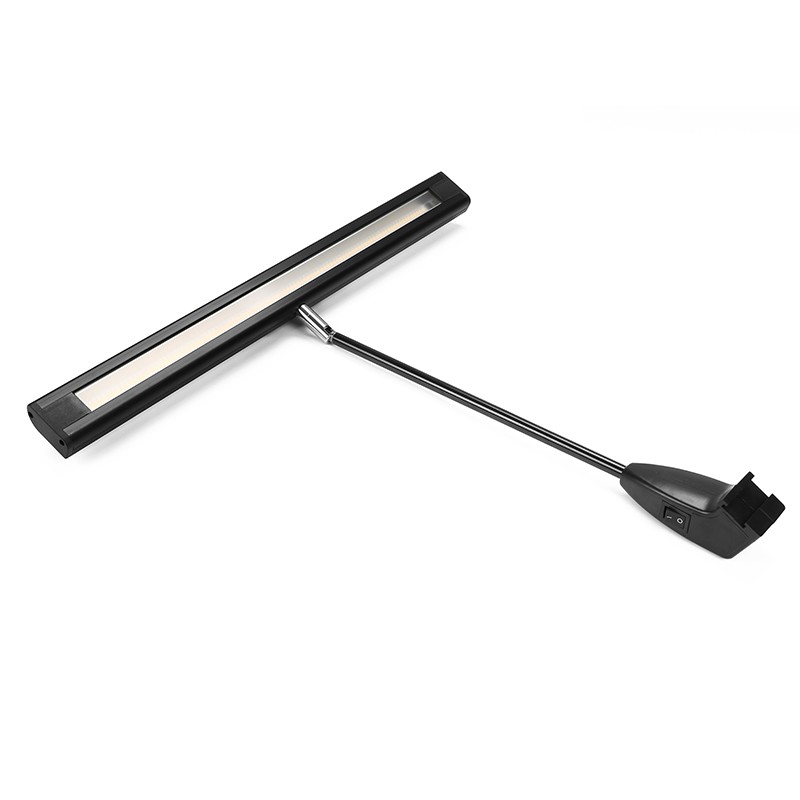

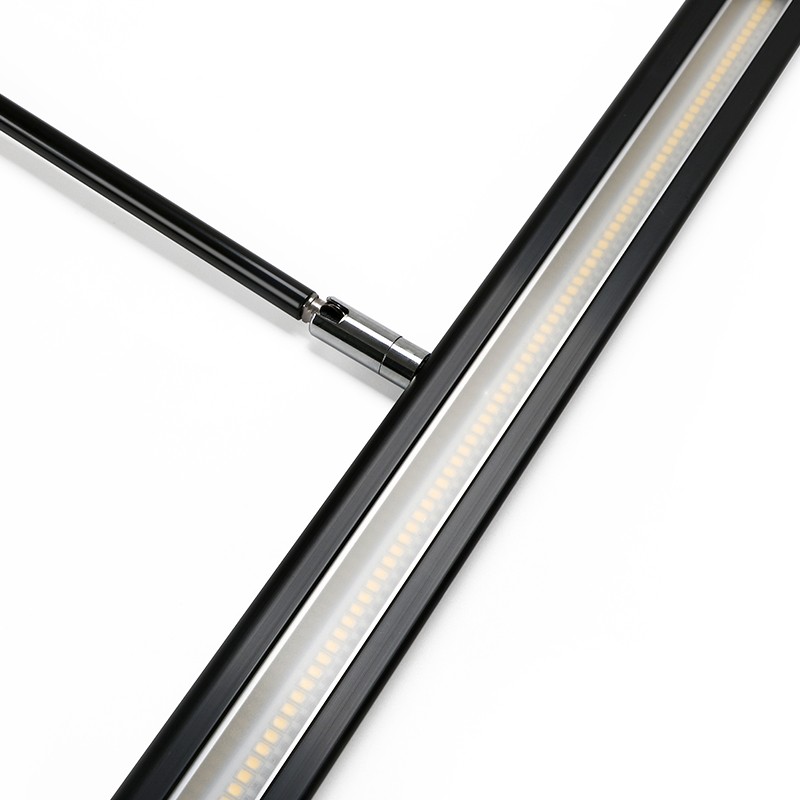

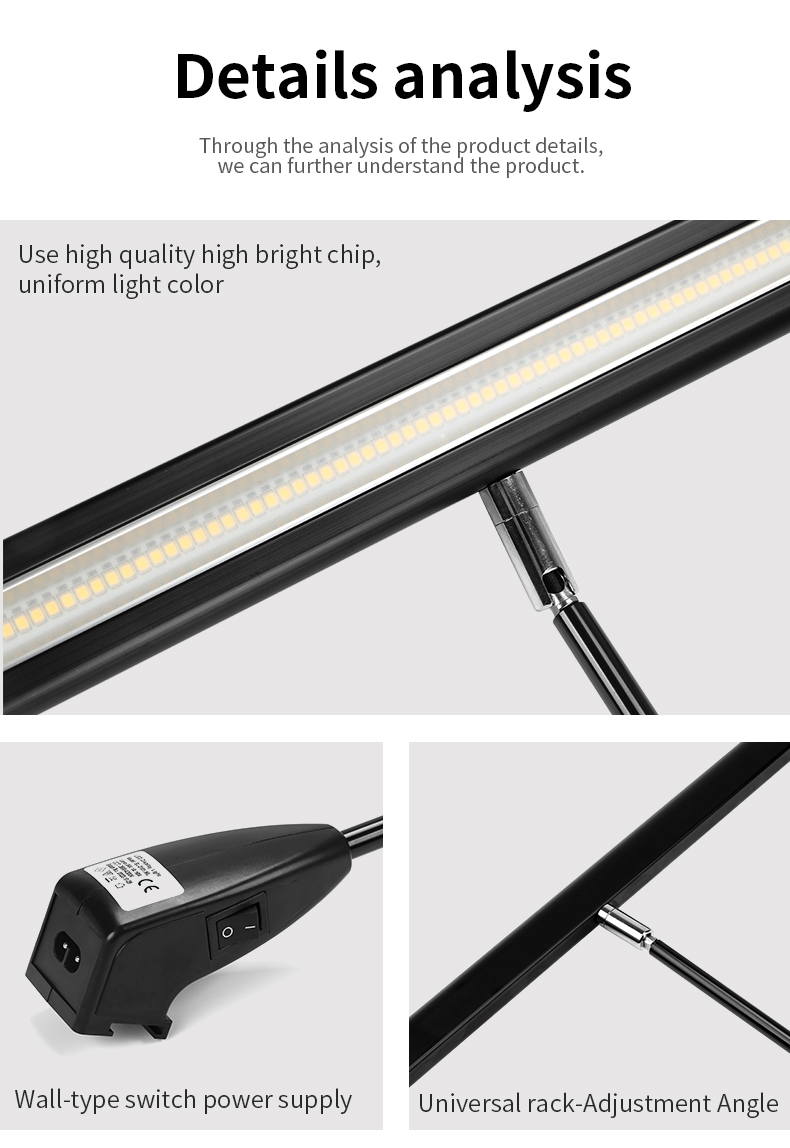

Position the long lamp head above the display and aim it toward the graphic surface using the illustrated adjustment bracket. The close-up image shows the LED array and a switch on the base. The listed 60° value is the beam angle; the images do not specify an exact mechanical rotation range.

Select 3000K, 4000K or 6500K when ordering. The pictures identify optional white-light versions rather than a colour-temperature selector on the lamp.

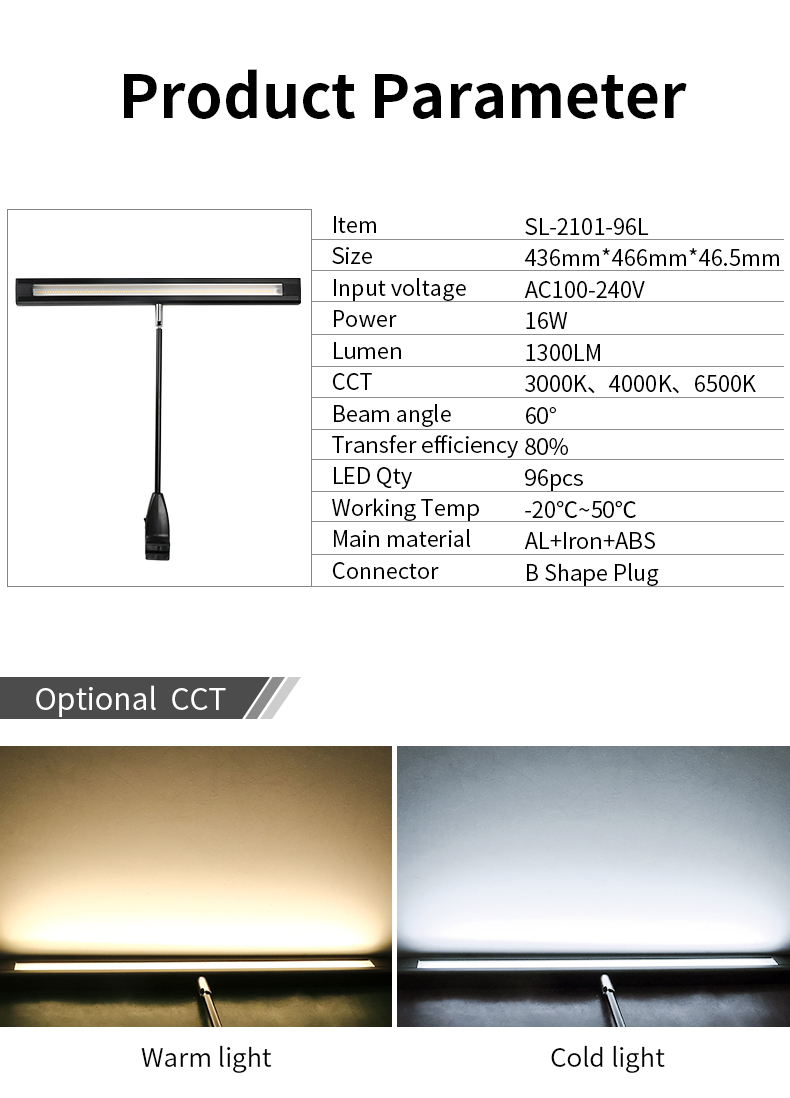

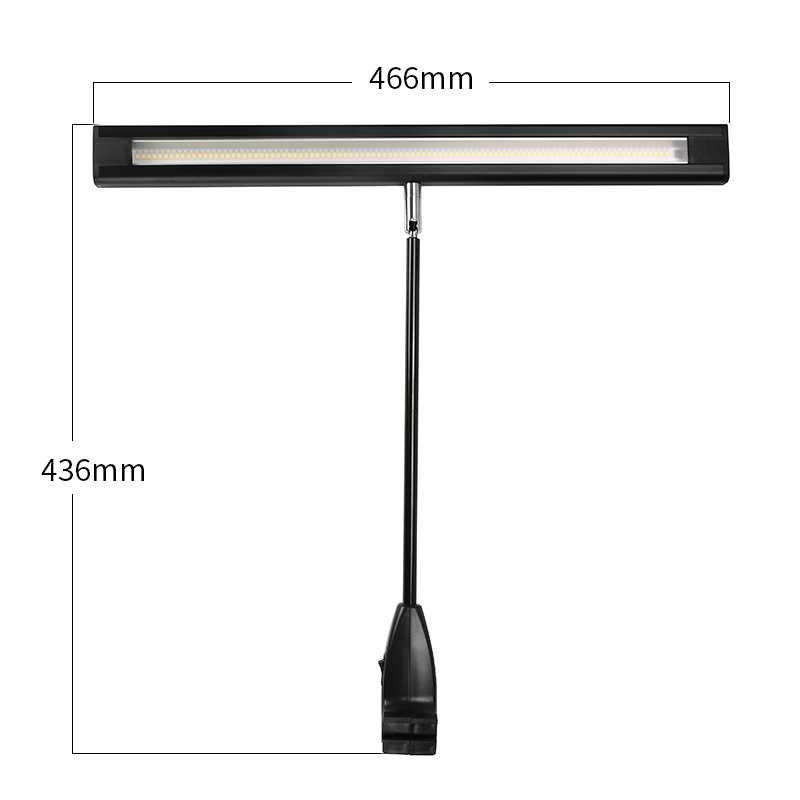

Technical data for the 96-LED model

Exhibition panels and stand graphics

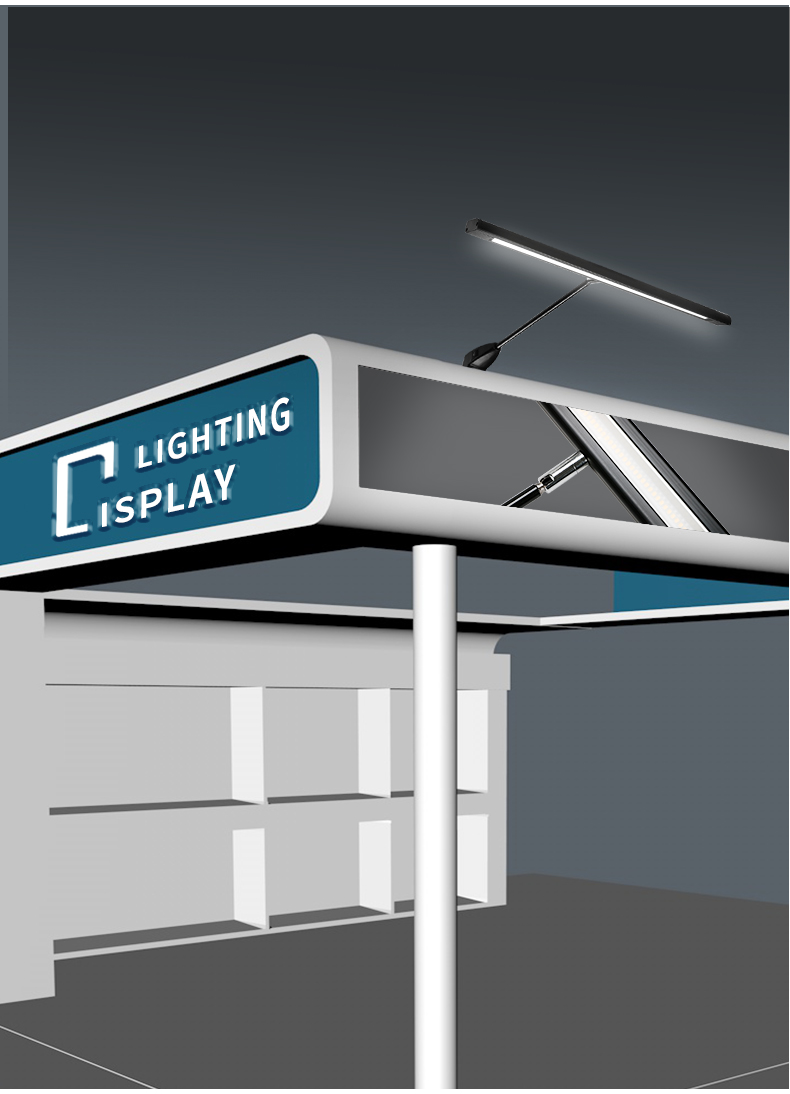

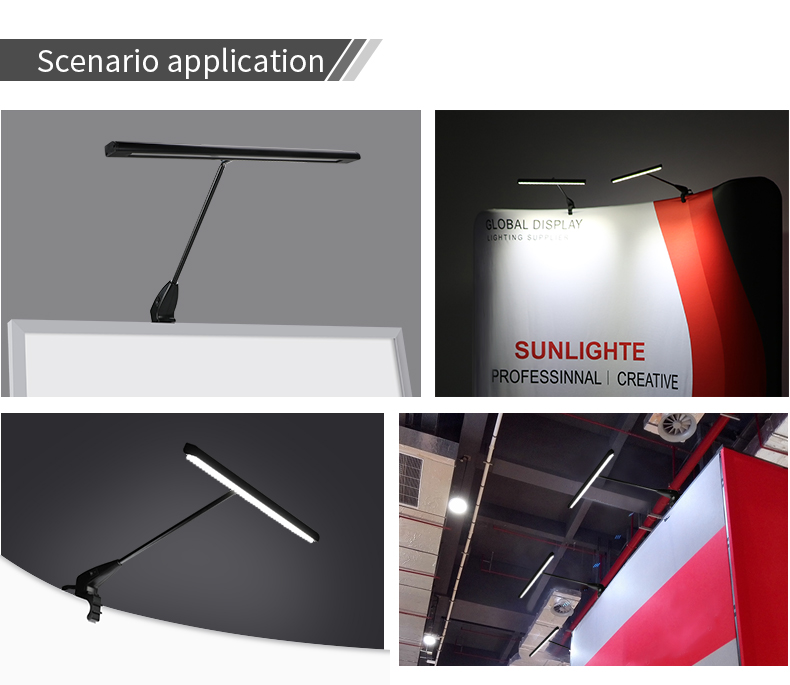

The application images show front lighting above exhibition graphic panels, display-wall structures and stand fascias. For trade show booth lighting, provide the panel dimensions, intended lamp position and preferred CCT. Evaluate a sample on the actual graphic material before setting the quantity and spacing for a larger display.

Mounting profiles, power leads and packing

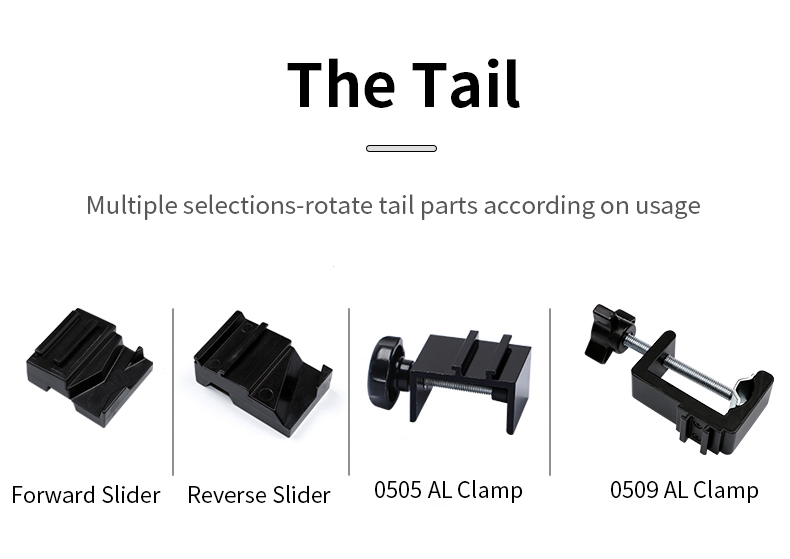

The mounting reference shows forward and reverse sliders together with 0505 AL and 0509 AL clamps. Match the fitting to the frame channel and fixing dimensions; a universal fit should not be assumed.

The specification identifies a B-shape plug and AC 100–240V input. Confirm the matching regional mains lead and complete power configuration in the quotation. The packing photographs are references for the lamp and lead; request a clear component list and packing arrangement for your order.

Linear display light purchasing questions

Is this the same connector as the 16W DC display arm light?

This model is specified with AC 100–240V input and a B-shape plug. The separate SL-2102-48L-DC listing uses a DC-connector configuration. Specify the model and connector so the matching supply and leads can be confirmed.

Can I switch between 3000K, 4000K and 6500K on the lamp?

These are listed CCT order options. The base photo shows an on/off switch, but the images do not document CCT switching or dimming.

Which fitting suits an exhibition frame?

The illustrated options are forward and reverse sliders, 0505 AL and 0509 AL clamps. Share the frame-channel dimensions, lamp model and mounting photographs to confirm the fitting.

Can I test the light on a display graphic before a bulk order?

Samples are available. State model SL-2101-96L, required CCT, mounting choice, power-lead requirement and destination country to confirm the sample set, cost and shipping.

Wholesale supply and project quotation

Minimum order quantity is 20 pcs, with lower unit prices at higher quantities. Standard lead time is 12–18 days; confirm the schedule for custom configurations and shipping time separately. OEM, ODM and private-label requirements can be included in the enquiry.

For a matching quote, send the model, quantity, CCT, panel size, mounting profile, regional lead and packing requirements, destination market and branding details.
