150W halogen arm lights for exhibition graphics

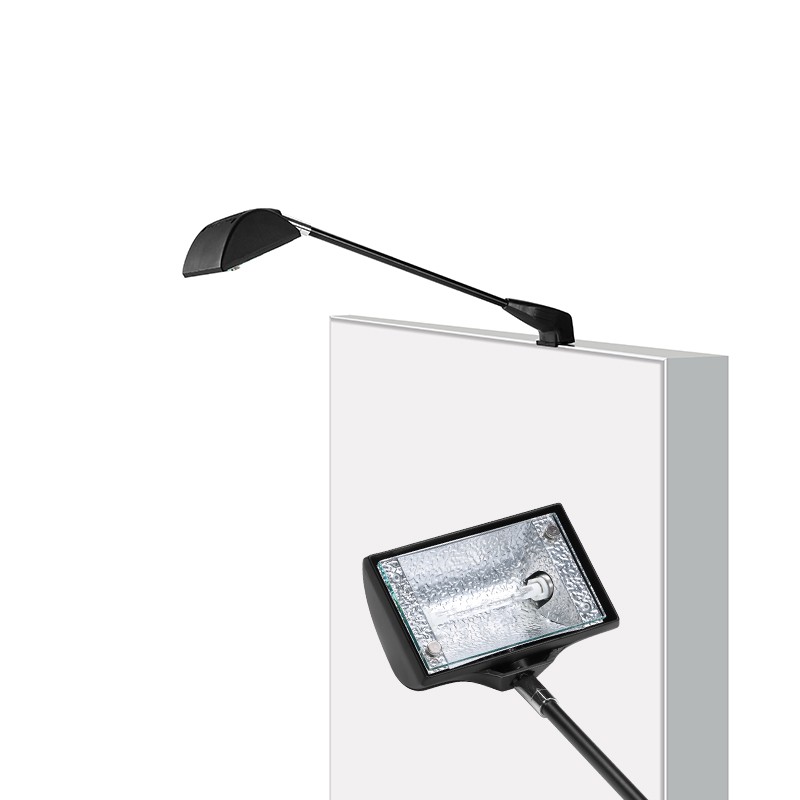

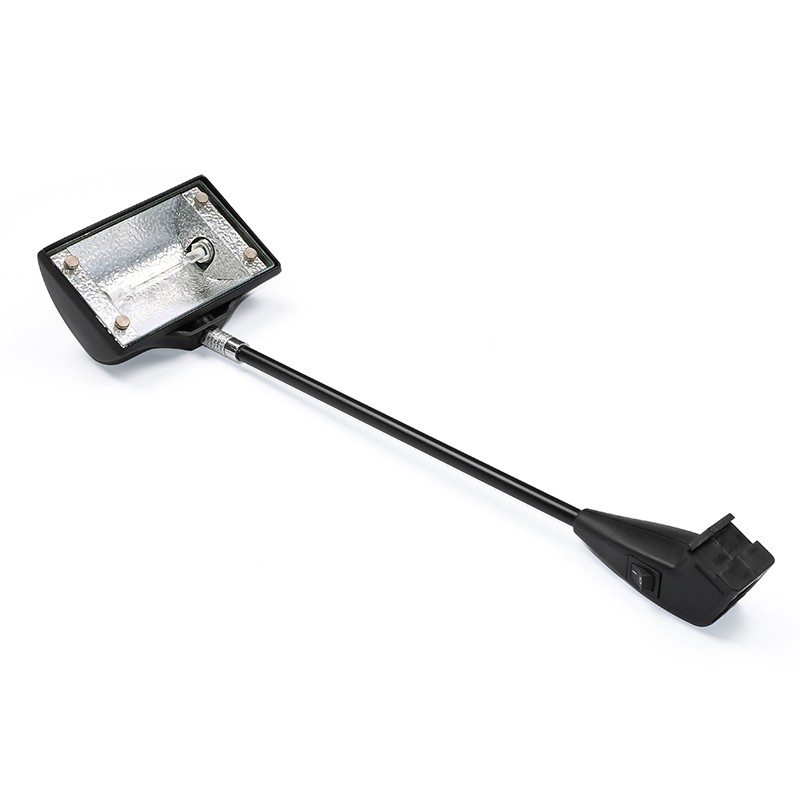

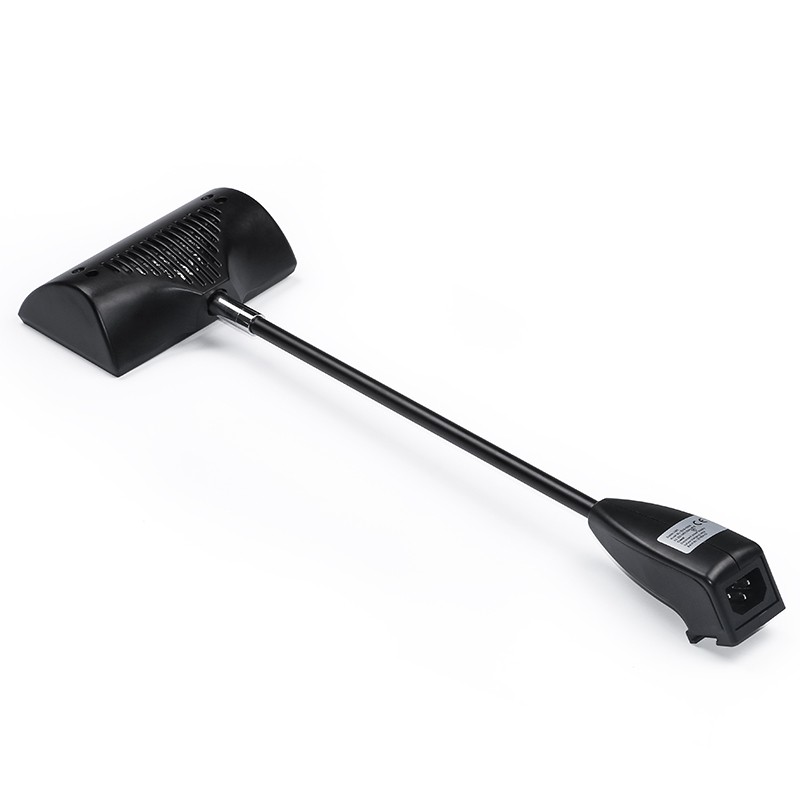

SL-2019-150W is a 150W halogen display arm light for exhibition graphics and stand panels. Its rectangular reflector head houses a linear halogen tube, while the base provides a three-pin connection and an on/off switch. Aim the head across the graphic surface using the adjustment joint at the arm.
For stand builders, display distributors and project buyers, the ordering decisions are the lamp specification, voltage version and mounting arrangement. Include the display-frame drawing and required quantity so the fixture, lamp, incoming power lead and fixing hardware can be agreed together with a sample.
Halogen fixture specification and lamp selection
Use the selected voltage and lamp specification when ordering this halogen fixture. The colour-temperature reference in the specification table follows the original artwork; agree the actual lamp and its technical data in the quotation.

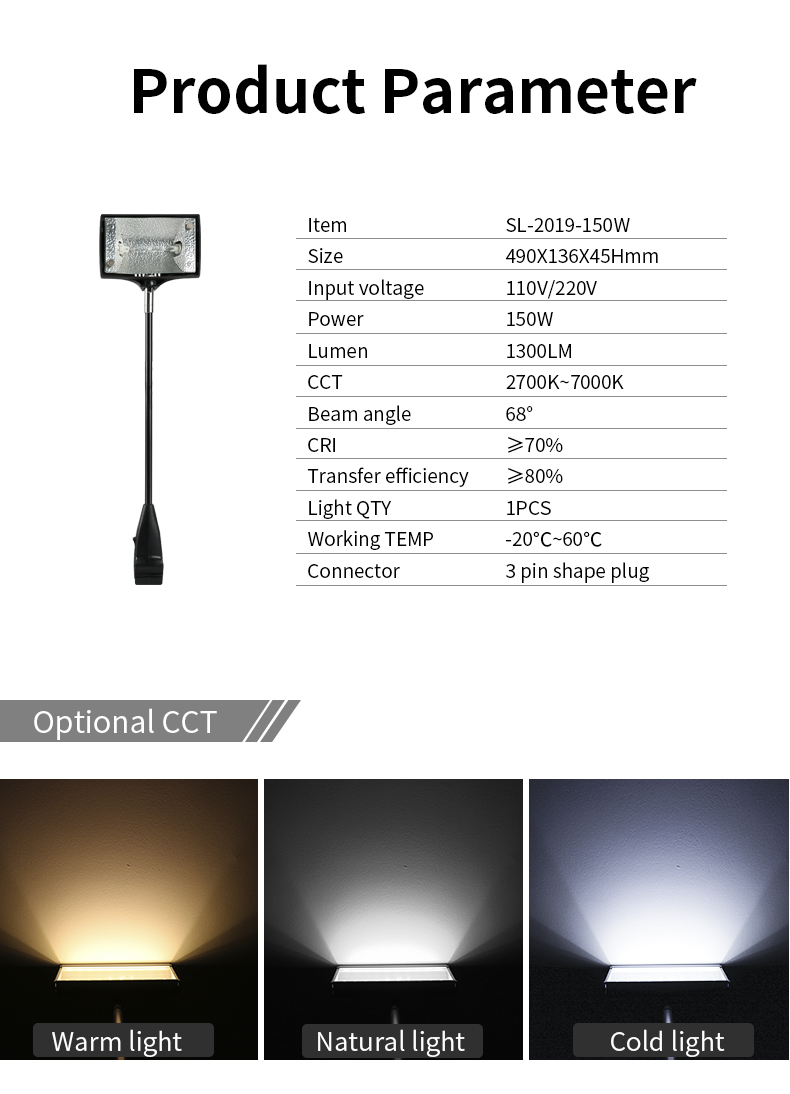

| Specification | SL-2019-150W |
|---|
| Model | SL-2019-150W |
| Light source shown | Linear halogen tube lamp |
| Power in reference table | 150W |
| Voltage versions in reference table | 110V / 220V; specify the required version |

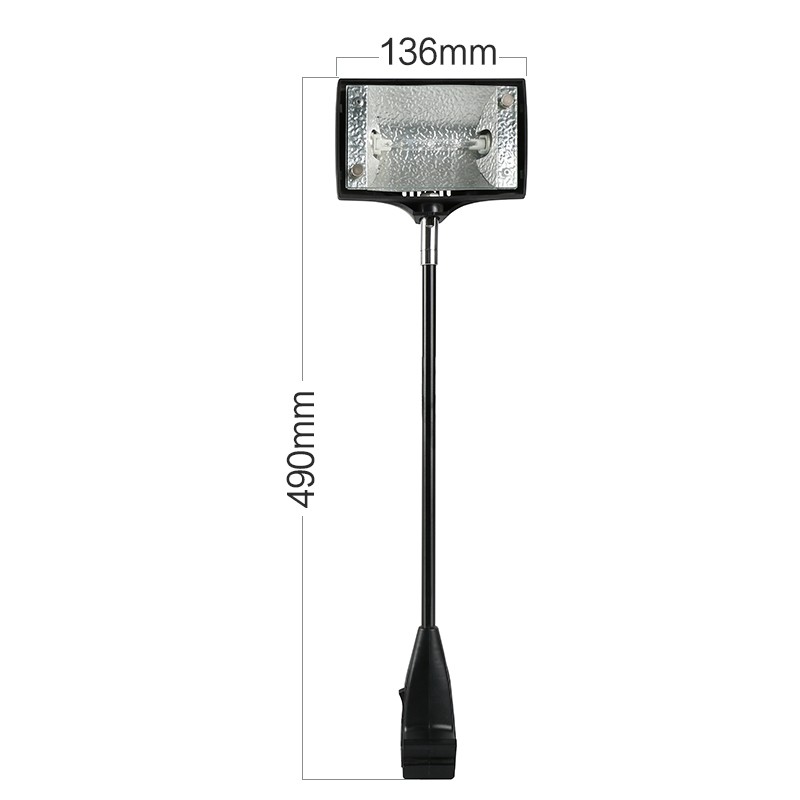

| Reference dimensions | 490 × 136 × 45mm |
| Listed luminous flux | 1300 lm |
| Listed beam angle | 68° |
| Colour-temperature reference | 2700–7000K in the artwork; confirm the supplied lamp version |

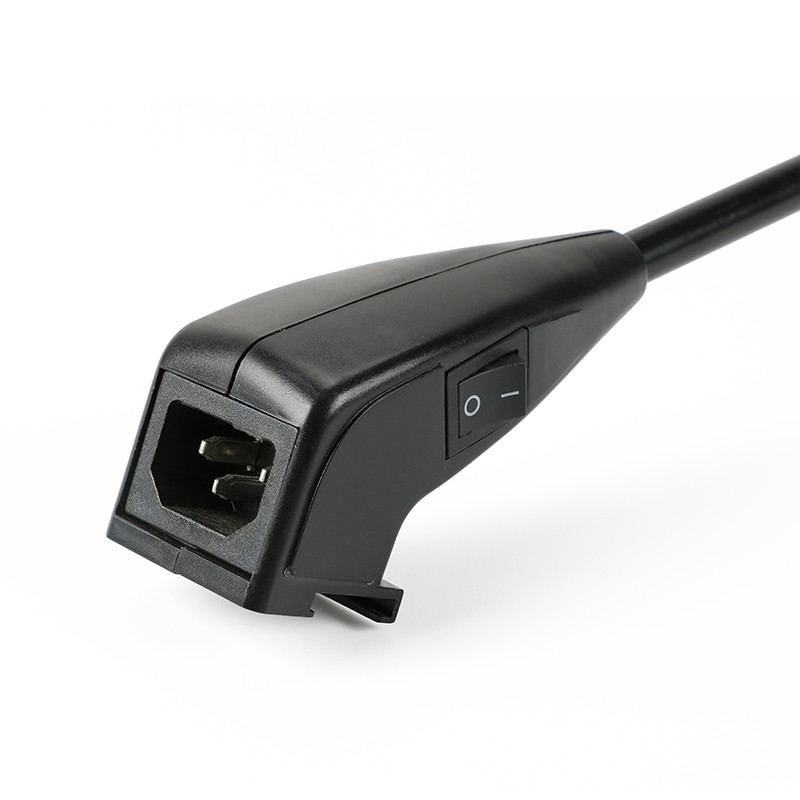

| Base connection pictured | Three-pin connection with on/off switch |
| Head adjustment | Adjustable aiming; movement limits confirmed with the sample |
Aim the reflector head and use the base switch

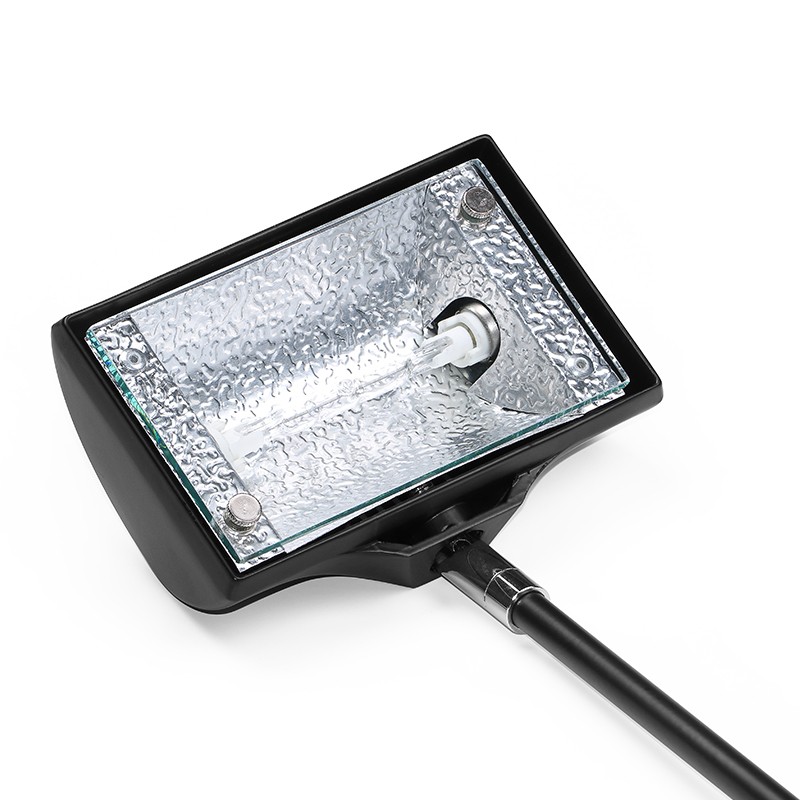

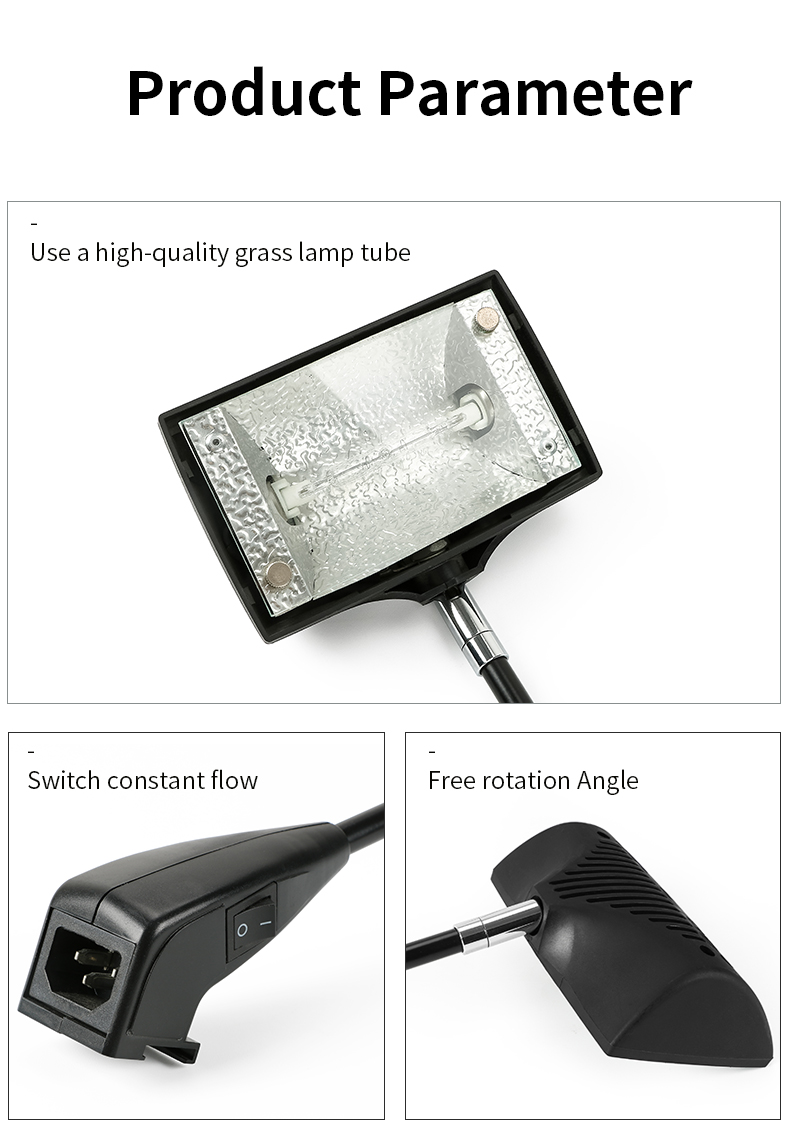

The reflector surrounds the tube lamp inside the rectangular head, with an adjustment joint at the arm. A switch is mounted beside the three-pin base connection. Include the required incoming lead, lamp dimensions and mounting position for sample approval.
Choose mounting hardware for the display frame

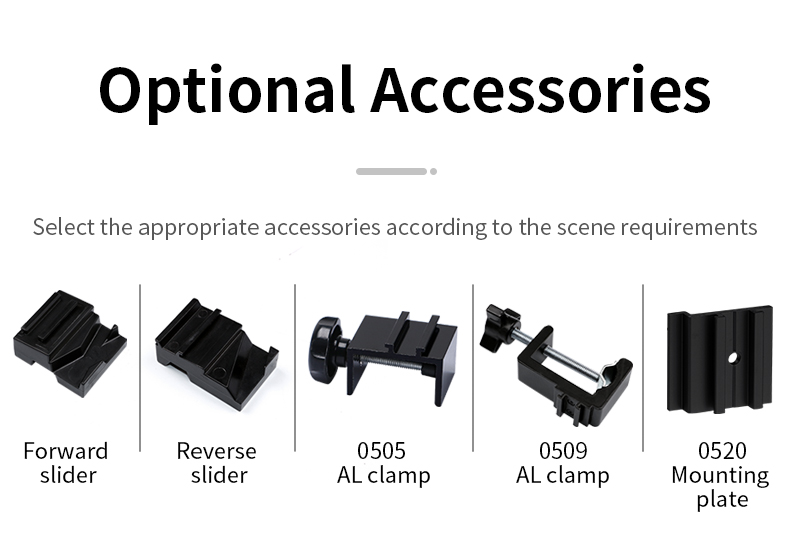

The accessory artwork shows forward and reverse sliders, 0505 and 0509 clamps, and a 0520 mounting plate. Send the frame profile, fixing position and available space to select the hardware. The exact parts and quantities supplied are listed in the quotation.

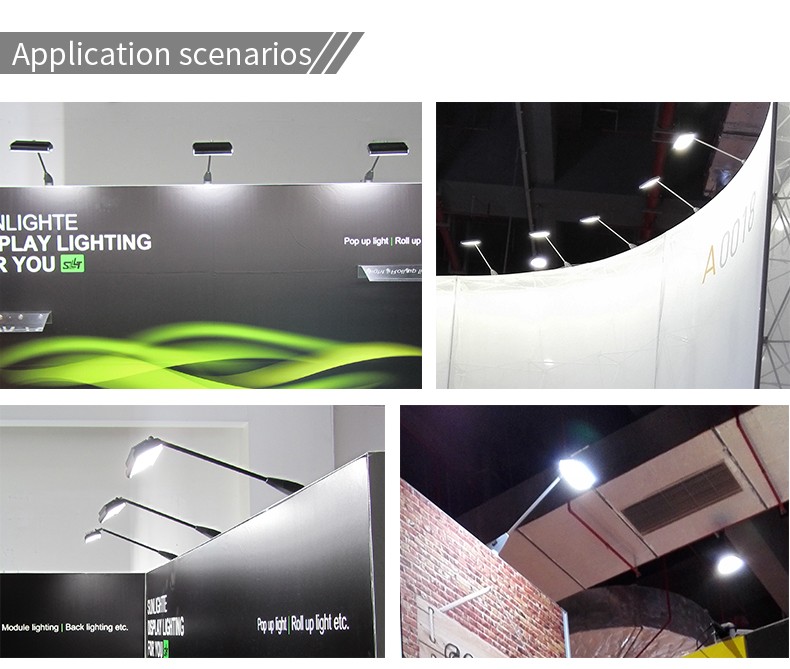

The installation photographs illustrate exhibition graphics and display-panel lighting layouts. Confirm the fixture positions, ambient conditions and venue requirements for the intended project.
Halogen display light samples and bulk supply
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available to assess the lamp, aiming arrangement, base connection and selected mounting hardware. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include product marking, incoming leads, fixing components and packing. Share the specification and artwork to confirm the custom scope and schedule. Sample charges, shipping and transit are agreed separately.
Halogen exhibition lighting purchasing questions
Which voltage should be specified for the display light?
The original table lists 110V and 220V versions. Provide the destination mains supply and required incoming plug and cord so the fixture and lamp specification can be confirmed for the quotation.
Which replacement lamp fits SL-2019-150W?
The photograph shows a linear halogen tube lamp. Request the approved lamp-base type, lamp length, wattage and voltage for the quoted fixture before ordering replacement lamps.
Can I select the light appearance for my graphics?
The reference artwork lists 2700–7000K and shows warm, natural and cool appearance examples. Confirm the actual lamp version, colour temperature and technical data with a sample of the quoted configuration.
Which clamp or slider is included with the arm light?
Select the mounting arrangement using the display-frame drawing. The optional accessories shown are identified separately; agree the chosen fixing parts, incoming lead and packing list in the quotation.
What should a wholesale halogen lighting enquiry include?
Send SL-2019-150W, voltage and lamp requirements, frame drawing, incoming cord, quantity, destination and packing or branding requirements. MOQ is 20 pcs, samples are available and volume pricing applies to larger orders.
