212mm LED edge modules with DC connection options
Plan the light source and connecting components together for a side-lit advertising lightbox. SL-BL054-4L-090 is a four-LED module measuring 212 × 23.5 × 16mm, with 9W ±10% power, 900 lm ±10% listed output and a 24V DC input. The specified lens angle is 20 × 60°.
For lightbox builders and sign-component wholesalers, the key choices are module positions, fixing points, white-light version and DC connectors. Send the frame dimensions and proposed layout to confirm the sample, mounting parts, connecting components and volume price.
9W DC-socket edge module specifications
| Specification | SL-BL054-4L-090 |
|---|
| Model | SL-BL054-4L-090 |
| Dimensions | 212 × 23.5 × 16mm |
| Power | 9W ±10% |
| Input voltage | 24V DC |
| Specified luminous flux | 900 lm ±10% |
| LED quantity | 4 LEDs |
| Lens angle | 20 × 60° |
| White-light order range 1 | 2800–3200K |
| White-light order range 2 | 3700–4300K |
| White-light order range 3 | 4700–5300K |
| White-light order range 4 | 6500–7500K |
| Mounting-hole diameter shown | Ø5.2mm |
| Construction shown | Aluminium substrate with board-end DC sockets |
| Operating temperature | −20 to +50°C |
Plan the frame fixing and side-light layout

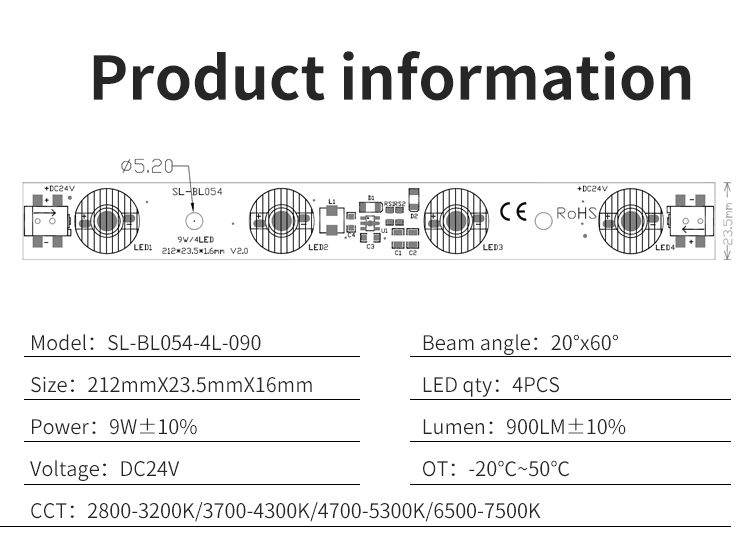

Check the complete 212 × 23.5 × 16mm envelope against the usable frame space. The parameter drawing also identifies a Ø5.2mm mounting hole; show the intended fixing points and hardware on the frame drawing.

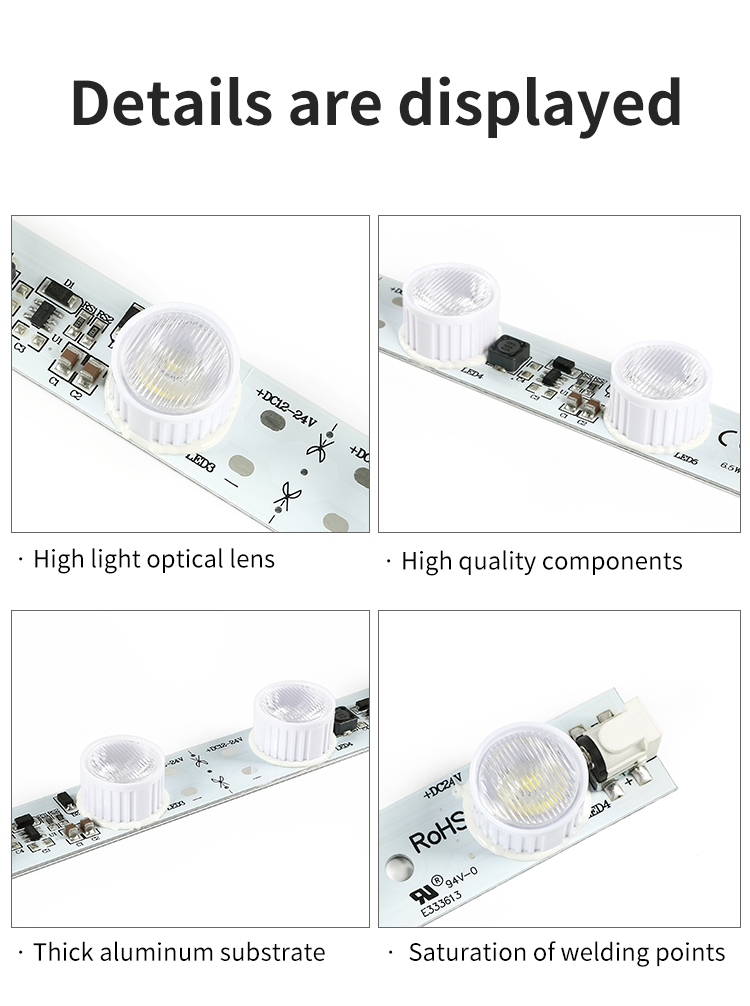

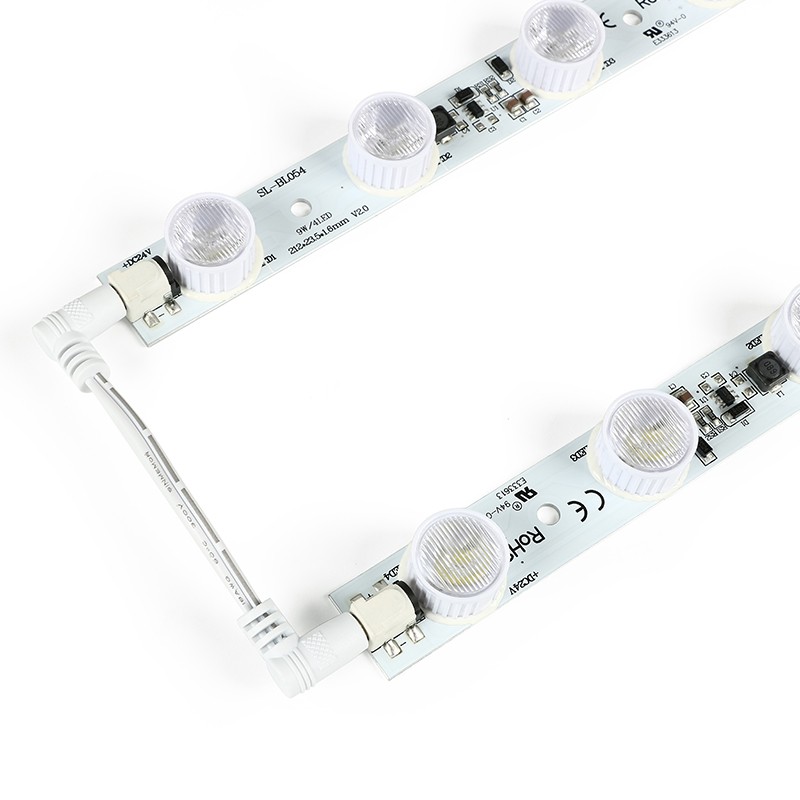

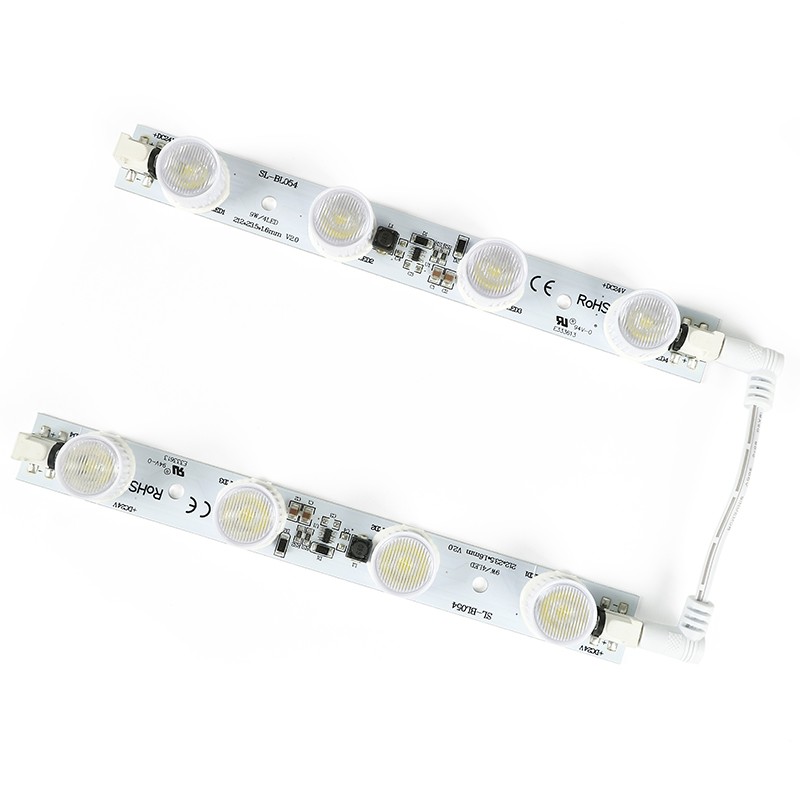

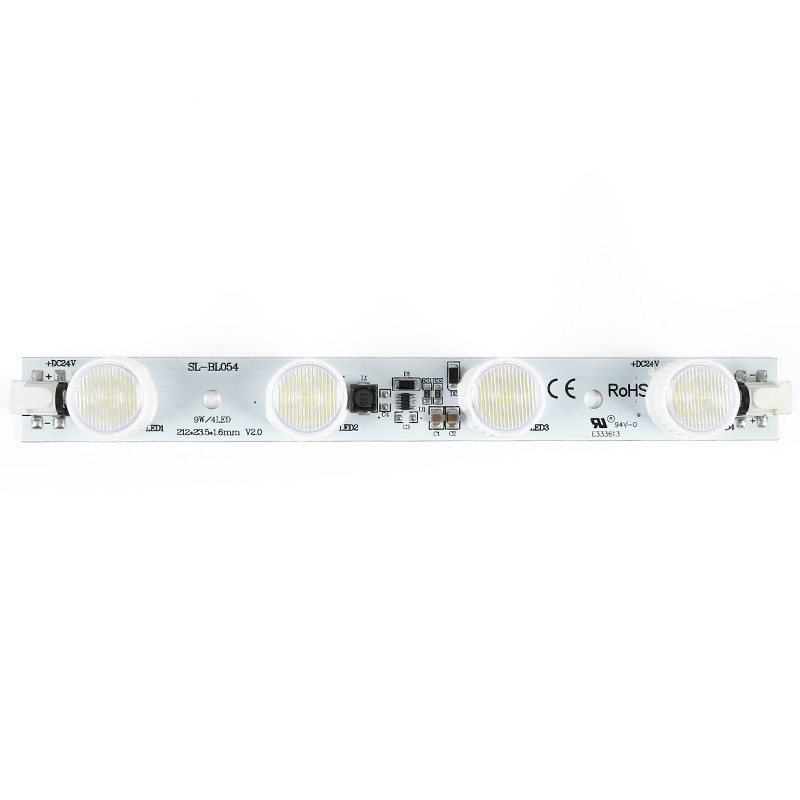

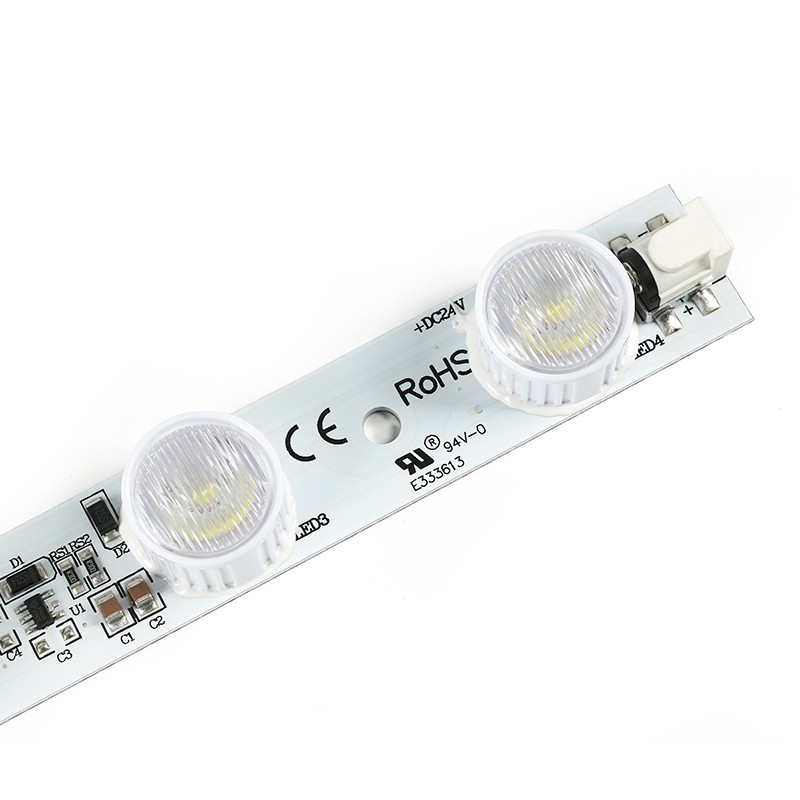

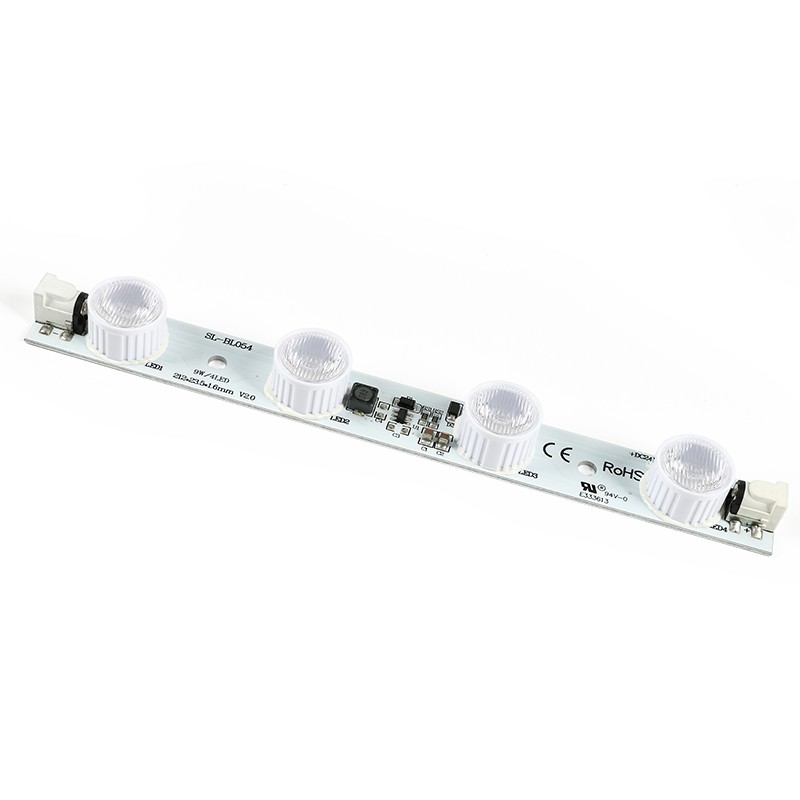

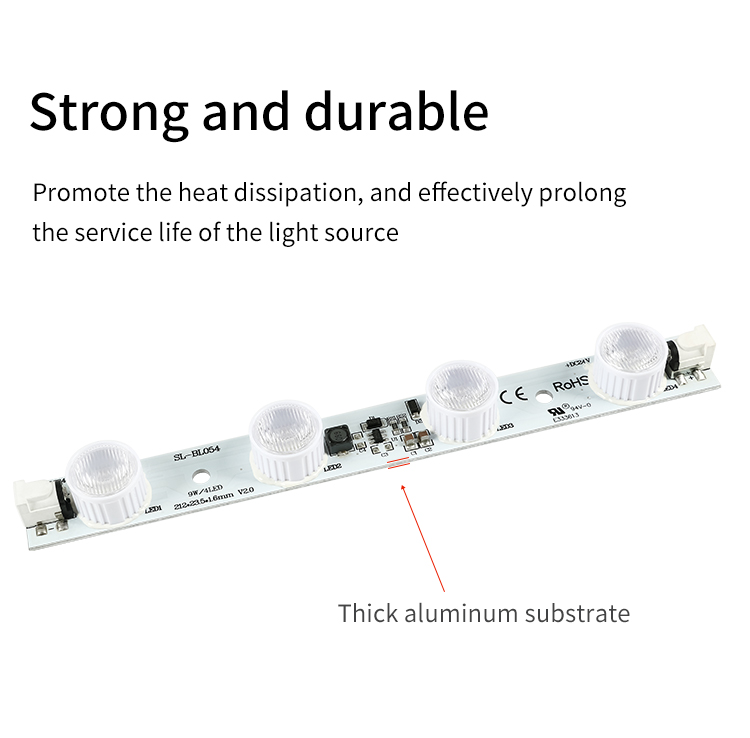

The source construction pictures show an aluminium substrate with individual lenses and board-end sockets. Provide the proposed module positions and lens orientation, then review a sample with the actual graphic or diffuser.
Choose the DC connectors and supply configuration

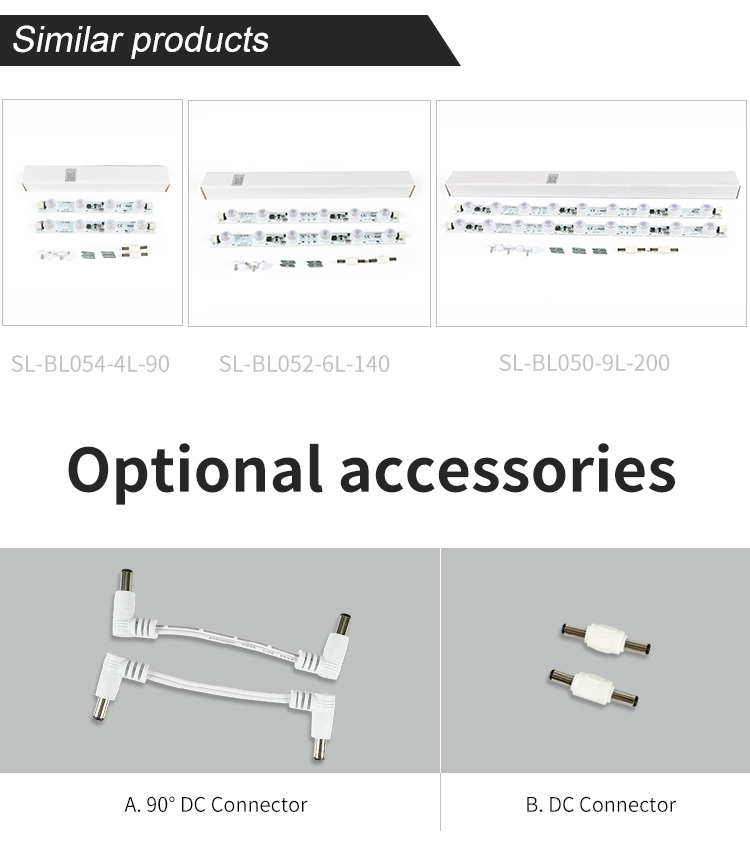

The accessory picture shows optional right-angle DC connecting leads and straight DC connectors. State the required arrangement and quantities so the matching parts and power-unit scope can be itemised.
The model specification is 24V DC. Confirm the matching plug dimensions, polarity and approved wiring layout for the assembly, including the cable route and number of modules.
Specify one of the listed white-light versions
The source lists four white-light ranges: 2800–3200K, 3700–4300K, 4700–5300K and 6500–7500K. State the required version with the model number to align the sample and production specification.

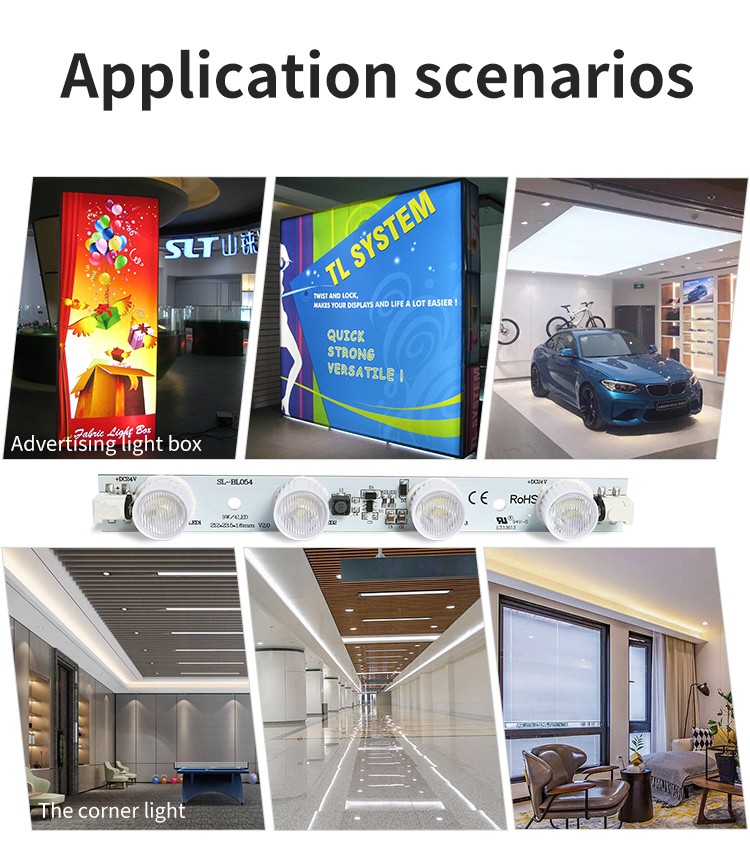

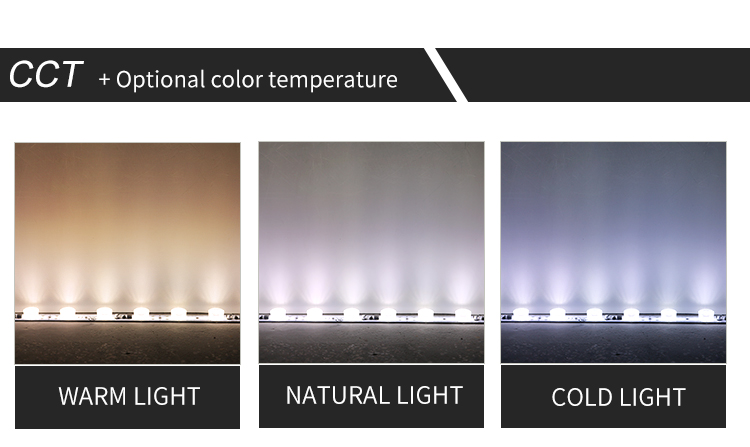

The appearance illustration shows warm, natural and cold-white examples. Original application pictures include advertising lightboxes and exhibition displays; provide the intended face material and enclosure dimensions for the layout review.
Confirm the accessory package and bulk shipment

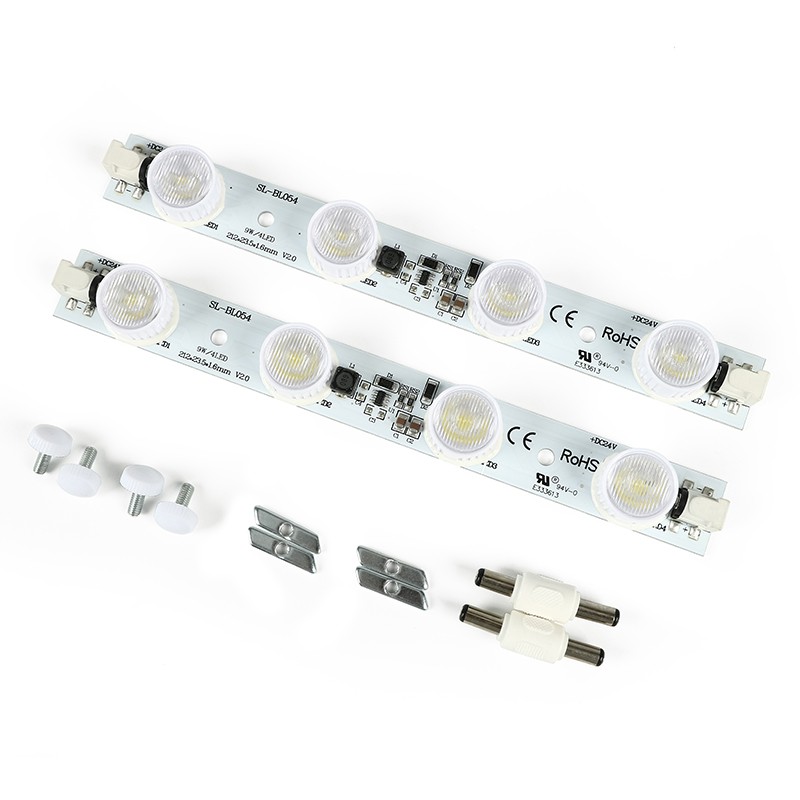

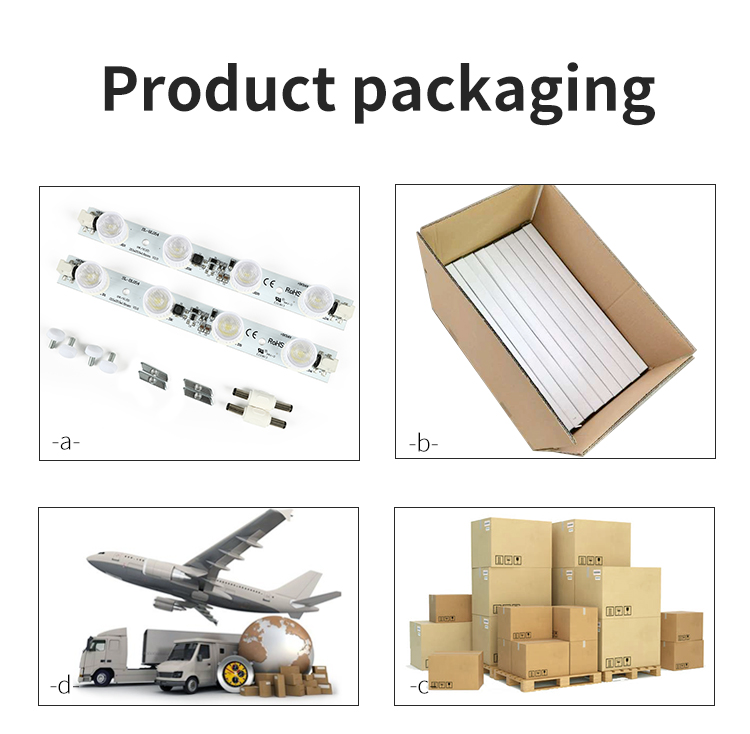

The packaging illustration shows modules with fixing and connector examples, together with individual protection and outer cartons. Ask for the included items, accessory quantities, packing count and carton dimensions in the quotation.
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available, with sample cost and shipping confirmed separately. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported; custom schedules and transit time are confirmed with the quotation.
Questions for sourcing DC-connected edge modules
Which DC connection options are pictured?
The original accessory image shows right-angle DC connecting leads and straight DC connectors. State the required type and quantity to confirm matching parts for SL-BL054-4L-090.
What are the dimensions and mounting-hole details?
The full module is 212 × 23.5 × 16mm, and the parameter drawing shows a Ø5.2mm mounting hole. Provide the frame profile and fixing plan to confirm the mounting hardware.
What white-light versions are listed?
Choose from 2800–3200K, 3700–4300K, 4700–5300K or 6500–7500K. Confirm the selected order version and evaluate a sample with the intended graphic or diffuser.
What should a wholesale enquiry include?
Provide the model, quantity, white-light version, enclosure drawing, connector requirements and delivery country. Orders start from 20 pcs; samples, volume pricing and OEM, ODM or private-label requirements can be quoted together.
