202mm LED lightbox modules for compact component layouts
Plan a compact illuminated-display assembly with a four-LED lens module. SL-BL069-080 measures 202 × 24 × 16mm and is specified at 8W with 600–700 lm luminous flux. It uses a 24V DC input and individual lenses with a 10 × 40° angle.
For sign-component wholesalers and lightbox fabricators, the key sourcing details are the mounting envelope, required white-light version and approved electrical grouping. Send the frame drawing, face material and module quantity to confirm the sample, wiring parts and production quotation.
8W four-LED module specification

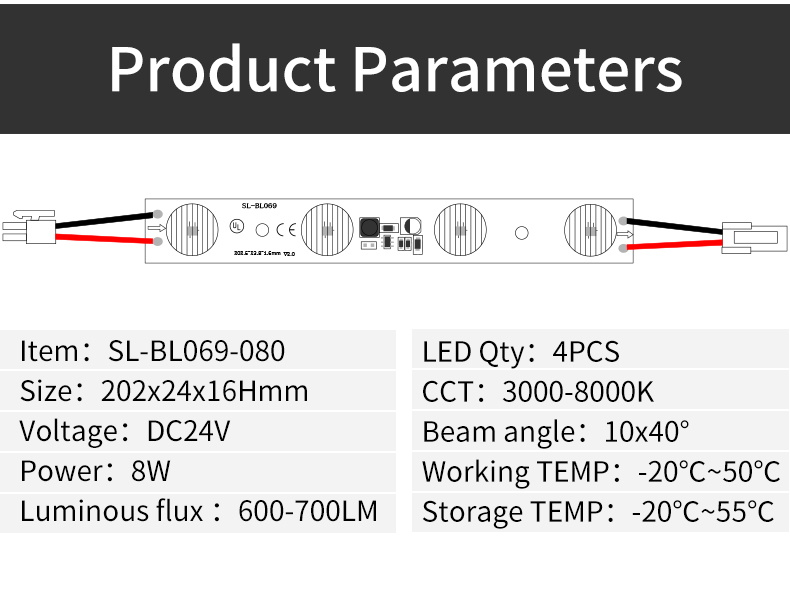

| Specification | SL-BL069-080 |
|---|
| Model | SL-BL069-080 |
| Dimensions | 202 × 24 × 16mm |
| Power | 8W |
| Input voltage | 24V DC |
| Specified luminous flux | 600–700 lm |
| LED quantity | 4 LEDs |
| Lens angle | 10 × 40° |
| CCT range listed | 3000–8000K; confirm the required order version |
| Construction shown | Aluminium substrate with individual lenses |
| Operating temperature | −20 to +50°C |
| Storage temperature | −20 to +55°C |
Allow for the complete mounting envelope

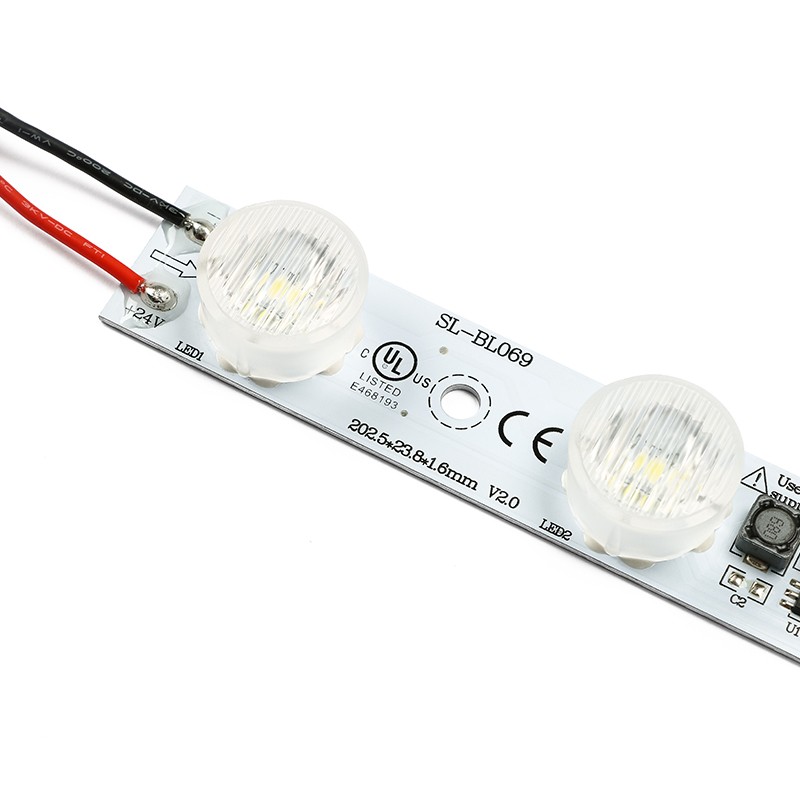

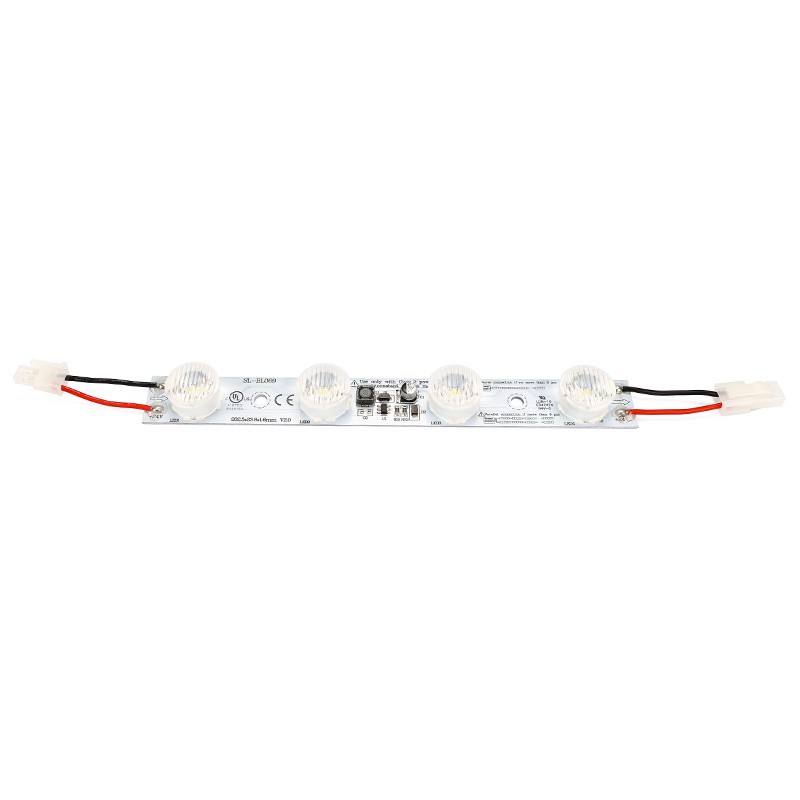

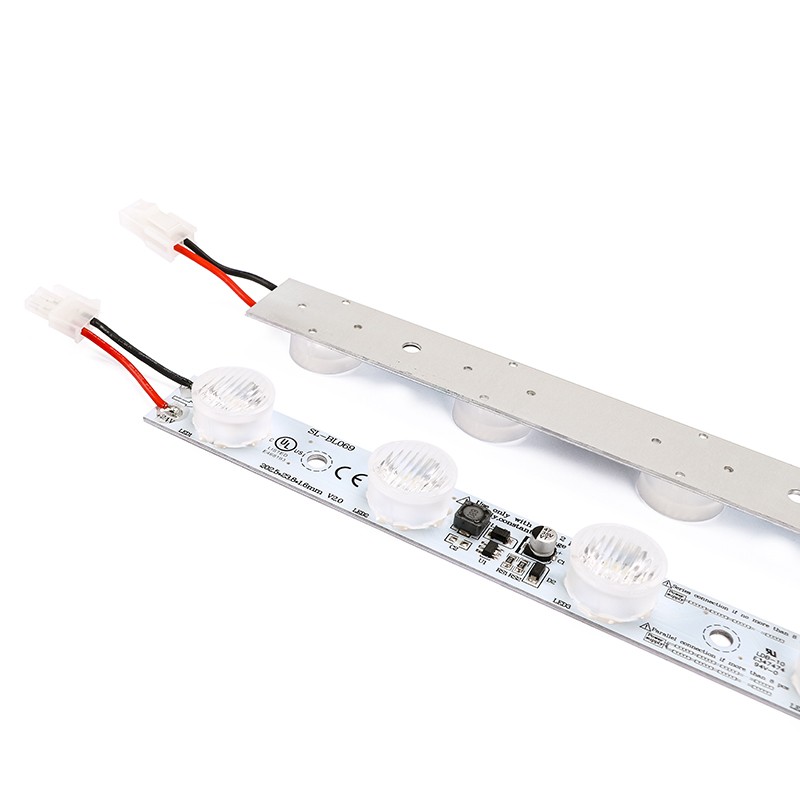

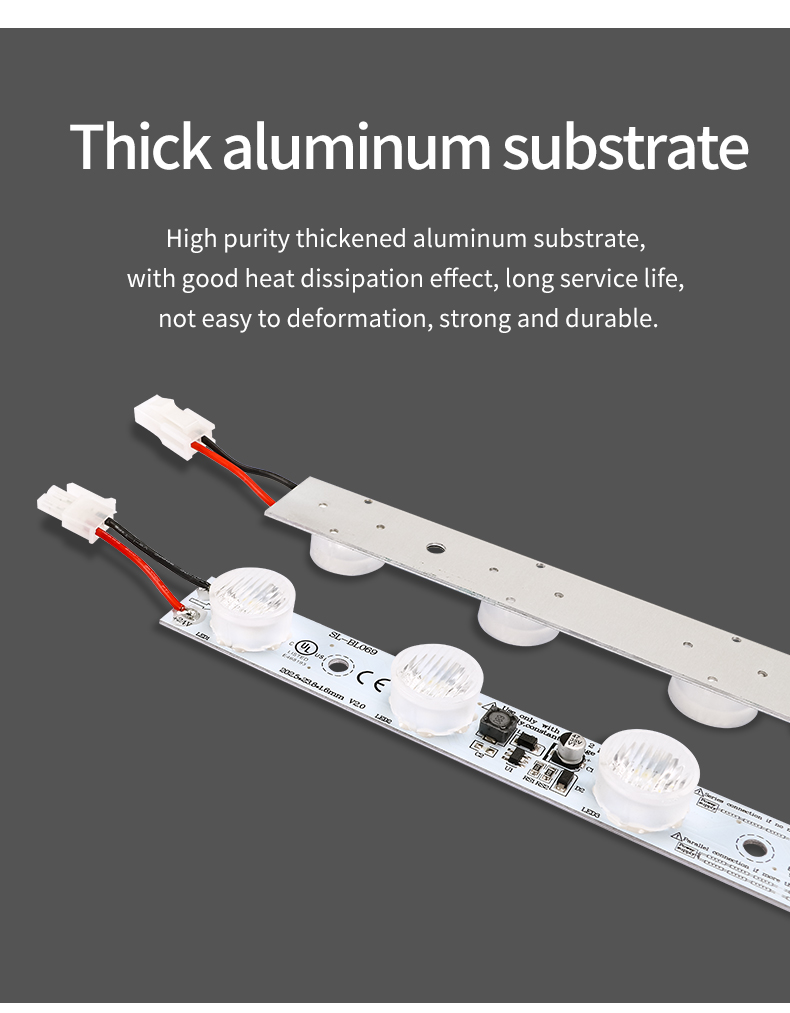

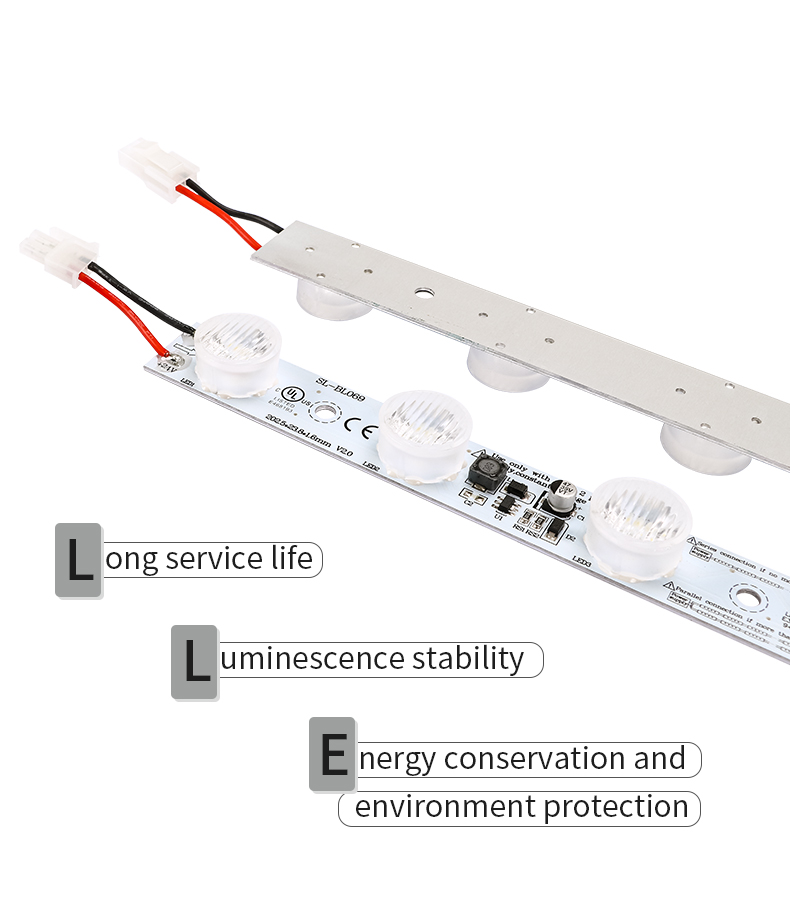

Check the full 202 × 24 × 16mm assembly against the usable frame space. The front and rear photographs show an aluminium substrate, mounting openings and four individual lenses.
Provide the frame profile and intended fixing points to confirm the mounting parts and cable clearance. The 16mm dimension is the complete module height; the source does not give a separate numerical substrate thickness.
Confirm the supply and permitted module grouping

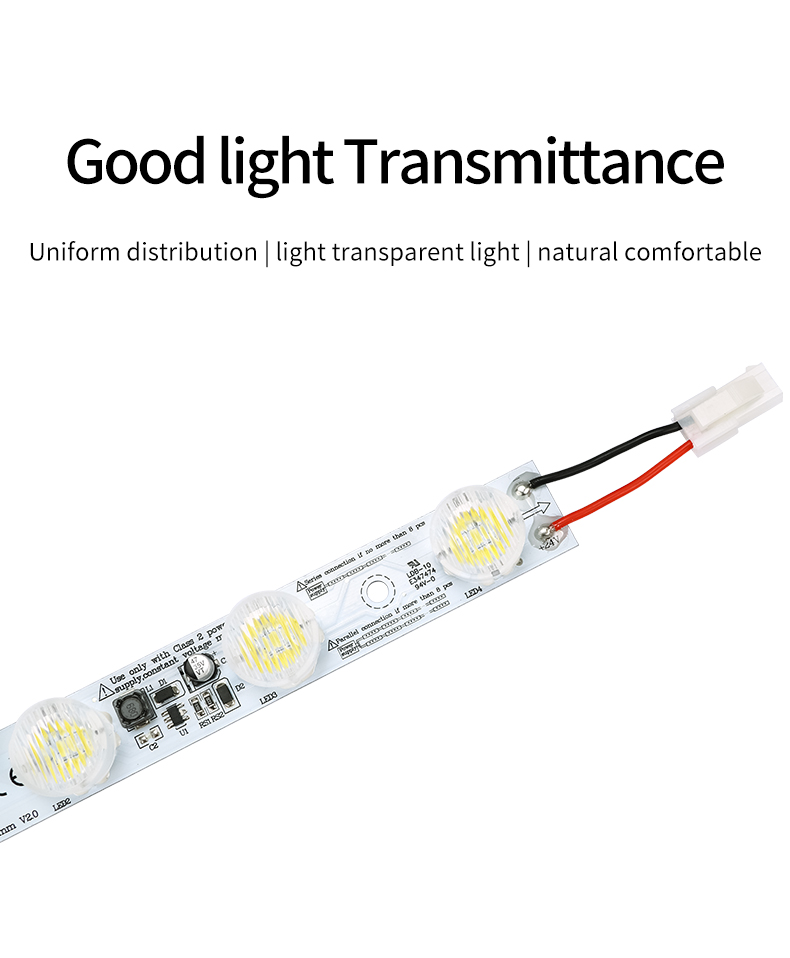

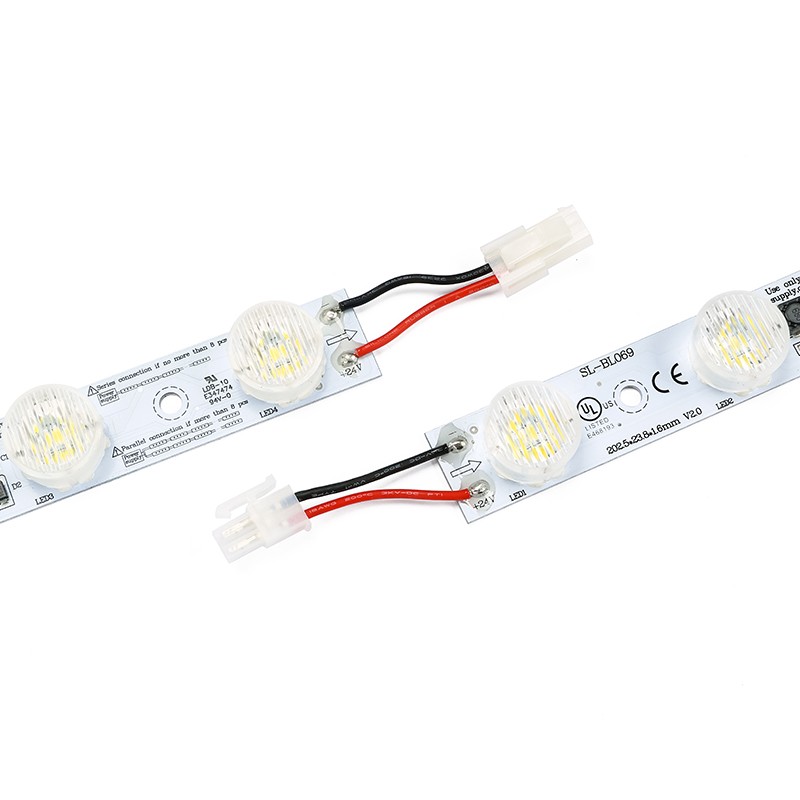

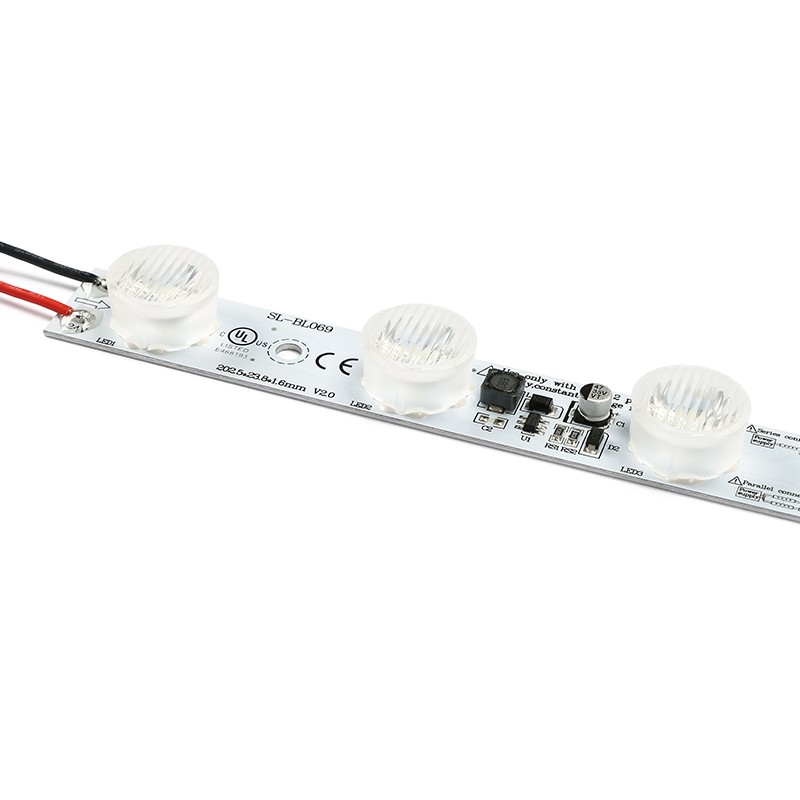

The connection close-up shows red and black soldered leads with a white plug. Include the module quantity, cable route and required harnesses when requesting the electrical component list.
The original board carries a Class 2 constant-voltage power-supply instruction and eight-piece connection notes. Request the approved 24V supply, model-specific wiring diagram and grouping before assembling several modules.

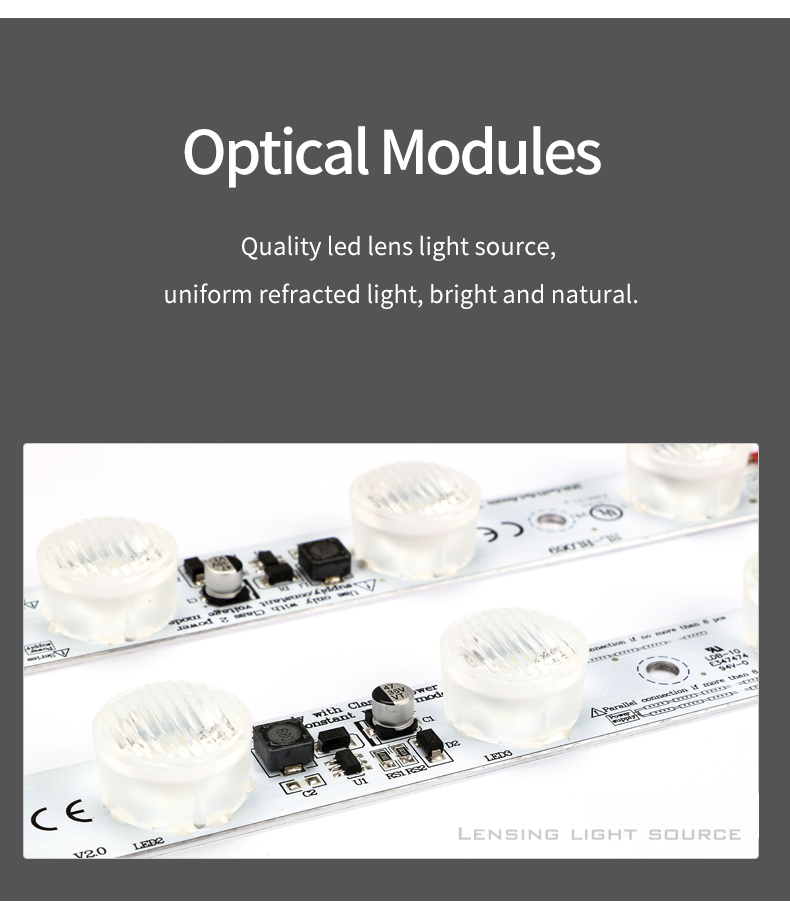

Review optics and the white-light order version
The specified lens angle is 10 × 40°, and the source CCT range is 3000–8000K. State the target colour temperature and confirm the available sample and production version with the quotation.
Show the planned module positions and lens direction on the lightbox drawing. Evaluate the selected sample with the actual graphic or diffuser to confirm the lighting layout.
Application references and protective packing

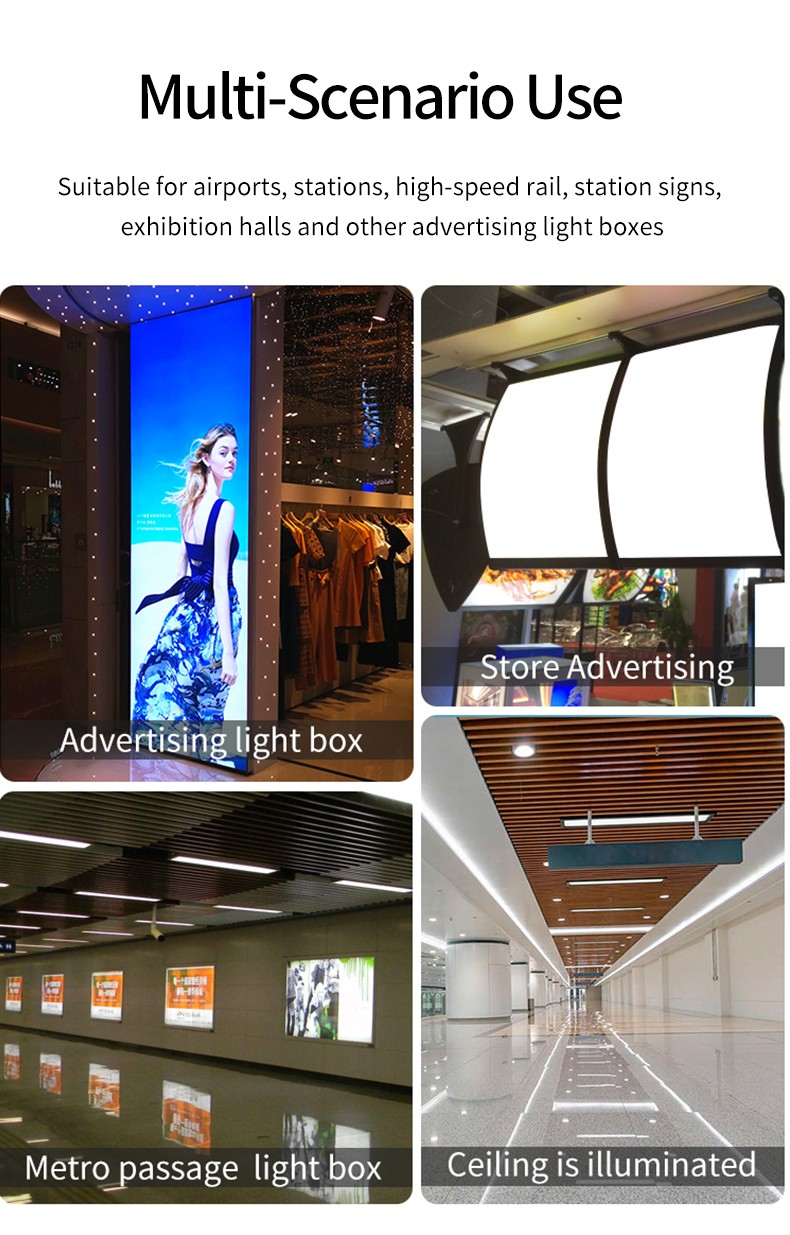

Original application pictures illustrate advertising lightboxes, retail displays, passage lightboxes and illuminated ceiling graphics. Provide the actual enclosure dimensions and face material when specifying the component layout.

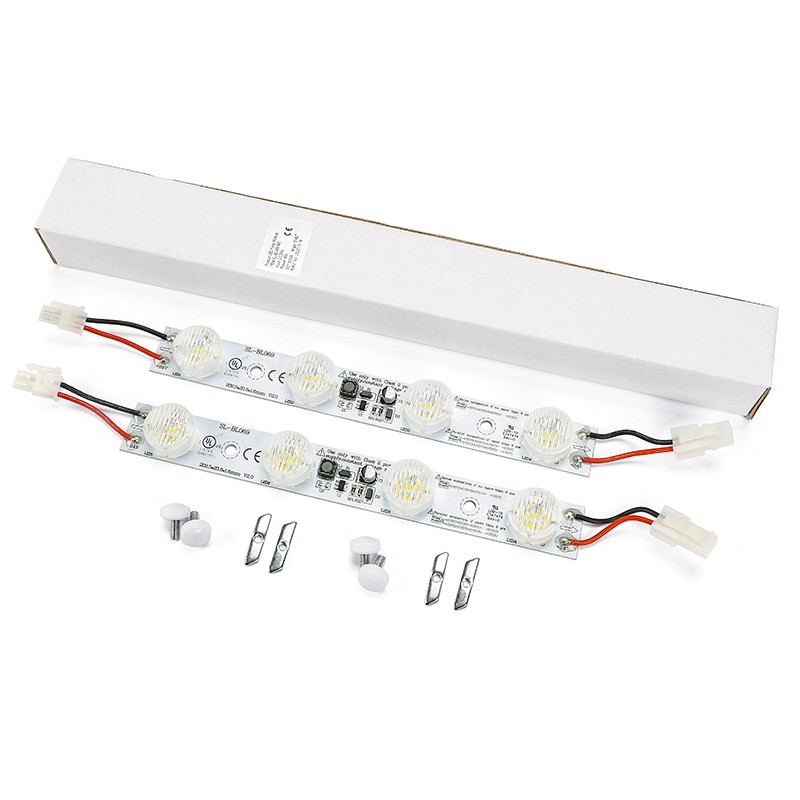

The packing illustration shows individual protection inside white boxes and outer cartons. Confirm the packing quantity, carton dimensions and shipment arrangement for the order.
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available, with sample cost and shipping confirmed separately. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported; custom schedules and transit time are confirmed with the quotation.
Questions for sourcing compact 8W lightbox modules
What is the listed size and output of this four-LED module?
SL-BL069-080 is listed at 202 × 24 × 16mm, 8W and 600–700 lm, with a 24V DC input. Include these values in the component specification.
What needs confirming before linking several modules?
Submit the intended wiring layout and ask for the approved grouping and power unit. The original board carries a Class 2 constant-voltage instruction and eight-piece connection notes; use the model-specific electrical confirmation for the assembly.
Which white-light version should I request?
The parameter sheet lists 3000–8000K. Share the target colour temperature to confirm the available version and evaluate a sample with the intended graphic or diffuser.
What should a sample and bulk-order enquiry include?
Provide the model, target quantity, enclosure drawing, white-light requirement and delivery country. Production orders start from 20 pcs; samples, volume pricing and OEM, ODM or private-label requirements can be quoted together.
