470mm side lighting LED modules with 10 × 45° optics

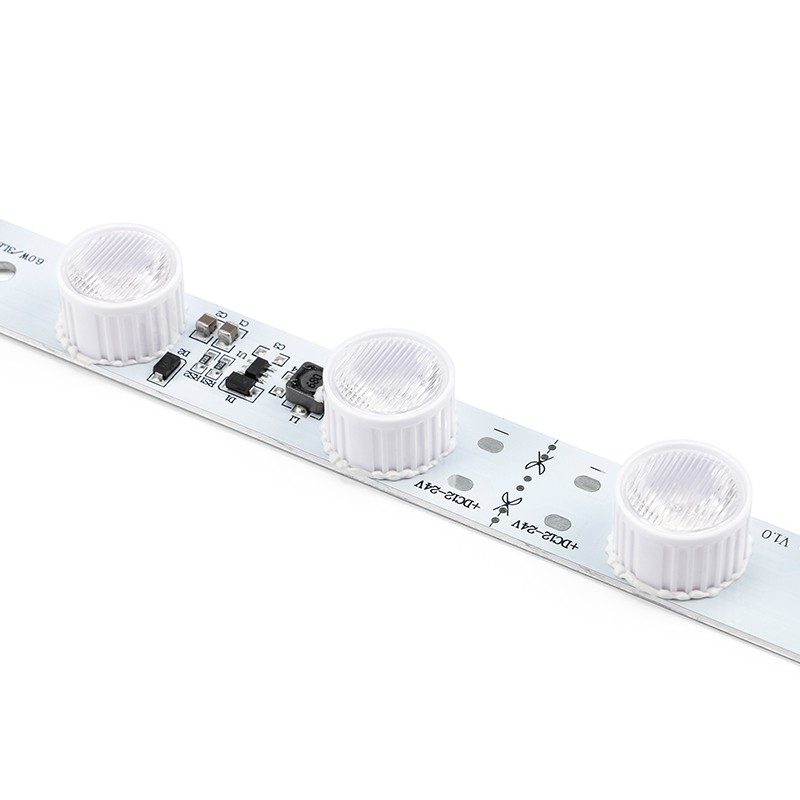

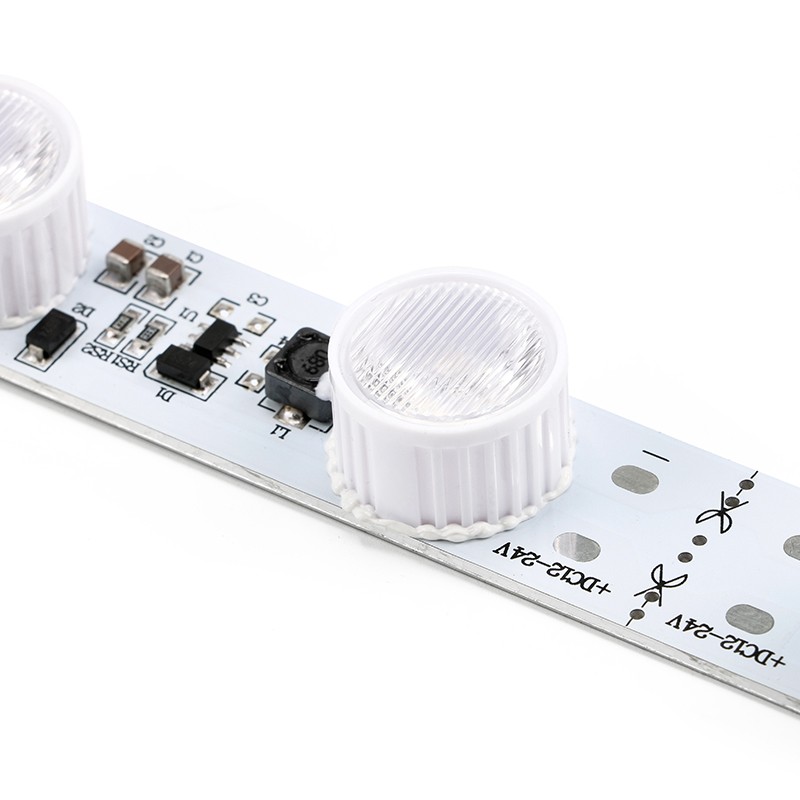

Plan a side-lighting assembly around the lens angle and the actual frame size. SL-BL050-200 is a nine-LED aluminium-substrate module measuring 470 × 23.5 × 16mm. The product sheet specifies 20W at 24V DC, 830mA current and 1400–1600 lm output, using 10 × 45° lenses.
For illuminated-sign manufacturers and lightbox project buyers, the main ordering choices are the fixing arrangement, module direction and white-light specification. Supply the frame profile and proposed layout so the mounting parts, connection leads and sample can be quoted for the project.

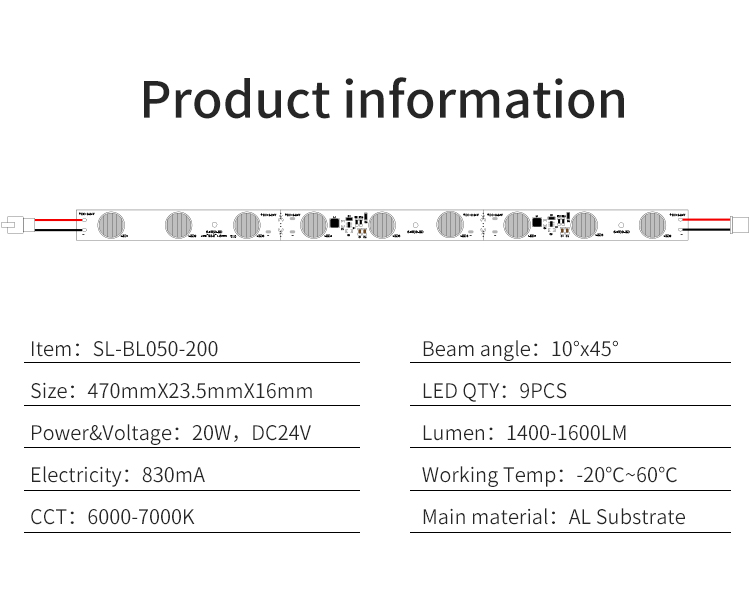

20W narrow-angle side-light module specification
| Specification | SL-BL050-200 |
|---|
| Model | SL-BL050-200 |
| Dimensions | 470 × 23.5 × 16mm |
| Power | 20W |
| Input | 24V DC |
| Listed current | 830mA |
| LED quantity | 9 pcs |
| Luminous flux | 1400–1600 lm |
| Lens angle | 10 × 45° |
| Listed white-light range | 6000–7000K |
| Operating temperature | −20°C to +60°C |
| Substrate | Aluminium, 1.6mm illustrated thickness |
Choose the fixing arrangement for the frame profile

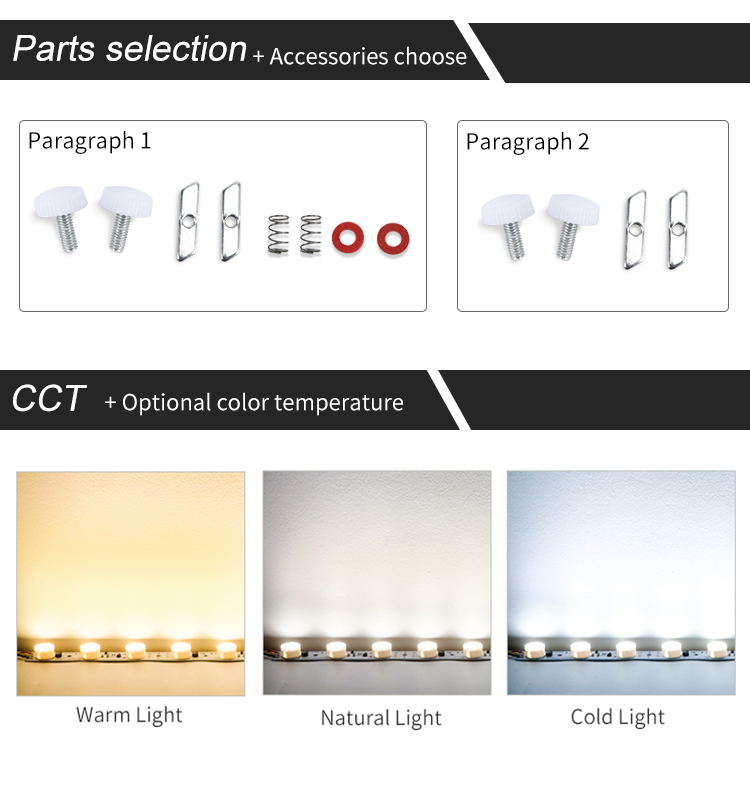

Two mounting-part arrangements are pictured. Both use white threaded knobs and metal fixing pieces; one also shows springs and red washers. Choose the arrangement after the frame section and fixing points have been checked.

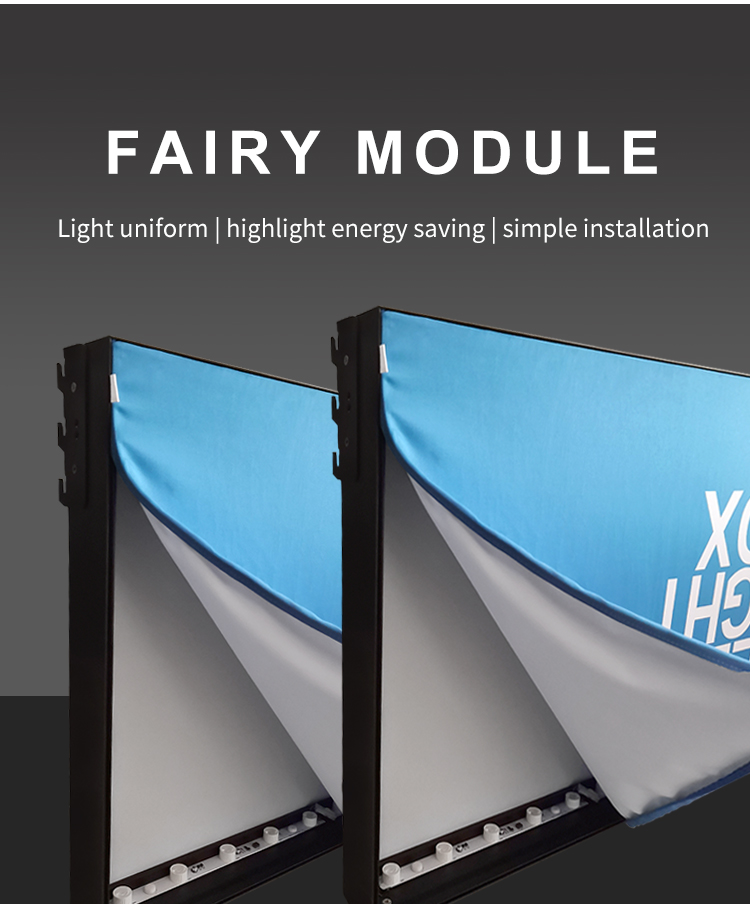

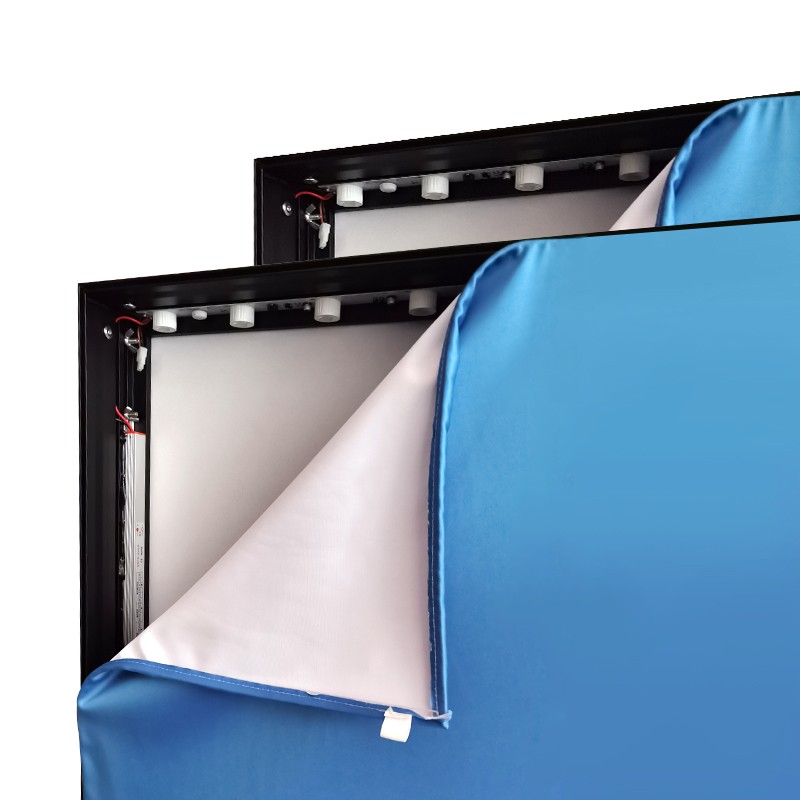

The lightbox illustration shows modules positioned within the display frame. For a project quotation, send the box width, height, depth and face material together with the proposed light-source position. Assess the actual display with a sample before confirming the layout.
Aluminium substrate and connection-lead details

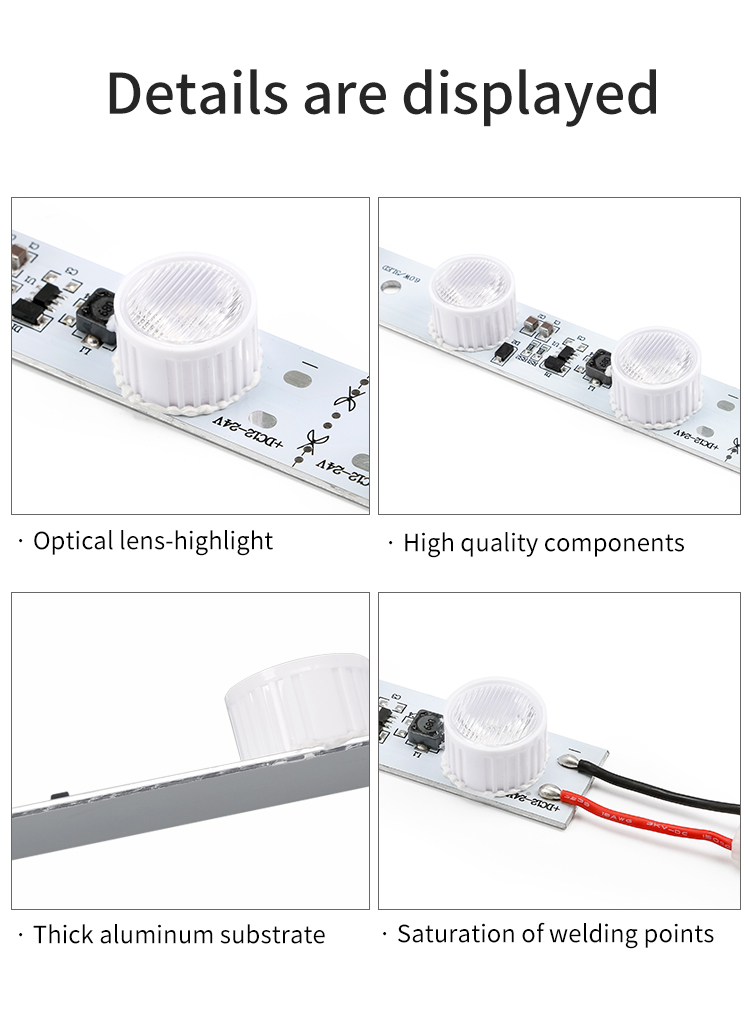

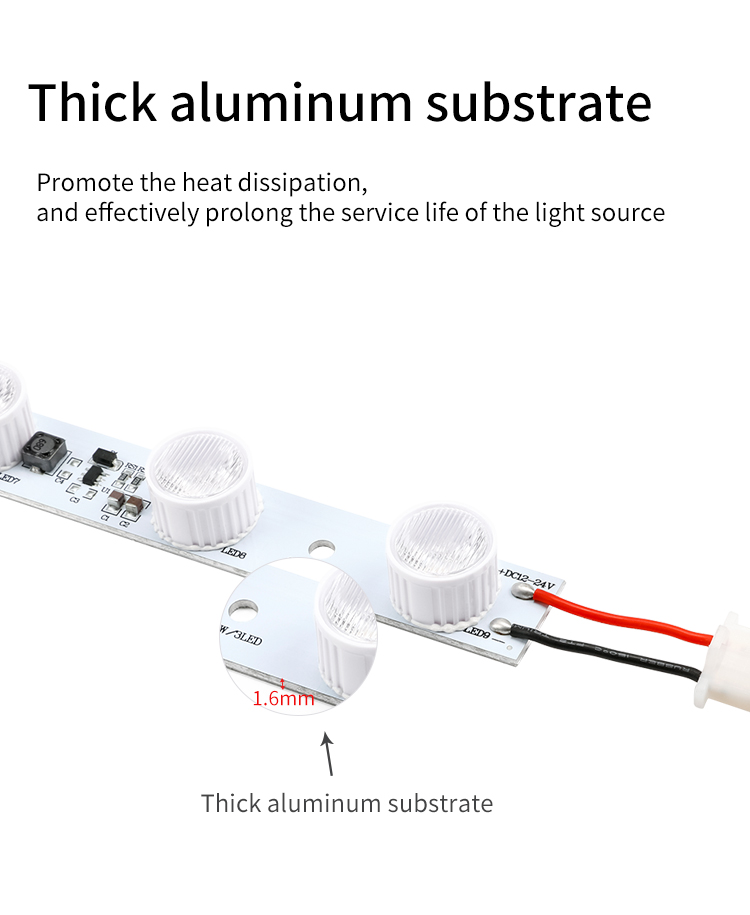

The construction image labels the aluminium substrate as 1.6mm thick. This is the board-support detail; the complete module height in the product sheet is 16mm. Use the overall dimensions for clearance and the substrate image to review the mounting construction.

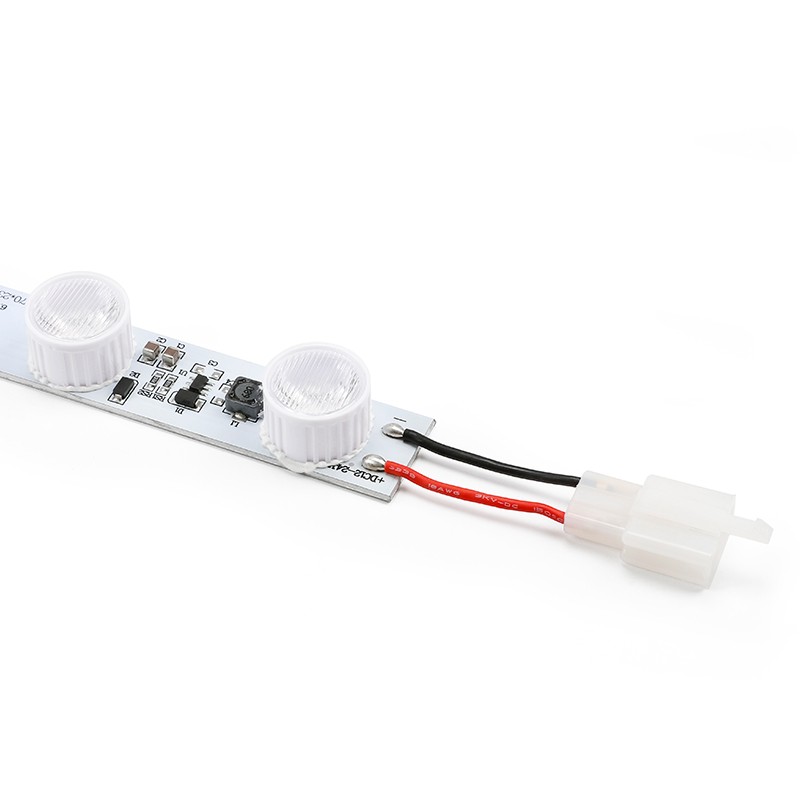

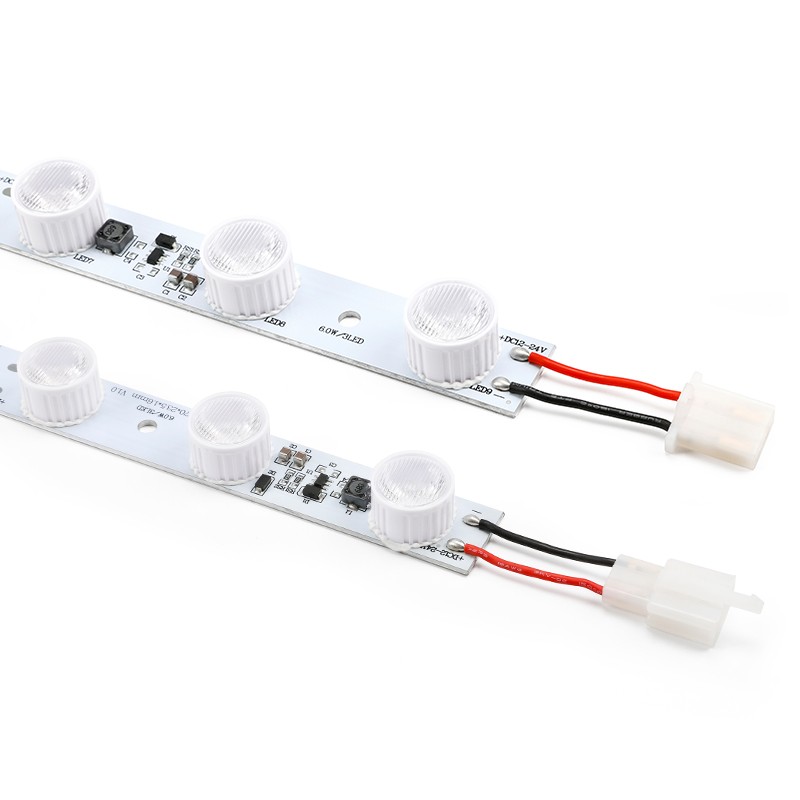

Red and black leads are soldered at the end of the module, with a white plug shown. Specify the required lead arrangement and matching 24V DC supply; confirm connector compatibility, polarity and wiring for the ordered assembly.
White-light specification for sign illumination
The detailed parameter sheet lists 6000–7000K for this model. The accessory image also illustrates warm, natural and cold white appearance. If another white-light version is needed, confirm its availability and electrical specification with the sample enquiry.
Select the colour appearance for the graphic and diffuser used in the actual sign. State the target range with the model number so the sample and production order can use the agreed white-light version.
Project supply and packaging confirmation

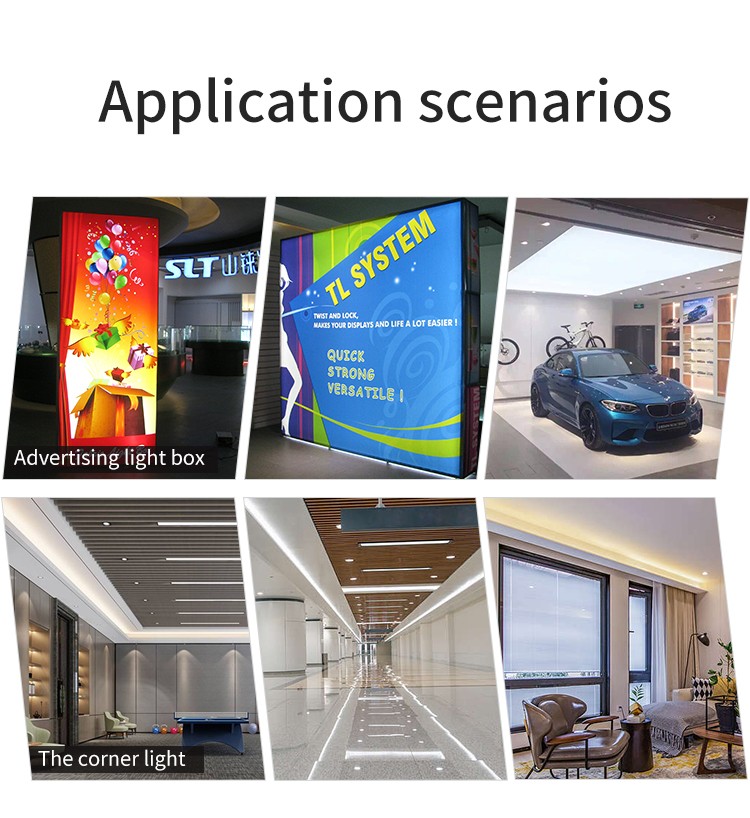

The application photographs show advertising lightboxes and interior display lighting. Provide the installation drawing, destination market and intended quantity so the relevant technical information and component package can be confirmed.
Individual packaging and packed cartons are illustrated. Agree the number of modules, fixing kits and leads per package before production. OEM, ODM and private-label enquiries can include marking and packing requirements.
Side-light LED module wholesale questions
Is this the 470mm module with 10 × 45° lenses?
Yes. The product sheet identifies SL-BL050-200 as 470 × 23.5 × 16mm with nine LEDs and 10 × 45° optics. Use these details when checking the frame drawing and requesting a sample.
Which fixing parts should I specify with the sample?
Send the frame profile and fixing-point details. The two illustrated arrangements use threaded knobs and metal fixing pieces; one also has springs and washers. Samples are available, with the configuration, cost and shipping confirmed before dispatch.
How do I request volume pricing for side-lighting modules?
Wholesale orders start at 20 pcs, and larger quantities receive lower unit prices. Include the module quantity, required mounting parts, leads and white-light specification so the quotation covers the complete order configuration.
What lead time applies to a private-label order?
The standard lead time is 12–18 days. OEM, ODM and private-label supply are supported; confirm the schedule for the order size, technical changes and packaging requirements. Shipping time is quoted separately.
