Compact lighting for portable pop-up displays

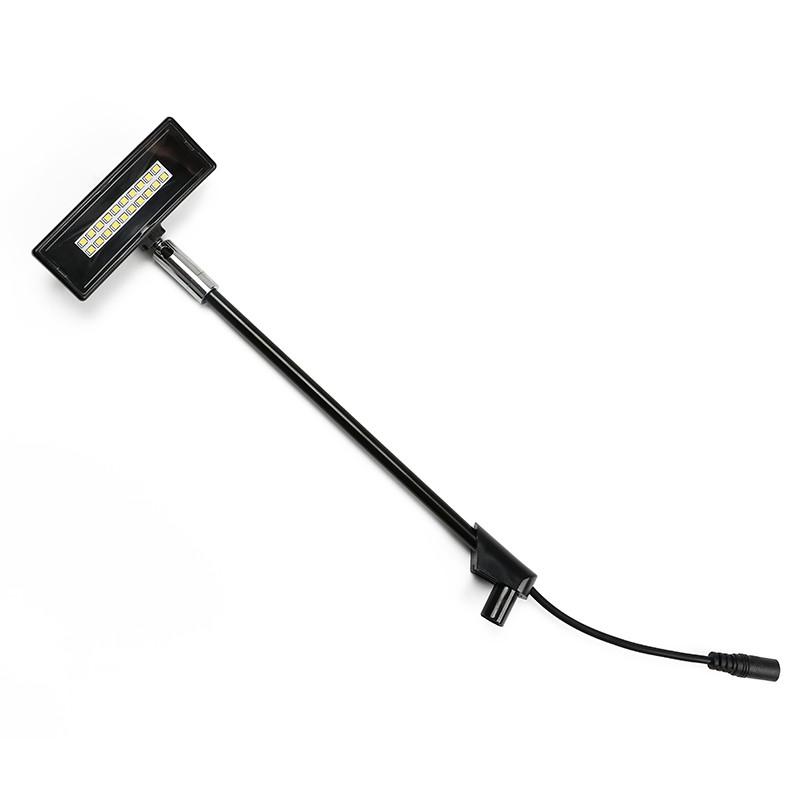

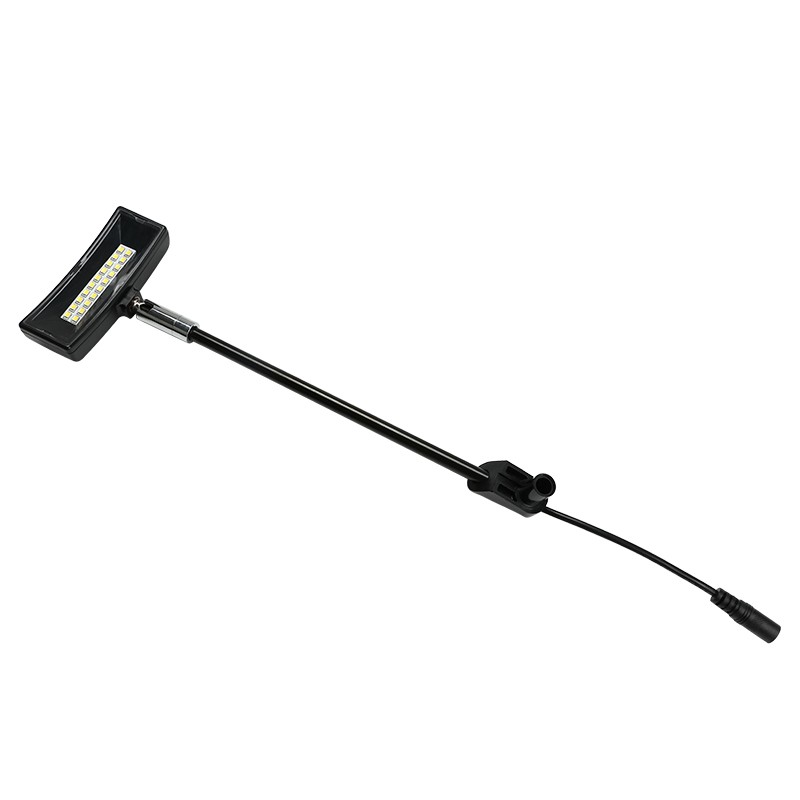

The SL-2086-20L is a compact 5W LED arm light for pop-up display panels and exhibition graphics. It combines a 500 lm output with a 120° beam, an adjustable head and a DC connector. Its separate wall-plug power supply keeps the electrical connection outside the lamp head.
For portable-display suppliers, the key choices are the frame fixing, white-light version and destination power plug. Share the panel dimensions and intended lamp positions to check the lighting arrangement. A sample can help confirm the fit and appearance before a bulk order.

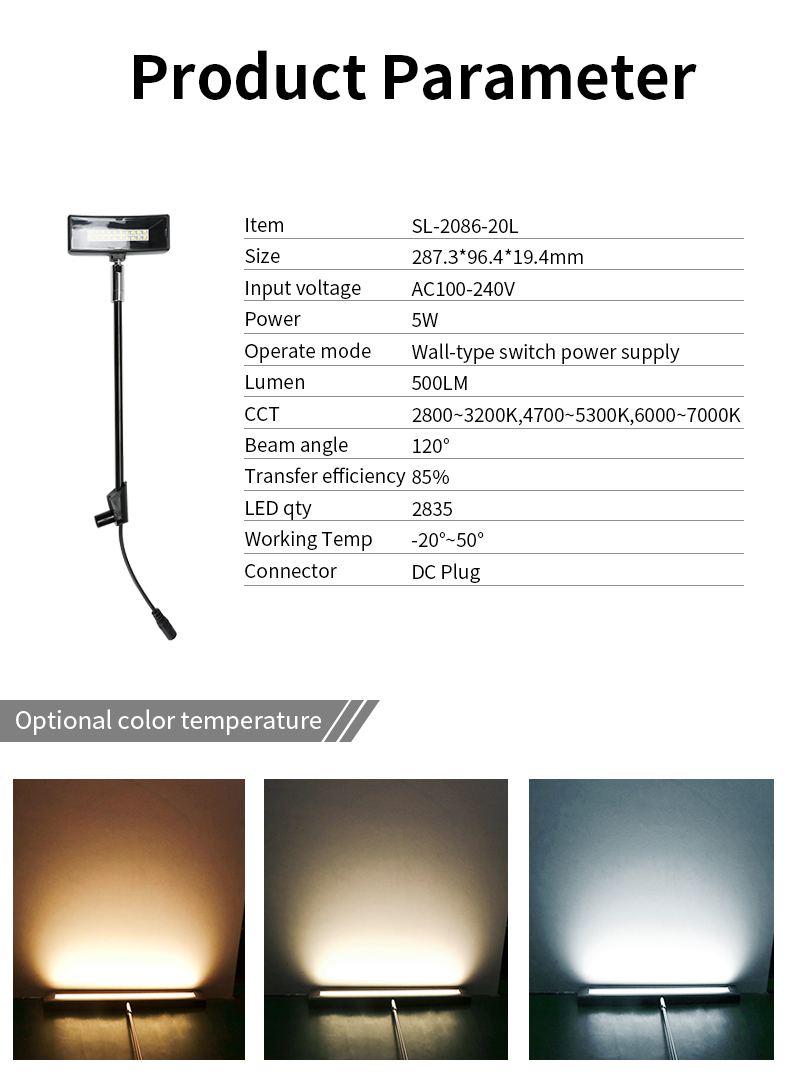

5W compact display-light specifications
| Specification | SL-2086-20L |
|---|
| Model | SL-2086-20L |
| Power | 5W |
| Light output | 500 lm |
| Beam angle | 120° |

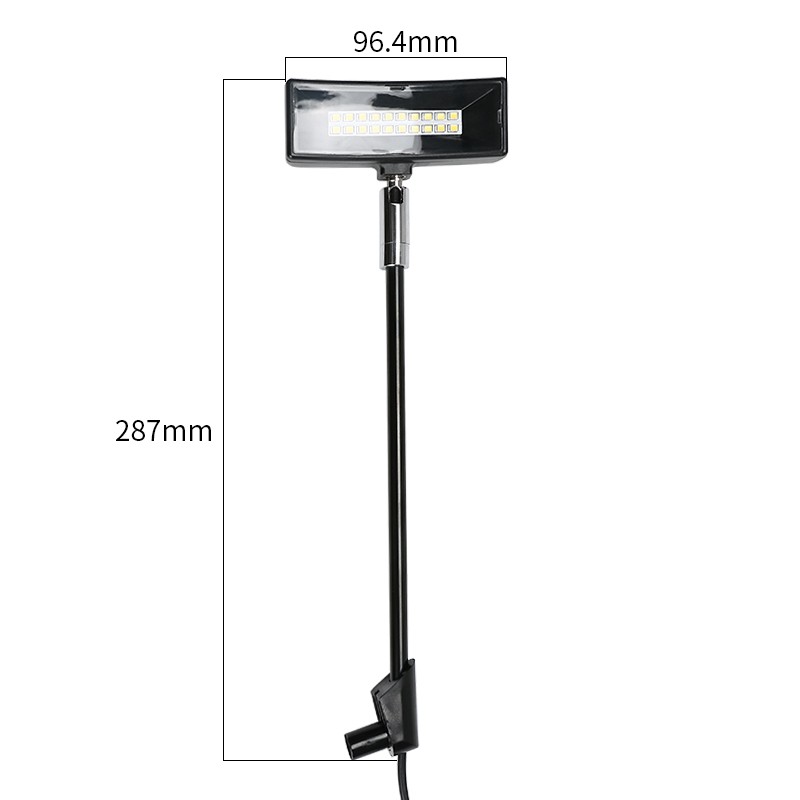

| Dimensions listed | 287.3 × 96.4 × 19.4 mm |

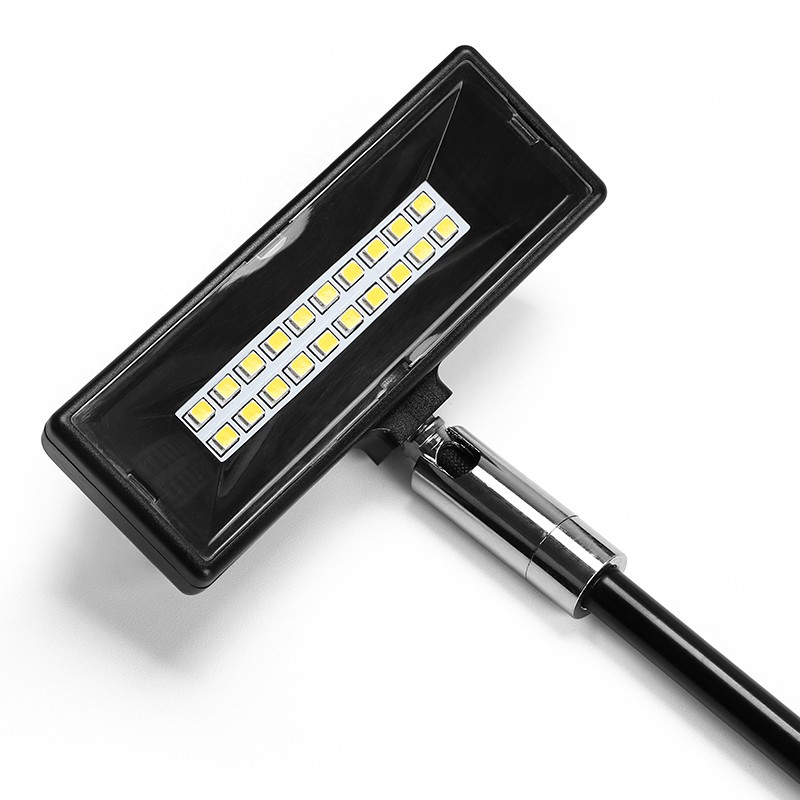

| LED package | 2835 |
| White-light order choices | 2800–3200K / 4700–5300K / 6000–7000K |

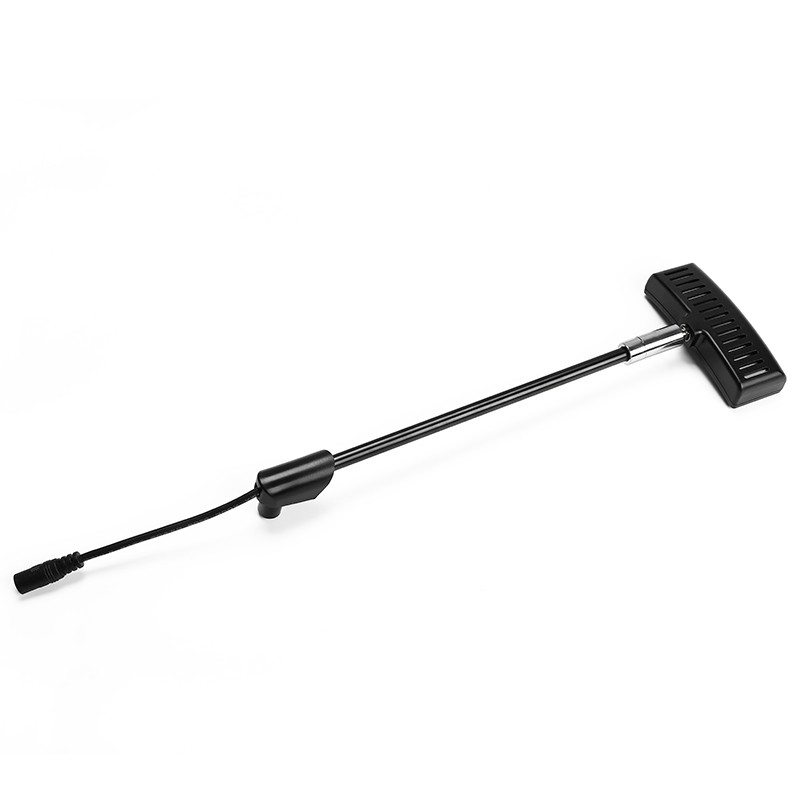

| Lamp connector | DC plug |
| Power supply | Separate wall-plug switching power supply |
| Supply input range listed | AC 100–240V; confirm the matching DC output for the lamp |

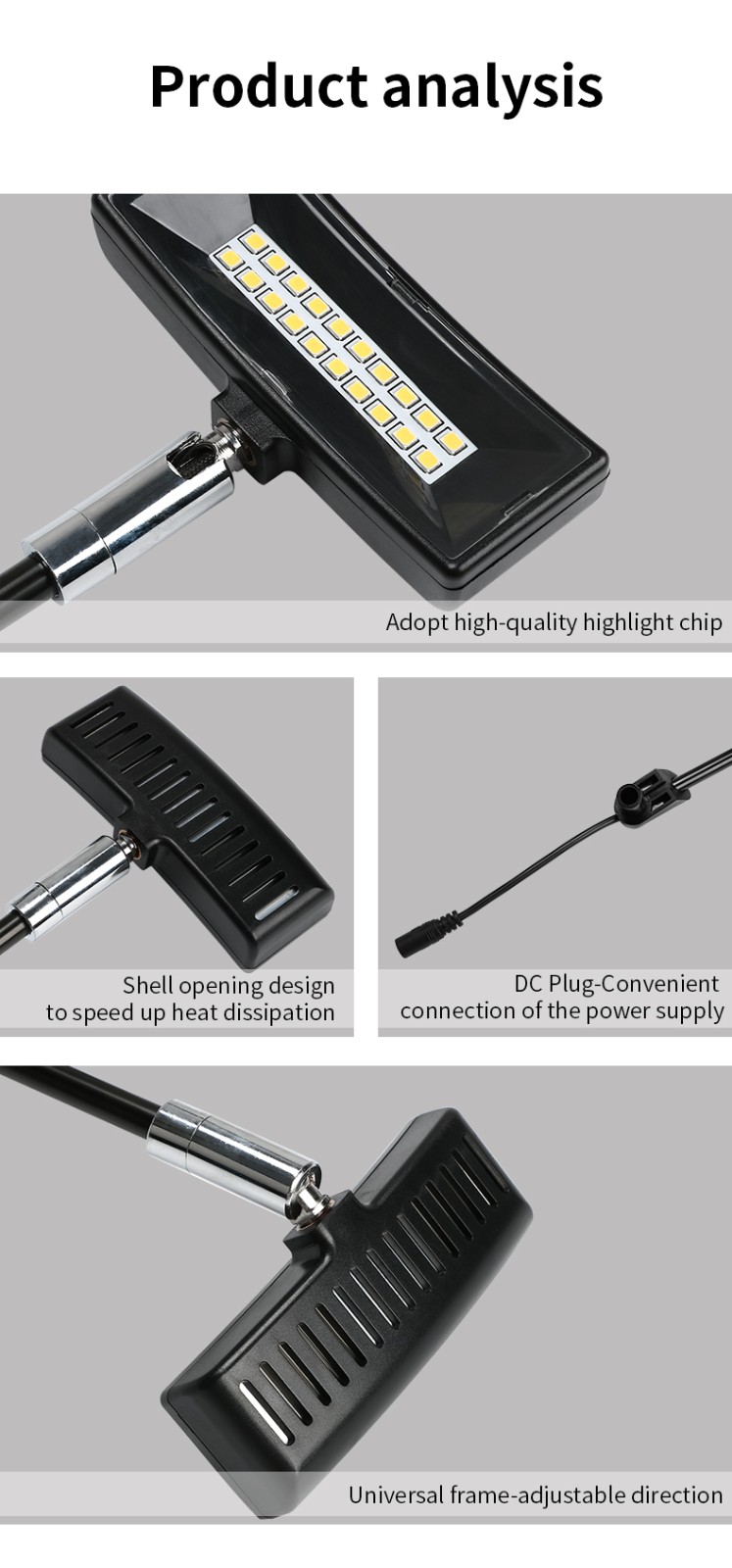

| Head adjustment | Adjustable joint; rear ventilation openings |

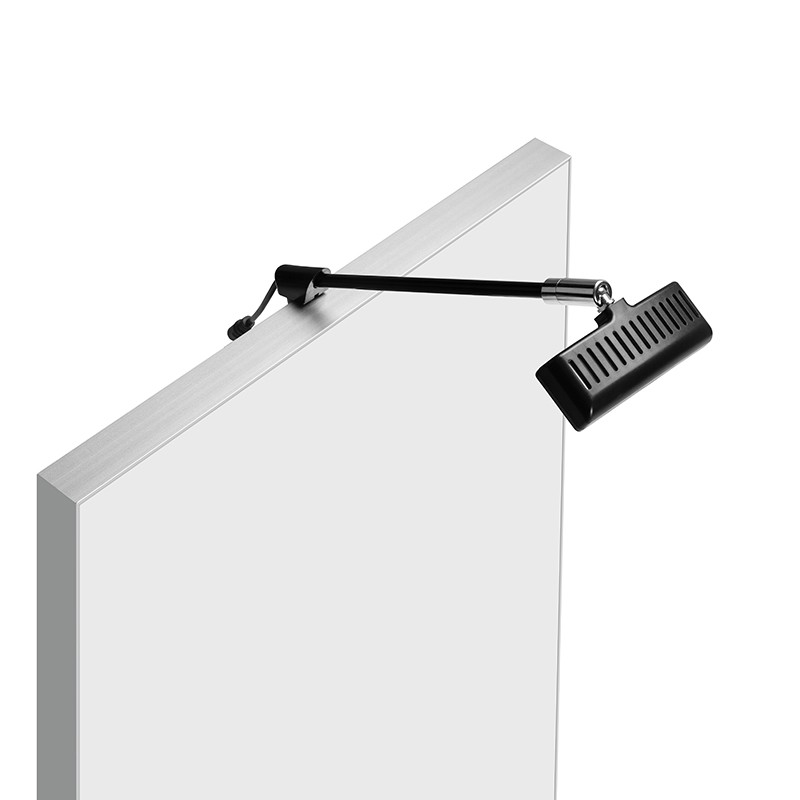

| Mounting | Frame fixing shown; confirm fit against the actual display profile |

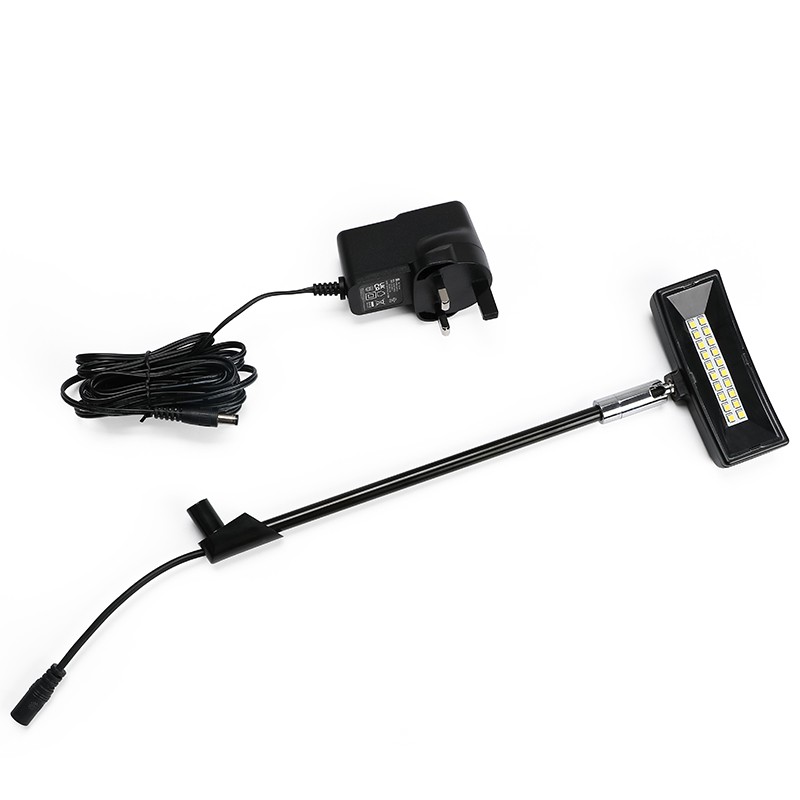

Match the DC connector and wall-plug supply
Use the lamp with its matching external power supply. The specification lists AC 100–240V together with a wall-plug supply, while the lamp lead uses a DC connector. Confirm the adapter output, connector fit, cable length and destination plug for the complete kit before ordering.

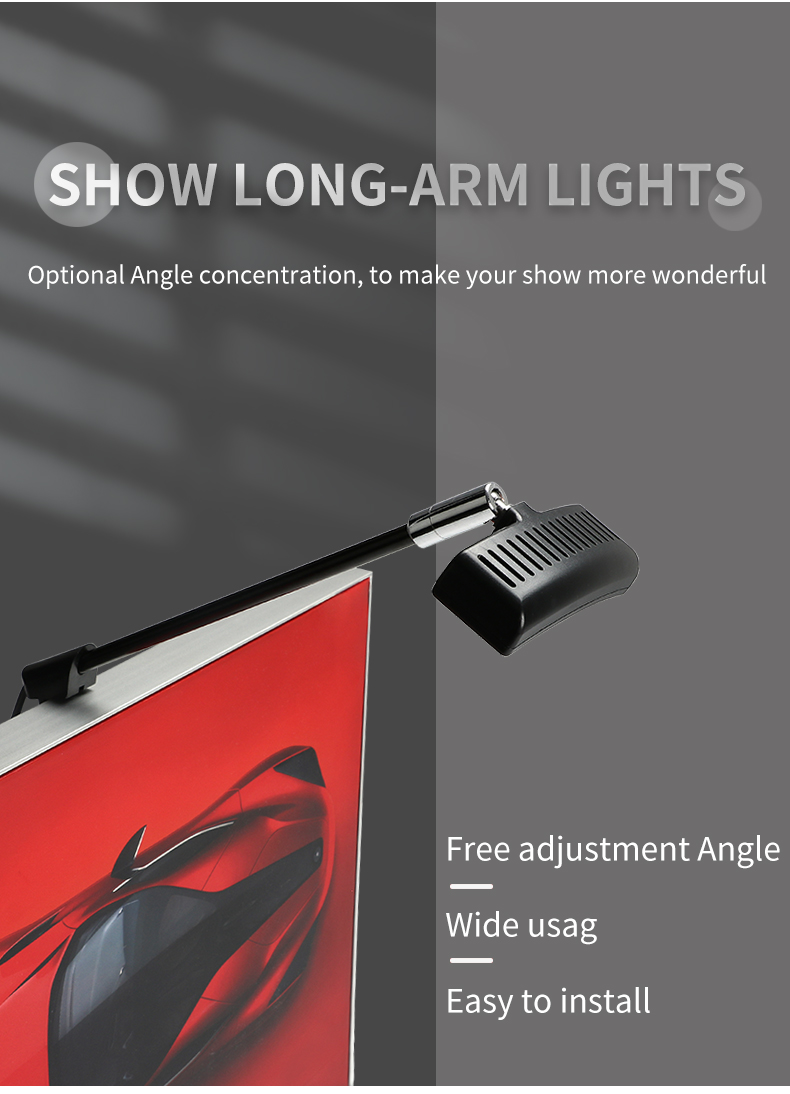

Position the head above the graphic

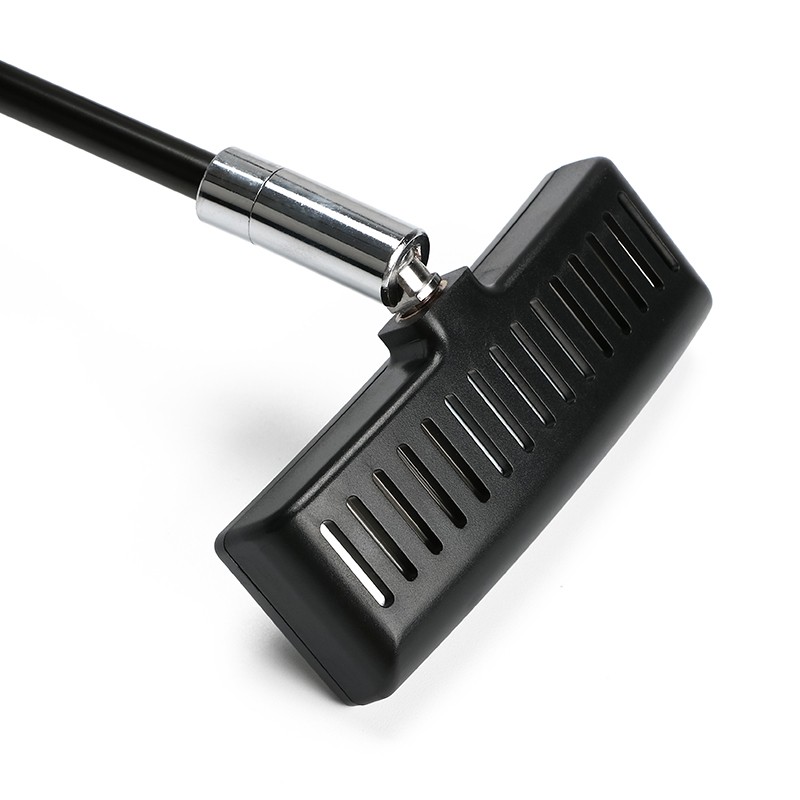

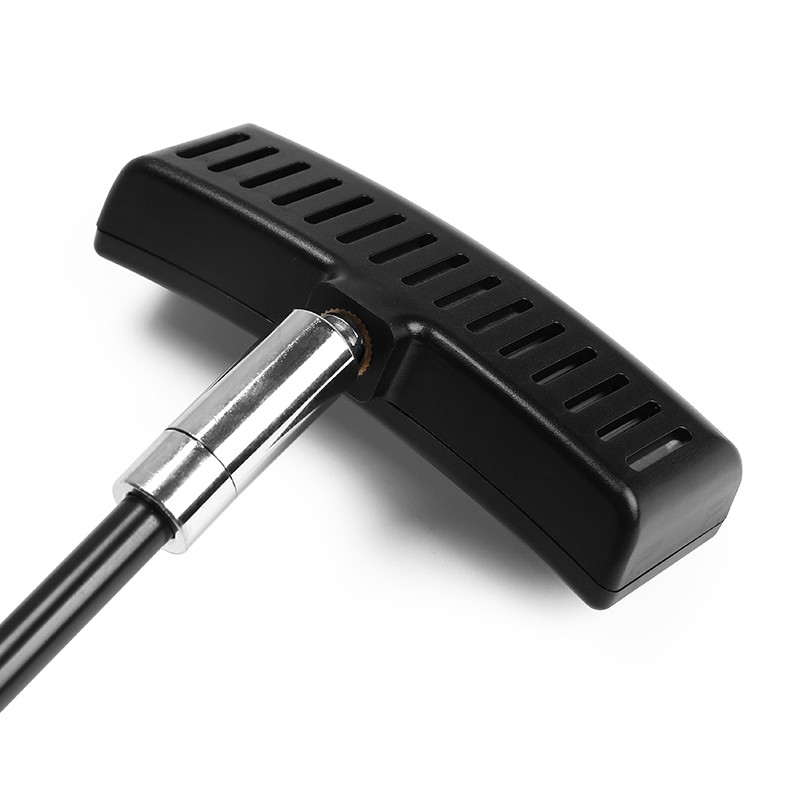

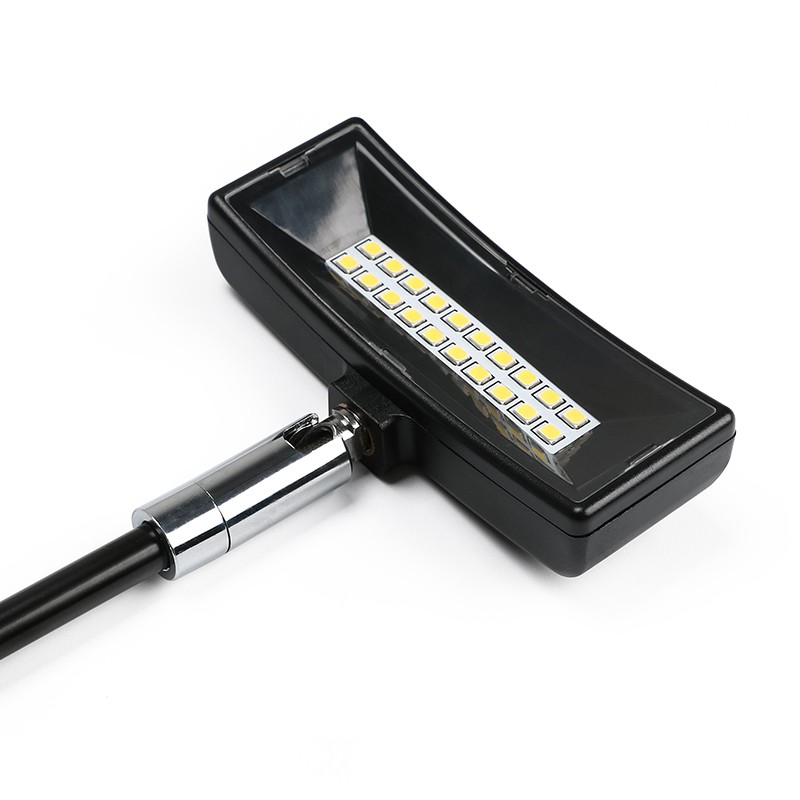

The compact head has an adjustable joint and ventilation openings at the rear. Aim the light at the printed panel, then assess the coverage from the intended mounting position. Send the display-frame profile and fixing dimensions to check mechanical compatibility.
Prepare a portable-display lighting kit

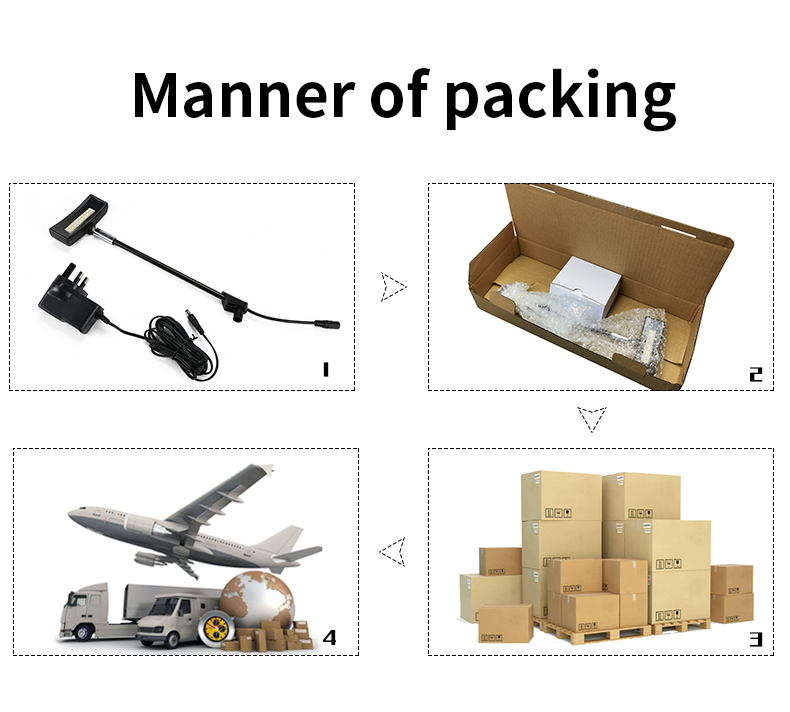

The packing example shows a lamp with a separate wall-plug adapter and protective carton. Specify the number of lamps per kit, adapter plug, lead length and packaging requirements. OEM, ODM and private-label enquiries are supported for the lighting and packing configuration.
Questions for compact pop-up light procurement
Which white-light versions can I request?
Choose from the specified ranges: 2800–3200K, 4700–5300K or 6000–7000K. State the required version for your display graphics and check its appearance with a sample.
Does the DC connector take mains power directly?
The DC lamp connector is used with the matching external supply. Send the destination country and required lead layout so the supply input plug and lamp-side electrical configuration can be confirmed.
Can I order a sample before supplying display kits?
Samples are available for checking the fixing, power supply and lighting appearance. Confirm the sample configuration, cost and shipping with the enquiry. Wholesale orders start from 20 pcs; larger quantities receive lower unit prices.
Bulk supply planning
Standard lead time is 12–18 days. Include model SL-2086-20L, quantity, colour-temperature version, frame profile, power plug and packing requirements in the enquiry. Confirm custom production schedules and transit separately.
