Silver arm spotlights for exhibition graphics

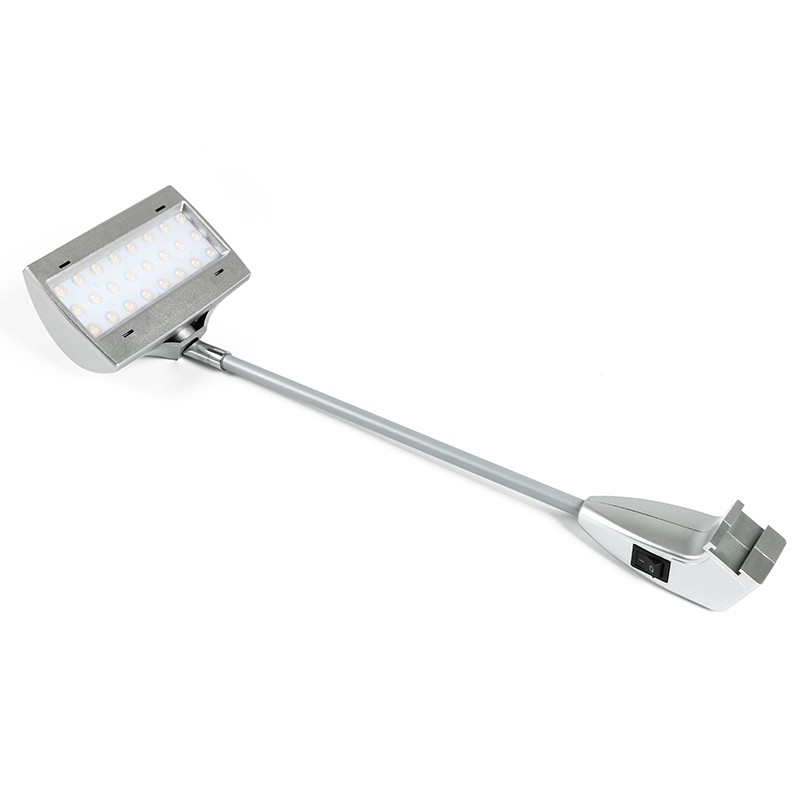

The SL-2085-N24L is an 18W silver display arm spotlight with 1800 lm output ±10% and a 60° beam. A rectangular LED head, built-in driver and base on/off switch give display contractors a compact lighting format for exhibition panels. The electrical specification lists AC 100–240V and a B-shape connector.
Choose this model when the silver head and base suit the display structure and a 60° beam matches the graphic layout. Confirm the fixing, colour-temperature version and destination power lead before placing a wholesale order.

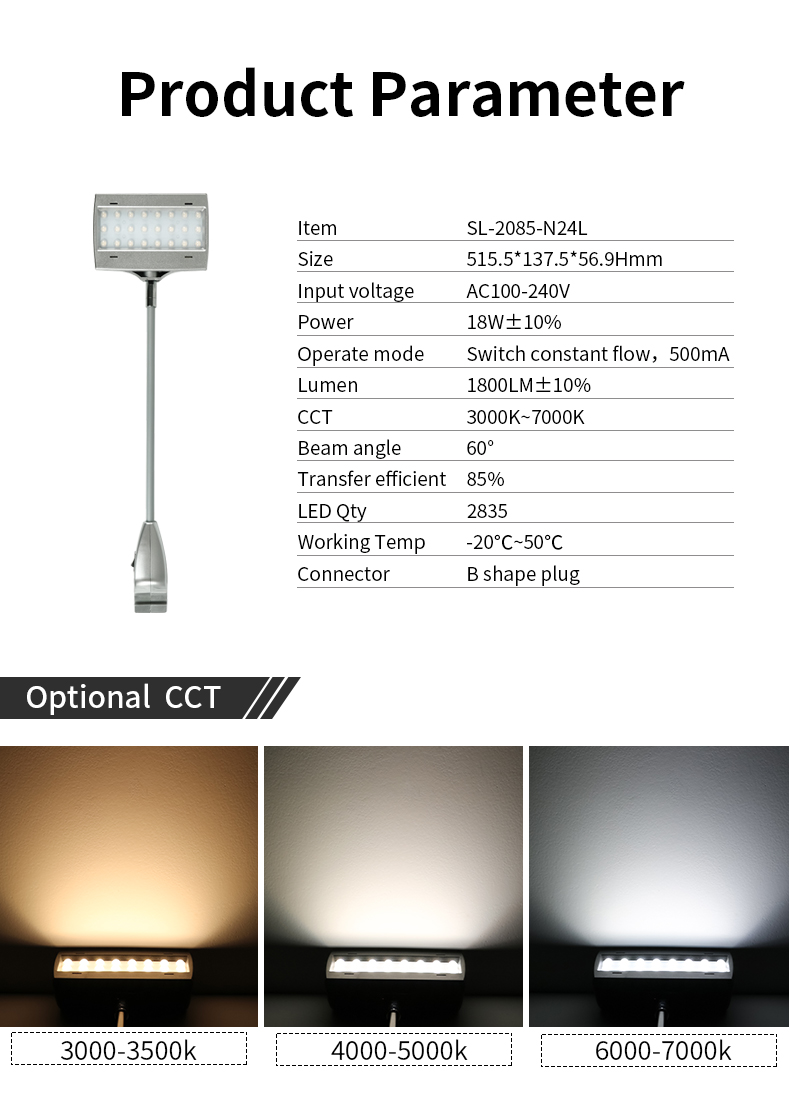

18W silver spotlight technical data
| Specification | SL-2085-N24L |
|---|
| Model | SL-2085-N24L |
| Power | 18W ±10% |
| Light output | 1800 lm ±10% |
| Input voltage | AC 100–240V |
| Beam angle | 60° |

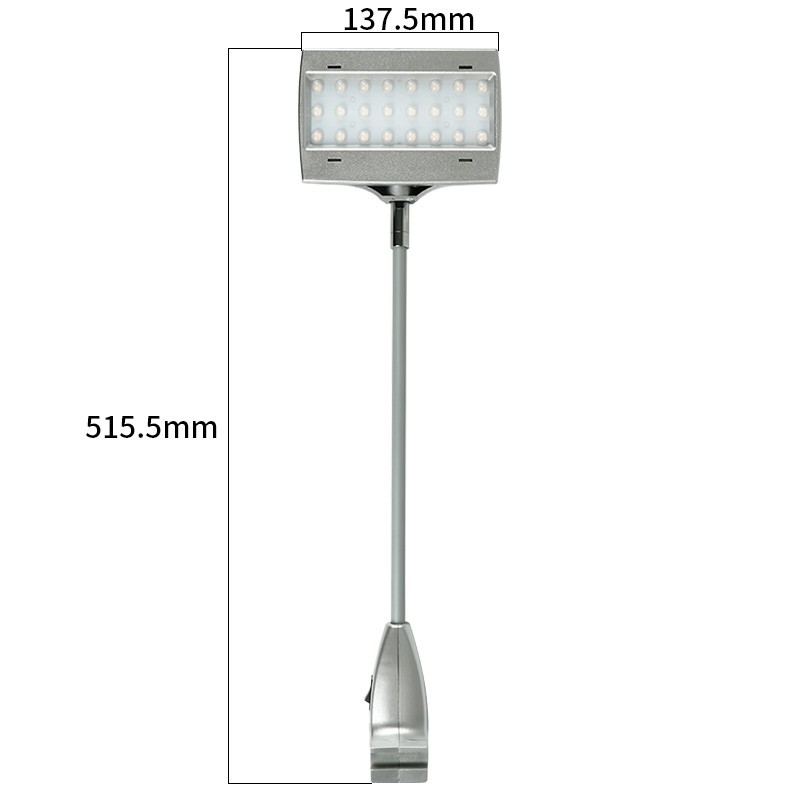

| Dimensions | 515.5 × 137.5 × 56.9 mm |
| LED package | 2835 |
| White-light order choices | 3000–3500K / 4000–5000K / 6000–7000K |
| Connector | B-shape plug |
| Power and control | Built-in driver; base on/off switch |
| Finish featured | Silver head and base |
| Optional fittings | Forward slider, reverse slider, 0505 or 0509 aluminium clamp, 0520 plate |
Select a fixing for the display frame

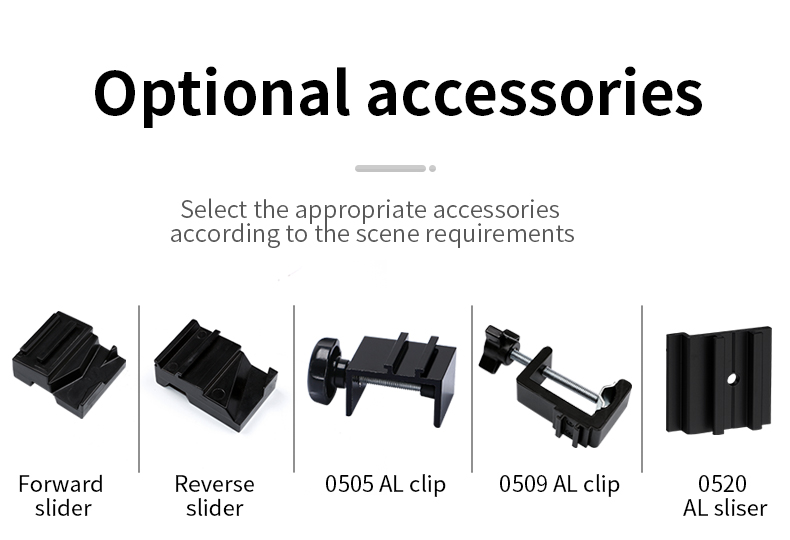

Forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate are illustrated as fitting choices. Provide the frame section and mounting dimensions so the correct arrangement can be selected. Confirm the fittings included in your kit with the quotation.

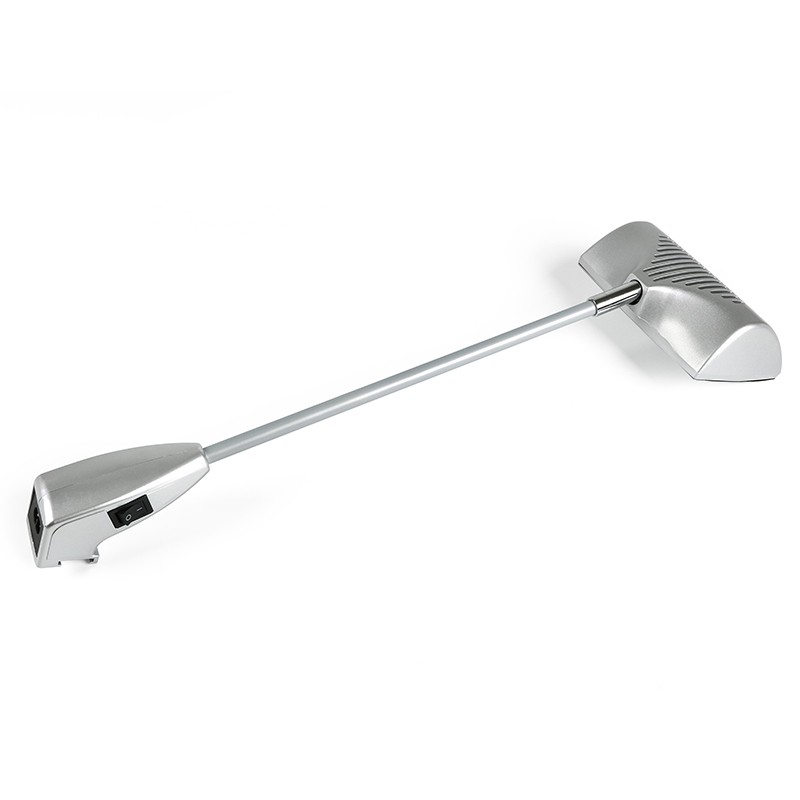

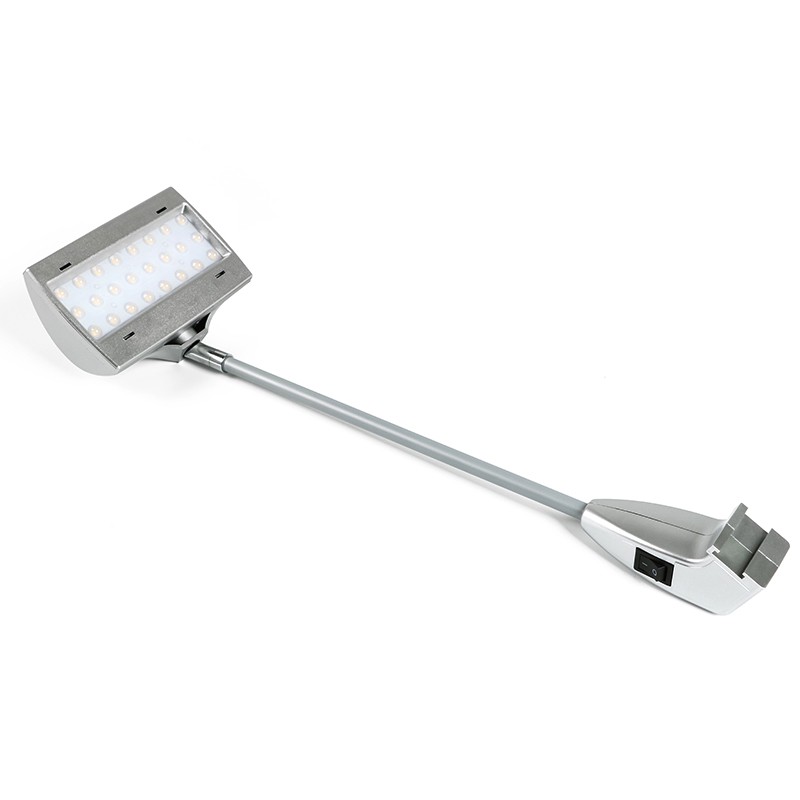

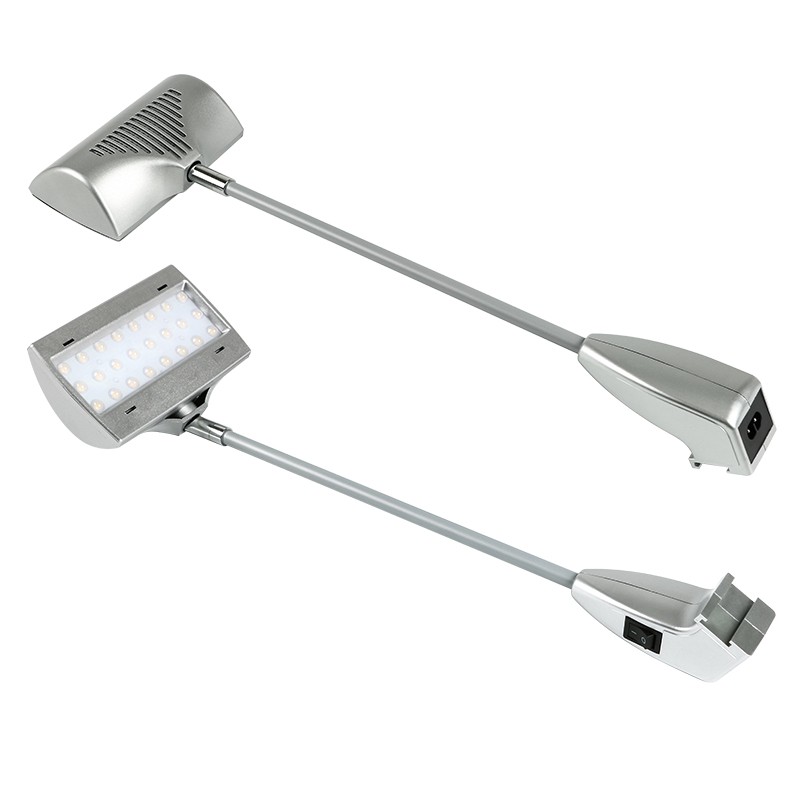

Rectangular head with base on/off control

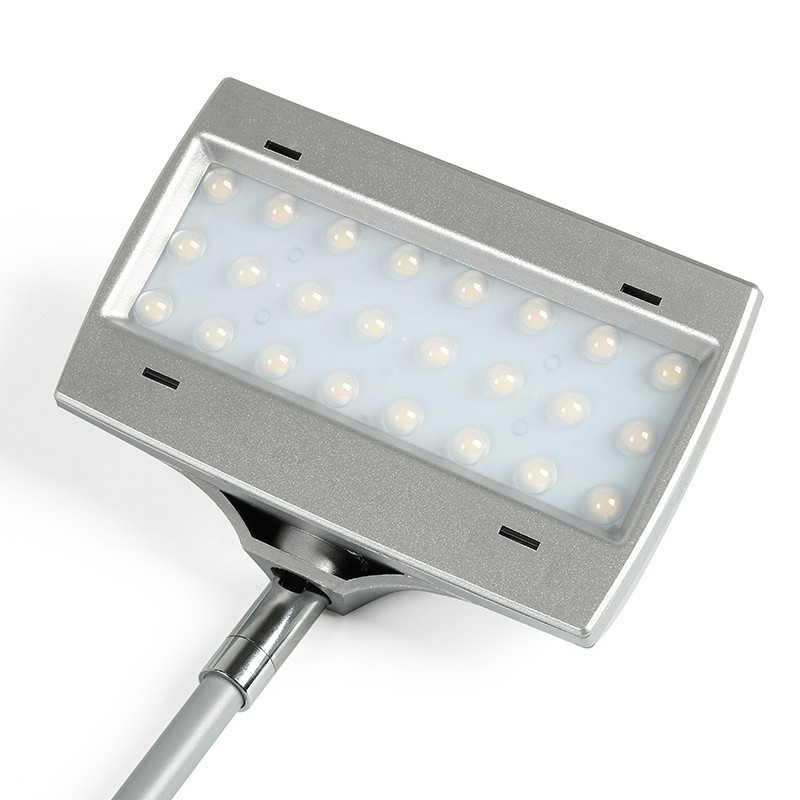

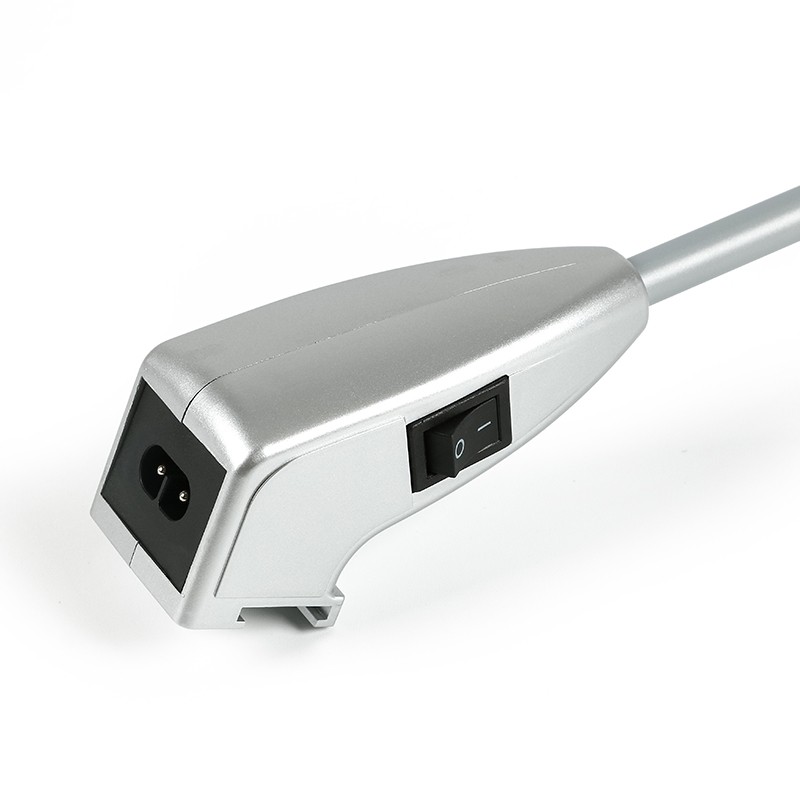

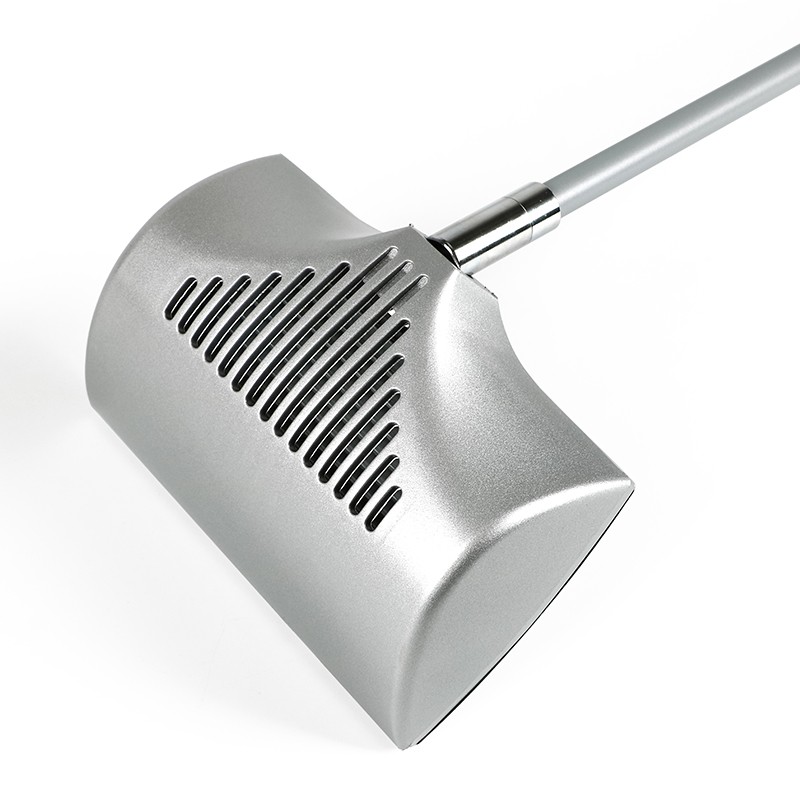

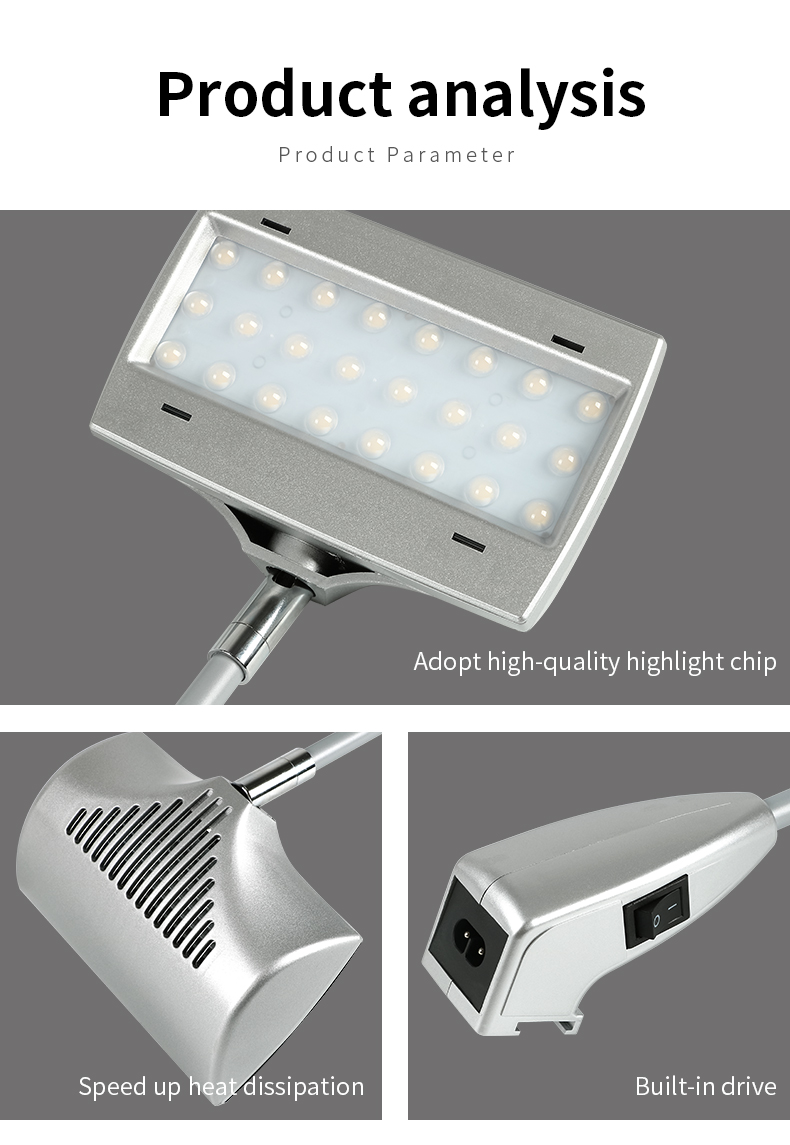

Aim the adjustable rectangular head toward the graphic surface. Rear ventilation slots and the integrated driver are shown in the product close-ups. The switch at the base controls on/off operation; specify the warm, neutral or cool white version when ordering.

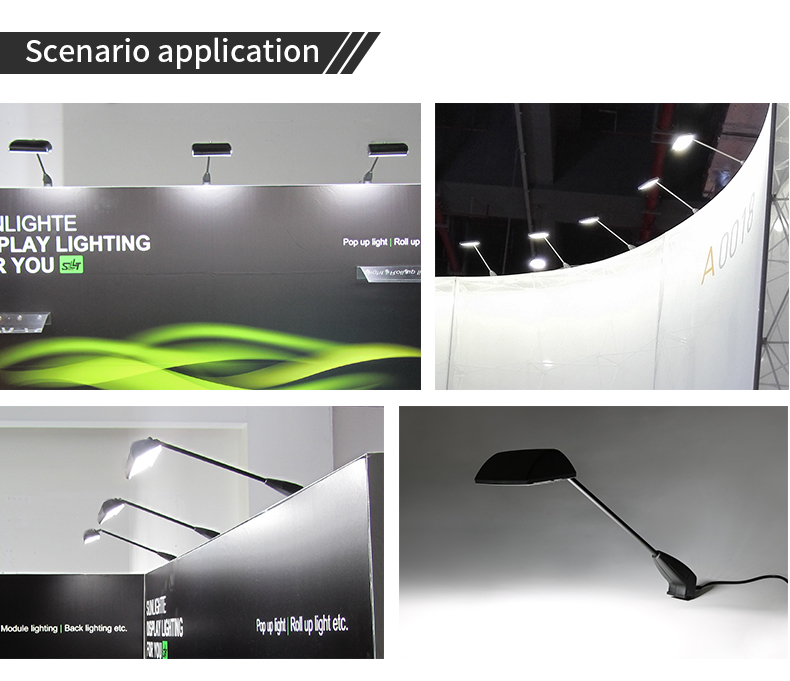

Exhibition panel layout and protective packing

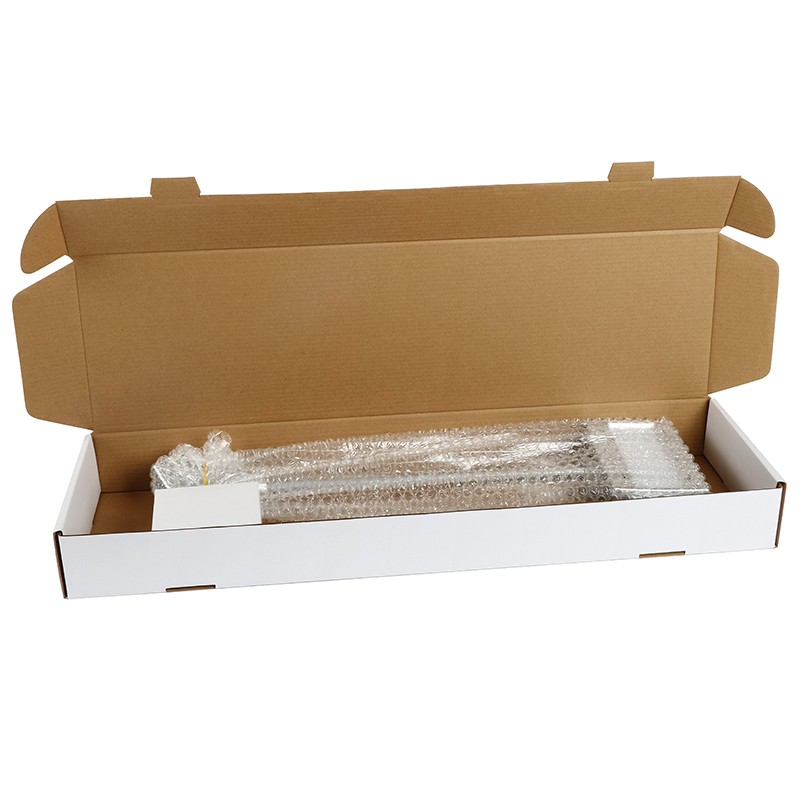

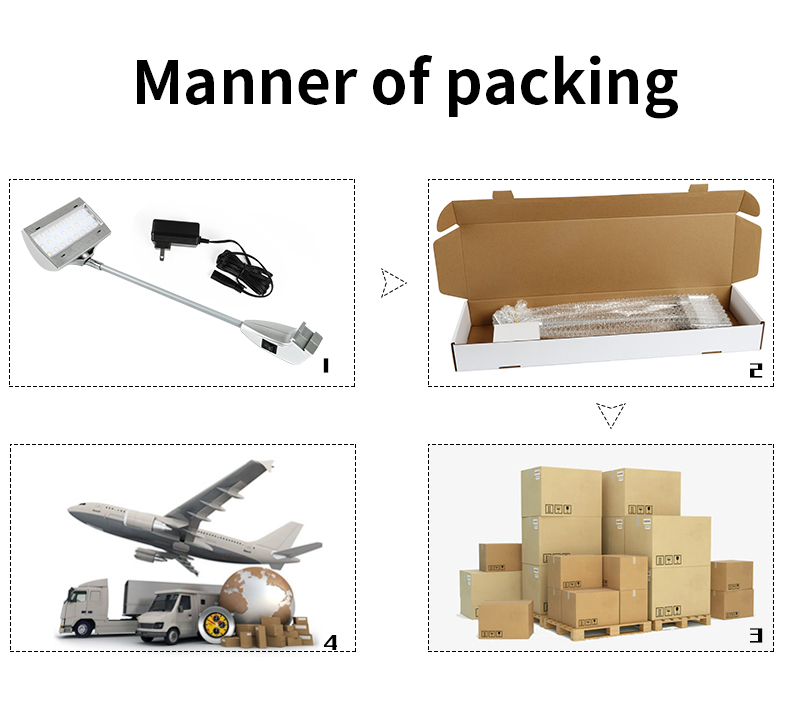

Use the actual graphic dimensions and mounting positions to decide lamp quantity and spacing. Check the lighting appearance on a sample panel before specifying a larger project. The packing example shows the silver lamp and power lead with protective wrapping and a carton; agree the lead length, kit contents and carton quantity with the order.
Buying questions for silver display arm lights
Which dimensions should I use to check frame fit?
Use the specified 515.5 × 137.5 × 56.9 mm dimensions together with the actual fixing and frame profile. Send a frame drawing or measurements so the clamp or slider arrangement can be checked.
Does the switch change colour temperature?
The base switch provides on/off control. The white-light options are separate order versions: 3000–3500K, 4000–5000K or 6000–7000K. Specify the version that matches the graphics and surrounding stand lighting.
What is needed for an 18W spotlight wholesale quotation?
Include model SL-2085-N24L, quantity, white-light version, mounting choice, destination plug and packing or private-label requirements. The minimum wholesale quantity is 20 pcs, with lower unit prices for larger orders.
Samples, production and custom branding
Samples are available for checking the silver finish, fixing and beam on a display panel. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; confirm custom schedules, sample cost, shipping and transit separately.
